A3LML2165WMono Laser Printer

BASIC User’s Guide ML-216x Series ML-216xW Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 4 Features by models 6 Useful to know 8 About this user’s guide 9 Safety information 10 Machine overview 15 Control panel overview 18 Turning on the machine 20 Installing the driver locally 21 Reinstalling the driver 22 2. Menu overview and basic setupPrinting a demo page 24 Media and tray 25 Basic printing 34 3. MaintenanceOrdering supplies and accessories 38 Available supplies 39 Available maintenance parts 40 Storing the toner cartridge 41 Redistributing toner 43 Replacing the toner cartridge 44 Cleaning the machine 46 Tips for moving & storing your machine 49 4. TroubleshootingTips for avoiding paper jams 51 Clearing paper jams 52 Understanding the status LED 55 5. AppendixSpecifications 59 Regulatory information 68 Copyright 78 1. IntroductionThis chapter provides information you need to know before using the machine.• Key benefits 4 • Features by models 6 • Useful to know 8 • About this user’s guide 9 • Safety information 10 • Machine overview 15 • Control panel overview 18 • Turning on the machine 20 • Installing the driver locally 21 • Reinstalling the driver 22 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports the Eco feature (see "Easy Eco Driver" on page 158). • To save paper, you can print multiple pages on a single sheet of paper (see "Using advanced print featu res" on page 140). • To save paper, you can print on both sides of the paper (manual double- sided printing) (see "Using advanced print features" on page 140). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Print with excellent quality and speed• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. - For single-side printing, 20 ppm (A4) or 21 ppm (Letter). Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard G (see "Understanding Easy Capture Manager" on page 159). • Samsung Easy Printer Manager and Samsung Print er Status (or Smart Panel) are a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 163). • AnyWeb Print helps you screen-captur e, preview, scrap, and print the screen more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 157). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows OS users. • If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 61). • Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 140). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 140). • You can print in various operating systems (see "System requirements" on page 64). • Your machine is equipped with a USB interface. Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button - You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). • Using the USB cable or a network cable - You can connect and set various wireless network settings using a USB cable or a network cable. • Using the Wi-Fi Direct - You can conveniently print from your mo bile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 105. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System Software Operating System ML-216x Series ML-216xW Series Windows   Macintosh   Linux   Unix Software ML-216x Series ML-216xW Series PCL printer driverSPL printer driver   PS printer driverXPS printer driver   Samsung Easy Printer Manager   SyncThru™ Web Service  Features by modelsVariety feature (  : Included, Blank: Not available) Features ML-216x Series ML-216xW Series Hi-Speed USB 2.0   Network Interface Ethernet 10/100 Base TX wired LANNetwork Interface 802.11b/g/n wireless LAN  IPv6  Eco printing(Easy Eco Driver) a a. Setting the ECO settings is available from the windows driver.   Wi-Fi Protected Setup™ (WPS)  Manual duplex (2-sided) printing   Useful to know Where can I download the machine’s driver?• Visit www.samsung.com/printer to download the latest machine’s driver, and install it on your system. Where can I purchase accessories or supplies?• Inquire at a Samsung distri butor or your retailer. • Visit www.samsung.com/supplies. Select your country/region to view product service information. The status LED flashes or remains constantly on.• Turn the product off and on again. • Check the meanings of LED indica tions in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 55). A paper jam has occurred.• Open and close the top cover (see "Front view" on page 16). • Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Cle…

Text truncated - open the document above for the full version.

clocksFreq.clocksFreq. Main12MHzVideo23.571MHz CPU300MHzUSB12MHz

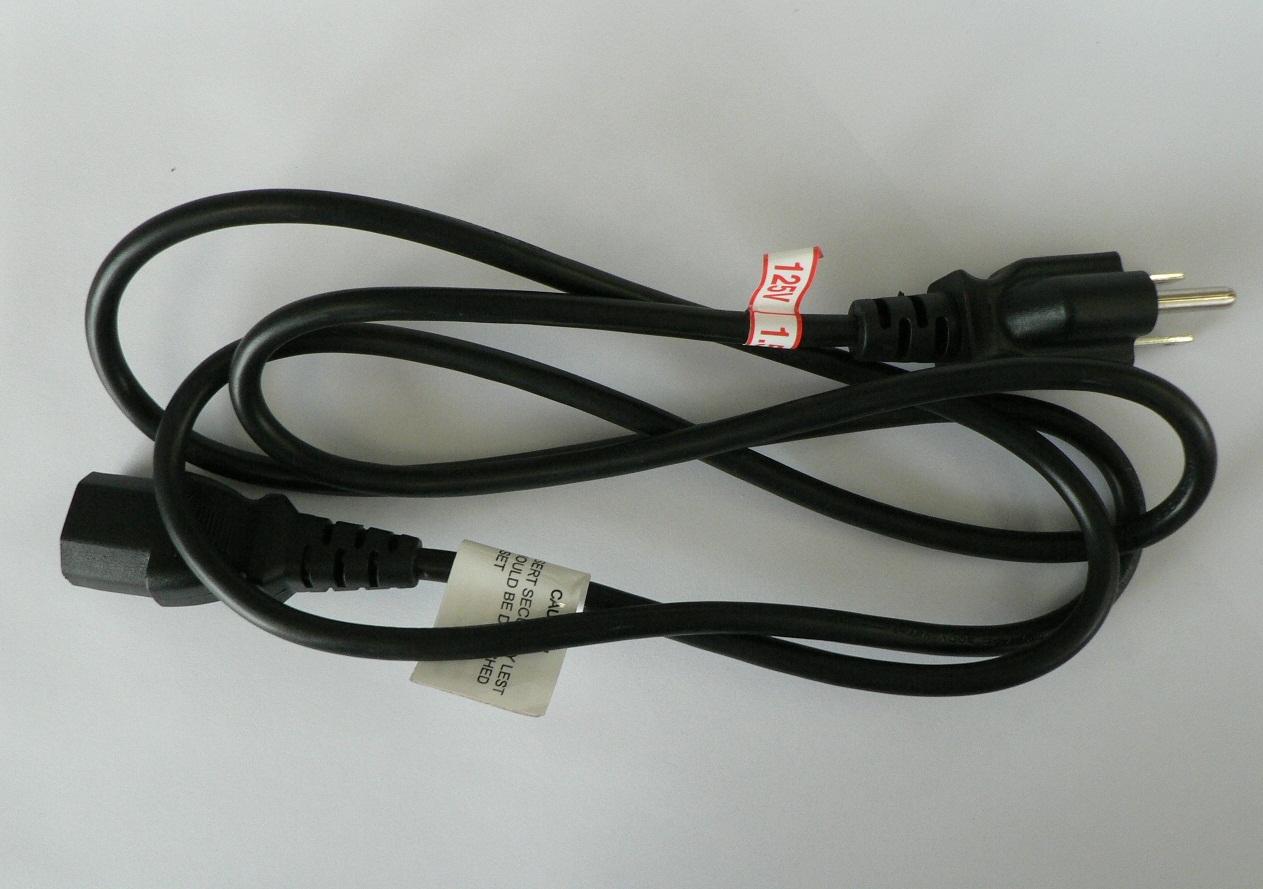

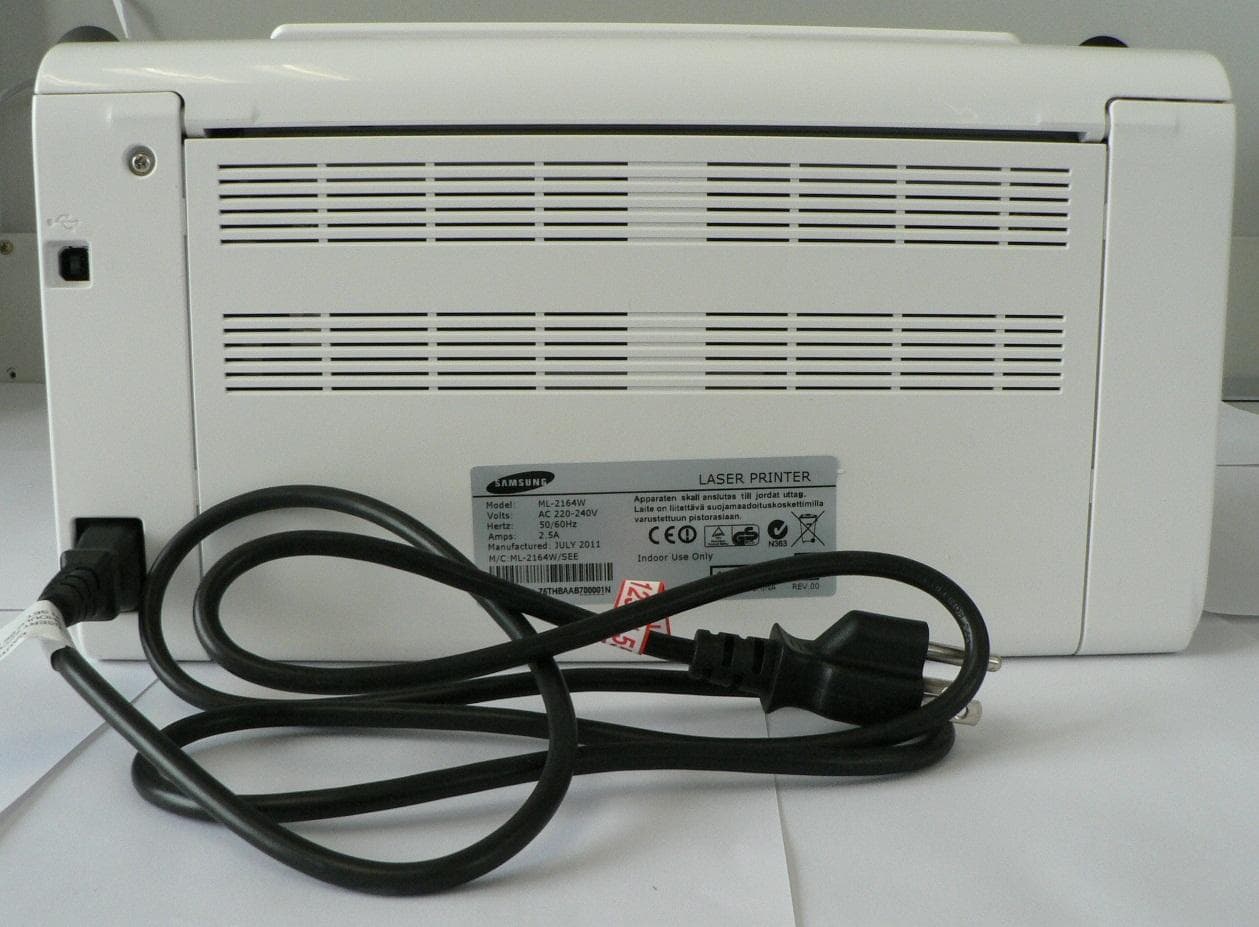

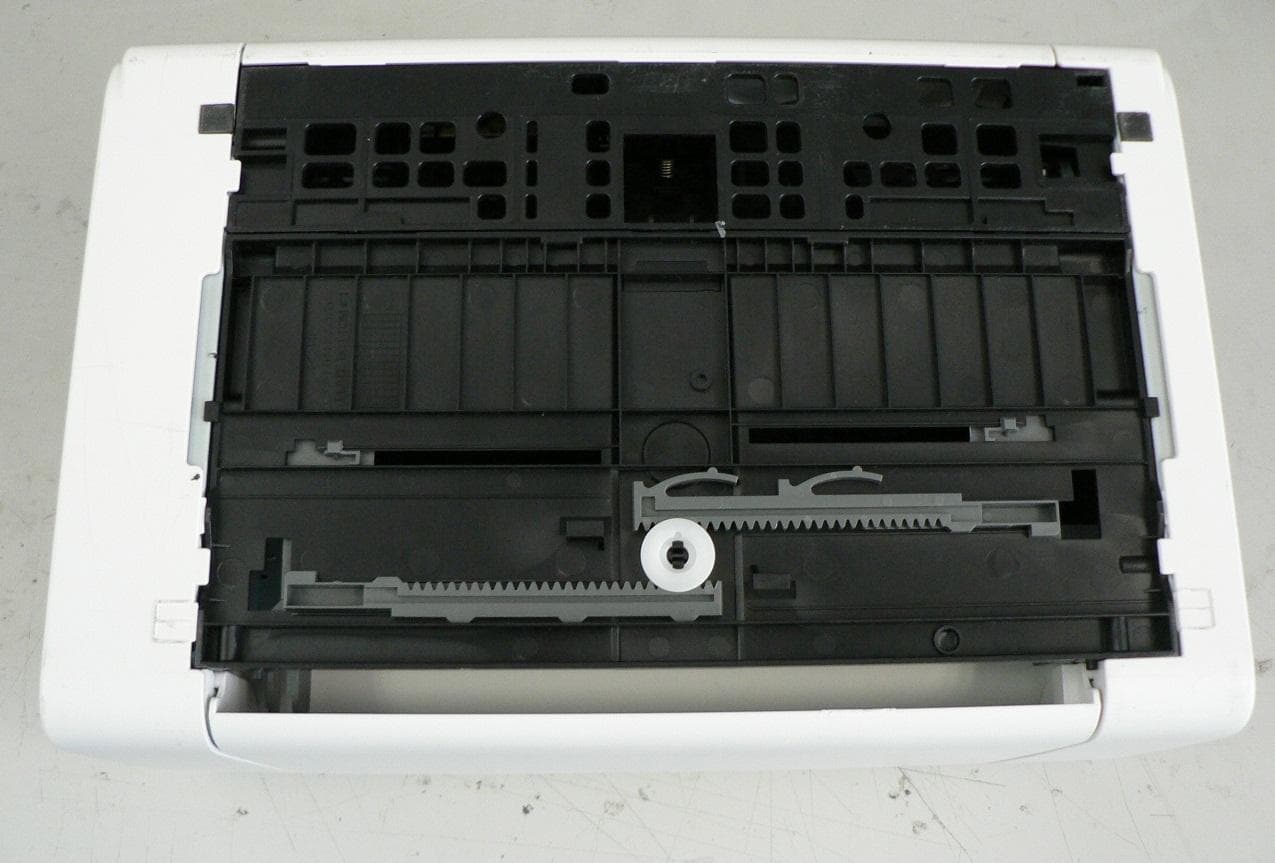

1. Printer Photo ML-2164W Printer_Front ML-2164W Printer_Rear ML-2164W SIDE_RIGHT ML-2164W SIDE_LEFT ML-2164W TOP VIEW ML-2164W Bottom VIEW ML-2164W Model Name ML-2164W Power Cord With Printer ML-2164W Power Cord

Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -24/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View with label location Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -27/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Label

2. Internal Printer Photo ML-2164W Printer_Front ML-2164W Printer_Rear ML-2164W SIDE_RIGHT ML-2164W SIDE_LEFT ML-2164W TOP VIEW ML-2164W Bottom VIEW 3. PBA Photo ML-2164W Main PBA_Top ML-2164W Main PBA_Bottom SUNGHO, BluejayV1 ML-2164W SMPS & HVPS PBA_Front SUNGHO, BluejayV1 ML-2164W SMPS & HVPS PBA_Rear SHANDONG, BluejayV1 ML-2164W SMPS & HVPS PBA_Front SHANDONG, BluejayV1 ML-2164W SMPS & HVPS PBA_Rear ML-2164W OPE PBA_Front ML-2164W OPE PBA_Rear

-1/27- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20113594 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application July 07, 2011 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LML2165W Kind of product MONO LASER PRINTER Model No. ML-2164W Variant Model No. ML-2165W, ML-2166W Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd. Keji Road-268-1, Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period July 21, 2011 ~ July 24, 2011 Issue date September 08, 2011 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Sung Jin Sim Reviewed by : Tae Young, Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -2/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Summary of test results 1.1 Emission - 3page 2. General Information 2.1 Test facility - 4 page 3. Test configuration 3.1 Test configuration - 4 page 3.2 EUT operating mode(s) - 6 page 3.3 Details of Sampling - 6 page 3.4 Clock Frequencies - 6 page 3.5 EUT Description - 7 page 3.6 Test configuration and condition - 8 page 3.7 Measurement uncertainty - 8 page 4. Result of individual tests 4.1 Conducted disturbance - 9 page 4.2 Radiated disturbance - 15 page Appendix – EUT photography - 24 page Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -3/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -4/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 2. General Information 2.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 3. Test Setup configuration 3.1 Test configuration 3.1.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A Mono laser printer ML-2164W - SAMSUNG EUT B Laptop PC NP-R55 232V93BP200005N SAMSUNG DoC C Adapter ADP-60ZH D AD-6019R CNBA4400242ABZ0408J0857 Delta electronics DoC D USB mouse SMH-210U M2UWTAKQA6997V Monterey international DoC E Head set COV903 - COSY - Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -5/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.1.2 Test cables No. Connected cable Length [m] Shielded [Y/N] Note 1 Power 1.8 No For EUT 2 Power 1.0 No For laptop PC 3 USB 1.5 Yes From laptop PC to EUT 4 USB 1.8 Yes From laptop PC to Mouse 5 Audio 2.0 No From laptop PC to Headphones 3.1.3 Test arrangement Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -6/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Standby Operating Mode 2 Wireless LAN Printing 3.3 Details of Sampling Customer selected, single unit. 3.4 Clock Frequencies Kind of Clocks Frequency[MHz] Kind of Clocks Frequency[MHz] Main source clock 12 CPU internal clock 300 Video clock 23.571 USB device clock 12 Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -7/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor TEMUJIN(300 MHz) Standard System memory Embedded SDRAM core of ESMTwith 32 MB size Resolution True 1 200 x 1 200 dpi Paper Handling 150-sheet Cassette @ 80 g/㎡, 10-sheet @ Special Paper Power Rating 110 VAC~127 VAC, 5A, 50 Hz / 60 Hz Power Consumption Power save mode : 1.2 Watts Printing mode: MAX 310 Watts Printer Language SPL PC Interfaces USB 2.0, 802.11 b/g/n OS compatibility Windows 7/2000/XP(32/64bit)/2003(32/64bit)/Vista(32/64bit)/2008 Server(32/64bit) Various Linux OS: RedHat Enterprise Linux WS 4, 5 (32/64 bit) Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64 bit), SuSE Linux …

Text truncated - open the document above for the full version.

Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -10/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -18/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2.3 Photograph of Test Setup Front (Below 1GHz) Rear (Below 1GHz) Project No. : LBE20113594 MONO LASER PRINTER : ML-2164W -19/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1GHz) Rear (above 1GHz)
