A3LML2252WLaser Beam Printer

i This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to the use of this manual. © 2004 Samsung Electronics Co., Ltd. All rights reserved. •ML-2250, ML-2251N, ML-2252W and Samsung logo are trademarks of Samsung Electronics Co., Ltd. •PCL and PCL 6 are trademarks of Hewlett-Packard company. •IBM and IBM PC are trademarks of International Business Machines Corporation. •Microsoft, Windows, Windows 9x, Windows Me, Windows 2000, Windows NT and Windows XP are registered trademarks of Microsoft Corporation. •PostScript 3 is a trademark of Adobe System, Inc. •All other brand or product names are trademarks of their respective companies or organisations. ii C ONTENTS Chapter 1: I NTRODUCTION Special Features .................................................. 1.2 Printer Components ............................................. 1.5 Front View ..................................................... 1.5 Rear View ...................................................... 1.6 Understanding the Control Panel ............................ 1.7 On Line/Error and Toner Save LEDs ................... 1.7 Cancel button ................................................. 1.8 Chapter 2: S ETTING U P Y OUR P RINTER Unpacking .......................................................... 2.2 Selecting a Location ........................................ 2.3 Installing the Toner Cartridge ................................ 2.4 Loading Paper ..................................................... 2.7 Changing the Paper Size in the Paper Tray ......... 2.9 Connecting a Printer Cable ................................... 2.11 For Local Printing ........................................... 2.11 For Network Printing ...................................... 2.13 Turning the Printer On ......................................... 2.15 Printing a Demo Page .......................................... 2.16 Installing Printer Software ................................... 2.17 Printer Driver Features ................................... 2.18 Installing Printer Software in Windows .............. 2.19 Changing the Display Language ....................... 2.21 Reinstalling Printer Software ........................... 2.22 Removing Printer Software .............................. 2.23 Viewing the User’s Guide ..................................... 2.24 iii Chapter 3: U SING P RINT M ATERIALS Choosing Paper and Other Materials ....................... 3.2 Sizes and Capacities ....................................... 3.3 Guidelines for Paper and Special Materials .......... 3.4 Selecting the Output Location ................................ 3.5 Printing to the Top Output Tray (Face down) ...... 3.5 Printing to the Rear Output Tray (Face up) ......... 3.6 Loading Paper ..................................................... 3.7 Using Tray1 or the Optional Tray2 ..................... 3.8 Using the Multi-Purpose Tray ............................ 3.8 Using the Manual Feed Mode ........................... 3.12 Printing on Envelopes .......................................... 3.14 Printing on Labels ............................................... 3.17 Printing on Transparencies ................................... 3.19 Printing on Card Stock or Custom-sized Materials ....................................... 3.21 Printing on Preprinted Paper ................................. 3.23 Chapter 4: P RINTING T ASKS Printing a Document ............................................ 4.2 Cancelling a Print Job ...................................... 4.5 Using a Favorite Setting .................................. 4.6 Using Help ..................................................... 4.6 Setting Paper Properties ....................................... 4.7 Using the Toner Save Mode ................................... 4.9 Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ............................. 4.11 Printing a Reduced or Enlarged Document .............. 4.12 Fitting Your Document to a Selected Paper Size ...... 4.13 Printing Posters .................................................. 4.14 Using Watermarks .............................................. 4.15 Using an Existing Watermark ........................... 4.15 Creating a Watermark .................................... 4.16 Editing a Watermark ...................................... 4.17 Deleting a Watermark .................................... 4.17 Using Overlays ................................................... 4.18 What is an Overlay? ....................................... 4.18 Creating a New Page Overlay .......................... 4.18 Using a Page Overlay ..................................... 4.20 Deleting a Page Overlay ................................. 4.21 iv Setting Graphic Properties ................................... 4.22 Using Output Options .......................................... 4.25 Using the Status Monitor ..................................... 4.26 Installing Status Monitor ................................. 4.26 Reinstalling Status Monitor .............................. 4.27 Removing Status Monitor ................................ 4.27 Opening the Troubleshooting Guide .................. 4.27 Changing the Status Monitor Program Setting .... 4.28 About Sharing the Printer on a Network ................. 4.29 Setting Up a Locally Shared Printer ....................... 4.30 In Windows 9x/Me ......................................... 4.30 In Windows NT 4.0/2000/XP ........................... 4.31 Chapter 5: M AINTAINING Y OUR PRINTER Maintaining the Toner Cartridge ............................. 5.2 Redistributing Toner ........................................ 5.3 Replacing the Toner Cartridge .......................... 5.5 Cleaning the Printer ............................................. 5.5 Cleaning the Outside ...........................…

Text truncated - open the document above for the full version.

PRINTING TASKS 4.5 4 Cancelling a Print Job There are two ways to cancel a print job. To stop a print job from the control panel: Press the Cancel button on the control panel. The printer will finish printing the page that is moving through the printer and delete the rest of the print job. Pressing the button cancels only the current job in the printer. If more than one print job is in the printer memory, the button must be pressed once for each job. To stop a print job from the Printers folder: 1From the Windows Start menu, select Settings. 2Select Printers to open the Printers window, and double-click the Samsung ML-2250 Series icon. 3From the Document menu, select Cancel Printing (Windows 9x/Me) or Cancel (Windows NT 4.0/2000/XP).  Windows 98 PRINTING TASKS 4.6 Using a Favorite Setting The Favorites option, which is visible on each properties tab, allows you to save the current properties settings for future use. To save a Favorites item: 1Change the settings as needed on each tab. 2Enter a name for the item in the Favorites input box. 3Click Save. To use a saved setting, just select the item from the Favorites drop down list. To delete a Favorites item, select it from the list and click Delete. You can also restore the printer driver’s default settings by selecting <Printer Default> from the list. Using Help Your printer has a help screen that can be activated by the Help button in the printer’s properties window. These help screens give detailed information about the printer features provided by the printer driver. You can also click from the upper right hand corner, and then click on any setting. PRINTING TASKS 4.7 4 Setting Paper Properties Use the following options to set the basic paper handling needs when you access the printer properties. See page 4.2 for more information about accessing printer properties. Click the Paper tab to access various paper properties. PropertyDescription Copies Copies allows you to choose the number of copies to be printed. You can enter up to 999. Size The Size option allows you to choose the size of paper loaded in the tray. If the required size is not listed in the Size box, click Custom. When the Custom Page Size window appears, set the paper and click Ok. The size setting appears in the Size list so that you can select it. 1 2 3 4 5 1 2 Enter the custom name you want to use. Enter the paper size. PRINTING TASKS 4.8 Source Make sure that Source is set to the corresponding paper tray. The Manual Feed source is used when printing to special materials. You have to load one sheet at a time into the Multi-Purpose Tray. See page 3.12. If the paper source is set to Auto Select, the printer automatically picks up print materials according to the following order: Multi-Purpose Tray, Tray1, Optional Tray2. Type Make sure that Type is set to Printer Default . If you load a different type of print materials, select the corresponding paper type. For more information on print materials, refer to Chapter 3, "Using Print Materials." If you use cotton paper, set the paper type to Thick for the best printing. To use recycled paper, which weighs from 20lb to 24lb, or other colored paper, select Color paper. Different Source for First Page This property allows you to print the first page using a different paper type from the rest of the document. You can select the paper source for the first page. For example, load thick stock for the first page into the Multi-Purpose Tray, and plain paper into the Tray1. Then, select Tray1 in the Source option and Multi-Purpose Tray in the Different Source for First Page option. PropertyDescription 3 4 5 PRINTING TASKS 4.9 4 Using the Toner Save Mode Toner Save mode allows the printer to use less toner on each page. Using this mode will extend the life of your toner cartridge and reduce your cost per page, but will reduce the print quality. This setting is not available with the 1200 dpi setting. There are two ways to enable the Toner Save mode: From the Control Panel Press the Cancel button on the control panel. The printer must be in Ready mode (On Line/Error green LED is on). • If the Toner Save LED is on, the mode is enabled and the printer uses less toner to print a page. • If the Toner Save LED is off, the mode is disabled and the printer prints in the normal mode. PRINTING TASKS 4.10 From the software application 1When you change the print settings from your software application, access the printer properties. See page 4.2. 2Click the Graphics tab, and select the Toner Save option. You can select from: •Printer Setting: If you select this option, the Toner Save feature is determined by the setting you’ve made on the control panel of the printer. •On: Select this option to allow the printer to use less toner on each page. •Off: If you don’t need to save toner to print a document, select this option. 3Click OK. NOTE: The setting in the software application overrides that on the control panel. PRINTING TASKS 4.11 4 Printing Multiple Pages on One Sheet of Paper (N-Up Printing) You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will appear decreased in size and arranged on the sheet. You can print up to 16 pages on one sheet. 1To change the print settings from your software application, access the printer properties. See page 4.2. 2From the Layout tab, choose Multiple Pages per Side in the Type drop-down list. 3Select the number of pages you want to print per sheet (1, 2, 4, 9 or 16) in the Pages per Side drop-down list. 4Select the page order in the Page Order drop-down list, if necessary. Check Print Page Border to print a border around each page on the sheet. Print Page Border is enabled only if the pages per sheet is 2, 4, 9, or 16. 12 34 Right, Then Down 1 3 2 4 1 2 3 4 2 4 1 3 3 4 1 2 Down, Then Right Left, Then Down Down, Then Left PRINTING TASKS 4.12 5Click the Paper tab and select the paper source, size, and type. 6Click OK and print the document. Pr…

Text truncated - open the document above for the full version.

-+ GND

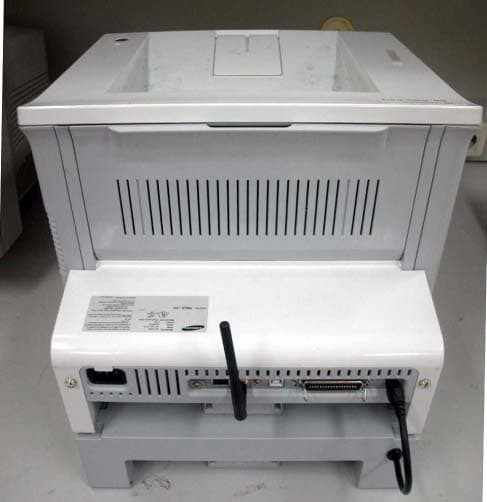

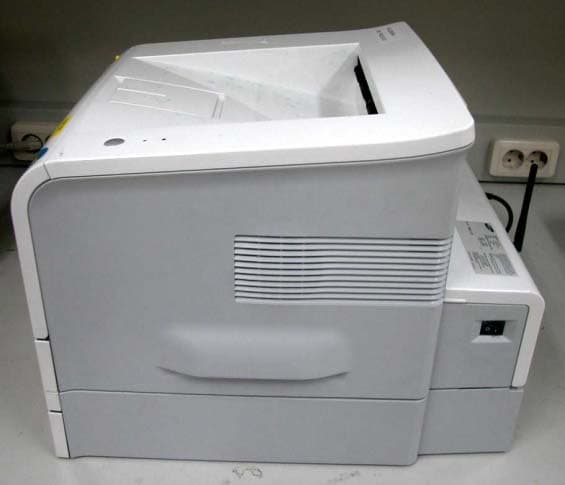

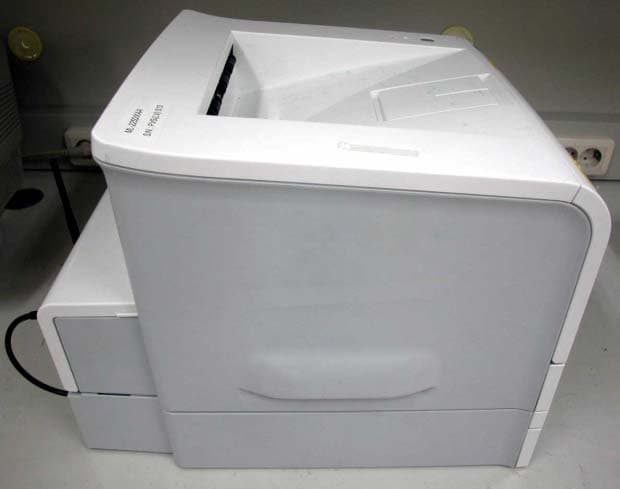

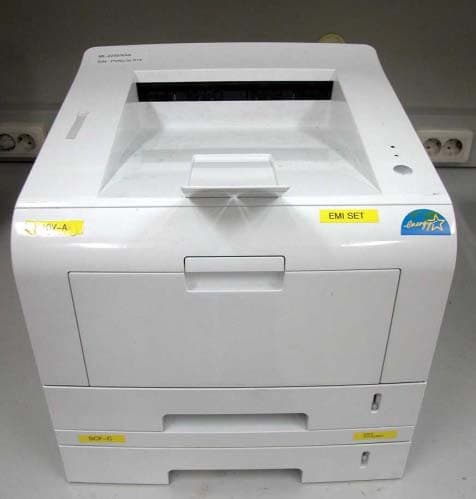

FrontViewofEUT Rear View of EUT Side View of EUT Side View of EUT

Label Location

TopViewofMainController Bottom View of Main Controller TopViewofSMPS+HVPS Bottom View of SMPS + HVPS Top View of SCF Board Bottom View of SCF Board Top View of ROM DIMM Bottom View of ROM DIMM Top View of RAM DIMM Bottom View of RAM DIMM Top View of N/W card Bottom View of N/W card Top View of WLAN module Bottom View of WLAN module

1 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE040736 Equipment under Test Laser Beam Printer Applicant Samsung Electronics Co. Ltd; 416 Maetan-3 Dong, YeoungTong-Ku, Suwon City, Kyungki-Do, Korea, 442-742 FCC ID A3LML2252W Product Name LBP Model Name ML-2252W Manufacturer Samsung Electronics Co. Ltd 259, Gongdan-Dong, Gumi-City, Kyung-Buk, 730-030, Korea Date of Test May 10, 2004 Issued Date May 10, 2004 Name/Position Signature Tested by CK KIM Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 2 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information Related Product 1.2 Detail Information Related Product 1.3 Operating Mode and Test Condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configurations 1.8 Applied Standards 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd; Model name ML-2252W Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeoung tong-Ku, Suwon City, Gyeonggi-Do, Korea, 443-742 Contact Person CK KIM Kind of product LBP Valiant list ML-2250, ML-2251N, ML-2251NP Manufacturer Samsung Electronics Co. Ltd; 259, Gongdan-Dong, Gumi-City, Kyung-Buk, 730-030 Korea New / Alternative / Permissive change Information This report is original report # 1.2 Detail Information related Product Specification Item Specification Remark Print speed Up to 20 ppm in A4 (22 ppm in Letter) Resolution Up to 1200 x 1200 dpi effective output First Printing Time 10 seconds Warm-up Time Less than 40 seconds Power Consumption 350W average during operation Less than 11W in sleep mode Noise Level Less than 39 dBA(Standby) Less than 51 dB (Printing) Toner Cartridge Life 5000 pages at ISO 19752 5% Coverage (Ships with 3000 pages starter Toner Cartridge) 4 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Power Rating AC 110~127V, 50/60Hz Weight 10 Kg (Including consumable) External Dimensions 358 x 452 x 278 mm (14.1" x 17.8" x 10.9") Emulation PCL6, SPL,IBM Pro-Printer, EPSON, PostScript 3(Option) Random Access Memory 16 MB (Max. 144 MB) Operating Frequency Wireless LAN 2.4GHz 5 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Test Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O port. Where applicable, peripherals were attached to the I/O cables. This EUT have Wireless Printing server function so Host PC link to EUT and transfer print file formation "H" character document continuously. 1.4 Test System Details 1.5 Equipment Modifications No equipment modifications were required. 6 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Disturbance Voltage at Mains EUT was placed on a platform nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting grounding plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducing surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30cm to 40cm long and were handed at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety)lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 1.6.2 Radiated disturbance EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane and the run table azimuth was varied to obtain the maximum signal strength The system configuration…

Text truncated - open the document above for the full version.

17 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 18 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040736 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3 Radiated Emission (Front) Pic. 4 Radiated Emission (Rear)
