A3LML2955WMono Laser Printer

ML-295x Series User’s GuideAdvancedimagine the possibilitiesThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments.Some features may not be available depending on model or country. 2 Contents 1. Software installation5 Installation for Macintosh 7 Reinstallation for Macintosh 8 Installation for Linux 10 Reinstallation for Linux  2. Using a network-connected machine 12 Useful network programs 13 Wired network setup 17 Installing driver over the network 29 IPv6 G G configuration 32 Wireless network setup 3. Useful setting menus59 Information 60 Layout 61 Paper 62 Graphic 63 System setup 66 Emulation 67 Network 68 Admin setup 4. Special features70 Altitude adjustment 71 Changing the font setting 72 Changing the default print settings 73 Setting your machine as a default machine 74 Using advanced print features 82 Using Direct Printing Utility (Windows only) 84 Using memory/hard drive features 86 Macintosh printing 88 Linux printing 90 Unix printing 5. Maintenance93 Storing the toner cartridge 95 Tips for moving & storing your machine 96 Useful management tools Contents 3 6. Troubleshooting108 Paper feeding problems 109 Power and cable connecting problems 110 Printing problems 114 Printing quality problems 122 Operating system problems Contact SAMSUNG worldwideGlossary 1. Software installationThis chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, ski p the following steps below and go on to installing a network connected machine’s driver (see Installing driver over the network17). • Installation for Macintosh 5 • Reinstallation for Macintosh 7 • Installation for Linux 8 • Reinstallation for Linux 10  • If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver. • Only use a USB cable no longer then 3 meter (118 inches). 5 1. Software installation Installation for Macintosh 1 Make sure that the machine is connected to your computer and powered on. 2 Insert the supplied software CD into your CD-ROM drive. 3 Double-click the CD-ROM icon that appears on your Macintosh desktop. 4 Double-click the MAC_Installer folder > Installer OS X icon. 5 Enter the password and click OK . 6 Click Continue . 7 Read the license agreement and click Continue . 8 Click Agree to agree to the license agreement. 9 Select Easy Install and click Install . Easy Install is recommended for most users. All components necessary for machine operations will be installed.If you select Custom Install , you can choose individual components to install. 10 When the message that warns that all applications will close on your computer appears, click Continue . 11 Select Typical installation for a local printer and then click OK . 12 Click Continue on the Read Me window. 13 After the installation is finished, click Quit . 14 Open the Applications folder > Utilities > Print Setup Utility . • For Mac OS X 10.5-10.6, open the Applications folder > System Preferences and click Print & Fax . 15 Click Add on the Printer List . • For Mac OS X 10.5-10.6, click the “ + ” icon; a display window will pop up. 16 For Mac OS X 10.3, select the USB tab. • For Mac OS X10.4, click Default Browser and find the USB connection. • For Mac OS X 10.5-10.6, click Default and find the USB connection. Installation for Macintosh 6 1. Software installation 17 F or M ac O S X 1 0. 3, if Aut o Selec t does not w ork pro perly, s elect Samsung in Printer Model and your machine name in Model Name . • For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model . • For Mac OS X 10.5-10.6, if Auto Select does not work properly, select Select a driver to use... and your machine name in Print Using . Your machine appears on the Printer List , and is set as the default machine. 18 Click Add . 7 1. Software installation Reinstallation for MacintoshIf the printer driver does not work properly, uninstall the driver and reinstall it. 1 Make sure that the machine is connected to your computer and powered on. 2 Insert the supplied software CD into your CD-ROM drive. 3 Double-click the CD-ROM icon that appears on your Macintosh desktop. 4 Double-click the MAC_Installer folder > Installer OS X icon. 5 Enter the password and click OK . 6 Click Continue . 7 Read the license agreement and click Continue . 8 Click Agree to agree to the license agreement. 9 Select Uninstall and click Uninstall . 10 When the message which warns that all applications will close on your computer appears, click Continue . 11 When the uninstall is done, click Quit . If a machine has already been added, delete it from the Print Setup Utility or Print & Fax . 8 1. Software installation Installation for LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com/printer).1 Installing the Unified Linux Driver 1 Make sure that the machine is connected to your computer and powered on. 2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Unified Linux Driver package to your computer. 4 Right-click the Unified Linux Driver package and extract the package. 5 Double click cdroot > autorun . 6 When the welcome screen appears, click Next . 7 When the installation is complete, click Finish . The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system me…

Text truncated - open the document above for the full version.

64MB 266MHz 12MHz Clock s Freq. Clock s Freq. MAIN 12MHz Video 12MHz CPU 360MHz DDR 266MHz USB 12MHz Network 25MHz

From: 라상경 Sent: Wednesday, June 08, 2011 7:54 PM To: [email protected]; [email protected]; [email protected]; [email protected]; [email protected] Subject: A3LML2955SW - updated document 6/9/2011 Dear PCTEST Please refer to the attached updated Sang Kyung, Ra / QA Lab  The Block Diagram that was submitted does not include oscillators/clocks in the EUT. Please revise to include with the center frequencies. => Attached no. 1  The external photographs do not show all sides of the EUT. Please provide these additional photographs. => attached no. 3  As listed in Note 3 in section 4.2.4.2 of the EMC test report, the WLAN module transmitter was enabled during the radiated spurious tests. Please disable the WLAN transmitter and re-measure the field strength measurements so as to not present any apparent failing test data in the test report. =>attached no. 2  FYI - The section page numbers are not provided in the test report Table of Contents. Please revise to include the page numbers. => attached no. 2 ★ Don't worry about going slowly but should worry about stopping on the way ★ ( 莫患遲行 患停止 ) Jeong-Baek Lee R&D Group Digital Printing Division To: Mr. Peter Ra / Samsung Electronics Co., Ltd. From: Mr. Mark Czumak / PCTEST TCB RE: FCC ID: A3LML2955W Applicant: Samsung Electronics Co., Ltd. Correspondence Reference Number: A3L0630 Confirmation Number: 1Y1105160630 Date of Original Email: May 18, 2011 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. The Block Diagram that was submitted does not include oscillators/clocks in the EUT. Please revise to include with the center frequencies. 2. The external photographs do not show all sides of the EUT. Please provide these additional photographs. 3. As listed in Note 3 in section 4.2.4.2 of the EMC test report, the WLAN module transmitter was enabled during the radiated spurious tests. Please disable the WLAN transmitter and re-measure the field strength measurements so as to not present any apparent failing test data in the test report. 4. FYI - The section page numbers are not provided in the test report Table of Contents. Please revise to include the page numbers. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Mark Czumak Senior Certification Engineer 6/9/2011

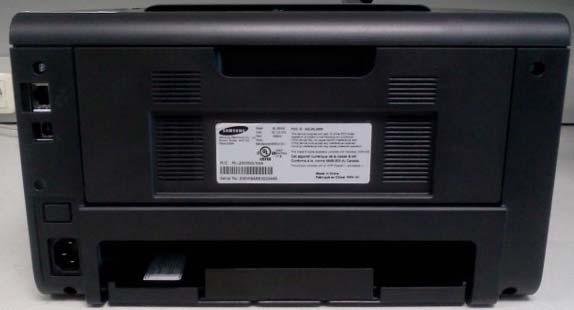

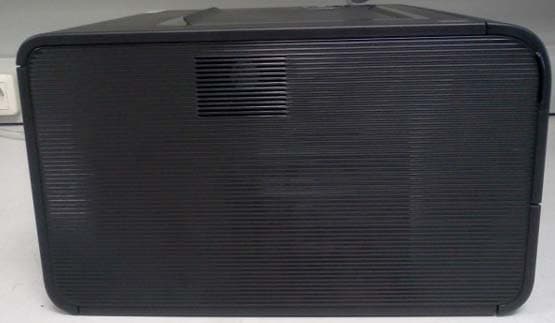

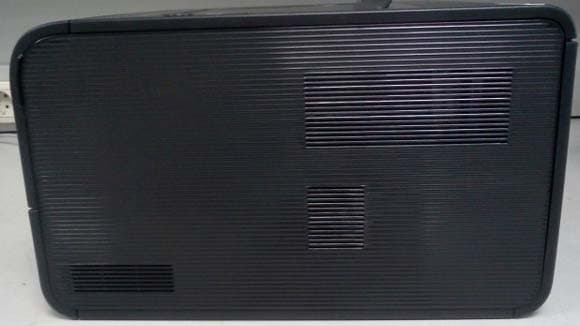

External Pictures 1. Front View External Pictures 2. Rear View External Pictures 3. Side View(Right) External Pictures 4. Side View(Left)

Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -38/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View & Label location Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -42/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. SMPS view of DONGYANG Label Rating

Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -39/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. Internal View(front) Internal View(left) Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -40/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. Internal View(right) Internal View(rear) Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -41/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. SMPS view of SHANDONG Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -42/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. SMPS view of DONGYANG Label Rating

Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -6/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.5 EUT Description 1. The following features describe EUT represented by this report: Item Specification and Description Processor CHOURS3N(533 Mhz) Standard System memory DDR2 64 MB Resolution True 600 x 600 dpi, addressable 1 200 x 1 200 Copy Quality mode N.A Paper Handling 250-sheet Cassette @ 80 g/㎡, 1-sheet Multi Purpose Tray Power Rating [90 ~ 135 ] VAC, 2.8 A, 50 Hz /60 Hz Power Consumption Power save mode : 1.4 Wh Ready mode : 37 Wh Printing mode : 400 Wh(Max) Printer Language PCL6, SPL PC Interfaces High Speed USB 2.0 Ethernet 10/100 802.11 b/g/n OS compatibility Windows 2000/XP(32 bits /64 bits)/Vista(32 bits /64 bits)/2003 Server(32 bits /64 bits)/2008 Server(32 bits /64 bits)/7(32 bits /64 bits)/2008 Server R2(64 bits) Mac OS X 10.4 ~ 10.6 RedHat Enterprise Linux WS 4, 5 (32 bits /64 bit) Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32 bits /64 bit) SuSE Linux 10.1 (32 bit) OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32 bits /64 bit) Mandriva 2007, 2008, 2009, 2009.1, 2010 (32 bits /64 bit) Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32 bits /64 bit) SuSE Linux Enterprise Desktop 10, 11 (32 bits /64 bit) Debian 4.0, 5.0 (32 bits /64 bit) Sun Solaris 9,10 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4 Modes of Operation USB Printing, Network Printing, Wireless Intended Class for Emissions Class B 2. The variant models : ML-2950DW, ML-2955ND, ML-2950ND

-1/42- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20112452 Issue No. 1 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application April 19, 2011 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LML2955W Kind of product Mono Laser Printer Model No. ML-2955DW Variant Model No. Refer to clause 3.5 at 6 page Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd. Keji Road-268-1, Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period April 19, 2011 ~ May 20, 2011 Issue date May 20, 2011 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Sung Jin Sim Reviewed by : No Cheon Park The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -2/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Summary of test results 1.1 Emission - 3 page 2. General Information 2.1 Test facility - 4 page 3. Test configuration 3.1 Test Peripherals - 4 page 3.2 EUT operating mode - 5 page 3.3 Details of Sampling - 5 page 3.4 Used cable description - 5 page 3.5 EUT Description - 6 page 3.6 Clock Frequencies - 7 page 3.7 Test configuration and condition - 7 page 3.8 Measurement uncertainty - 8 page 4. Result of individual tests 4.1 Conducted disturbance - 9 page 4.2 Radiated disturbance - 23 page Appendix – EUT photography - 38 page Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -3/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Remarks Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Meets Class B Limit Radiated Disturbance Complied Meets Class B Limit Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -4/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. 2. General Information 2.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 3. Test Setup configuration 3.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Description Model No. Serial No. Manufacturer Fcc ID / DoC Mono Laser Printer ML-2955DW - SAMSUNG EUT Laptop PC NT-RV511 ZZDN93CZB00036R SAMSUNG DoC Adapter A10-090P1A CNBA4400215ADON43AB01380 Chicony DoC USB mouse SC-1000 328447928 Primax electronics Ltd., DoC Head set Microsoft - Plantronics - Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -5/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.2 EUT operating mode To achieve compliance with the applied standards and/or specifications, two different SMPS which were manufactured by Shandong cowei and Dongyang E&P respectively were applied for testing, and the following mode(s) were considered and tested. Operating Mode 1 Standby Operating Mode 2 USB Printing(Duplex) Operating Mode 3 Wireless Printing(Duplex) 3.3 Details of Sampling Customer selected, two units (One with SMPS of SHANDONG Cowei and another with SMPS of DongYang E&P) 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No For EUT Power 1.8 No For laptop PC USB 1.8 Yes From laptop PC to EUT USB 1.5 Yes From laptop PC to Mouse Audio 1.8 No From Notebook PC to Headphones Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -6/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.5 EUT Description 1. The following features describe EUT represented by this report: Item Specification and Description Processor CHOURS3N(533 Mhz) Standard System memory DDR2 64 MB Resolution True 600 x 600 dpi, addressable 1 200 x 1 200 Copy Quality mode N.A Paper Handling 250-sheet Cassette @ 80 g/㎡, 1-sheet Multi Purpose Tray Power Rating [90 ~ 135 ] VAC, 2.8 A, 50 Hz /60 …

Text truncated - open the document above for the full version.

Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -10/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE20112452 Mono Laser Printer : ML-2955DW -27/42- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1 GHz) Rear (above 1 GHz)
