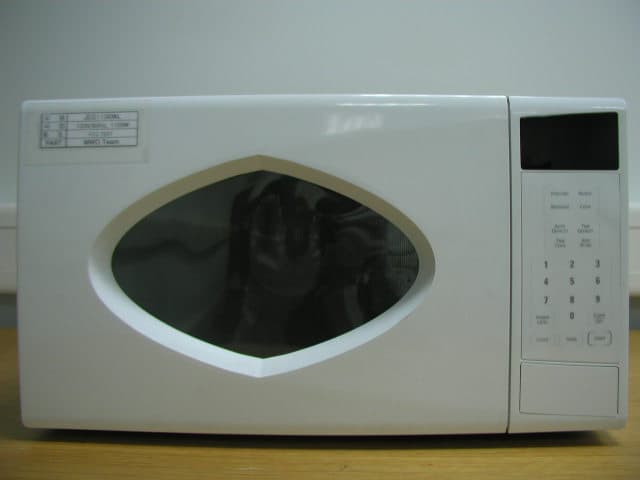

EUT Photography Front Left Right Rear

Frequence vs Load Variation Test 120V(200ml) Label location

Inside

SLV-D2LED1USLV-D2LEDESLV-D2LED1E ENCODER OPTION OPTION GRILL 2 POWERMAIN OPTION INRUSH D2LED3 1 LAMP or T/Table OJ02 CN05 SMW250-03AV_RED 13 100KR14 2K R16 R22 RY04 DU12D1-1PR 10K C08 20pF C09 20pF C131nF ZD01 ZMM55CV1 1N4148M D12 8MHzXTL1 +5V +12V +5V 1N4004D01 d 9 e8 f7 g6 uc_lc +5V +5V D021N4148M DSP1 2 1G3 2G4 3G 4G 51 DOV 13 a12 b11 c10 1N4148M D14 CSE-4046 FH-51H FUSE1 PTC2270M 20M 1nFC12 R20R2120M 20MR2320M 7033P R24 R042K IC03 TR05 KSR1005 +5V C01 1K 1000uF BZ01 CBE2220BA R07 KRA226-ATTR11 KRA226-AT TR09 KRA226-ATTR10 KRC246M KRA226-AT TR08 1nFC18 TR01 CN02 3214 1N4148M SMW250-04V_WHT D10 D11 D08 1N4148M 1N4148M D09 1N4148M 4.7KR02 KRC246M DU12D1-1P RY03 TR06 C02 TR03 KRC246M 47uF 3571 47KR12 1N4148M D04 SMW250-07AV_REDCN01 TR02 +12V FTR-F3AA012E RY01 KRC246M 4.7KR01 +5V PTC1390M FTR-F3AA012E RY02 TR07 KRC246M OJ03 +12V LVT1SLV-D2LEDU C20 47uF D13 1N4148M IC04 78L05 +12V-1 C04 +5V D17 1N4148M 78L05 IC02 100nF 1N4004 D19 C16100nF D05 10K R05 +12V +12V-1 1N4148M C03 1N4148M D06 22uF 100nF 100nFC14 100nF C07 100nFC05 C06 C15100nF 1nF OJ01 C19 1N4148M D07 C171nF KRC246M TR13 CN04 SMW250-04V_RED 1234 1N4148M D16 +5V 1N4148M D15 R15100K +12V 2K R17 X-OUT RY05 FTR-F3AA012E 2719431444342 2514 RESET13 TEST18 VAref40 VDD17 VSS15 X-IN162431222120323334 41 3026 3637383935 2 BUZZER 29 INT 12111095678 2823 TR14 KRC246M IC01TPM87PH47U ZNR110D471 2KR06 R1147K +5V +5V 47KR10 R0947K 47KR08 1N4148M D18 1N4004 R13 D03 2K 4.7nF C10 TR04 C114.7uF KRA226-AT CN03 TR12KRA226-AT 12516HS-14 R032K

JOB Number : LBE060032 Page 1 of 16 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C JOB Number : LBE060032 1. This test report does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 2. Identification of tested device 2.1 FCC ID :A3LMW1136 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :GE 2.4 Model Number :JES1136WL Variant Model : None 2.5 RF Output Power : 1100W ( by IEC 705 method ) 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :January 16, 2005 Tested by: Hee Sung, KIM / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorised by: Seung Kyu, CHA / Chief of EMC Lab. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 JOB Number : LBE060032 Page 2 of 16 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Frequency Measurement 4.5 Conducted Emission Measurement 4.5.1 Conducted Emission Measurement Procedure 4.5.2 Conducted Emission Measurement Configuration 4.5.3 Conducted Emission Measurement Data(0.15~30MHz) 4.6 Radiated Emission Measurement 4.6.1 Radiated Emission Measurement Procedure 4.6.2 Radiated Emission Measurement Configuration 4.6.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.6.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060032 Page 3 of 16 1. Product Description The equipment under test is a microwave oven sold for commercial use. Model : JES1136WLis a1100 W microwave oven with digital controls. Installation Type: UTC Clock Frequency : 8 MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. < Electrical Ratings > 1) Power Supply : 120 V ac, 60 Hz 2) Operating Frequency : 2450 +/- 50 MHz 3) Power Input : 1550 W 4) RF Power Output : 1100 W (by IEC 705 method) 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200623-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060032 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Fig. 1 Test Setup for Radiation Hazard Measuerment The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.151.0 20.101.0 50.101.0 All others0.101.0 This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. 12 3 4 5 6 7 8 9 JOB Number : LBE060032 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput current [Vac][amps][watts][amps] 12013.9616151550 Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060032 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001019.91201070.0 10001020.11201093.0 10001020.11201093.0 1085.3 Power [W] = (4.187) * Lw * (Tf-Ti) + 0.55*Bi*(Tf- Tr) t Magnetron type: OM-75P L w : Mass of the water, in grams B i : Mass of the container, in grams T f : Final temperature of the water, in °C T i : Initial temperature of the water, in °C T r : Ambient temperature, in °C t : Heating time in seconds, excluding the magnetron filament heat-up time. The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measur…

Text truncated - open the document above for the full version.

JOB Number : LBE060032 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput current [Vac][amps][watts][amps] 12013.9616151550 Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE060032 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001019.91201070.0 10001020.11201093.0 10001020.11201093.0 1085.3 Power [W] = (4.187) * Lw * (Tf-Ti) + 0.55*Bi*(Tf- Tr) t Magnetron type: OM-75P L w : Mass of the water, in grams B i : Mass of the container, in grams T f : Final temperature of the water, in °C T i : Initial temperature of the water, in °C T r : Ambient temperature, in °C t : Heating time in seconds, excluding the magnetron filament heat-up time. The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. Average RF Power of 3 Trials
