A3LMW1250NMicrowave Oven

www.GEAppliances.com 164D3370P25749-40323 02-03 JR Microwave Oven JES1246 Owner’s Manual Safety Instructions . . . . . . . . .2–11 Operating Instructions Care and Cleaning . . . . . . .31, 32 Changing the Power Level . . . .16 Convenience Features . . . .23–26 Features of Your Microwave Oven . . . . . . . .12–15 Microwave Terms . . . . . . . . . . .30 Other Features . . . . . . . . . .27–29 Time Features . . . . . . . . . .17–22 Troubleshooting Tips . . . . .33, 34 Things That Are Normal With Your Microwave Oven . . .34 Consumer Support Consumer Support . . .Back Cover Warranty . . . . . . . . . . . . . . . . .35 Write the model and serial numbers here: Model # ________________________ Serial #________________________ Find these numbers on a labelinside the oven. 49-40323v03 2/6/03 9:21 AM Page 1 Read and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energy section above. This appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructions section on page 8. Install or locate this appliance only in accordance with the provided Installation Instructions. Be certain to place the front surface of the door three inches or more back from the countertop edge to avoid accidental tipping of the appliance in normal usage. Do Not Attemptto operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.  Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: door (bent), hinges and latches (broken or loosened), door seals and sealing surfaces. The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel. 3 2 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Safety Information Operating Instructions Troubleshooting Tips Consumer Support IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. 2 For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. WARNING! When using electrical appliances basic safety precautions should be followed, including the following: SAFETY PRECAUTIONS 49-40323v03 2/6/03 9:21 AM Page 2 3 Consumer Support Troubleshooting Tips Operating Instructions Safety Information Use this appliance only for its intended purpose as described in this Owner’s Manual. This microwave oven is not approved or tested for marine use. Do not mount this appliance over a sink. Do not mount the microwave oven over or near any portion of a heating or cooking appliance. Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation. Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not cover or block any openings on the appliance. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink or in similar locations. Keep power cord away from heated surfaces. Do not immerse power cord or plug in water. Do not let power cord hang over edge of table or counter. To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. See door surface cleaning instructions in the Care and cleaning of the microwave oven section of this manual. GE does not support any servicing of the microwave. We strongly recommend that you do not attempt to service the microwave yourself. As with any appliance, close supervision is necessary when used by children. www.GEAppliances.com 49-40323v03 2/6/03 9:21 AM Page 3 Arcing is the microwave term for sparks in the oven. Arcing is caused by: Metal or foil touching the side of the oven. Foil not molded to food (upturned edges act like antennas). Metal, such as twist-ties, poultry pins, or gold-rimmed dishes, in the microwave. Recycled paper towels containing small metal pieces being used in the microwave. Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens. Some products such as whole eggs and sealed containers— for example, closed jars— are able to explode and should not be heated in this microwave oven. Such use of the microwave oven could result in injury. Do not boil eggs in a microwave oven. Pressure will build up inside egg yolk and will cause it to burst, possibly resulting in injury. Operating the microwave with no food inside for more than a minute or two may cause damage to the oven and could start a fire. It increases the heat around the magnetron and can shorten the life of the oven. Foods with unbroken outer “skin” such as potatoes, hot dogs, sausages, tomatoes, apples, chicken livers and ot…

Text truncated - open the document above for the full version.

120V(200ml) Rabel Ref Lvl 120 dB Ì V Ref Lvl 120 dB Ì V RF Att 30 dB TRG A 1AV Unit dB Ì V RBW 1 MHz VBW 1 MHz SWT 5 ms IN1 Start 2.3 GHzStop 2.6 GHz30 MHz/ P0 TDF 1MAX 20 30 40 50 60 70 80 90 100 110 120 1 2 3 Marker 1 [T1] 97.58 dB Ì V 2.48396794 GHz 1 [T1] 97.58 dB Ì V 2.48396794 GHz 2 [T1] 77.50 dB Ì V 2.42144289 GHz 3 [T1] 74.12 dB Ì V 2.48517034 GHz F1 F2 D1 97.58 dB Ì V D2 77.58 dB Ì V Date: 3.JAN.2005 15:51:50

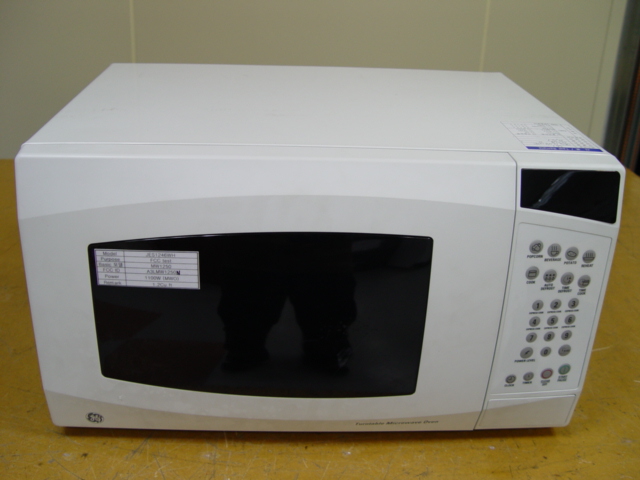

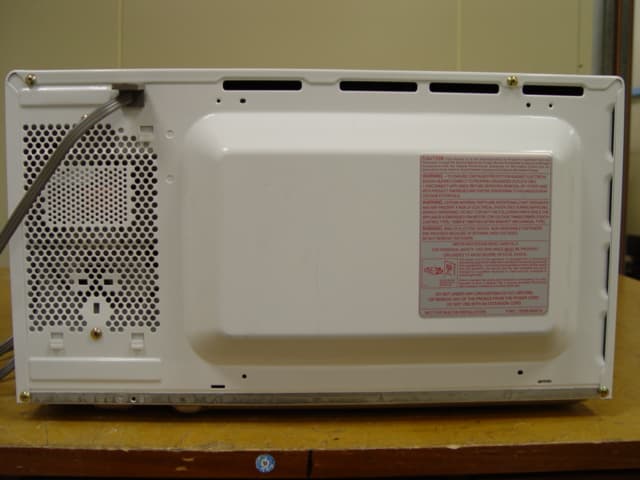

JOB Number : LBE042342 Page 1 of 16 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C JOB Number : LBE042342 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan-3 Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 2. Identification of tested device 2.1 FCC ID :A3LMW1250N 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :GENERAL Electronics Co.,Ltd. 2.4 Model Number :JES1246WH Variant Model : 2.5 RF Output Power : 1100W ( by IEC 705 method ) 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :Jan 12, 2005 Tested by: Jay Yong, PARK / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorised by: Kyu Baek, CHUNG / Chief of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 JOB Number : LBE042342 Page 2 of 16 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Frequency Measurement 4.5 Conducted Emission Measurement 4.5.1 Conducted Emission Measurement Procedure 4.5.2 Conducted Emission Measurement Configuration 4.5.3 Conducted Emission Measurement Data(0.15~30MHz) 4.6 Radiated Emission Measurement 4.6.1 Radiated Emission Measurement Procedure 4.6.2 Radiated Emission Measurement Configuration 4.6.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.6.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List 6. Appendix A 7. Appendix B This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE042342 Page 3 of 16 1. Product Description The equipment under test is a microwave oven sold for consumer use. Model : JES1246WH is a1100 W microwave oven with digital controls. Installation Type: Counter Top Clock Frequency : 8.0MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416 Maetan 3 Dong, Yeongtong-Gu, Suwon-Si, Kyungki-Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200623-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE042342 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.051.0 50.051.0 80.101.0 All others0.051.0 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1 2 3 4 5 6 7 8 9 JOB Number : LBE042342 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12013.215281550 Based on the measured input power, the EUT was found to be operating within the intended specifications. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE042342 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001035.1120875.8 10001034.7120861.8 10001034.7120861.8 866.5 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Average RF Power of 3 Trials JOB Number : LBE042342 Page 7 of 16 4.4 Operation Frequency Measurement Fig. 4 Operating Frequency Measurements Configuration This reports shall not be reproduced except in f…

Text truncated - open the document above for the full version.

JOB Number : LBE042342 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12013.215281550 Based on the measured input power, the EUT was found to be operating within the intended specifications. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE042342 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001035.1120875.8 10001034.7120861.8 10001034.7120861.8 866.5 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Average RF Power of 3 Trials
