A3LMW3090650W MICROWAVE OVEN

Microwave Oven Owner’s Manual M W 30 90 W MW3090W MU4290W1(mini)-SEA 6/3/00 12:39 AM Page 1 SAFETY 2 S AFETY P RECAUTIONS TO AVOIDPOSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY: (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the front face of the oven and the door or allow soil or cleaner residue to accu- mulate on sealing surfaces. (c) Do not operate the oven if it is dam- aged. It is particularly important that the oven door close properly and that there is no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken or loosened), 3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. WARNING Always observe Safety Precautions when using your oven. Never try to repair the oven on your own – there is dangerous voltage inside. If the oven needs to be repaired, call 1-800-SAM- SUNG for the name of an authorized service center near you. IMPORTANTSAFETY I NSTRUCTIONS WARNING • Some items, like whole eggs and food in sealed containers, may explode if heated in this oven. • Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or labo- ratory use. • As with any appliance, close supervision is nec- essary when used by children. To reduce risk of burns, electric shock, fire, personal injury or expo- sure to excessive microwave energy: • Read all safety instructions before using the appliance. • Read and follow the specific “Precautions to Avoid Exposure to Excessive Microwave Energy” on this page. • This appliance must be grounded. Connect only to properly grounded outlets. See “Important Grounding Instructions” on page 4 of this manual. • Install or place this appliance only in accor- dance with the installation instructions provided. S AVETHESEINSTRUCTIONS When using any electrical appliance, basic safety precautions should be followed, including the following: MU4290W1(mini)-SEA 6/3/00 12:39 AM Page 2 SAFETY 3 S AFETY Important Safety Instructions, continued • Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged. • This appliance should be serviced only by quali- fied service personnel. Contact the nearest autho- rized service facility for examination, repair, or adjustment. • Do not cover or block any of the openings on this appliance. • Do not store this appliance outdoors. Do not use near water – for example, near a kitchen sink, in a wet basement, or near a swimming pool, etc. • Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the efficien- cy of the oven. • Do not immerse cord or plug in water. • Keep cord away from heated surfaces. • Do not let cord hang over edge of table or counter. • When cleaning door and oven surfaces, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. • To reduce the risk of fire in the oven: a. Do not overcook food. Watch appliance care fully if paper, plastic, or other combustible materials are inside. b. Remove wire twist-ties from plastic cooking bags before placing bags in oven. c. If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. d. Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. • Do not try to preheat oven or operate while empty. • Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the tray. • Do not defrost frozen beverages in narrow-necked bottles. The containers can break. • Dishes and containers can become hot. Handle with care. • Carefully remove container coverings, directing steam away from hands and face. • Remove lids from baby food before reheating. After heating baby food, stir well and test temper- ature by tasting before serving. • A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used with caution. • Do not operate any other heating or cooking appli- ance beneath this appliance. • Do not mount unit over or near any portion of a heating or cooking appliance. • Do not mount over a sink. • Do not store anything directly on top of the appli- ance when it is in operation. S AVETHESEINSTRUCTIONS MU4290W1(mini)-SEA 6/3/00 12:39 AM Page 3 SAFETY 4 S AFETY Important Grounding Instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Plug the three-prong power cord into a properly grounded outlet of standard 115-120 volt- age, 60 Hz. Your oven should be the only appliance on this circuit. WARNING Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or servicer if you do not understand the grounding instructions or if you are not sure if the appliance is properly grounded. Use of Extension Cords A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised in their use. If a long cord or extension cord is used: 1. The marked electrical ra…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LMW3090 FCC ID LABEL

FCC CFR47 PART 18 SUBPART C ISM EQUIPMENT TEST REPORT FOR 650W MICROWAVE OVEN MODEL : MW3090W FCC ID: A3LMW3090 REPORT NUMBER: 00U0299-1 ISSUE DATE: JUNE 16, 2000 Prepared for SAMSUNG ELECTRONICS CO., LTD. 85 West Tasman Drive San Jose, CA 95134 USA Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE ............................................................................................................. 2 2.PRODUCT DESCRIPTION .............................................................................................................................. 3 3.TEST FACILITY ................................................................................................................................................ 3 4.ACCREDITATION AND LISTING ................................................................................................................. 3 5.RADIO NOISE EMISSION MEASUREMENTS PROCEDURES/RESULTS............................................ 3 5.1RADIATION HAZARD MEASUREMENT................................................................................................... 3 5.2INPUT POWER ............................................................................................................................................... 4 5.3RF OUTPUT POWER MEASUREMENT...................................................................................................... 5 5.4OPERATING FREQUENCY MEASUREMENTS......................................................................................... 6 5.5VARIATION IN OPERATING FREQUENCY WITH TIME........................................................................ 6 5.6VARIATION IN OPERATING FREQUENCY WITH VOLTAGE............................................................... 7 5.7RADIATED EMISSIONS ............................................................................................................................... 8 6.MEASUREMENT EQUIPMENT LIST ......................................................................................................... 10 7.EUT SETUP PHOTOS. .................................................................................................................................... 11 ATTACHMENTS ....................................................................................................................................................... 19 RADIATION EMISSION DATA ........................................................................................................................... 20 VARIATION IN OPERATING FREQUENCY WITH TIME PLOTS .................................................................. 22 VARIATION IN OPERATING FREQUENCY WITH VOLTAGE PLOTS ......................................................... 23 PROPOSED FCC ID LABEL.................................................................................................................................. 26 USER MANUAL AND SCHEMATICS................................................................................................................. 27 PROJECT NO: 00U0299-1DATE: JUNE 16, 2000FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 2 of 27 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME :SAMSUNG ELECTRONICS CO., LTD 85 WEST TASMAN DRIVE SAN JOSE, CA 95134 CONTACT PERSON : WALLANCE OH / MANAGER TELEPHONE NO :(408) 828-8833 EUT DESCRIPTION:650W MICROWAVE OVEN MODEL NO/NAME :MW3090W DATE TESTED :JUNE 16, 2000 TYPE OF EQUIPMENT:CONSUMER ISM EQUIPMENT TECHNICAL LIMIT:SUBPART C FCC RULES:PART 18 MEASUREMENT PROCEDUREFCC MP-5/1986 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUT YES NO The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 18. Th4 said equipment in the configuration described herein shows that maximum emission levels emanating from the equipment are within the compliance requirements. Warning : This report documents conditions under which testing was conducted and the results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved By TOM N. COKENIAS / DIRECTOR OF ENGINEERING COMPLIANCE CERTIFICATION SERVICES PROJECT NO: 00U0299-1DATE: JUNE 16, 2000FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 3 of 27 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.PRODUCT DESCRIPTION The equipment under test is a microwave oven sold for consumer use. Model: MW3090W is a 650W microwave oven with mechanical controls. 3.TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4.ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code:200065-0 to perform Electromagnetic Interference tests according to FCC PART 15 AND CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLA…

Text truncated - open the document above for the full version.

6.RADIATED EMISSIONS TEST RADIATED TEST DATA SHEET COMPANY: SAMSUNG ELECTRONICS EUT NAME: 650W MICROWAVE OVEN M/N: MW 3090W Freq. Level AF CL AMP Other DIST Total Limit Margin (Mhz) (dBuv) (dB) (dB) (dB) (dB) (dB) (dBuv/m) (dBuv/m) (dB) 2.451 28.40 28.1 3.6 0 0 -49.5 10.6 28 -17.40 4.889 31.29 33.2 5.4 -41.99 1 -49.5 -20.6 28 -48.60 4.897 32.40 33.8 5.4 -41.99 1 -49.5 -18.89 28 -46.89 7.234 27.30 37.2 6.66 -40.60 1 -49.5 -17.94 28 -45.94 7.289 27.90 37.3 6.66 -40.60 1 -49.5 -17.24 28 -45.24 9.606 26.30 38.1 7.92 -39.30 1 -49.5 -15.48 28 -43.48 9.696 25.40 38.1 7.92 -39.3 1 -49.5 -16.38 28 -44.38 12.061 21.90 39.3 9.0 -39.56 1 -49.5 -17.86 28 -45.86 14.443 21.50 41.2 10.26 -42.30 1 -49.5 -17.84 28 -45.84 16.843 21.10 43.1 11.7 -43.75 1 -49.5 -16.35 28 -44.35 19.294 20.90 32.0 13.14 -43.11 1 -49.5 -25.57 28 -53.57 21.745 21.70 32.6 13.5 -42.45 1 -49.5 -23.15 28 -51.15 24.196 21.0 33.0 15.88 -43.95 1 -49.5 -22.57 28 -50.57 DIST: Distance Correction (-49.5dB,1M) Analyzer B/W setting: Analyzer: HP8593E, cal due:5/28/01 Peak Ave Antenna: EMCO 3155,cal due: 9/24/02 Res 1Mhz 1Mhz Preamp: MITEQ, NSP2600-44 Vid 1Mhz 10Hz Other: High pass filter insertion loss Limit=25X P/500 =28dBuv/m at 300m

00U0299-1 000616A1 06/16/00 2:07 PM RONNY CASTILLO SAMSUNG ELECTRONICS CO., LTD.-3 MICROWWAVE OVEN (1000W) EUT FCC 18 NORMAL Freq. ReadingAFCloss Pre-ampLevelLimitMarginPolAzHeightMark (MHz) (dBuV)(dB)(dB)(dB)(dBuV/m) FCC_B(dB)(H/V)(Deg)(Meter)(P/Q/A) 58.2850.606.911.0027.8930.6268.00-37.383mV0.001.00P 70.6549.206.721.0927.8829.1268.00-38.883mV180.001.00P 51.9249.107.870.9527.9030.0268.00-37.983mV0.001.00P 61.6152.506.651.0327.8932.3068.00-35.703mV0.001.00P 57.0251.707.100.9927.8931.9068.00-36.103mV0.001.00P 60.2452.006.651.0227.8931.7868.00-36.223mV0.001.00P 62.3549.706.661.0327.8929.5068.00-38.503mV0.001.00P 79.0049.837.201.1727.8830.3268.00-37.683mV0.001.00P 86.6046.309.421.2327.8429.1168.00-38.893mV0.001.00P 86.5842.009.411.2327.8424.8068.00-43.203mV0.001.00P 76.1451.307.041.1427.8831.6068.00-36.403mV0.001.00P Total data #: 11 V.2a Limit at 3m = 40dB + 28dBuV = 68dBuv/m, where 28dBuv/m is the limit at 300m. Distance Correction= 20 * log (300/3) = 40 dB Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP 1366 B ORDEA UX DRIVE, SUNNYV ALE , CA 94089 PHONE: (408) 752-8166 FAX: (408) 752-8168 Project #: Report #: Date& Time: Test Engr: A-Site !"#$%& A-Site !"#$%&

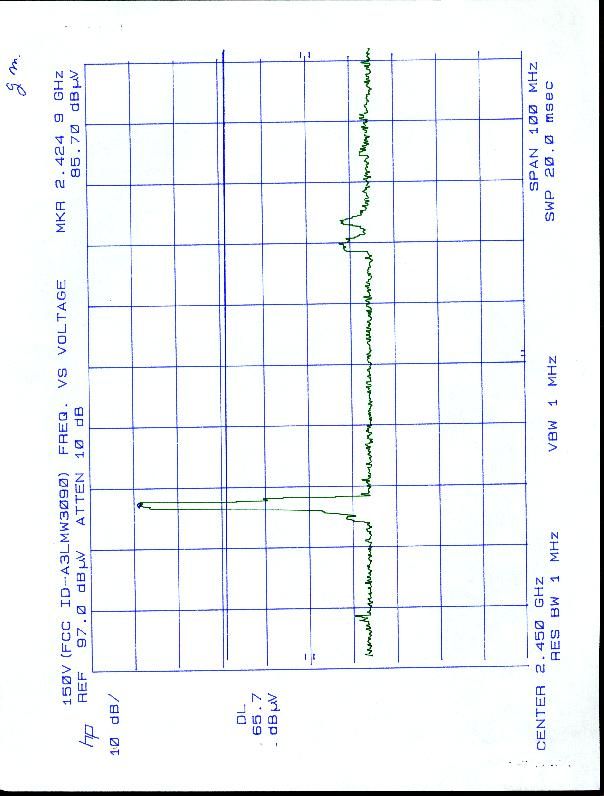

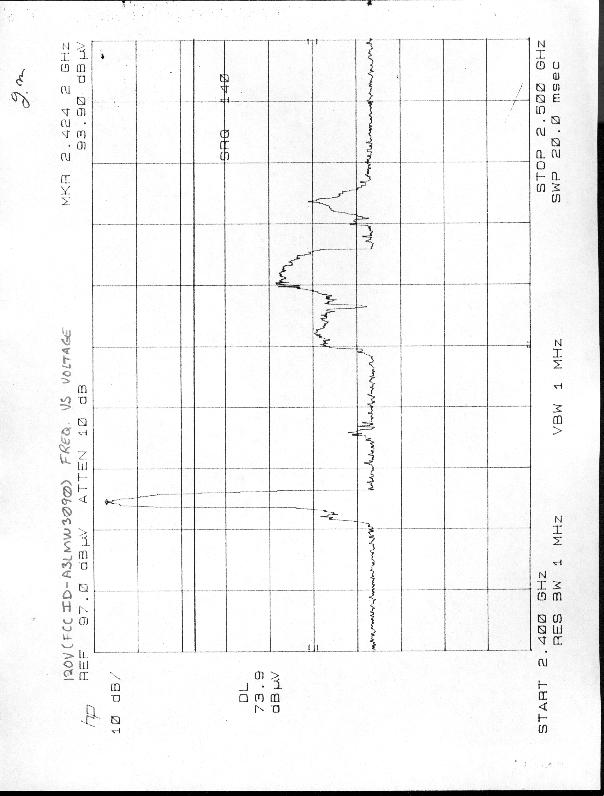

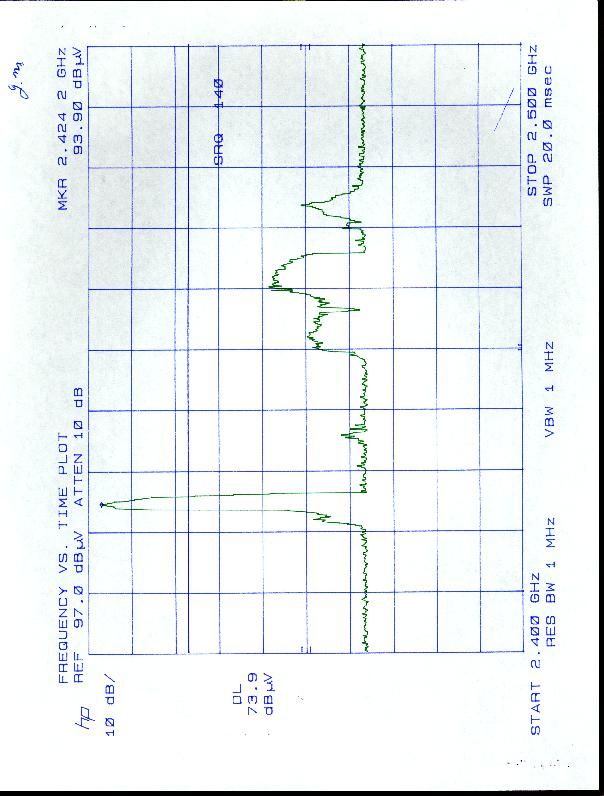

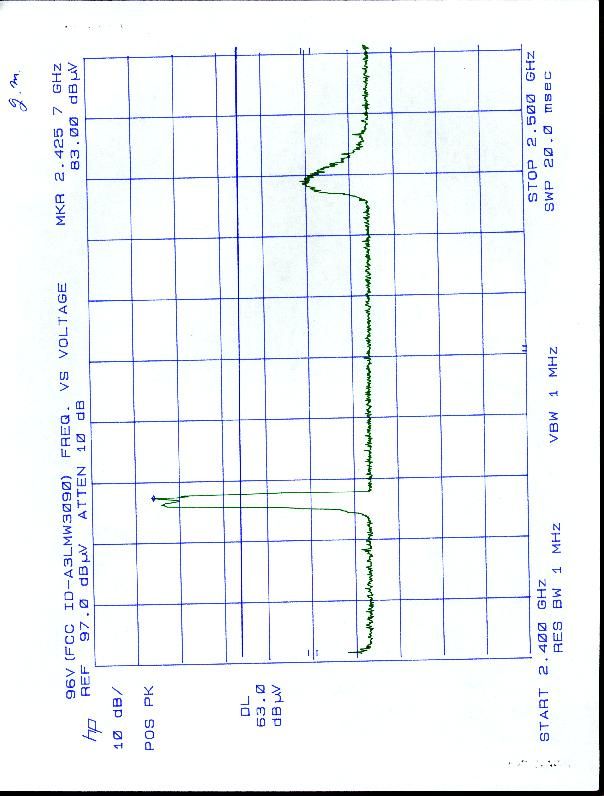

PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 11 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 7. EUT SETUP PHOTOS. Radiated Hazard Test PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 12 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Frequency Vs Time Test Setup PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 13 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. RF Power Output Test PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 14 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Frequency Vs. Voltage Test Setup PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 15 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Power Input Test Setup PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 16 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Radiated Above 1 GHz Test Setup Lazy Susan Turntable PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 17 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Radiated Test Setup Below 1 GHz (Front Side) PROJECT NO: 00U0299-1 DATE: JUNE 16, 2000 FCC ID: A3LMW3090 EUT: 650W MICROWAVE OVEN (MW3090W) Page 18 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Radiated Test Setup Below 1 GHz (Back Side)
