A3LMW610Microwave Oven

VARISTOR L.V.TRANS LAMP MAIN RELAY POWER RELAY (SECONDARY INTERLOCK) PRIMARY S/W MGT CVT TCO FANMOTOR D/MOTOR MONITOR SWITCH H.V.DIODE H. V. TRANSFORMER H. V. CAPACITOR 120V 0V F FA MAGNETRON POWER CORD AC 120V/60Hz BLK BLK ORG ORGORG GRN BLU BLU BLK BLK GND FUSE WHT RED RED YEL YEL YEL COM NC 120V 125V 40W 21V 0V NO FM DM L ASSY PCB BOARD DOOR SENSING S/W CONDITION DOOR IS OPENED 120V15A PCB PATTERN WARNING NOTE: CIRCUIT SHOWN WITH DOOR IS OPENED POSITION. NOTE: FOR SERVICE REPLACEMENT USE 16 GA 105°C THERMOPLASTIC COVERED WIRE EXCEPT FOR HIGH VOLTAGE LEADS OR AS NOTED ON SPECIAL LEADS. POWER MUST BE DISCONNECTED BEFORE SERVICING THIS APPLIANCE

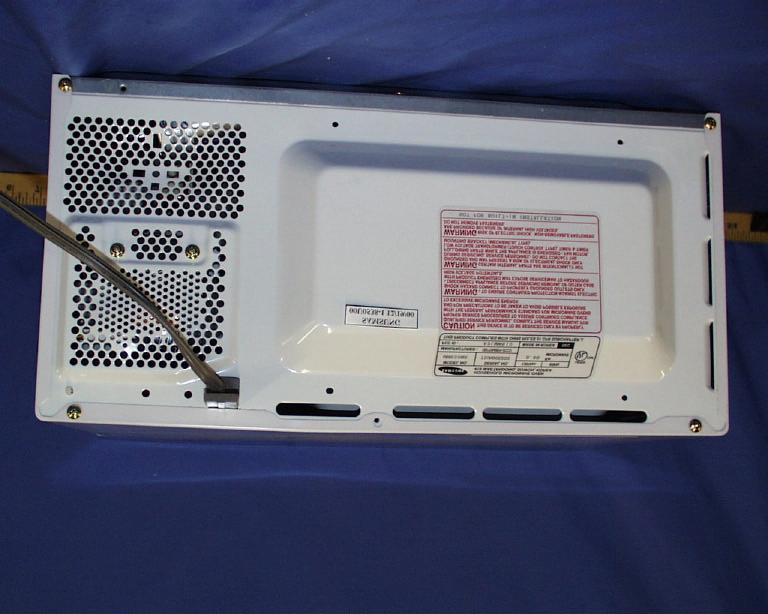

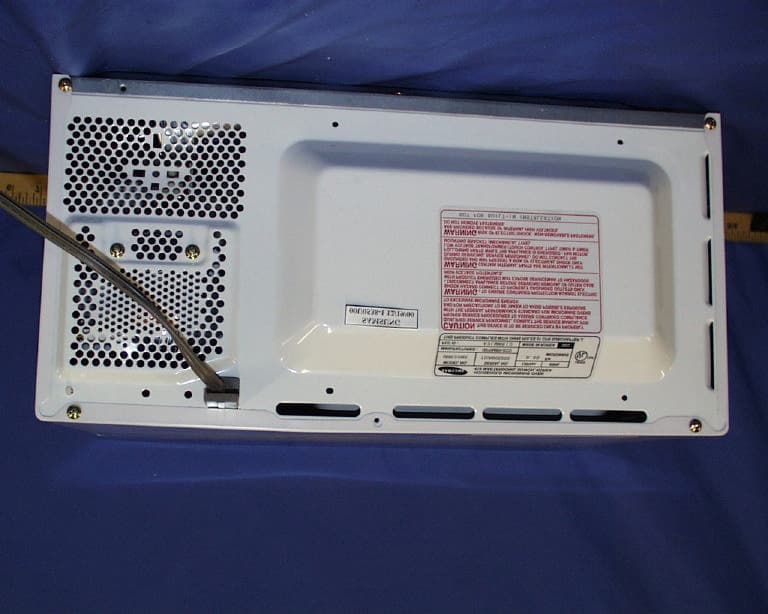

PROPOSED FCC ID LABEL AND LOCATION SAMSUNG ELECTRONIC CO., LTD. This device complies with Part 18 of the FCC Rules. FCC ID: A3LMW610 FCC ID LABEL

FCC CFR47 PART 18 SUBPART C ISM EQUIPMENT TEST REPORT FOR 600W MICROWAVE OVEN MODEL: MW630WA FCC ID: A3LMW610 PROJECT NUMBER: 00U0538-1 ISSUE DATE: NOVEMBER 9, 2000 Prepared for SAMSUNG ELECTRONICS CO., LTD. -3 85 WEST TASMAN DRIVE SAN JOSE, CA 95134 USA Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002C 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE..............................................1 2. PRODUCT DESCRIPTION.....................................................2 3. TEST FACILITY...........................................................2 4. ACCREDITATION AND LISTING...............................................2 5. RADIO NOISE EMISSIONS MEASURMENTS PROCEDURE/RESULTS.............................2 5.1 RADIATION HAZARD MEASUREMENT............................................2 5.2 INPUT POWER ............................................................................................................3 5.3 RF OUPUT POWER MEASUREMENT................................................4 5.4 OPERATING FREQUENCY MEASUREMENTS........................................5 5.5 VARIATION IN OPERATING FREQUENCY WITH TIME..............................5 5.6 VARIATION IN OPERATING FREQUENCY WITH VOLTAGE...........................6 5.7 RADIATION EMISSIONS .............................................................................................7 6. MEASUREMENT EQUIPMENT LIST........................................................9 7. EUT SETUP PHOTOS.........................................................10 ATTACHMENTS: • RADIATED EMISSION DATA • VARIATION IN OPERATING FREQUENCY WITH VOLTAGE PLOTS • VARIATION IN OPERATING FREQUENCY WITH TIME PLOTS • VARIATION IN OPERATING FREQUENCY WITH VOLTAGE PLOTS • PROPOSED FCC ID LABEL • USER MANUAL AND SCHEMATICS • EUT PHOTOGRAPHS PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN Page 1 OF 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : SAMSUNG ELECTRONICS CO., LTD. -3 85 WEST TASMAN DRIVE SAN JOSE, CA 95134 USA CONTACT PERSON : WALLACE OH / MANAGER TELEPHONE NO : (408) 828-8833 EUT DESCRIPTION: 600W MICROWAVE OVEN MODEL NO/NAME : MW630WA DATE TESTED : NOVEMBER 7, 2000 TYPE OF EQUIPMENT: CONSUMER ISM EQUIPMENT TECHNICAL LIMIT: FCC PART 18 SUBPART C FCC RULES: PART 18 MEASUREMENT PROCEDURE MP-5 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUT YES NO The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 18. This said equipment in this configuration described in this report shows that maximum emission levels WARNING: This report documents conditions under which testing was conducted and the results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. emanating from equipment are within the compliance requirements. Tested and Reviewed By: THU CHAN EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES RELEASED FOR CCS BY: STEVE CHENG SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN Page 2 OF 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION The equipment under test is a microwave oven sold for consumer use. Models: MW630WA is 600W microwave oven with digital controls. Magnetron Model: 0M-52S by Samsung. 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code:200065-0 to perform Electromagnetic Interference tests according to FCC PART 15 AND CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission (reference no: 31040/SIT (1300B3) and 31040/SIT(1300F2)) 5. RADIO NOISE EMISSION MEASUREMENTS PROCEDURES/RESULTS 5.1 RADIATION HAZARD MEASUREMENT Leakage Tester Radiation Hazard Measurements A 1000-ml water load was placed in the center of the oven. The power setting was set to 10(100%) maximum power. While the oven was operating, the Microwave probe was moved slowly around the door seams to check for leakage. PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN Page 3 OF 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of …

Text truncated - open the document above for the full version.

PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN Page 10 OF 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7. EUT SETUP PHOTOS RADIATED HAZARD TEST PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN Page 11 OF 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. FREQUENCY VS. TIME SETUP PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN Page 12 OF 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RF POWER OUTPUT TEST PROJECT NO: 00U0538-1 DATE: NOVEMBER 9, 2000 FCC ID: A3LMW610 EUT: 600W MICROWAVE OVEN Page 13 OF 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4002D 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. FREQUENCY VS. VOLTAGE TEST SETUP
