A3LOTR10STSMicrowave Oven

Microwave Oven 164D3370P113 49-40116-3 12-00 JR JVM2050 Owner’s Manual Safety Information Arcing . . . . . . . . . . . . . . . . .4 Foods . . . . . . . . . . . . . . .4, 5 Grounding Instructions . . . . . . . . . . . .8 Microwave-Safe Cookware . . . . . . . . . . . .6, 7 Precautions to Avoid Possible Exposure to Excessive Microwave Energy . . . . . . . . . . . . . . . . .2 Safety Precautions . . . .2, 3 Vent Fan . . . . . . . . . . . . . . .9 Operating Instructions Auto Feature . . . . . . . . . .20 Care and Cleaning . . . . . . . . . .34, 35 Changing the Power Level . . . . . . . . . . .13 Convenience Features . . . . . . . . . . .21–25 Cooking Guide . . . . .15, 16 Defrosting Guide . . . . . .18 Exhaust Feature . . . .37, 38 Features of Your Microwave Oven . . .11, 12 Microwave Terms . . . . . .33 Other Features . . . . 26–32 Replacing Bulbs . . . . . . .36 Time Features . . . . .14–19 Troubleshooting Tips Before You Call For Service . . . . . . . . . . . .39 Things That Are Normal With Your Microwave Oven . . . . . . .39 Consumer Support Consumer Support . . . . . .Back Cover Optional Kits . . . . . . . . .10 Product Registration . . . . . . .41, 42 Warranty . . . . . . . . . . . . .43 Español For a Spanish version of this manual, visit our Website at www.GEAppliances.com. Para consultar una version en español de este manual de instrucciones, visite nuestro sitio de internet www.GEAppliances.com. www.GEAppliances.com SpacemakerXL Write the model and serial numbers here: Model # ________________________ Serial #________________________ Find these numbers on a labelinside the oven. 49-401163v01 12/6/00 5:46 PM Page 1 nRead and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energy section above. nThis appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructions section on page 8. nInstall or locate this appliance only in accordance with the provided Installation Instructions. n Do Not Attemptto operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. n Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. n Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: door (bent), hinges and latches (broken or loosened), door seals and sealing surfaces. n The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel. 3 2 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Safety Information Operating Instructions Troubleshooting Tips Consumer Support IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. 2 For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. WARNING! This microwave oven is UL listed for installation over electric and gas ranges. This microwave oven is not approved or tested for marine use. SAFETY PRECAUTIONS 49-401163v01 12/6/00 5:46 PM Page 2 www.GEAppliances.com 3 Consumer Support Troubleshooting Tips Operating Instructions Safety Information Use this appliance only for its intended purpose as described in this Owner’s Manual. nDo not mount this appliance over a sink. nThis over-the-range oven was designed for use over ranges no wider than 36′′. It may be installed over both gas and electric cooking equipment. nDo not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. nDo not cover or block any openings on the appliance. nUse this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. nDo not store this appliance outdoors. Do not use this product near water— for example, in a wet basement, near a swimming pool or near a sink. nKeep power cord away from heated surfaces. nDo not immerse power cord or plug in water. nTo reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — If materials inside the oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. nSee door surface cleaning instructions in the Care and cleaning of the microwave oven section of this manual. nThis appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. nAs with any appliance, close supervision is necessary when used by children. 49-401163v01 12/6/00 5:46 PM Page 3 Arcing is the microwave term for sparks in the oven. Arcing is caused by: nThe metal shelf not installed correctly so it touches the microwave wall. nMetal or foil touching the side of the oven. nFoil not molded to food (upturned edges act like antennas). nMetal, such as twist-ties, poultry pins, or gold- rimmed dishes, in the microwave. nRecycled paper towels containing small metal pieces being used in the microwave. nDo not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens. nSome products such as whole eggs and seal…

Text truncated - open the document above for the full version.

WARN I NG POWER MUST BE DISCONNECTED BEFORE SERVICING THIS APPLIANCE WHITE BLACK BLUE BLU AC 12OV/60Hz :I: 4 1 I GROUND POWER CORD BOTTOM T.C.0 (IZO/O"C) (248/32'F) BLK/BLU GRA HOOD T.C.0 (40/70°C) (104/158"F) VENT MOTOR 0 I (20-28n. BLU - WIHT) yG MOTOR XED L LK/GRA MAIN FUSE LK LK CAVITY T.C.0 (lOO/O"C) (212/32'F) LK LK (150/60"C) (302/140'F) M.G.T T.C.0 LK P COOKTOP/L AMP COOKTOP LAMP OVEN LAMP fp I WHT " BLK/BLK 3 LK/BLK r( PRIMARY C INTER LOCK S/W FAN MOTOR BLK/BLK A WHT/WHT BLK/BLK 12ov v ov STIRRER MOTOR(SIDE) ST I RRER MOTOR(UPPER) WHT @ ELK 21v W T/TABLE MOTOR RELAY B DRIVE MOTOR ORG BLK/BLK 21v SECONDARY INTERLOCK - 1 1 ( LOWRIL;wEF ) WHT WHTNHT 1 . MONITOR INTERLOCK SWI TCH(MI DDLE) BLK/BLK 0 WHT -- SECONDARY INTERLOCK - 2 ( HI GiE;AFOWER H.V.TRANS FUSE - P.T.C 36.7sL Iv_y_y_y_w H.V.TRANS INTERNAL GND IN TRANS I INRUSH RELAY , BLK H.V.D IODE HEAT SHRINK DOOR SENSE GAS SWITCH (TOP) SENSOR NOTE: DOOR IS OPEN.

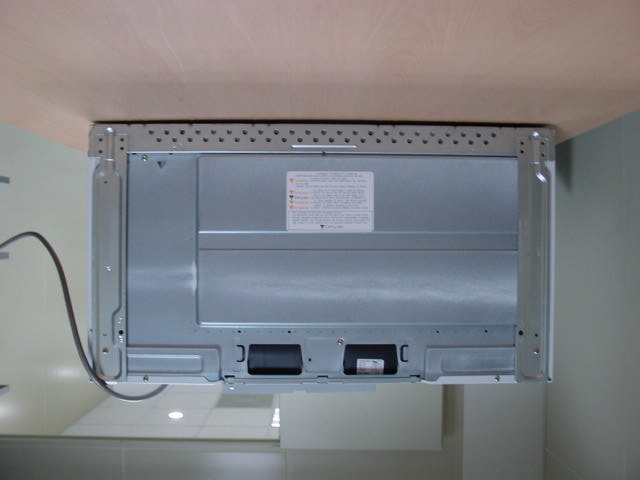

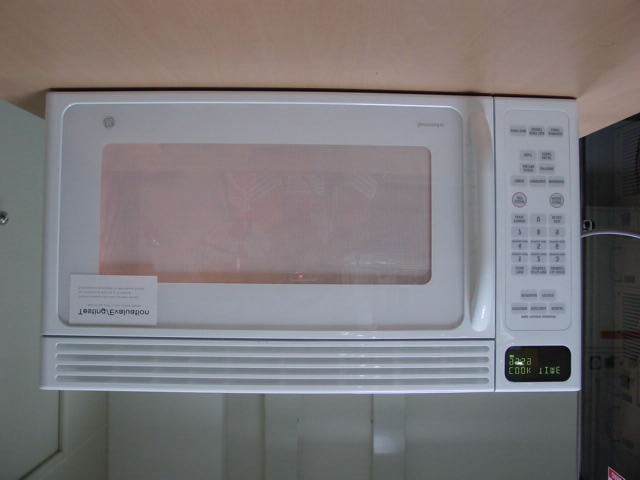

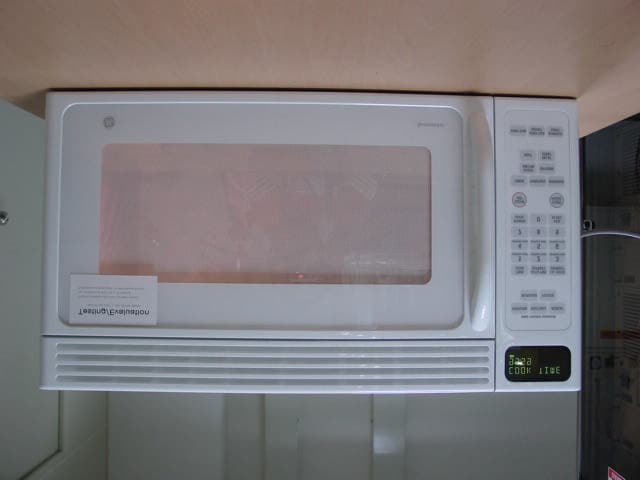

EUT Photograph Front of EUT Rear of EUT EUT Photograph

ID Label and Location Photograph

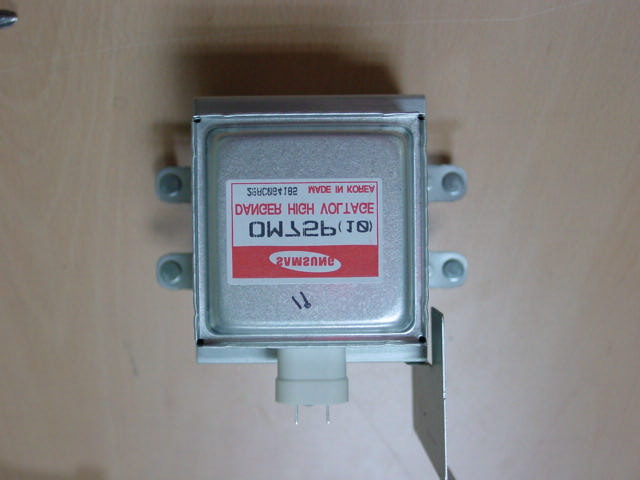

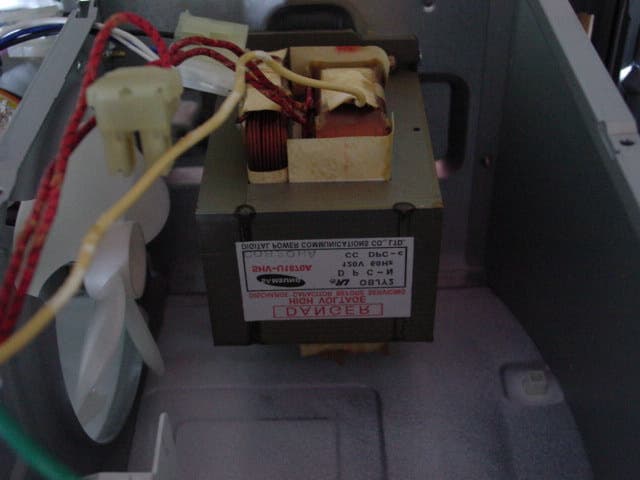

EUT Photograph

Project Number : LBE020900 Page 1 of 15 EMC TEST REPORT According to FCC Part 18 – ISM Consumer Device Project Number : LBE020900 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 2. Identification of tested device 2.1 FCC ID :A3LOTR10STS 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :GENERAL Electronics Co.,Ltd. 2.4 Model Number :JVM2050WG 2.5 RF Output Power :1100W (High) / 1000W(Low) : by IEC 705 method 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :October 31, 2002 Tested by: Jay YONG, PARK / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE :200447-0 Project Number : LBE020900 Page 2 of 15 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Variation in Operating Frequency with Time Measurement 4.4.2 Variation in Operating Frequency with Voltage Measurement 4.4.3 Variation in Operating Frequency with Time Plot 4.4.4 Variation in Operating Frequency with Voltage Plot(96Vac) 4.4.5 Variation in Operating Frequency with Voltage Plot(120Vac) 4.4.6 Variation in Operating Frequency with Voltage Plot(150Vac) 4.5 Radiated Emission Measurement 4.5.1 Radiated Emission Measurement Procedure 4.5.2 Radiated Emission Measurement Configuration 4.5.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.5.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project Number : LBE020900 Page 3 of 15 1. Product Description The equipment under test is a microwave oven sold for consumer use. Model :JVM2050WGis a1100W microwave oven with digital controls. 1) Installation Type: Over-The-Range 2) Magnetron : OM-75P manufactured by Samsung Electronic Co., Ltd. 3) Electrical Ratings Power Supply : 120 V ac, 60 Hz Operating Frequency : 2450 +/- 50 MHz Power Input : 1580 W (Microwave) Clock Frequency : 12.5 MHz 4) Variants Model 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200447-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission(Registration Number:98856, Anechoic Chamber #1). This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project Number : LBE020900 Page 4 of 15 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Fig. 1 Test Setup and the locations of maximum leakage The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.251.0 50.151.0 90.201.0 All others0.11.0 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1 2 3 4 5 6 7 8 9 Project Number : LBE020900 Page 5 of 15 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 120 13.616161580 Based on the measured input power, the EUT was found to be operating within the intended specifications. 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. QuantityStartingFinalElapsedRF Power of waterTemperatureTemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001034.4120851.4 10001034.0120837.4 10001033.8120830.4 839.7 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in …

Text truncated - open the document above for the full version.

Fig. 1 Test Setup for Input power & RF output power Fig. 2 Test Setup for Operating Frequency Measurements This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Fig. 3 Test Setup for Radiated Emission(30 - 1000MHz) Fig. 4 Test Setup for Radiated Emission(1 - 25GHz) This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
