A3LOTR19M4CMicrowave Oven

GE Profile 49-40643 02-11 GE GEAppliances.com Write the model and serial numbers here: Model # __________________________ Serial # __________________________ You can find them on a label when the door is open. Microwave Oven PVM1970 Owner’s Manual Safety Instructions . . . . . . . .2–6 Operating Instructions Convenience Features . . . . . . .12,13 Microwave Terms . . . . . . . . . . . . . .15 Oven Features . . . . . . . . . . . . . . . .7, 8 Other Features . . . . . . . . . . . . . . . . .14 Power Levels . . . . . . . . . . . . . . . . . . . .9 Time Features . . . . . . . . . . . . . . .10,11 Care and Cleaning . . . . . . . . .16 Troubleshooting Tips . . . . . .18 Things That Are Normal . . . . . . . .18 Consumer Support Consumer Support . . . . . . . . . . . . . .20 Warranty . . . . . . . . . . . . . . . . . . . . . .19 IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING. 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel. WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: When using electrical appliances basic safety precautions should be followed, including the following: SAVE THESE INSTRUCTIONS n Read all instructions before using this appliance. When using electrical appliances, basic safety precautions should be followed, including the following: n Read and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energy section above. n This appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructions section on page 6. n This microwave oven is UL listed for installation over both gas (less than 60,000BTU) and electric ranges. n This over-the-range oven is designed for use over ranges no wider than 36.′′ It may be installed over both gas and electric cooking equipment. n Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric. n Install or locate this appliance only in accordance with the provided installation instructions. n To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens. — If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. — Do not use the Sensor Features twice in succession on the same food portion. If food is undercooked after the first countdown, use COOK BY TIME for additional cooking time. — Do not use the oven to dry newspaper. 3 GEAppliances.com IMPORTANT SAFETY INSTRUCTIONS. n Thermometer—Do not use regular cooking or oven thermometers when cooking by microwave. The metal and mercury in these thermometers could cause arcing and possible damage to the oven. Do not use a thermometer in food you are microwaving unless the thermometer is designed or recommended for use in the microwave oven. n Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving risk of electric shock. n Do not store any materials, other than our recommended accessories, in this oven when not in use. n Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink or in similar locations. n Keep power cord away from heated surfaces. n Do not immerse power cord or plug in water. n Do not block or cover any openings on the appliance. n This microwave is not approved or tested for marine use. n Use this appliance only for its intended use as described in this manual. n Do not use corrosive chemicals or vapors in this appliance. n This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. n Some products such as whole eggs and sealed containers— for example, closed jars—are able to explode and should not be heated in this microwave oven. Such use of the microwave oven could result in injury. n It is important to keep the area clean where the door seals against the microwave. Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well. n This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. n As with any appliance, close supervision is necessary when used by children. n Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation. n Do not mount this appliance over a …

Text truncated - open the document above for the full version.

EUT Photography Front Left Right Rear

Label location

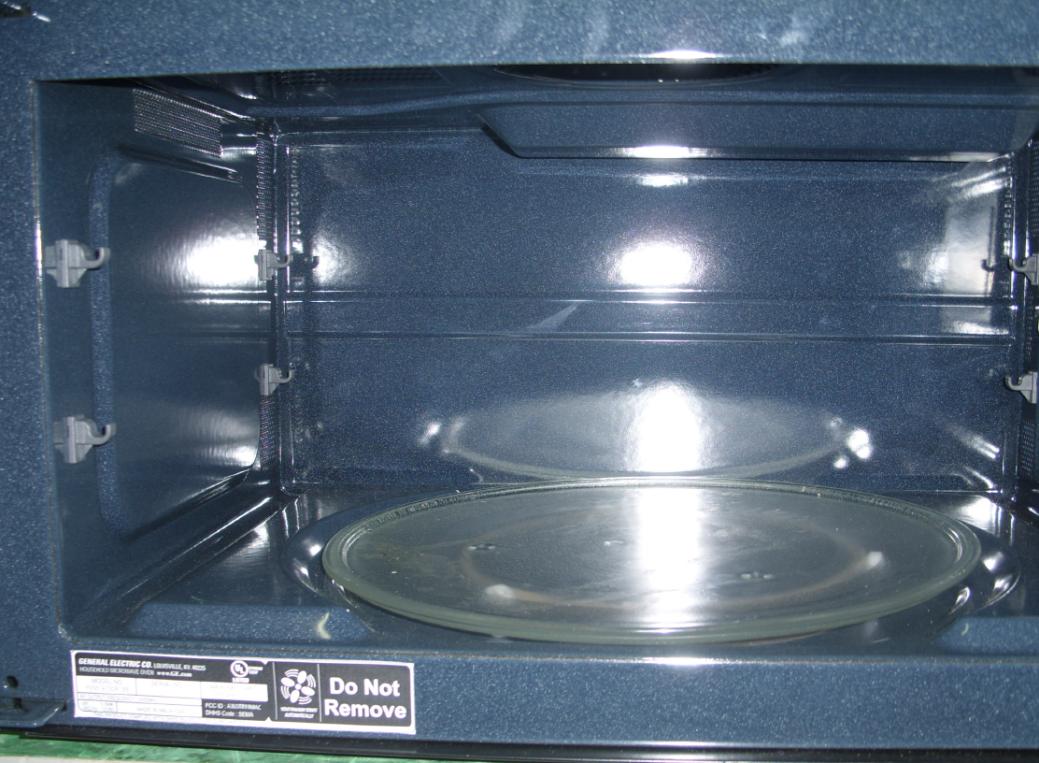

Inside

JOB Number : LBE20110882 Page 3 of 16 1. Product Description The equipment under test is a microwave oven sold for commercial use. Model :PVM-1970is a1000W microwave oven with digital controls. Installation Type: OTR Clock Frequency : 12.5 MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. < Electrical Ratings > 1) Power Supply : 120 V ac, 60 Hz 2) Operating Frequency : 2450 +/- 50 MHz 3) Power Input : 1700 W / 14.5 A 4) RF Power Output : 1000 W (by IEC 705 method) 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200623-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory.

START GAS SENSOR Sheet OPTION SETTINGS OPTION RESET OPTION 0 SUB PCB(TACT) SAMSUNG ELECTRONICS Changed by 30SEC Size TIMED TIMER OPTION MFG ENGR CHK /OFF OPTION 3 2 3 R&D CHK STEAM6 6 /PAUSE REAL TIME CLOCK MELT Date Changed SNACKS Time Changed TITLE: 9 DELETE:HKE PYRAMID POWER RELAY POTATO POP CORN REV SENSOR COOK FAMILY 5 QA CHK INSERT:DEC ADD DISPLAY CONTROL REHEAT Engineer SENSOR 4 OSCILLATOR 2 1 INTERRUPT EMCR 1 SENSOR LOUVER SENSE POWER SUPPLY TIME TCO SENSE OPTION 4 LEVEL Suwon-Si, Gyeonggi-Do, KOREA 443-742 KEY MATRIX 8 Drawn by of 5 CLEAR OPTION POWER MS_JEON 11 11 1970,1950 A3 DOOR SENSE SOUND CONTROL RELAY CONTROL BEVERAGE MY- Drawing Number DOC CTRL CHK 7 DEFROST 416, Maetan-3Dong, Yeongtong-Gu, MS_JEON11 AUG, 201006:30 PM MS_JEON 10K R903 2K R117 D112 1N4148M 20KR119 1N4007 D216 TR211 KRC246M 100nF SMW250-09AV_RED CN202 9 5 3 7 1 C401 10K R407 100nF C301 22uF F2 C105 R111 470 22uF C102 C402 C901100nF 56789 100nF 10 11 12 13 14 15 16 234 12516HS-16 CN101 1 C114 1nF MM4148 D206 R402 470 20KR121 C118 1nF 20K 1000uF +5V R120 R116 2K C108 1nFC123 KIA75S358 IC301 VCC VEE 100uF C110 SMW250-03AV_RED CN201 3 1 +5V 8 C106 1nF 70 71 72 73 74 75 14 24 RESET10 TEST13 VAREF39 VASS38 VDD40 VKK 78 VSS7 XIN9 XOUT 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 29 30 31 41 42 43 44 45 46 47 48 49 50 51 52 53 12 77 5 11 27 28 1 4 3 2 32 33 34 35 36 37 25 20 23 6 21 26 18 22 76 16 80 79 19 17 15 D113 TMP88CU74FG-CHUN IC102 1N4148M C202 R601 2K 10uF D1031N4007 D118 1N4148M C201 100nF D203 KRC246M TR204 MM4148 80/100MHZ L101 +12V D1021N4007 UF4007 D108 RY204 F5H-DC12V-P1 1N4148M D115 RY206 G5T-1A-ASI-12VDC KRC246M R301 26.1K TR501 KRC246M TR206 20K R108 G5T-1A-ASI-12VDC 2K R406 RY209 12 34 KRC246M TR205 200K R906 XTL901 32.768KHz KRC246M TR202 R408 2K +5V 470 R401 TR502 KRC246M RY203 F5H-DC12V-P1 R902 10K MM4148 D209 +5V 78RM33D IC104 R202 4.7K XTL101 D116 1N4148M C116 100nF 12.5MHz CN402 1 4 3 5 2 R304 100K +12V SMW250-05V_WHT 1N4148M D213 UZ5.6BSB ZD301 MM4148 D211 BZ501CBE2220BA R403 2K R109 2K R101 R504 2K 2K 100K 1N4148M D117 R801 1N4007 D217 TR209 KRC246M R114 2K C120 1nF KRC246M TR504 PC817 PC102 4 3 1 2 -34V TVR14561 ZNR101 R104 220 +5V UZ5.1B ZD101 KRC246M +5V +5V RY201 TR401 G5T-1A-ASI-12VDC +5V R112 2K R303 200K +5V TR213 KRA226-AT +3.3V 2K R409 C101 22uF 1N4148M D214 2K R110 C104 RY212 1nF G5T-1A-ASI-12VDC E 1 S5 5 6 S6S7 7 8 S8 G5T-1A-ASI-12VDC RY207 IC101 TNY276P B 2 D 4 2 3 1 MM4148 D208 +12V CN401SMW250-03V_BLU 20KR123 F2 R122 20K 47uF C111 1000uF C124 D1011N4007 G5T-1A-ASI-12VDC RY210 1000uF C112 KRC246M TR207 2K R905 R904 2K D212 MM4148 1N4148M D215 2K R124 R306 100K 1nFC1191nFC121 KRC246M TR201 D1041N4007 F1 51K R107 R305 2K SMW250-04V_RED CN301 2 1 4 3 C107 D210 MM4148 470uF SMW250-07AV_RED CN203 1 3 5 7 4.7K R901 270M PTC101 2K R113 +5V D106 SB160 RY208 G5T-1A-ASI-12VDC D105 +5V 10uF C115 CN901 SMW250-03_BLU 3 2 1 1N4007 C902 100nF A0 2 A1 3 A2 6 SCL 5 SDA 8 Vcc 4 Vss 7 WP +3.3V 24C04 IC601 1 D107 D110 1N4148M F1 SB160 C117 100nF MM4148 D202 D205 MM4148 100 R201 RY202 G5T-1A-ASI-12VDC D120 SB160 P4 P528 29 P6 P730 31 P8 P932 R802 47K 33 P10 P1134 35 P12 P1336 37 P14 P1538 39 P16 P1740 25 P2 P326 27 7G 8G16 15 9G 1 F11 2 F12 F13 342 F21 43 F22 F23 44 5 NC P124 10 9 15G 16G8 7 17G 18G6 23 1G 2G22 21 3G 4G20 19 5G 6G18 17 HNM-18LS02DSP101 10G14 13 11G 12G12 11 13G 14G D114 1N4148M +12V 7033P IC103 100nF C601 +5V 470 R503 TR210 KRC246M +5V +5V G5T-1A-ASI-12VDC RY211 R102 R118 20K 100 VCC 1 X1 2 X2 470 R405 DS1340U-33+ IC901 7FT_OUT 4GND 6SCL 5SDA 3 VB 8 TR503 KRC246M R103 1K C122 1nF 2K R115 1 2 820 R105 PC817 PC101 4 3 C113 100nF 270M PTC201 KRC246M TR203 R4042K +5V +5V +5V D109 SB160 D207 MM4148 D201 MM4148 2K R501 TR212 KRC246M 1N4148M D111 C109 6800uF 3 4 6 7 8 9 10 11 RY205 G5T-1A-ASI-12VDC ST-SM9DSM ST101 1 2 -34V MTZJ4.7B ZD102 D204 MM4148 SB160 D119 2 3 KRC246M TR208 CN102 SMW250-03V_WHT 1 2K R302 19.1K +12V R502 PW_VT_H 51K R106 SCL SDA RESET SW-VENT SW-LAMP BT-S BT-S Vh Vh VENT-L VT-L VENT-L VT-H VENT-H VENT-B VT-M VENT-M VT-B VT-H VT-M VT-L SW-VENT SCL SDA LV-2 TCO NIGHT INRUSH PW_VT_H VENT-B VENT-H VENT-M BZ BZ-L Vs INT CLK LV-1 LV-R LOUVER LOUVER CN-R LV-2 Vs TCO DOOR LV-1 SW-LAMP CN-R CB-R VT-B M-R I-R P-R-H LV-R P-R-L TT-R BZ BZ-S BZ-N BZ-L BZ-N INRUSH POWER-H MAIN TT-R T-TABLE P-R-H I-R CB-R BRIGHT NIGHT CLK DATA POWER-L POWER-L P-R-L DATA POWER-H BRIGHT T-TABLE MAIN M-R BZ-S INT RESET DOOR

JOB Number : LBE20110882 Page 1 of 16 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C JOB Number : LBE20110882 1. This test report does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 2. Identification of tested device 2.1 FCC ID :A3LOTR19M4C 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :GE 2.4 Model Number :PVM-1970 Variant Model : None 2.5 RF Output Power :1000W ( by IEC 705 method ) 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :March 11, 2011 Tested by: Young Ju Ryu/ Test Engineer Reviewed by: No Cheon PARK / Manager of EMC Lab. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 JOB Number : LBE20110882 Page 2 of 16 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Frequency Measurement 4.5 Conducted Emission Measurement 4.5.1 Conducted Emission Measurement Procedure 4.5.2 Conducted Emission Measurement Configuration 4.5.3 Conducted Emission Measurement Data(0.15~30MHz) 4.6 Radiated Emission Measurement 4.6.1 Radiated Emission Measurement Procedure 4.6.2 Radiated Emission Measurement Configuration 4.6.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.6.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE20110882 Page 3 of 16 1. Product Description The equipment under test is a microwave oven sold for commercial use. Model :PVM-1970is a1000W microwave oven with digital controls. Installation Type: OTR Clock Frequency : 12.5 MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. < Electrical Ratings > 1) Power Supply : 120 V ac, 60 Hz 2) Operating Frequency : 2450 +/- 50 MHz 3) Power Input : 1700 W / 14.5 A 4) RF Power Output : 1000 W (by IEC 705 method) 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200623-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE20110882 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Fig. 1 Test Setup for Radiation Hazard Measuerment The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 20.081.0 40.071.0 80.071.0 All others0.051.0 This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. 1 2 3 45 6 7 8 9 JOB Number : LBE20110882 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12015.2218011700W/14.5A Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. JOB Number : LBE20110882 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperatureTemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001020.2120993.0 10001020120981.0 10001019.9120970.0 981.3 Power [W] = (4.187) * Lw * (Tf-Ti) + 0.55*Bi*(Tf- Tr) t Magnetron type: OM-75P Lw : Mass of the water, in grams Bi : Mass of the container, in grams Tf : Final temperature of the water, in °C Ti : Initial temperature of the water, in °C Tr : Ambient temperature, in °C t : Heating time in seconds, excluding the magnetron filament heat-up time. The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared…

Text truncated - open the document above for the full version.

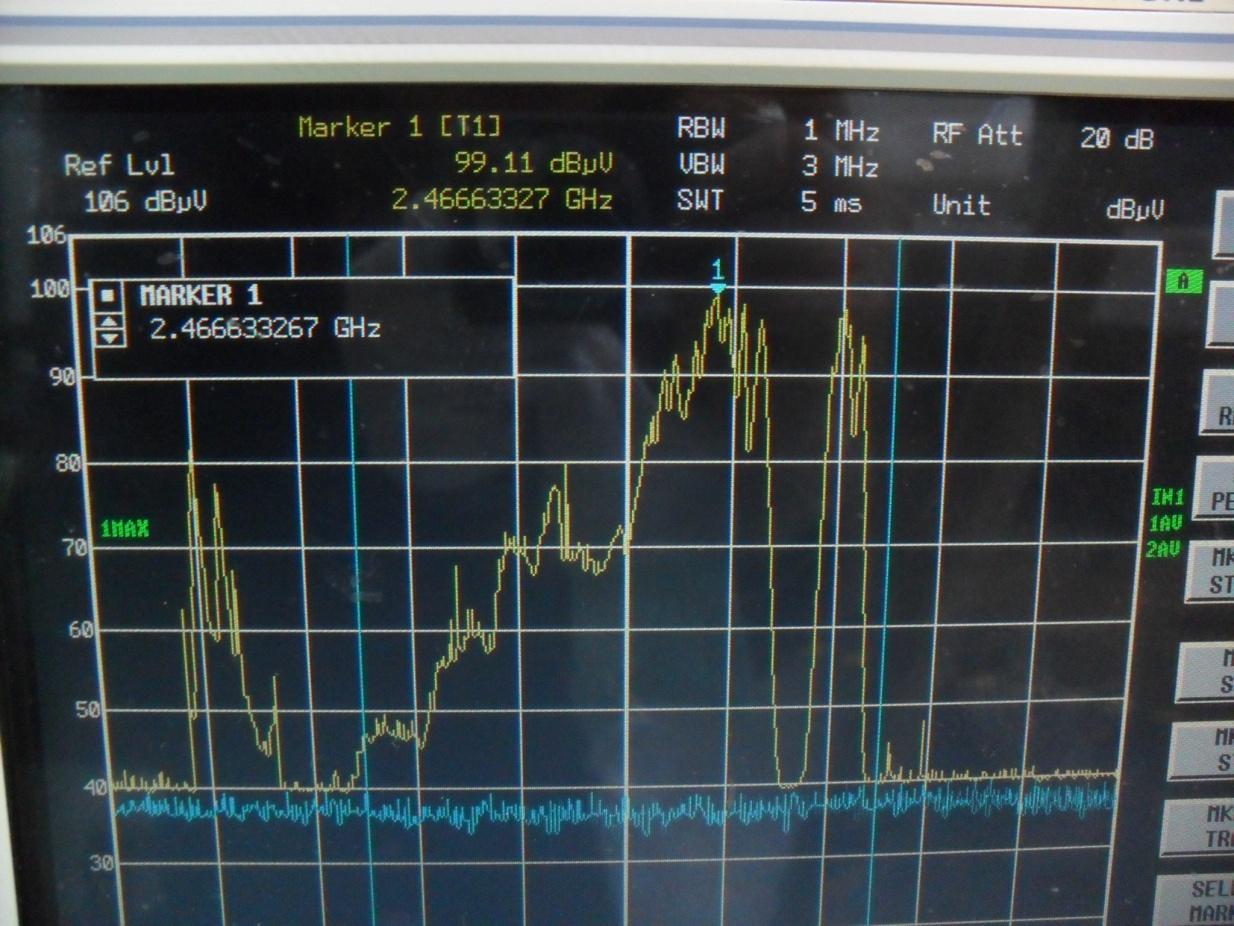

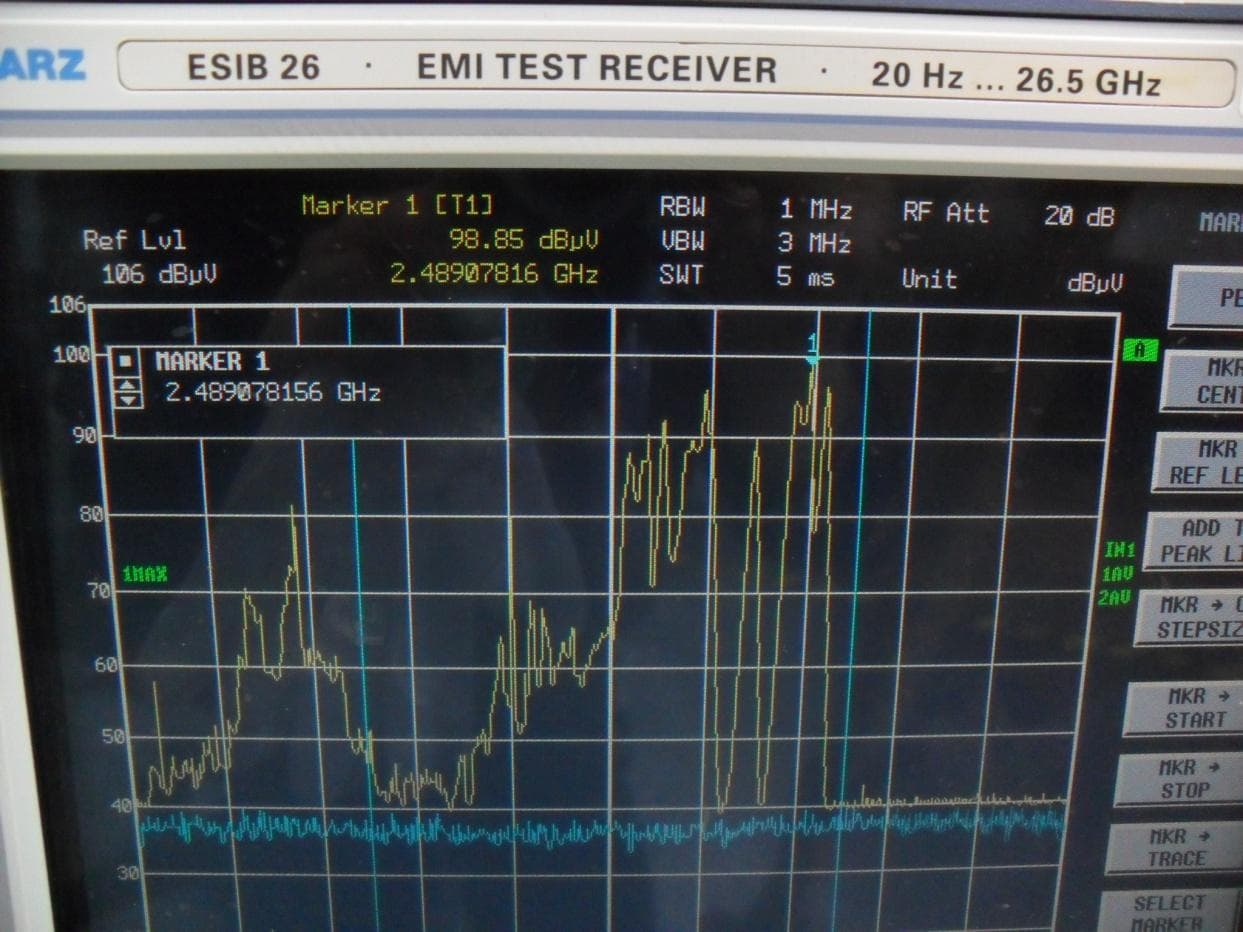

JOB Number : LBE20110882 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Fig. 1 Test Setup for Radiation Hazard Measuerment The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 20.081.0 40.071.0 80.071.0 All others0.051.0 This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory. 1 2 3 45 6 7 8 9 JOB Number : LBE20110882 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12015.2218011700W/14.5A Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of SEC EMC laboratory.
