49-40644 02-11 GE GEAppliances.com Write the model and serial numbers here: Model # __________________________ Serial # __________________________ You can find them on a label when the door is open. Microwave Oven PVM2170 Owner’s Manual Safety Instructions . . . . . . . .2–6 Operating Instructions Convenience Features . . . . . . .12,13 Microwave Terms . . . . . . . . . . . . . .15 Oven Features . . . . . . . . . . . . . . . .7, 8 Other Features . . . . . . . . . . . . . . . . .14 Power Levels . . . . . . . . . . . . . . . . . . . .9 Time Features . . . . . . . . . . . . . . .10,11 Care and Cleaning . . . . . . . . .16 Troubleshooting Tips . . . . . .18 Things That Are Normal . . . . . . . .18 Consumer Support Consumer Support . . . . . . . . . . . . . .20 Warranty . . . . . . . . . . . . . . . . . . . . . .19 GE Profile IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING. 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel. WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: When using electrical appliances basic safety precautions should be followed, including the following: SAVE THESE INSTRUCTIONS n Read all instructions before using this appliance. When using electrical appliances, basic safety precautions should be followed, including the following: n Read and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energy section above. n This appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructions section on page 6. n This microwave oven is UL listed for installation over both gas (less than 60,000BTU) and electric ranges. n This over-the-range oven is designed for use over ranges no wider than 36.′′ It may be installed over both gas and electric cooking equipment. n Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric. n Install or locate this appliance only in accordance with the provided installation instructions. n To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens. — If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. — Do not use the Sensor Features twice in succession on the same food portion. If food is undercooked after the first countdown, use COOK BY TIME for additional cooking time. — Do not use the oven to dry newspaper. 3 GEAppliances.com IMPORTANT SAFETY INSTRUCTIONS. n Thermometer—Do not use regular cooking or oven thermometers when cooking by microwave. The metal and mercury in these thermometers could cause arcing and possible damage to the oven. Do not use a thermometer in food you are microwaving unless the thermometer is designed or recommended for use in the microwave oven. n Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving risk of electric shock. n Do not store any materials, other than our recommended accessories, in this oven when not in use. n Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink or in similar locations. n Keep power cord away from heated surfaces. n Do not immerse power cord or plug in water. n Do not block or cover any openings on the appliance. n This microwave is not approved or tested for marine use. n Use this appliance only for its intended use as described in this manual. n Do not use corrosive chemicals or vapors in this appliance. n This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. n Some products such as whole eggs and sealed containers— for example, closed jars—are able to explode and should not be heated in this microwave oven. Such use of the microwave oven could result in injury. n It is important to keep the area clean where the door seals against the microwave. Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well. n This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. n As with any appliance, close supervision is necessary when used by children. n Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation. n Do not mount this appliance over a …

Text truncated - open the document above for the full version.

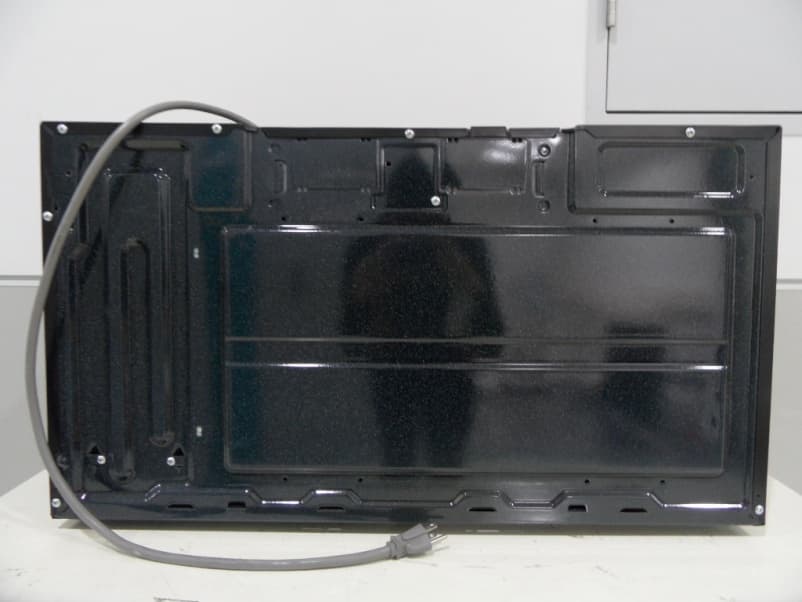

EUT Photography Front Left Right Rear Label location

Rear Label location

JOB Number : LBE20111339 Page 3 of 16 1. Product Description The equipment under test is a microwave oven sold for commercial use. Model : PVM-2170is a 1000 W microwave oven with digital controls. Installation Type: OTR Clock Frequency : 1 0 MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. < Electrical Ratings > 1) Power Supply : 120 V ac, 60 Hz 2) Operating Frequency : 2450 +/- 50 MHz 3) Power Input : 1700 W / 14.5 A 4) RF Power Output : 1000 W (by IEC 705 method) 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi Do Korea Gyeonggi-Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200623-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. This report shall not be reproduced except in full, without the written approval of CS & Environment center.

Peak Manage- GAS SENSOR OPTION JTAG DEBUG FLASH WRITE SUB PCB(ENCODER & TACT) EMCR Date Changed RESET TCO SENSEDOOR SENSE CancelStart Timer Cooking Changed by (MCU)(RTC) OSCILLATOR REV Sheetof SAMSUNG ELECTRONICS 416, Maetan-3Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA 443-742 Drawn by (SENSOR & VFD) Size TITLE: QA CHK POWER SUPPLY EXT-INTERRUPT INSERT:DEC DELETE:HKE POWER RELAY Back Defrost 11 JVM-2170 A3 RELAY CONTROL SOUND CONTROL RTC LOUVER SENSE VFD MODULEKEY INPUT Add 30 My Pyramid ment MenuOption 1 Time Changed Engineer Steam R&D CHK DOC CTRL CHK MFG ENGR CHK Drawing Number Settings 6 4 3 1 MS_JEON MS_JEON 03:10 PM12 JAN, 2011MS_JEON 11 TVS101 PG05GX COM 2 5 10uF C113 +5V+5V+5V 10K R112 C104 10uF +5V +5V C112 100nF MM4148 D205 C110 6800uF 100nF C703 R901 2K D109 1N4007 C103 1nF +5V D202 MM4148 RY207 G5T-1A-ASI-12VDC +5V R401 470 R108 51K 1N4007D101 R404 2K 2K R601 R109 20K 2 34 R406 470 +5V XTL901 32.768KHz 1 C117 1nF1nF C116 3 C115 1nF PG05GX TVS102 2 COM 4 6 5 1 D214 MM4148 1N4007D103 +5V 5V-1 D204 2K MM4148 D203 MM4148 R501 R126 47K 270M PTC201 D213 1N4007 R902 200K 100nF C401 WP 7 F5H-DC12V-P1 RY203 A0 1 A1 2 A2 3 SCL 6 SDA 5 Vcc 8 Vss 4 IC601 24C04 IC103 GND INOUT D216 MM4148 + 1 - 3 OUT 4 VCC 5 VEE 2 78RM33D TR503 IC301 KIA75S358 TR501 KRC246 R405 2K KRC246 R129 2K +12V 5V-1 2K R128 +3.3V +5V D215 MM4148 C111 100uF1000uF C109 8 9 100nF C105 12 13 14 15 16 2 3 4 5 6 7 CN102 SMW200-16C 1 10 11 KRC246 TR502 100nF C201 +5V C601 100nF +5V 2K R305 G5T-1A-ASI-12VDC RY205 +5V 47K R125 100nF C902 RY201 G5T-1A-ASI-12VDC SMW250-03V_WHTCN402 2 3 1 TR208 KRC246 TR201 KRC246 D217 1N4007 2K R502 KRC246 G5T-1A-ASI-12VDC RY208 TR504 G5T-1A-ASI-12VDC RY206 2KR409 2KR408 SB160 D107 C301 100nF 56uF C101 D206 MM4148 100K R306 R201 100 KRC246 TR401 R503 470 470 R407 CBE2220BABZ501 R402 2K KRA226 TR213 D105 1N4007 C202 10uF D 1 E 5 S5 S6 6 S7 7 S8 8 +12V IC101 TNY277PN 2 B 4 R119 10K 2K R801 ZD301 UZ5.1B 1N4007 D110 R701 2K 100K R304 1000uF C118 5V-1 200K R303 R110 2K C901 100nF +5V +12V +5V R106 1K +5V PC101 PC817 4 3 1 2 +5V PC817 4 3 1 2 PC102 RY209 D209 MM4148 47K R802 G5T-1A-ASI-12VDC 10K R118 R127 2K R117 10K KRC246 +5V TR202 KRC246 TR203 D208 MM4148 MM4148 D207 R403 10K 1K R104 TR205 KRC246 +3.3V TR206 KRC246 100nF C702 MM4148 D210 G5T-1A-ASI-12VDC R123 10K RY210 10K R122 R121 10K 3 1 10K R120 SMW250-03AV_REDCN101 TR204 KRC246 GND INOUT F5H-DC12V-P1 RY204 MM4148 D201 IC701 7033P SMW250-05V_WHT 3 4 1 5 2 1 2 4 3 CN401 1 2 3 5 CN301 SMW250-04V_RED SMW250-07V_WHTCN103 7 6 4 2 5 3 4 1 +5V 100K CN104SMW200-05P MTZJ4.7B R101 ZD102 470 R105 D211 MM4148 FT_OUT 7 GND 4 SCL 6 SDA 5 VB3 VCC8 X11 X22 C102 56uF IC901 DS1340U-33+ 10MHz XTL101 D108 MBRF5100 AC C701 10uF +5V R113 10K R301 19.1K R302 +5V 26.1K TVR14561 ZNR101 +5V +12V RY211 +5V G5T-1A-ASI-12VDC 1nF C114 UF4007 D106 9 R107 51K SMW200-09PCN105 1 2 3 4 5 6 7 8 C108 470uF KIA7812API GND INOUT 470uF C107 TR212 IC102 MM4148 D212 KRC246 G5T-1A-ASI-12VDC TCK 94TDI 93TDO 91TMS 95TRST 40TX0 63VOUT3 22X1 20X2 RY212 86PL0 11 57 9 16 12 42 43 14 13 100 1 62RESET 61RVDD5 RX041 92 5 68 10 7 18 89 19 97 88 96 90 81 80 69 79 70 55 56 72 76 73 75 74 2638 37 36 35 32 31 34 65 24 48 46 39 45 66 58 67 4 3 2 651 52 53 54 ENCA0 99ENCB0 87FTEST3 64INT0 60MODE 33 30 29 28 27 15 49 50 78 71 77 25 TMPM380FYDFG IC104 83AVDD5 AVSS82 17DVDD5 44DVDD5_1 85DVDD5_2 8DVSS 21DVSS1 23DVSS2 47DVSS3 59DVSS4 84DVSS5 98 23456 7 8 9 R124 47K 1 7 12516HS-10 CN106 1 10 SMW250-09AV_RED CN201 9 5 3 11 12K R103 2 3 4 6 7 8 9 R703 2K ST101 ST-2170 SMW250-03_WHT 1 2 3 10K R115 CN901 KRC246 TR211 100 R111 10K D104 R102 1N4007D102 1N4007 R114 10K 1nF C106 +5V 10K R116 KRC246 TR209 KRC246 TR210 +12V C402 100nF G5T-1A-ASI-12VDC RY202 2K R702 TR207 KRC246 270M 1 3 5 7 PTC101 KI-1 KI-2 Vs SW-LAMP SW-SELECT ENC-A Vbat Vbat CN202 SMW250-07AV_RED KO-2KO-3KO-4KO-5KO-6 KO-1 KO-2 KO-3 KO-4 KO-5 KO-6 KI-1 KI-2 KI-3 KI-3 X2 X1 SW-SELECT SW-VENT SW-LAMP BZ-N BZ-L D1 D2 D3 D4 D5 D6 D7 BUSY WR CS CD KO-1 D5 D6 D7 BUSY RESET TMS TCK TDO TDI TRST MODE TX0 RX0 ENC-B SW-VENT BZ D0 RELAY_OPTIONP-R-L P-R-H I-R M-R LV-R TT-R CN-R Vs MODE RESET RX0 TCK TDI TDO TMS TRST TX0 X1 X2 D0 WR CS CD D1 D2 D3 D4 VENT-M VT-B CLK_RTC DATA_RTC ENC-A ENC-B INT CB-R VT-L VT-M VT-H VT-B DATA_E2P CLK_E2P DATA_RTC CLK_RTC LV-2 LV-1 DOOR TCO BZ-S INT RESET VENT-B VENT-H VENT-M VENT-L VT-L VENT-L VT-H VENT-H VENT-B VT-M POWER-L P-R-L LV-1 LV-2 LV-R LOUVER LOUVER CN-R RELAY_OPTION DOOR TCO BZ BZ-N BZ-L INRUSH POWER-H MAIN TT-R T-TABLE P-R-H I-R CB-R BRIGHT NIGHT POWER-L DATA_E2P CLK_E2P POWER-H INRUSH NIGHT BRIGHT T-TABLE MAIN M-R BZ-S

JOB Number : LBE20111339 Page 1 of 16 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C JOB Number : LBE20111339 1. This test report does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 2. Identification of tested device 2.1 FCC ID :A3LOTR21M4C 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :GE 2.4 Model Number :PVM-2170 Variant Model : None 2.5 RF Output Power : 1000W ( by IEC 705 method ) 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :April 06, 2011 Tested by: Hyun Jeong Jang / Test Engineer Reviewed by: No Cheon PARK / Manager of EMC Lab. This report shall not be reproduced except in full, without the written approval of CS & Environment center. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 JOB Number : LBE20111339 Page 2 of 16 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Frequency Measurement 4.5 Conducted Emission Measurement 4.5.1 Conducted Emission Measurement Procedure 4.5.1 Conducted Emission Measurement Procedure 4.5.2 Conducted Emission Measurement Configuration 4.5.3 Conducted Emission Measurement Data(0.15~30MHz) 4.6 Radiated Emission Measurement 4.6.1 Radiated Emission Measurement Procedure 4.6.2 Radiated Emission Measurement Configuration 4.6.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.6.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This report shall not be reproduced except in full, without the written approval of CS & Environment center. JOB Number : LBE20111339 Page 3 of 16 1. Product Description The equipment under test is a microwave oven sold for commercial use. Model : PVM-2170is a 1000 W microwave oven with digital controls. Installation Type: OTR Clock Frequency : 1 0 MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. < Electrical Ratings > 1) Power Supply : 120 V ac, 60 Hz 2) Operating Frequency : 2450 +/- 50 MHz 3) Power Input : 1700 W / 14.5 A 4) RF Power Output : 1000 W (by IEC 705 method) 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi Do Korea Gyeonggi-Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200623-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. This report shall not be reproduced except in full, without the written approval of CS & Environment center. JOB Number : LBE20111339 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. 1 2 3 45 6 7 8 9 Fig. 1 Test Setup for Radiation Hazard Measuerment The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 50.321.0 90.091.0 60.081.0 All others0.051.0 This report shall not be reproduced except in full, without the written approval of CS & Environment center. 1 2 3 45 6 7 8 9 JOB Number : LBE20111339 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12015.3818141700W/14.5A Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of CS & Environment center. JOB Number : LBE20111339 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts][ml][centigrade][centigrade][seconds][watts] 10001020.1120980.0 10001019.95120970.0 10001019.9120964.0 971.0 Power [W] = (4.187) * Lw * (Tf-Ti) + 0.55*Bi*(Tf- Tr) t Magnetron type: OM-75P L w : Mass of the water, in grams B i : Mass of the container, in grams T f : Final temperature of the water, in °C T i : Initial temperature of the water, in °C T r : Ambient temperature, in °C t : Heating time in seconds, excluding the magnetron filament heat-u…

Text truncated - open the document above for the full version.

JOB Number : LBE20111339 Page 4 of 16 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. 1 2 3 45 6 7 8 9 Fig. 1 Test Setup for Radiation Hazard Measuerment The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 50.321.0 90.091.0 60.081.0 All others0.051.0 This report shall not be reproduced except in full, without the written approval of CS & Environment center. 1 2 3 45 6 7 8 9 JOB Number : LBE20111339 Page 5 of 16 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12015.3818141700W/14.5A Based on the measured input power, the EUT was found to be operating within the intended specifications. This report shall not be reproduced except in full, without the written approval of CS & Environment center. JOB Number : LBE20111339 Page 6 of 16 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts][ml][centigrade][centigrade][seconds][watts] 10001020.1120980.0 10001019.95120970.0 10001019.9120964.0 971.0 Power [W] = (4.187) * Lw * (Tf-Ti) + 0.55*Bi*(Tf- Tr) t Magnetron type: OM-75P L w : Mass of the water, in grams B i : Mass of the container, in grams T f : Final temperature of the water, in °C T i : Initial temperature of the water, in °C T r : Ambient temperature, in °C t : Heating time in seconds, excluding the magnetron filament heat-up time. The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This report shall not be reproduced except in full, without the written approval of CS & Environment center. Average RF Power of 3 Trials
