GE Appliances SpacemakerXL Microwave Oven Owner’s Manual Models: 1000 Watts JVM1630 JVM1631 2 28 Helpful Information Care and Cleaning29 34 If Something Goes Wrong Before You Call For Service34 GE Service Numbers38 Warranty Back Cover 11 Important Safety Information Precautions to Avoid Possible Exposure to Excessive Microwave Energy2 Special Notes About Microwaving6 Operating Instructions Features of Your Microwave11 The Controls on Your Microwave12 Time Cooking15 Automatic Cooking21 Other Features24 49-400811v01 8/2/01 4:02 PM Page 1 2 IMPORTANT SAFETY INFORMATION READ ALL SAFETY INFORMATION BEFORE USING FOR YOUR SAFETY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life. Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: 1door (bent), 2hinges and latches (broken or loosened), 3door seals and sealing surfaces. The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel. 49-400811v01 8/2/01 4:02 PM Page 2 3 Welcome to the GE family. We’re proud of our quality products and we believe in dependable service. You’ll see it in this easy-to- use manual and you’ll hear it in the friendly voices of our consumer service department. Best of all, you’ll experience these values each time you use your microwave. That’s important, because your new microwave will be part of your family for a long time. Welcome Write down the model and serial numbers here. They are on a label inside the oven. Model number Serial number Date of purchase Staple your receipt to the inside back cover of this manual. You will need it to obtain service under warranty. Help us help you Before you call for service, there are a few things you can do to help us serve you better. Read this manual. It contains instructions to help you use and maintain your microwave properly. If you received a damaged oven... immediately contact the dealer (or builder) that sold you the oven. Save time and money. Check the section titled “If Something Goes Wrong” before calling. This section helps you solve common problems that might occur. If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back of this manual. Need Help? Start Here!...Before using your Microwave 49-400811v01 8/2/01 4:02 PM Page 3 To reduce the risk of fire, burns, electric shock, injury to persons, or exposure to excessive microwave energy when using your appliance, follow basic precautions, including the following sections. WARNING •Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Microwave Energy” on page 2. •This appliance must be grounded. Connect only to properly grounded outlet. See Grounding Instructions section on page 10. •Do not mount this appliance over a sink. •Install or locate this appliance only in accordance with the provided Installation Instructions. •This over-the-range oven was designed for use over ranges no wider than 36′′. It may be installed over both gas and electric cooking equipment. •Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric. •Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. This microwave oven is UL listed for installation over electric and gas ranges. This microwave oven is not approved or tested for marine use. SAFETY PRECAUTIONS 4 IMPORTANT SAFETY INFORMATION READ ALL SAFETY INFORMATION BEFORE USING 49-400811v01 8/2/01 4:02 PM Page 4 •Do not cover or block any openings on the appliance. •Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool or near a sink. •Keep power cord away from heated surfaces. •Do not immerse power cord or plug in water. •To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance if paper, plastic or other com- bustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic con- tainers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — If materials inside oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. •See door surface cleaning instructions in the Care and Cleaning section(s) of this manual. •This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. •As with any appliance, close supervision is necessary when used by children. SAVE THESE INSTRUCTIONS 5 49-400811v01 8/2/01 4:02 PM Page 5 IMPORTANT SAFETY INFORMATION SPECIAL NOTES ABOUT MICROWAVING Arcing is the microwave term for sparks in the oven. Arcing is caused by: •Metal or foil touching the side of the oven. •Foil not molded to food (u…

Text truncated - open the document above for the full version.

WARN I NG POWER MUST BE DISCONNECTED BEFORE SERVICING THIS APPLIANCE AC 120V/60Hr LN P c A VENT, RELAY CON, 02 LAMP RELAY NIGHT MAIN RELAY (LAMP RELAY) DOOR SENSE SWITCH (TOPI CON 04 -1 1 I GROUND POWER CORD BOTTOM T C 0 (12O/O"C) A VENT MOTOR CR I R,f HOOD T.C.0 ( 40/70°C) ( 104/15E°F) B CAVITY T C 0 I (1 OO/O"C) (212/32'F) M.G.T T.C.0 ( 150/60°C) (302/140°F) I PRIMARY INTER LOCK S/W T.P 34 2ii MOTOR CAPACITOR V R Lppppp COOKTOP LAMP A OVEN LAMP I I FAN MOTOR 120V +ijL DRIVE MOTOR MONITOR INTERLOCK SW I TCH(M I DDLE) B/B W ~ H.V. D I ODE ~ NOTE: DOOR IS OPEN. PROBE SWITCH IS CLOSED

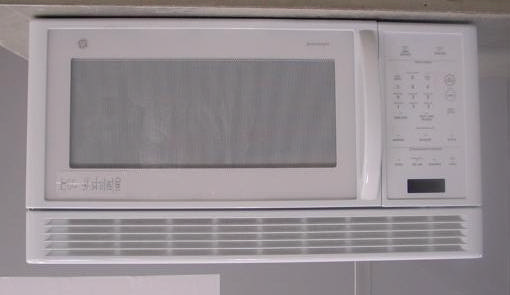

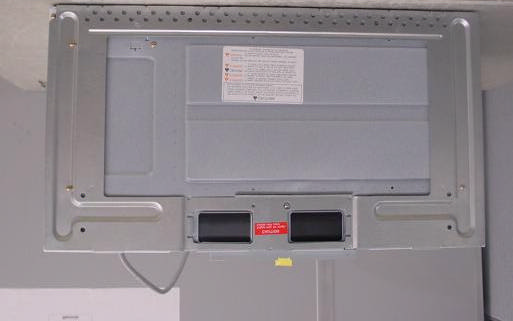

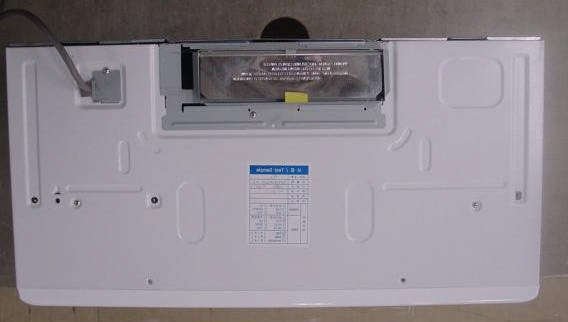

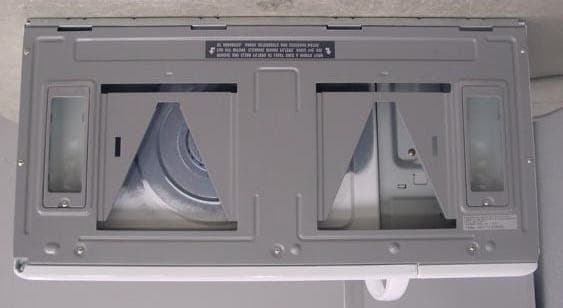

EUT Photograph Front of EUT Rear of EUT EUT Photograph Upper of EUT Under of EUT

Label Location 10001034.1120840.9 10001033.8120830.4 10001033.4120816.5 829.3 The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Average RF Power of 3 Trials MODEL NO. SERIAL NO. MANUFACTURED THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J JVM1630 001 OCTOBER-2001 FCC ID : A3LOTR7MT MADE IN KOREA WARRANTY : 1 YEAR FULL RF OUTPUT FREQUENCY : 2450MHz KW :1.58 VAC/HZ : 120/60

EUT Photograph Rear of PCB Front of PCB

Project Number : SE-01-0502 Page 1 of 18 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C Project Number : SE-01-0502 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 2. Identification of tested device 2.1 FCC ID :A3LOTR7MT 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :SAMSUNG Electronics Co.,Ltd. 2.4 Model Number :JVM1630WB 2.5 RF Output Power : 1000 W 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :October. 25, 2001 Tested by: Chun Kyu, PARK / Test Engineer Reviewed by: Seung Kyu, CHA / Manager of EMC Lab. Authorised by: Kyu Baek, CHUNG / Chief of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE :200447-0200447-0 Project Number : SE-01-0502 Page 2 of 18 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Variation in Operating Frequency with Time Measurement 4.4.2 Variation in Operating Frequency with Voltage Measurement 4.4.3 Variation in Operating Frequency with Time Plot 4.4.4 Variation in Operating Frequency with Voltage Plot(96Vac) 4.4.5 Variation in Operating Frequency with Voltage Plot(120Vac) 4.4.6 Variation in Operating Frequency with Voltage Plot(150Vac) 4.5 Radiated Emission Measurement 4.5.1 Radiated Emission Measurement Procedure 4.5.2 Radiated Emission Measurement Configuration 4.5.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.5.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project Number : SE-01-0502 Page 3 of 18 1. Product Description The equipment under test is a microwave oven sold for consumer use. Model :JVM1630WBis a1000W microwave oven with digital controls. Installation Type: Over-the range < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200447-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission(Registration Number:98856, Anechoic Chamber #1). This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project Number : SE-01-0502 Page 7 of 18 4.4 Operation Frequency Measurement Fig. 4 Operating Frequency Measurements Configuration Fig. 5 Test Setup for Operating Frequency Measurements This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Spectrum analyzer Power Source (Voltage Variable) Horn antenna 0.5 m EUT Project Number : SE-01-0502 Page 8 of 18 4.4.1 Variation in Operating Frequency with Time Measurement The operating frequency was measured using a spectrum analyzer. Starting with the EUT at room temperature, a 1000-ml water load was placed in the center of the oven and oven was operated at maximum output power. The fundamental operating frequency was monitor until the water load was reduced to 20% of the original load. The results of this test are as follows. Initial load : 1000 ml Load at completion of test : 200 ml Minimum frequency observed :2423MHz Minimum frequency allowed :2400MHz Maximum frequency observed :2482MHz Maximum frequency allowed :2500MHz Refer to spectrum analyzer plot under ATTACHMENTS: Variation in Operating Frequency with Time Plot for details of frequency variation with operating time. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project Number : SE-01-0502 Page 9 of 18 4.4.2 Variation in Operating Frequency with Voltage Measurement Following the above test, after operating the oven long enough to assure that stable operating temperature were obtained, the operating frequency was monitored as the input voltage was varied between 80 to 125 percent of the nominal rating. The water load was maintained at 200 ml for the duration of the test. The results of this test are as follows. Line voltage varied from 96Vac to 150Vac. 96VacMinimum frequency observed :2430MHz Minimum frequency allowed :2400MHz Maximum frequency observed :2478MHz Maximum frequency allowed :2500MHz 120VacMinimum frequency observed :2423MHz Minimum frequency allowed :2400MHz Maximum frequency observed :2480MHz Maximum frequency allowed :2500MHz 150VacMinimum frequency observed :2428MHz Minimum frequency allowed :2400MHz Maximum frequency observed :2482MHz Maximum frequency allowed :2500MHz This reports shall not be reproduced except in full, witho…

Text truncated - open the document above for the full version.

Project Number : SE-01-0502 Page 4 of 18 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Fig. 1 Test Setup and the locations of maximum leakage The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] A0.251.0 B0.101.0 C0.001.0 All others0.051.0 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. A B C Project Number : SE-01-0502 Page 5 of 18 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12013.115711580 Based on the measured input power, the EUT was found to be operating within the intended specifications. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project Number : SE-01-0502 Page 6 of 18 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperatureTemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001034.1120840.9 10001033.8120830.4 10001033.4120816.5 829.3 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Average RF Power of 3 Trials
