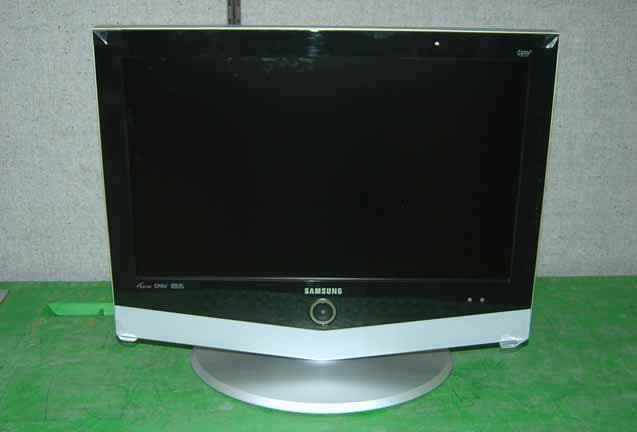

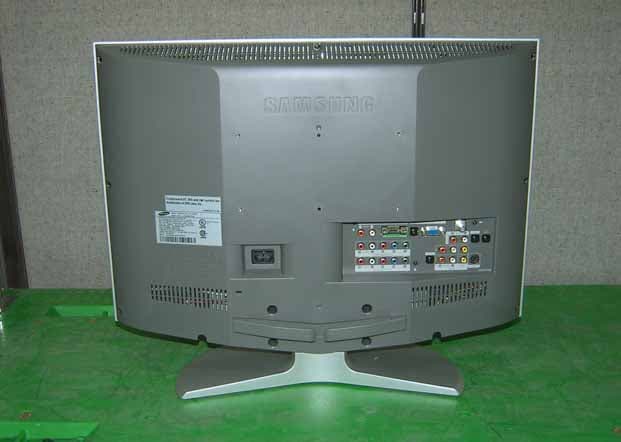

A3LRE23UO23-inch LCD TV Monitor

WXGA1366*768(1280*768) AV-1 (RF) RF (CVBS) S.VHS-S (Y/C) AV-S (CVBS) AV-2 (Monitor Out) AV-1 (CVBS) AV-2 (CVBS) AV-1 (RF-1) AV-2 (Monitor Out) MP (CVBS) AMP.(6dB) Digital Audio

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Page : 1 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE042363 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-City,Gyeonggi-Do, Korea,443-742 Product Name LCD TV Monitor Model Name RE23UO Manufacturer SAMSUNG Brand Name SAMSUNG Variant Model See Page 3 Date of Test December 23, 2004 Issued Date December 24, 2004 Name/Position Signature Tested by Kyung Chul, Min Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. Page : 2 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Radiated Emission 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd, Model name RE23UO Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea, 443-742 Contact Person Kyung Chul, Min Kind of product LCD TV Monitor Valiant list None Manufacturer Samsung Electronics Co.Ltd; New / Alternative / Permissive change Information This report is original report # 1.2 Detail Information related Product Specification Page : 4 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. - PC Analog In - TV Receiving : This operating mode was covered by another report 1.4 Equipment Modifications No equipment modifications were required. Page : 5 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model NameSerial # Maker Note A LCD TV Monitor RE23UO - SAMSUNG EUT B Personal Computer M6050 812092FRC01952SAMSUNG C Printer ML-1740 BABX820386E SAMSUNG D PS/2 Keyboard 5900 K03119305 SAMSUNG E PS/2 Mouse M-S48a LZA95254368 SAMSUNG Used Cable Description Connect Cable Length [m] Shielded [Y/N] Remark 1 Power 1.8 No to the Mains 2 ANT In 1.5 Yes Termination 3 HDMI 1.5 Yes - 4 DVI Audio In 1.5 No Termination 5 PC In 1.5 Yes PC 6 PC Audio In 1.5 No Termination 7 Component In 1 1.5 NoTermination 8 Component In 2 1.5 NoTermination 9 S-Video In 1.5 NoTermination 10 AV In 1.5 NoTermination 11 AV Out 1.5 NoTermination 12 Power(For PC) 1.8 No To the Mains 13 Power(For Printer) 1.8 No To the Mains 14 PS/2 Cable 1.2 No To the PC 15 PS/2 Cable 1.2 No To the PC 16 Parallel Cable 1.5 Yes To the PC Page : 6 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram Page : 7 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Product or Generic Standards Basic Standards FCC Part15 Subpart B ANSI C63.4 : 2003 Page : 8 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 22, 16-1, 16-2. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Radiated Disturbance 5.09 Disturbance voltage at the mains terminals 1.64 (According to NAMAS Pub.NIS81) Page : 9 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. Summary of Test Results Result : PASS The equipment under test(EUT) has been found to comply with the applied standards. Test Name Applied Standard Result Electromagnetic Emission Test 3.1 Conducted Emission FCC Part15 Subpart B Complied 3.2 Radiated Emission FCC Part15 Subpart B…

Text truncated - open the document above for the full version.

Page : 14 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Side) Page : 15 of 16 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042363 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear)
