A3LRE26UOLCD TV Monitor

WXGA1366*768(1280*768) AV-1 (RF) RF (CVBS) S.VHS-S (Y/C) AV-S (CVBS) AV-2 (Monitor Out) AV-1 (CVBS) AV-2 (CVBS) AV-1 (RF-1) AV-2 (Monitor Out) MP (CVBS) AMP.(6dB) Digital Audio

Page : 15 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 7 EUT (Label)

Page : 1 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE042262 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-City,Gyeonggi-Do, Korea,443-742 Product Name TFT LCD Monitor Model Name RE26UO Manufacturer SAMSUNG Brand Name SAMSUNG FCC ID A3LRE26UO Variant Model See Page 3 Date of Test December 3, 2004 ~ December 6, 2004 Issued Date December 8, 2004 Name/Position Signature Tested by Sung Wook Choi Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Radiated Emission 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd Model name RE26UO Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea, 443-742 Contact Person S Kind of product TFT LCD Monitor Valiant list None Manufacturer Samsung Electronics Co.Ltd 1.2 Detail Information related Product Specification Resolution 1360 * 768 Horizontal Frequency 61kHz Vertical Frequency 75Hz Operating Frequency 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. The mode of operation utilized for testing was selected to best simulate typical EUT use. - PC Video Input 1.4 Equipment Modifications No equipment modifications were required. Page : 4 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Mark Item Model No. Serial No. Manufacturer FCC ID A TFT LCD Monitor RE26UO - SAMSUNG A3LRE26UO B Personal Computer M6050 812092FRC00338 SAMSUNG DOC C Printer ML-1740 BABX820386E SAMSUNG A3LML-1710P D USB Keyboard SDM4510UH 4M024781 SAMSUNG DOC E PS/2 Mouse M-S48a LZA00155252 SAMSUNG JNZ201213 Used Cable Description No. Item Length[m] Shielded Remark 1 USB Mouse Cable 1.8 N - 2 PS/2 Keyboard Cable 1.6 N - 3 Video Cable 1.5 Y - 4 AC Power Cable(Monitor)1.2 N - 5 AC Power Cable(PC) 1.8 N - 6 Printer Cable 1.6 Y - 7 S-Video Cable 1.5 N - 8 PC Cable 1.5 N - 9 RCA Cable 1.5 N - 10 Line-in Cable 1.5 N - Page : 5 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram 1.6 Applied Standards List Product or Generic Standards Basic Standards FCC Part15 Subpart B ANSI C63.4 : 2003 Page : 6 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 22, 16-1, 16-2, 11. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Conducted Emission +/- 1.64 Radiated Emission +/- 5.09 (According to NAMAS Pub.NIS81) Page : 7 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. Summary of Test Results Result : PASS The equipment under test(EUT) has been found to comply with the applied standards. Test Name Applied Standard Result Electromagnetic Emission Test 3.1 Conducted Emission FCC Part15 Subpart B Complied 3.2 Radiated Emission FCC Part15 Subpart B Complied Page : 8 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 3. Description of Individual Tests 3.1 Conducted Emission Test Information Test Engineer Sung Wook Choi Test Date December 6, 2004 Climate Condition Ambient Temperature : 23°C Relative Humidity : 47% Test Place Shield Room #5 Test Equipments Calibration Equipment Modal Name Manufacturer Serial No. Next Date Interval L.I.S.N ESH3-Z5 R&S 100262 2005-02-11 12 Test Software EP5CE TOYO None N/A N/A Field strength meter ESS R&S 844661/005 2005-01-05 12 RF Relais Matrix PSU R&…

Text truncated - open the document above for the full version.

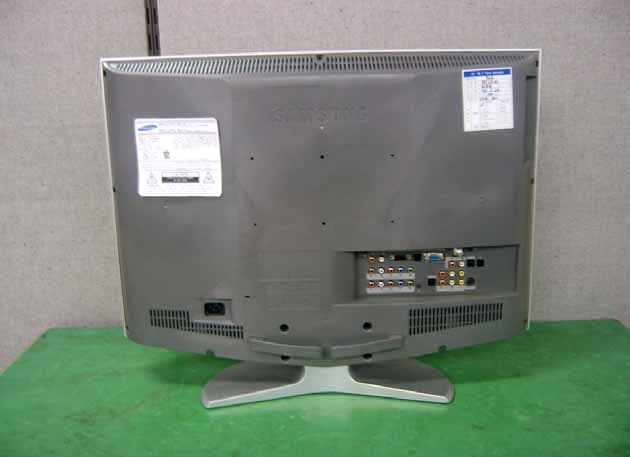

Page : 12 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Side) Page : 13 of 15 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042262 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear)
