A3LSAM335AADSL Modem

iii Class B Digital Device or Peripheral This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: !Reorient or relocate the receiving antenna. !Increase the separation between the equipment and receiver. !Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. !Consult the dealer or experienced radio TV technician for help. iv Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Copyright © Samsung Electronics Co. Ltd. And Samsung Telecommunications America, Inc. 2001 All rights reserved. Samsung, the Samsung logo, Samsung AceLink are registered trademarks. All other product names are used for identification only and may be trademarks and/or registered trademarks of their respective companies. Product specifications subject to change without notice. No part of this publication may be reproduced in any form or by any means or used to make any derivatives such as translation, transformation, or adaptation without permission from Samsung Electronics as stipulated by the United States Copyright Act of 1976. v Limited Warranty 1.What Is Covered And For How Long ? SAMSUNG TELECOMMUNICATIONS AMERICA, INC.(“SAMSUNG”)warrants to the original purchaser that SAMSUNG’s ADSL Modems are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the following specified period of time after that date : AceLink TM ADSL Modem 2 years 2.What is not covered? This Limited Warranty is conditional upon proper use of the product by the purchaser. The Limited Warranty does not cover : (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, modification of any part of the product, or cosmetic damage; (b) equipment that has the serial number removed or made illegible;(c) all plastic surfaces and other externally exposed parts that are scratched or damaged due to normal use;(d) malfunctions resulting from the use of the product in conjunction with accessories, products or ancillary or peripheral equipment not authorized and approval of by SAMSUNG; (e) defects or damage from improper testing, operation, maintenance, installation, or adjustment. Please call SAMSUNG’s customer care center at 1-888-987-4357 for updated pricing on non- warranty repairs. 3.What Are SAMSUNG’s Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG’s sole option, without charge to purchaser, any defective component part of the ADSL Modem or accessory. To obtain service under this Limited Warranty, purchaser must return the product to an authorized SAMSUNG service facility in an adequate container for shipping, accompanied by purchaser’s sales receipt or comparable substitute proof of purchase showing the date of purchase, the serial number of the product, and the sellers name and address. To obtain assistance on where to deliver the ADSL Modem, call SAMSUNG customer care at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective product. SAMSUNG may, at SAMSUNG’s sole option, use rebuilt, reconditioned, or new parts or components when repairing any product or replace a product with a rebuilt, reconditioned or new product. Repaired products will be warranted for a period equal to the remainder of the original Limited Warranty on the original product or for 90 days, which ever is longer. All replaced parts, components, boards and equipment shall become the property of SAMSUNG. If SAMSUNG determines that the product is not covered by this Limited Warranty or that the product is not defective, the purchaser must pay all parts, shipping, and labor charge for the testing, repair and return of the product. 4.What Are The Limits On SAMSUNG’s Liability? THE WARRANTIES GIVEN IN THIS WARRANTY ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY SET OUT ABOVE. EXCECT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, SAMSUNG SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, LOSS OF PROFITS, DAMAGES TO PURCHASER PROPERTY, OR INJURY TO PURCHASER OR OTHERS ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE ANY SAMSUNG ADSL MODEM, BREACH OF WARRANTY, BREACH OF CONTRACT, OR NEGLIGENCE, INCLUDING BUT NOT LIMITED TO SAMSUNG’S OWN NEGLIGENCE, EVEN IF SAMSUNG OR ITS AGENT HAS BEEN ADVISED OF SUCH DAMAGES, OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. vi THIS LIMITED WARRANTY IS THE COMPLETE WARRANTY FOR SAMSUNG’S ADSL MODEM, AND SAMSUNG HEREBY DISCLAIMS ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, IMCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER’S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS WARRANTY IS ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAY, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY OF THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND ALWAYS WILL BE CONSTRUCTED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS …

Text truncated - open the document above for the full version.

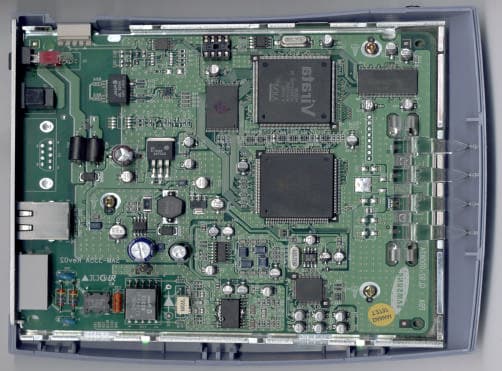

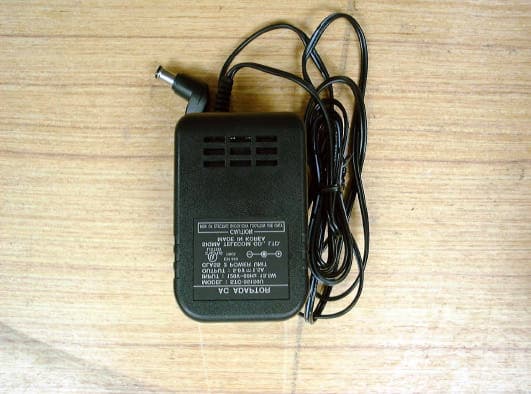

Front view of EUT Rear view of EUT Internal view of EUT Side view of EUT View of AC adapter

Internal view of EUT Side view of EUT PCBs view of main b'd Solder view of main b'd

Page 1 of 14 JOB NO. : KE-01-0286 Product :ADSL MODEM Model No. :SAM-335A JOB NO. : KE-01-0286 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. Date of test :June 4 to 5, 2001 Issued Date :June 8, 2001 Prepared by: Kyung Dong. KIM / Test Engineer Reviewed by: Chun Kil. KIM / Technical Manager Authorised by: Yang Su. KIM / Quality Manager This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT FCC Part 15 Subpart B, Class B LAB CODE : 200447-0 Page 2 of 14 JOB NO. : KE-01-0286 Table of Contents 1. General Information 1.1 Product Description 1.2 Tested System Details 1.3 Test Methodology 1.4 Test Facility 2. System Test Configuration 2.1 Operation Environment 2.2 Justification 2.3 EUT Exercise Software 2.4 Test Procedure 2.5 Test System configuration 3. Conducted and Radiated Measurement Photos 3.1 Conducted Measurement Photos 3.2 Radiated Measurement Photos 4. Measurement Uncertainty 4.1 Conducted Emission Test 4.2 Radiated Emission Test 5. Conducted Emission Test Data 6. Radiated Emission Test Data 7. Label and Label Location 8. Test Equipment Used This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 3 of 14 JOB NO. : KE-01-0286 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416, Maetan-3Dong, Paldal-Gu Suwon-City, Kyungki-Do, Korea 442-742 CONTACT PERSON :Dong Keun, Ju TEL. +82-31-218-7269 CONTACT ADDRESS :416, Maetan-3Dong, Paldal-Gu Suwon-City, Kyungki-Do, Korea 442-742 REGULATION(S) :FCC Part 15 Subpart B, Class B MODEL NUMBER :SAM-335A SERIAL NUMBER :- KIND OF PRODUCT :ADSL MODEM TESTED DATE :June 4 to 5, 2001 TEST SITE :3meter semi-anechoic chamber TEST SITE ADDRESS :San 14, Nongseo-Ri, Kihung-Eup, Yongin-City, Kyungki-Do, Korea, 449-900 This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 4 of 14 JOB NO. : KE-01-0286 1.1 Product Description It is possible to access the Internet and other multimedia service networks through an existing telephone line(PSTN) using Samsung ADSL modem, SAM-335A. Unlike previous dial-up modems, this ADSL modem provides the fastest speed available as well as allow use of the telephone at the same time. This ADSL modem uses 20MHz of CPU clock and 17.644MHz of PLL clock. The input voltage is AC110V and operating voltage is DC 5V. See the attached SAM-335A User's Guide for more information. 1.2 Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: Device TypeManufacturerModel NumberSerial No.FCC ID / DoC (1)ADSL Modem Samsung SAM-335AN/AA3LSAM335A (EUT) (2) PC SamsungTD260-DTC92DK409981 FCC DoC (3) MonitorSamsung SyncMaster 17GLsiH3MF400637 FCC DoC (4) Keyboard Samsung5900K09141644 FCC DoC (5) Mouse LogitechM-SAS51LZB00478743JNZ211167 (6)Card ReaderDATAFABMDSM-B-USB0223420865FCC DoC (7)Laser PrinterSamsungML-85B1AJ700174A3LML85 (8) ADSL DSLAMSamsungSMT-A31091000AK023Verification (9) TelephoneSamsungSP-F127B2CKD21532- 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT. 1.4 Test Facility All test described in this report were performed by : Open area test site : 781-14, Chung-Ri, Dongtan-Myun, Hwasung-Kun, Kyungki-Do, Korea Conducted measurement facility and 3meter Semi-anechoic chamber : San 14, Nongseo-Ri, Kihung-Eup,Yongin-City, Kyungki-Do, Korea, 449-900 This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 5 of 14 JOB NO. : KE-01-0286 2. System Test Configuration 2.1 Operation Environment ConductionRadiation Temperature [] : 2726 Humidity [%] :4545 Power supply :AC110V/60HzAC110V/60Hz 2.2 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.3 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing was ping and ADSL modem was simulated through ADSL DSRAM equipment. ADSL DSRAM equipment can simulate and monitor to ADSL modem. 2.4 Test Procedure 2.4.1 Conducted Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 6 of 14 JOB NO. : KE-01-0286 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.4.2 Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 4…

Text truncated - open the document above for the full version.

Page 8 of 14 JOB NO. : KE-01-0286 3. Conducted and Radiated Measurement Photos * Cabling was taken into consideration and test data was taken under worse case conditions. 3.1 Conducted Measurement Photos Conduction(Front View) Conduction(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 9 of 14 JOB NO. : KE-01-0286 * Cabling was taken into consideration and test data was taken under worse case conditions. 3.2 Radiated Measurement Photos Radiation(Front View) Radiation(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.
