A3LSBH100JSAMSUNG BLUETOOTH HEADSET

USER MANUAL 1 English Contents » Getting started 1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2. Headset Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3. Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4. Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 5. Putting on the headset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 » Before using your headset 6. Turning the headset On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 7. Pairing the headset with a compatible phone. . . . . . . . . . . . . 9 8. Connecting the paired headset to the phone . . . . . . . . . . . . 10 » Using the headset 9. Making and answering a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 10. Rejecting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 11. Switching the call between phone and headset. . . . . . . . . 13 12. Adjusting the speaker volume. . . . . . . . . . . . . . . . . . . . . . . . . . 13 13. Muting an ongoing call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 14. Listening to music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 15. Answering a call while listening to music . . . . . . . . . . . . . . . 15 » Care and Maintenance 16. Storing the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 17. Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 18. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . 19 19. Warranty and parts replacement . . . . . . . . . . . . . . . . . . . . . . . 21 20. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 21. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 2 English 3 English » Left Ear Hook Speaker Stereo Headset Carrying CaseCharger User Manual Unpacking 1 Talk Button Indicator Light Microphone Volume Up Button Play/Pause/Stop Button REW Button On/Off Button Charger Connector FF Button Volume Down Button Speaker Getting Started Using a mobile phone while driving creates a distraction to the driver which may increase the likelihood of an accident. When using the phone while driving, keep conversations short and do not make notes or read documents. Before answering calls consider your circumstances. Pull off the road and park before making or answering calls when driving conditions require (e.g. bad weather, high traffic density, presence of children in the car, difficult junctions or manoeuvres.) Remember, driving comes first, not the call! Abide by local laws. Drive safely ! Headset Overview 2 » Right Explains what to remember for a proper use of your Bluetooth headset. Thank you for purchasing the Samsung Bluetooth Headset SBH100, we hope you will be delighted with its operation. Please read the instruction manual to get started and to make best use of the headset’s many features. Thank you The Samsung Bluetooth headset SBH100 is compatible with most Bluetooth¹ (see Glossary) phones that are compliant with Bluetooth version 1.1 or higher specification and support Advanced Audio Distribution profile, Audio Video Remote Control Profile headset profile and hands-free profile² . Ensure that your phone has Bluetooth capability by visiting your phone manufacturer’s web site. Check phone compatibility ! 4 English 5 English Button Functions 3 Answers / ends a call Press the button to answer or end a call . Switching an active call from the headset to the phone During a phone call, press and hold the button to switch the call to the phone. - Available only when your headset and the phone are connected as Hands-free Bluetooth profile . Switching an active call from the phone to the headset During a phone call, press and hold the button to switch the call to the headset. Redialling the last dialed number by pressing once or twice. Connecting the headset in connectable mode to the phone by pressing once or twice. Talk Button Adjusts the speaker volume while the music is on. Adjusts the speaker volume during a phone call. Mutes the microphone during a call if pressed and held while the call is in progress. Resume the call if pressed again. Rejects the call if pressed and held when a call comes in. - Available only when your headset and the phone are connected as Hands-free Bluetooth profile, and the phone supports the incoming call rejecting function. Voice dials if pressed and held while connected to the phone. - Available only when your headset and the phone are connected as Hands-free Bluetooth profile, and the phone supports the voice dialing function. Volume Up/Down Button Starts MP3 player if pressed in standby mode. (Available only when you have completed proper settings on your phone) Pauses if pressed while the music is on, starts the song from the paused part if pressed once again. Stops the music if pressed and held while the music is on, starts the song from the very first part if pressed once again. Play/Pause/Stop Button Starts the previous/next song from the very first part if pressed while the music is on. Rewind/Fast Forward functions if pressed and held. REW/FF Button 6 English 7 English + (Switch on) Gets ready for pairing. (While turned on) Press and hold (FF) + (Volume Down Button) Red light is flashing to notify the remained battery amount. - Flashes once : Approx. 5~20% charged - Flashes twice : Approx. 20~50% charged - Flashes three times : Approx. 50~80% charged - Flashes four times : Approx. 80~100% charged If press these buttons together Press several buttons together to activate these functions. Charging the Battery 4 This device has an internal battery which is non-removable and rechargeable. …

Text truncated - open the document above for the full version.

18 English 19 English Certification and safety approvals 18 This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC). Hereby, Samsung, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.samsung.com Please note that this product uses radio frequency bands not harmonised within EU. Within the EU this product is intended to be used in Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Hungary, Finland, France, Germany, Greece, Ireland, Italy, Latvia, Lithuania, Luxembourg, The Netherlands, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway and Switzerland. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment. FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential 8. Making/receiving a call does not work well and the call ends often while talking. The electric wave is in unsteady condition. Please move to the other area and try again. 9. Battery operation time doesn’t match the one stated in the user’s manual. • The battery will gradually wear out because it is a comsumable part. • If you place the battery in extreme heat or cold, the operation time is shortened. 10. The sound is echoing while talking. Adjust the speaker volume. Or move to the other area and try again. 11. Music files are not activated! According to the types of your phone, it may not read other file formats such as *.wav, * .wma and *.avi other than MP3 files. Make sure that you have the right file format (*.mp3) for your music files. 12. How do I take care of Samsung SBH100? To clean the headset, use a clean, soft cloth that is slightly damp. 20 English 21 English installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help The user must place the base 8” (20cm) or more from any personnel in order to comply with FCC RF exposure requirements. The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Indu stry Canada Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. Blue tooth The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom is under license. Other trademarks and trade names are those of their respective owners. Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase. If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or qualified service center. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty. • The warranty is limited to the original purchaser • A copy of your receipt or other proof of purchase is required for a proper warranty service • The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third parties • The responsibility of Samsung products shall be limited to the repair or replacement of the product at its sole discretion • Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories • Samsung is not liable to for any incidental or consequential damages arising from the use or misuse of any Samsung product • This warranty gives you specific rights and you may have other rights which vary from area to area • Unless otherwise instructed in the User Guide, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the unit, whether in or out of warranty. It must be returned to the purchase point, factory or authorised service agency for all such work • Samsung will not ass…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. www.samsung.com Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Product Name / Model A3LSBH100J SAMSUNG BLUETOOTH HEADSET / SBH100 For the product stated above, we request that the following information be held confidential: 1) Block Diagram 2) Schematic Diagram 3) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Samsung Electronics Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Jae-Yoong Kim / Engineer email: [email protected] Samsung Electronics Co., Ltd. #416 Metan-Dong, Yeongtong-Gu, Suwon-City, Gyunggi-Do, Korea. Tel: 82-31-297-7347 Fax: 82-31-297-6548 http://www.samsung.com

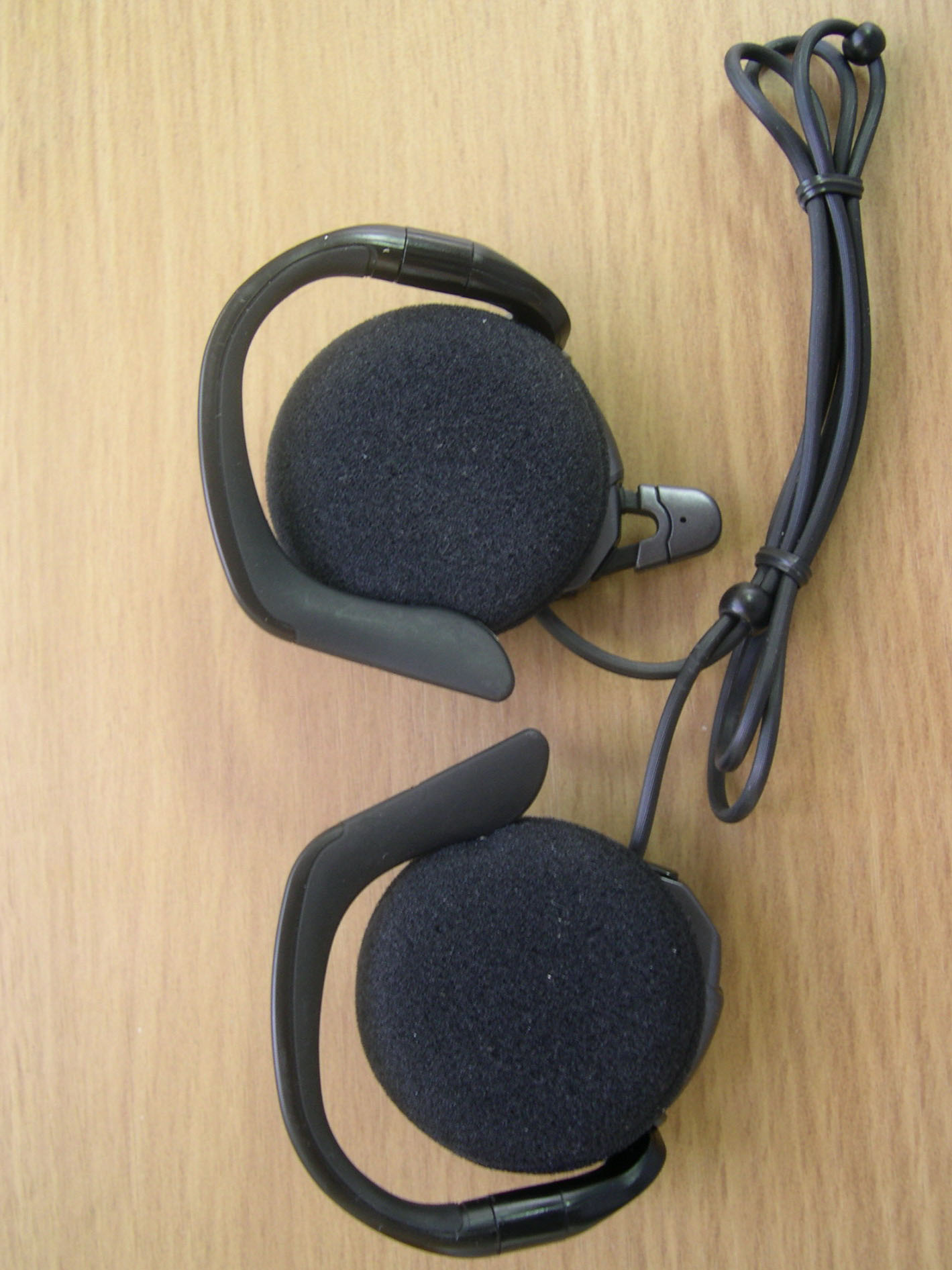

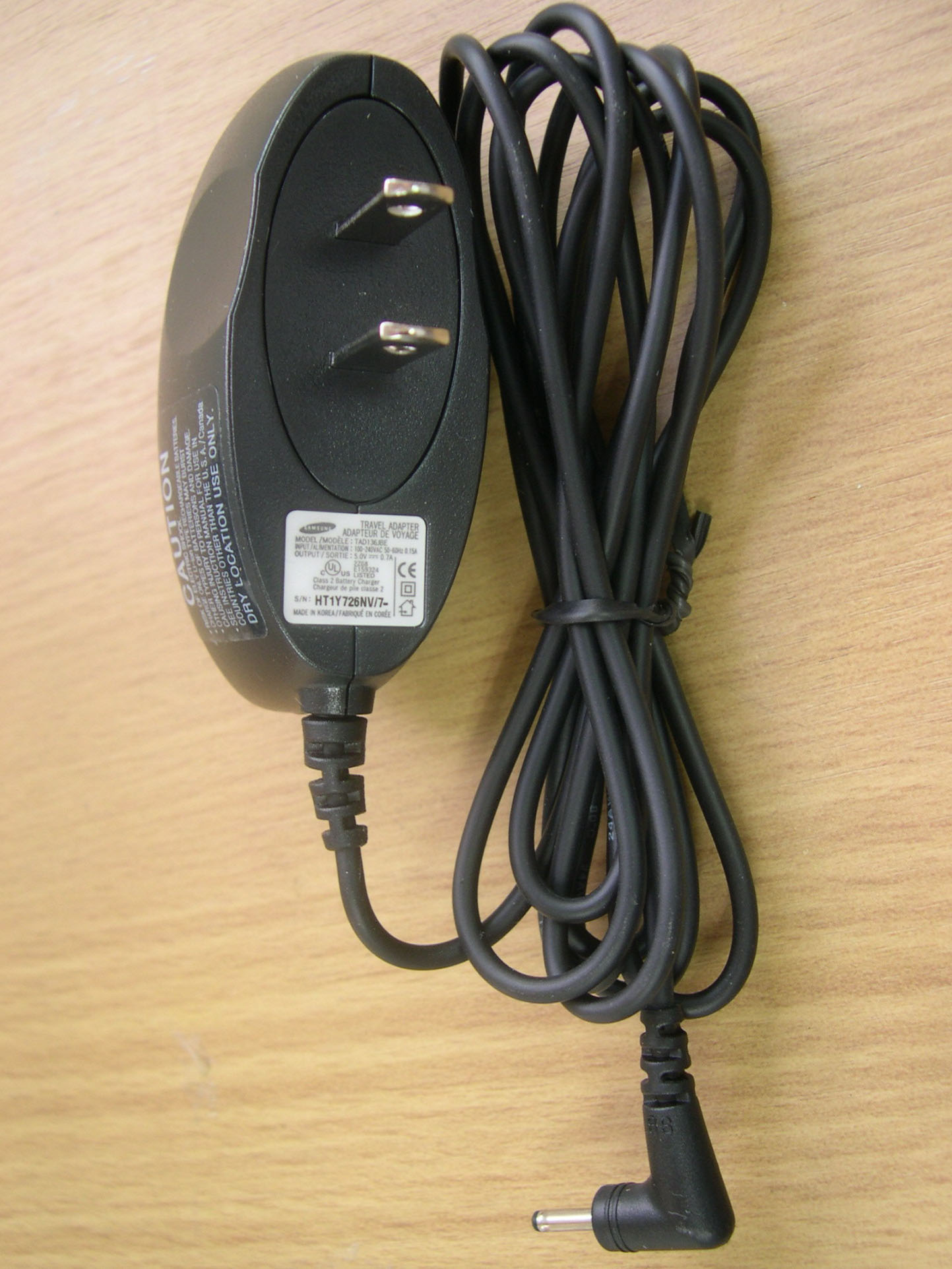

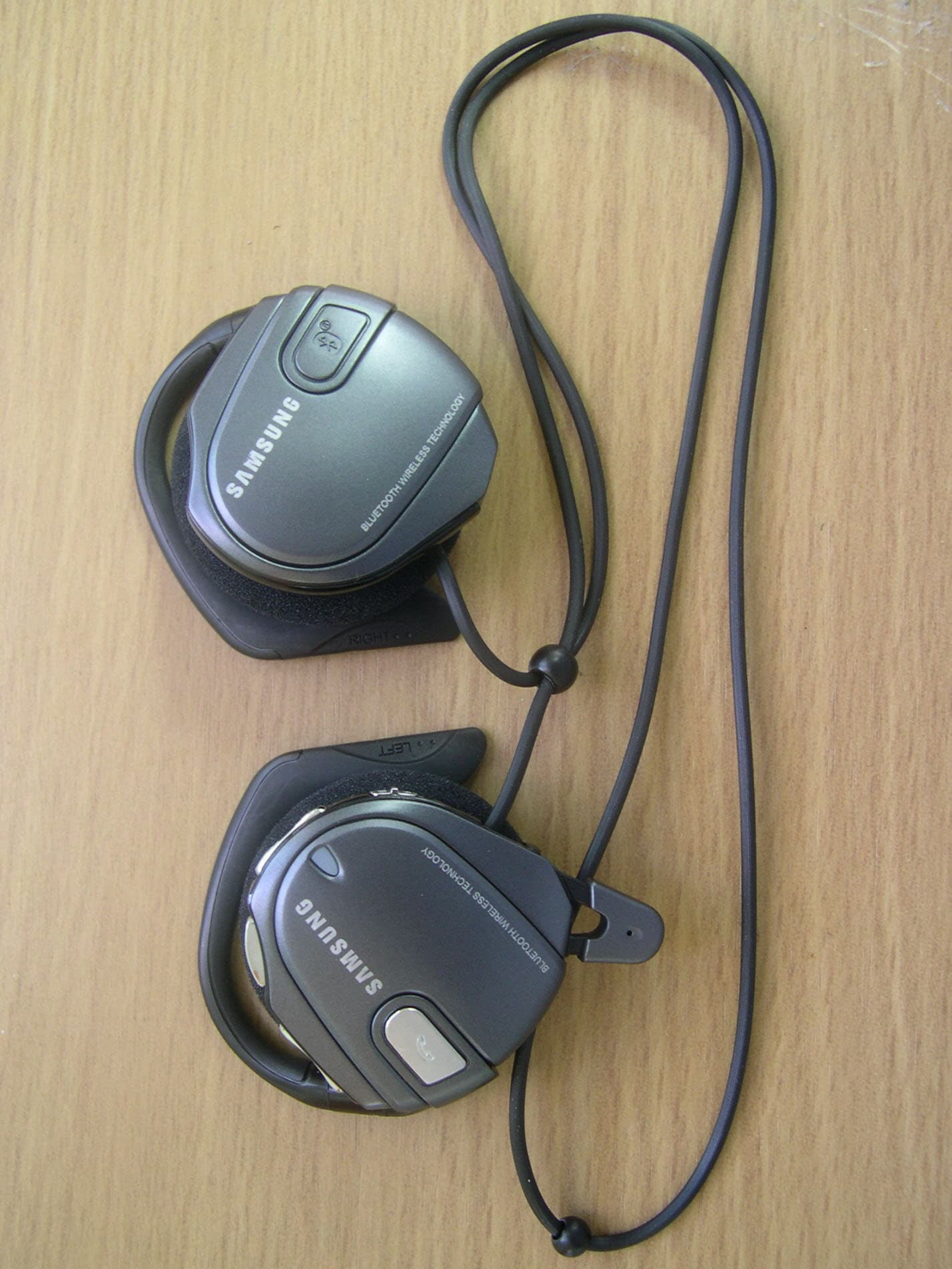

SK TECH CO., LTD. Page 1 of 3 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J External Photographs of EUT <Photograph 1: Front View> SK TECH CO., LTD. Page 2 of 3 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Photograph 2: Rear View> SK TECH CO., LTD. Page 3 of 3 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Photograph 3: AC/DC Adaptor >

FCC ID Label Location & Sample LABEL LOCATION: Label is attached on the FRONT of the product LABEL Drawing: FCCID: A3LSBH100J SAMSUNG BLUETOOTH HEADSET Model No.: SBH100 LABEL LOCATION

SK TECH CO., LTD. Page 1 of 3 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 3 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Photograph 2: Front View> SK TECH CO., LTD. Page 3 of 3 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Photograph 3: Rear View>

Operational Description This product, SBH100, is a Bluetooth headset. The product operates in 2400 to 2483.5 MHz band. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The control signals and data in the Bluetooth Chipset are modulated and processed and then pass the PA in it. They will be transmitted from ANT through the BALUN FILTER to another Bluetooth device. The RF signal from other Bluetooth devices is received via ANT. And they go through BALUN FILTER into the chip. They are magnified by internal LNA in the chip. The power settings and crystal trim are stored in EEPROM. The product has a SMD chip antenna in it.

SK TECH CO., LTD. Page 1 of 41 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J Certificate of Compliance Test Report No.: SKTTRT-051018-026 NVLAP CODE: 200220-0 Applicant: SAMSUNG ELECTRONICS CO., LTD. Applicant Address: #416 Metan-Dong, Yeongtong-Gu, Suwon-City, Gyunggi-Do, Korea. Manufacturer: YOUNGBO ENGINEERING INC. Manufacturer Address: Daeho B/D 7th 1462-7, Seocho3-Dong, Seocho-Gu, Seoul, South Korea Device Under Test: SAMSUNG BLUETOOTH HEADSET FCC ID: A3LSBH100J Model No.: SBH100 Receipt No.: SKTEU05-0661 Date of receipt: October 11, 2005 Date of Issue: October 18, 2005 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4, FCC Public Notice DA 00-705 (March 2000) Test Specification: 47CFR, Part 15 Rules Equipment Class: DSS - Part 15 Spread Spectrum Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Jong-Soo, Yoon 2005.10.18 Approved by: Jae-Kyung, Bae 2005.10.18 Signature Date Signature Date Other Aspects: - Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 41 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J >> CONTENTS << 1. GENERAL ············································································································· 4 2. TEST SITE ············································································································ 4 2.1 Location ········································································································· 4 2.2 List of Test and Measurement Instruments ···················································· 5 2.3 Test Date ········································································································ 5 2.4 Test Environment ··························································································· 5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ········································· 6 3.1 Rating and Physical Characteristics ······························································ 6 3.2 Equipment Modifications ················································································ 6 3.3 Submitted Documents ···················································································· 6 4. MEASUREMENT CONDITIONS ··········································································· 7 4.1 Description of test configuration ···································································· 7 4.2 List of Peripherals ·························································································· 7 4.3 Uncertainty ····································································································· 7 5. TEST AND MEASUREMENTS ············································································· 8 5.1 ANTENNA REQUIREMENT ·········································································· 8 5.1.1 Regulation ······························································································· 8 5.1.2 Result ······································································································ 8 5.2 MAXIMUM PEAK OUTPUT POWER ···························································· 9 5.2.1 Regulation ······························································································· 9 5.2.2 Test Procedure ························································································ 9 5.2.3 Test Results ····························································································· 9 Table 1: Measured values of the Maximum Peak Output Power (Conducted) ····· 9 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ······················10 5.3 CARRIER FREQUENCY SEPARATION ····················································· 12 5.3.1 Regulation ····························································································· 12 5.3.2 Test Procedure ······················································································ 12 5.3.3 Test Results ··························································································· 12 Table 2: Measured values of the Carrier Frequency Separation (Conducted) ···12 Figure 2: Plot of the Carrier Frequency Separation (Conducted) .....................13 5.4 20dB CHANNEL BANDWIDTH ·································································· 15 5.4.1 Regulation ····························································································· 15 5.4.2 Test Procedure ······················································································ 15 5.4.3 Test Results ··························································································· 15 Table 3: Measured values of the 20dB Channel Bandwidth (Conducted) ··········15 Figure 3: Plot of the 20dB Channel Bandwidth (Conducted) ···························16 SK TECH CO., LTD. Page 3 of 41 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J 5.5 NUMBER OF HOPPING CHANNELS ························································ 18 5.5.1 Regulation ····························································································· 18 5.5.2 Test Procedure ······················································································ 18 5.5.3 Test Results ················································································…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 5 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J Test set up photos <Conducted RF power measurement> SK TECH CO., LTD. Page 2 of 5 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Radiated Emissions – Front View> SK TECH CO., LTD. Page 3 of 5 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Radiated Emissions – Rear View> SK TECH CO., LTD. Page 4 of 5 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Conducted Emissions: Front View> SK TECH CO., LTD. Page 5 of 5 SKT SKTTRT-051018-026 FCC ID: A3LSBH100J <Conducted Emissions: Rear View>
