A3LSCH411Dual Mode Cellular Phone (AMPS/CDMA)

12.USERSMANUAL 1 SCH-410/411 Series CDMA DIGITAL PORTABLE CELLULAR TELEPHONE User’s Manual Please read this manual before operating the phone, and keep it for future reference. 2 Safety Precautions Compliance with Safety Standards The Samsung CDMA Cellular Phone meets all standards and recommendations for the protection of the public from exposure to radio frequency (RF) electromagnetic energy established by governmental bodies and other qualified organizations. To reduce the risk of fire, electric shock, serious personal injury, or property damage, please follow these guidelines: Driving Using a wireless phone while driving is illegal in some states and countries. Know the laws and regulations for your area, and pull off the road and park if you need to make a call. If you must use the phone while driving, purchase and install the optional Hands-Free Car Kit. Electronic Devices Your wireless telephone is a radio transmitter and receiver. When the power is on, the phone receives and sends out RF energy. Most modern electronic equipment, such as equipment in hospitals and cars, contains an RF signal shield. RF energy may affect some inadequately shielded electronic equipment. Turn off your phone in health care facilities, and always request permission before using the phone near medical equipment. Consult the manufacturer of any personal medical devices, such as pacemakers and hearing aids, to determine if they are shielded adequately from external RF signals. Note if there are any regulations posted in the area regarding the operation of wireless phones, and learn where you can use them safely within the facility. Aircraft Turn off your phone before boarding any aircraft. The Federal Aviation Administration (FAA) requires that you have prior permission from the crew to use your phone while the plane is on the ground. FCC regulations prohibit using your phone while the plane is in the air. Do not use your phone at any time while traveling on board a plane. Blasting Areas Construction crews often use remote-control RF devices to set off explosives. To avoid interfering with blasting operations, turn off your phone when you are in a blasting area or in any area with signs posted that read “Turn off two-way radio.” 3 Other Dangerous Areas Turn off your phone in any area with a potentially explosive atmosphere. It is rare, but your phone or its accessories could generate sparks, which could cause explosion or fire. Areas with a potentially explosive atmosphere may not always be clearly marked. These areas may include: ü Fueling areas, such as gas stations ü Below deck on boats ü Fuel or chemical transfer or storage facilities ü Areas where the air contains chemicals or particles such as grain, dust, or metal powders ü Any other area where you would normally be advised to turn off your vehicle engine Do not transport or store flammable gas, liquid, or explosives in the compartment of a vehicle containing your phone or accessories. FCC/IC Notice This device compiles with part 15 of the FCC rules. Operation is subject to the following two condition: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 Getting Started Introduction to SCH-410/411 Congratulations on the purchase of your new CDMA cellular phone. Your cellular phone features the latest CDMA digital technology. The phone operates in a similar manner to other wireless phones, while providing superior resonance and tone quality. The following features provide a range of user options that make the phone both fun and easy to use. ü Active Flip ü Phone Book Memory - 79 Locations ü Voice Dialing - 20 Locations ü Programmable Lock ü Short Message Services (SMS) ü 6 Ring Types, 4 Melody Options, Vibrator Alert ü Call Logs - 10 Locations Each: Outgoing and Incoming Calls ü Pause Dialing ü Ringer Mute During Incoming Call ü Alarm ü EVRC ( SCH-411 only ) 5 Key Functions Press SEND to: ü place a call after dialing the number, ü answer an incoming call, ü initiate Three-way calling, ü access Call Logs or the Phone Book. Press CLR to: ü erase one character at a time while entering names and numbers, ü go back one menu level at a time while viewing menu options, ü initiate Voice Dialing when the flip is open. Press and hold CLR to: ü erase all displayed characters while entering names and numbers, ü return to Standby mode while viewing menu options. Press END to: ü end a call, ü exit the current menu and return to Standby mode, ü mute the ringer on an incoming call. Press MENU to display the Main Menu and to scroll through menus. Press and hold MESSAGES to access messages. Press OK to save menu option settings. Press the arrow keys to scan menu options. Press PWR to turn the phone on and off. SEND CLR END MENU OK PWR 6 Press the Volume button to: ü adjust voice volume during conversation, ü adjust key beep volume in Standby mode, ü mute the ringer during an incoming call, ü scroll Call Logs and Phone Book entries. Status / Alert Indicators Signal Strength Indicates current signal strength No Service Indicates that the phone is outside a service area and cannot send or receive calls. Battery Change Indicates battery change level Message Indicates messages Roaming Displays when the phone is outside the home service area but within the network Digital Indicates Digital mode Vibrate Indicates Vibrate mode 7 Basic Operations of the CDMA Cellular Phone Power On / Off Menu Scrolling Make Calls Correct Mistakes Redial Call Speed Dialing End Call Answer Call Save Numbers Outgoing Number Incoming Number Press and hold . Press , and then press or . Enter number, and then press . Press . Press twice. Enter memory location, and then press . Press , or close flip. Press , or open flip. Enter phone number, press , and then follow screen prompts. Press , , in sequence to review last 10 outgoing calls. Press , , in sequence to review last 10 incomin…

Text truncated - open the document above for the full version.

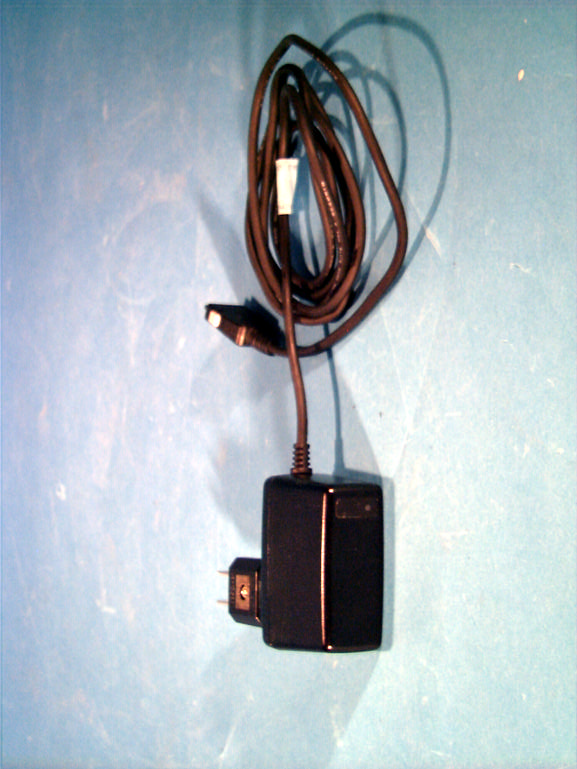

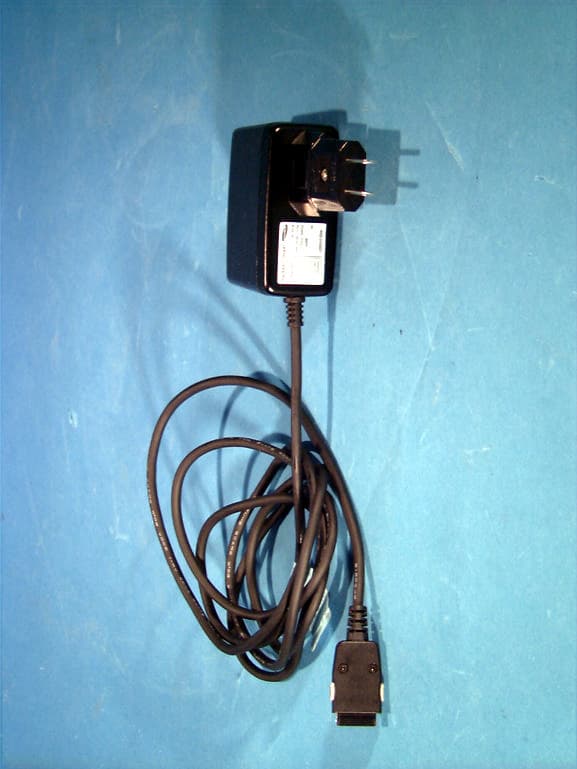

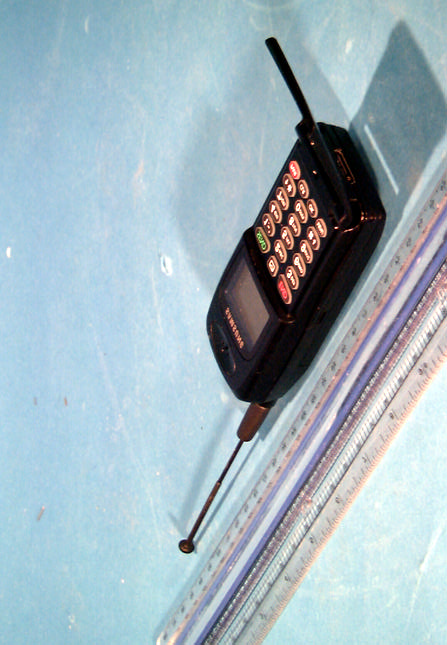

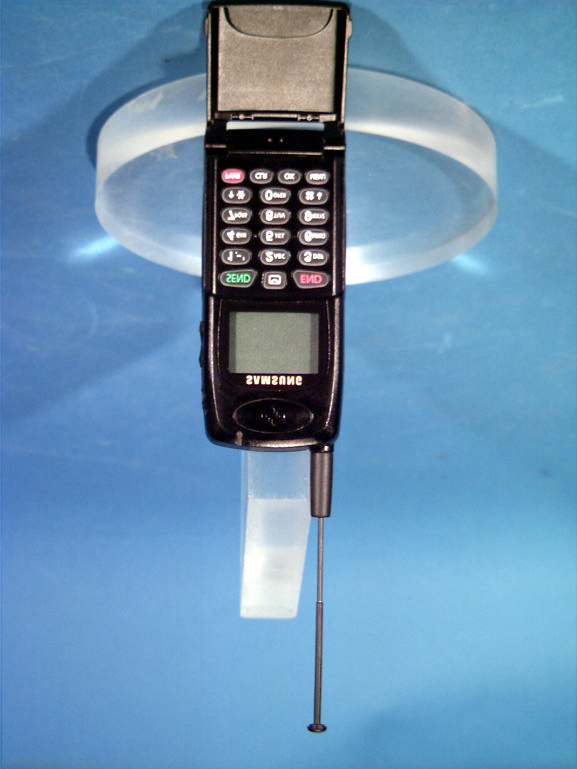

October 19, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Kwok Chan SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCH411 731 Confirmation No.: EA91633 Correspondence ID: 4084 Request for Tech. Info.: 10/16/98 Dear Greg: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated October 16, 1998? Please find attached data sheets demonstrating ERP Data compliance to 0.60 Watts (AMPS) and 0.32 Watts (CDMA). Note that this phone is fully programmable and Samsung will adjust these levels to match the 731. Since worst case spurious data has been submitted we only remeasured the ERP at a lower Tx AGC setting. Also, please find attached the photo demonstrating the distance of the antenna from the phantom. The distance from the outer shell of the helix to the center of the whip antenna is 0.3 cm. and the distance of separation caused by the ear of the phantom is 0.5 cm. Allowing for a worst case thickness of the phantom “skin” at 0.15 gives a total of 2.15 cm. After tilting the phone to meet the requirements of supplement C there is a total displacement of 2.7 cm. I believe that you may want the distance from the outer shell of the phantom's ear to the outer plastic coating of the helix, which is 1.75 cm. We will use this measurement procedure in future applications. We trust this information is sufficient for the immediate grant of this application. cc:Samsung Electronics Co., Ltd.

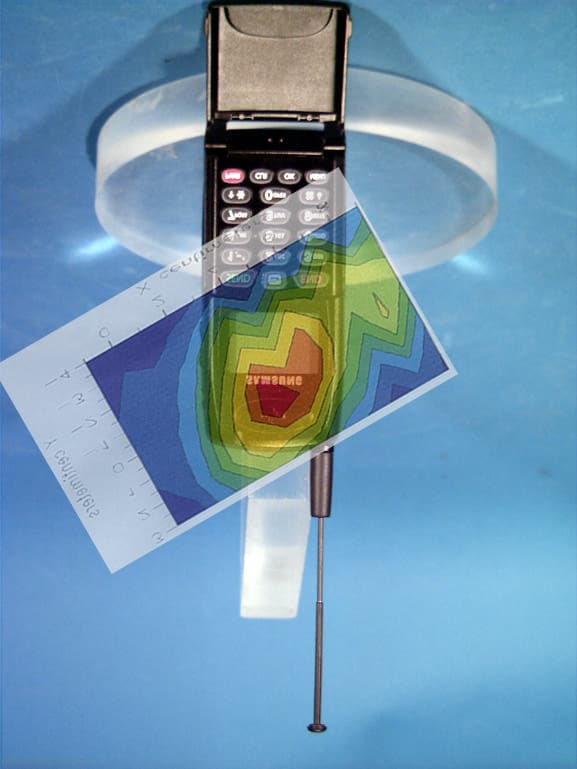

Test Report S/N: SAR.980818569.A3LSAR Measurement Report Test Date(s): August 24-28, 1998FCC Part 22 Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

© 1998 PCTEST Lab FCC ID SAMPLE LABEL LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE)

Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 22.980818568.A3LFCC Part 22 Test Date(s): August 24-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: A3LSCH411 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

1.SPECIFICATION 1.GENERAL FreqencyRange Transmitter Receiver DigitalMode 824~849MHz 869~894MHz AnalogMode 824~849MHz 869~894MHz ChannelSpacing1.23MHz30KHz NumberofChannels20FA832CHs DuplexSpacing45MHz FrequencyStability+2.5ppm(-20 °... ~+60 °... ,-4 ¢μ ~+140 ¢μ ) OperatingTemperature-20 °... ~+60 °... (-4 ¢μ ~+140 ¢μ ) OperatingVoltage HHP Hands-Free 3.6VDC( °æ 10%) 13.7VDC( °æ 10%) SizeandWeight Includingstandardbattery Includingextendedbattery Includinglonglifebattery 114.0x50.0x24.0/28.0/36.5mm 145g 161g 189g OperatingTime StandbyTime TalkTime DigitalMode upto40hours (withstandardbattery) upto60hours (withextendedbattery) upto74hours (withlonglifebattery) upto150minutes (withstandardbattery) upto240minutes (withextendedbattery) upto400minutes (withlonglifebattery) AnalogMode upto5hours (withstandardbattery) upto8hours (withextendedbattery) upto12hours (withlonglifebattery) upto60minutes (withstandardbattery) upto105minutes (withextendedbattery) upto165minutes (withlonglifebattery) 2.ANALOGMODE TRANSMITTER RFoutputpower0.6W(+2/-4dB) CarrierON/OFFconditions "ON"Condition "OFF"Condition within °æ 3dBofspecificationoutput(in2mS) below-60dBm(in2mS) Compressor CompressionRate AttackTime RecoveryTime ReferenceInput 2:1 3mS 13.5mS Inputlevelforproducinganominal °æ 2.9KHzpeak freqencydeviationoftransmittedcarrier Preamphasis6dB/OCTwithin0.3~3KHz MaximumFreqencyDeviation F3ofG3 SupervisoryAudioTone SignalingTone WidebandData °æ 12KHz °æ 2KHz( °æ 10%) °æ 8KHz( °æ 10%) °æ 8KHz( °æ 10%) PostDeviationLimiterFilter 3.0~5.9KHz 5.9~6.1KHz 6.1~15KHz Over15KHz above40LOG(F/3000)dB above35dB above40LOG(F/3000)dB above28dB SpectrumNoiseSuppression Forallmodulation f 0 +20KHz~f 0 +45KHz FormodulationbyvoiceandSAT f 0 +45KHz FormodulationbyWBD(withoutSAT) andST(withSAT) f 0 +45KHz~f 0 +60KHz f 0 +60KHz~f 0 +90KHz f 0 +90KHz~2f 0 above26dB above63+10LOG(PY)dB above45dB above65dB above63+10LOG(PY)dB (wheref 0 =carrierfrequency PY=meanoutputpowerinwatts) HarmonicandconductedSpuriousEmissionsbelow43+10LOG(PY)dB RECEIVER De-Emphasis-6dB/OCTwithin0.3~3KHz Expander ExpanderRate AttackTime RecoveryTime ReferenceInput 1:2 within3mS within13.5mS outputleveltoa1000Hztonefromacarrierwithin °æ 2.9KHzpeakfrequencydeviation Sensitivity12dBSINAD/-116dBm IntermodulationSpuriousResponseAttenuationavove65dB RSSIRangeabove60dB ProtectionAgainstSpuriousResponseInterference above60dB InBandConductedSpuriousEmission TransmitBand ReceiveBand below-60dBm below-80dBm OutofBandConductedSpuriousEmissionsbelow-47dBm RadiatedSpuriousEmission FrequencyRange 25~70MHz 70~130MHz 130~174MHz 174~260MHz 260~470MHz 470~1GHz MaximumAllowableEIRP -45dBm -41dBm -41~-32dBm -32dBm -32~-26dBm -21dBm 3.DIGITALMODE WaveformQuality0.944ormore TimeReference °æ 1uSorless RxSensitivityandDynamicRange -104dBm,FER=0.5%orless -25dBm,FER=0.5%orless TxOutputPowerMaximum320mW(25dBm) TxFrequencyDeviation °æ 300Hzorless OccupiedBandWidth1.32MHz TxConductedSpuriousEmission900KHz:-42dBc/30KHzbelow 1.98MHz:-54dBc/30KHzbelow MinimumTxPowerControlbelow-50dBm OpenLoopPowerControl-25dBm:-57.0dBm~-38.5dBm -65dBm:-17.5dBm~+1.5dBm -104dBm:+18.0dBm~+30.0dBm StandbyOutputPowerbelow-61dBm ColsedLoopTxPowerControlRangeTest1: °æ 24dBorless Test2:0mS~2.5mS Test3: °æ 24dBormore Test4: °æ 24dBormore Test5: °æ 24dBormore 4.FREQENCYRAGNE ReceiverFrequency FANO.CHNO.CenterFrequency 11011869.64MHz 22987.087MHz 370872.10MHz 4111873.33MHz 5152874.56MHz 6193875.79MHz 7234877.02MHz 8275878.25MHz 9316879.58MHz 10363880.89MHz 11404882.12MHz 12445883.35MHz 13486884.58MHz 14527885.81MHz 15568887.04MHz 16609888.27MHz 17650889.27MHz 18697890.91MHz 19738892.14MHz 20779893.37MHz TransmitterFrequency FANO.CHNO.CenterFrequency 11011824.64MHz 229825.87MHz 370827.10MHz 4111828.33MHz 5152829.56MHz 6193830.79MHz 7234832.02MHz 8275833.25MHz 9316834.48MHz 10363835.89MHz 11404837.12MHz 12445838.35MHz 13486839.58MHz 14527840.81MHz 15568842.04MHz 16609843.27MHz 17650844.27MHz 18697845.91MHz 19738847.14MHz 20779848.37MHz

ANTENNA SPECIFICATIONS 1. General Specifications Model: NSB88-0800-SS32 Antenna Type: Extendible with 1/4 λ Helical Over 1/4 λ whip Application: Cellular Phone Antenna 2. Electrical Specifications Frequency Range: 824 MHz ~ 895 MHz Impedance: 50 Ω V.S.W.R: Less than 2:1(Antenna out) Less than 2:1(Antenna In) Radiation Pattern: OMNI-Directional Polarization: Vertical 3.Mechanical Specifications Length: 112.2mm +-2.0 Temperature: -30 °C ~ +70°C Connector Type: Screw Type

9 . PARTS LIST SEC CodeDesign LOCDescriptionSpecification SCH-411B/PCLSCH-411,BLACK,PELE-P GH92-01141AMEMORY PBAPBA MAIN-MEMORY(411)SCH-410,SAMSUNG,USA,-,-,-,- 0501-000457QM100TR-SMALL SIGNALMMBT2222A,NPN,225mW,SOT-23,TP, 1107-001033UM200IC-FLASH MEMORY29LV800,1Mx8BIT,SOP,48P,724MIL 1109-001081UM100IC-ETC. MEMORY1306,524Kx16BIT,SOP,48P,400MIL 2007-000070R190R-CHIP0ohm,5%,1/16W,DA,TP,1608 2007-000090 RM100 RM101 RM102R-CHIP10Kohm,5%,1/16W,DA,TP,1608 2203-000178CM100C-CERAMIC,CHIP100nF,+80-20%,25V,Y5V,TP,1608, 3710-000306J200CONNECTOR-SOCKET50P,2R,0.5mm,STRAIGHT,NI GH92-01142AMAIN PBAPBA MAIN-MAIN(411)SCH-410,SAMSUNG,USA,-,-,-,- 0401-001052 D70 D72DIODE-SWITCHINGMCL4148,100V,200mA,LL-34,TP 0404-000115D100DIODE-SCHOTTKYRB160L-40,40V,1A,PSM,TP 0404-000161 D470 D471DIODE-SCHOTTKY1SS315,5V,30mA,USC,TP 0405-000107 D303 D304 D401 D402DIODE-VARACTOR1SV229,15V,3nA,USC,TP 0407-000115 D140 D60DIODE-ARRAYDAN202U,80V,100mA,CA2-3,SC-70, 0407-000122 D20 D201 D202 D40DIODE-ARRAYKDS226,80V,300mA,C2-3,SOT-23,T 0407-000127D440DIODE-ARRAYDA204U,20V,100mA,C2-3,SC-70,TP 0409-001001 D301 D302DIODE-PINBAR63-03W,50V,100mA,SOT-23,TP 0501-000162 Q473 Q475TR-SMALL SIGNAL2SA1576,PNP,200mW,SC-70,TP,180 0501-000218 Q102 Q150 Q301 Q474TR-SMALL SIGNAL2SC4081,NPN,200mW,UMT,TP,180-3 0501-000457 Q140 Q151 Q60TR-SMALL SIGNALMMBT2222A,NPN,225mW,SOT-23,TP, 0501-000689 Q302 Q486TR-SMALL SIGNAL2SC4226,NPN,200mW,SC-70,TP,70- 0504-000167 Q470 Q472TR-DIGITALRN1102,NPN,100mW,10K-10Kohm,SS 0504-000168 Q103 Q141 Q220 Q221TR-DIGITALRN1104,NPN,100mW,47K-47Kohm,SS 0504-000172 Q104 Q61TR-DIGITALRN2104,PNP,100mW,47K-47Kohm,SS 0504-001016Q440TR-DIGITALDTA114EE,PNP,150mW,10k/10k,SSM 0505-001095U102FET-SILICONSI6801DQ,N/P,20V,+-1.9A,0.16/0 0505-001165 Q100 Q471FET-SILICONSI3443DV,P,-20V,+-3.5mA,65mohm 0601-000355D220LEDCHIP,RED,2.0x1.6mm,660nm 0801-000301U152IC-CMOS LOGIC7W04,INVERTER,SSOP,8P,110MIL,T 0801-000885U240IC-CMOS LOGIC7S04,INVERTER,SOT-25,5P,63MIL, 0803-003010U151IC-TTL4W53,MUX/DEMUX,SOP,8P,110MIL,S 0904-001183U150IC-DSP16272,-,QFP,64P,-,27MHz,TR,CMO 1001-000133U473IC-ANALOG SWITCHTC4S66FTE85R,CMOS,SOP,5P,-,SIN 1001-001019U440IC-ANALOG MULTIPLEXBU4051BCFV,CMOS,SOP,16P,173MIL 1103-001090U160IC-EEPROM24C128,16Kx8BIT,SOP,8P,150MIL, 1201-001006U474IC-OP AMP7101,SOT-23,5P,-,SINGLE,-,PLAS 1201-001075U303IC-AGC AMP5500,SOP,16P,193MIL,DUAL,45dB, 1201-001259U453IC-POWER AMP23124,LCC,8P,-,SINGLE,-,PLASTI 1202-000192U11IC-VOLFAGECOMP.75W393,-,8P,-,DUAL,36V,CMOS,PL 1203-001256 U307 U470 U471 IC-VOLTAGE REGULATOR5205,SOT-23,5P,59MIL,PLASTIC,3 1203-001335U110 IC-VOLTAGE REGULATOR7333,SOP,8P,-,PLASTIC,3.23/3.3 1203-001396U100IC-PWM CONTROLLER9160,SOP,16P,-,PLASTIC,1.455/1 1204-001375U10IC-ENCODER/DECODERST5092TQFPTR,QFP,44P,-,PLASTIC 1205-001253U450IC-MIXERuPC8109T,SOP,6P,59MIL,PLASTIC, 1205-001383U200IC-DATA COMM./GEN.Q5272I-1S2,QFP,176P,-,PLASTIC, 1205-001451U401IC-DATA COMM./GEN.Q5312I-3S2,QSOP,80P,138mm,PLAS 1209-001114U305IC-SYNTHESIZERLMX2332LTMX,SOP,20P,173MIL,PLA 1404-001040TH1THERMISTOR-NTC10Kohm,5%,3650K,-,TP 2007-000134R76R-CHIP33Kohm,5%,1/16W,DA,TP,1608 2007-000137 R327 R482R-CHIP2Kohm,5%,1/16W,DA,TP,1005 2007-000138 R226 R237 R238 R315R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000140 R162 R186 R306 R307 R450 R485 R489 R61R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000141 R104 R141R-CHIP2.2Kohm,5%,1/16W,DA,TP,1005 2007-000142 R328 R441R-CHIP2.7Kohm,5%,1/16W,DA,TP,1005 2007-000143 R106 R201 R223R-CHIP4.7Kohm,5%,1/16W,DA,TP,1005 2007-000146R487R-CHIP6.8Kohm,5%,1/16W,DA,TP,1005 2007-000148 R121 R161 R220 R221 R222 R235 R319 R323 R329 R330R-CHIP10Kohm,5%,1/16W,DA,TP,1005 R331 R402 R404 R409 R410 R442 R460 R477 R481 R488 R52 R53 R70 R82 2007-000149R74R-CHIP12Kohm,5%,1/16W,DA,TP,1005 2007-000151R160R-CHIP15Kohm,5%,1/16W,DA,TP,1005 2007-000152 R203 R205 R230 R232 R234 R236 R316 R476R-CHIP20Kohm,5%,1/16W,DA,TP,1005 2007-000153 R109 R185 R213 R215 R478 R80R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000154R475R-CHIP24Kohm,5%,1/16W,DA,TP,1005 2007-000157 R154 R207 R209 R334 R470 R471 R472 R473R-CHIP47Kohm,5%,1/16W,DA,TP,1005 2007-000159R62R-CHIP56Kohm,5%,1/16W,DA,TP,1005 2007-000162 R102 R103 R105 R108 R112 R240 R72 R84R-CHIP100Kohm,5%,1/16W,DA,TP,1005 2007-000164 R480 R50R-CHIP150Kohm,5%,1/16W,DA,TP,1005 2007-000170 R152 R217R-CHIP1Mohm,5%,1/16W,DA,TP,1005 2007-000171 R151 R155 R225 R23 R24 R27 R271 R272 R273 R274R-CHIP0ohm,5%,1/16W,DA,TP,1005 R275 R276 R277 R278 R279 R280 R30 R310 R311 R40 R41 R411 R42 R454 R64 R67 2007-000172 R325 R326 R408R-CHIP10ohm,5%,1/16W,DA,TP,1005 2007-000173 R317 R463R-CHIP22ohm,5%,1/16W,DA,TP,1005 2007-000226R171R-CHIP1.2Mohm,5%,1/16W,DA,TP,1608 2007-000242R20R-CHIP1.5Kohm,5%,1/16W,DA,TP,1005 2007-000280R79R-CHIP100Kohm,2%,1/16W,DA,TP,1608 2007-000368R78R-CHIP130Kohm,5%,1/16W,DA,TP,1608 2007-000636R123R-CHIP270Kohm,5%,1/16W,DA,TP,1005 2007-000691R170R-CHIP3.3Mohm,5%,1/16W,DA,TP,1608 2007-000831R51R-CHIP39Kohm,5%,1/16W,DA,TP,1005 2007-000932 R211 R224 R433R-CHIP470ohm,5%,1/16W,DA,TP,1005 2007-000982 R324 R444 R453 R459R-CHIP5.6Kohm,5%,1/16W,DA,TP,1005 2007-001291R302R-CHIP30ohm,5%,1/16W,DA,TP,1005 2007-001292 R318 R322R-CHIP33ohm,5%,1/16W,DA,TP,1005 2007-001294 R181 R182 R183R-CHIP36ohm,5%,1/16W,DA,TP,1005 2007-001295R452R-CHIP39ohm,5%,1/16W,DA,TP,1005 2007-001298 R304 R457R-CHIP51ohm,5%,1/16W,DA,TP,1005 2007-001301 R430 R432R-CHIP68ohm,5%,1/16W,DA,TP,1005 2007-001305 R456 R458R-CHIP120ohm,5%,1/16W,DA,TP,1005 2007-001306 R228 R241 R431R-CHIP150ohm,5%,1/16W,DA,TP,1005 2007-001307 R179 R180 R301R-CHIP180ohm,5%,1/16W,DA,TP,1005 2007-001308R303R-CHIP200ohm,5%,1/16W,DA,TP,1005 2007-001319R443R-CHIP1.2Kohm,5%,1/16W,DA,TP,1005 2007-001320R403R-CHIP1.8Kohm,5%,1/16W,DA,TP,1005 2007-001325 R184 R21R-CHIP3.3Kohm,5%,1/16W,DA,TP,1005 2007-001333R455R-CHIP18Kohm,5%,1/16W,DA,TP,1005 2007-002797 R451 R486R-CHIP560ohm,5%,1/16W,DA,TP,1005 2007-002965R321R-CHIP15ohm,5%,1/16W,DA,TP,1005 2007-007101R434R-CHIP43Kohm,5%,1/16W,DA,TP,1005 2007-007131R440R-CHIP13Kohm,1%,1/16W,DA,TP,1005 2007-007132 R445 R479R-CHIP15Kohm,1%,1/16W,DA,TP,1005 2007-007133R406R-CHIP…

Text truncated - open the document above for the full version.

ListofEquipment -DCPowerSupply -TestJig -TestCable -CDMAMobileStationTestSetHP8924C,HP83236A,CMD-80,etc -SpectrumAnalyzer(includeCDMATestMode)HP8596E ConfigurationofTest SpectrumAnalyzer RFIn HP8924C RFAudioAudio In/OutOutIn ToA-Out TestJig ToA-In DCPowerSupply (+3.6V) Directional Coupler 1.TESTCABLE 2.TESTCABLECONNECTIONS 1PLUGCONNECTTOSCH-411 2BNCCONNECTOR(RF) 3Dsub25PINCONNECTOR(DATA) 4RFCABLE 5DATACABLE 1 4 5 2 3 3.Dsub25PINCONNECTORPINDESCRIPTION(TESTCABLE1,BACKSIDE) DATADESCRIPTIONDsubCONN.PINNO. Vcc4,5,6 GND13,23,24,25 PWON/OFF7 TXAUDIO10 TXDATA22 RXAUDIO12 RXDATA21 RSSI8 °∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆ °∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆ 151719212325 14 °È 16 °È 18 °È 20 °È 22 °È 24 °È °Ë 12 °Ë 123456789101113 4.CONVERSIONTABLEOFFREQUENCYvsCHANNEL TYPECHANNELCONVERSIONEQUATIONREMARK TX FREQUENCY 1 °¬ N °¬ 799 990 °¬ N °¬ 1023 F=0.03 °ø N+825.00 F=0.03 °ø (N-1023)+825.00 N;CHNUMBER F;FREQUENCY RX FREQUENCY 1 °¬ N °¬ 799 990 °¬ N °¬ 1023 F=0.03 °ø N+870.00 F=0.03 °ø (N-1023)+870.00 ChangetoTestMode A.Tochangethephone'sstatefromNormalModetoTestMode,Youshouldenterthefollowingkeys. "*759#813580" B.Thecommand °∞ 01"isSuspend. C.TofinishtheTestMode,Youshouldenterthecommand"02". *Note:Makesuretochangeto"Digitalonly"or"Analogonly"modeinNAM1, BeforeenteringtheTESTMODE.(Referto4.NAMProgramming) ChannelSelectionandTxPowerOutputLevelControl 1.DigitalMode(CDMA) A.EntertoTestMode(*759#813580). B."01":Suspend. C."09 0363#":Setto'0363'channel. D."07":CarrierOn. E."34":Spreadspectrumto1.23MHzbandwidth. F."71380#":OutputRFpowerlevelsetting. "380"meansAGClevelandAGClevelrangeisfrom250to511. 2.AnalogMode(FM) A.EntertoTestMode(*759#813580). B."01":Suspend. C."46":VocoderinitialtoAnalogmode. D."090363#":Setto'0363'channel. E."07":CarrierOn. F."72300#":OutputRFpowerlevelsetting. "300"meansAGClevelandAGClevelrangeisfrom0to350. G."102":RFPowerlevelcontrol,2(0~7)meanspowerlevel. Analog Mode(FM) TESTIEMTPROCEDURE 1.PREPARESetupthetestequipment. Makesuretocheckthe"AnalogOnly"inNAM1 "*759#813580":EntertoTestMode "01":Suspend "46":VocoderinitialtoAnalogmode Ifyoupressawrongkey,press"#",thenenternewcommand. ToexittheTestModeatanytime:press[02]. 2.RF POWER "01":Suspend. "46":VocoderinitialtoAnalogmode. "09 0363#":Setto'0363'channel. "07":CarrierOn. "10 2":RFPowerlevelcontrol,2(0~7)meanspowerlevel. MeasurethePowerOutput LevelRF Power 0~2+28dBm+2/-4dB 3+24dBm+2/-4dB 4+20dBm+2/-4dB 5+16dBm+2/-4dB 6+12dBm+2/-4dB 7+8dBm+2/-4dB "08":Carrieroff. Note1:Incaseofusingtheantennacable,youmust compensateforthecableloss(bout0.8dB). Note2:Topreventfromdamagingthehhp,youmust measurebycalibratedtestequipment. Warning! Adjustmentswithoutcalibratedequipmentcanleadto excessiveheatandwillvoidthewarranty. 3.TX FREQUENCY "01":Suspend. "46":VocoderinitialtoAnalogmode. "090363#":Setto'0363'channel. "07":CarrierOn. MeasuretheTXfrequency:835.89MHz °æ 2.5ppm. TESTITEMPROCEDURE 4.VOICE DEVIATION "01":Suspend. "46":VocoderinitialtoAnalogmode. "09 0363#":Setto'0363'channel. "07":CarrierOn. "14":TXAudiounmute. Settheaudiogeneratoroutputto1KHz,3.0Vrms. MeasuretheTxvoicedeviationbyusingtheHPFof 20HzandtheLPFof99kHz(spec: °æ 12KHzless). 5.ST DEVIATION "01":Suspend. "46":VocoderinitialtoAnalogmode. "09 0363#":Setto'0363'channel. "07":CarrierOn. "16":STon. MeasuretheTxSTdeviationbyusingtheHPFof50Hz (spec:8kHz °æ 10%). "17":SToff. 6.SAT DEVIATION "01":Suspend. "46":VocoderinitialtoAnalogmode. "090363#":Setto'0363'channel. "07":CarrierOn. "32":SATon. Settheequipmentasbelow. RFfrequency:880.89MHz InputRflevel:-80dBm Modulationfrequency:6KHz Frequencydeviation:2KHz MeasuretheTxSATdeviationbyusingtheHPFof50Hz andtheLPFof6KHzBPF(spec:2kHz °æ 10%). "33":SAToff. TESTITEMPROCEDURE 7.WBD DEVIATION "01":Suspend. "46":VocoderinitialtoAnalogmode. "09 0363#":Setto'0363'channel. "07":CarrierOn. "34":WBDon. MeasuretheWBDdeviationbyusingtheHPFof50Hzand theLPFof20kHz(spec:8kHz °æ 10%). 8.RXAUDIO "01":Suspend. "46":VocoderinitialtoAnalogmode. "09 0363#":Setto'0363'channel. "07":CarrierOn. "12":RXAudiounmute. Settheequipmentasbelow. RFfrequency:880.89MHz InputRflevel:-80dBm Modulationfrequency:1KHz Frequencydeviation: °æ 8KHz MeasureaudioAClevel. Digital Mode(CDMA) TESTITEMPROCEDURE 1.PREPARE Setupthetestequipment. Makesuretocheckthe"DigitalOnly"inNAM1 "*759#813580":EntertoTestMode "01":Suspend Ifyoupressawrongkey,press"#",thenenternewcommand. ToexittheTestModeatanytime:press[02]. 2.FREQUENCY ACCURACY "01":Suspend. "09 0363#":Setto'0363'channel. "07":CarrierOn. "71380#":SetAGClevel380. MeasuretheTXfrequency:835.89MHz °æ 300Hz. 3.OCCUPIEDCDMA BANDWIDTH "01":Suspend. "090363#":Setto'0363'channel. "07":CarrierOn. "34":Spreadspectrum. "71 380#":SetAGClevel380. Measurethebandwidth(spec:1.32MHz). 4.LIMITATIONSON EMISSIONS "01":Suspend. "090363#":Setto'0363'channel. "07":CarrierOn. "34":Spreadspectrum. "71 380#":SetAGClevel380. MeasurethespuriousatF C °æ 900KHz,F C °æ 1.98MHz,2F C 3F C, 1/2F C . spec:F C °æ 900KHzbelow42dBc/30KHz F C °æ 1.98MHzbelow54dBc/30KHz OutsideReceiveBand43+10log(PY) PY:MeanOutputPowerinwatts 5.GATEDPOWER& TIME Settheserviceoption:2. Setthedatarate:Eighth(1200bps). Registering:HHP-->HP8924C. Call:HP8924C-->HHP. MeasuretheGatedPower&Time. spec:GatedPoweratleast20dB GatedTime-RisingTime:below6us FallingTime:below6us BurstTime:below1.25ms Test Command List NOCOMMAND NAME Command Number Min Value Max Value Display 1 T_SUSPEND_I000 "Suspend " 2 T_RESTART_I000 "Restart " 3 4 T_GET_MODE_I011 " mode" 5 T_SET_MODE_I000 "Set mode " 6 T_WRITE_NV_I000 "Write EEPROM" 7 T_CARRIERON_I000 "Carrier On " 8 T_CARRIEROFF_I000 "Carrier Off " 9 T_LOADSYN_I401023 "Chan________" 10 T_PWRLEVEL_I107 "Pwr level___" 11 T_RXMUTE_I000 "Rx mute " 12 T_RXUNMUTE_I000 "Rx unmute " 13 T_TXMUTE_I000 "Tx mute " 14 T_TXUNMUTE_I000 "Tx unmute " 15 16 T_STON_I000 "ST on " 17 T_STOFF_I000 "ST off " 18 T_INDEX_INCR_I000 "Index INCR " 19 T_INDEX_DECR_I000 "Index DECR " 20 T_LNA_ATT_VALUE_I30255 "LNA_ATT ___" 21 22 T_SNDNAM_I96960 "Send NAM " 23 T_SNDVERSION_I340 "Send S/W Ver" 24 T_SNDESN_I780 "Send ESN " 25 …

Text truncated - open the document above for the full version.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD.Dates of Tests: August 24-28, 1998 146 Maetun-3 Dong, Paldal-KuTest Report S/N: SAR.980818569.A3L Suwon City, Kyungki-Do, KOREA 441-472Test Site: PCTEST Lab, Columbia MD Attn: Mr. Ben Kim, Engineering Manager American QA Lab FCC ID A3LSCH411 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Dual Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 849.97 MHz Rx Frequency:869.04 – 893.97 MHz Max Output Power:0.6 W (AMPS) / 0.32 W (CDMA) Trade Name/Model(s):SAMSUNG SCH-411 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Type Acceptance Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980818569.A3L SAR Measurement ReportFCC Part 22 Type Acceptance © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 T…

Text truncated - open the document above for the full version.
