A3LSCH8000Single-Band PCS CDMA Phone

Getting Started 1 1 Getting Started Your Consumer Package Description of Your Sprint PCS Phone Battery Installation, Charging, and Care Activating Service Basic Operations of Your Sprint PCS Phone Menu Organization SCH-2000 OM chap1.fm Page 1 Friday, August 14, 1987 10:20 AM Getting Started 2 User Guide Samsung SCH-2000 Sprint Personal Communication Services Your Consumer Package Your Consumer Package contains the following items: • Sprint PCS Phone • Standard LiIon Battery • Dual-Slot Desktop Charger • User Guide and Quick Reference Card SCH-2000 OM chap1.fm Page 2 Friday, August 14, 1987 10:20 AM Getting Started 3 1 Description of Your Sprint PCS Phone Function keys and other controls activate the features of your Sprint PCS Phone. The following illustration identifies the function keys, controls, and indicators: 1) Power On Light 2) Voice Memo 3) LCD Screen 4) Volume Control 5) Scroll Keys 6) Power Key 7) Clear Key 8) Microphone 9) Flip 10) OK (Store) Key 11) End Key 12) Antenna (Not actual size) SCH-2000 OM chap1.fm Page 3 Friday, August 14, 1987 10:20 AM Getting Started 4 Screen Display This Sprint PCS phone features dynamic character sizing, which enables the screen to display from 12 to 16 characters per line. The five-line screen includes four text lines and one icon line, which displays active options and selected menu items. During conversation, the screen displays the call timer and the name and number of the other party, if available. Active in-use options, such as Mute and Call Waiting, also display during conversation. The following icons or text messages display at power-on: (Not actual size) Signal Strength New Text Message RoamingBattery Strength No Service / In UseVoicemail Vibrator On SCH-2000 OM chap1.fm Page 4 Friday, August 14, 1987 10:20 AM Getting Started 5 1 Table 1: Key Functions Press TALK to: • place and answer calls, • initiate Three-Way Calling, • access Call Logs or the Phone Book*. Press and hold TALK to initiate Voice Dialing. Press CLR to: • erase one character at a time, • go back one menu level at a time. Press and hold CLR to: • erase all displayed characters, • return to Standby while viewing menus. Press END to: • end a call, • exit the current menu, • mute the ringer on an incoming call. Press and hold END to deactivate KeyGuard. Press MENU to display the Main Menu and to scan menu options. Press and hold MESSAGES to access Sprint PCS Voicemail. Press OK to save menu option settings. Press the arrow keys to scan menu options. Press PWR to turn the phone on and off. Press and hold MEMO to record memos; press MEMO to review memos. Press the VOLUME button to: • adjust voice volume during conversation, • adjust ringer volume in Standby mode, • mute the ringer during an incoming call, • scroll Call Logs and Phone Book entries. *Access the Setup menu to select the Talk Key option for Call Logs or Phone Book. SCH-2000 OM chap1.fm Page 5 Friday, August 14, 1987 10:20 AM Getting Started 6 Table 2: Status / Alert Indicators Signal Strength Indicates current signal strength No Service Indicates that the phone is outside a service area and cannot send or receive calls, or the phone is in Power Save mode. Battery Charge Indicates battery charge level Voice Message Indicates voice messages Text Message Indicates text messages Roaming Displays when the phone is outside the Sprint PCS nationwide network Vibrate Indicates Vibrate mode SCH-2000 OM chap1.fm Page 6 Friday, August 14, 1987 10:20 AM Getting Started 7 1 Table 2: Status / Alert Indicators (Continued) The following status / alert indicators are text only: Locked Text display indicates Lock mode Ringer Text display indicates ringer status: Off or Vibrate Greeting A personal greeting of up to 12 characters displays at power-on and in Standby mode, when set. Incoming Call Text display and ringer signal incoming calls Missed Call Text display indicates an unanswered call while the phone is on Dropped Call Text display indicates a dropped call Minute Beep Sounds every 60 seconds in Conversation mode, when set Call Waiting Text display indicates Call Waiting SCH-2000 OM chap1.fm Page 7 Friday, August 14, 1987 10:20 AM Getting Started 8 Battery Installation, Charging, and Care Your Sprint PCS Phone package includes a partially charged rechargeable battery so that you can use the phone immediately after it is activated. Installing the Battery To attach the battery to your Sprint PCS Phone: 1. Hold the battery so that the metal contacts on the base of the battery line up with the metal contacts on the base of the phone. 2. Place the battery on the back of the phone with the top of the battery about a quarter of an inch from the latch. 3. Gently slide the battery toward the top of the phone until it snaps into place. Dual-Slot Desktop Charger The Dual-Slot Desktop Charger contains: • Front compartment for charging the battery while attached to the phone • Rear compartment for charging the battery alone (not attached to the phone) • Red light to indicate that the battery is charging (A yellow light indicates that the battery is operating at a temperature that is too high or too low, or that the battery is misaligned in the charger. Please check the charger and battery.) • Green light to indicate that the battery is fully charged SCH-2000 OM chap1.fm Page 8 Friday, August 14, 1987 10:20 AM Getting Started 9 1 Charging the Battery To charge the battery using the Dual-Slot Desktop Charger: 1. Plug the power cord of the charger into a wall outlet. 2. Select one of the following options: • Insert the entire phone with battery attached into the front compartment of the charger. • Insert a single battery (alone, not attached to the phone) into the rear compartment of the charger. When two batteries are in the charger, the batteries charge simultaneously. If you charge the battery while it is attached to your Sprint PCS Phone, the Battery Charge Indicator activates. A green LED indicates a full battery charge. A completely d…

Text truncated - open the document above for the full version.

November 10, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCH8000 Part 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 24 Certification of the following Single-Band PCS CDMA Phone: FCC ID:A3LSCH8000 TRADE / MODEL(s):SAMSUNG SCH-8000 EUT TYPE:Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range:1851.25 – 1908.75 MHz Rx Freq. Range:1931.25 – 1988.75 MHz Max. Output Power:0.2 W (EIRP) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Ben Kim Engineering Manager SAMSUNG Electronics Co., Ltd.

November 02, 1998 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re:Samsung Electronics Co.,Ltd. FCC lD.:A3LSCH8000 CDMA Phone - Certification Request for Confidentiality To whom it may concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. Requests confidentiality for the Block Diagram, Schematics and the Circuit Description of the attached test report. These documents contains detailed system and equipment description and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, B&Kim Engineering Manager

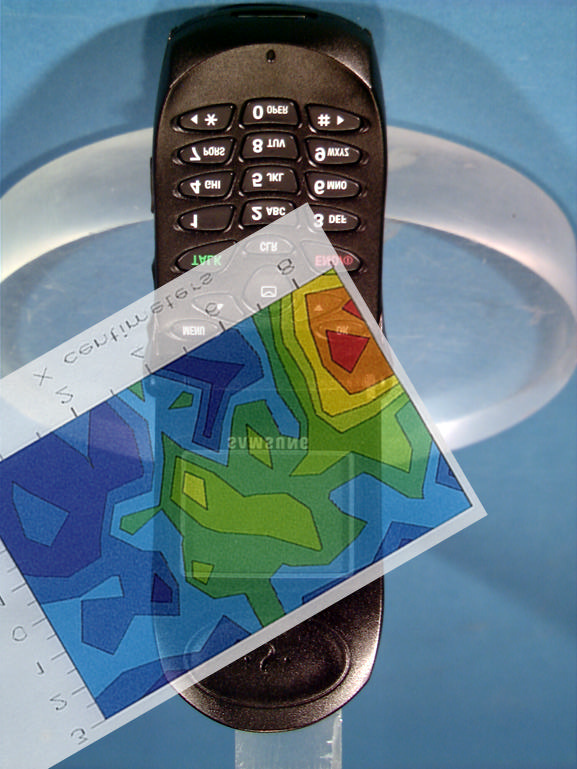

Test Report S/N: SAR.981009693.A3LSAR Measurement Report Test Date(s): October 26-30, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. 1 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

© 1998 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE) Federal Communications Commission 7435 Oakland Mills Road Colombia. MD 21046 FCC ID LABEL & LO- FCC ID: A3LSCH8000 CDMA PORTABLE PCS PHONE MODEL NO : SCH-8000 SERIAL NO : FCC ID : A3LSCH8000 FOR INFORMATION CALL l-i%%2114PCS USE SPECI MADE IN KOREA Signature : FL Printed : Ben Kim Title :Engineering Manager

Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. Test Report S/N: 24.981009692.A3LFCC Part 24 Test Date(s): October 26-30, 1998Certification © 1998 PCTEST LabFCC ID: A3LSCH8000 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

EBOM Item No Design LOC «∞ ∏Ì Spec SCH-8000TEMPSPH-8000,BLACK,Provi GH92-01174A -PBA MAIN-RFSCH-8000,SPRINT,USA,RF PBA,-,- 0405-001035 D901 D902 D903 D904DIODE-VARACTOR1SV279,15V,3nA,USC,TP 0407-000115D1DIODE-ARRAYDAN202U,80V,100mA,CA2-3,SC-70, 0501-000162 Q804 Q805TR-SMALL SIGNAL2SA1576,PNP,200mW,SC-70,TP,180 0504-000167 Q702 Q803 Q806 Q807TR-DIGITALRN1102,NPN,100mW,10K-10Kohm,SS 0505-001165U805FET-SILICONSI3443DV,P,-20V,+-3.5mA,65mohm 1201-001076U804IC-AGC AMP5505,SOP,16P,193MIL,DUAL,-,PLA 1201-001257U703IC-AGC AMPCXA3221N-T4,SOP,8P,4.4MIL,SING 1201-001305U801IC-POWER AMP23107,LCC,8P,-,SINGLE,-,PLASTI 1203-001256 U701 U806IC-VOLTAGE REGULATOR5205,SOT-23,5P,59MIL,PLASTIC,3 1205-001451U902IC-DATA COMM./GEN.Q5312I-3S2,QSOP,80P,138mm,PLAS 1205-001497U803IC-MIXERMD59-0012,SSOP,24P,150MIL,PLAS 1205-001524U702IC-MIXERMD59-0011,QSOP,24P,150MIL,PLAS 1404-001040U707THERMISTOR-NTC10Kohm,5%,3650K,-,TP 2007-000138 R725 R901 R903 R914R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000139 R703 R705R-CHIP220ohm,5%,1/16W,DA,TP,1005 2007-000140 R810 R811R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000142 R701 R806 R812R-CHIP2.7Kohm,5%,1/16W,DA,TP,1005 2007-000144 R822 R823R-CHIP5.1Kohm,5%,1/16W,DA,TP,1005 2007-000146 R904 R905R-CHIP6.8Kohm,5%,1/16W,DA,TP,1005 2007-000148 R704 R729 R817 R906 R907 R908 R910R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000153R913R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000168R815R-CHIP470Kohm,5%,1/16W,DA,TP,1005 1 ¬ EBOM 2007-000171 R790 R816R-CHIP0ohm,5%,1/16W,DA,TP,1005 2007-000173R739R-CHIP22ohm,5%,1/16W,DA,TP,1005 2007-000982R735R-CHIP5.6Kohm,5%,1/16W,DA,TP,1005 2007-001288R820R-CHIP18ohm,5%,1/16W,DA,TP,1005 2007-001295 R807 R808R-CHIP39ohm,5%,1/16W,DA,TP,1005 2007-001307R802R-CHIP180ohm,5%,1/16W,DA,TP,1005 2007-001319R824R-CHIP1.2Kohm,5%,1/16W,DA,TP,1005 2007-001320R909R-CHIP1.8Kohm,5%,1/16W,DA,TP,1005 2007-001325R728R-CHIP3.3Kohm,5%,1/16W,DA,TP,1005 2007-001333R734R-CHIP18Kohm,5%,1/16W,DA,TP,1005 2007-003001R804R-CHIP12ohm,5%,1/16W,DA,TP,1005 2007-007001R911R-CHIP3.9Kohm,5%,1/16W,DA, TP,1005 2203-000189 C773 C813 C901 C935C-CERAMIC,CHIP100nF,+80-20%,25V,Y5V,TP,1608, 2203-000233 C733 C764 C774 C812 C845 C856 C907 C917C-CERAMIC,CHIP100pF,5%,50V,NPO,TP,1005,- 2203-000254 C702 C704 C705 C772 C803 C809 C810 C854 C922 C924C-CERAMIC,CHIP10nF,10%,16V,X7R,TP,1005,- C925 C928 C931 C933 C937 2203-000278C905C-CERAMIC,CHIP10pF,0.5pF,50V,NPO,TP,1005,- 2203-000311 C915 C916C-CERAMIC,CHIP120pF,5%,50V,NPO,TP,1005,- 2 ¬ EBOM 2203-000386 C712 C720 C730 C734 C735 C745 C746 C750 C766 C775C-CERAMIC,CHIP15pF,5%,50V,NPO,TP,1005,- C776 C802 C806 C807 C808 C816 C821 C858 2203-000438 C711 C719 C726 C727 C731 C732 C814 C833 C836 C837C-CERAMIC,CHIP1nF,10%,50V,X7R,TP,1005,- C838 C839 C855 C904 C906 C923 C926 C929 C932 C934 C936 2203-000466C811C-CERAMIC,CHIP1pF,0.25pF,50V,NPO,TP,1005,- 2203-000550 C911 C912C-CERAMIC,CHIP20pF,5%,50V,NPO,TP,1005,- 2203-000585 C703 C903C-CERAMIC,CHIP220pF,10%,50V,X7R,TP,1005,- 2203-000654C736C-CERAMIC,CHIP270pF,10%,50V,X7R,TP,1005,- 2203-000696C942C-CERAMIC,CHIP2pF,0.25pF,50V,NPO,TP,1005,- 2203-000854C707C-CERAMIC,CHIP39pF,5%,50V,NPO,TP,1005,- 2203-000870C722C-CERAMIC,CHIP3pF,0.25pF,50V,NPO,TP,1005,- 3 ¬ EBOM 2203-000995 C709 C717 C718C-CERAMIC,CHIP47pF,5%,50V,NPO,TP,1005,- 2203-001017C729C-CERAMIC,CHIP4pF,0.25pF,50V,NPO,TP,1005,- 2203-001178 C819 C914C-CERAMIC,CHIP6pF,0.5pF,50V,NPO,TP,1005,- 2203-001383C942C-CERAMIC,CHIP0.5pF,0.25pF,50V,NPO,TP,1005,- 2203-001385C708C-CERAMIC,CHIP1.5pF,0.25pF,50V,NPO,TP,1005,1 2203-001432 C721 C723 C725 C744 C828 C834 C835C-CERAMIC,CHIP47nF,10%,16V,Y5V,TP,1005,1.0mm 2404-000167C919C-TA,CHIP2.2uF,20%,16V,-,TP,3216,- 2404-001057C927C-TA,CHIP100uF,20,6,LZ,TP,7343,- 2404-001064 C701 C743 C749 C805 C842 C902 C930C-TA,CHIP10uF,20%,6.3V,GP,TP,2012,- 2404-001087 C706 C724 C804 C825 C843 C857C-TA,CHIP3.3uF,20%,6.3V,GP,TP,2012,- 2404-001092C765C-TA,CHIP220nF,20%,20V,GP,TP,2012,- 2703-000109 L817 L818INDUCTOR-SMD100nH,10%,0.8x1.6x0.8mm 2703-000175L811INDUCTOR-SMD270nH,10%,0.8x1.6x0.8mm 2703-000295 L814 L815INDUCTOR-SMD220nH,10%,0.8x1.6x0.8mm 2703-000300 L711 L712 L713 L816INDUCTOR-SMD1uH,10%,0.8x1.6x0.8mm 2703-000304L902INDUCTOR-SMD27nH,10%,2.29x1.73x1.52mm 2703-001031L708INDUCTOR-SMD33nH,5%,2.29x1.73x1.52mm 2703-001066L901INDUCTOR-SMD22nH,5%,2.29x1.73x1.52mm 2703-001207L701INDUCTOR-SMD6.8nH,5%,1.6x0.8X0.8mm 2703-001241L709INDUCTOR-SMD39nH,10%,2.29x1.73x1.52mm 2703-001259L705INDUCTOR-SMD47nH,0.3nH,1.6x0.8x0.8mm 2703-001308L702INDUCTOR-SMD68nH,5%,1.6x0.8x0.8mm 2809-001216U901OSCILLATOR-VCTCXO19.68MHz,2ppm,-,TP,3V,2mA 4 ¬ EBOM 2904-001020 F802 F804FILTER-SAW1880MHz,60MHz,-,-,-,- 2904-001021F701FILTER-SAW1960MHz,60MHz,-,-,-,- 2904-001082F803FILTER-SAW130.38MHz,630KHz,-,TP,5.5dB,- 3002-001062BUZZBUZZER-MAGNETIC88dB,3.6V,90mA,2.731KHz,TP 3301-001105 L704 L903CORE-FERRITEAB,1.6x0.8x0.8mm,-,- 3705-001163J801CONNECTOR-COAXIALSMC,JACK,100mohm,50ohm,0.5dB 3710-001390J901CONNECTOR-SOCKET60P,2R,0.5mm,SMD-S,AUF GH92-01180A -PBA MAIN-LOGICSCH-8000,SPRINT,USA,LOGIC PBA 0401-001052D107DIODE-SWITCHINGMCL4148,100V,200mA,LL-34,TP 0402-001207D103DIODE-RECTIFIERUPS5819,40V,1.0A,SMT,TP 0406-001051 D10 D5 D6 D7 D9DIODE-TVSSMS05C,6V,300W,SOT-23-6 0407-000115D8DIODE-ARRAYDAN202U,80V,100mA,CA2-3,SC-70, 0407-000122 D104 D4DIODE-ARRAYKDS226,80V,300mA,C2-3,SOT-23,T 0407-000127D201DIODE-ARRAYDA204U,20V,100mA,C2-3,SC-70,TP 0501-000162Q109TR-SMALL SIGNAL2SA1576,PNP,200mW,SC-70,TP,180 0501-000218 Q102 Q119TR-SMALL SIGNAL2SC4081,NPN,200mW,UMT,TP,180-3 0501-000457 Q2 Q6TR-SMALL SIGNALMMBT2222A,NPN,225mW,SOT-23,TP, 0504-000168 Q104 Q7 Q8TR-DIGITALRN1104,NPN,100mW,47K-47Kohm,SS 0504-000172Q4TR-DIGITALRN2104,PNP,100mW,47K-47Kohm,SS 0504-001016Q201TR-DIGITALDTA114EE,PNP,150mW,10k/10k,SSM 0505-001165Q101FET-SILICONSI3443DV,P,-20V,+-3.5mA,65mohm 0505-001185Q100FET-SILICONSI6803DQ,N/P,20/-20V,+-2.5/+-2 0601-001094 D11 D12 D13 D14 D15 D16 D17 D18 D30LEDCHIP,Y-GRN,0.8x1.1mm,570nm 0601-001130D3LEDCHIP,RED/GRN,3x2.5mm,660/570nm 0801-002192U105IC-CMOS LOGIC7S04,INVERTER,SOT-25,5P,63MIL, 1001-001019U201IC-ANALOG MULTIPL…

Text truncated - open the document above for the full version.

3.TestProcedure ListofEquipment -DCPowerSupply -TestJig -TestCable -CDMAMobileStationTestSet:HP8924C(IncluededHP83236B),CMD-80,etc -SpectrumAnalyzer(includeCDMApersonality):HP8596E ConfigurationofTest Directional Coupler TestCable TestJig SpectrumAnalyzer RFIN HP8924C RFIN/OUT DCPOWERSUPPLY 3.6V Test Procedure TESTITEMSTEPPROCEDURE 1.PREPARE a b c d e Connectthehandset Enterthetestmode:press[2583621871235] Press[01]:YoumustdoitatfirstinPCSmode IfYoupressawrongkey,press[#]keyandthenenternew command. ToExitthetestmodeatanytime:press[02] 2.SETTHE CHANNEL a Setthechannelxxxx:press[09xxxx] (ex)setthechannel600:press[090600] 3.SETTHEPOWER LEVEL a b c d Carrieron:press[07] Spreadingcdmadata:press[34] Selectpa_r0mode: -pa_r0on:press[55] -pa_r0off:press[56] Iftxpowerishigherthan+15dBm,thepa_r0modemust selectedonstate. Iftxpowerislowerthan+4dBm,thepa_r0modemust selectedoffstate. Theoperationofpa_r0on/offisexplainedinthenextpage. cdtxagc::press[71] Inthisstateyoucancontroltxoutputpowerlevelusing volumeUP/DOWNkeyorpresstheagccodedirectly. (ex)+23dBm;txagc_code:ch25about360~380 ch600about350~380 ch1175about380~410 -13dBm;txagc_code:ch25about210~230 ch600about205~220 ch1175about220~230

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD.Dates of Tests: October 26-30, 1998 416 Maetan-3 Dong, Paldal-Ku,Test Report S/N: SAR.981009693.A3L Suwon City, Kyungki-Do 441-742, KOREATest Site: PCTEST Lab, Columbia MD Attention: D. H. Kim, General Manager FCC ID A3LSCH8000 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Single-Band PCS CDMA Phone Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max Output Power:0.2 W (Conducted) Trade Name/Model(s):SAMSUNG SCH-8000 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 981009693.A3L SAR Measurement ReportFCC Part 24 Certification © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.981009693.A3LSAR Measurement Report Test Dates: October 26-30, 1998FCC Part 24 Certification SAMSUNG Single-Band PCS CDMA Phone (Model: SCH-8000) © 1998 PCTEST LabFCC ID: A3LSCH8000 (Tx 1851.25 – 1908.75 MHz)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do 441-742, KOREA Attention :D. H. KIM, General Manager • EUT Type:Single-Band PCS CDMA Phone • FCC IDENTIFIER:A3LSCH8000 • Trade Name:SAMSUNG • Model:SCH-8000 • S/N:Pre-production • Tx Frequency Range:1851.25 – 1908.75 MHz • Rx Frequency Range:1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 24(E); § 2.1093, Docket 96-326 • Max. Output Power:0. 2 W (Conducted) • Modulation:CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:8.9 cm. (Length) • Dates of Test(s):October 26-30, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.981009693.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Lab Code 100431-0 Figure 1. SAR Test Set-up Test Report S/N: SAR.981009693.A3LSAR Measurement Report Test Dates: October 26-30, 1998FCC Part 24 Certification SAMSUNG Single-Band PCS CDMA Phone (Model: SCH-8000) © 1998 PCTEST LabFCC ID: A3LSCH8000 (Tx 1851.25 – 1908.75 MHz)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Cr…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98102911_ZOOM.VLT Start : 29-Oct-98 03:24:27 pm End : 29-Oct-98 03:29:36 pm Radio Type : SAMSUNG Model Number : A3LSCH8000 Serial Number : 001 Frequency : 1880 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0600 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 9.000, Y = -2.500, Z = 0.000 (cm) Value = 3.515 Measured Values (volts) = 3.606E-003 2.950E-003 1.475E-003 6.058E-004 2.728E-004 5.844E-005 2.400E-005 2.905E-004 3.188E-005 2.400E-005 2.293E-004 Calc. Voltage @ Surface (Vs) = 0.0041 Voltage @ 1.00 cm (Vt) = 0.0031 Ave. Voltage (Vs+Vt)/2 = 0.0036 Ave. SAR over 1 g (mW/g) = 0.3987 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 mW/g 012345678910 Z centimeters SAR Scan File : 98102911_ZOOM Start : 29-Oct-98 03:24:27 pm End : 29-Oct-98 03:29:36 pm SAMSUNG/A3LSCH8000/001;1880MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98102912_ZOOM.VLT Start : 29-Oct-98 03:30:23 pm End : 29-Oct-98 03:35:36 pm Radio Type : SAMSUNG Model Number : A3LSCH8000 Serial Number : 001 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0025 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 8.500, Y = -2.250, Z = 0.000 (cm) Value = 3.454 Measured Values (volts) = 3.393E-003 2.470E-003 1.713E-003 1.144E-003 1.920E-004 3.191E-004 5.479E-005 3.318E-004 3.710E-004 1.516E-004 3.073E-004 Calc. Voltage @ Surface (Vs) = 0.0037 Voltage @ 1.00 cm (Vt) = 0.0027 Ave. Voltage (Vs+Vt)/2 = 0.0032 Ave. SAR over 1 g (mW/g) = 0.3553 0.0 0.1 0.2 0.3 0.4 0.5 mW/g -1012345678910 Z centimeters SAR Scan File : 98102912_ZOOM Start : 29-Oct-98 03:30:23 pm End : 29-Oct-98 03:35:36 pm SAMSUNG/A3LSCH8000/001;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98102913_ZOOM.VLT Start : 29-Oct-98 03:36:35 pm End : 29-Oct-98 03:45:24 pm Radio Type : SAMSUNG Model Number : A3LSCH8000 Serial Number : 001 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 1175 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 8.750, Y = -2.250, Z = 0.000 (cm) Value = 3.506 Measured Values (volts) = 3.486E-003 2.527E-003 1.100E-003 3.348E-004 3.206E-004 2.400E-005 5.741E-005 2.400E-005 4.224E-005 2.400E-005 2.400E-005 Calc. Voltage @ Surface (Vs) = 0.0041 Voltage @ 1.00 cm (Vt) = 0.0028 Ave. Voltage (Vs+Vt)/2 = 0.0034 Ave. SAR over 1 g (mW/g) = 0.3792 0.0 0.1 0.2 0.3 0.4 0.5 mW/g -1012345678910 Z centimeters SAR Scan File : 98102913_ZOOM Start : 29-Oct-98 03:36:35 pm End : 29-Oct-98 03:45:24 pm SAMSUNG/A3LSCH8000/001;1908.75MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98102921_ZOOM.VLT Start : 29-Oct-98 04:54:50 pm End : 29-Oct-98 05:04:02 pm Radio Type : SAMSUNG Model Number : A3LSCH8000 Serial Number : 001 Frequency : 1880 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0600 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset …
