A3LSCHA562Single-Mode Cellular Phone (CDMA)

PORTABLE CELLULAR TELEPHONE SCH-A562 User’s Manual Printed in Korea Code No. : GH68-xxxxxA English. 01/2003. Rev.1.0 ELECTRONICS World Wide Web http://www.samsungmobile.com * Some contents in this manual may differ from your phone depending upon the software of the phone or your service provider. 3 IMPORTANT SAFETY PRECAUTIONS .......................................7 UNPACKING ...............................................................................9 YOUR PHONE Phone Layout .............................................................................. 10 Display ....................................................................................... 13 Backlight .................................................................................... 15 Service Light ............................................................................... 15 GETTING STARTED Using a Battery ........................................................................... 16 Switching the Phone On/Off ........................................................ 21 Your Phone’s Mode ....................................................................... 22 CALL FUNCTIONS Making a Call ............................................................................... 24 Redialing the Last Number ............................................................ 25 Making a Call from the Phonebook ............................................... 26 Speed Dialing ............................................................................... 29 Four-digit Dialing .......................................................................... 31 Pause Dialing ............................................................................... 31 Adjusting the Volume ..................................................................... 34 Answering a Call ........................................................................... 35 Options During a Call .................................................................... 35 Quickly Switching to Silent Mode ................................................... 37 Viewing Missed Calls ..................................................................... 37 Call Forwarding ............................................................................ 38 Call Waiting .................................................................................. 38 Three-Way Calling ........................................................................ 39 Table of Contents FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC web site at www .fcc.gov 54 USING THE MENUS Accessing Menu Modes................................................................... 40 Accessing a Menu Function by Scrolling ........................................ 41 Accessing a Menu Function by Using Its Shortcut ........................... 43 List of Menu Functions ................................................................. 44 MY PHONE Personal Menu(OK-1) ...................................................... 49 Animation (OK-2) ............................................................. 52 Sliding Text (OK-3) ........................................................... 53 External Clock (OK-4)........................................................ 53 Dialing Digits (OK-5)......................................................... 54 Language (OK-6)............................................................... 54 Administrator (OK-7)......................................................... 54 PHONEBOOK Outgoing(MENU 1-1)............................................................ 55 Incoming (MENU 1-2)............................................................ 56 Find Number (MENU 1-3)...................................................... 56 Add Entry (MENU 1-4)........................................................... 62 Name Ringer (MENU 1-5)...................................................... 62 Group Editing (MENU 1-6)..................................................... 64 Erase All (MENU 1-7)............................................................ 65 My Phone Number (MENU 1-#)............................................. 65 ORGANIZER Calendar(MENU 2-1)…

Text truncated - open the document above for the full version.

January 6, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America February 24, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCHA562 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America

February 24, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA562 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

March 3, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHA562 Part 22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22 Certification of the Single-Mode Cellular Phone (CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

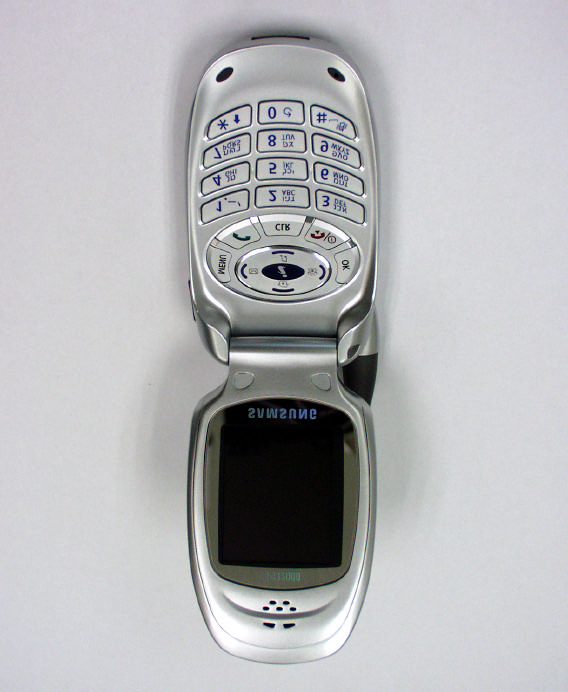

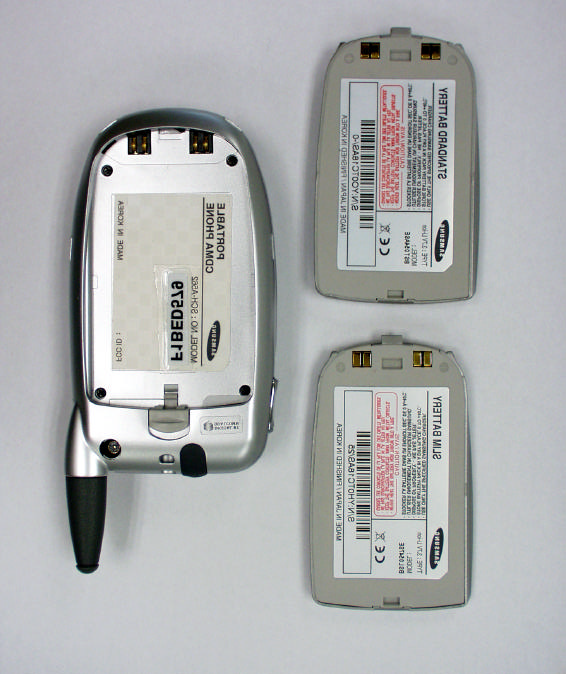

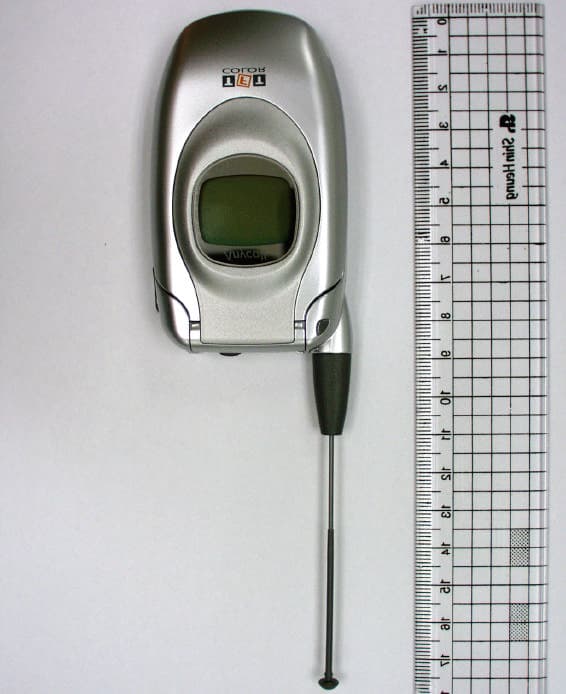

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-A562 FCC ID: A3LSCHA562 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone

2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(Cellular CDMA Right Head SAR-Touch)....................................19 8.2 Measurement Results(Cellular CDMA Right Head SAR-Tilt)........................................20 8.3 Measurement Results(Cellular CDMA Left Head SAR-Touch)......................................21 8.4 Measurement Results(Cellular CDMA Left Head SAR-Tilt)..........................................22 8.5 Measurement Results(Cellular CDMA Body SAR w/o Holster).......................................23 9. Conclusion.......................................................................................................24 10. Reference......................................................................................................25 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone (CDMA) Model Number : SCH-A562 Serial Number : Identical prototype (S/N : # FA-001-F) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : KS JHUN, Assistant Manager Phone : +82-31-279-6565 Fax : +82-31-279-2087 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Non-Broadcast Transmitter Held to Ear (TNE) Test Dates : February 4, 2003 ~ February 6, 2003 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 – 848.31 MHz (CDMA) Rx Freq. Range : 869.70 – 893.31 MHz (CDMA) Max. RF Output Power : 0.382W ERP CDMA (25.823 dBm) Antenna Manufacturer : ACE ANTENNA Model No.: SCH-A562 Antenna Dimensions : Length= 88.2 mm [Helical / Whip] 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 550MHz computer with Windows 2000 system and SAR Measurement Software DASY3, A/D interface card, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. 5 of 25 System Electronics The DAE3 consists of a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching multiplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface dete…

Text truncated - open the document above for the full version.

SAMSUNG FCC: A3LSCHA562 -- 835MHz.CDMA Head SAR SAM Phantom; Right Cheek (CRP) Section; Probe:ET3DV6 - SN1551-- ConvF(6.80,6.80,6.80) Head 835 MHz ; σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.26 mW/g SAMSUNG Single-Mode Cellular Phone Model: SCH-A562 CDMA Mode, Ch.0363 [835.89MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 20.9 Conducted Power = 24.5dBm; Right Head Phantom, Cheek/Touch Position, Meas. Tissue Temp. (°C) - 20.2 Test Date -- 02/05/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.22E-1 3.67E-1 6.12E-1 8.56E-1 1.10E+0 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC: A3LSCHA562 -- 835MHz.CDMA Head SAR SAM Phantom; Right Cheek (CRP) Section; Probe:ET3DV6 - SN1551-- ConvF(6.80,6.80,6.80) Head 835 MHz : σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.333 mW/g SAMSUNG Single-Mode Cellular Phone Model: SCH-A562 CDMA Mode, Ch.0363 [835.89MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 20.9 Conducted Power = 24.5dBm; Right Head Phantom, Ear/Tilt 15 deg Position, Meas. Tissue Temp. (°C) - 20.2 Test Date -- 02/05/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.39E-2 1.02E-1 1.70E-1 2.37E-1 3.05E-1 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 -- 835MHz. CDMA Head SAR SAM Phantom; Left Cheek (CRP) Section; Probe:ET3DV6 - SN1551-- ConvF(6.80,6.80,6.80) Head 835 MHz : σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.22 mW/g SAMSUNG Single-Mode Cellular Phone Model: SCH-A562 CDMA Mode, Ch.0363 [835.89MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 20.5 Conducted Power = 24.5dBm; Left Head Phantom, Cheek/Touch Position, Meas. Tissue Temp. (°C) - 20.0 Test Date -- 02/05/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.29E-1 3.87E-1 6.44E-1 9.02E-1 1.16E+0 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC: A3LSCHA562 -- 835MHz. CDMA Head SAR SAM Phantom; Left Cheek (CRP) Section; Probe:ET3DV6 - SN1551-- ConvF(6.80,6.80,6.80) Head 835 MHz : σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.334 mW/g SAMSUNG Single-Mode Cellular Phone Model: SCH-A562 CDMA Mode, Ch.0363 [835.89MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 20.5 Conducted Power = 24.5dBm; Left Head Phantom, Ear/Tilt 15 deg Position, Meas. Tissue Temp. (°C) - 20.0 Test Date -- 02/05/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.51E-2 1.05E-1 1.76E-1 2.46E-1 3.16E-1 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC: A3LSCHA562 -- 835MHz. CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1551-- ConvF(6.60,6.60,6.60) Body 835 MHz : σ = 0.94 mho/m ε r = 55.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.880 mW/g SAMSUNG Single-Mode Cellular Phone Model: SCH-A562 CDMA Mode, Ch.0777 [848.31MHz]; Standard Battery; Ambient Temp. (°C) - 21.9 Conducted Power = 24.5dBm; Spacing = 1.5cm. from flat phantom to phone w/o beltclip or holster, Tissue Temp. (°C) - 21.0 Test Date -- 02/06/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 9.04E-2 2.71E-1 4.52E-1 6.33E-1 8.14E-1 SAMSUNG ELECTRONICS Co., Ltd

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA562 Single-Mode Cellular Phone

PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230212076.A3L Test Dates: Feb. 12, 2003 Phone Type: Single Mode CDMA FCC ID: A3LSCHA562 Page 1 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. 0 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: Feb. 12, 2003 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 22.230212076.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA562 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular Phone (CDMA) Model: SCH-A562 Tx Frequency Range: 824.70 — 848.31MHz (CDMA) Rx Frequency Range: 869.70 — 893.31MHz (CDMA) Max. RF Output Power: 0.382 W ERP CDMA (25.823 dBm) Max. SAR Measurement: 1.26W/kg CDMA Head SAR; 0.880W/kg CDMA Body SAR; Emission Designator(s): 1M25F9W Test Device Serial No. Identical Prototype [S/N: FA-001-F) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230212076.A3L PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230212076.A3L Test Dates: Feb. 12, 2003 Phone Type: Single Mode CDMA FCC ID: A3LSCHA562 Page 2 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT K: SCHEMATIC DIAGRAM(S) ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230212076.A3L Test Dates: Feb. 12, 2003 Phone Type: Single Mode CDMA FCC ID: A3LSCHA562 Page 3 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • FCC ID: A3LSCHA562 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 — 848.31 MHz (CDMA) • Rx Freq. Range: 869.70 — 893.31 MHz (CDMA) • Max. Power Rating: 0.382 W ERP CDMA (25.823 dBm) • FCC Classification(s): Non-Broadcast Transmitter Held to Ear (TNE) • Equipment (EUT) Type: Single-Mode Cellular Phone (CDMA) • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22.901(d), §2 • Dates of Tests: Feb. 12, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.230212076.A3L PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230212076.A3L Test Dates: Feb. 12, 2003 Phone Type: Single Mode CDMA FCC ID: A3LSCHA562 Page 4 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive a…

Text truncated - open the document above for the full version.

© 2003 PCTEST Lab Samsung FCC ID: A3LSCHA562 Single-Mode Cellular Phone (CDMA) © 2003 PCTEST Lab Samsung FCC ID: A3LSCHA562 Single-Mode Cellular Phone (CDMA) © 2003 PCTEST Lab Samsung FCC ID: A3LSCHA562 Single-Mode Cellular Phone (CDMA) © 2003 PCTEST Lab Samsung FCC ID: A3LSCHA562 Single-Mode Cellular Phone (CDMA)
