A3LSCHA610Dual-Band CDMA Phone

SCH-A610 Series PORTABLE Dual-Band TELEPHONE User Guide Please read this manual before operating your phone, and keep it for future reference. For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc. Headquarters:Customer Care Center: 1130 E. Arapaho Road1601 E. Plano Parkway, Suite 150 Richardson, TX 75081Plano, TX 75074 Tel: 972.761.7000Toll Free Tel: 1.888.987.HELP (4357) Fax: 972.761.7001Fax: 972.761.7501 Internet Address: http://www.samsungusa.com ©2002 Samsung Telecommunications America, Inc. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Samsung Telecommunications America, Inc. is a trademark of Samsung Electronics Corporation, Ltd. Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390. English: 2002:11:30. Versi on 3.0 Printed in South Korea Openwave ® is a registered Trademark of Openwave, Inc. RSA ® is a registered Trademark RSA Security, Inc. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Introduction to the SCH-A610 phone Congratulations on the purchase of your SCH-A610 phone . Using the latest digital technology, your new phone operates on the same basis as other wireless phones while providing superior resonance and tone quality. The SCH-A610 phone is packed with productive features that are easy to use. Here are some of them: • Operates in 1900 MHz digital CDMA, 800 MHz digit al CDMA •Voice Dialing – 20 Locations •User friendly display with dedicated icons for signal strength, service, roaming, messages, vibrator, and battery •Replaceable faceplates •5 Monotone Ring Types, 15 Melody Tones •Distinctive ringer types for voice, message, and alarm calls •Distinctive ringer volumes for voice, message, and alarm calls •Phone Book Memory – 500 Locations •Call Logs – 10 Locations each for outgoing, incoming, and missed calls. These 30 Call Log numbers are all easy to redial. •Internet MiniBrowser •Pause Dialing for tele-services •Fast Ringer Mute during Incoming Call •Alarm clock with programmable alarm •Last number redial – last 10 Numbers •One-touch dialing – 9 Locations •Two-touch dialing – 90 Locations •Three-touch dialing – 401 Locat…

Text truncated - open the document above for the full version.

January 6, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA610 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

January 6, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America January 6, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCHA610 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America

January 16, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHA610 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22/24 Certification of the Dual-Band CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

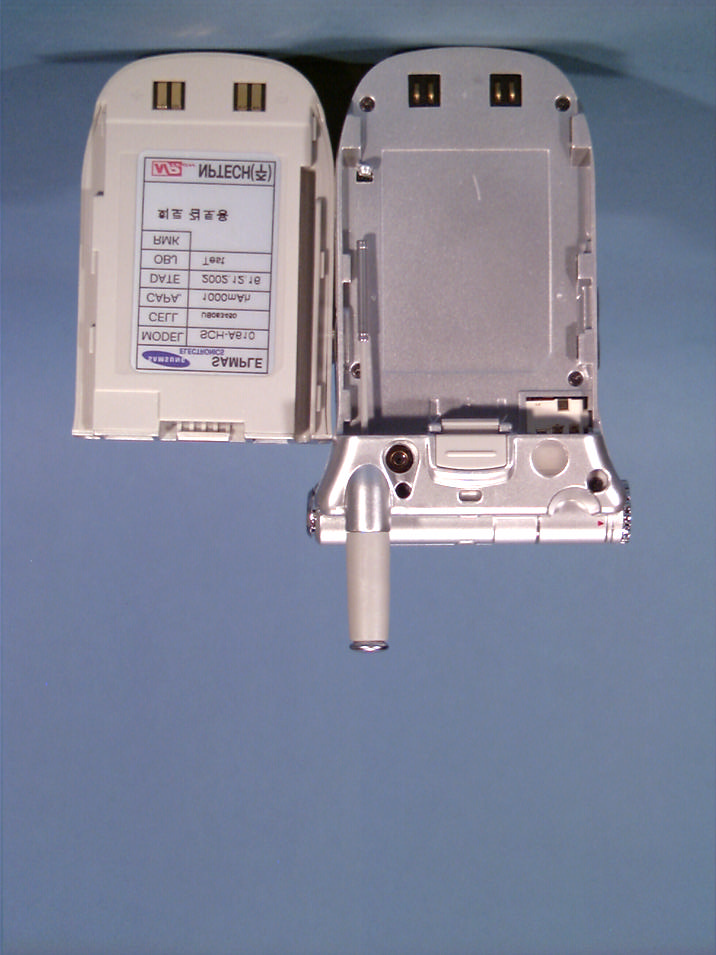

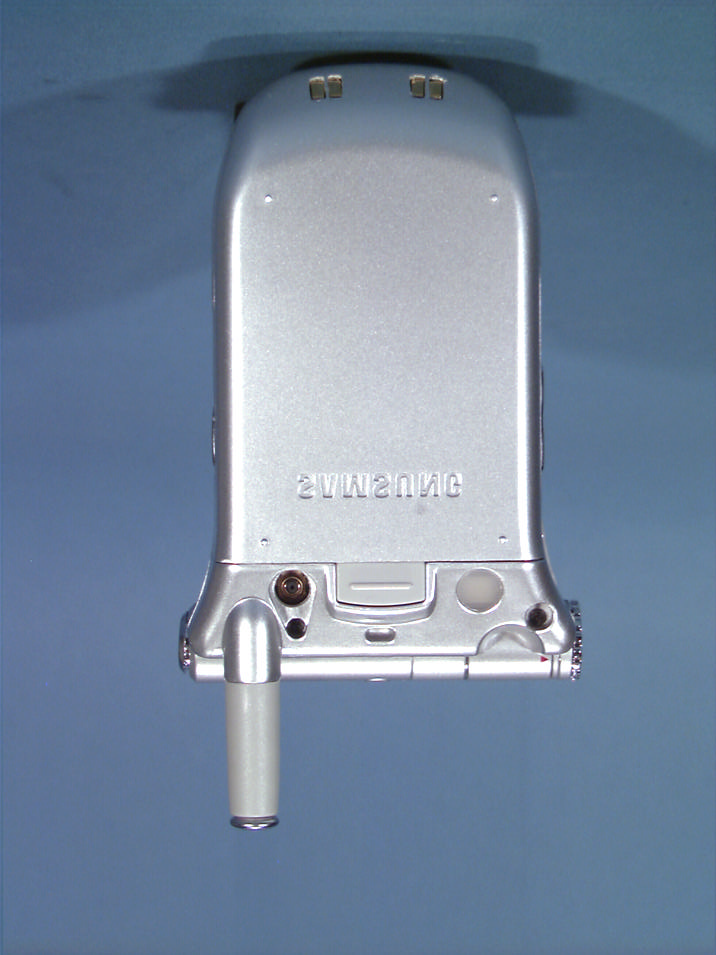

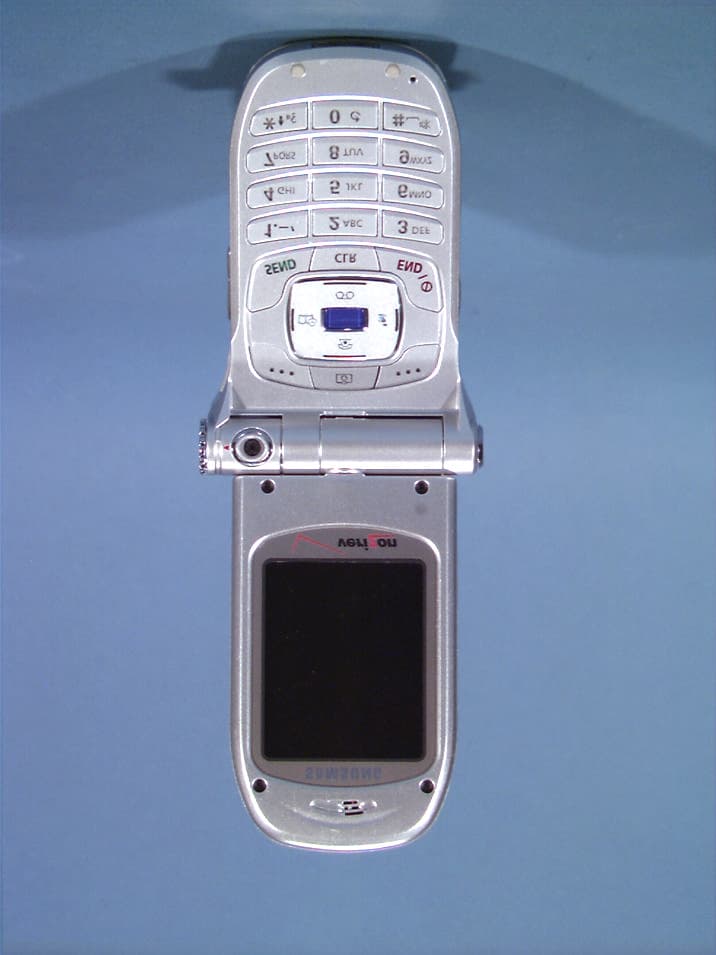

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA)

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.221218672.A3L Test Dates: Dec. 23-27, 2002 Phone Type: Dual-Band CDMA Phone FCC ID: A3LSCHA610 Page 1 of 30 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: December 23-27, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.221218672.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSCHA610 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Dual-Band CDMA Phone (GPS) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.400 W ERP CDMA (26.023 dBm) / 25.5 dBm Conducted 0.446 W EIRP PCS CDMA (26.491 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.47W/kg CDMA Head SAR; 1.30W/kg CDMA Body SAR; 1.32W/kg PCS CDMA Head SAR; 1.25W/kg PCS CDMA Body SAR Trade Name/Model(s): SCH-A610 FCC Classification: Licensed Non-Broadcast Transmitter Held To Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220507240.A3L PCTEST SAR TEST REPORT Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.221218672.A3L Test Dates: Dec. 23-27, 2002 Phone Type: Dual-Band CDMA Phone FCC ID: A3LSCHA610 Page 2 of 30 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION........................................................................................ 3 2. SAR MEASUREMENT SETUP ..................................................................................................... 4 3. ALIDX-500 E-FIELD PROBE SYSTEM ......................................................................................... 5 4. Probe Calibration Process .......................................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES ....................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ................................................................................................ 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..................................................................... 9 8. DEFINITION OF REFERENCE POINTS ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ...................................................................................... 11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ...................................................................... 14 11. MEASUREMENT UNCERTAINTIES .......................................................................................... 15 12. SYSTEM VERIFICATION .......................................................................................................... 16 13. SAR TEST DATA SUMMARY ................................................................................................... 17 14. SAR DATA SUMMARY ............................................................................................................. 18 15. SAR TEST EQUIPMENT............................................................................................................ 28 16. CONCLUSION ........................................................................................................................ 29 17. REFERENCES............................................................................................................................ 30 PCTEST SAR TEST REPORT Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.221218672.A3L Test Dates: Dec. 23-27, 2002 Phone Type: Dual-Band CDMA Phone FCC ID: A3LSCHA610 Page 3 of 30 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in I…

Text truncated - open the document above for the full version.

SAR Data Report 02122313 Start : 23-Dec-02 03:30:25 pm End : 23-Dec-02 03:38:27 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A610 Serial Number : 2 Frequency : 848.31 MHz Transmit Pwr : 0.355 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 39.900 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-777 Cheek CF=1; Amb. Temp= 21.3 'C; Liq. Temp=20.0 'C Area Scan - Max Peak SAR Value at x=87.0 y=15.0 = 1.46 W/kg Zoom Scan - Max Peak SAR Value at x=87.0 y=16.0 z=0.0 = 2.10 W/kg Max 1g SAR at x=87.0 y=16.0 z=0.0 = 1.47 W/kg Max 10g SAR at x=87.0 y=15.0 z=0.0 = 1.01 W/kg 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:87.0 y:16.0 1g SAR Values 1.502 1.449 1.396 1.344 1.291 1.238 1.186 1.133 1.080 1.028 0.975 SAR Data Report 02122319 Start : 23-Dec-02 04:28:43 pm End : 23-Dec-02 04:35:00 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A610 Serial Number : 2 Frequency : 835.89 MHz Transmit Pwr : 0.355 W Antenna Type : Helical Antenna Posn. : In Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 39.900 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-363 Tilt CF=1; Amb. Temp= 21.3 'C; Liq. Temp=20.0 'C Area Scan - Max Peak SAR Value at x=63.0 y=13.0 = 0.46 W/kg Zoom Scan - Max Peak SAR Value at x=63.0 y=14.0 z=0.0 = 0.63 W/kg Max 1g SAR at x=63.0 y=14.0 z=0.0 = 0.47 W/kg Max 10g SAR at x=62.0 y=13.0 z=0.0 = 0.33 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:63.0 y:14.0 1g SAR Values 0.4661 0.4567 0.4473 0.4379 0.4285 0.4191 0.4097 0.4003 0.3909 0.3815 0.3721 SAR Data Report 02122303 Start : 23-Dec-02 10:05:01 am End : 23-Dec-02 10:19:01 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A610 Serial Number : 2 Frequency : 848.31 MHz Transmit Pwr : 0.355 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-LEFT Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 39.900 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-777 Cheek CF=1; Amb. Temp= 21.3 'C; Liq. Temp=20.0 'C Area Scan - Max Peak SAR Value at x=82.0 y=9.0 = 1.48 W/kg Zoom Scan - Max Peak SAR Value at x=84.0 y=9.0 z=0.0 = 1.85 W/kg Max 1g SAR at x=84.0 y=9.0 z=0.0 = 1.45 W/kg Max 10g SAR at x=82.0 y=8.0 z=0.0 = 1.01 W/kg 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:84.0 y:9.0 1g SAR Values 1.450 1.394 1.338 1.281 1.225 1.169 1.112 1.056 0.999 0.943 0.887 SAR Data Report 02122308 Start : 23-Dec-02 11:28:22 am End : 23-Dec-02 11:34:56 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A610 Serial Number : 2 Frequency : 835.89 MHz Transmit Pwr : 0.355 W Antenna Type : Helical Antenna Posn. : In Measurement Data: Phantom Name : SAM-LEFT Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 39.900 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-363 Tilt CF=1; Amb. Temp= 21.3 'C; Liq. Temp=20.0 'C Area Scan - Max Peak SAR Value at x=56.0 y=10.0 = 0.44 W/kg Zoom Scan - Max Peak SAR Value at x=58.0 y=11.0 z=0.0 = 0.67 W/kg Max 1g SAR at x=58.0 y=11.0 z=0.0 = 0.47 W/kg Max 10g SAR at x=55.0 y=10.0 z=0.0 = 0.33 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:58.0 y:11.0 1g SAR Values 0.467 0.455 0.442 0.429 0.417 0.404 0.392 0.379 0.367 0.354 0.342 SAR Data Report 02122035 Start : 23-Dec-02 04:28:21 pm End : 23-Dec-02 04:33:24 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A610 Serial Number : 2 Frequency : 1880.00 MHz Transmit Pwr : 0.280 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 39.460 Tissue Conductivity : 1.430 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1…

Text truncated - open the document above for the full version.

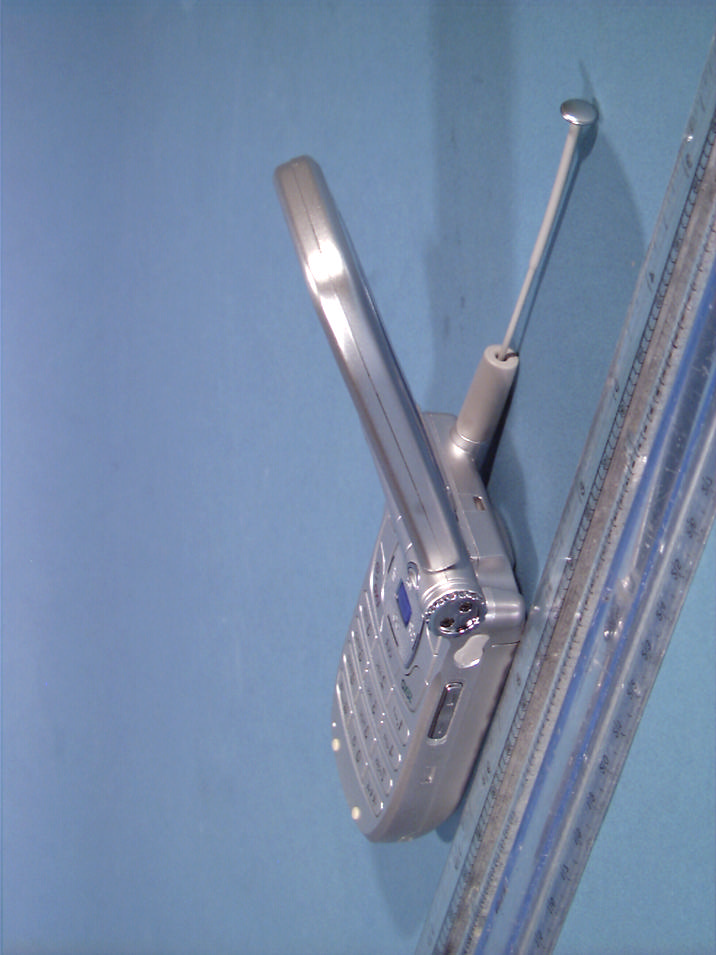

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA610 Dual-Band Phone (Model: SCH-A610) (PCS/CDMA)

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

SAR Data Report 02122301 Start : 23-Dec -02 8:39:25 am End : 23-Dec -02 8:44:49 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 836.49 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 39.900 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 835 MHz Validation CF=1; Amb. Temp= 21.3 'C; Liq. Temp=20.0 'C Area Scan - Max Peak SAR Value at x=3.0 y=-2.0 = 2.12 W/kg Zoom Scan - Max Peak SAR Value at x=3.0 y=-4.0 z=0.0 = 3.58 W/kg Max 1g SAR at x=3.0 y=-3.0 z=0.0 = 2.28 W/kg Max 10g SAR at x=3.0 y=-2.0 z=0.0 = 1.42 W/kg Validation Results at 0.25 W: Peak Nominal = 3.5, Error: 1.51 % 1g Nominal = 2.4, Error: -3.99 % 10g Nominal = 1.6, Error: -8.56 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:3.0 y:-4.0 1g SAR Values 2.280 2.211 2.142 2.074 2.005 1.936 1.867 1.798 1.730 1.661 1.592 SAR Data Report 02122302 Start : 23-Dec -02 9:40:12 am End : 23-Dec -02 9:46:11 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 1900 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 39.460 Tissue Conductivity : 1.430 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 1900 MHz Validation CF=1; Amb. Temp= 21.3 'C; Liq. Temp=20.0 'C Area Scan - Max Peak SAR Value at x=1.0 y=2.0 = 9.69 W/kg Zoom Scan - Max Peak SAR Value at x=1.0 y=1.0 z=0.0 = 17.05 W/kg Max 1g SAR at x=2.0 y=1.0 z=0.0 = 10.19 W/kg Max 10g SAR at x=2.0 y=1.0 z=0.0 = 5.39 W/kg Validation Results at 0.25 W: Peak Nominal = 18.0, Error: -5.41 % 1g Nominal = 9.9, Error: 2.66 % 10g Nominal = 5.1, Error: 5.10 % 0 2 4 6 8 10 12 14 16 18 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:1.0 y:1.0 1g SAR Values 10.19 9.62 9.06 8.49 7.93 7.36 6.80 6.23 5.67 5.10 4.54

PCTEST PT. 22/24 REPORT MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.221218671.A3L Test Dates: DEC. 23-27, 2002 Phone Type: Dual-Band CDMA Phone FCC ID: A3LSCHA610 Page 1 of 24 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: December 23-27, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 22/24.221218671.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA610 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22.901(d); §2 EUT Type: Dual-Band CDMA Phone (GPS) Model: SCH-A610 Tx Frequency Range: 824.70 — 848.31MHz (CDMA) / 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 — 893.31MHz (CDMA) / 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.400W ERP CDMA (26.023 dBm)/ 25.5 dBm Conducted 0.446 W EIRP PCS CDMA (26.491 dBm)/ 24.5 dBm Conducted Max. SAR Measurement: 1.47W/kg CDMA Head SAR; 1.30W/kg CDMA Body SAR; 1.32W/kg PCS CDMA Head SAR; 1.25W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: # 2] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness o…
