A3LSCHA670Dual-Band CDMA Phone

DIGITAL CELLULAR TELEPHONE SCH-A670 User’s Manual Printed in Korea Code No. : GH68-00000A English. 2003/06. Rev.1.0 World Wide Web http://www.samsungmobile.com ELECTRONICS Please read this manual before operating your phone, and keep it for future reference . Important Safety Precautions Read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal. Road Safety at All Times Do not use a hand-held phone while driving; park the vehicle first. Switching Off When Refueling Do not use the phone at a refueling point (service station) or near fuels or chemicals. Switching Off in Aircraft Wireless phones can cause interference. Using them in aircraft is both illegal and dangerous. Switching Off in Hospitals Switch off your phone near medical equipment. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Special Regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example). 1 YOUR PHONE Key Descriptions ................................................................................... 5 Display ................................................................................................ 6 Service Light .......................................................................................... 6 GETTING STARTED Charging a Battery .................................................................................9 Switching the Phone On/Off ................................................................ 11 CALL FUNCTIONS Making a Call ......................................................................................12 Answering a Call .................................................................................. 17 In-Call Options .................................................................................... 18 Using Caller ID .................................................................................... 19 Viewing Missed Calls ........................................................................... 20 Three-Way Calling ............................................................................... 21 Call Waiting ........................................................................................ 22 Call Forwarding ....................................................................................22 Adjusting the Volume ........................................................................... 23 ENTERING TEXT Changing Text Input Mode ................................................................... 24 T9 Mode .............................................................................................. 25 ABC Mode ............................................................................................26 Symbol Mode ...................................................................................... 28 123 Mode ........................................................................................... 28 Table of Contents Sensible Use Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency Call Ensure the phone is switched on and in service. Key in the emergency number for your present location, then press TALK. If certain feature are in use, deactivate those features before you can make an emergency call. Give all the necessary information as accurately as possible. Do not cut off the call until given permission to do so. Water Resistance Your phone is not water-resistance. Keep it dry. Accessories and Batteries Use only Samsung-approved accessories and batteries. Qualified Service Only qualified service personnel may install or repair your phone. For more detailed safety information, see “Health and Safety Information” on page 67. 23 USING THE MENUS Accessing a Menu Functions by Scrolling .............................................. 29 Accessing a Menu Functions by Using its Shortcut.................................. 30 Your Phone’s Main Menu .................................................................... 31 CAMERA Take a picture(MENU 1-1)........................................................... 33 Gallery (MENU 1-2)...................................................................... 33 Online Album (MENU 1-3)............................................................ 33 Setting (MENU 1-4)...................................................................... 34 PHONE BOOK Find (MENU 2-1)........................................................................... 35 Add (MENU 2-2).......................................................................... 37 Rename Group (MENU 2-3).......................................................... 37 My Phone # (MENU 2-4)................................................................ 37 Memory (MENU 2-5)...................................................................... 38 CALLs Outgoing (MENU 3-1) ................................................................... 33 Incoming (MENU 3-2) ................................................................... 34 Missed (MENU 3-3) ....................................................................... 35 Erase Logs (MENU 3-4).................................................................. 36 Call Timer (MENU 3-5)................................................................... 36 MESSAGE Send New Message (MENU 4-1)....................................................... 43 Voice (MENU 4-2)........................................................................... 43 Inbox (MENU 4-3).......................................................................... 43 Outbox (MENU 4-4)...................................................................... 45 Draft (MENU 4-5)......................................…

Text truncated - open the document above for the full version.

June 9, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSCHA670) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative.

June 9, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA670 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

June 9, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHA670 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22/24 Certification of the Dual-Band CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

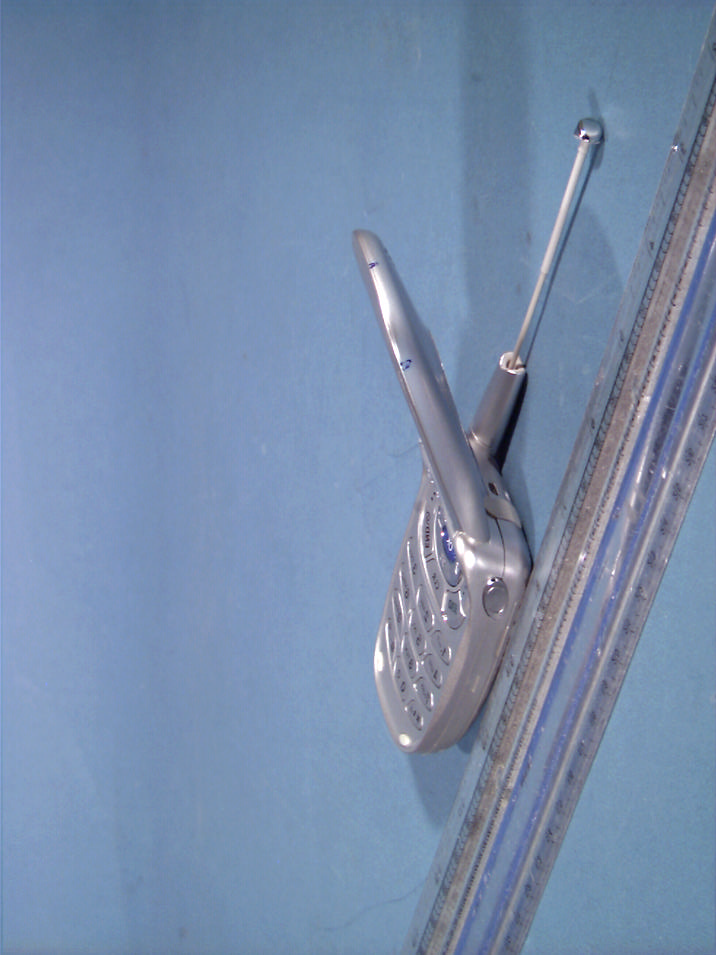

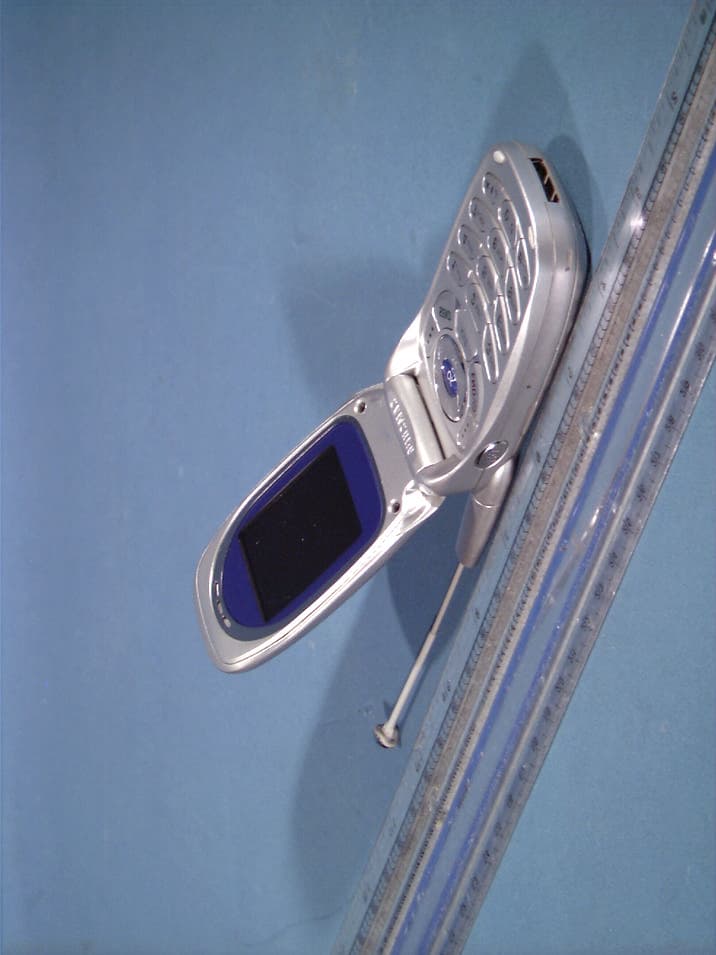

SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230630315.A3L Test Dates: June 30 - July 2, 2003 EUT Type: Dual-Band CDMA Phone FCC ID: A3LSCHA670 Page 1 of 28 © 2003 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: June 30 - July 2, 2003 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.230630315.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA FCC ID: A3LSCHA670 APPLICANT NAME: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Dual-Band CDMA Phone Tx Frequency: 824.70 — 848.31 MHz (CDMA) / 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) / 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.319 W ERP CDMA (25.033 dBm) / 25.5 dBm Conducted 0.373 W EIRP PCS CDMA (25.701 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.38 W/kg CDMA Head SAR; 1.26 W/kg CDMA Body SAR; 0.99 W/kg PCS CDMA Head SAR; 0.80 W/kg PCS CDMA Body SAR Trade Name/Model(s): SCH-A670 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: F1BEEEF7] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.230630315.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230630315.A3L Test Dates: June 30 - July 2, 2003 EUT Type: Dual-Band CDMA Phone FCC ID: A3LSCHA670 Page 2 of 28 © 2003 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION........................................................................................ 3 2. SAR MEASUREMENT SETUP ..................................................................................................... 4 3. ALIDX-500 E-FIELD PROBE SYSTEM ......................................................................................... 5 4. PROBE CALIBRATION PROCESS .............................................................................................. 6 5. PHANTOM & EQUIVALENT TISSUES ....................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ................................................................................................ 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..................................................................... 9 8. DEFINITION OF REFERENCE POINTS ..................................................................................... 10 9. TEST CONFIGURATION POSITION........................................................................................ 11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ...................................................................... 12 11. MEASUREMENT UNCERTAINTIES .......................................................................................... 13 12. SAR TEST DATA SUMMARY ................................................................................................... 14 13. SAR TEST EQUIPMENT............................................................................................................ 15 14. CONCLUSION ........................................................................................................................ 16 15. REFERENCES............................................................................................................................ 17 EXHIBIT A. SYSTEM VERIFICATION .............................................................................................. 18 EXHIBIT A. SAR DATA SUMMARY ............................................................................................19-28 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230630315.A3L Test Dates: June 30 - July 2, 2003 EUT Type: Dual-Band CDMA Phone FCC ID: A3LSCHA670 Page 3 of 28 © 2003 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to …

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670 SAMSUNG FCC ID: A3LSCHA670 EUT Photographs © 2003 PCTEST Lab. Dual-Band CDMA Phone Model: SCH-A670

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230630316.A3L Test Dates: June 30 — July 2, 2002 Phone Type: Dual-Band CDMA FCC ID: A3LSCHA670 Page 1 of 25 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: June 30 — July 2, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 22/24.230630316.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA670 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22.901(d); §2 EUT Type: Dual-Band CDMA Phone Model: SCH-A670 Tx Frequency Range: 824.70 — 848.31MHz (CDMA) / 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 — 893.31MHz (CDMA) / 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.319 W ERP CDMA (25.033 dBm) / 0.373 W EIRP PCS CDMA (25.701 dBm) Max. SAR Measurement: 1.38W/kg CDMA Head SAR; 1.26W/kg CDMA Body SAR; 0.99W/kg PCS CDMA Head SAR; 0.80W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: F1BEEEF7 ] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220722380.A3L PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230630316.A3L Test Dates: June 30 — July 2, 2002 Phone Type: Dual-Band CDMA FCC ID: A3LSCHA670 Page 2 of 25 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230630316.A3L Test Dates: June 30 — July 2, 2002 Phone Type: Dual-Band CDMA FCC ID: A3LSCHA670 Page 3 of 25 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • FCC ID: A3LSCHA670 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.319 W ERP CDMA (25.033 dBm) 0.373 W EIRP PCS CDMA (25.701 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22.901(d) • Dates of Tests: June 30 — July 2, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.230630316.A3L PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230630316.A3L Test Dates: June 30 — July 2, 2002 Phone Type: Dual-Band CDMA FCC ID: A3LSCHA670 Page 4 of 25 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to t…
