A3LSCHB379Cellular CDMA Phone

User manual SCH-B379 Draft 3 2010-08-13 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - t…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea , 2010 Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCH Gentleme n: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FC C ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: September 17, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHB379 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

The label is placed inside the battery compartment

FCC ID: A3LSCHB379Report Number: FH-192-S1 Page : 1 of 29 SAMSUNG Electronics C0. LTD EUT Type: Single-Mode Cellular Phone Issue Date : Sep.09, 2010 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SCH-B379 FCC ID (Requested): A3LSCHB379 Job No: FH-192 Report No: FH-192-S1 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By MK YOUN - Test Engineer Authorized By JD JANG - Technical Manager FCC ID: A3LSCHB379Report Number: FH-192-S1 Page : 2 of 29 SAMSUNG Electronics C0. LTD EUT Type: Single-Mode Cellular Phone Issue Date : Sep.09, 2010 Contents 1. GENERAL INFORMATION .............................................................................. 3 2. DESCRIPTION OF DEVICE ............................................................................ 3 3. DESCRIPTION OF TEST EQUIPMENT .......................................................... 4 3.1 SAR Measurement Setup ............................................................................................................... 4 3.2 E-field Probe ................................................................................................................................... 5 3.3 Phantom.......................................................................................................................................... 7 3.4 Brain Simulating Mixture Characterization .................................................................................... 9 3.5 Device Holder for Transmitters........................................................................................................ 9 3.6 Validation Dipole ........................................................................................................................... 10 3.7 Equipment Calibration................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE ........................................................... 12 5. DESCRIPTION OF TEST POSITION ............................................................ 13 5.1 SAM Phantom Shape.................................................................................................................... 13 5.2 “cheek” Position ............................................................................................................................ 13 5.3 “tilted” Position .............................................................................................................................. 15 5.4 Body Holster/Belt Clip Configurations ........................................................................................... 16 6. MEASUREMENT UNCERTAINTY ................................................................. 18 7. SYSTEM VERIFICATION............................................................................... 20 7.1 Tissue Verification ......................................................................................................................... 20 7.2 Test System Validation .................................................................................................................. 20 8. SAR MEASUREMENT RESULTS.................................................................. 21 8.1 CDMA Head SAR Results ............................................................................................................. 24 8.2 CDMA Body SAR Results(Without Holster) .................................................................................. 25 9. CONCLUSION ............................................................................................... 26 10. REFERENCES ............................................................................................. 27 APPENDIX A SAR Definition ........................................................................... 29 APPENDIX B Probe Calibration Process ........................................................ 30 APPENDIX C ANSI/IEEE C95.1 – 1992 RF EXPOSURE LIMITS.................. 31 APPENDIX D The Validation Measurements .................................................. 32 APPENDIX E Plots of The SAR Measurements.............................................. 34 APPENDIX F Probe Calibration ...................................................................... 42 APPENDIX G Calibration of The Validation Dipole ......................................... 54 FCC ID: A3LSCHB379Report Number: FH-192-S1 Page : 3 of 29 SAMSUNG Electronics C0. LTD EUT Type: Single-Mode Cellular Phone Issue Date : Sep.09, 2010 1. GENERAL INFORMATION Test Dates : Sep.02, 2010 Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Address : 416 Maetan3-Dong, Suwon City, Korea Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Non-Broadcast Transmitter Held to Ear (TNE) Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Test Sample : Single-Mode Cellular Phone Model Number : SCH-B379 Serial Number : Identical prototype (S/N : # FH-192-C) Tx Freq. Range : 824.70 ~ 848.31 MHz (CDMA) Rx Freq. Range : 869.70 ~ 893.31 MHz (CDMA) Antenna Manufacturer : MEIKO Model No.: SCH-B379 Ev-Do Not Supported Antenna Dimensions : 26.55 * 11.20 * 10.00 (mm) FCC ID: A3LSCHB379Report Number: FH-192-S1 Page : 4 of 29 SAMSUNG Electronics C0. LTD EUT Type: Single-Mode Cellular Phone Issue Date : Sep.09, 2010 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 (or DASY5) automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain eq…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-B379 FCC ID (Requested): A3LSCHB379 Report No: FH-192-R1 Job No: FH-192 Date issued: September 7, 2010 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22 Prepared By KJ KWON – Test Engineer Authorized By WT JANG – Technical Manager © Copyright SAMSUNG Electronics 2010 Report Number : FH-192-R1 2 of 32 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information .......................................................................................3 1.1 §2.1033 General Information ...................................................................................3 2. INTRODUCTION .............................................................................................................4 2.1 General ....................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION .................................................................5 4. TEST EQUIPMENT LIST.................................................................................................6 5. DESCRIPTION OF TESTS..............................................................................................7 5.1 Output Power Variation ............................................................................................7 5.2 Effective Radiated Power / Equivalent Isotropic Radiated Power ............................8 5.3 Radiated Spurious & Harmonic Emission ................................................................9 5.4 Occupied Bandwidth .............................................................................................. 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal ........................................ 11 5.5.1 Occupied Bandwidth Emission Limits ........................................................... 11 5.5.2 Conducted Spurious Emission ......................................................................12 5.6 Frequency Stability / Temperature Variation...........................................................13 6. TEST DATA ...................................................................................................................14 6.1 Effective Radiated Power(E.R.P.) ..........................................................................14 6.2 Cellular CDMA Radiated Spurious & Harmonic measurement...............................15 6.3 CDMA Radiated Spurious & Harmonic Conversion Table ......................................16 6.4 Frequency Stability.................................................................................................17 6.4.1 CDMA Frequency Stability Table ...................................................................17 6.4.2 CDMA Frequency Stability Graph .................................................................18 7. SAMPLE CALCULATION .............................................................................................20 7.1 Emission Designator ..............................................................................................20 8. CONCLUSION...............................................................................................................21 9. TEST PLOTS.................................................................................................................22 Report Number : FH-192-R1 3 of 32 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information • Applicant Name: SAMSUNG ELECTRONICS CO., LTD. • Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID: • Model: A3LSCHB379 SCH-B379 • Quantity: Quantity production is planned • Emission Designators: 1M27F9W(CDMA) • Tx Freq. Range: 824.70-848.31MHz (CDMA) • Rx Freq. Range: 869.70-893.31MHz (CDMA) • Max. Power Rating: 0.078 W ERP CDMA (18.92 dBm) • FCC Classification(s): Licensed Non-Broadcast Transmitter Held to Ear(TNE) • Equipment (EUT) Type: Cellular CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ±0.00025% (2.5ppm) • FCC Rule Part(s): §22(H), §2. • Dates of Test: August 30-31, 2007 • Place of Test: SAMSUNG Lab, • Test Report S/N: FH-192-R1 Report Number : FH-192-R1 4 of 32 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure2. Photograph of 3m Fully-Anechoic Chamber…

Text truncated - open the document above for the full version.

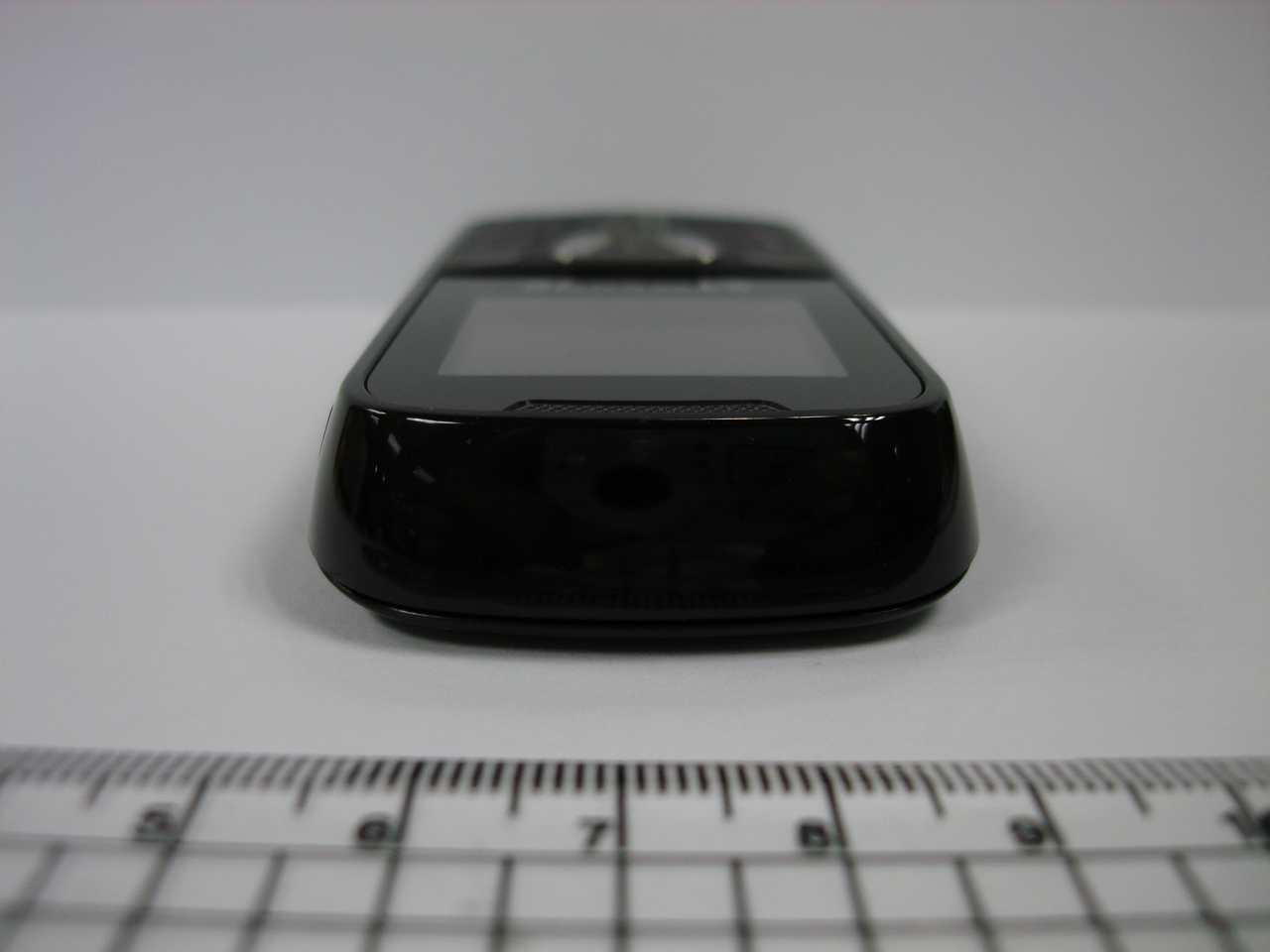

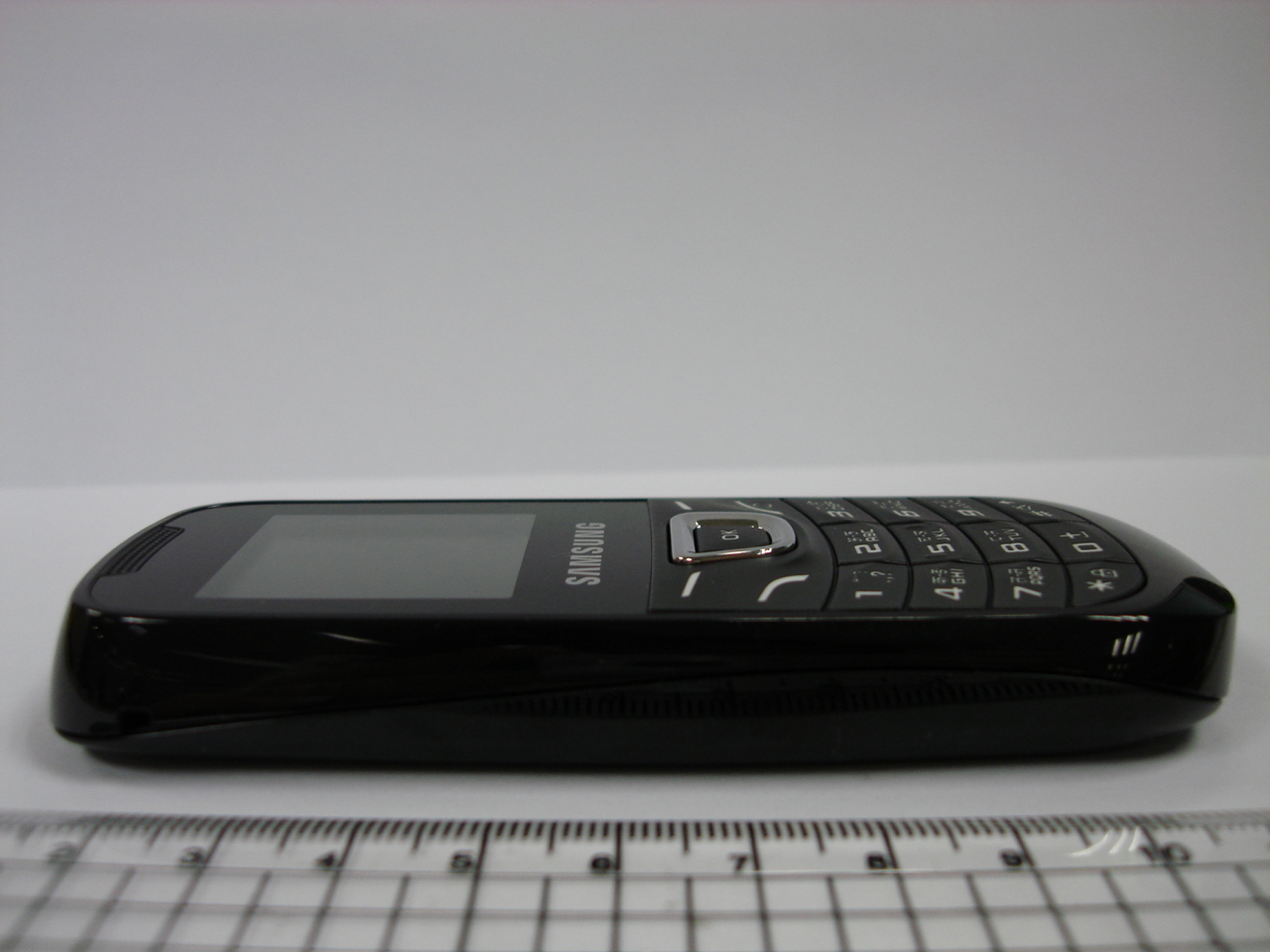

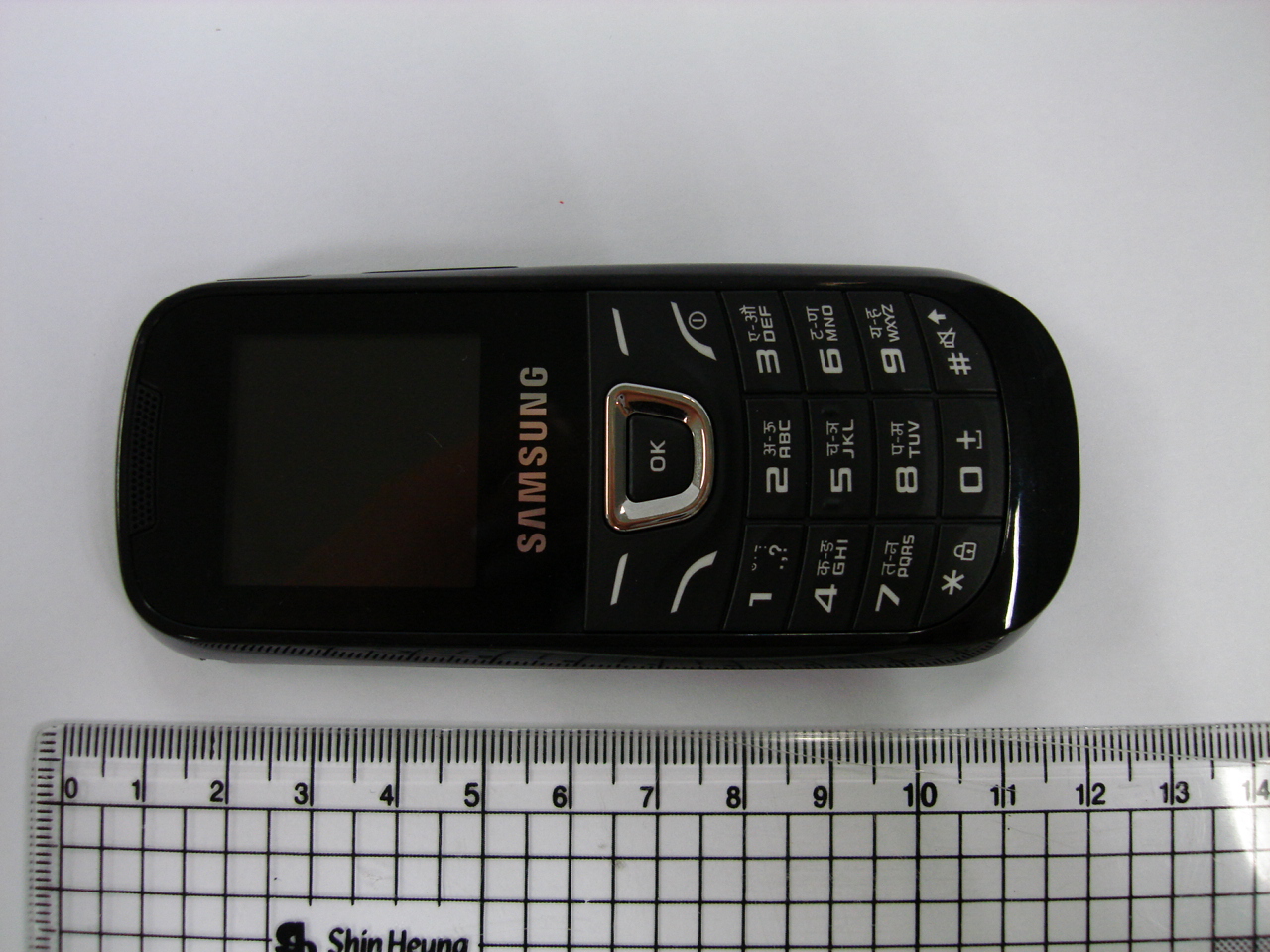

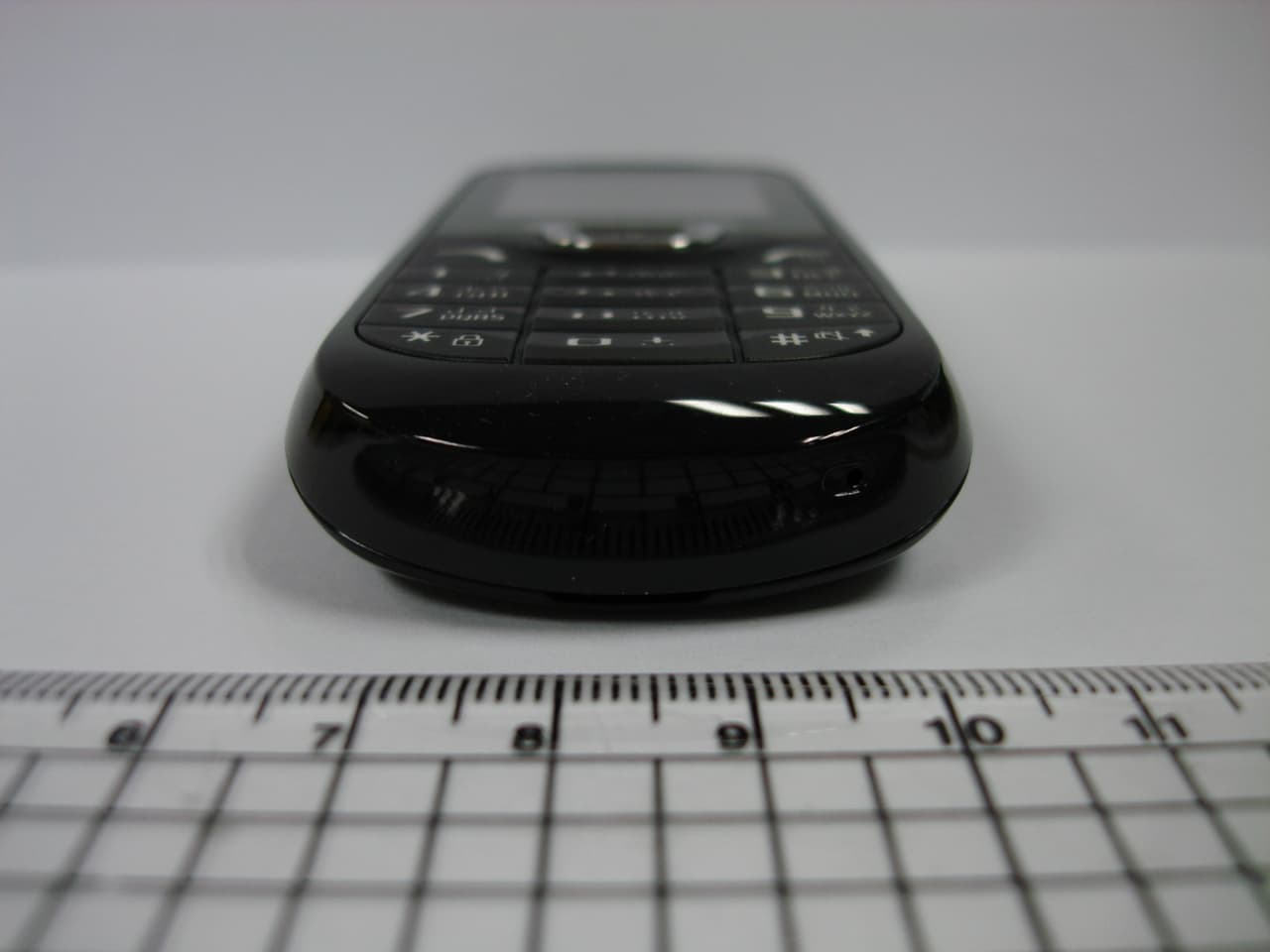

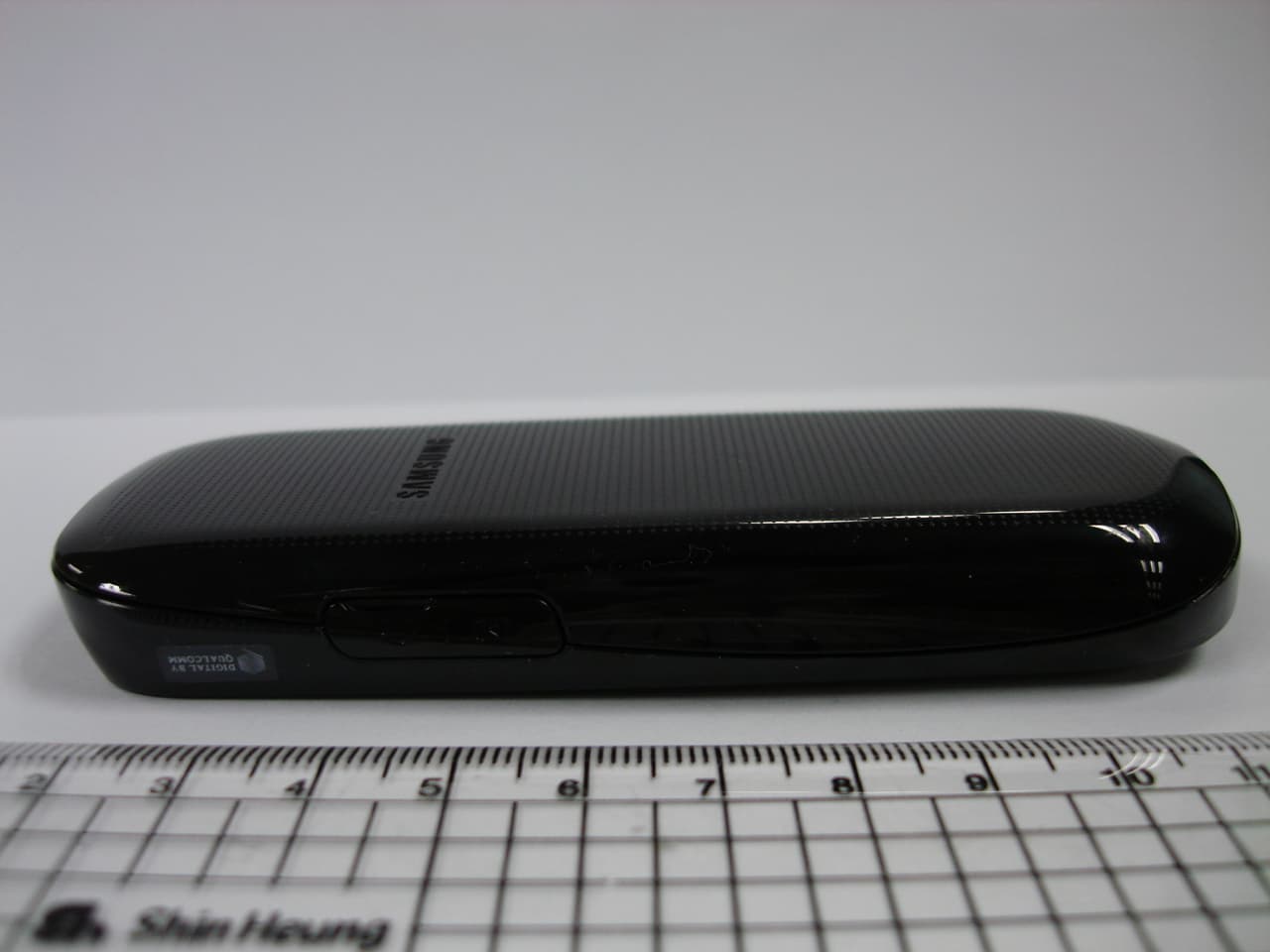

SAMSUNG FCC ID: A3LSCHB379 Cellular CDMA Phone

© 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone 1.5cm © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHB379 Single-Mode Cellular Phone
