A3LSCHI405UPortable Handset with Multi-band CDMA/LTE, WLAN and Bluetooth

User manual SCH-I405 This device is capable of operating in 802.11a mode. For 802.11a devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful interference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this mode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: March 23, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHI405U To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea April 6, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHI 405U Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

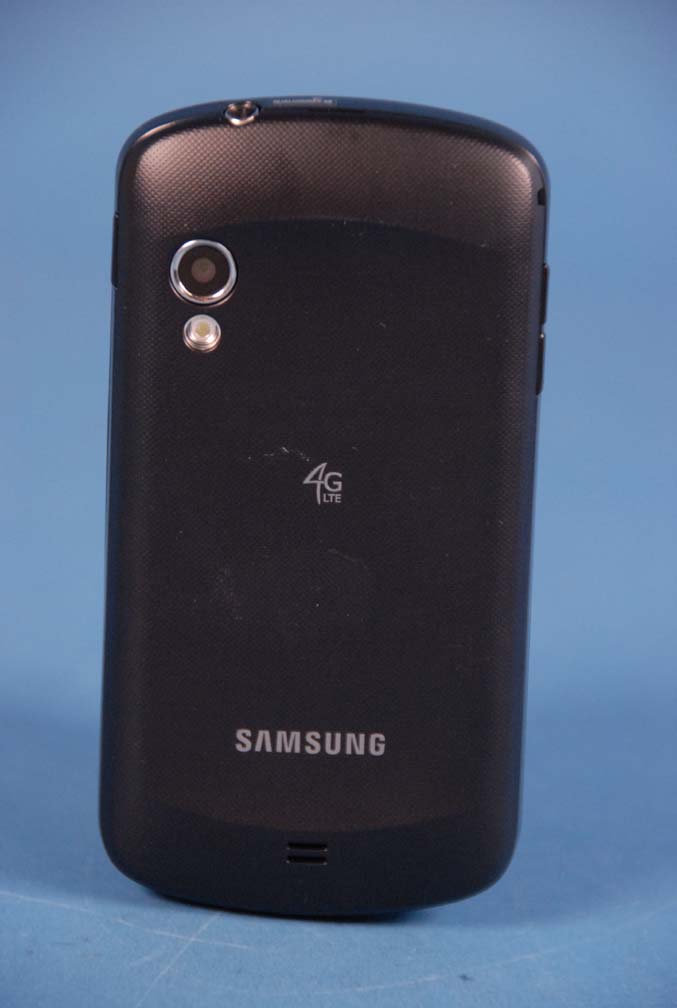

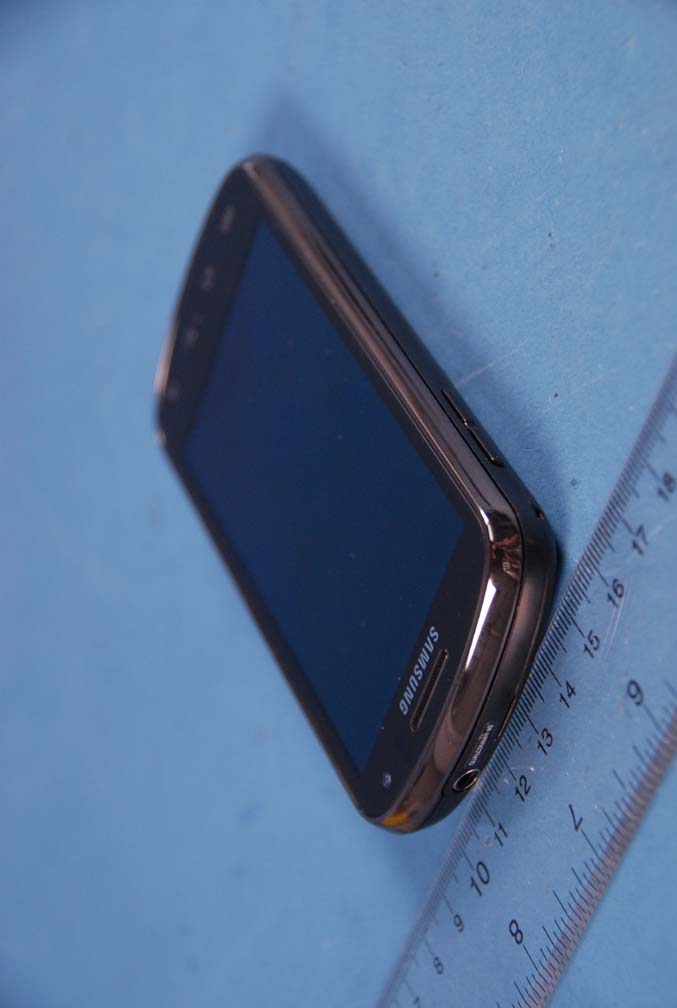

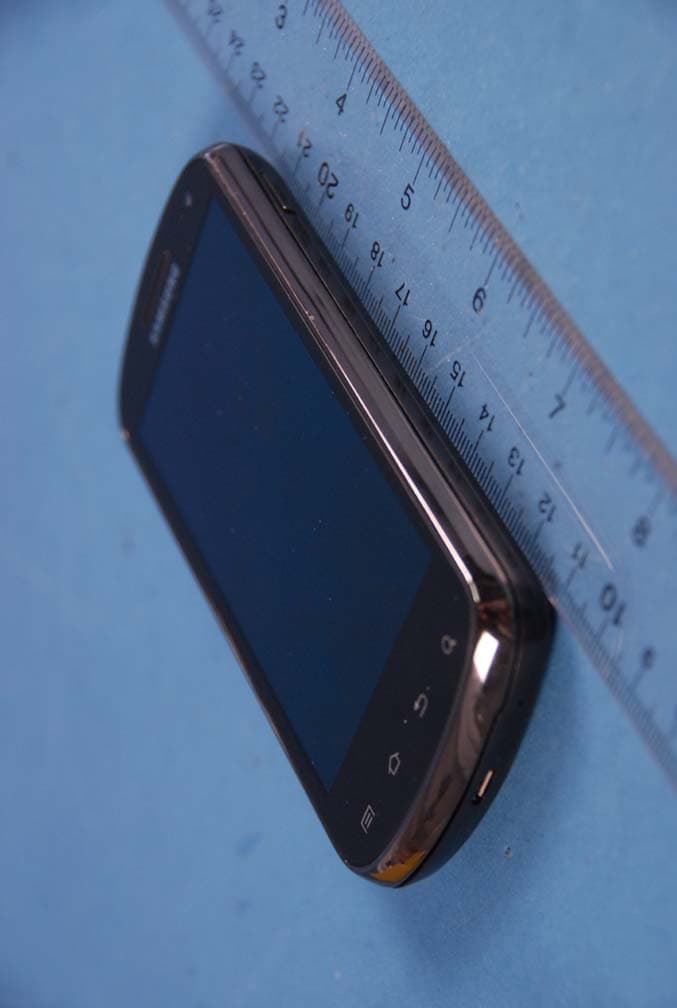

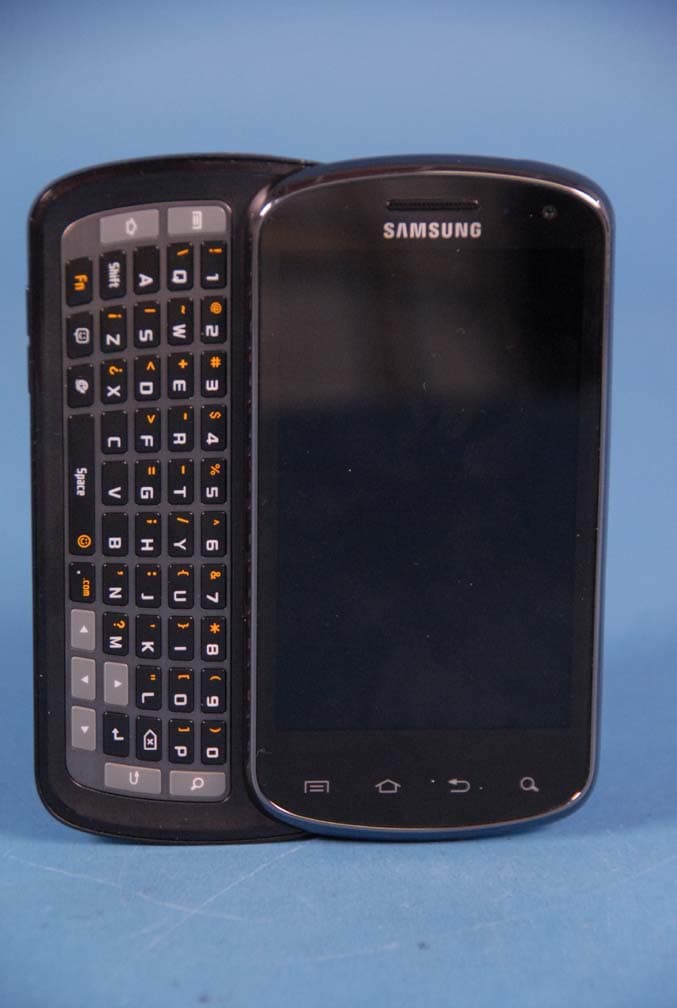

Samsung FCC ID: A3LSCHI405U Model: SCH-I405 External Photos EUT Type: Portable Handset Page 1 of 5 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHI405U Model: SCH-I405 External Photos EUT Type: Portable Handset Page 2 of 5 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 External Photos EUT Type: Portable Handset Page 3 of 5 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 External Photos EUT Type: Portable Handset Page 4 of 5 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 External Photos EUT Type: Portable Handset Page 5 of 5 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: SCH-I405 FCC ID: A3LSCHI405U Label: Location: Phone: Label is placed inside of the battery compartment. Tablet : FCC ID is printed on bottom of the device

Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 1 of 11 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 2 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 3 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 4 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 5 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 6 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 7 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 8 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 9 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 10 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Internal Photos EUT Type: Portable Handset Page 11 of 11 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSCHI405U SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1203080268.A3L 03/08/12 - 03/15/12 Portable Handset Page 1 of 58 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1 M 02/20/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/08/12 - 03/15/12 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1203080268.A3L FCC ID: A3LSCHI405U APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SCH-I405 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) Cell. CDMA/EVDO824.70 - 848.31 MHz25.30 0.250.820.88 PCS CDMA/EVDO1851.25 - 1908.75 MHz25.090.19 0.710.71 LTE Band 12701.5 - 713.5 MHz23.310.38 0.300.30 LTE Band 5 (Cell)824.7 - 848.3 MHz23.080.55 0.370.37 LTE Band 4 (AWS)1712.5 - 1752.5 MHz23.030.99 0.450.45 LTE Band 2 (PCS)1850.7 - 1909.3 MHz23.040.94 0.570.57 2.4 GHz WLAN2412 - 2462 MHz14.340.08 0.100.15 5.8 GHz WLAN5745 - 5825 MHz13.680.040.17 5.2 GHz WLAN5180 - 5240 MHz13.700.030.04 5.3 GHz WLAN5260 - 5320 MHz13.760.010.03 5.5 GHz WLAN5500 - 5700 MHz13.510.000.05 Bluetooth2402 - 2480 MHz9.97 1.261.491.49 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID: A3LSCHI405U SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1203080268.A3L 03/08/12 - 03/15/12 Portable Handset Page 2 of 58 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1 M 02/20/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE CHECKLIST PER KDB 941225 D05 ....................................................................................... 6 3 INTRODUCTION ............................................................................................................................. 7 4 SAR MEASUREMENT SETUP ....................................................................................................... 8 5 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 6 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 7 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 8 FCC RF EXPOSURE LIMITS........................................................................................................ 16 9 FCC MEASUREMENT PROCEDURES........................................................................................ 17 10 RF CONDUCTED POWERS......................................................................................................... 21 11 SYSTEM VERIFICATION.............................................................................................................. 30 12 SAR DATA SUMMARY ................................................................................................................. 33 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 48 14 EQUIPMENT LIST......................................................................................................................... 53 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 54 16 CONCLUSION............................................................................................................................... 56 17 REFERENCES .............................................................................................................................. 57 Reviewed by: FCC ID: A3LSCHI405U SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1203080268.A3L 03/08/12 - 03/15/12 Portable Handset Page 3 of 58 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1 M 02/20/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDO824.70 - 848.31 MHz PCS CDMA/EVDO1851.25 - 1908.75 MHz LTE Band 12701.5 - 713.5 MHz LTE Band 5 (Cell)824.7 - 848.3 MHz LTE Band 4 (AWS)1712.5 - 1752.5 MHz LTE Band 2 (PCS)1850.7 - 1909.3 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations Reviewed by: FCC ID: A3LSCHI405U SAR EVALUATION REPOR…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX B: SYSTEM VERIFICATION PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 750 MHz; Type: D750V3; Serial: 1046 Communication System: CW; Frequency: 750 MHz; Duty Cycle: 1:1 Medium: 740 Head; Medium parameters used (interpolated): f = 750 MHz; σ = 0.9 mho/m; ε r = 40.343; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 03-13-2012; Ambient Temp: 24.0°C; Tissue Temp: 22.3°C Probe: ES3DV3 - SN3263; ConvF(6.41, 6.41, 6.41); Calibrated: 11/18/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/20/2012 Phantom: SAM v5.0 front; Type: SAM v5.0; Serial: TP-1646 Measurement SW: DASY52, Version 52.8 (0);SEMCAD X Version 14.6.4 (4989) 750 MHz System Verification Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 0.870 mW/g; SAR(10 g) = 0.568 mW/g Deviation = 3.57% 0 dB = 0.940mW/g = -0.54 dB mW/g B1 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 750 MHz; Type: D750V3; Serial: 1046 Communication System: CW; Frequency: 750 MHz; Duty Cycle: 1:1 Medium: 740 Head; Medium parameters used (interpolated): f = 750 MHz; σ = 0.9 mho/m; ε r = 40.343; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 03-13-2012; Ambient Temp: 24.0°C; Tissue Temp: 22.3°C Probe: ES3DV3 - SN3263; ConvF(6.41, 6.41, 6.41); Calibrated: 11/18/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/20/2012 Phantom: SAM v5.0 front; Type: SAM v5.0; Serial: TP-1646 Measurement SW: DASY52, Version 52.8 (0);SEMCAD X Version 14.6.4 (4989) 750 MHz System Verification Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 0.870 mW/g; SAR(10 g) = 0.568 mW/g Deviation: 3.57% B2 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d047 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.912 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom se ction: Flat Section; Space: 1.5 cm Test Date: 03-08-2012; Ambient Temp: 24.3 ° C ; Tissue Temp: 22.6 ° C Probe: ES3DV3 - SN3258; ConvF(6.01, 6.01, 6.01); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 835MHz System Verification Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Powe r = 20.0 dBm (100 mW) SAR(1 g) = 0.990 mW/g; SAR(10 g) = 0.646 mW/g Deviation = 5.21 % 0 dB = 1.07mW/g B3 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d047 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.912 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom se ction: Flat Section; Space: 1.5 cm Test Date: 03-08-2012; Ambient Temp: 24.3 ° C ; Tissue Temp: 22.6 ° C Probe: ES3DV3 - SN3258; ConvF(6.01, 6.01, 6.01); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 835MHz System Verification Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Powe r = 20.0 dBm (100 mW) SAR(1 g) = 0.990 mW/g; SAR(10 g) = 0.646 mW/g Deviation = 5.21 % B4 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.879 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom s ection: Flat Section; Space: 1.5 cm Test Date: 03-13-2012; Ambient Temp: 23.4 ° C ; Tissue Temp: 22.4 ° C Probe: ES3DV3 - SN3258; ConvF(6.01, 6.01, 6.01); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 835MHz System Verification Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 0.955 mW/g; SAR(10 g) = 0.623 mW/g Deviation = 0.95 % 0 dB = 1.03mW/g B5 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.879 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom s ection: Flat Section; Space: 1.5 cm Test Date: 03-13-2012; Ambient Temp: 23.4 ° C ; Tissue Temp: 22.4 ° C Probe: ES3DV3 - SN3258; ConvF(6.01, 6.01, 6.01); Calibrated: 2/21/2012 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1272; Calibrated: 1/18/2012 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 835MHz System Verification Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 0.955 mW/g; SAR(10 g) = 0.623 mW/g Deviation = 0.95 % B6 DUT: Dipole 1750 MHz; Type: D1750V2; Serial: 1051 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: 1750 Head Medium parameters used: f = 1750 MHz; σ = 1.33 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 03-13-2012; Ambient Temp: 24.7°C; Tissue Temp: 22.8°C Probe: ES3DV3 - SN3213; ConvF(5.2, 5.2, 5.2); Calibrated: 3/24/…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI405U FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1203080271.A3L March 14-21, 2012 Portable Handset Page 1 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.5WN 02/13/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. March 14-21, 2012 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1203080271.A3L FCC ID: A3LSCHI405U APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SCH-I405 EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.4-2003, KDB 558074 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246227.35314.3755.08117.41 802.11g 2412 - 246227.22714.35144.87721.61 802.11n 2412 - 246217.14012.3499.08319.96 802.11a 5745 - 582523.87813.78138.03821.40 802.11n 5745 - 582517.78312.50109.90120.41 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID: A3LSCHI405U FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1203080271.A3L March 14-21, 2012 Portable Handset Page 2 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.5WN 02/13/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N........................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ)............................................................... 20 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ)..................................................................... 21 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N) .................................................................................... 22 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 31 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 37 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 45 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .......…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI405U Model: SCH-I405 Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSCHI405U SAR EVALUATION REPORT Quality Manager Test Dates: EUT Type: 03/08/12 - 03/15/12 Portable Handset Page D1 of D6 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LSCHI405U SAR EVALUATION REPORT Quality Manager Tes…

Text truncated - open the document above for the full version.
