A3LSCHI760Cellular/PCS CDMA Phone with WLAN and Bluetooth

1 SCH-i760 Series Portable Dual-Band Telephone Windows Mobile 6 User Manual Please read this manual before operating your phone, and keep it for future reference. Section 1: Today Screen This section describes the major plug-ins of Today screen and how to use or change the settings. 1) Clock Plug-in The long press (tap & hold) of Clock shows you an “Options...” menu and you can go into Clock Plug-in Settings. You can change the color, 12/24 hours and dual clock options for your convenience. 2 2) Message/Missed Calls Plug-in This Plug-in shows the count of unread E-mail, SMS, MMS, Voicemail and Missed calls. You can change the display by clicking the icon on the right end of this plug-in. 3 3) Device Lock Plug-in You can lock the device to prevent an unintentional touch by simply clicking this plug- in. This Plug-in shows the count of unread E-mail, SMS, MMS, Voicemail and Missed calls. Section 2: Call Functions This section describes how to make or answer calls. It also includes the features and functionality associated with using your phone. 1) Making a Call There are several ways to make calls on your SCH-i760. You can use speed dial, voice dial, call history, or simply enter the desired number and tap a green “talk” button or press “action” button on the middle of the navigation key. Place a Call Using Soft Keys 1. Tap Start and select Phone from the drop down menu. 2. Tap the desired number using the stylus. If you make a mistake while 4 dialing, tap Å key. If you tap and hold Å key, all digits are cleared and you can start over. 3. Tap a green “Talk” key. The number is dialed. Place a Call Using the keypad 1. Enter the number using the front keypad. 2. Press a green talk button on the left side. The number is dialed. 5 2) Answering a Call Make sure that the phone is turned on. When you receive an incoming call, the Phone Incoming screen appears in the display. z Press the left soft key, Answer, or a green Talk button on the left side to answer the call z Press the right soft key, Ignore, or a red End button on the left side to send the call to voicemail. 3) Display Your Phone Number 1. Tap Start and select Phone from the drop down menu. 2. Press the right soft key, Menu, and choose Options. 3. The Setting screen displays with your phone number at the top of the screen. 4. Tap “ok” to exit 4) Call History When a call is received, made, or missed a record of the call is saved with all the 6 available information in Call History. If you tap the entry, the time, date, and duration of the call appears in the display. To access the call History menu, follow these steps: 1. Tap Start and select Phone from the drop down menu. 2. Press “Call History” soft key to view your call history. Section 3: Programs SCH-i760 provides various programs including Multimedia, Messaging, Documents, Office Mobile and Utility programs. You can run these programs by clicking program icon under Start > Programs. Microsoft Office Mobile Suite is located in Start > Office Mobile. 7 Section 4: Settings SCH-i760 provides various settings for user’s better experiences. Settings are separated by 3 categories, Personal, System and Connections. 8 1) Personal You can change your personal options for Buttons, Input, Lock, Menus, Owner Information, Phone, Sound & Notifications, Today and Voice Command. 1-1) Buttons You can change the actions of Hot-keys with your preferred actions. 9 1-2) Lock You can lock the device with password. Password types should be “Simple PIN” or “Strong alphanumeric”. 10 1-3) Menus You can select programs shown in the Start Menu. Maximum 7 programs can be selected. 1-4) Owner Information 11 1-5) Phone – (Tab) Phone You can change Ring type, Ring tone, Keypad tone and Voice Privacy notification option. 1-6) Phone – (Tab) Services You can change Auto Answer, TTY, Alert, Networks, Data Mode, GPS and Voice Privacy options for your convenience. 12 13 1-7) Phone – (Tab) Security You can erase all user data, installed programs and user selectable phone settings, and register emergency numbers. 14 1-8) Sounds & Notifications You can change the option to enable/disable sound alerts and notifications. 1-9) Today You can change the Today Theme and preferred plug-ins shown in Today screen. The dedicated program for left soft-key can be changed in “Soft key” option. 15 1-10) Voice Command You can change the options and notifications for Voice Command. 2) System 16 You can change your device’s system options for Backlight, Clock & Alarms, Data Connection, Memory, Phone Display, Power, R2VS, Regional Settings and Screen. You can find the version information in “Version”. 2-1) About You can see the OS information like OS Build number. 2-2) Backlight You can change backlight options for your convenience. Changing these options can reduce/increase battery life. 17 2-3) Clock & Alarms You can change Home/Visiting timezone and set alarms. 18 2-4) Data Connection You can change USB path to “Internal Data Call” or “As the modem through USB”. You should set to “As the modem through USB” when you use i760 as an external modem. 19 2-5) Memory You can see used/free size of storage, program memory and storage card. You can see and stop running programs. 2-6) Phone Display 20 You can change the Phone Dialer skin and select a layout for right/left handed. 2-7) Power You can see a remaining battery status and change the power saving options. 21 2-8) R2VS R2VS can increase the sound effect when the headset is connected. 2-9) Screen You can change the display’s orientation and font size. 22 2-10) Version You can see the S/W, H/W, PRL/ERI, Bluetooth and W-Fi versions. 3) Connections You can set new connections for Bluetooth, Modem, Wi-Fi and Wireless. You can turn on or off for Wi-Fi, Bluetooth and Phone in Wireless Manager. 3-1) Bluetooth You can turn on the Bluetooth and connect i760 with Bluetooth devices. 23 3-2) Connections You can add new modem connection and manage existing connections. 24 3-3) Wi-Fi You can add new Wi-F…

Text truncated - open the document above for the full version.

Health and safety information Exposure to radio frequency signals Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the US government. These FCC exposure limits are derived from the recommendations of two expert organization, the National counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both case the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy This exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and th account for any variations in measurements. SAR tests are conducted using standard operation positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SR is determined at the highest certified power level, the actual SAR level at the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the phone. Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed 27 in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The SAR tested with SCH-i760 is 0.271mW/g(PCS, Head Position), 0.728mW/g(CDMA, Head Position), which are below the regulation of FCC restriction of SAR, 1.6mW/g The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID, which is A3LSCHI760, printed in the label on the phone. FCC certification information for this model phone is attached separation paper. For Body worn operations, this model phone has been tested and meets the FCC exposure guidelines when used with a Samsung accessory designated for this product (if available) or when used with an accessory that contains no metal and that positions the handset a minimum 1.5cm from the body. Keyboard use on this device is applicable only for hand-held use. FCC Notice and Cautions FCC notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. 28 This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/TV technician for help Cautions Changes or modifications made in the radio phone, not expressly approved by Samsung will void the user’s authority to operate the equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone. Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it. 29


















18600 Broadwick Street






January 17, 2007        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: January 17, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L SCHI760 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 To: Mr. Stan Lyles / FCC From: Mr. Steve Kim / SAMSUNG Applicant: Samsung Electronics Co Ltd FCC ID: A3LSCHI760 Form 731 Confirmation Number: EA449708 Date of Original E-Mail: 03/22/2007 Correspondence Reference Number: 32726 Questions and responses follows: 1) User manual says "tested and meets the FCC ... when used with a Samsung accessory designated for this product ..." - this filing does not appear to describe any accessories. Please explain, and amend filing if appropriate. Currently the only available body-worn accessory in production for this device is the earpiece and AC adapter. There are currently no other body-worn accessories available for this product. However in the event that an accessory becomes available for this product to affect Body-Worn RF Exposure, we will apply for a Class II Permissive change. 2) Body SAR has test for 1.5 cm spacing with keypad open. Supplement C 1.5 cm spacing configuration is intended to address exposure conditions only when device is used specifically with some accessory to provide that that spacing for body-worn with earphone conditions. Please explain the in-accessory keypad-open normal-use conditions for this device, or amend SAR data for other keypad-open no- accessory positions if appropriate. Please find attached revised manual and SAR data/photos deleting the body-worn SAR conditions with the keyboard open. Keyboard use on the phone is restricted to use in the hand only. 3) If not in filing already, please describe details of co-transmitting SAR evaluation. Co-transmitting operating conditions are included in the details of the revised SAR Test Report. 4) If not in filing already, further to 3) please amend internal photos to show relative locations of all antennas and as installed in chassis. Please find attached amended internal photographs indicating relative locations of all antennas. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

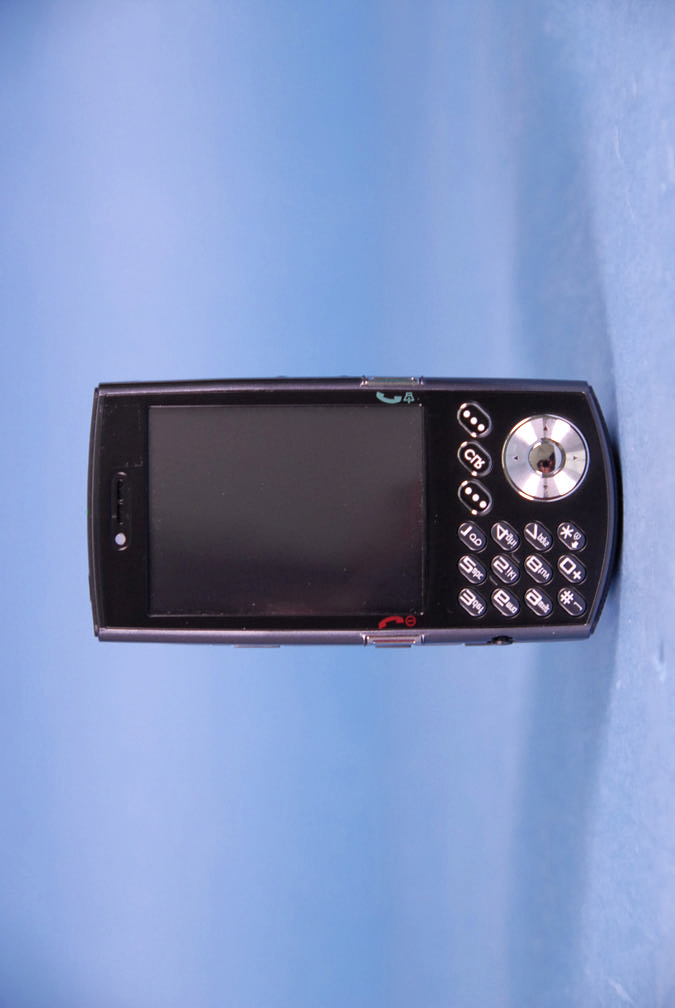

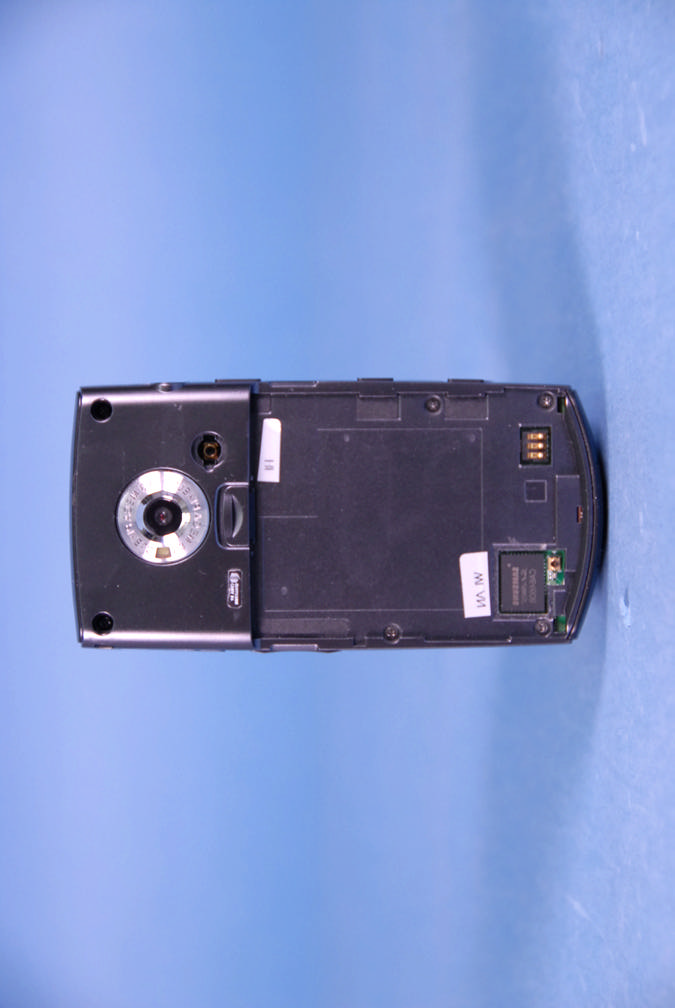

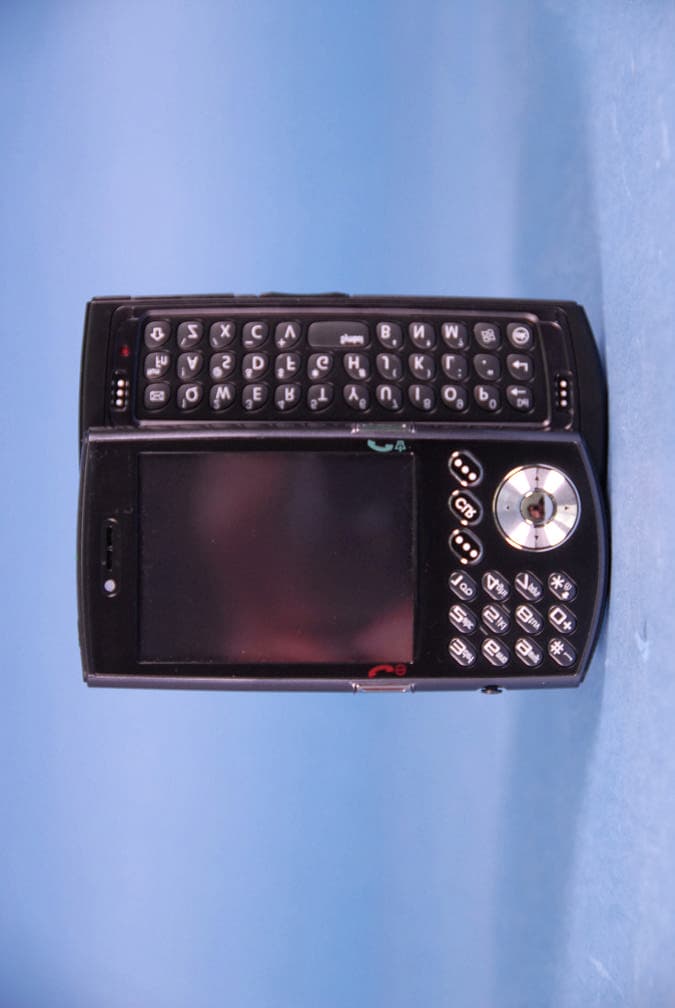

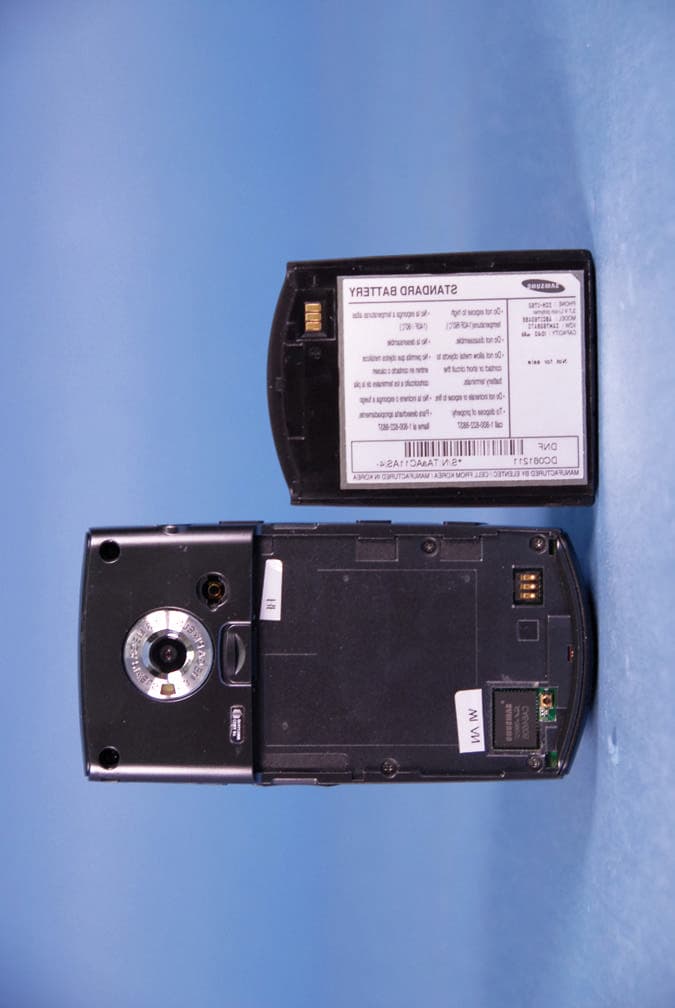

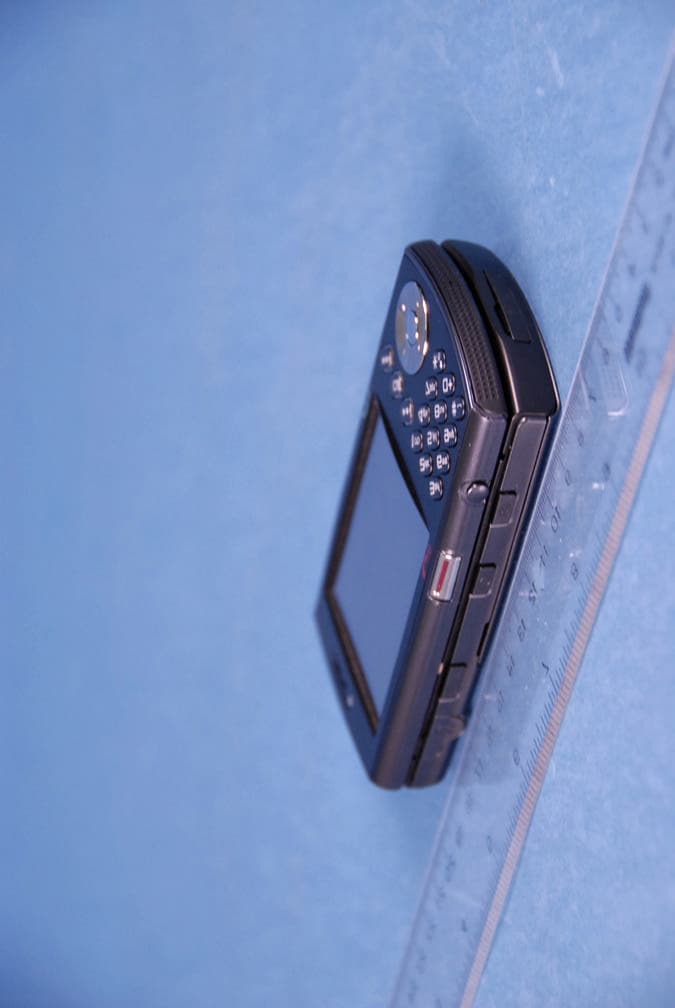

SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760

SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760

SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760 SAMSUNG FCC ID: A3LSCHI760 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA Phone with WLAN and Bluetooth Model: SCH-i760

Reviewed by: FCC ID: A3LSCHI760 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0701170028-R1 01/17/07 - 01/22/07 Dual-Band CDMA Phone with 802.11b/g WLAN, Bluetooth 2.0 and EVDO Rev.0 Page 1 of 2 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.0C 01/09/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/17/07 - 01/22/07 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0701170028-R1 FCC ID: A3LSCHI760 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Dual-Band CDMA Phone with 802.11b/g WLAN, Bluetooth 2.0 and EVDO Rev.0 Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Model(s): SCH-i760, SCH-i761, SCH-i762, SCH-i763, SCH-i764, SCH-i765, SCH-i766, SCH- i767, SCH-i768, SCH-i769, SPH-i760, SPH-i761, SPH-i762, SPH-i763, SPH-i764, SPH-i765, SPH-i766, SPH-i767, SPH-i768, SPH-i769 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) 2412 - 2462 MHz (802.11b/g WLAN) 2402 - 2480 MHz (Bluetooth) Max. RF Conducted Power: 25.5 dBm CDMA / 25.5 dBm PCS / 17.61 dBm WLAN / 0.99 dBm Bluetooth (All Tx can simultaneously transmit) Max. SAR Measurement: 0.728 W/kg CDMA850 Head SAR / 1.27 W/kg CDMA850 Body SAR 0.271 W/kg CDMA1900 Head SAR / 0.286 W/kg CDMA1900 Body SAR 0.142 W/kg 802.11b Head SAR / 0.117 W/kg 802.11b Body SAR 0.00514 W/kg Bluetooth Head SAR / 0.0076 W/kg Bluetooth Body SAR Test Device Serial No.: Pre-Production [S/N: FD-249-E] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. *This revised Test Report (S/N: 0701170028-R1) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued report (S/N: 0701170028) and dispose of it accordingly. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSCHI760 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0701170028-R1 01/17/07 - 01/22/07 Dual-Band CDMA Phone with 802.11b/g WLAN, Bluetooth 2.0 and EVDO Rev.0 Page 2 of 2 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.0C 01/09/07 14.5 Body SAR Results 1. The test data reported are the worst-case SAR value with the position set in a typical configuration. Test procedures used are according to FCC/OET Bulletin 65, Supplement C [July 2001]. 2. All modes of operation were investigated, and worst-case results are reported. 3. Batteries are fully charged for all readings. Standard and Extended batteries were investigated.. 4. Tissue parameters and temperatures are listed on the SAR plots. 5. Both sides of the phone were tested, and the worst-case is reported. 6. Liquid tissue depth is 15.1 cm. ± 0.1. 7. Device was tested using a fixed spacing. 8. Body SAR was tested under RC3/SO32. EVDO is evaluated when the conducted powers are 0.25 dB or greater than the RC3/SO32 conducted power. SAR MHzCh.StartEnd(W/kg) 824.701013CDMA-25.68 25.63 TDSO321.5 cmInternalStandardnoback1.060 836.52384CDMA-25.67 25.51 TDSO321.5 cmInternalStandardnoback1.230 848.31777CDMA-25.67 25.81 TDSO321.5 cmInternalStandardnoback1.160 836.52384CDMA-25.67 25.73 TDSO321.5 cmInternalExtendednoback1.130 836.52384CDMA-25.67 25.79 TDSO321.5 cmInternalStandardyesback1.210 836.52384CDMA-25.67 25.60 TDSO321.5 cmInternalStandardnofront0.391 836.52384CDMA-25.67 25.65 TDSO321.5 cmInternalStandardnoback 1.270 with 802.11b + BT 1880.00600PCS-25.34 25.51 TDSO321.5 cmInternalStandardnoback0.262 1880.00600PCS-25.34 25.48 TDSO321.5 cmInternalExtendednoback0.224 1880.00600PCS-25.34 25.38 TDSO321.5 cmInternalStandardyesback0.235 1880.00600PCS-25.34 25.32 TDSO321.5 cmInternalStandardnofront0.074 1880.00600PCS-25.34 25.24 TDSO321.5 cmInternalStandardnoback 0.286 with 802.11b + BT 24121802.11b1.017.61 17.58 -1.5 cmInternalStandardnoback 0.117 24376802.11b1.017.25 17.08 -1.5 cmInternalStandardnoback0.083 246211802.11b1.015.66 15.81 -1.5 cmInternalStandardnoback0.060 24121802.11b1.017.61 17.44 -1.5 cmInternalExtendednoback0.111 24121802.11b1.017.61 17.49 -1.5 cmInternalStandardyesback 0.117 24121802.11b1.017.61 17.79 -1.5 cmInternalStandardnofront0.038 244139Bluetooth-0.73 0.61 -1.5 cmInternalStandardnoback 0.008 244139Bluetooth-0.73 0.86 -1.5 cmInternalStandardnofront0.004 MEASUREMENT RESULTS Note Muscle 1.6 W/kg (mW/g) Data Rate [Mbps] Service Antenna Type MemoryBatterySide averaged over 1 gram ANSI / IEEE C95.1 2005 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population FREQUENCY Mod…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI760 FCC Pt. 15.247 WLAN 802.11b/g TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0701170030 January 19 - 22, 2007 Dual-Band CDMA Phone with WLAN and Bluetooth 2.0 w/ E.D.R. Page 1 of 38 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.10WPC 01/09/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. January 19 - 22, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0701170030 FCC ID: A3LSCHI760 APPLICANT: Samsung Electronics, Co. Ltd. Model(s): SCH-i760 EUT Type: Dual-Band CDMA Phone with WLAN and Bluetooth 2.0 w/ E.D.R. Max. RF Output Power: 17.42 dBm Conducted (b) 15.91 dBm Conducted (g) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 Certification Reviewed by: FCC ID: A3LSCHI760 FCC Pt. 15.247 WLAN 802.11b/g TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0701170030 January 19 - 22, 2007 Dual-Band CDMA Phone with WLAN and Bluetooth 2.0 w/ E.D.R. Page 2 of 38 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.10WPC 01/09/07 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................................3 1.0 INTRODUCTION ..................................................................................................................................................... 4 1.1 EVALUATION PROCEDURE ............................................................................................................................................... 4 1.2 SCOPE ................................................................................................................................................................................. 4 1.3 PCTEST TEST LOCATION .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION ..................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ............................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS............................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................................ 6 3.1 CONDUCTED EMISSIONS .................................................................................................................................................. 6 3.2 RADIATED EMISSIONS ....................................................................................................................................................... 7 4.0 ANTENNA REQUIREMENTS.................................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................................... 10 6.1 6DB BANDWIDTH MEASUREMENT – 802.11B/G ............................................................................................................ 11 6.2 OUTPUT POWER MEASUREMENT – 802.11B ................................................................................................................ 15 6.3 OUTPUT POWER MEASUREMENT – 802.11G................................................................................................................ 16 6.4 POWER SPECTRAL DENSITY (802.11B/G) ..................................................................................................................... 17 6.5 OUT OF BAND EMISSIONS (BAND EDGE)...................................................................................................................... 21 6.6 RADIATED MEASUREMENTS .......................................................................................................................................... 23 6.7 RADIATED RESTRICTED BAND MEASUREMENTS ....................................................................................................... 27 6.8 LINE-CONDUCTED TEST DATA ..............................................................................................................................…

Text truncated - open the document above for the full version.
