A3LSCHI925Portable Tablet Computer with Multi-band CDMA/WCDMA/GSM/EDGE/LTE, WLAN and Bluetooth

GH68_3XXXXA Printed in Korea i925 ANDROID TABLET User Manual Please read this manual before operating your device and keep it for future reference. DRAFT For Internal Use Only This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes, could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. VZW_i925_UM_Eng_LKA_TE_120312_D2 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Galaxy Tab, including but not limited to, accessories, parts, or software relating there to (the “Galaxy Tab System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT For Internal Use Only THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE PHONE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER-AUTHORIZED SETTINGS. SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, DRAFT For Internal Use Only INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual pr…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: November 23, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHI925 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

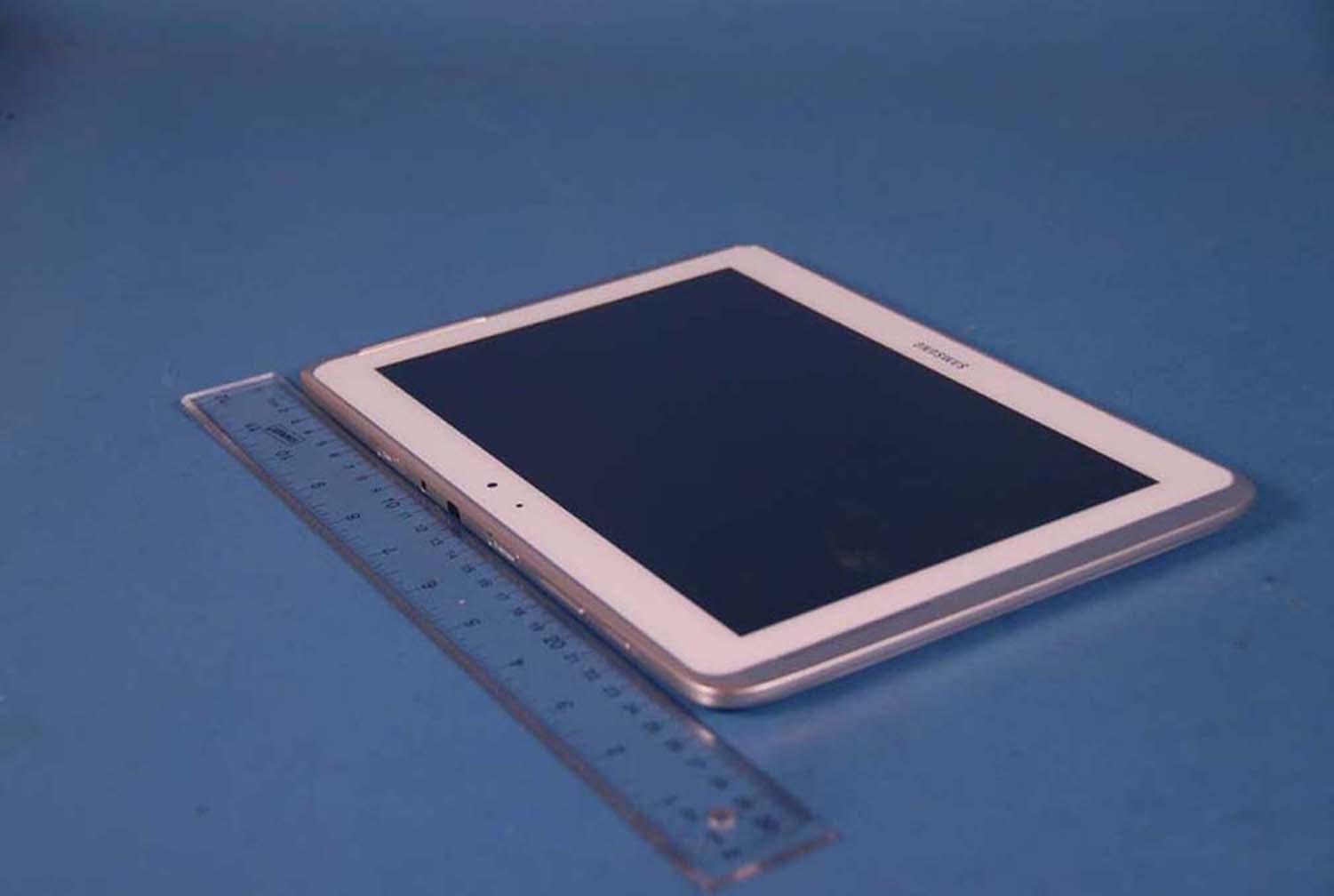

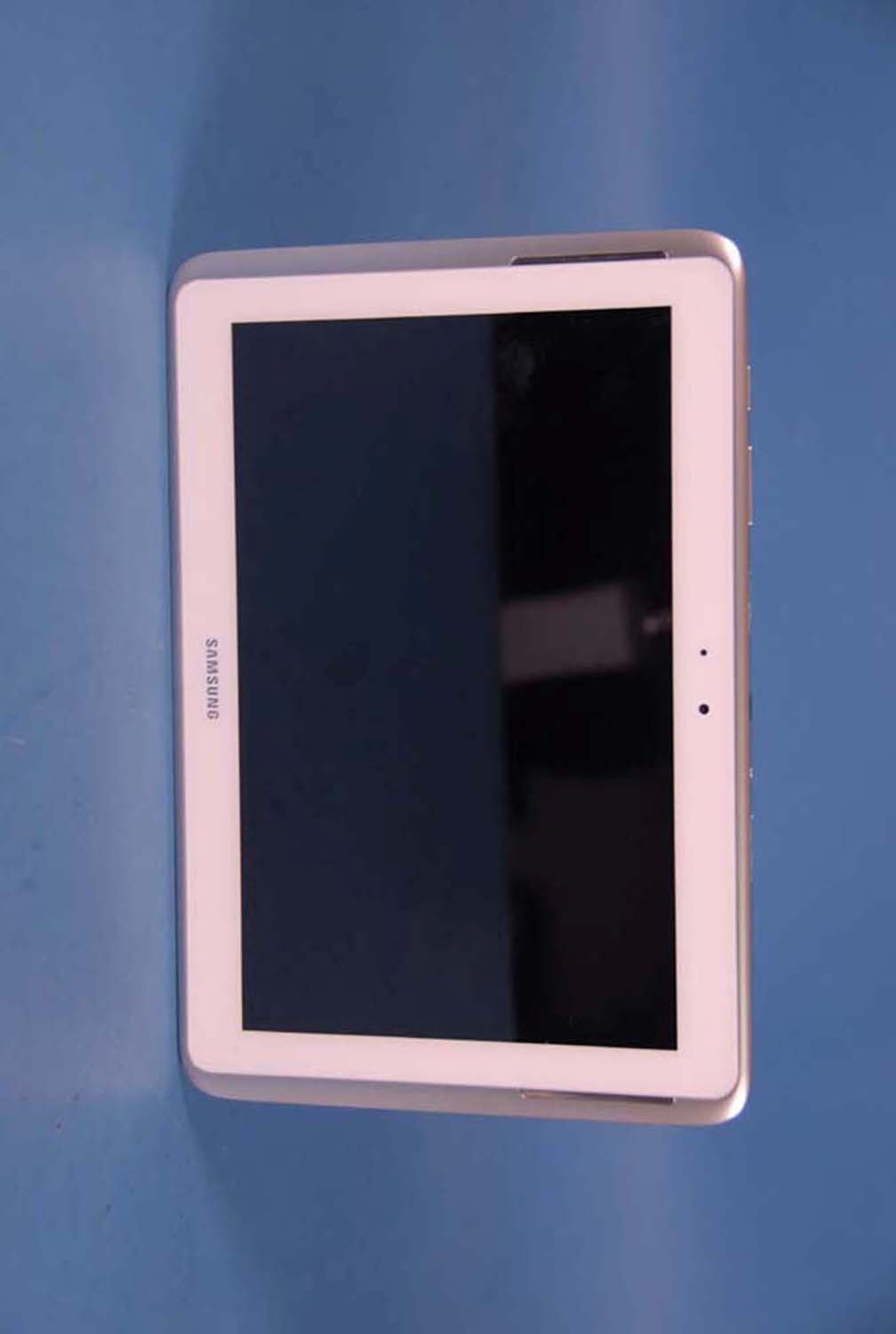

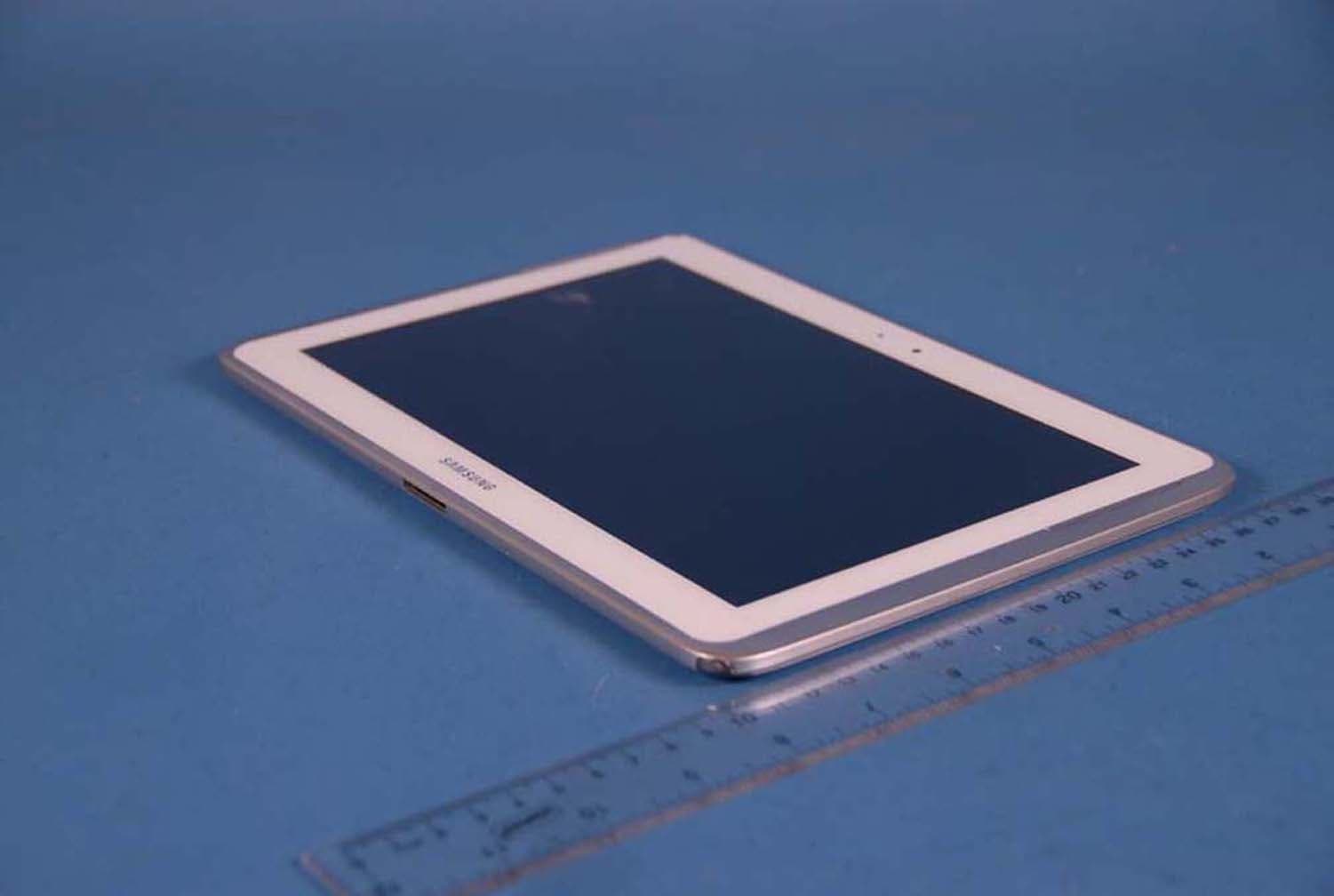

Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 External Photos EUT Type: Portable Tablet Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 External Photos EUT Type: Portable Tablet Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 External Photos EUT Type: Portable Tablet Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 External Photos EUT Type: Portable Tablet Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

2. Sample Label and Location Samsung Phone Model : SCH-I925 FCC ID : A3LSCHI925 Sample Label : Label Location Tablet : FCC ID carved seal printed on the bottom of device

Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 1 of 10 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 2 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 3 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 4 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 5 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 6 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 7 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 8 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 9 of 10 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LSCHI925 Model: SCH-I925 Internal Photos EUT Type: Portable Tablet Page 10 of 10 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID:A3LSCHI925 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1210221536-R1.A3L 10/23/12 - 11/26/12 Portable Tablet Computer Page 1 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 10/23/12 - 11/26/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Document Serial No.: 0Y1210221536-R1.A3L FCC ID: A3LSCHI925 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Tablet Computer Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SCH-I925 1 gm Body (W/kg) PCBCell. CDMA/EVDO824.70 - 848.31 MHz24.80 0.83 PCBGPRS/EDGE 850824.20 - 848.80 MHz30.91 0.63 PCBUMTS 850826.40 - 846.60 MHz22.71 0.77 PCBPCS CDMA/EVDO1851.25 - 1908.75 MHz24.90 0.80 PCBGPRS/EDGE 19001850.20 - 1909.80 MHz28.40 0.93 PCBUMTS 19001852.4 - 1907.6 MHz22.80 1.07 PCBLTE Band 13782 MHz23.08 0.90 PCBLTE Band 4 (AWS)1712.5 - 1752.5 MHz23.25 0.62 DTS2.4 GHz WLAN2412 - 2462 MHz14.11 0.83 DTS5.8 GHz WLAN5745 - 5825 MHz13.690.99 UNII5.2 GHz WLAN5180 - 5240 MHz13.840.63 UNII5.3 GHz WLAN5260 - 5320 MHz13.660.71 UNII5.5 GHz WLAN5500 - 5700 MHz13.681.04 DSSBluetooth2402 - 2480 MHz11.95 1.597 Simultaneous SAR per KDB 690783 D01: Equipment Class 0.30 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised test report (S/N: 0Y1210221536-R1.A3L) supersedes and replaces the previously issued test report on the same subject DUT for the same type of testing indicated. Please discard or destroy the previously issued tests report(s) and dispose of accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID:A3LSCHI925 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1210221536-R1.A3L 10/23/12 - 11/26/12 Portable Tablet Computer Page 2 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 RF EXPOSURE LIMITS ................................................................................................................ 12 6 FCC MEASUREMENT PROCEDURES........................................................................................ 13 7 TABLET SAR TESTING PROCEDURES ..................................................................................... 18 8 RF CONDUCTED POWERS......................................................................................................... 19 9 SYSTEM VERIFICATION.............................................................................................................. 32 10 SAR DATA SUMMARY ................................................................................................................. 34 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 39 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 56 13 EQUIPMENT LIST......................................................................................................................... 57 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 58 15 CONCLUSION............................................................................................................................... 60 16 REFERENCES .............................................................................................................................. 61 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY Reviewed by: FCC ID:A3LSCHI925 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1210221536-R1.A3L 10/23/12 - 11/26/12 Portable Tablet Computer Page 3 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDOData824.70 - 848.31 MHz GPRS/EDGE 850Data824.20 - 848.80 MHz …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 1 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 10/23/12 - 12/03/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y12102221539.A3L FCC ID: A3LSCHI925 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SCH-I925 EUT Type: Portable Tablet FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 558074 V.01 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246225.82314.1246.66616.69 802.11g 2412 - 246224.71713.93140.60521.48 802.11n 2412 - 246223.93313.79115.61120.63 802.11a 5745 - 582524.66013.9279.06818.98 802.11n (20MHz) 5745 - 582523.22713.6686.49719.37 802.11n (40MHz) 5755 - 579512.73511.0582.22419.15 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009, and KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 2 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N........................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ)............................................................... 21 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ)..................................................................... 22 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N) .................................................................................... 23 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 33 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 40 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS...................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 33 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 6.6 Conducted Emissions at the Band Edge §15.247(d); RSS-210 [A8.5] For the following out of band conducted spurious emissions plots at the band edge, the EUT was set at a data rate of 1Mbps for “b” mode, 6 Mbps for “g” mode, 6 Mbps for “a” mode, and 6.5/7.2Mbps for “n” mode. These settings produced the worst-case emissions. The limit for out of band spurious emissions at the band edge is 30dB below the fundamental emission level measured in a 100kHz bandwidth. Plot 6-35. Band Edge Plot (802.11b – Ch. 1) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 34 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Plot 6-36. Band Edge Plot (802.11b – Ch. 11) Plot 6-37. Band Edge Plot (802.11g– Ch. 1) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 35 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Plot 6-38. Band Edge Plot (802.11g – Ch. 11) Plot 6-39. Band Edge Plot (802.11n (2.4GHz) – Ch. 1) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 36 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Plot 6-40. Band Edge Plot (802.11n (2.4GHz) – Ch. 11) Plot 6-41. Band Edge Plot (802.11a – Ch. 149) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 37 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Plot 6-42. Band Edge Plot (802.11a – Ch. 165) Plot 6-43. Band Edge Plot (20MHz BW 802.11n (5.8GHz) – Ch. 149) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 38 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Plot 6-44. Band Edge Plot (20MHz BW 802.11n (5.8GHz) – Ch. 165) Plot 6-45. Band Edge Plot (40MHz BW 802.11n (5.8GHz) – Ch. 151) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 39 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Plot 6-46. Band Edge Plot (40MHz BW 802.11n (5.8GHz) – Ch. 163) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 40 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 6.7 Conducted Spurious Emissions §15.247(d); RSS-210 [A8.5] For the following out of band conducted spurious emissions plots, the EUT was investigated in all available data rates for “b”, “g”, “a”, and “n” modes. The worst case spurious emissions for the 2.4GHz band were found while transmitting in “b” mode at 1 Mbps and are shown in the plots below. The worst case spurious emissions for the 5.8GHz band were found while transmitting in “a” mode at 6 Mbps and are shown in the plots below. The display line shown in the following plots denotes the limit at 30dB below the fundamental emission level measured in a 100kHz bandwidth, as determined in Section 6.5 of this report. However, since the traces in the following plots are measured with a 1MHz RBW, the display line may not necessarily appear to be 30dB below the level of the fundamental in a 1MHz bandwidth. For plots showing conducted spurious emissions near the limit, the frequencies were investigated with a reduced RBW to ensure that no emissions were present. Plot 6-53 through Plot 6-58 were recorded using a PSA spectrum analyzer connected to a laptop PC via GPIB connection. Since the PSA is limited to a maximum of 8192 sweeping points, roughly about 4GHz of spectrum can be analyzed while ensuring that the bin-to-bin spacing is such that narrowband emissions are not lost (i.e. # points > 2 * Span/RBW). A program installed on the laptop (“PCTEST 40GHz CSE”, Version 1.0) sets the spectrum analyzer to gather the maximum number of spectral points from 30MHz to 40GHz in 4GHz increments and then places the data into an Excel spreadsheet from which the conducted plots are generated. The limit is 30dBc and is determined from the power spectral density plots which are measured with a 100kHz RBW. The spectrum analyzer is set as follows for each 4GHz portion of spectrum that is analyzed: RBW = 1MHz, VBW = 3MHz, sweep time = auto, detector = max peak, number of points = 8192. Plot 6-47. Conducted Spurious Plot (802.11b – Ch. 1) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 41 of 60 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2WN40 10/11/2012 Plot 6-48. Conducted Spurious Plot (802.11b – Ch. 1) Plot 6-49. Conducted Spurious Plot (802.11b – Ch. 6) Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y12102221539.A3L 10/23/12 - 12/03/12 Portable Tablet Page 42 of 60 © 2012 PC…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI925 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210221542.A3L 10/24/12 - 11/21/12 Portable Tablet Page 1 of 30 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2BTLE 09/21/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 10/24/12 - 11/21/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1210221542.A3L FCC ID: A3LSCHI925 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SCH-I925 EUT Type: Portable Tablet Max. RF Output Power: 8.299 mW (9.19 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASU…

Text truncated - open the document above for the full version.
