A3LSCHN213Single-Mode Cellular Phone (CDMA)

ELECTRONICS Printed in Korea Code No.: GH68-03xxxA English.06/2003.Rev.1.0 World Wide Web http://www.samsungmobile.com * Some contents in this manual may differ from your phone depending upon the software of the phone or your service provider. Please read this manual before operating your phone, and keep it for future reference. CELLULAR PHONE SCH-N213 User’s Manual 1 IMPORTANT SAFETY PRECAUTIONS............................................... 5 UNPACKING...................................................................................... 7 YOUR PHONE Phone Layout ...................................................................................... 8 Display .............................................................................................. 11 Service Light ...................................................................................... 13 GETTING STARTED Installing the Battery .......................................................................... 14 To Install the Battery ...................................................................... 14 To Remove the Battery ................................................................... 15 Charging the Battery ........................................................................... 15 Switching the Phone On/Off ................................................................ 17 Your Phone’s Modes ........................................................................... 18 CALL FUNCTIONS Making a Call ..................................................................................... 20 Adjusting the Volume .......................................................................... 26 Answering a Call ................................................................................. 27 Options During a Call .......................................................................... 28 Using Caller ID .................................................................................... 29 Viewing Missed Calls ........................................................................... 30 Quickly Switching to Vibrate Mode ....................................................... 30 Call Forwarding .................................................................................. 31 Call Waiting ........................................................................................ 31 Three-Way Calling ............................................................................... 32 SELECTING FUNCTIONS AND OPTIONS Using the Soft Keys ............................................................................. 33 Selecting Functions and Options ........................................................... 34 Example: Setting the Display Language ............................................... 35 Table of Contents FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain co mp l iance with FCC R F exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user's body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC web site at www .fcc.gov 23 ENTERING TEXT Changing the Text Input Mode ............................................................. 38 Using the T9 Mode .............................................................................. 39 Using the ABC Mode ............................................................................ 41 Using the Symbol Mode ....................................................................... 42 Using the 123 Mode ............................................................................ 43 USING THE MENUS Accessing Menu Functions by Scrolling .................................................. 44 Accessing Menu Functions by Using its Shortcut .................................... 45 List of Menu Functions ......................................................................... 46 PHONE BOOK Find(Menu 1-1)............................................................................. 53 Add Entry (Menu 1-2)..................................................................... 54 Group (Menu 1-3) .......................................................................... 57 Memory Status (Menu 1-4).............................................................. 58 MESSAGES Write (Menu 2-1)...........................................................................…

Text truncated - open the document above for the full version.

July 14, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHN213 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

January 6, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America

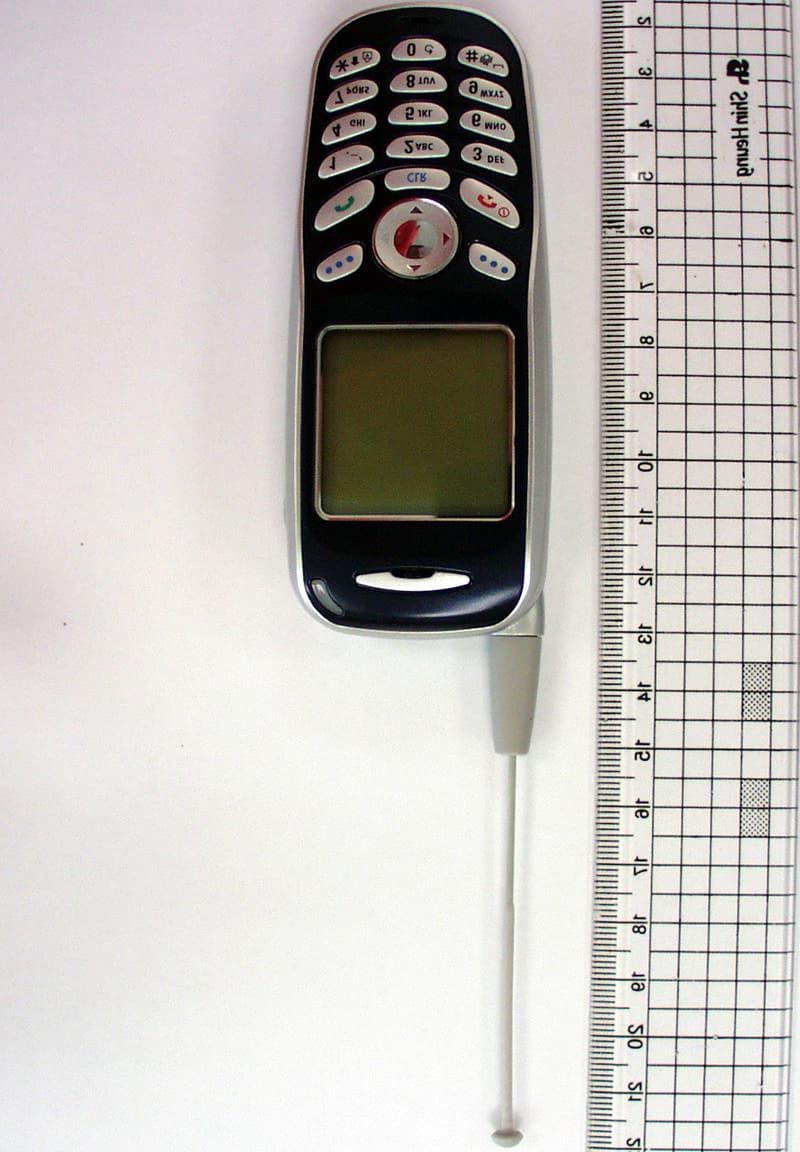

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN213 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN213 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN213 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN213 Single-Mode Cellular Phone

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN213 Single-Mode Cellular Phone Y CDMA PHONE AN363 I I MODEL N0:SCH-N213 II MAT. I WHITE POLYESTER FCC ID: A3LSCHN213 I LAMINATING(E!+WOPP) + WP =w 46 I 030605 LABEL(R)-MAIN

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN213 Single-Mode Cellular Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN213 Single-Mode Cellular Phone

2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(Cellular CDMA Right Head SAR-Touch)....................................19 8.2 Measurement Results(Cellular CDMA Right Head SAR-Tilt)........................................20 8.3 Measurement Results(Cellular CDMA Left Head SAR-Touch)......................................21 8.4 Measurement Results(Cellular CDMA Left Head SAR-Tilt)..........................................22 8.5 Measurement Results(Cellular CDMA Body SAR w/o Holster).......................................23 9. Conclusion.......................................................................................................24 10. Reference......................................................................................................25 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone (CDMA) Model Number : SCH-N213 Serial Number : Identical prototype (S/N : #FA-0 15-E) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JK Jhun, Engineer Phone : +82- 31-279-6395 Fax : +82- 31-279-6434 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Non-Braodcast Transmitter Held to Ear (TNE) Test Dates : June 19, 2003 ~ June 20, 2003 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 – 848.31 MHz (CDMA) Rx Freq. Range : 869.70 – 893.31 MHz (CDMA) Max. RF Output Power : 0.358W ERP CDMA (25.54dBm) Antenna Manufacturer : SB TELCOM Co.,LTD Model No. : NSB260-0100800-SS204 Antenna Dimensions : Length = 88.7mm 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 550MHz computer with Windows 2000 system and SAR Measurement Software DASY3, A/D interface card, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. 5 of 25 System Electronics The DAE3 consists of a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching multiplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and pro…
