A3LSCHN255Dual-Mode Cellular Phone (AMPS/CDMA)

SPH-N255 User’s Manual Printed in Korea Code No. : GH68-00000A English. 2002/04. Rev.1.0 World Wide Web http://www.samsungmobile.com Please read this manual before operating your phone, and keep it for future reference . Safety Quick Guide Read these guidelines before using your wireless phone. Failure to comply with these guidelines may be dangerous or illegal. For more detailed safety information, see “Health and Safety Information” on page xx. Road safety comes first Do not use a hand-held phone while driving; park the vehicle first. Switch off when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off on aircraft Wireless phones can cause interference. Using them on aircraft is both illegal and dangerous. Switch off in hospital Switch off your phone near medical equipment. Follow any regulations or rules in force. Interference All wireless phones may get interference which could affect performance. Respect special regulations Follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example). 1 YOUR PHONE Key Descriptions...................................................................................5 Display ................................................................................................6 Service light ..........................................................................................8 GETTING STARTED Charging a Battery .................................................................................9 Low Battery Indicator ..........................................................................10 Switching the Phone On/Off ................................................................11 CALL FUNCTIONS Making a Call ......................................................................................12 Answering a Call..................................................................................18 In-Call Options ....................................................................................19 Using Caller ID ....................................................................................20 Viewing Missed Calls ...........................................................................21 Three-Way Calling ...............................................................................22 Call Waiting ........................................................................................23 Call Forwarding ....................................................................................23 Adjusting the Volume...........................................................................24 ENTERING TEXT Changing Text Input Mode ...................................................................25 T9 Mode ..............................................................................................26 Alpha Mode ..........................................................................................27 Symbol Mode ......................................................................................29 Number Mode .....................................................................................29 Table of Contents Radio frequency exposure information In August 1996, the Federal Communications Commisision (FCC) of the U.S. adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. The design of this phone complies with the FCC guidelines and those standards. To maintain compliance with FCC RF exposur e guidelines, use only belt-clips, holsters or similar accessories that maintain a 1.0 cm. separation distance between the user's body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Use sensibly Use only in the normal position (to ear). Avoid unnessary contact with the antenna when the phone is switched on. Accessories and batteries Use only SAMSUNG-approved accessories and batteries. Use qualified service Only qualified service personnel may install or repair your phone. 23 USINGTHEMENUS Accessing a Menu Functions by Scrolling ..............................................30 Accessing a Menu Functions by Using its Shortcut.................................. 31 Your Phone’s Main Menu ....................................................................32 CALLS Outgoing(MENU 1-1) ................................................................... 34 Incoming (MENU 1-2) ................................................................... 35 Missed (MENU 1-3) ....................................................................... 36 Erase History (MENU 1-4).............................................................. 37 AirTime (MENU 1-5)....................................................................... 37 PHONE BOOK Find Name(MENU 2-1)................................................................ 38 Add New Entr y (MENU 2-2)......................................................... 39 My Phone # ( MENU2-3) ............................................................... 40 Find Entry (MENU 2-4)................................................................. 41 Services ( MENU2-5) ..................................................................... 41 CALENDAR Today (MENU 3-1) ........................................................................ 42 Month View (MENU 3-2) ............................................................... 43 Jump To Date (MENU 3-3) ............................................................ 44 To Do List (MENU 3-4) .................................................................. 45 C…

Text truncated - open the document above for the full version.

February 4, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America May 2, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHN255), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSCHN255) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. May 2, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCHN255 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

May 13, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHN255 Part 22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22 Certification of the Dual-Mode Cellular Phone (AMPS/CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

June 11, 2002 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Att: Richard Fabina Chief, Equipment Authorization Branch Re: SAR Report submitted with FCC ID: A3LSCHN255 Confidentiality Request Gentlemen: Pursuant to Sections 0.457 and 0.459 of CFR Title 47 FCC Rules and Regulations, PCTEST Lab request confidentiality for the SAR report submitted as an attachment(s) to the subject application for certification for the reference FCC ID: A3LSCHN255. The attachment(s) to the application is (are) identified as "PCTEST Operational Description SAR Report" is marked confidential. This report contains trade secrets and commercial information that are customarily guarded from competitors and are never released to the public. Section 0.457(d)(2) stipulates that such material will be withheld from routine inspection if it is shown that the material contains the type of information specified in the preceding statement. Specifically, the PCTEST Operational Description SAR Report contains processes and procedures developed by PCTEST Lab that enable RF Exposure tests performed at PCTEST Lab to meet the stringent requirements of the most recent FCC released Supplement C guidelines for performing such measurements. Disclosure of this information to competitors will result in material harm to PCTEST Lab. PCTEST Lab is currently reviewing the document for which they requested confidentiality to insure that it conforms to the requirements of the FCC rules for withholding information. Test data that is contained in the report has been left in to facilitate review of the report by the FCC. However, the test data contained in this section has been duplicated and submitted in a public file along with the SAR plots. The “PCTEST Operational Description SAR Report” contains confidential business information that PCTEST Lab does not release to the public and accordingly does not wish to have made available to the public via the FCC files. PCTEST Lab is aware that the issue of confidential treatment of this report is under review by the OET legal counsel and possibly by the Office of General Counsel of the Commission. Pending a decision by the appropriate authorities, PCTEST Lab will continue to request confidential treatment of the file identified as “PCTEST Operational Description SAR Report”. If the determining authority decides this information cannot be held confidential, PCTEST Lab will inform the Lab as to their intentions to appeal that decision or accept the decision. In the event the decision is accepted by PCTEST Lab, we will not pursue continued confidential treatment of the report and will assist the Lab in any way possible regarding correcting existing records. In compliance with the provisions of Section 0.457(d) stipulating that test measurements will be made available to the public following the effective date of the authorization, PCTEST Lab has separated the measurement data required to show compliance with the RF Exposure requirements in a separate file identified as "SAR Measurement Data" that will be available for public inspection following the effective date of the authorization. Please contact the undersigned by telephone at 410-290-6652, or by email at [email protected] or by correspondence at the above address if there are any further questions or additional information needed concerning this request for confidentiality. Regards,

June 27, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHN255 731 Confirmation No.: TC576757 Correspondence Reference No.: 4452 Request for Tech. Info.: 6/20/02 Dear Martin: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated June 20, 2002. 1. PCTEST Lab is currently reviewing the document for which they requested confidentiality to insure that it conforms to the requirements of the FCC rules for withholding information. Test data that is contained in the report has been left in the report to facilitate review of the report by the FCC. However, the test data contained in this section has been duplicated and submitted in a public file along with the SAR plots. The “PCTEST operational description SAR report” contains confidential business information that PCTEST Lab does not release to the public and accordingly does not wish to have made available to the public via the FCC files. PCTEST Lab is aware that the issue of confidential treatment of this report is under review by the OET legal counsel and possibly by the Office of General Counsel of the Commission. Pending a decision by the appropriate authorities, PCTEST Lab will continue to request confidential treatment of the file identified as “PCTEST operational description SAR Report”. If the determining authority decides this information cannot be held confidential, PCTEST Lab will inform the Lab as to their intentions to appeal that decision or accept the decision. In the event PCTEST Lab accepts the decision, we will not pursue continued confidential treatment of the report and will assist the Lab in any way possible regarding correcting existing records. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us.

July 26, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Re: Withdrawal of Confidentiality Request FCC ID: A3LSCHN255 Gentlemen: PCTEST TCB has removed or is removing the check mark from the confidentiality request box for the reference item in compliance with your request. This action insures that all requests and other issues raised by the Commission in regard to their post grant review of this application has been addressed. In regard to the original request for confidentiality of the subject business documents, it is understood that such a request should be addressed through a different venue. Accordingly, we are withdrawing the confidentiality request and the test firm, in this case PCTEST Lab, is considering addressing the confidentiality issues directly as a policy matter with the Commission. Should you have any questions or comments concerning the above, please contact the undersigned.

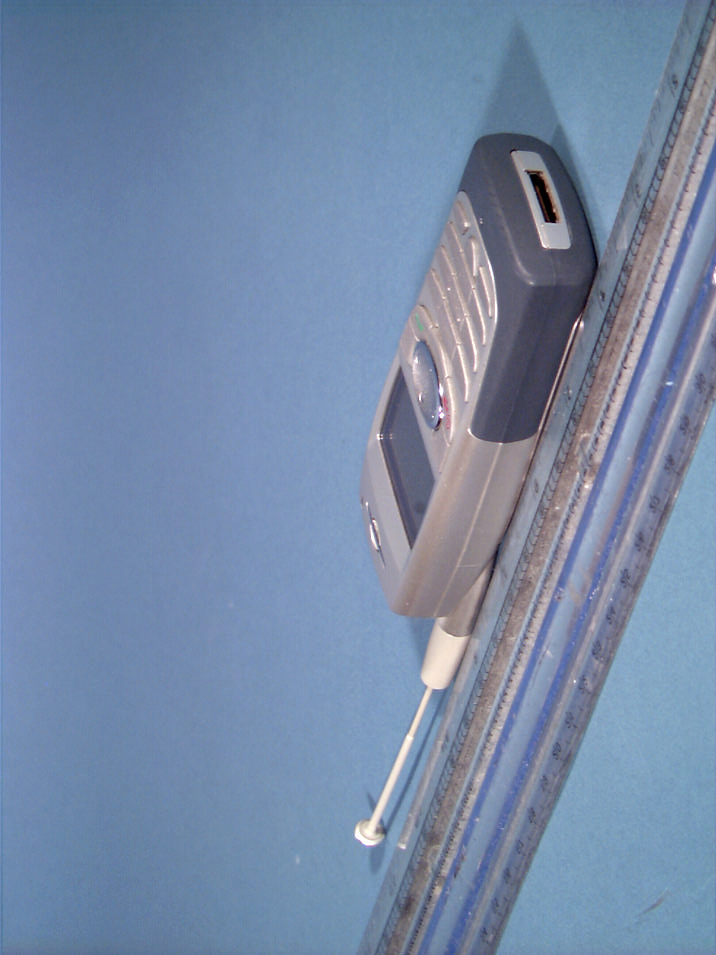

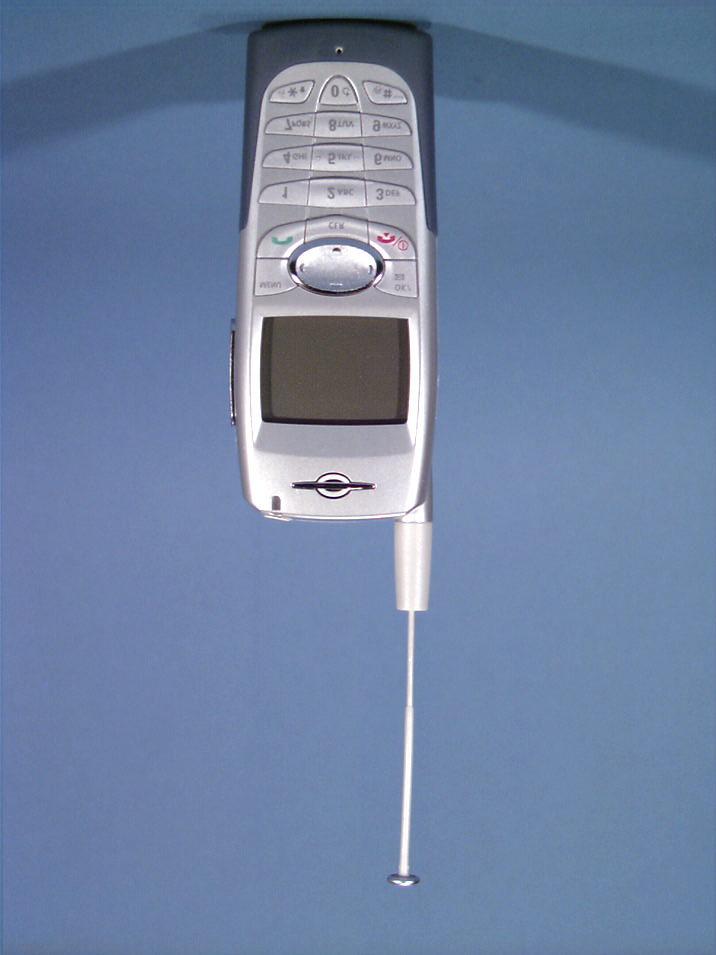

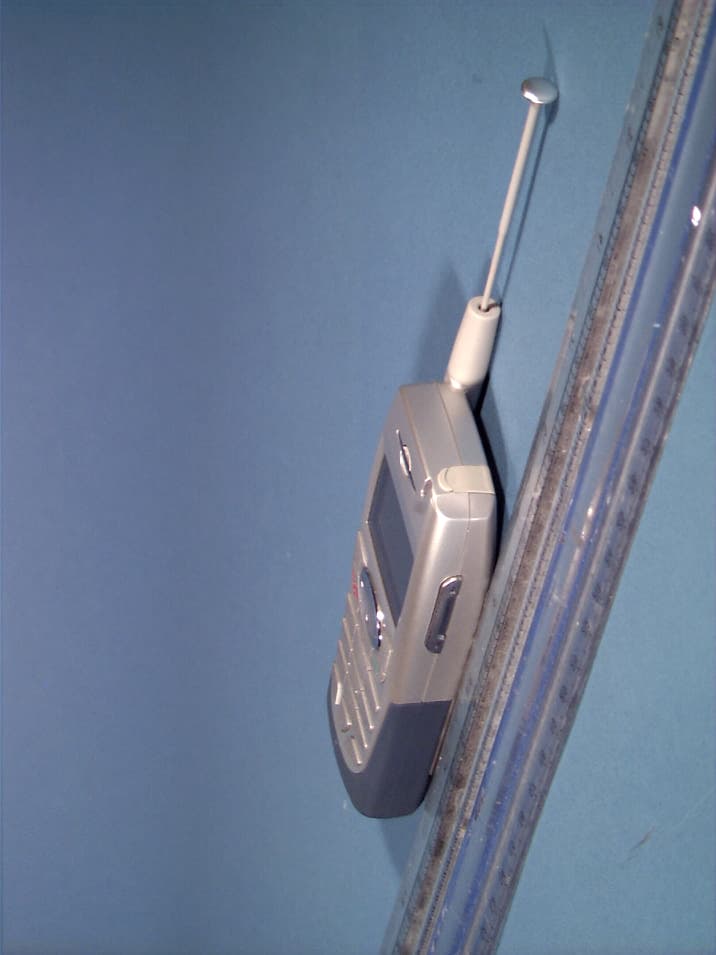

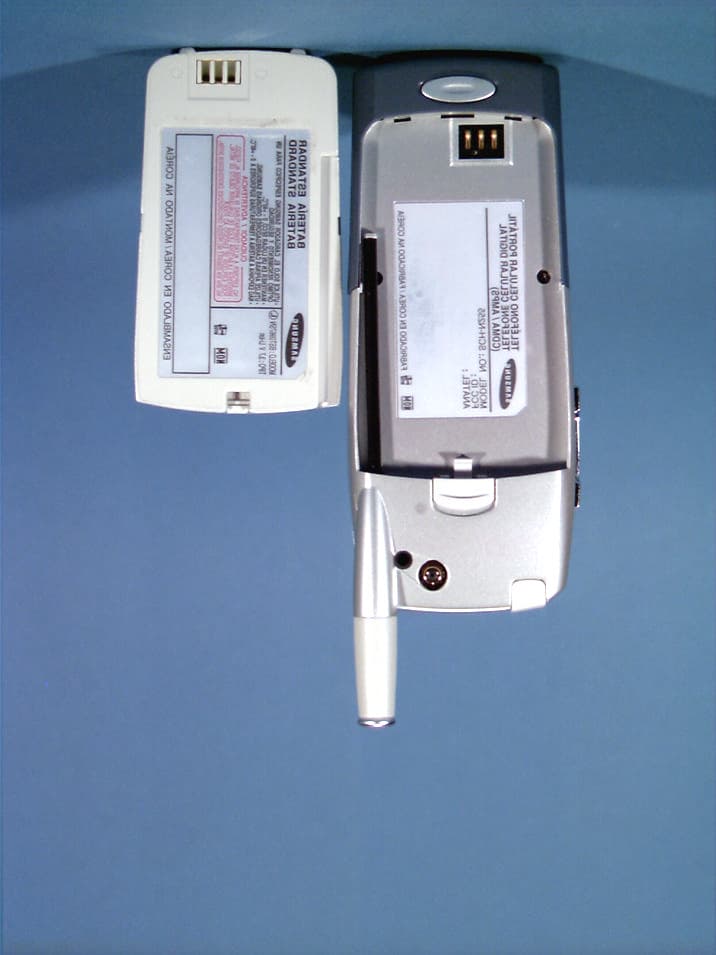

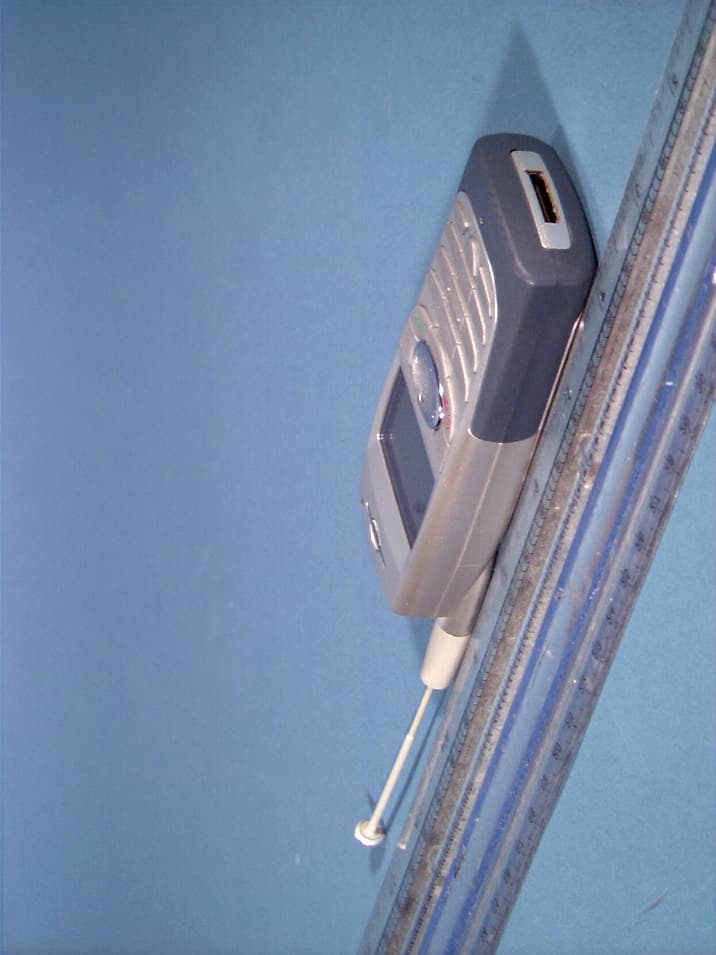

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA)

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-N255 FCC ID: A3LSCHN255 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHN255 (Model: SCH-N255) Dual-Mode Cellular Phone (AMPS/CDMA)

Mobile Antenna Performance Test -180-90090180 5 0 -5 -10 -15 -20 -25 -30 Unit : dBi Model : SCH-N255 Serial : Azimuth_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 824 Date : 2002.03.12 Max(X/Y) : -56/-6.13 Min(X/Y) : 94/-7.82 Average : -6.76 Deviation : 1.69 Model : SCH-N255 Serial : Azimuth_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 837 Date : 2002.03.12 Max(X/Y) : -105/-4.6 Min(X/Y) : 87/-6.34 Average : -5.25 Deviation : 1.74 Model : SCH-N255 Serial : Azimuth_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 849 Date : 2002.03.12 Max(X/Y) : -132/-3.43 Min(X/Y) : 87/-5.13 Average : -4.03 Deviation : 1.7 Model : SCH-N255 Serial : Azimuth_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 869 Date : 2002.03.12 Max(X/Y) : -51/-2.37 Min(X/Y) : 77/-4.24 Average : -3.05 Deviation : 1.87 Model : SCH-N255 Serial : Azimuth_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 881 Date : 2002.03.12 Max(X/Y) : -39/-2.76 Min(X/Y) : 87/-4.88 Average : -3.54 Deviation : 2.12 Model : SCH-N255 Serial : Azimuth_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 894 Date : 2002.03.12 Max(X/Y) : -45/-2.18 Min(X/Y) : 94/-4.62 Average : -3.12 Deviation : 2.44 Mark 1 Mark 2 Degree 90.00 -90.00 Value(dB) -7.78 -6.18 Value(dB) -6.29 -4.69 Value(dB) -5.07 -3.53 Value(dB) -4.20 -2.47 Value(dB) -4.85 -2.89 Value(dB) -4.57 -2.40 Mobile Antenna Performance Test -180-90090180 5 0 -5 -10 -15 -20 -25 -30 Unit : dBi Model : SCH-N255 Serial : Azimuth_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 824 Date : 2002.03.12 Max(X/Y) : -152/-4.53 Min(X/Y) : 87/-6.13 Average : -5.12 Deviation : 1.6 Model : SCH-N255 Serial : Azimuth_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 837 Date : 2002.03.12 Max(X/Y) : -144/-3.35 Min(X/Y) : 80/-5 Average : -3.98 Deviation : 1.65 Model : SCH-N255 Serial : Azimuth_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 849 Date : 2002.03.12 Max(X/Y) : -144/-2.66 Min(X/Y) : 82/-4.38 Average : -3.34 Deviation : 1.72 Model : SCH-N255 Serial : Azimuth_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 869 Date : 2002.03.12 Max(X/Y) : -149/-1.82 Min(X/Y) : 79/-3.7 Average : -2.5 Deviation : 1.88 Model : SCH-N255 Serial : Azimuth_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 881 Date : 2002.03.12 Max(X/Y) : -46/-2.2 Min(X/Y) : 81/-4.17 Average : -2.86 Deviation : 1.97 Model : SCH-N255 Serial : Azimuth_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 894 Date : 2002.03.12 Max(X/Y) : -46/-1.68 Min(X/Y) : 94/-3.87 Average : -2.47 Deviation : 2.19 Mark 1 Mark 2 Degree 90.00 -90.00 Value(dB) -6.11 -4.60 Value(dB) -4.97 -3.44 Value(dB) -4.33 -2.84 Value(dB) -3.60 -2.02 Value(dB) -4.14 -2.28 Value(dB) -3.83 -1.87 Mobile Antenna Performance Test -180-90090180 5 0 -5 -10 -15 -20 -25 -30 Unit : dBi Model : SCH-N255 Serial : E1_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 824 Date : 2002.03.12 Max(X/Y) : 86/-6.8 Min(X/Y) : 167/-33.76 Average : -12.87 Deviation : 26.96 Model : SCH-N255 Serial : E1_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 837 Date : 2002.03.12 Max(X/Y) : 86/-4.65 Min(X/Y) : 169/-29.28 Average : -10.65 Deviation : 24.63 Model : SCH-N255 Serial : E1_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 849 Date : 2002.03.12 Max(X/Y) : 84/-2.82 Min(X/Y) : 168/-26.15 Average : -8.86 Deviation : 23.33 Model : SCH-N255 Serial : E1_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 869 Date : 2002.03.12 Max(X/Y) : 85/-1.14 Min(X/Y) : 167/-23.85 Average : -7.24 Deviation : 22.71 Model : SCH-N255 Serial : E1_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 881 Date : 2002.03.12 Max(X/Y) : 88/-1.55 Min(X/Y) : 166/-24.44 Average : -7.55 Deviation : 22.89 Model : SCH-N255 Serial : E1_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 894 Date : 2002.03.12 Max(X/Y) : 81/-1.19 Min(X/Y) : 165/-24.64 Average : -7.06 Deviation : 23.45 Mark 1 Mark 2 Degree 90.00 -90.00 Value(dB) -6.81 -7.60 Value(dB) -4.71 -5.37 Value(dB) -2.88 -3.62 Value(dB) -1.19 -2.20 Value(dB) -1.56 -2.63 Value(dB) -1.22 -2.06 Mobile Antenna Performance Test -180-90090180 5 0 -5 -10 -15 -20 -25 -30 Unit : dBi Model : SCH-N255 Serial : E1_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 824 Date : 2002.03.12 Max(X/Y) : 82/-4.77 Min(X/Y) : 166/-33.31 Average : -10.44 Deviation : 28.54 Model : SCH-N255 Serial : E1_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 837 Date : 2002.03.12 Max(X/Y) : 81/-3.23 Min(X/Y) : 166/-29.82 Average : -8.85 Deviation : 26.59 Model : SCH-N255 Serial : E1_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 849 Date : 2002.03.12 Max(X/Y) : 82/-2.16 Min(X/Y) : 166/-26.94 Average : -7.77 Deviation : 24.78 Model : SCH-N255 Serial : E1_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 869 Date : 2002.03.12 Max(X/Y) : 84/-0.78 Min(X/Y) : 165/-24.39 Average : -6.44 Deviation : 23.61 Model : SCH-N255 Serial : E1_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 881 Date : 2002.03.12 Max(X/Y) : 84/-1.1 Min(X/Y) : 165/-25.3 Average : -6.67 Deviation : 24.2 Model : SCH-N255 Serial : E1_ret Opt. : PATTERN Protocol : CDMA_V Freq. : 894 Date : 2002.03.12 Max(X/Y) : 84/-0.82 Min(X/Y) : 165/-24.99 Average : -6.27 Deviation : 24.17 Mark 1 Mark 2 Degree 90.00 -90.00 Value(dB) -4.87 -5.51 Value(dB) -3.34 -3.88 Value(dB) -2.23 -2.87 Value(dB) -0.85 -1.71 Value(dB) -1.14 -2.02 Value(dB) -0.87 -1.54 Mobile Antenna Performance Test -180-90090180 5 0 -5 -10 -15 -20 -25 -30 Unit : dBi Model : SCH-N255 Serial : E2_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 824 Date : 2002.03.12 Max(X/Y) : 95/-6.13 Min(X/Y) : 176/-29.82 Average : -12.76 Deviation : 23.69 Model : SCH-N255 Serial : E2_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 837 Date : 2002.03.12 Max(X/Y) : 92/-4.19 Min(X/Y) : 177/-26.42 Average : -10.74 Deviation : 22.23 Model : SCH-N255 Serial : E2_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 849 Date : 2002.03.12 Max(X/Y) : 92/-2.53 Min(X/Y) : -7/-23.93 Average : -9.07 Deviation : 21.4 Model : SCH-N255 Serial : E2_ext Opt. : PATTERN Protocol : CDMA_V Freq. : 869 Date : 2002.03.12 Max(X/Y) : 92/-0.97 Min(X/Y) : 174/-22.34 Average : -7.6 Deviation : 21.37 Model : SCH-N255 Serial : E2_ext Opt. : PATTERN Protocol : CDMA_V Fre…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220401146.A3L Test Dates: April 4-5, 2002 Phone Type: Dual-Mode FCC ID: A3LSCHN255 Page 1 of 30 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: April 4-5, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.220401146.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSCHN255 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.401 W ERP AMPS (26.033 dBm) / 26.0 dBm Conducted 0.314 W ERP CDMA (24.973 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.130W/kg AMPS Head SAR; 1.240W/kg AMPS Body SAR; 0.825W/kg CDMA Head SAR; 0.613W/kg CDMA Body SAR; Trade Name/Model(s): SCH-N255 FCC Classification: Non-Broadcast Transmitter held to ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220401146.A3L PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220401146.A3L Test Dates: April 4-5, 2002 Phone Type: Dual-Mode FCC ID: A3LSCHN255 Page 2 of 30 © 2002 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Unc…

Text truncated - open the document above for the full version.
