A3LSCHN315Dual-Mode Cellular Phone (AMPS/CDMA)

CONFIDENTIAL 57 페이지 2001-09-05 CONFIDENTIAL 8. USERS MANUAL SCH-N315(Single-Band Dual-Mode) CONFIDENTIAL 58 페이지 2001-09-05 CONFIDENTIAL FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96- 326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the optional belt-clip/holster placed 0.6 inches (1.5cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.6 inches (1.5cm) must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 0.6 inches (1.5cm) can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained Between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov. SCH-N315(Single-Band Dual-Mode) CONFIDENTIAL 59 페이지 2001-09-05 CONFIDENTIAL Table of Contents Getting to know your phone. Display icons: What they tell you. Battery: Putting in the power. Installing your battery. Turning your phone on and off. Removing your battery. Charging your battery. Using the Rapid Desktop Charger. Function keys: What they make happen. Phone calls: How to make and receive them. Correction a misdial. Remembering your phone number. Answering calls. Using Caller ID. Responding to Call Waiting. Redialing calls. Setting up Three-Way Calling. Saving or editing your own emergency numbers. Dialing when your phone is locked. voice-mail: The ins and outs. Setting up your voice-mail. Finding out you have a message. Retrieving messages. Using special Samsung Phone Features. Internal phone book. Understanding your phone's memory. Saving and storing a phone number. SCH-N315(Single-Band Dual-Mode) CONFIDENTIAL 60 페이지 2001-09-05 CONFIDENTIAL Entering a hard pause. Dialing from your phone book to a different area code. Checking all your stored numbers. Finding a number using a person's name. Erasing a phone number. Keeping track of your calls. Main menu: Tailoring your phone's features to your needs. Navigating your the menu. Taking a menu shortcut. Understanding menu items: Managing your phone's settings. Keeping track of calls. Maintaining your internal phone book. Selecting language Adjusting your phone's volume. Determining what is displayed. Maintaining phone security. Choosing the right alerts. Customizing the way your phone works. Selecting the service mode. Preventing accidental key press. Understanding message menu items: Listening to the voice-mail or reading the messages you've received. Reviewing Voice Mail Messages. Reviewing Page and Text Messages. Erasing Messages. Displaying the time stamp. Using guidelines: All about performance and safety. Keeping tabs on signal strength. SCH-N315(Single-Band Dual-Mode) CONFIDENTIAL 61 페이지 2001-09-05 CONFIDENTIAL Understanding Power Save mode. Understanding how your phone operates. Radio frequency safety. Maintaining your phone's peak performance. Protecting your battery. Using your phone while driving. Disposal of batteries. Following Safety Guidelines. Using your phone near other electronic devices. Turn off your phone before flying. Restricting children's access to your phone. Turn off your phone in dangerous areas. Cautions. FCC notice. To start connecting just press and hold <END> Thanks for choosing Samsung. SCH-N315(Single-Band Dual-Mode) CONFIDENTIAL 62 페이지 2001-09-05 CONFIDENTIAL As we said-to start connecting, just press and hold <END>. Getting to know your phone. 1.Red Light: Illuminates when <END> is pressed and held and when you have incoming calls and messages. 2. Volume: Lets you adjust the sound level. 3. SEND: Lets you place a call, answer Call Waiting and place a three way call. 4. Navigation Keys: Allow you to scroll through the menu options and displays and save phone numbers, as well as any settings you select in the menu 5. CLR: Allows you to clear your last entry. 6. Web Key : Allows you to access Internet. 7. END: Lets you disconnect a call and return to standby mode. Press and hold the key to turn the phone on and off. 8. MENU: Lets you access the phone's menus. 9. Antenna: Makes the voice on the other end sound clearest. 10. Flip: Lets you answer call by opening and lets you disconnect a call and guard keys by closing. Display icons: What they tell you. Display icons are all the symbols or text that show up on your display screen. In short, tell you what's going on. They're shown below. SCH-N315(Single-Band Dual-Mode) CONFIDENTIAL 63 페이지 2001-09-05 CONFIDENTIAL Signal icon measures your current signal strength. The more bars there are, the stronger the signal. In Use icon tells you a call is in progress. No Svc icon shows that you are outside of service area and cannot use y…

Text truncated - open the document above for the full version.

March 9, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America September 6, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSCHN315 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Parts List, Tune Up Procedure, Antenna Specs, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. September 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHN315), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHN315) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. September 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHN315 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

September 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHN315 Part 22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., is an application for Part 22 Certification of the following Dual-Mode Cellular Phone: FCC ID: A3LSCHN315 TRADE/MODEL(s): SAMSUNG SCH-N315 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) Max. RF Output Power: 0.420 W ERP AMPS (26.233 dBm) / 0.358 W ERP CDMA (25.533 dBm) Max. SAR Measurement: 1.1281 mW/g (1g) AMPS Brain SAR; 0.7945 mW/g (1g) AMPS Body SAR 1.0240 mW/g (1g) CDMA Brain SAR; 0.7383 mW/g (1g) CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager Samsung Electronics America (QA lab)

November 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHN315 731 Confirmation No.: EA102386 Correspondence Reference No.: 20874 Request for Tech. Info.: 10/10/01 Dear Martin: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated October 10, 2001. 1. We would like to inform you that the EUT was controlled by software internal to the phone and commands were entered via the keypad. Power levels before and after each SAR Test was recorded in the test engineer’s notebook. Please find attached the test data. 2. Please find attached the right ear hotspot. 3. We would like to confirm the tissues dielectric parameters were measured values. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

December 3, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHN315 731 Confirmation No.: EA102386 Correspondence Reference No.: 20874 Request for Tech. Info.: 10/10/01 Dear Martin: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated October 10, 2001. 1. We would like to inform you that the tested sample was a pre-production prototype. The shield shown in the internal photos will be constructed in the same fashion for the mass production units. Since the shield made for mass production units will be produced with the same dimensions as the tested unit, very small variances will be expected. 2. PCTEST requires that all phones for test be tuned up by the applicant before testing and no retuning is allowed during the testing, therefore no use of cables shown is required. The only cable used is the RF cable that is needed to take conducted measurements for EMC and SAR Tests. During these test the cable loss for 800MHz and PCS band is taken into consideration. 3. EXAMPLE: Channel 0383 AMPS Mode 2 nd harmonic (1672.98 MHz). The receive analyzer reading at 3 meters with the EUT on the turn-table was — 89.0dBm. The gain of the substituted antenna is 6.1dBd. The signal generator connected to the substituted antenna is 1.0dB at 1672.98 MHz. So 5.1 dB is added to the signal generator reading of —49.27 dBm yielding —44.17 dBm. The fundamental ERP was 26.23 dBm so this harmonic was 26.23 dBm (-44.17 dBm) = 70.4 dBc. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

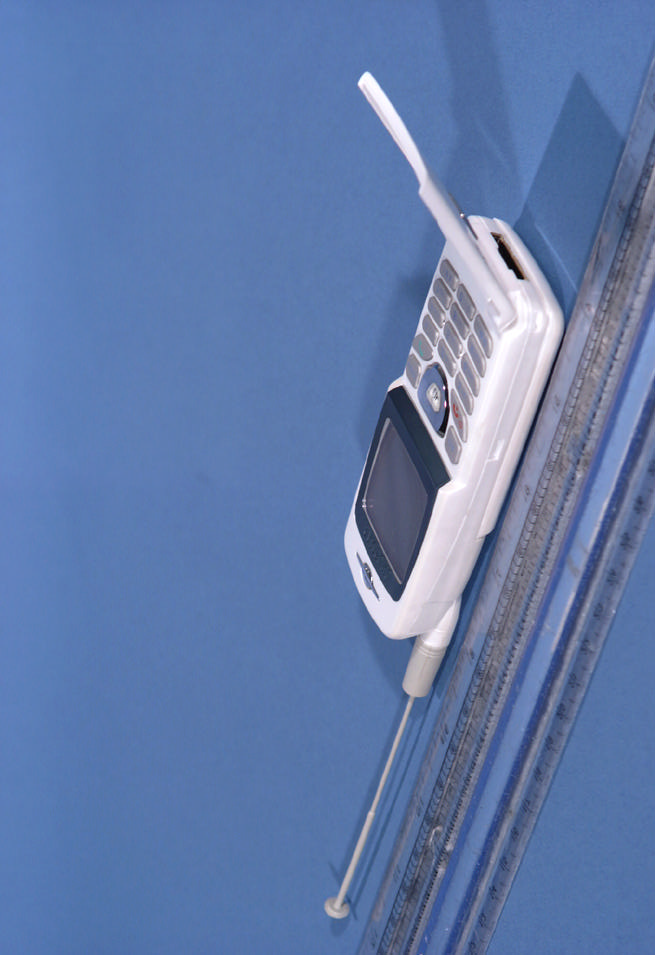

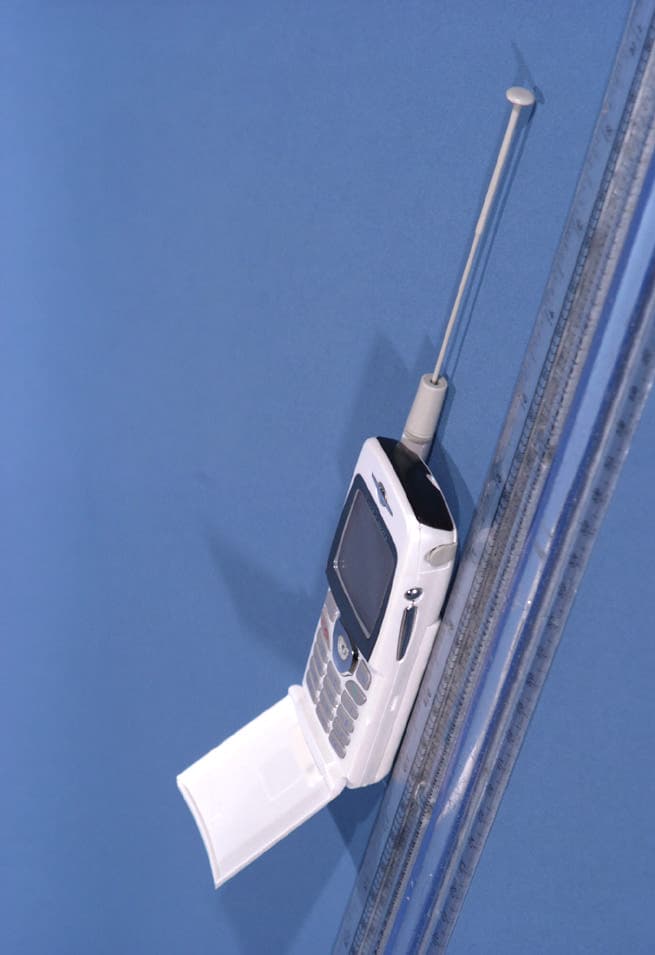

© 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER § § 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-N315 FCC ID: A3LSCHN315 MADE IN KOREA

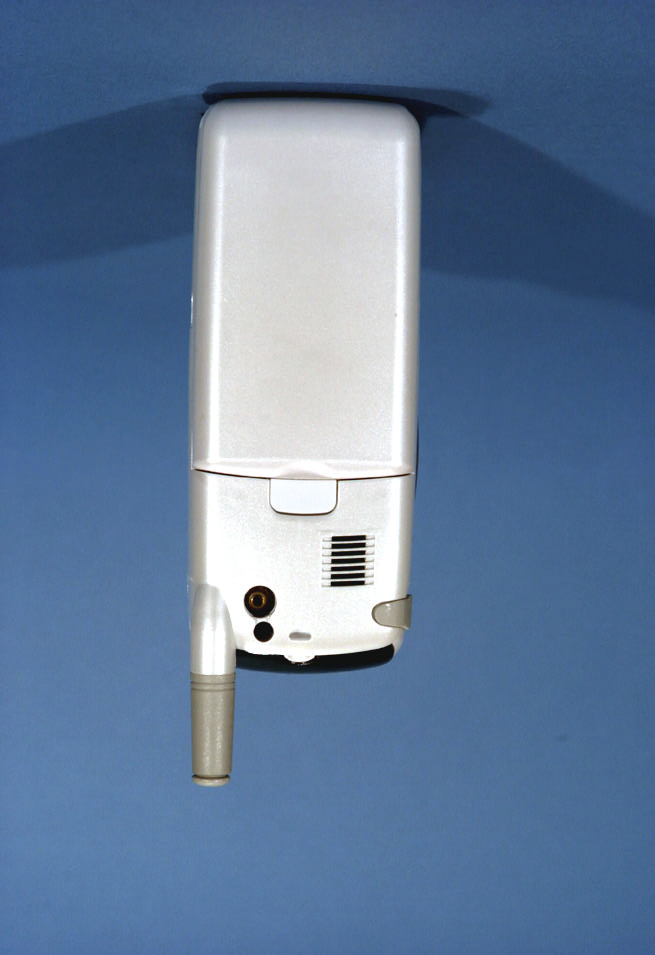

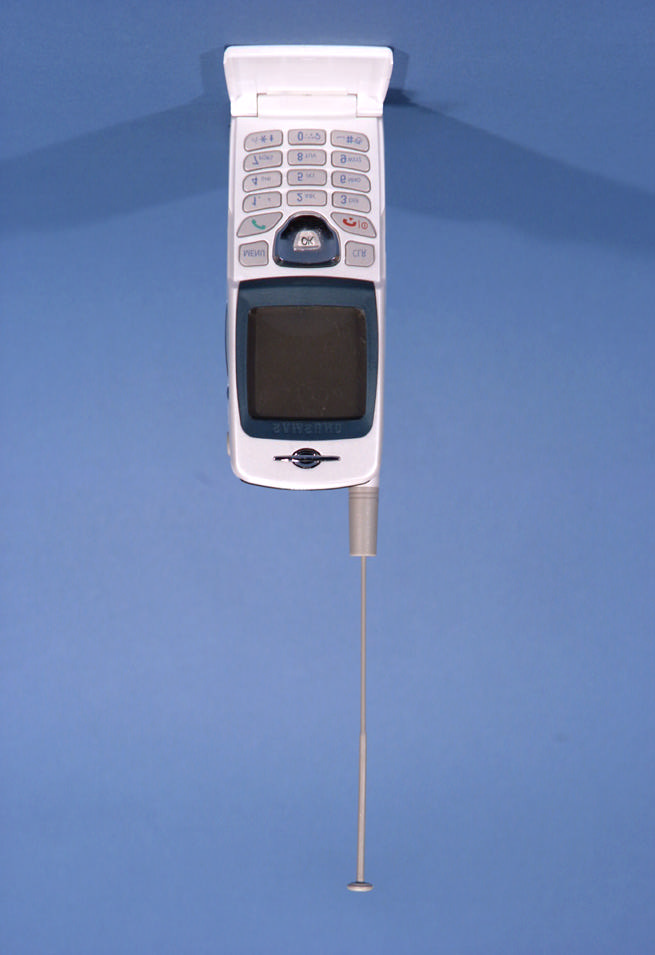

© 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG Electronics Co., Ltd. Dates of Tests: Sept. 4-6, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210904531.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHN315 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.420W ERP AMPS (26.233 dBm) / 0.358W ERP CDMA (25.533 dBm) Trade Name/Model(s): SAMSUNG SCH-N315 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.1281 W/kg AMPS Brain SAR; 0.7945 W/kg AMPS Body SAR 1.0240 W/kg CDMA Brain SAR; 0.7383 W/kg CDMA Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210904531.A3L Test Report S/N: SAR.210904531.A3L SAR Measurement Report Test Dates: SEPT. 4-6, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................23 15.1 CONCLUSION......................................................................................24 Test Report S/N: SAR.210904531.A3L SAR Measurement Report Test Dates: Sept. 4-6, 2001 FCC Part 22 Certification FCC ID: A3LSCHN315 (Model: SCH-N315) © 2001 PCTEST Lab SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name: SAMSUNG • Model(s): SCH-N315 • FCC IDENTIFIER: A3LSCHN315 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.420W ERP AMPS (26.233 dBm) 0.358W ERP CDMA (25.533 dBm) • Date(s) of Tests: Sept. 4-6, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210904531.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210904531.A3L SAR Measurement Report Test Dates: Sept. 4-6, 2001 FCC Part 22 Certification FCC ID: A3LSCHN315 (Model: SCH-N315) © 2001 PCTEST Lab SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human…

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01090405_ZOOM.VLT Start : 4-Sep-101 11:31:16 am End : 4-Sep-101 11:40:46 am Radio Type : SAMSUNG Model Number : SCH-N315 Serial Number : 2 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG DUAL-MODE PHONE - AMPS MODE CH 0991 Conducted 26.0 dBm SAMSUNG DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -3.500, Z = 0.000 (cm) Value = 9.089 Measured Values (volts) = 9.086E-003 6.913E-003 5.618E-003 4.547E-003 3.755E-003 3.102E-003 2.613E-003 2.284E-003 2.077E-003 1.899E-003 1.728E-003 1.510E-003 1.228E-003 9.428E-004 6.083E-004 3.029E-004 1.963E-004 1.173E-004 7.601E-005 1.476E-004 2.477E-004 Calc. Voltage @ Surface (Vs) = 0.0116 Voltage @ 1.00 cm (Vt) = 0.0045 Ave. Voltage (Vs+Vt)/2 = 0.0081 Ave. SAR over 1 g (mW/g) = 0.5877 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01090404_ZOOM.VLT Start : 4-Sep-101 11:20:40 am End : 4-Sep-101 11:30:10 am Radio Type : SAMSUNG Model Number : SCH-N315 Serial Number : 2 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG DUAL-MODE PHONE - AMPS MODE CH 0991 Conducted 26.0 dBm SAMSUNG DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -3.500, Z = 0.000 (cm) Value = 9.139 Measured Values (volts) = 9.086E-003 6.993E-003 5.787E-003 4.674E-003 3.868E-003 3.175E-003 2.708E-003 2.347E-003 2.113E-003 1.912E-003 1.769E-003 1.553E-003 1.272E-003 1.003E-003 6.678E-004 3.874E-004 2.157E-004 1.399E-004 1.279E-004 2.232E-004 3.183E-004 Calc. Voltage @ Surface (Vs) = 0.0114 Voltage @ 1.00 cm (Vt) = 0.0047 Ave. Voltage (Vs+Vt)/2 = 0.0080 Ave. SAR over 1 g (mW/g) = 0.5861 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01090401_ZOOM.VLT Start : 4-Sep-101 10:32:36 am End : 4-Sep-101 10:43:58 am Radio Type : SAMSUNG Model Number : SCH-N315 Serial Number : 2 Frequency : 835.89 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG DUAL-MODE PHONE - AMPS MODE CH 0363 Conducted 26.0 dBm SAMSUNG DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -3.500, Z = 0.000 (cm) Value = 13.495 Measured Values (volts) = 1.346E-002 1.110E-002 9.385E-003 7.714E-003 6.473E-003 5.489E-003 4.766E-003 4.196E-003 3.810E-003 3.473E-003 3.224E-003 2.908E-003 2.502E-003 2.088E-003 1.551E-003 1.087E-003 7.491E-004 5.541E-004 5.594E-004 6.716E-004 9.023E-004 Calc. Voltage @ Surface (Vs) = 0.0161 Voltage @ 1.00 cm (Vt) = 0.0077 Ave. Voltage (Vs+Vt)/2 = 0.0119 Ave. SAR over 1 g (mW/g) = 0.8693 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01090403_ZOOM.VLT Start : 4-Sep-101 11:09:11 am End : 4-Sep-101 11:18:42 am Radio Type : SAMSUNG Model Number : SCH-N315 Serial Number : 2 Frequency : 835.89 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG DUAL-MODE PHONE - AMPS MODE CH 0363 Conducted 26.0 dBm SAMSUNG DUAL-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -3.500, Z = 0.000 (cm) Value = 16.969 Measured Values (volts) = 1.681E-002 1.358E-002 1.142E-002 9.248E-003 7.657E-003 6.397E-003 5.453E-003 4.740E-003 4.298E-003 3.948E-003 3.611E-003 3.286E-003 2.838E-003 2.323E-003 1.779E-003 1.205E-003 8.069E-004 5.837E-004 5.762E-004 7.170E-004 9.218E-004 Calc. Voltage @ Surface (Vs) = 0.0204 Voltage @ 1.00 cm (Vt) = 0.0092 Ave. Voltage (Vs+Vt)/2 = 0.0148 Ave. SAR over 1 g (mW/g) = 1.0818 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01090403_ZOOM Start : 4-Sep-101 11:09:11 am End : 4-Sep-101 11:18:42 am SAMSUNG/SCH-N315/2;835.89MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01090403_ZOOM Start : 4-Sep-101 11:09:11 am End : 4-Sep-101 11:18:42 am SAMSUNG/SCH-N315/2;835.89MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.238 1.164 1.090 1.016 0.942 0.868 0.794 0.721 0.647 0.573 File : 01090403_ZOOM Start : 4-Sep-101 11:09:11 am End : 4-Sep-101 11:18:42 am SAMSUNG/SCH-N315/2;835.89MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.238 1.164 1.090 1.016 0.942 0.868 0.794 0.721 0.647 0.573 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01090406_ZOOM.VLT Start : 4-Sep-101 11:43:47 am End : 4-Sep-101 11:53:17 am Radio Type : SAMSUNG Model Number : SCH-N315 Serial Number : 2 Frequency : 848.97 MHz Peak Trans. Pwr : 0.…

Text truncated - open the document above for the full version.

SAR Location (Right Ear) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHN315 (Model: SCH-N315) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) Head SAR

SAMSUNG FCC ID: A3LSCH-N315 (Model: SCH-N315) Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST SAR TEST DATA SUMMARY Ambient TEMPERATURE (°C) 21.1 Relative HUMIDITY (%) 50.2 Atmospheric PRESSURE (kPa) 101.3 Measured Values: Mixture Type: Brain Dielectric Constant: 41.5 Conductivity: 0.90 Closest Distance (between E-Probe & Phone): 1.5 cm Measurement Results (AMPS Head SAR) FREQUENCY POWER (dBm) MHz Ch. Modulation Start End Phantom Position Antenna Position SAR (W/kg) 824.04 991 AMPS 26.0 26.0 Left Cheek IN 0.5877 824.04 991 AMPS 26.0 26.0 Left Cheek OUT 0.5861 835.89 363 AMPS 26.0 26.0 Left Cheek IN 0.8693 835.89 363 AMPS 26.0 26.0 Left Cheek OUT 1.0818 848.97 799 AMPS 26.1 26.0 Left Cheek IN 0.6827 848.97 799 AMPS 26.1 26.0 Left Cheek OUT 0.7716 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Brain 1.6 W/kg (mW/g) averaged over 1 gram NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. 2. All modes of operation were investigated and the worst-case are reported. 3. Power Measured x Conducted o EIRP o ERP 4. SAR Measurement System o SPEAG x IDX 5. SAR Configuration x Head o Body o Hand Fig. A Head SAR Test Setup SAMSUNG FCC ID: A3LSCH-N315 (Model: SCH-N315) Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST SAR TEST DATA SUMMARY Ambient TEMPERATURE (°C) 21.1 Relative HUMIDITY (%) 50.2 Atmospheri…

Text truncated - open the document above for the full version.
