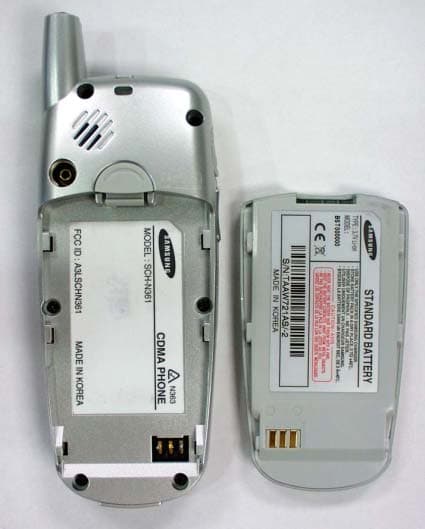

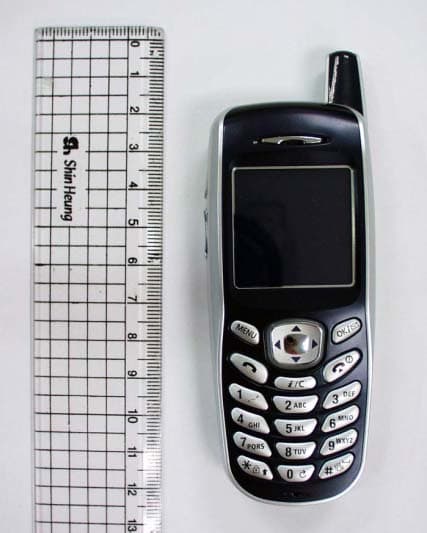

A3LSCHN361Single-Mode Cellular Phone (CDMA)

ELECTRONICS World Wide Web http://www.samsungmobile.com CELLULAR PHONE SCH-N361 User’s Manual Printed in Korea Code No.: GH68-04xxxA English. 10/2003.Rev.1.0 Please read this manual before operating your phone, and keep it for future reference. * Some contents of this manual may differ from your phone depending upon the software of the phone or your service provider. Draft version (2003/10/15) 3 Important Safety Precautions .................................................. 7 Unpacking................................................................................... 9 Your Phone Phone Layout ............................................................................... 10 Display ......................................................................................... 11 Backlight ...................................................................................... 15 Service Light ................................................................................. 15 Getting Started Using the Battery ......................................................................... 16 Switching the Phone On or Off ...................................................... 21 Your Phone’s Modes ...................................................................... 22 Locking or Unlocking the Keypad .................................................. 25 Call Functions Making a Call ............................................................................... 26 Emergency Dialing ........................................................................ 27 Redialing the Last Number ............................................................ 28 Making a Call from Phonebook ..................................................... 28 Prepend Dialing ............................................................................ 29 Speed Dialing ............................................................................... 30 Four-digit Dialing .......................................................................... 32 Pause Dialing ............................................................................... 32 Adjusting the Volume .................................................................... 36 Answering a Call ........................................................................... 37 Rejecting a Call.............................................................................. 38 Options During a Call .................................................................... 38 Using Caller ID ............................................................................. 39 Viewing Missed Calls ..................................................................... 40 Call Forwarding ............................................................................ 40 Call Waiting .................................................................................. 41 Three-Way Calling ......................................................................... 42 Table of Contents FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied antenna or one that is approved. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in a violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain at least a 0.59 inch (1.5 cm.) separation distance, between the user's body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC web site at www 45 Entering Text Changing the Text Input Mode ...................................................... 44 Using T9(English) Mode ................................................................ 45 Using Alphabet Mode .................................................................... 47 Using Symbol Mode ...................................................................... 49 Using Number Mode ..................................................................... 49 Using the Menus Accessing a Menu Function by Scrolling ......................................... 50 Using Shortcuts .............................................................................. 51 List of Menu Functions .................................................................. 52 Calls Outgoing(MENU 1-1) ............................................................. 55 Incoming (MENU 1-2) ............................................................. 56 Missed (MENU 1-3)................................................................... 57 Erase History (MENU 1-4)......................................................... 57 Air Time (MENU 1-5).........…

Text truncated - open the document above for the full version.

October 21, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHN361 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA)

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA)

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Paldal-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SCH-N361 FCC ID (Requested): A3LSCHN361 Report No: FA-029-S1 Date issued: October 21, 2003 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date H KIM – Test Engineer Checked By Date CW PARK - Manager Authorized By Date JK CHOI – Senior Manager Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(Cellular CDMA Right Head SAR-Touch)....................................19 8.2 Measurement Results(Cellular CDMA Right Head SAR-Tilt)........................................20 8.3 Measurement Results(Cellular CDMA Left Head SAR-Touch)......................................21 8.4 Measurement Results(Cellular CDMA Left Head SAR-Tilt)..........................................22 8.5 Measurement Results(Cellular CDMA Body SAR w/o Holster).......................................23 9. Conclusion.......................................................................................................24 10. Reference......................................................................................................25 2 of 25 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone (CDMA) Model Number : SCH-N361 Serial Number : Identical prototype (S/N : # FA-029-D) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : YB Song, Engineer Phone : +82-31-279-6525 Fax : +82-31-279-6545 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Non-Broadcast Transmitter Held to Ear (TNE) Test Dates : October 09, 2003 ~ October 10, 2003 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 – 848.31 MHz (CDMA) Rx Freq. Range : 869.70 – 893.31 MHz (CDMA) Max. RF Output Power : 0.231W EIRP PCS (23.63dBm) Antenna Manufacturer : SB TELCOM Co.,LTD Model No. : SCH-N361 Antenna Dimensions : 19.9mm [Fixed] 3 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). and transfers data to the PC plug-in card. Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 550MHz computer with Windows 2000 system and SAR Measurement Software DASY3, A/D interface card, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE 4 of 25 System Electronics The DAE3 consists of a highly sensitive electrometer-grade…

Text truncated - open the document above for the full version.

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN361 Single-Mode Cellular Phone(CDMA)

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Paldal-gu, Suwon-si, Gyeonggi-do, Korea 442-742 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-N361 FCC ID (Requested): A3LSCHN361 Report No: FA-029-R1 Date issued: October 23, 2003 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22. Prepared By Date EH JUNG– Test Engineer Checked By Date CW PARK - Manager Authorized By Date JK CHOI – Senior Manager TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information ---------------------------------------------------------- 3 1.1 2.1033 General Information -----------------------------------------------------------3 2. INTRODUCTION ----------------------------------------------------------------------------- 4 2.1 General ---------------------------------------------------------------------------------------4 3. MEASURING INSTRUMENT CALIBRATION ------------------------------------------ 5 4. TEST EQUIPMENT LIST ---------------------------------------------------------------------6 5. DESCRIPTION OF TESTS -------------------------------------------------------------------7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power ----------------7 5.2 Radiated Spurious & Harmonic Emission ---------------------------------------------8 5.3 Occupied Bandwidth ------------------------------------------------------------------------9 5.4 Spurious and Harmonic Emissions at Antenna Terminal-------------------------- 9 5.4.1 Occupied Bandwidth Emission Limits ----------------------------------------------9 5.4.2 Conducted Spurious Emission ------------------------------------------------------10 5.5 Frequency Stability / Temperature Variation -----------------------------------------11 6. TEST DATA ------------------------------------------------------------------------------------12 6.1 Effective Radiated Power(E.R.P.)------------------------------------------------------12 6.2 Radiated Spurious & Harmonic Measurement -------------------------------------13 6.3 Radiated Spurious & Harmonic Conversion Table --------------------------------14 6.4 Frequency Stability ------------------------------------------------------------------------15 6.4.1 Frequency Stability Table ----------------------------------------------------------15 6.4.2 Frequency Stability Graph -------------------------------------------------------- 17 7.SAMPLE CALCULATION ----------------------------------------------------------------- 18 8. CONCLUSION ------------------------------------------------------------------------------- 19 9. TEST PLOTS --------------------------------------------------------------------------------- 20 ATTACHMENT A . FCC ID Label / Location B . Test Setup Photographs C . External Photographs D . Internal Photographs E . Block Diagram(s) F . Schematic Diagram(s) G . Operational / Circuit Description H . Parts List / Tune Up Procedure I . User’s Manual MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416Maetan-3Dong, Paldal-Gu Suwon City Kyungki-Do 441-742, KOREA Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSCHN361 Quantity: Quantity production is planned Emission Designators: 1M25F9W Tx Freq. Range: 824.70-848.31MHz Rx Freq. Range: 869.70-893.31 MHz Max. Power Rating: 0.231WERP CDMA(23.63dBm) FCC Classification(s) : Non-Broadcast Transmitter Held to Ear (TNE) Equipment (EUT) Type: Single modulation CDMA Phone Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 22(H) Dates of Test: Oct.06,14-15, 2003 Place of Test: SAMSUNG Lab, Test Report S/N: A3LSCHN361 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416Maetan-3Dong, Paldal-Gu Suwon City Gyungki-Do 441-742, KOREA The site has 1 Fully-anechoic chamber and measurement facility. Figure1. Map of the Suwon City area. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable. 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure2. Photograph of 3m Fully-Anechoic Chamber 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. . . 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date FSIQ26 100153 2004-08-19 FSU MY41000236 2004-04-03 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2003-11-25 SMIQ03B 83824/021 2004-01-20 Signal Generator SMR20 835197/030 2004-01-20 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2003-11-26 Pre-Amplifier 8449B 3008A00691 2004-01-21 8960 GB42230535 …
