A3LSCHN393Dual-Mode Cellular Phone (AMPS/CDMA)

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Nov 23, 2003
Application Purpose: Original Equipment
Date of Application: Nov 23, 2003
Equipment Note: Dual-Mode Cellular Phone (AMPS/CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ELECTRONICS World Wide Web http://www.samsungmobile.com Printed in Korea Código No.: GH68-0xxxxA English/Hindi. 10/2003.Rev.1.0 Please read this manual before operating your phone, and keep it for future reference. * Some contents in this manual may differ from your phone depending upon the software of the phone or your service provider. User’s Manual CELLULAR PHONE SCH-N393 Kimera 2 3 Important Safety Precautions.................................................. 7 Unpacking................................................................................... 9 Your Phone Phone Layout ............................................................................... 10 Display ......................................................................................... 13 Backlight ...................................................................................... 15 Service Light ................................................................................. 16 Camera ........................................................................................ 16 Getting Started Using a Battery ............................................................................. 17 Switching the Phone On or Off ....................................................... 21 Using the Soft Keys ........................................................................ 22 Your Phone’s Modes ...................................................................... 23 Call Functions Making a Call ................................................................................ 25 Emergency Dialing ........................................................................ 26 Redialing the Last Number ............................................................ 27 Making a Call from Phonebook ..................................................... 27 Prepend Dialing ............................................................................ 28 Speed Dialing ............................................................................... 28 Four-digit Dialing .......................................................................... 30 Pause Dialing ............................................................................... 31 Voice Dialing ................................................................................ 33 Adjusting the Volume .................................................................... 34 Answering a Call ............................................................................ 34 Options During a Call ..................................................................... 36 Using Caller ID .............................................................................. 37 Viewing Missed Calls ...................................................................... 37 Quickly Switching to the Vibrate Mode ........................................... 38 Quickly Switching to the 1-Beep Mode ........................................... 38 Call Forwarding ............................................................................. 39 Call Waiting ................................................................................... 39 Three-Way Calling .......................................................................... 40 Table of Contents 45 Entering Text Changing the Text Input Mode ........................................................ 42 Using the T9 (English) Mode .......................................................... 43 Using the Alphabet Mode ............................................................... 45 Using the Symbol Mode ................................................................. 47 Using the Number Mode ................................................................ 47 Using the Menus Accessing a Menu Function by Scrolling .......................................... 48 Accessing a Menu Function by Using its Shortcut ...............................49 List of Menu Functions ................................................................... 50 Phone Book Find (Menu 1-1)........................................................................ 53 Add Entry (Menu 1-2)............................................................... 55 Groups (Menu 1-3)................................................................... 59 Memory Status (Menu 1-4)......................................................... 60 Messages Write (Menu 2-1)....................................................................... 61 Inbox (Menu 2-2)....................................................................... 64 Outbox (Menu 2-3).................................................................... 65 Saved (Menu 2-4)...................................................................... 66 Templates (Menu 2-5)................................................................. 67 Erase Messages (Menu 2-6)........................................................ 67 Settings (Menu 2-7).................................................................... 68 Voice Mail (Menu 2-8)................................................................ 70 Call History Missed (Menu 3-1)..................................................................... 71 Received (Menu 3-2) ................................................................. 72 Dialled (Menu 3-3) .................................................................... 73 Erase History (Menu 3-4)............................................................ 73 Call Duration (Menu 3-5)............................................................ 74 Sound Ring Tones(Menu 4-1).............................................................. 75 Ringer Volume (Menu 4-2)........................................................ 76 Alerts (Menu 4-3)..................................................................... 77 Key Tone (Menu 4-4)................................................................ 78 Power On/Off Melody (Menu 4-5).......................................…

Text truncated - open the document above for the full version.

Attestation Statements

October 21, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHN393), using the Automatic A/B Roaming— Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. October 21, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHN393 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

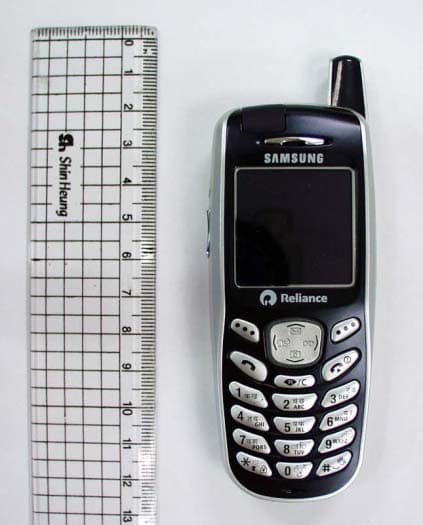

External Photos

ID Label/Location Info

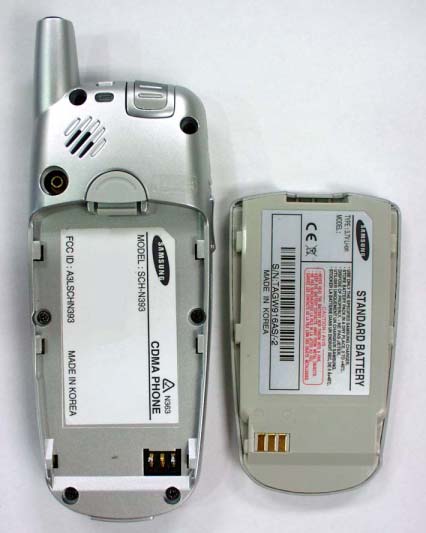

Confidential SCH-N393 Single Band Dual-Mode 10,06,2003 Confidential SCH-N393 Single Band Dual-Mode 10,06,2003

Internal Photos

RF Exposure Info

8. SAR MEASUREMENT RESULTS Procedures Used To Establish Test Signal The handset was plac ed int o s imulated call mode (AMPS & CDMA) using manufacturers test codes. Such t est signals offer a consis tent means for testing SAR and are recommen ded for ev al uating SAR. When test modes are not available or inappropriate for testing a handset, the actual transmission is activated through a base station simulator or similar equipment. See data pages for actual procedure used in measurement. Device Test Conditions The handset is battery operated. Each SAR measurement was taken with a fully charged battery. In order to verify that the device was tested at full power, conducted output power measurements were performed before and after each SAR measurement to confirm the output power. If a conducted power deviation of more than 5% occurred, the test was repeated. EUT Handset Reference Points Horizontal Center Line ERP-Ear Reference Point Vertical Center Line Figure 8.1 Handset Reference Points 18 of 30

RF Exposure Info

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA) © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN393 Dual-Mode Cellular Phone(AMPS/CDMA)

Test Report

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Paldal-gu, Suwon-si, Gyeonggi-do, Korea 442-742 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-N393 FCC ID (Requested): A3LSCHN393 Report No: FA-030-R1 Date issued: October 23, 2003 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22. Prepared By Date JH NAM– Test Engineer Checked By Date CW PARK - Manager Authorized By Date JK CHOI – Senior Manager TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information ---------------------------------------------------------- 3 1.1 2.1033 General Information -----------------------------------------------------------3 2. INTRODUCTION ----------------------------------------------------------------------------- 4 2.1 General ---------------------------------------------------------------------------------------4 3. MEASURING INSTRUMENT CALIBRATION ------------------------------------------ 5 4. TEST EQUIPMENT LIST ---------------------------------------------------------------------6 5. DESCRIPTION OF TESTS -------------------------------------------------------------------7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power ----------------7 5.2 Radiated Spurious & Harmonic Emission ---------------------------------------------8 5.3 Occupied Bandwidth ------------------------------------------------------------------------9 5.4 Spurious and Harmonic Emissions at Antenna Terminal-------------------------- 9 5.4.1 Occupied Bandwidth Emission Limits ----------------------------------------------9 5.4.2 Conducted Spurious Emission ------------------------------------------------------10 5.5 Frequency Stability / Temperature Variation -----------------------------------------11 6. TEST DATA ------------------------------------------------------------------------------------12 6.1 Effective Radiated Power(E.R.P.)------------------------------------------------------12 6.2 Radiated Spurious & Harmonic Measurement -------------------------------------13 6.3 Radiated Spurious & Harmonic Conversion Table --------------------------------14 6.4 Frequency Stability ------------------------------------------------------------------------15 6.4.1 Frequency Stability Table ----------------------------------------------------------15 6.4.2 Frequency Stability Graph -------------------------------------------------------- 17 7.SAMPLE CALCULATION ----------------------------------------------------------------- 18 8. CONCLUSION ------------------------------------------------------------------------------- 19 9. TEST PLOTS --------------------------------------------------------------------------------- 20 ATTACHMENT A . FCC ID Label / Location B . Test Setup Photographs C . External Photographs D . Internal Photographs E . Block Diagram(s) F . Schematic Diagram(s) G . Operational / Circuit Description H . Parts List / Tune Up Procedure I . User’s Manual MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan-3Dong, Paldal-ku Suwon City Kyungki-Do 441-742, KOREA Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSCHN393 Quantity: Quantity production is planned Emission Designator s: 1M25F9W, 40K0F8W, 40K0F1D Tx Freq. Range: 824.70-848.31MHz(CDMA) 824.04-848.97MHz(AMPS) Rx Freq. Range: 869.70-893.31 MHz(CDMA) 869.04-893.97 MHz(AMPS) Max. Power Rating: 0. 370W ERP AMPS (25.685dBm) 0. 327W ERP CDMA (25.140dBm) FCC Classification(s) : Non-Broadcast Transmitter Held to Ear (TNE) Equipment (EUT) Type: Dual-Mode AMPS/CDMA Phone Modulation(s): AMPS, CDMA Fr equency Toler ance: 0. 00025% (2.5ppm) FCC Rule Part(s): 22(H) Dates of Test : Oct.13-15, 2003 Place of Test: SAMSUNG Lab, Test Report S/N: A3LSCHN393 2. INTRODUCTION 2.1 General These measurement tests were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416Maetan-3Dong, Paldal-ku Suwon City Kyungki-Do 441-742, KOREA The site has 1 Fully-anechoic chamber and measurement facility. Figure1. Map of the Suwon City area. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable. 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure2. Photograph of 3m Fully-Anechoic Chamber 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. . . 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date FSIQ26 100153 2004-08-19 FSU MY41000236 2004-04-03 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2003-11-25 SMIQ03B 83824/021 2004-01-20 Signal Generator SMR20 835197/030 2004-01-20 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

SAMSUNG ELECTRONICS CO., LTD.No Cheon Park

[email protected]82-31-200-2185Fax: 82-31-200-2189

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
3	22H	824.7 MHz - 848.31 MHz	327.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values are � Head: 1.42 W/kg: Body-worn: 0.610 W/kg.
