A3LSCHR200Cellular/ PCS AMPS/ CDMA Phone

R200.book Page 1 Friday, March 2, 20 07 11:31 AM R200.book Page 2 Friday, March 2, 20 07 11:31 AM Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relati ng to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and intern ational treaty provisions. Intellectual Property includ es, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc.Headquarters:1301 East Lookout Drive Suite 150 Richardson, TX 75082 Tel: 972.761.7000 Customer Care Center:1601 E. Plano Parkway, Suite 150 Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Fax: 972.801.6065Internet Address: http://www.samsungusa.com©2004 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5,101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.Openwave® is a registered Trademark of Openwave, Inc.RSA® is a registered TrademarSk RSA Security, Inc. R200.book Page 3 Friday, March 2, 20 07 11:31 AM Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. R200.book Page 4 Friday, March 2, 20 07 11:31 AM Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. R200.book Page 5 Friday, March 2, 20 07 11:31 AM Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press [SEND]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorized accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 15. • The phone could explode if the battery is replaced with an incorrect type.• Dispose used batteries according to the manufacturer’s instructions. R200.book Page 1 Friday, March 2, 20 07 11:31 AM 2 Contents Unpack 3 Make sure you have each itemGet started 4 First steps to operate your phoneMenu functions 8 All menu options listedSolve problems 17 Help and personal needsHealth and safety information 19 R200.book Page 2 Friday, March 2, 20 07 11:31 AM 3 Unpack Make sure you have each itemYou can obtain the following accessories for your phone from your local Samsung dealer. Yo u r p h o n e Phone Travel adapter Battery User’s manual • Headset • Battery charger • Portable hands-free • Data link cable• Standard/Extended battery • Travel charger/ adapter • Car charger/adapter • Bluetooth full hands-free kit • Bluetooth headset kit R200.book Page 3 Friday, March 2, 20 07 11:31 AM 4 Get started First steps to operate your phoneInstall and charge the phoneLow battery indicatorWhen the battery is low:• a warning tone sounds,• the battery low message displays, and • the empty battery icon blinks. If the battery level becomes too …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 April 19, 2007 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 FCC ID: A3LSCHR200 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHR200), using the Automatic A/B Roaming Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure will recognize when a“9-1-1”call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC. Federal Communications Commission. 7435 Oakland Mills Road Columbia, MD 21046 DATE : APRIL 19, 2007 Re : PCS Licensed Transmitter held to ear FCC ID : A3LSCHR 200 DOC to FCC ID: A3 LSCHR200 To Whom It May Concern: We hereby certify that this transmit and receive equipment (FCC ID: A3LSCH R200) for Tri-Mode mobile station cellular use is capable of compliance with the TIA/EIA-95-B and CDMA-2000 Mobile Station-Base Station Compatibility Standards for Dual-Band Spread Spectrum Systems, Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station- Land Station Compatibility Specification. Should you have any questions or comments concerning the above, Please contact the undersigned. Sincerely Yours, Seoung-Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory & Compliance Group . SAMSUNG ELECTRONICS CO., LTD 18600 Broadwick St. Rancho Dominguez, CA 90220 SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 DATE : April 19, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: HAC filing FCC ID: A3LSCHR200 Gentlemen: We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

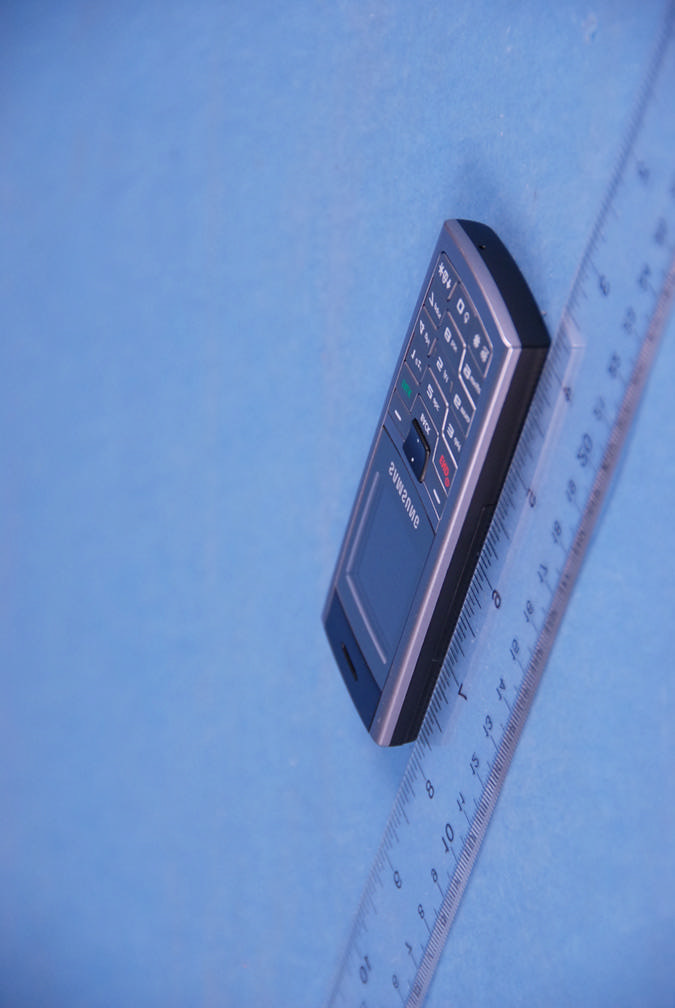

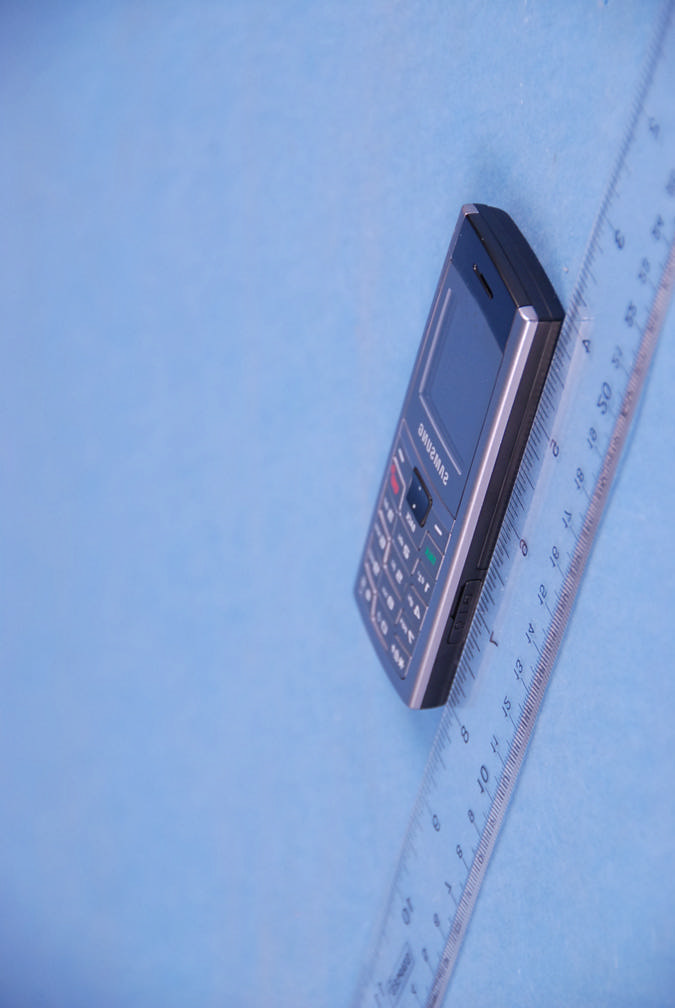

Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200

SCH-R200 A3LSCHR200 CONFIDENTIAL SCH-R200 3. Label Location

Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200 Samsung FCC ID: A3LSCHR200 EUT Photographs © 2007 PCTEST Lab. AMPS/Cellular/PCS CDMA Phone Model: SCH-R200

Reviewed by: FCC ID: A3LSCHR200 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0704190320.A3L 04/25/07 - 04/26/07 Cellular/PCS CDMA Phone with AMPS Page 1 of 26 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3C 03/22/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/25/07 - 04/26/07 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0704190320.A3L FCC ID: A3LSCHR200 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Cellular/PCS CDMA Phone with AMPS Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SCH-R200 Tx Frequency: 824.04 - 848.97 MHz (AMPS) / 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 25.5 dBm AMPS / 25 dBm CDMA / 25 dBm PCS Max. SAR Measurement: 1.36 W/kg AMPS Head SAR / 0.784 W/kg AMPS Body SAR 1.21 W/kg CDMA850 Head SAR / 0.874 W/kg CDMA850 Body SAR 1.25 W/kg CDMA1900 Head SAR / 0.833 W/kg CDMA1900 Body SAR Test Device Serial No.: Pre-Production [S/N: FE-067-D] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSCHR200 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0704190320.A3L 04/25/07 - 04/26/07 Cellular/PCS CDMA Phone with AMPS Page 2 of 26 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3C 03/22/07 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ........................................................... 17 14 SAR DATA SUMMARY ................................................................................................................. 19 15 EQUIPMENT LIST......................................................................................................................... 23 16 CONCLUSION............................................................................................................................... 24 17 REFERENCES .............................................................................................................................. 25 Reviewed by: FCC ID: A3LSCHR200 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0704190320.A3L 04/25/07 - 04/26/07 Cellular/PCS CDMA Phone with AMPS Page 3 of 26 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3C 03/22/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Elect…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: SCH -R200; Type: Cellular/PCS CDMA Phone w/AMPS; Serial: FE-067-D. Communication System: AMPS; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.9 mho/m; ε r = 43.01; ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 04-25-2007; Ambient Temp: 22.5°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: AMPS, Left Head, Touch, Low.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.9 V/m Peak SAR (extrapolated) = 1.86 W/kg SAR(1 g) = 1.36 mW/g; SAR(10 g) = 0.937 mW/g 0 dB = 1.54mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCH -R200; Type: Cellular/PCS CDMA Phone w/AMPS; Serial: FE-067-D. Communication System: AMPS; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.9 mho/m; ε 3 r = 43.01; = 1000 kg/m ) Phantom section: Left Section Test Date: 04-25-2007; Ambient Temp: 22.5°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: AMPS, Left Head, Tilt, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.8 V/m Peak SAR (extrapolated) = 0.814 W/kg SAR(1 g) = 0.602 mW/g; SAR(10 g) = 0.426 mW/g 0 dB = 0.680mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCH -R200; Type: Cellular/PCS CDMA Phone w/AMPS; Serial: FE-067-D. Communication System: AMPS; Frequency: 824.04 MHz; Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.9 mho/m; ε r = 43.01; ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 04-25-2007; Ambient Temp: 22.5°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: AMPS, Right Head, Touch, Low.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m Peak SAR (extrapolated) = 1.61 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.845 mW/g 0 dB = 1.36mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCH -R200; Type: Cellular/PCS CDMA Phone w/AMPS; Serial: FE-067-D. Communication System: AMPS; Frequency: 824.04 MHz; Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.9 mho/m; ε r = 43.01; ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 04-25-2007; Ambient Temp: 22.5°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: AMPS, Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.6 V/m Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.752 mW/g; SAR(10 g) = 0.531 mW/g 0 dB = 0.855mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCH-R200; Type: Cellular/PCS CDMA Phone w/AMPS; Serial: FE-067-D. Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 43.01, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 04-25-2007; Ambient Temp: 22.5°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular, Left Head, Touch, Mid.ch, Standard Battery Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.5 V/m Peak SAR (extrapolated) = 1.67 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.800 mW/g 0 dB = 1.29mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCH -R200; Type: Cellular/PCS CDMA Phone w/AMPS; Serial: FE-067-D. Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.9 mho/m; ε r = 43.01; ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 04-25-2007; Ambient Temp: 22.5°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular, Left Head, Tilt, Mid.ch, Standard Battery Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.0 V/m Peak SAR (extrapolated) = 0.800 W/kg SAR(1 g) = 0.594 mW/g; SAR(10 g) = 0.422 mW/g 0 dB = 0.671mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCH -R200; Type: Cellular/PCS CDMA Phone w/AMPS; Serial: FE-067-D. Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.9 mho/m; ε r = 43.01; ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 04-25-2007; Ambient Temp: 22.5°C; Tissue Temp: …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR200 FCC Pt. 22/24 AMPS / CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704190319.A3L April 26, 2007 AMPS / Cellular/PCS CDMA Phone Page 1 of 50 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.0TM 03/20/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. April 26, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0704190319.A3L FCC ID: A3LSCHR200 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: AMPS / Cellular/PCS CDMA Phone Model(s): SCH-R200 Tx Frequency Range: 824.04 - 848.97MHz (AMPS) / 824.70 - 848.31MHz (Cell. CDMA) 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 0.313 W ERP AMPS (24.95 dBm) / 0.285 W ERP Cell. CDMA (24.55 dBm) 0.339 W EIRP PCS CDMA (25.30 dBm) Emission Designator(s): 40K0F8W, 40K0F1D (AMPS) / 1M27F9W (CDMA) / 1M27F9W (PCS) Test Device Serial No.: identical prototype [S/N: AE-019-A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LSCHR200 FCC Pt. 22/24 AMPS / CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704190319.A3L April 26, 2007 AMPS / Cellular/PCS CDMA Phone Page 2 of 50 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.0TM 03/20/07 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................................3 1.0 INTRODUCTION ............................................................................................................................................. 4 1.1 MEASUREMENT PROCEDURE......................................................................................................... 4 1.2 SCOPE ................................................................................................................................................ 4 1.3 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION ............................................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS.............................................................................................................................. 6 3.1 TRANSMITTER AUDIO FREQUENCY RESPONSE ........................................................................... 6 3.2 AUDIO LOW PASS FILTER FREQUENCY RESPONSE .................................................................... 6 3.3 MODULATION LIMITING..................................................................................................................... 6 3.4 SIDEBAND POWER ATTENUATION LIMITS (AMPS) ........................................................................ 7 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.6 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 7 3.7 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 8 3.8 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 8 3.9 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 8 3.10 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 8 3.11 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 9 3.12 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................................... 10 5.0 SAMPLE CALCULATIONS............................................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................................ 12 6.1 SUMMARY......................................................................................................................................... 12 6.2 CONDUCTED OUTPUT POWER ..................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR200 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename:Test Dates:EUT Type: 0704190322.A3LApril 24 - 25, 2007Cellular/PCS CDMA Phone with AMPS Page 1 of 70 © 2007 PCTEST Engineering Laboratory, Inc. REV 6.0 03/16/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. April 24 - 25, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0704190322.A3L FCC ID: A3LSCHR200 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2006 v3.12; FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Cellular/PCS CDMA Phone with AMPS Model(s): SCH-R200 Tx Frequency: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: AE-019-A] C63.19-2006 HAC Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2006 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www…

Text truncated - open the document above for the full version.
