Confidential SC H-R720 Tri - BandQuad - Mode 2011. 06 FCCApprovalDocument for SCH- R720 FCCID : A3LSCHR720 9. UserManual SAMSUNGELECTRONICSCO,LTD User manual SCH-R720 Using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to the sections “Introducing your mobile phone”, ”Assembling and preparing your mobile phone” and “Using basic functions”. Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information X Refer to—pages with related information; for example: X p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [] (represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: ® z Bluetooth is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc. ® z Windows Media Player is a registered trademark of Microsoft Corporation. Contents Safety and usage information Safety warnings Safety precautions Important usage information Introducing your mobile phone Unpack Phone layout Keys Display Icons Assembling and preparing your mobile phone Install the SIM card and battery Charge the battery Using basic functions Turn your phone on and off Access menus Customize your phone Use basic call functions Send and view messages Add and find contacts Troubleshooting Safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipments installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatib le batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never plac e batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum distance of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever dire cted by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explos ive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipments Your phone can interfere with medical equipments in hospitals or health care facilities. Follow all re gulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can redu…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: June 16, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR720 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 SUBJECT : Label Statement FCC ID : A3L Gentlemen: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

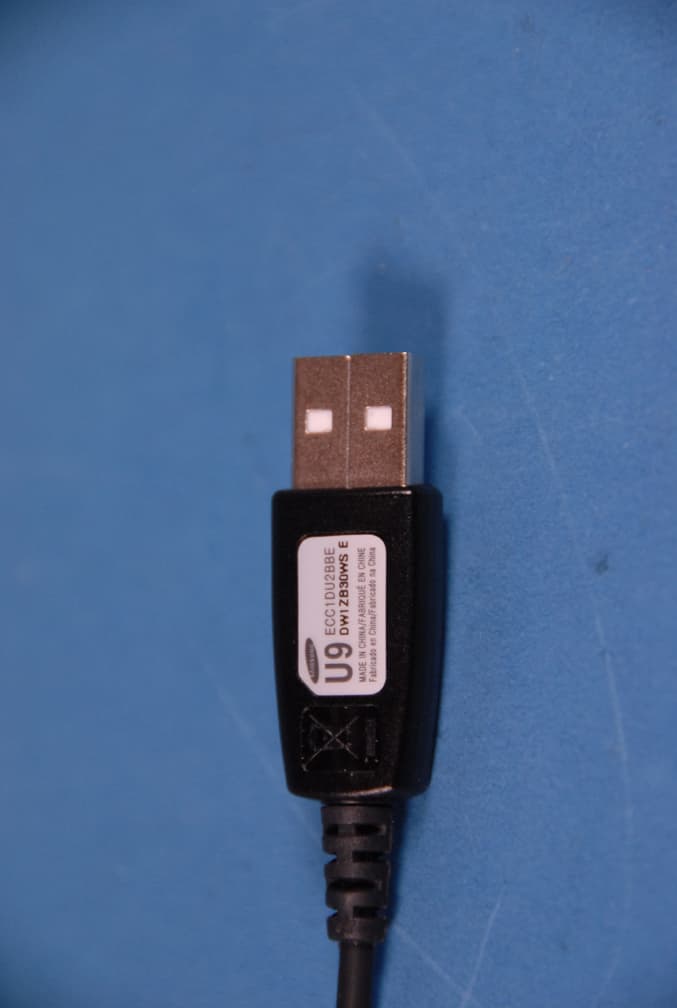

Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 External Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 External Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 External Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 External Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc. Reviewed by: FCC ID: A3LSCHR720 FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106060957.A3L June 7, 2011 Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 19 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 6.0CT 10/22/10 10.0 EUT PHOTOGRAPHS Reviewed by: FCC ID: A3LSCHR720 FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106060957.A3L June 7, 2011 Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 20 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 6.0CT 10/22/10

Confidential SC H-R720 Tri - BandQuad - Mode 2011.06 FCCApprovalDocument for SCH- R720 FCCID : A3LSCHR720 2. SampleLabel SAMSUNGELECTRONICSCO,LTD SCH-R720 110330110330110330 WHITE Jaejin LeeKeonghwan Cho Junesop Kim CHINA(SEHZ) GH68-00000A MODEL : SCH-R720 FOR INFORMATION CALL : 1 888 987 4357 FCC ID : A3LSCHR720 Confidential SC H-R720 Tri - BandQuad - Mode 2011.06 FCCApprovalDocument for SCH- R720 FCCID : A3LSCHR720 3. LabelLocation SAMSUNGELECTRONICSCO,LTD The label is placed inside the battery compartment MODEL : SCH-R720 FOR INFORMATION CALL : 1 888 987 4357 FCC ID : A3LSCHR720

Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Internal Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 1 of 7 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Internal Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 2 of 7 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Internal Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 3 of 7 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Internal Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 4 of 7 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Internal Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 5 of 7 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Internal Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 6 of 7 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Internal Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 7 of 7 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 39 0Y1106060958.A3L 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/06/11 - 06/10/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1106060958.A3L FCC ID: A3LSCHR720 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] SCH-R720 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1711.25 - 1753.75 MHz (AWS CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) / 2412 - 2462 MHz (WLAN) Conducted Power: 25.40 dBm Cell. CDMA / 25.41 dBm AWS CDMA 25.25 dBm PCS CDMA / 12.84 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.28 W/kg Cell. CDMA Head SAR 0.55 W/kg Cell. CDMA Body-Worn SAR 0.84 W/kg Cell. CDMA Hotspot Body SAR 0.53 W/kg AWS CDMA Head SAR 0.87 W/kg AWS CDMA Body-Worn SAR 0.99 W/kg AWS CDMA Hotspot Body SAR 0.49 W/kg PCS CDMA Head SAR 0.75 W/kg PCS CDMA Body-Worn SAR 0.44 W/kg PCS CDMA Hotspot Body SAR 0.10 W/kg 2.4 GHz WLAN Head SAR 0.13 W/kg 2.4 GHz WLAN Body-Worn SAR 0.13 W/kg 2.4 GHz WLAN Hotspot SAR Test Device Serial No.: Pre-Production [S/N: FCC #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 39 0Y1106060958.A3L 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 19 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 24 15 SAR DATA SUMMARY ................................................................................................................. 26 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 33 17 EQUIPMENT LIST ......................................................................................................................... 35 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 36 19 CONCLUSION ............................................................................................................................... 37 20 REFERENCES .............................................................................................................................. 38 FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 39 0Y1106060958.A3L 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR720 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106060955.A3L June 7-9, 2011 Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 1 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. June 7-9, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1106060955.A3L FCC ID: A3LSCHR720 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SCH-R720 EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Max. RF Output Power: 32.43 mW (15.11 dBm) Peak Conducted (b) 46.03 mW (16.63 dBm) Peak Conducted (g) 31.55 mW (14.99 dBm) Peak Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Device Serial No.: FCC-2 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LSCHR720 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106060955.A3L June 7-9, 2011 Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 2 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION...........................................................................................................................4 1.1 SCOPE.........................................................................................................................................................................4 1.2 PCTEST TEST LOCATION......................................................................................................................................4 2.0 PRODUCT INFORMATION............................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS...........................................................................................5 2.3 LABELING REQUIREMENTS..................................................................................................................................5 3.0 DESCRIPTION OF TEST...............................................................................................................6 3.1 EVALUATION PROCEDURE...................................................................................................................................6 3.2 CONDUCTED EMISSIONS......................................................................................................................................6 3.3 RADIATED EMISSIONS...........................................................................................................................................7 4.0 ANTENNA REQUIREMENTS.........................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA......................................................................................9 6.0 TEST RESULTS..........................................................................................................................10 6.1 SUMMARY................................................................................................................................................................10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N........................................................................................11 6.3 OUTPUT POWER MEASUREMENT – 802.11B................................................................................................17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N............................................................................................18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N)..................................................................................................19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE............................................................................................25 6.7 CONDUCTED SPURIOUS EMISSIONS..............................................................................................................29 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS...................................................................................33 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS..........................................................................37 6.10 LINE-CONDUCTED TEST DATA.........................................................................................…

Text truncated - open the document above for the full version.

Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Test Set-Up Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Test Set-Up Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSCHR720 Model: SCH-R720 Test Set-Up Photos EUT Type: Cellular/AWS/PCS CDMA/EvDO Phone w/ BT and WLAN Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page i of vii 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 APPENDIX A: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page ii of vii 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 1 SAR Test Setup Photo 2 FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iii of vii 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 3 SAR Test Setup Photo 4 FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iv of vii 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 7 – Back at 1.0 cm SAR Test Setup Photo 9 – Front at 1.0 cm FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page v of vii 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 5 – Top at 1.0 cm SAR Test Setup Photo 11 – Bottom at 1.0 cm FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vi of vii 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 6 – Right at 1.0 cm SAR Test Setup Photo 10 – Left at 1.0 cm FCC ID: A3LSCHR720 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vii of vii 06/06/11 - 06/10/11 Cellular/AWS/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 8 – Body-Worn at 1.0 cm Note: Headset Cable is connected to the device during Body SAR assessment, as seen above.
