A3LSCHR740CCellular/ PCS/ AWS CDMA Phone with WLAN and Bluetooth

GH68_3XXXXA Printed in Korea ANDROID SMARTPHONE User Manual Please read this manual before operating your phone and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY CRT_SCH-R740_UM_Eng_MA2_CB_030113_D1 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT FOR INTERNAL USE ONLY THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In DRAFT FOR INTERNAL USE ONLY addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For compl…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea February 20, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHR740C Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: March 4, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR740C To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

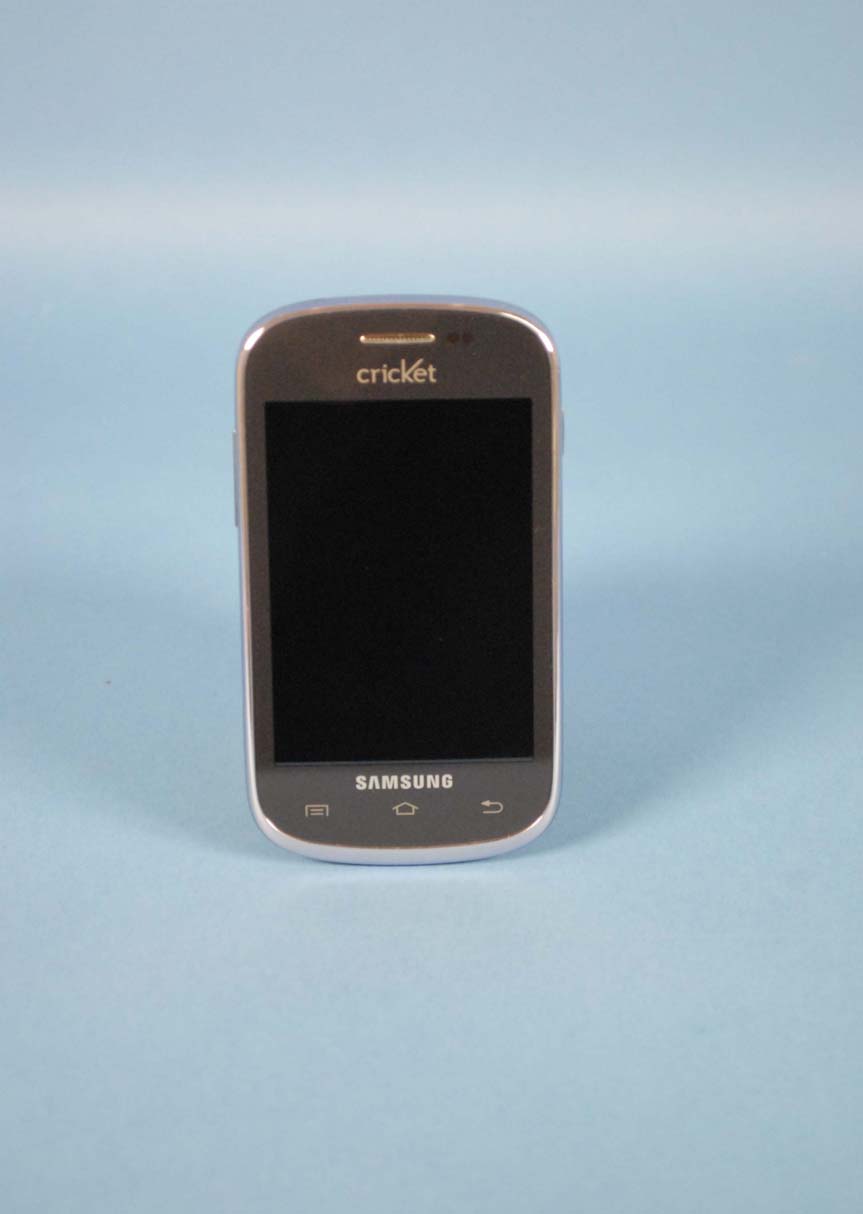

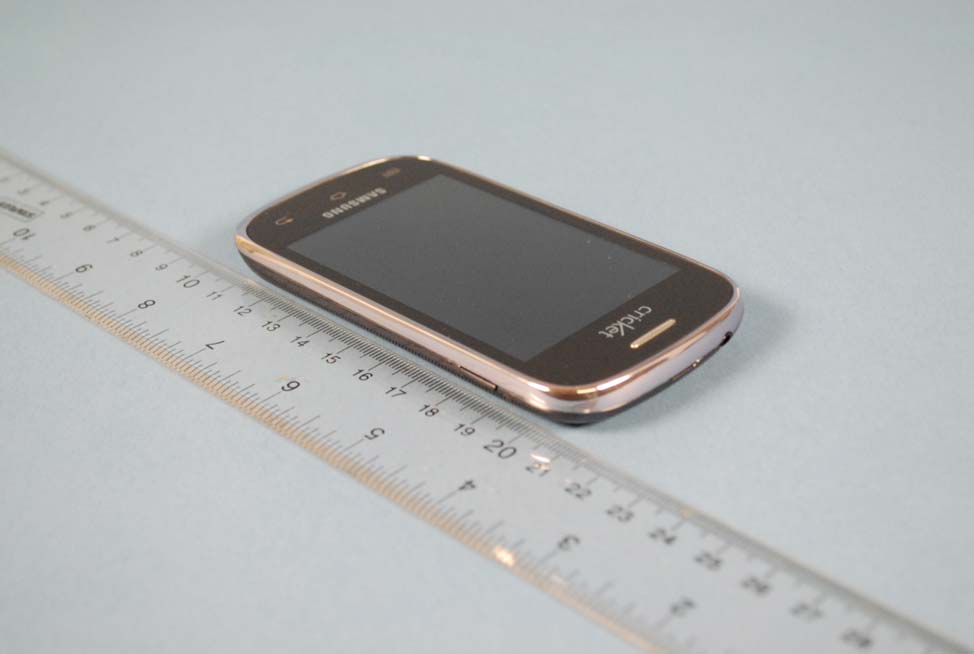

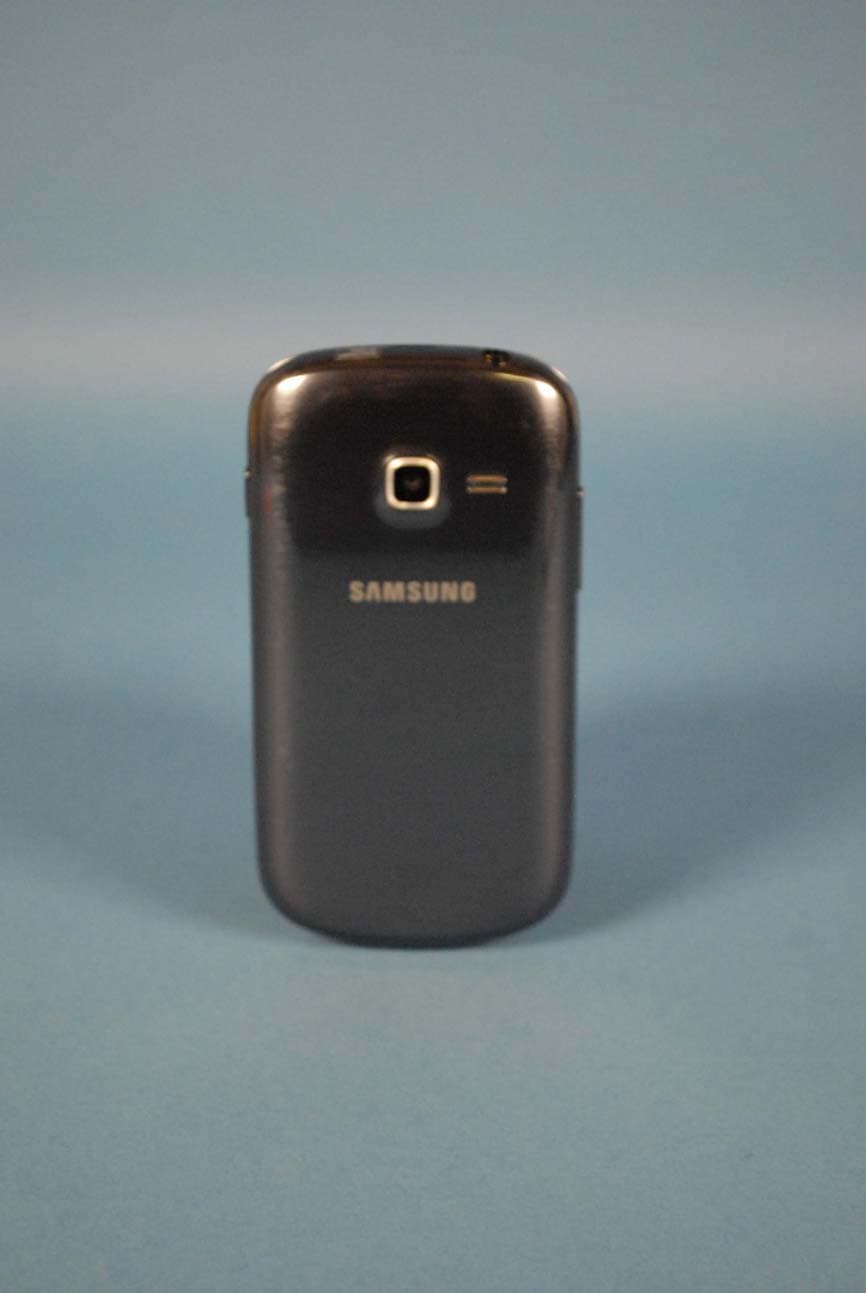

Samsung FCC ID: A3LSCHR740C Model: SCH-R740C External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHR740C Model: SCH-R740C External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR740C Model: SCH-R740C External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR740C Model: SCH-R740C External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model:SCH-R740 C FCC ID:A3LSCHR740C Label: Location: Top Back plate of device Bottom

Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Internal Photos EUT Type: Portable Handset Page 1 of 6 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Internal Photos EUT Type: Portable Handset Page 2 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Internal Photos EUT Type: Portable Handset Page 3 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Internal Photos EUT Type: Portable Handset Page 4 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Internal Photos EUT Type: Portable Handset Page 5 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Internal Photos EUT Type: Portable Handset Page 6 of 6 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 32 0Y1302040156.A3L 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/30/13 - 02/13/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1302040156.A3L FCC ID: A3LSCHR740C APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SCH-R740C 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCECell. CDMA/EVDO824.70 - 848.31 MHz24.81 0.410.960.93 PCEAWS CDMA/EVDO1711.25 - 1753.75 24.830.72 0.951.00 PCEPCS CDMA/EVDO1851.25 - 1908.75 25.310.93 0.790.98 DTS2.4 GHz WLAN2412 - 2462 MHz15.870.28 0.150.16 DSSBluetooth2402 - 2480 MHz8.73 1.22 1.131.15 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 32 0Y1302040156.A3L 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 7 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 8 4 DEFINITION OF REFERENCE POINTS ........................................................................................ 9 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 10 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 19 10 SAR DATA SUMMARY ................................................................................................................. 21 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 25 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 27 13 EQUIPMENT LIST ......................................................................................................................... 28 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 29 15 CONCLUSION ............................................................................................................................... 30 16 REFERENCES .............................................................................................................................. 31 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 32 0Y1302040156.A3L 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDOVoice/Data824.70 - 848.31 MHz AWS CDMA/EVDOVoice/Data1711.25 - 1753.75 MHz PCS CDMA/EVDOVoice/Data1851.25 - 1908.75 MHz 2.4 GHz WLANData2412 - 2462 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nominal Maximum Nominal 25.5 25.0 24.5 24.5 Mode / Band Cell. CDMA/EVDO Modulated Average (dBm) 25.0 25.0 PCS CDMA/EVDO AWS CDMA/EVDO Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal 8.5 12.0 Modulated Average (dBm) 15.5 11.5 11.5 IEEE 802.11n (2.4 GHz) 12.0 IEEE 802.11b (2.4 GHz) 16.0 Mode / Band IEEE 802.11g (2.4 GHz) Bluetooth 9.0 FCC ID: A3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N:…

Text truncated - open the document above for the full version.

FCC ID: A3LSCHR740C FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 45 0Y1302040153.A3L 1/31 - 2/7, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.4 01/10/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 1/31 - 2/7, 2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city,Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302040153.A3L FCC ID: A3LSCHR740C APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SCHR740C EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, KDB 558074 v02 Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246239.26415.9460.53417.82 802.11g 2412 - 246212.88211.1061.09417.86 802.11n 2412 - 246214.72311.6867.45318.29 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n FCC ID: A3LSCHR740C FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 45 0Y1302040153.A3L 1/31 - 2/7, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.4 01/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N .................................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 17 6.4 POWER SPECTRAL DENSITY (802.11B/G/N) ........................................................................................... 19 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 25 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 29 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 34 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 39 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 43 7.0 CONCLUSION ...................................................................................................................…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR740C Model: SCH-R740C Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

FCC IDA3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 7 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 1 – Right Cheek SAR Test Setup Photo 2 – Right Tilt FCC IDA3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 7 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 3 – Left Cheek SAR Test Setup Photo 4 – Left Tilt FCC IDA3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 7 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 5 – Back side at 1.0 cm SAR Test Setup Photo 6 – Front side at 1.0 cm FCC IDA3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 7 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 7 – Top Edge at 1.0 cm SAR Test Setup Photo 8 – Bottom Edge at 1.0 cm FCC IDA3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 7 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 9 – Right Edge at 1.0 cm SAR Test Setup Photo 10 – Left Edge at 1.0 cm FCC IDA3LSCHR740C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 7 of 7 01/30/13 - 02/13/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 11 – Vertical and Horizontal Reference Lines
