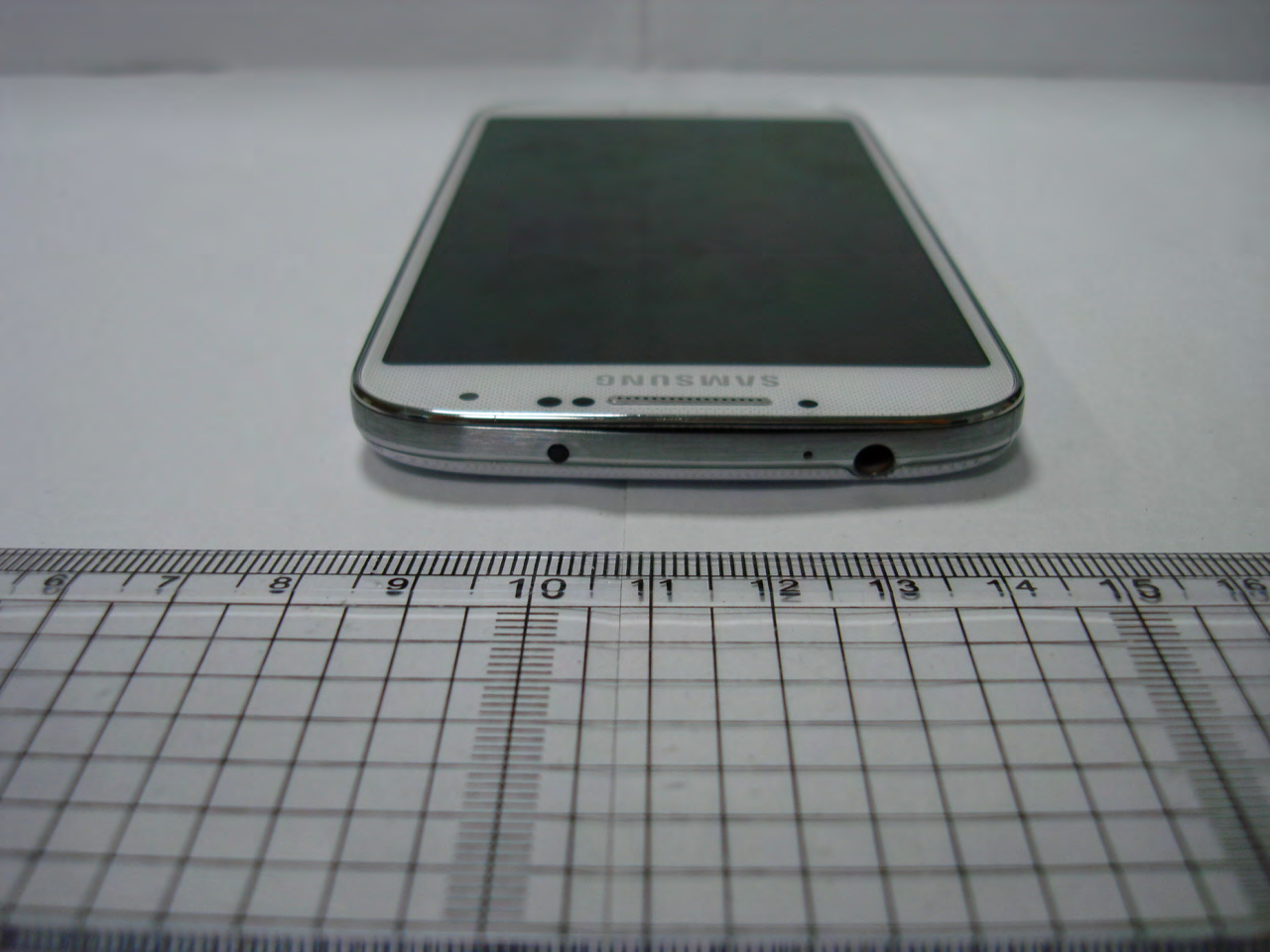

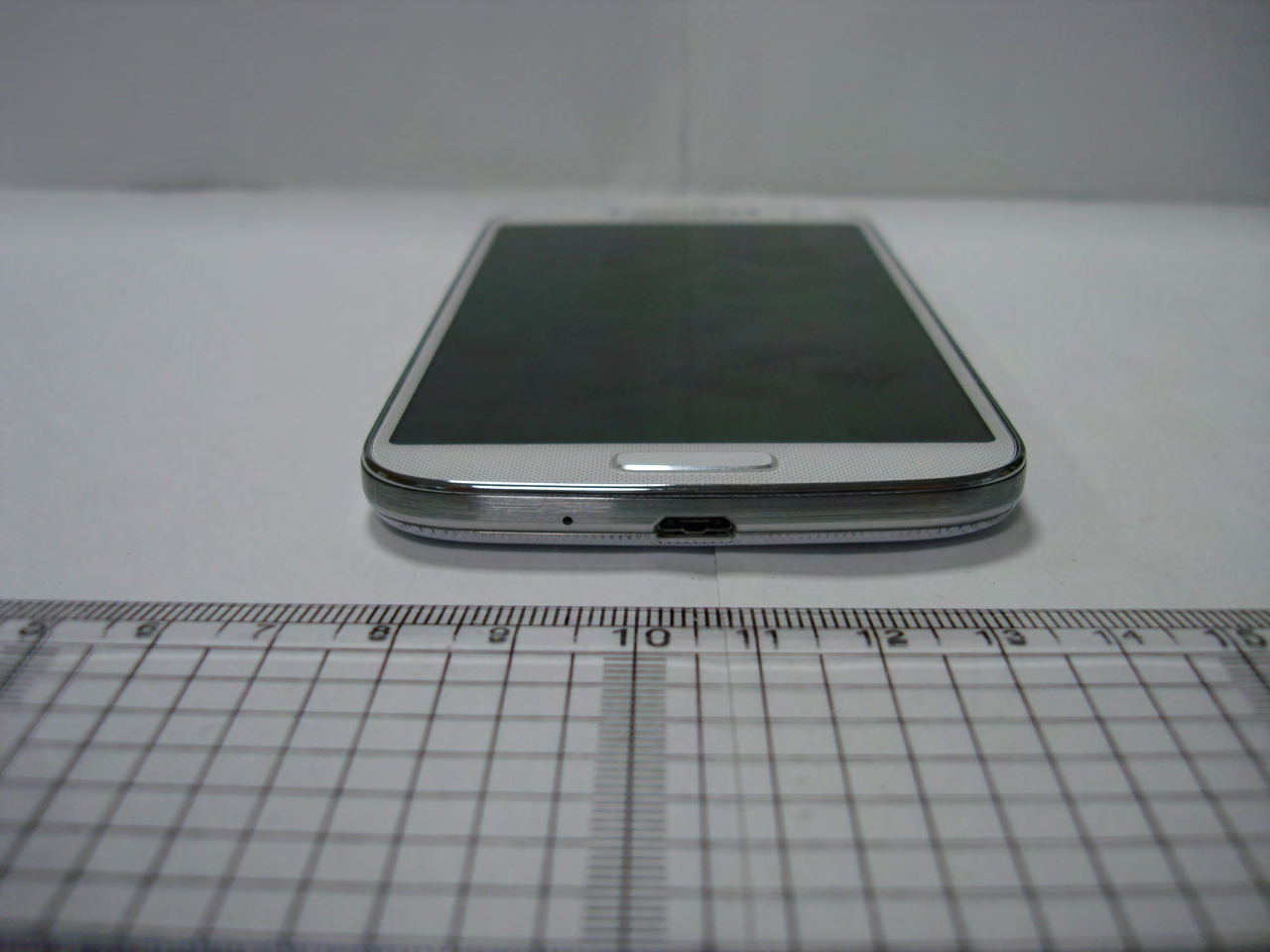

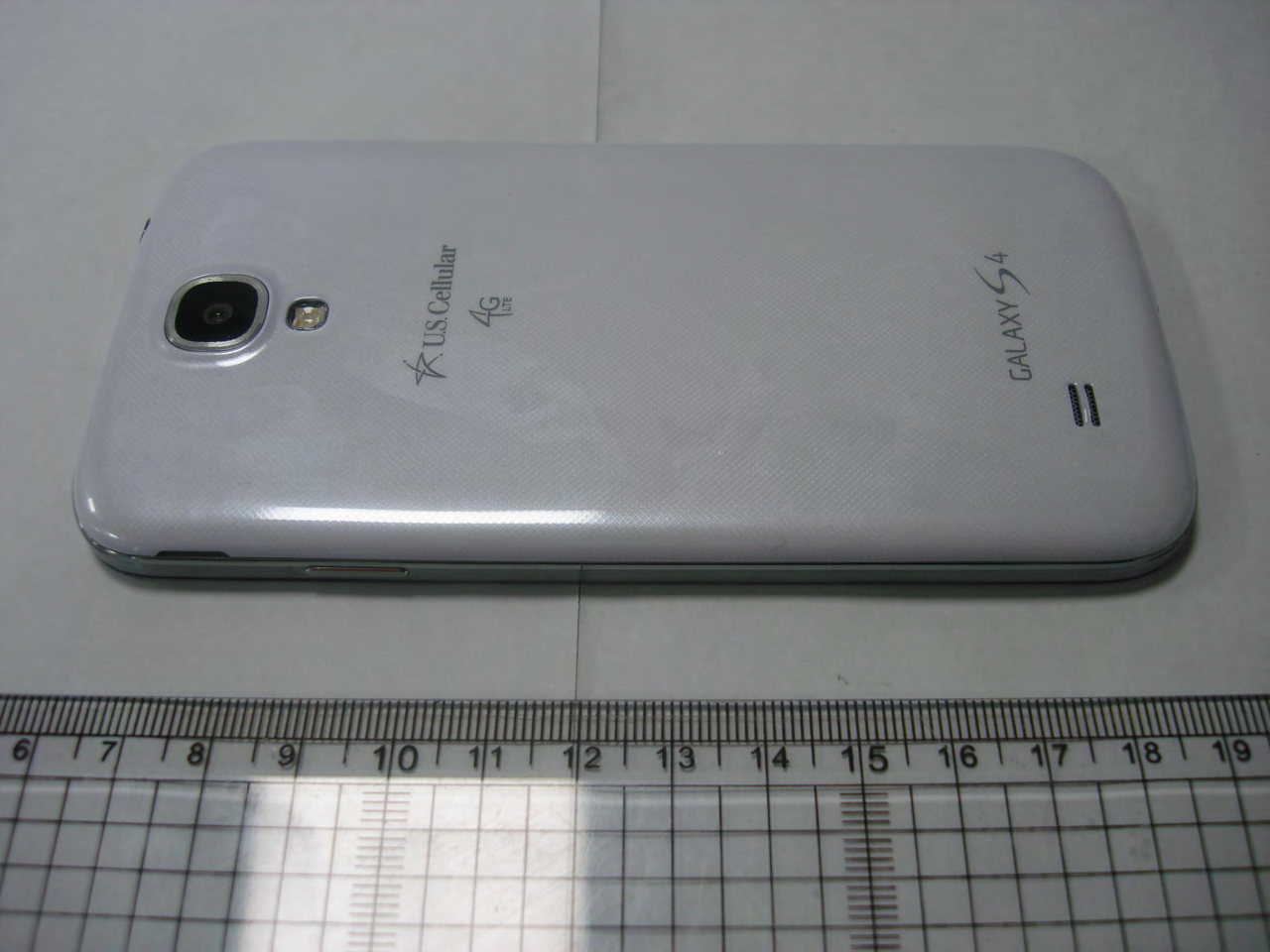

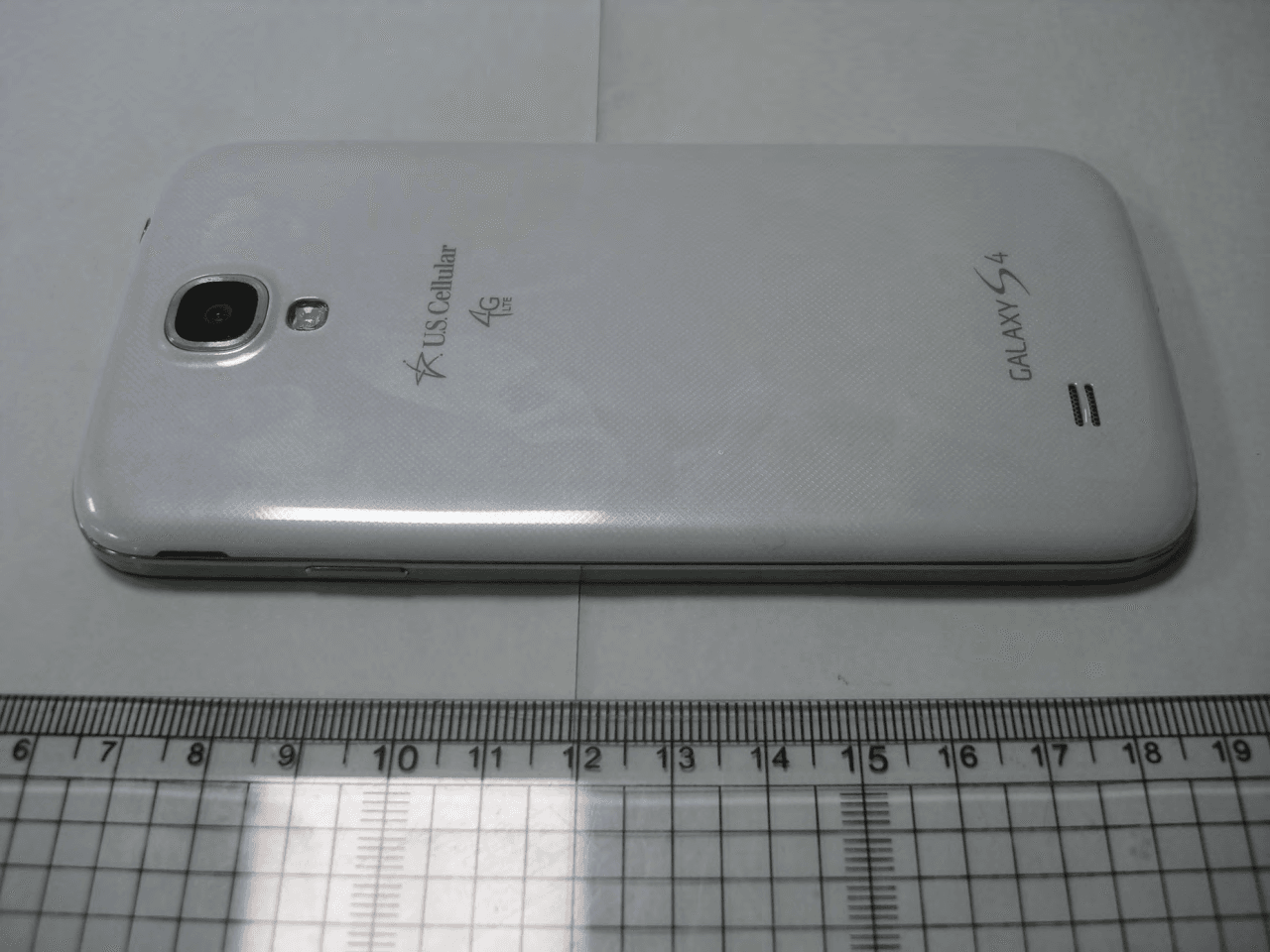

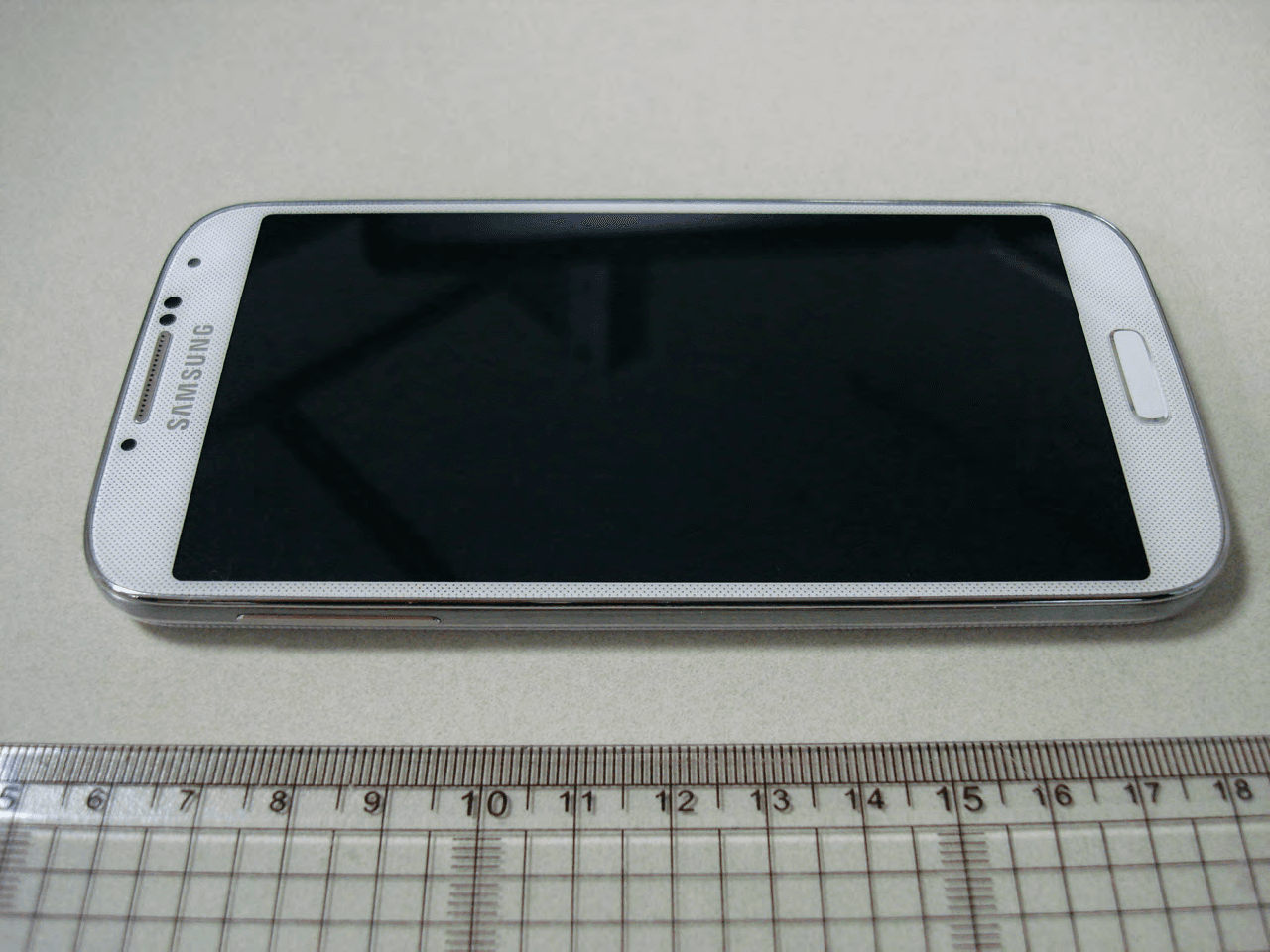

A3LSCHR970Multi-Band CDMA/ LTE Phone with WLAN, Bluetooth and RFID

GH68_3XXXXA Printed in Korea SCH-R970 ANDROID SMARTPHONE User Manual Please read this manual before operating your phone and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY USC_SCH-R970_UM_Eng_MBD_CB_031913_D1 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT FOR INTERNAL USE ONLY THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In DRAFT FOR INTERNAL USE ONLY addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: March 18, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR970 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Confidential SC H-R970 2013. 02. -1- FCCApprovalDocument for SCH- R970 2,3. Label and Location SAMSUNG ELECTRONICS CO, LTD Label and Location Samsung Phone Model: SCH-R970 FCC ID: A3LSCHR970 Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Label

FCC ID: A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 55 0Y1303040435-R1.A3L 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/04/13 - 03/08/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1303040435-R1.A3L FCC ID: A3LSCHR970 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SCH-R970 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W /kg) PCECell. CDMA/EVDO824.70 - 848.31 MHz24.81 0.360.520.57 PCEAW S CDMA/EVDO1711.25 - 1753.75 MHz24.730.18 0.550.61 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz24.720.220.610.71 PCELTE Band 12701.5 - 713.5 MHz22.83< 0.10.120.12 PCE LTE Band 5 (Cell)826.5 - 846.5 MHz23.00< 0.10.110.11 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz 22.96< 0.10.180.18 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz22.990.160.240.24 DTS2.4 GHz WLAN2412 - 2462 MHz15.96 0.480.370.37 DTS5.8 GHz WLAN 5745 - 5825 MHz13.370.140.12-1.00 UNII5.2 GHz WLAN5180 - 5240 MHz13.080.22 0.31-1.00 UNII5.3 GHz WLAN5260 - 5320 MHz13.060.190.27-1.00 UNII 5.5 GHz WLAN5500 - 5700 MHz13.040.130.22-1.00 DSS/DTS Bluetooth2402 - 2480 MHz8.86 0.961.231.23 N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This revised Test Report (S/ N: 0Y1303040435-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard and destroy the previously issued test report (S/N: 0Y1303040435.A3L) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 55 0Y1303040435-R1.A3L 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 16 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 9 RF CONDUCTED POWERS ......................................................................................................... 21 10 SYSTEM VERIFICATION .............................................................................................................. 31 11 SAR DATA SUMMARY ................................................................................................................. 33 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 42 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 49 14 EQUIPMENT LIST ......................................................................................................................... 50 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 51 16 CONCLUSION ............................................................................................................................... 53 17 REFERENCES .............................................................................................................................. 54 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 55 0Y1303040435-R1.A3L 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDO Voice/Data824.70 - 848.31 MHz AW S CDMA/EVDO Voice/Data1…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSCHR970 FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 71 0Y1303040438.A3L 3/4 - 3/22/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.7 02/04/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 3/4 - 3/22/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1303040438.A3L FCC ID: A3LSCHR970 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SCH-R970 EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, KDB 558074 v02 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246239.44615.9676.56018.84 802.11g 2412 - 246219.09912.81112.98020.53 802.11n 2412 - 246215.81211.9996.38319.84 802.11a 5745 - 582522.02913.4397.27519.88 802.11n (20MHz) 5745 - 582516.03212.0576.91318.86 802.11n (40MHz) 5755 - 581513.99611.4688.10519.45 802.11n (80MHz)577511.06610.4451.16817.09 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11a/b/g/n/ac FCC ID: A3LSCHR970 FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 71 0Y1303040438.A3L 3/4 - 3/22/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.7 02/04/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N/AC ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N/AC (2.4GHZ) ............................................................. 22 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ) ......................................................................... 24 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N/AC) .................................................................................. 25 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 36 6.7 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 44 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 52 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...........................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSCHR970 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 38 0Y1302040205.A3L 2/5 - 3/6/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.2 12/27/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 2/5 - 3/6/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302040205.A3L FCC ID: A3LSCHR970 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SCH-R970 EUT Type: Portable Handset Max. RF Output Power: 2.253 mW (3.53 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSCHR970 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 38 0Y1302040205.A3L 2/5 - 3/6/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.2 12/27/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 CONDUCTED EMISSIONS ........................................................................................................................... 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 15 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 16 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 20 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 32 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 36 7.0 CONCLUSION ....................................................................................................................................... 38 FCC ID: A3LSCHR970 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 38 0Y1302040205.A3L 2/5 - 3…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSCHR970 Model: SCH-R970 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSCHR970 Model: SCH-R970 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR970 Model: SCH-R970 Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 1: Right Cheek Photo 2: Right Cheek with Wireless Charging Cover FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 3: Right Tilt Photo 4: Left Cheek FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 5: Left Cheek with Wireless Charging Cover Photo 6: Left Tilt FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 7: Back Side at 1.0 cm Photo 8: Back Side at 1.0 cm with Wireless Charging Cover FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 9: Front Side at 1.0 cm Photo 10: Top Edge at 1.0 cm FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 7 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 11: Bottom Edge at 1.0 cm Photo 12: Right Edge at 1.0 cm FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 8 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 13: Left Edge at 1.0 cm Photo 14: Left Edge at 1.0 cm with Wireless Charging Cover FCC ID A3LSCHR970 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 9 of 9 02/04/13 - 03/08/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Photo 15: Vertical and Horizontal Reference Lines
