A3LSCHR970CMulti-Band CDMA/ LTE Phone WLAN, Bluetooth and RFID

Settings 145 Viewing data usage by app or process 1.From the Connections screen, under Network connections , touch Data usage. The Data usage screen appears. 2.Scroll down the page to see the top three processes or apps using mobile data service. Touch a process or app to see data usage for the process or app, and to configure specific settings. More Wireless and Network Settings Airplane mode When airplane mode is enabled, all your phone’s wireless connections are disabled, and you cannot make or receive calls [except for Emergency (E911) calls] or messages. You can, however, make Wi-Fi and Bluetooth connections. While in airplane mode, you can use other features of your phone, such as playing music, watching videos, or using other applications.  From the Connections screen, under Network connections , touch More networks ➔ Airplane mode slider to enable or disable airplane mode. DRAFT FOR INTERNAL USE ONLY 146 Mobile networks Set options for network selection, data service, and roaming behavior. 1.From the Connections screen, under Network connections , touch More networks ➔ Mobile networks. The Mobile networks screen appears. 2.Set these options: •Mobile data: Enable or disable your phone’s connection to the mobile data network. • Data roaming: Enable or disable connection to data services when your device is roaming on another network. (For more information about roaming, see “Roaming” on page 17.) •Network mode: Configure roaming for CDMA, LTE, and EV-DO networks. –LTE/CDMA: Lets your phone automatically access LTE, CDMA, and/or EV-DO mobile networks when available. –CDMA: Restricts your phone to CDMA mobile networks. • System select: Configure CDMA roaming mode. –Home only: Restricts your phone to your Wireless Provider’s network. –Automatic: Permits your phone to automatically roam to networks other than that provided by your Wireless Provider. Tip:You can also enable or disable Mobile data at the Notifications panel. (For more information, refer to “Notifications” on page 33.) DRAFT FOR INTERNAL USE ONLY Settings 147 Portable Wi-Fi Hotspot Use Portable Wi-Fi Hotspot to share your phone’s internet connection with up to 5 other devices, through Wi-Fi. You can control whether devices connect to your Portable Wi- Fi Hotspot with the Allowed device list. (For more information about using your phone as a mobile hotspot, see “Portable Wi-Fi Hotspot” on page 132.) Note:Using Portable Wi-Fi Hotspot requires a subscription to data service. For more information, contact your Wireless Provider. Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges. Turning Portable Wi-Fi Hotspot On or Off 1.From the Connections screen, under Network connections , touch More networks ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. 2.To u c h Portable Wi-Fi hotspot and follow the prompts to turn Portable Wi-Fi Hotspot On, or touch Portable Wi-Fi hotspot to turn Portable Wi-Fi Hotspot Off. Note:Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges. DRAFT FOR INTERNAL USE ONLY 148 Configuring Portable Wi-Fi Hotspot 1.From the Connections screen, under Network connections , touch More networks ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. The Portable Wi-Fi hotspot screen appears. 2.Touch Configure to access the following options: • Network SSID: View and change the name of your Mobile Hotspot. • Hide my device: When enabled, your Portable Wi-Fi Hotspot is not visible to other Wi-Fi devices during a scan. Other devices can still connect to your Portable Wi-Fi Hotspot, but will have to set up the connection manually with your Network SSID and Password. • Security: Choose the security level for your Portable Wi-Fi Hotspot. • Password: If you choose a security level that uses a password, enter the password. By default, the password is your mobile telephone number. • Show password: Enable to make the Password field visible. • Show advanced options: Enable to access advanced options, including Broadcast channel, to specify the channel your device uses for Portable Wi-Fi Hotspot. Allowed Device List Control whether devices connect to your Portable Wi-Fi Hotspot with the Allowed device list. After you add devices to the list, they can scan for your device and connect using your device’s Wi-Fi hotspot name (SSID) and password. Note:Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges. 1.From the Connections screen, under Network connections , touch More networks ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. The Portable Wi-Fi hotspot screen appears. 2.To u c h Allowed device list ➔ Add, then enter the other device’s Device name and MAC address. 3.To u c h OK to add the device to the Allowed devices list. Tip:For information about connecting to your Portable Wi-Fi Hotspot, see “Connecting a Device via Portable Wi-Fi Hotspot” on page 133. DRAFT FOR INTERNAL USE ONLY Settings 149 Tethering Use Tethering to share your phone’s internet connection with a computer that connects to your device via USB cable, or by Bluetooth. (For more information about connecting computers to your phone via Tethering, see “Tethering” on page 132.) 1.From the Connections screen, under Network connections , touch More networks ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. 1. Tethering and portable hotspot. The Tethering and portable hots…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea April 12, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHR970C Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 1, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR970C To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

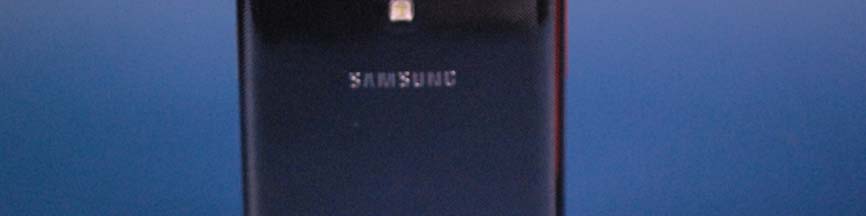

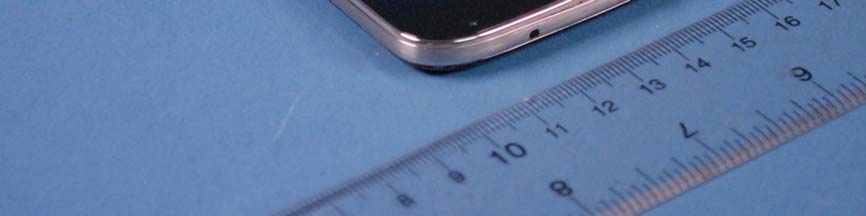

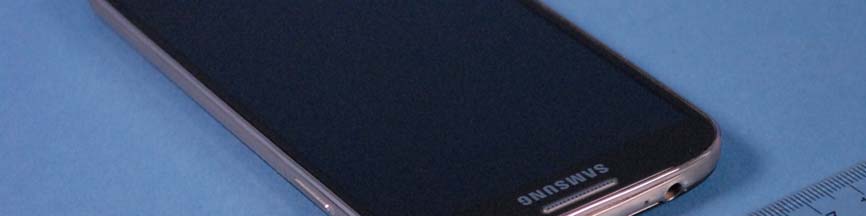

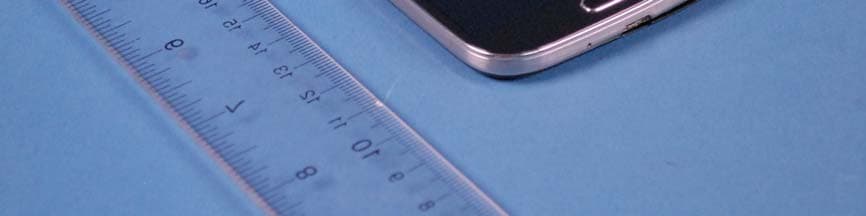

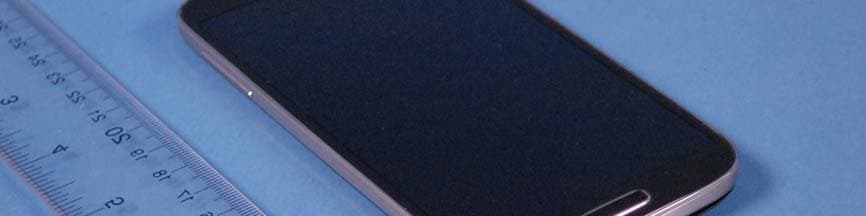

SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: SCH-R970C FCC ID: A3LSCHR970C Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Label

SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 1 of 8 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 2 of 8 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 3 of 8 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 4 of 8 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 5 of 8 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 6 of 8 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 7 of 8 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Internal Photos EUT Type: Portable Handset Page 8 of 8 © 2013 PCTEST Engineering Laboratory Inc. The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.”

FCC ID: A3LSCHR970C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 53 0Y1303260542-R1.A3L 02/04/13 - 03/28/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/04/13 - 03/28/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1303260542-R1.A3L F C C I D : A3 LS CH R9 7 0 C AP P L I C AN T : S AMS UN G E LE CT RO NI CS , CO . LT D. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SCH-R970C 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCECell. CDMA/EVDO824.70 - 848.31 MHz24.750.220.570.59 PCEAWS CDMA/EVDO1711.25 - 1753.75 MHz24.850.120.550.57 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz24.960.220.540.54 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz22.970.270.490.49 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz22.960.250.270.27 PCELTE Band 25 (PCS)1852.5 - 1912.5 MHz22.980.260.250.25 DTS2.4 GHz WLAN2412 - 2462 MHz15.960.480.370.37 DTS5.8 GHz WLAN5745 - 5825 MHz13.370.140.12-1.00 UNII5.2 GHz WLAN5180 - 5240 MHz13.080.220.31-1.00 UNII5.3 GHz WLAN5260 - 5320 MHz13.060.190.27-1.00 UNII5.5 GHz WLAN5500 - 5700 MHz13.040.130.22-1.00 DSS/DTSBluetooth2402 - 2480 MHz8.68 0.881.431.43 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1303260542-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHR970C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 53 0Y1303260542-R1.A3L 02/04/13 - 03/28/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 16 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 9 RF CONDUCTED POWERS ......................................................................................................... 21 10 SYSTEM VERIFICATION .............................................................................................................. 31 11 SAR DATA SUMMARY ................................................................................................................. 33 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 41 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 47 14 EQUIPMENT LIST ......................................................................................................................... 48 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 49 16 CONCLUSION ............................................................................................................................... 51 17 REFERENCES .............................................................................................................................. 52 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSCHR970C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 53 0Y1303260542-R1.A3L 02/04/13 - 03/28/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 1 D E V I C E U N D E R T E S T 1.1 Device Overview Cell. CDMA/EVDOVoice/Data824.70 - 848.31 MHz AWS CDMA/EVDOVoice/Data1711.25 - 1753.7…

Text truncated - open the document above for the full version.

FCC ID: A3LSCHR970C FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 71 0Y1303260546.A3L 2/5 - 3/22/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.7 02/04/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 2/5 - 3/22/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1303260546.A3L FCC ID: A3LSCHR970C APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SCH-R970C EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, KDB 558074 v02 Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246239.44615.9676.56018.84 802.11g 2412 - 246219.09912.81112.98020.53 802.11n 2412 - 246215.81211.9996.38319.84 802.11a 5745 - 582522.02913.4397.27519.88 802.11n (20MHz) 5745 - 582516.03212.0576.91318.86 802.11n (40MHz) 5755 - 581513.99611.4688.10519.45 802.11ac (80MHz)577511.06610.4451.16817.09 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11a/b/g/n/ac FCC ID: A3LSCHR970C FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 71 0Y1303260546.A3L 2/5 - 3/22/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.7 02/04/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS ...................................................................................................................................... 9 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N/AC ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N/AC (2.4GHZ) ............................................................. 22 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ) ......................................................................... 24 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N/AC) .................................................................................. 25 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 36 6.7 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 44 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 52 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSCHR970C FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1302040205.A3L 2/5 - 3/6/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.2 12/27/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 2/5 - 3/6/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302040205.A3L FCC ID: A3LSCHR970C APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SCH-R970C EUT Type: Portable Handset Max. RF Output Power: 2.253 mW (3.53 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSCHR970C FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1302040205.A3L 2/5 - 3/6/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.2 12/27/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 CONDUCTED EMISSIONS ........................................................................................................................... 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 15 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 18 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 20 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 25 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 30 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 34 7.0 CONCLUSION ....................................................................................................................................... 36 FCC ID: A3LSCHR970C FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 36 0Y1302040205.A3L 2/…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Test Set-Up Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Test Set-Up Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Test Set-Up Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR970C Model: SCH-R970C Test Set-Up Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST…
