A3LSCHT300Tri-Mode Dual-Band Analog/PCS Phone

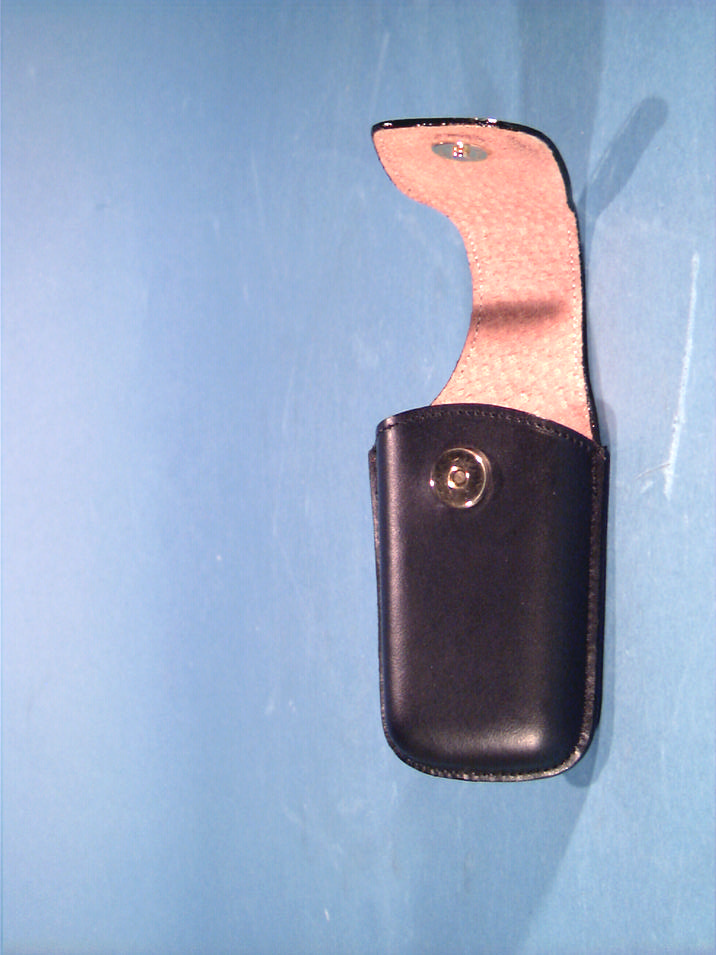

© 2000 PCTEST Lab ATTACHMENT M – USER’S MANUAL SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18, 2000 USERS MANUAL For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation To maintain compliance with FCC RF exposure guidelines, use only belt-clips, holsters or similar accessories that maintain a 2.54 cm separation distance. These accessories should not contain any metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure guidelines and should be avoided. WARNING! Read this information before using your phone SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 TableofContents Gettingtoknowyourphone. Displayicons:Whattheytellyou. Battery:Puttinginthepower. Installingyourbattery. Turningyourphoneonandoff. Removingyourbattery. Chargingyourbattery. UsingtheRapidDesktopCharger. Functionkeys:Whattheymakehappen. Phonecalls:Howtomakeandreceivethem. Correctionamisdial. Rememberingyourphonenumber. Answeringcalls. UsingCallerID. RespondingtoCallWaiting. Redialingcalls. SettingupThree-WayCalling. Savingoreditingyourownemergencynumbers. Dialingwhenyourphoneislocked. voice-mail:Theinsandouts. Settingupyourvoice-mail. Findingoutyouhaveamessage. Retrievingmessages. UsingspecialSamsungPhoneFeatures. Internalphonebook. Understandingyourphone'smemory. Savingandstoringaphonenumber. Enteringahardpause. Dialingfromyourphonebooktoadifferentareacode. Checkingallyourstorednumbers. Findinganumberusingaperson'sname. Erasingaphonenumber. Keepingtrackofyourcalls. Mainmenu: Tailoringyourphone'sfeaturestoyourneeds. Navigatingyourthemenu. SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 Takingamenushortcut. Understandingmenuitems: Managingyourphone'ssettings. Keepingtrackofcalls. Maintainingyourinternalphonebook. Selectinglanguage Adjustingyourphone'svolume. Determiningwhatisdisplayed. Maintainingphonesecurity. Choosingtherightalerts. Customizingthewayyourphoneworks. Selectingtheservicemode. Preventingaccidentalkeypress. Understandingmessagemenuitems: Listeningtothevoice-mailorreadingthemessagesyou'vereceived. ReviewingVoiceMailMessages. ReviewingPageandTextMessages. ErasingMessages. Displayingthetimestamp. Usingguidelines: Allaboutperformanceandsafety. Keepingtabsonsignalstrength. UnderstandingPowerSavemode. Understandinghowyourphoneoperates. Radiofrequencysafety. Maintainingyourphone'speakperformance. Protectingyourbattery. Usingyourphonewhiledriving. Disposalofbatteries. FollowingSafetyGuidelines. Usingyourphonenearotherelectronicdevices. Turnoffyourphonebeforeflying. Restrictingchildren'saccesstoyourphone. Turnoffyourphoneindangerousareas. Cautions. FCCnotice. Tostartconnectingjustpressandhold<END> ThanksforchoosingSamsung. SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 Aswesaid-tostartconnecting,justpressandhold<END>. Gettingtoknowyourphone. 1.RedLight:Illuminateswhen<END>ispressedandheldandwhenyouhaveincomingcallsand messages. 2.Volume:Letsyouadjustthesoundlevel. 3.SEND:Letsyouplaceacall,answerCallWaitingandplaceathreewaycall. 4.NavigationKeys:Allowyoutoscrollthroughthemenuoptionsanddisplaysandsavephonenumbers,aswell asanysettingsyouselectinthemenu 5.CLR:Allowsyoutoclearyourlastentry. 6.WebKey:AllowsyoutoaccessInternet. 7.END:Letsyoudisconnectacallandreturntostandbymode. Pressandholdthekeytoturnthephoneonandoff. 8.MENU:Letsyouaccessthephone'smenus. 9.RecordKey:Allowsyoutorecordandplaybackconversations. 10.Antenna:Makesthevoiceontheotherendsoundclearest. 11.Flip:Letsyouanswercallbyopeningandletsyoudisconnectacallandguardkeysbyclosing. Displayicons:Whattheytellyou. Displayiconsareallthesymbolsortextthatshowuponyourdisplayscreen.Inshort,tellyouwhat'sgoing on.They'reshownbelow. SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 Signaliconmeasuresyourcurrentsignalstrength.Themorebarsthereare,thestrongerthe signal. InUseicontellsyouacallisinprogress. NoSvciconshowsthatyouareoutsideofserviceareaandcannotuseyourphone. Iftheroamingiconisnotdisplayed,youareinhomeNetwork.Iftheiconisdisplayed whetherstaticorflashing,youareinaroamingnetwork. Messageiconsindicatethatyouhavetextmessages,pagesore-mailmessages. Digital/AnalogiconsIndicatewhetheryouareindigitaloranalogservicearea. Batteryiconshowsthelevelofyourbatterycharge.Themorebarsyousee, themorepoweryouhaveleft.Whenthechargeislow,theiconblinksandan alerttoneissounded. Vibratoriconindicatesthatyousetvibratoron. Muteiconindicatesthatyousetringeroff. Alarmiconindicatesthatalarmisset. Lockiconshowsthatphoneislocked. Battery:Puttinginthepower YournewSamsungPhonecomeswitharechargeablebatterythatispartiallychargedsoyoucanuseit immediatelyafteryouactivate,withoutanyhassle.Usethebatteryuntilitiscompletelydrained.Recharging thebatterywithoutfirstcompletelydrainingordischargingitmayshortenthelifeofthebattery. Installingyourbattery. Toinstallyourbattery,justfollowthesesimplesteps: 1.Holdthebatterywiththelabelracingdown,makingsurethemetalcontactsatthebaseofthe basebatterylineupwiththemetalcontactsonthebaseofthephone. 2.Placeitonthebackofthebaseofthephonewiththebaseofthebatte…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) October 23, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America October 23, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSCHT300 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. October 23, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHT300), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHT300) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. October 23, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHT300 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

© 2000 PCTEST Lab ATTACHMENT A – COVER LETTER October 23, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHT300 Part 22 & 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22/24 Certification of the following Tri-Mode Cellular/PCS Phone (AMPS/CDMA): FCC ID: A3LSCHT300 TRADE / MODEL(s): SAMSUNG SCH-T300, SCH-T305 EUT TYPE: Licenced Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 848.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.728 W ERP AMPS (28.62 dBm) 0.556 W ERP CDMA (27.45 dBm) 0.422 W EIRP PCS CDMA (26.25 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

December 22, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Andy Liemer SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHT300 731 Confirmation No.: EA99294 Correspondence Reference No.: 17493 Request for Tech. Info.: 12/20/00 Dear Andy: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment provided in response to the request for technical information dated December 22, 2000. 1. Attached is the revised RF Exposure statement, which will be placed towards the front location in the users manual. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

January 17, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Andy Liemer SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHT300 731 Confirmation No.: EA99294 Correspondence Reference No.: 17643 Request for Tech. Info.: 01/09/01 Dear Andy: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment provided in response to the request for technical information dated January 09, 2001. 1. Attached is the revised RF Exposure statement, which will be placed towards the front location in the users manual. We trust this information is sufficient to re-issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

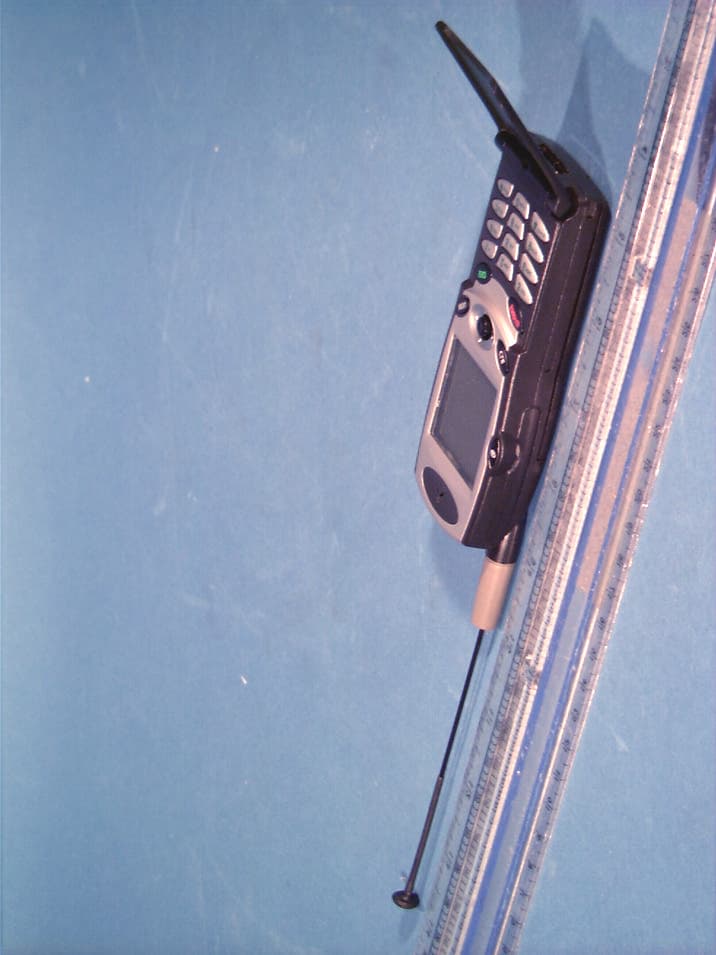

© 2000 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2000 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-T300 FCC ID: A3LSCHT300 MADE IN KOREA

© 2000 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: A3LSCHT300 (Model(s): SCH-T300, SCH-T305) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2000 PCTEST Lab ATTACHMENT K – OPERATIONAL DESCRIPTION *Confidential* SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 ITEMPCSCDMAAMPS TxFreq.range RxFreq.range ChannelBandwidth ChannelSpacing NumberofChannel DuplexSeparation TypeofEmission In/OutputImpedance TxIntermediateFreq. RxIntermediateFreq. TxLocalFreq. RxLocalFreq TCXOfreq. Freq.Stability OperatingTemperature 1850~1910MHz 1930~1990MHz 1.23MHz 50KHz 1200 80MHz 1M25F9W 50 •ÿ 130.38MHz 210.38MHz 1st(F TX -130.38MHz) 2nd(260.76MHz) 1st(F TX -210.38MHz) 2nd(420.76MHz) 19.68MHz (F RX -80MHz) °æ 150Hz -30 °... ~+60 °... 824~849MHz 869~894MHz 1.23MHz 30KHz 20FA 45MHz 40K0F8W,40K0F1D 50 •ÿ 130.38MHz 85.38MHz 1st(F TX +130.38MHz) 2nd(260.76MHz) 1st(F RX +85.38MHz) 2nd(170.76MHz) 19.68MHz (F RX -45MHz) °æ 300Hz -30 °... ~+60 °... 824~849MHz 869~894MHz 30KHz 30KHz 832 45MHz 40K0F8W,40K0F1D 50 •ÿ 130.38MHz 85.38MHz 1st(F TX +130.38MHz) 2nd(260.76MHz) 1st(F RX +85.38MHz) 2nd(170.76MHz) 19.68MHz °æ 2.5ppm -30 °... ~+60 °... SupplyVoltage SizeandWeight 3.80V STD:81mmX46.5mmX7.5mm,33.6g,800mA EXT:81mmX46.5mmX11.4mm,50.5g,1300mA SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18 ,2000 1.1.9GHzCDMA(USPCS) 1)General Frequ encyRang e .Transmitter :1850 °≠ 1910MHz .Rec eiver :1930 °≠ 1990MHz Chann elBand width :1.23MHz Chann elSpacing :50kHz NumberofChann els :1200 Dup lexSeperati on :80MHz Typ eofEmission :1M25 F9W Input/ Outpu tImpedance :50oh ms IntermediateFreequ ency .Transmitter :130.38MHz .Rec eiver :210.38MHz LocalFrequ ency .Transmitter :1st(F TX -130.38MHz),2nd(260.76MHz) .Rec eiver :1st(F RX -210.38MHz),2nd(420.76MHz) TCXOFrequ ency :19.68MHz Frequ encyStability :(F RX -80 MHz) °æ 150Hz Operati onTemperature :-30 °...°≠ 60 °... SupplyVolt age :+3.8V 2)Transmitt er WaveformQualit y :0.944ormore OpenLoo pPowerCon trolRang e .-25dBm :-60.5dBm °≠ -41.5dBm .-65dBm :-20.5dBm °≠ +1.5dBm .-104dBm :+15.0dBm °≠ +30.0dBm MinimumTxPowerCon trol :below-50dBm ClosedLoo pPowerCon trolRang e : °æ 24dB MaximumRFOutpu tPower :280mW(+24.5dBm) Occup iedBand width :1.23MHz ConductedSpu riou [email protected] :-42dBc/30kHz SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 3)Receiver RxSensitivityandDynamicRange:-104dBm,FER=0.5%orless :-25dBm,FER=0.5%orless ConductedSpuriousEmission .1930 °≠ 1990MHz:<-81dBm .1850 °≠ 1910MHz:<-61dBm .AllOtherFrequencies:<-47dBm SingleToneDesensitization:lowerthan1% .Rxpowerlevel=-101dBm .Tonepowerlevel=-30dBm .Toneoffsetfromcarrier= °æ 1.25MHz IntermodulationSpuriousResponseAttenuation:lowerthan1% .Rxpower=-101dBm .Tone1power=-43dBm .Tone1power=-43dBm .Tone1offsetfromcarrier= °æ 1.25MHz .Tone2offsetfromcarrier= °æ 2.05MHz SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18 ,2000 2.800MHzCDMA 1)General Frequ encyRang e .Transmitter :82 4 °≠ 84 9MHz .Rec eiver :86 9 °≠ 894MHz Chann elBand width :1.23MHz Chann elSpacing :30kHz NumberofChann els :20 FA Dup lexSeperati on :45MHz Typ eofEmission :40 K0F8W,40K0F1D Input/ Outpu tImpedance :50oh ms IntermediateFreequ ency .Transmitter :130.38MHz .Rec eiver :85.38MHz LocalFrequ ency .Transmitter :1st(F TX +130.38MHz),2nd(260.76MHz) .Rec eiver :1st(F RX +85.38MHz),2nd(170.76MHz) TCXOFrequ ency :19.68MHz Frequ encyStability :(F RX -45 MHz) °æ 300Hz Operati onTemperature :-30 °...°≠ 60 °... SupplyVolt age :+3.8V 2)Transmitt er WaveformQualit y :0.944ormore OpenLoo pPowerCon trolRang e .-25dBm :-57.5dBm °≠ -38.5dBm .-65dBm :-17.5dBm °≠ +1.5dBm .-104dBm :+18.0dBm °≠ +30dBm MinimumTxPowerCon trol :below-50dBm ClosedLoo pPowerCon trolRang e : °æ 24dB MaximumRFOutpu tPower :400mW(+26dBm) Occup iedBand width :1.23MHz ConductedSpu riou sEmission@90 0KHz :-42dBc/30kHz @1.25MHz :-54dBc/30kHz SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 3)Receiver RxSensitivityandDynamicRange:-104dBm,FER=0.5%orless :-25dBm,FER=0.5%orless ConductedSpuriousEmission .869 °≠ 894MHz:<-81dBm .824 °≠ 849MHz:<-61dBm AllOtherFrequencies:<-47dBm SingleToneDesensitization:lowerthan1% .Rxpowerlevel=-101dBm .Tonepowerlevel=-30dBm .Toneoffsetfromcarrier= °æ 900KHz IntermodulationSpuriousResponseAttenuation:lowerthan1% .Tone1offsetfromcarrier= °æ 900KHz .Tone2offsetfromcarrier= °æ 1.700MHz -Test1,2 Rxpower=-101dBm Tone1power=-43dBm Tone2power=-43dBm -Test3,4 Rxpower=-90dBm Tone1power=-32dBm Tone2power=-32dBm -Test5,6 Rxpower=-79dBm Tone1power=-21dBm Tone2power=-21dBm SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18 ,2000 3.800MHzAMPS 1)General Frequ encyRang e .Transmitter :824 °≠ 84 9MHz .Rec eiver :869 °≠ 894MHz Chann elSpacing :30kHz NumberofChann els :832 Dup lexSpacing :45 MHz Frequ encyStability : °æ 2.5ppm(-30 °...°≠ 60 °... ,-22 °£ F °≠ 140 °£ F) Modulati on /Demodulati on .Voice :PM .Data :FM Operati ngTemperature :-30 °...°≠ 60 °... ,-22 °£ F °≠ 140 °£ F SupplyVolt ate :3.75V 2)Transmitt er RFou tpu tpo wer :26.8dBm(+0.2/-4d B) CarrierON/OFFconditi on s ."ON"Conditi on :wit hin °æ 3d Bofspecificati onou tpu t(in2ms) ."OFF"Condit ion :below-60dBm(in2ms) Compress sor .CompressionRate :2:1 .Att ackTime :3ms .Rec ov eryTime :13.5ms .ReferenceInput :inputpo werlevelforproducingano minal °æ 2.9kHz :peakfrequ encydeviati onoftransmittedcarr ier Preamph asis :6d B/OCTwit hin0. 3 °≠ 3kHz MaximumFrequ encyDeviati on .F3ofG3 : °æ 12kHz .Sup ervisoryAud ioTon e : °æ 2kHz( °æ 10 %) .Sign ali ngTon e : °æ 8kHz( °æ 10 %) .WidebandData : °æ 8kHz( °æ 10 %) PostDeviati onLimiterFilt er .3. 0 °≠ 5. 9kHz :above40LOG(F/3000)dB SCH-T300(Dual-BandTri-Mode) CONFIDENTIAL September18,2000 .5.9 °≠ 6.1kHz:above35dB .6.1 °≠ 15kHz:above40LOG(F/3000)dB .Over15kHz:above28dB SpectrumNoiseSuppression .Forallmodulation fo+20kHz °≠ fo+45kHz:above26dB .FormodulationbyvoiceandSAT fo+45kHz:above63dB+10LOG(PY)dB .FormodulationbyWBD(withoutSAT)andST(withSAT) fo+45kHz °≠ fo+60kHz:above45dB fo+60kHz °≠ fo+90kHz:above65dB fo+90kHz °≠ 2fo:above63dB+10LOG(PY)dB (wherefo=carrierfrequency PY=meanoutputpowerinwatts) HarmonicandconductedSpuriousEmissions:below43+10LOG(PY)dB 3)Receiver De-emphasis:-6dB/OCTwithin0.3 °≠ 3kHz Expandor .Ex…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT L – PARTS LIST / TUNE UP PROCEDURE 1. KEYPAD BOARD 1Diode4SMF05.TBZ301 Z302 Z303 Z304 2Transistor1MMBT2222AWT1Q330 3Transistor12SA1579-RQ310 4Transistor2DTA144EE/TRQ320 Q340 51608 size LED6CL-190YG-CD-TLED1 LED2 LED3 LED4 LED5 LED6 61608 size LED1SML-310LT-T86LED100 7Gate1TC7S08FUTE85LU320 8EL Driver1D361AU310 9Reed Switch1A3210ELHU330 10Resistor(1005 size)5100,5%R316 R332 R333 R334 R361 11Resistor(1005 size)12.2K,5%R339 12Resistor(1005 size)115K,5%R336 13Resistor(1005 size)8100K,5%R310 R311 R312 R313 R314 R315 R322 R331 14Resistor(1005 size)1300K,5%R321 15Resistor(1005 size)11M,5%R325 16Resistor(1005 size)210,5%R328 R329 17Resistor(1005 size)233,5%R337 R338 18Resistor(1005 size)40,5%R324 R355 R356 R359 19Capacitor(1005 size)1C103K,10NF,16VC322 20Capacitor(1005 size)1C682K,6.8NF,25VC340 21Capacitor(1608 size)4C104Z,100NF,16VC321 C338 C361 C362 22Capacitor(1608 size)4C105Z,1UF,10VC324 C325 C334 C335 23Tantal(2012 size)61UF/16VC326 C327 C328 C333 C336 C337 24Tantal(3518 size)133UF/6.3VC339 25Inductor(1608 size)1W7786-AL310 26Switch(navigation)1HXW0768-010011SW1 27SIDE_key1MM9329-2700TB1SIDE_KEY 28Connector1AXK6F40535JCN300 29Earjack1EPJ1-5-A-D1EAR1 30Resistor(1005 size)7NCR317 R323 R330 R353 R354 R357 R358 31keypad4.016keypad0 1 2 3 4 5 6 7 8 9 CLR MENU POUND PWR/END SEND STAR 32Testpoint2TPMIC MIC+ 33WEB key1LS8WEB 34Speaker point1SDRH-1526L-032SPK1 35LCD1UG-12D-004X-DXU300 Part NameNoDescriptionsCOUNTPart Number 2. MAIN BOARD 1Diode11SS315(TPH3)D560 2Diode41SV279-TPH3D527 D528 D681 D682 3Diode1SMF05.TBZD295 4Diode1DAN202UT106D110 5Diode1UMN1D200 6Diode1RN731VD629 7Diode2BAR63-02W-E6327D631 D683 8Diode2HSMP-389F-TRD657 D659 9Transistor32SA1576FRT106Q101 Q560 Q595 10Transistor12SC4081BRT106Q628 11Transistor1MMBT2907AQ110 12Transistor2MMBT2222AWT1Q120 Q130 13Transistor1BFP540Q601 14Transistor3DTC114EE/TRQ111 Q210 Q711 15Transistor3DTC144EE/TRQ221 Q510 Q565 16Transistor1DTA144EE/TRQ260 17Transistor1SI6943DQU740 18Transistor1SI3443DV-T1Q220 19Regulator1FDC6329LU261 20Transistor4UMC5NTLQ100 Q250 U530 U550 21Gate1TC7S08FUTE85LU680 22Gate2TC7S32FUU142 U580 23Gate2TC7S04FU(TE85L)U140 U141 24EEPROM1X84256BI-2.5U131 25MEMORY1KM616U4110CLZI-7LU120 26OP AMP2LMC7101ATM5U560 U590 27Power AMP1RM912U540 28LNA(CDMA/AMPS)1RF2361TR13U630 29OP AMP1TC75W56FU-TE12LU170 30Regulator2MIC5205-3.0BM5/TRU251 U270 31Reset IC1MAX809REUR-TU221 32Regulator1ILC7082AIM5-30U260 33Regulator1TPS76928DBVRU220 34Regulator1TPS76930DBVRU250 35IFR30001IFR3000-48TQFP-MTU600 36RFT31001RFT3100-32BCCPF-MTU500 37Down Converter1RF2466TR13U640 38MSM31001MSM3100-208FBGAU100 39Thermistor1NTH5G1M33B103J04THTH581 40Resistor(1005 size)13100,5%R281 R282 R283 R284 R285 R286 R287 R289 R292 R643 R678 R705 R708 41Resistor(1005 size)131K,5%L648 R125 R126 R132 R133 R184 R185 R186 R206 R211 R228 R270 R533 42Resistor(1005 size)42.2K,5%R161 R163 R212 R274 43Resistor(1005 size)14.7K,5%R124 44Resistor(1005 size)16.2K,5%R558 45Resistor(1005 size)18.2K,5%R105 46Resistor(1005 size)1310K,5%R101 R127 R128 R151 R153 R162 R201 R223 R271 R272 R512 R681 R682 47Resistor(1005 size)112K,5%R510 48Resistor(1005 size)222K,5%R561 R601 49Resistor(1005 size)127K,5%R221 50Resistor(1005 size)130K,5%R164 51Resistor(1005 size)247K,5%R231 R675 52Resistor(1005 size)156K,5%R273 53Resistor(1005 size)268K,5%R509 R567 54Resistor(1005 size)12100K,5%R145 R171 R174 Part NameNoDescriptionsCOUNTPart Number R175 R202 R203 R207 R208 R222 R226 R564 R711 55Resistor(1005 size)1150K,5%R566 56Resistor(1005 size)2470K,5%R232 R673 57Resistor(1005 size)1510K,5%R152 58Resistor(1005 size)310,5%R505 R689 R690 59Resistor(1005 size)11.5K,5%R698 60Resistor(1005 size)1470,5%R290 61Resistor(1005 size)1750,5%R557 62Resistor(1005 size)151,5%R519 63Resistor(1005 size)1120,5%R602 64Resistor(1005 size)1820,5%R628 65Resistor(1005 size)11.2K,5%R131 66Resistor(1005 size)118K,5%R122 67Resistor(1005 size)2180K,5%R150 R154 68Resistor(1005 size)2510,5%R111 R172 69Resistor(1005 size)115,5%R603 70Resistor(1005 size)120,5%C606 71Resistor(1005 size)13.9K,5%R699 72Resistor(1005 size)151K,5%R565 73Resistor(1005 size)1390,5%R633 74Resistor(1005 size)4100K,1%R103 R560 R592 R594 75Resistor(1005 size)115K,1%R590 76Resistor(1005 size)24.7K,1%R582 R596 77Resistor(1005 size)11.2K,1%R296 78Resistor(1005 size)147K,1%R297 79Resistor(1005 size)210K,1%R529 R530 80Resistor(1005 size)2100,1%R121 R595 81Resistor(1005 size)133K,1%R581 82Resistor(1005 size)112K,1%R511 83Resistor(1005 size)120K,1%R591 84Resistor(1005 size)12.2K,1%R559 85Resistor(1005 size)1200K,1%R593 86Resistor(1005 size)191K,1%R102 87Resistor(1005 size)41.8K,1%R524 R660 R661 R683 88Resistor(1005 size)182K,1%R597 89Resistor(1005 size)470,5%L550 L570 L571 L575 L576 R104 R107 R108 R109 R113 R119 R120 R123 R134 R155 R156 R165 R173 R178 R180 R189 R253 R256 R262 R265 R277 R502 R503 R517 R518 R521 R523 R525 R538 R547 R631 R646 R667 R676 R677 R687 R694 R706 R709 R712 R724 R726 90Resistor(1005 size)19.1K,1%R295 91Capacitor(1005 size)32C101J,100PF,50VC143 C281 C283 C284 C286 C287 C288 C290 C502 C508 C514 C519 C543 C548 C549 C553 C559 C563 C565 C573 C579 C591 C592 C634 C638 C642 C678 C691 C692 C693 C724 C736 92Capacitor(1005 size)1C101J,100PF,50VC604 93Capacitor(1005 size)37C103K,10NF,16VC100 C102 C104 C106 C108 C110 C112 C114 C116 C118 C120 C122 C124 C132 C134 C146 C292 C297 C522 C581 C622 C623 C633 C636 C637 C640 C660 C661 C663 C667 C668 C670 C674 C688 C689 C690 C725 94Capacitor(1005 size)1C103K,10NF,16VC603 95Capacitor(1005 size)1C100D,10PF,50VC631 96Capacitor(1005 size)2C151J,150PF,50VC540 C555 97Capacitor(1005 size)4C150J,15PF,50VC609 C629 C682 C685 98Capacitor(1005 size)2C180J,18PF,50VC624 C625 99Capacitor(1005 size)35C102K,1NF,50VC271 C275 C504 C509 C518 C521 C526 C535 C536 C558 C568 C580 C610 C628 C650 C654 C655 C664 C669 C671 C675 C679 C680 C681 C683 C684 C695 C702 C704 C711 C712 C730 C731 C732 L557 100Capacitor(1005 size)5C010C,1PF,50VC621 C703 C729 L533 L572 101Capacitor(1005 size)4C222K,2.2NF,50VC172 C291 C294 C686 102Capacitor(1005 size)1C…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: Oct. 23-26 & Nov. 6, 2000 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.201023528.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHT300 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.6 W ERP AMPS (27.77 dBm) / 0.556 W ERP CDMA (27.45 dBm) 0.422 W EIRP PCS CDMA (26.25 dBm) Trade Name/Model(s): SAMSUNG SCH-T300, SCH-T305 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3025 W/kg AMPS Brain SAR; 0.8511 W/kg AMPS Body SAR 0.9748 W/kg CDMA Brain SAR; 0.5902 W/kg CDMA Body SAR 1.2153 W/kg PCS Brain SAR; 0.7982 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein w…

Text truncated - open the document above for the full version.
