A3LSCHW379Tri-Mode Dual-Band PCS Phone (GSM/ CDMA)

SAMSUNG ELECTRONICS * Depending on the software installed or your service provider, some of the descriptions in this manual may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this manual. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English. 11/2005. Rev. 1.0 SCH-W379User’s Manual Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press [] . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Use of authorised softwareUse only Samsung-authoriesed software. The use of any unauthoriesed software could damage your phone.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 84. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of the used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your ph one, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, []. < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu >. •GSM and CDMA network Switch back and forth between GSM and CDMA networks, anytime anywhere. Special features of your phone • Camera and camcorder Use the camera module on your phone to take a photo or record a video. •MP3 player Play MP3 music files using your phone as an MP3 player. Important safety precautions 3 • Get Personal with photo caller ID See who’s calling you when the phone displays her or his very own photo. • Name card Create name cards with your number and profile. Whenever introducing yourself to others, use this convenient name card. • Organiser Keep track of your daily and monthly schedule. • Voice recognition Just say a contact’s name to dial her/his phone number. •Dictionary Search for words using your phone. • Messenger Have a conversation with other people by sending and receiving instant messages. •Memory disk Connect your phone to a computer to copy files directly to and from it. 4 Contents Unpack 6 Make sure you have each itemGet started 6 First steps to operating your phoneInstall and charge the phone ..................................... 6Power on or off........................................................ 7Keys and display ..................................................... 8Display................................................................... 9Access menu functions ............................................ 10Customise your phone ............................................. 12Switch networks ..................................................... 13Make/Answer calls .................................................. 13Step outside the phone 14 Begin with your camera, music, WAP, and other special featuresUse camera............................................................ 14Play MP3s .............................................................. 15Browse the web...................................................... 16Use Phonebook....................................................... 17 Enter text 21 Pinyin, Stroke, ABC, T9 Word, 123, and Symbol modeCall functions 25 Advanced calling featuresMenu functions 29 Solve problems 82 Help and personal needsHealth and safety information 84 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. Some menus may not be available, depending on the network you select. 1 Calls  p.39 1 Missed2 Incoming3 Outgoing4 Air time5 GSM call costs6 Area code7 Call reject  p.39  p.40  p.40  p.40  p.40  p.41  p.41 2 Phonebook  p.41 1 Find2 Add3 Group settings4 Speed dial5 Name card6 My phone #7 Memory info8 Copy & Erase  p.41  p.42  p.43  p.43  p.44  p.45  p.45  p.45 3 Camera  p.46 1 Take photo2 My album3 Photo studio4 Settings  p.46  p.50  p.52  p.53 4 Display  p.53 1 Image box2 Banner3 Backlight4 Menu style5 Set time6 External clock7 语言/ Language 8 Dialing font  p.53  p.54  p.54  p.54  p.54  p.54  p.54  p.54 5 Mess…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






January 1, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: January 1, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHW379 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

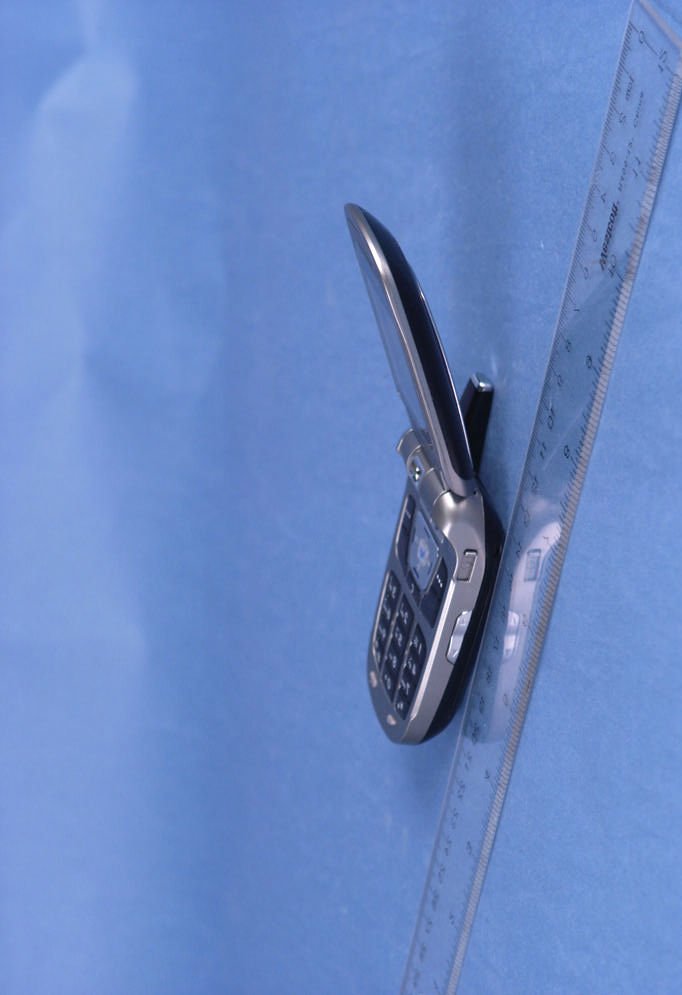

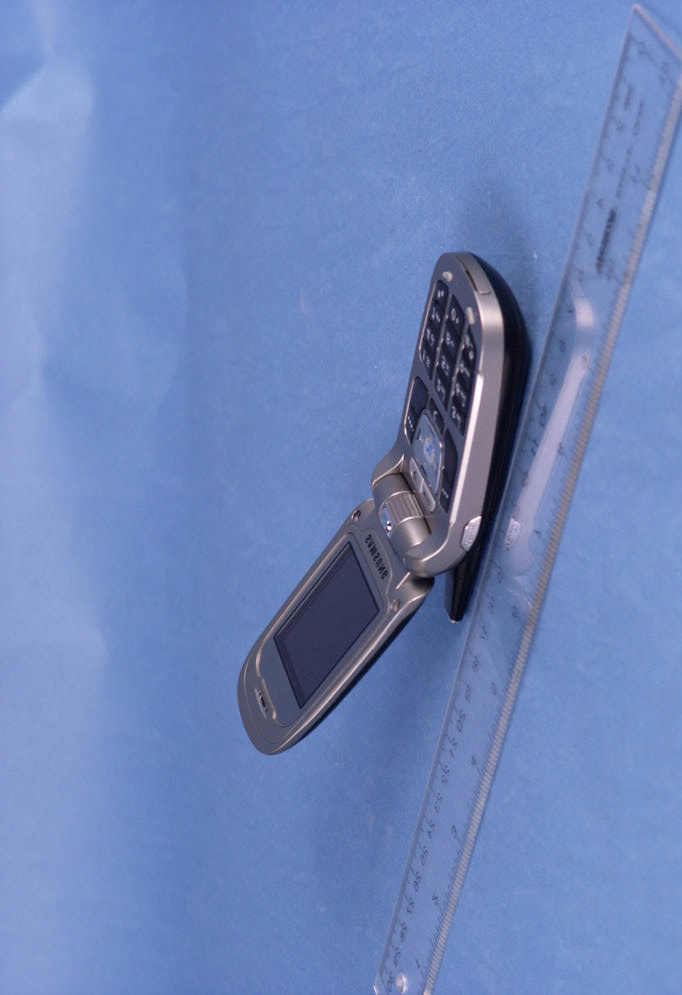

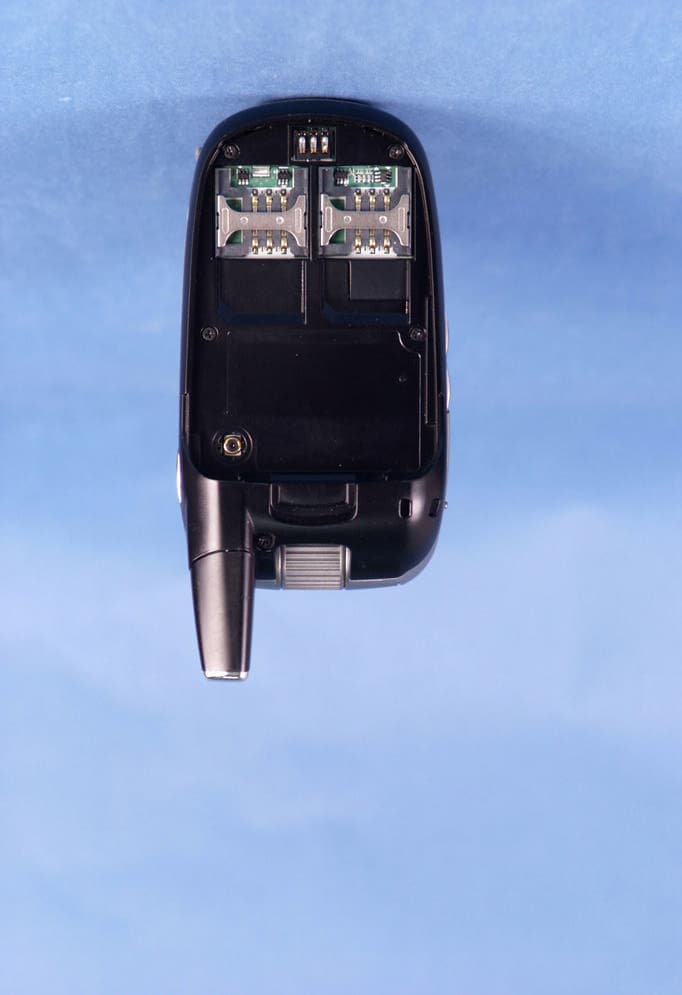

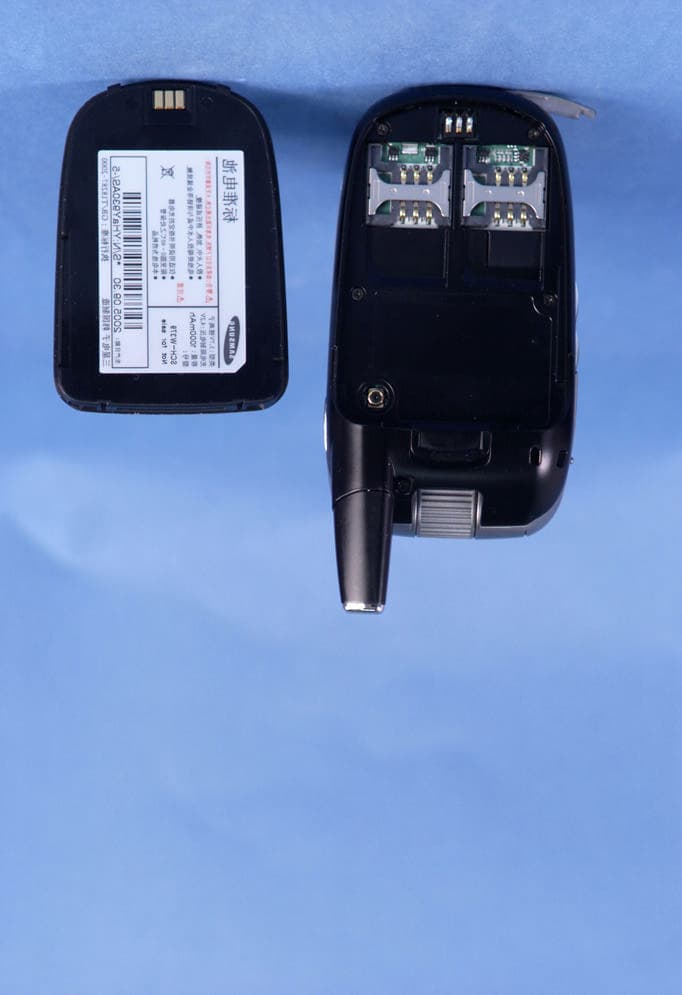

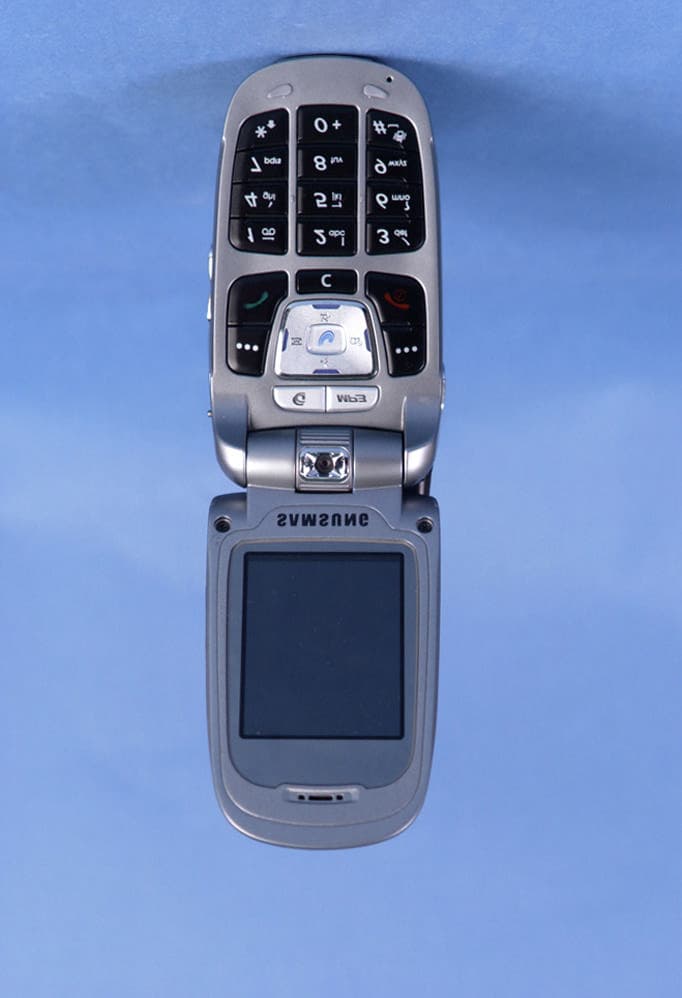

SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379

SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379 SAMSUNG FCC ID: A3LSCHW379 EUT Photographs © 2005 PCTEST Lab. Tri-Mode Dual-Band CDMA/GSM Phone Model: SCH-W379

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: 0511100780 Test Dates: December 22-23, 2005 Phone Type: Tri-Mode Dual- Band PCS Phone (GSM/ CDMA) FCC ID: A3LSCHW379 Page 1 of 35 © 2005 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: December 22-23, 2005 18600 Broadwick Street Test Report S/N: 0511100780 Rancho Dominguez, CA 90220 Test Site: PCTEST Lab, Columbia MD FCC ID: A3LSCHW379 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Tri-Mode Dual-Band PCS Phone (GSM/CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA)/1851.25 – 1908.75 MHz (PCS CDMA)/ 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA)/ 130.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 0.421 ERP CDMA (26.243 dBm) / 25.0 dBm Conducted 0.401 EIRP PCS CDMA (26.031 dBm) / 25.0 dBm Conducted 1.162 EIRP GSM1900 (30.651 dBm) / 30.0 dBm Conducted Max. SAR Measurement: 1.120 W/kg CDMA Head SAR; 0.602 W/kg CDMA Body SAR; 1.070 W/kg PCS CDMA Head SAR; 0.210 W/kg PCS CDMA Body SAR; 0.272 W/kg GSM1900 Head SAR; 0.058 W/kg GSM1900 Body SAR Trade Name/Model(s): SCH-W379 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #FC-148-D] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is limited to the specific holster/belt clip tested for this filing. End-users must be informed of the body- worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: 0511100780 Test Dates: December 22-23, 2005 Phone Type: Tri-Mode Dual- Band PCS Phone (GSM/ CDMA) FCC ID: A3LSCHW379 Page 2 of 35 © 2005 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION......................................................................................3 2. SAR MEASUREMENT SETUP.................................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.............................................................................................5 4. PROBE CALIBRATION PROCESS............................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS...................................................................................10 9. TEST CONFIGURATION POSITIONS.....................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.......................................................................14 11. MEASUREMENT UNCERTAINTIES.......................................................................................15 12. SYSTEM VERIFICATION.....................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17-32 15. SAR TEST EQUIPMENT..............................................................................................33 16. CONCLUSION.................................................................................................................34 17. REFERENCES...................................................................................................................35 PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: 0511100780 Test Dates: December 22-23, 2005 Phone Type: Tri-Mode Dual- Band PCS Phone (GSM/ CDMA) FCC ID: A3LSCHW379 Page 3 of 35 © 2005 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engi…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SCH-W379; Type: Tri Mode Phone; Serial: FC-148-D Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.53, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-22-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Right Head, Touch, Ch.0777, Fixed Antenna, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.1 V/m Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.737 mW/g 0 dB = 1.31mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SCH-W379; Type: Tri Mode Phone; Serial: FC-148-D Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.53, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-22-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Right Head, Tilt, Ch.0384, Fixed Antenna, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.4 V/m Peak SAR (extrapolated) = 0.304 W/kg SAR(1 g) = 0.239 mW/g; SAR(10 g) = 0.183 mW/g 0 dB = 0.262mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SCH-W379; Type: Tri Mode Phone; Serial: FC-148-D Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.53, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-22-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Left Head, Touch, Ch.0777, Fixed Antenna, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.9 V/m Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.757 mW/g 0 dB = 1.31mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SCH-W379; Type: Tri Mode Phone; Serial: FC-148-D Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.53, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-22-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Left Head, Tilt, Ch.0384, Fixed Antenna, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.94 V/m Peak SAR (extrapolated) = 0.312 W/kg SAR(1 g) = 0.241 mW/g; SAR(10 g) = 0.181 mW/g 0 dB = 0.267mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SCH-W379; Type: Tri Mode Phone; Serial: FC-148-D Communication System: PCS CDMA; Frequency: 1908.75 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.45 mho/m, ε r = 40.42, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-22-2005; Ambient Temp: 23.2° C; Tissue Temp: 21.3 °C Probe: EX3DV4 - SN3561; ConvF(7.04, 7.04, 7.04); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Right Head, Touch, Ch.1175, Fixed Antenna, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m Peak SAR (extrapolated) = 1.84 W/kg SAR(1 g) = 1.02 mW/g; SAR(10 g) = 0.556 mW/g 0 dB = 1.24mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SCH-W379; Type: Tri Mode Phone; Serial: FC-148-D Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.45 mho/m, ε r = 40.42, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12 -22-2005; Ambient Temp: 23.2° C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN3561; ConvF(7.04, 7.04, 7.04); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Right Head, Tilt, Ch.0600, Fixed Antenna, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.3 V/m Peak SAR (extrapolated) = 0.335 W/kg SAR(1 g) = 0.205 mW/g; SAR(10 g) = 0.117 mW/g 0 dB = 0.246mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Samsung SCH-W379; Type: Tri Mode Phone; Serial: FC-148-D Communication System: PCS CDMA; Frequency: 1908.75 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.45 mho/m, ε r = 40.42, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-22-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.3°C…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 0511100779 Test Dates: December 27-30, 2005 Phone Type: Tri-Mode Dual- Band CDMA/ GSM FCC ID: A3LSCHW379 Page 1 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: December 27-30, 2005 18600 Broadwick Street Test Report S/N: 0511100779 Rancho Dominguez, CA 90220 Test Site: PCTEST Lab, Columbia MD FCC ID A3LSCHW379 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Tri-Mode Dual-Band PCS Phone (GSM/CDMA) Model: SCH-W379 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.421 W ERP CDMA (26.243 dBm) / 25.0 dBm Conducted 0.401 W EIRP PCS CDMA (26.031 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.120 W/kg CDMA Head SAR; 0.602 W/kg CDMA Body SAR; 1.070 W/kg PCS CDMA Head SAR; 0.210 W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No.: Identical Prototype [S/N: #FC-148-D] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24 SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 0511100779 Test Dates: December 27-30, 2005 Phone Type: Tri-Mode Dual- Band CDMA/ GSM FCC ID: A3LSCHW379 Page 2 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: TEST REPORT ATTACHMENT C: ATTESTATION STATEMENT(S) 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 DESCRIPTION OF TESTS 5-8 4.1 EFFECTIVE RADIATED POWER OUTPUT 9 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 6.1 RADIATED MEASUREMENTS 11-16 7.1 FREQUENCY STABILITY 17-20 8.1 PLOTS OF EMISSIONS 21 9.1 LIST OF TEST EQUIPMENT 22 10.1 SAMPLE CALCULATIONS 23 11.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 0511100779 Test Dates: December 27-30, 2005 Phone Type: Tri-Mode Dual- Band CDMA/ GSM FCC ID: A3LSCHW379 Page 3 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 18600 Broadwick Street Rancho Dominguez, CA 90220 • FCC ID: A3LSCHW379 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.421 W ERP CDMA (26.243 dBm) / 25.0 dBm Conducted 0.401 W EIRP PCS CDMA (26.031 dBm) / 25.0 dBm Conducted • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band CDMA/ PCS GSM Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: December 27-30, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0511100779 PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 0511100779 Test Dates: December 27-30, 2005 Phone Type: Tri-Mode Dual- Band CDMA/ GSM FCC ID: A3LSCHW379 Page 4 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according t…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 2-0511100779 Test Dates: DEC. 27-30, 2005 Phone Type: Tri-Mode Dual-Band PCS Phone (GSM/CDMA) FCC ID: A3LSCHW379 Page 1 of 18 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: December 27-30, 2005 18600 Broadwick Street Test Report S/N: 2-0511100779 Rancho Dominguez, CA 90220 Test Site: PCTEST Lab, Columbia MD FCC ID A3LSCHW379 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E) EUT Type: Tri-Mode Dual-Band PCS Phone (GSM/ CDMA) Model: SCH-W379 Tx Frequency Range: 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.162 W EIRP GSM1900 (30.651 dBm) Max. SAR Measurement: PCS GSM: 0.272 W/kg Head SAR, 0.058 W/kg Body SAR Emission Designator(s): 295KGXW Test Device Serial No. : Identical Prototype [S/N: #FC-148-D] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measure…

Text truncated - open the document above for the full version.
