A3LSCHX839Single-Mode Cellular Phone (CDMA)

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Sep 02, 2004
Application Purpose: Original Equipment
Date of Application: Sep 02, 2004
Equipment Note: Single-Mode Cellular Phone (CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

* Some of the contents in this manu al may differ from your phone, depending on the software installed or your service provider. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No. : GH68-05542A English. 08/2004. Rev.1.0 ELECTRONIC S PORTABLE CELLULAR TELEPHONE SCH-X839 3 Table of contentsImportant safety precautions ................................. 7Unpacking .............................................................. 9Your phone ........................................................... 10Phone layout ........................................................... 10Display................................................................... 13Backlight ................................................................ 15Service light............................................................ 15Camera .................................................................. 15Flash...................................................................... 16Getting started ..................................................... 17Using a battery........................................................ 17Switching on or off the phone.................................... 20Using the soft keys .................................................. 22Your phone’s modes................................................. 23Call functions........................................................ 25Making a call........................................................... 25Ending a call ........................................................... 26Emergency dialing ................................................... 26Using the recent call logs .......................................... 27Making a call from Phonebook ................................... 27Prepend dialing ....................................................... 28Speed dialing .......................................................... 29Pause dialing........................................................... 29Adjusting the volume during a call ............................. 31Answering a call ...................................................... 33Silencing an incoming call ......................................... 33Rejecting a call........................................................ 34Viewing missed calls ................................................ 34Options during a call ................................................ 34Three-way calling .................................................... 35Call waiting............................................................. 36Call forwarding ........................................................ 36Entering text ........................................................ 37Changing the text input mode ................................... 37 Table of contents 4 Using T9 Word, T9 Hebrew mode ............................... 38Using ABC, Hebrew mode ......................................... 40Using Symbol mode ................................................. 43Using 123 mode ...................................................... 43Using the menus................................................... 44Accessing a menu function by scrolling ....................... 44Using shortcuts ....................................................... 45List of menu functions .............................................. 46Calls ..................................................................... 51Missed (Menu 1-1) .................................................... 51 Incoming (Menu 1-2) ................................................ 52 Outgoing (Menu 1-3) ................................................. 53 Air Time (Menu 1-4) .................................................. 53 Phonebook............................................................ 54Find (Menu 2-1) ....................................................... 54 Add (Menu 2-2) ........................................................ 57 Group Set (Menu 2-3) ............................................... 61 My Phone # (Menu 2-4) ............................................. 62 Message ............................................................... 63Text Msg (Menu 3-1) ................................................. 63 MMS (Menu 3-2) ....................................................... 68 Voice mail (Menu 3-3) ............................................... 73 Msg Setup (Menu 3-4) ............................................... 74 Scheduler ............................................................. 78Calendar (Menu 4-1) ................................................. 78 Alarm Set (Menu 4-2) ............................................... 81 Calculator (Menu 4-3) ............................................... 82 Today (Menu 4-4) ..................................................... 82 To Do List (Menu 4-5) ............................................... 83 World Time (Menu 4-6) ............................................. 84 Countdown (Menu 4-7) .............................................. 85 Memo Pad (Menu 4-8) ............................................... 86 Games .................................................................. 87ChickenRun (Menu 5-1) ............................................. 88 MobileCop (Menu 5-2) ............................................... 88 Voice Tools ........................................................... 90 Table of contents 5 Voice Memo (Menu 6-1) ............................................. 90 Voice Answer (Menu 6-2) ............................................ 92 Settings ................................................................ 95Sounds (Menu 7-1) .................................................... 95 Display (Menu 7-2) ................................................... 99 Auto Retry (Menu 7-3) ............................................ 103 Answer Mode (Menu 7-4) ......................................... 103 Roam Option (Menu 7-5) ........................................…

Text truncated - open the document above for the full version.

Attestation Statements

August 23, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHX839 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America August 23, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID: A3LSCHX839 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

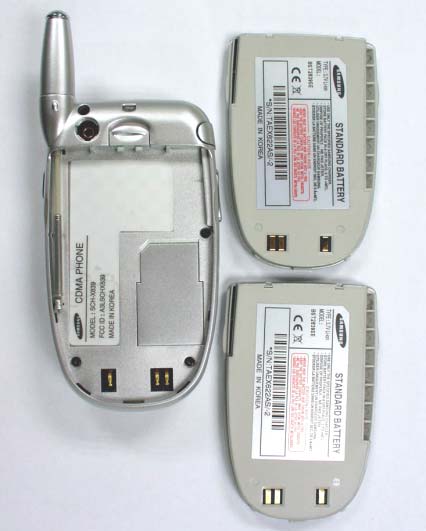

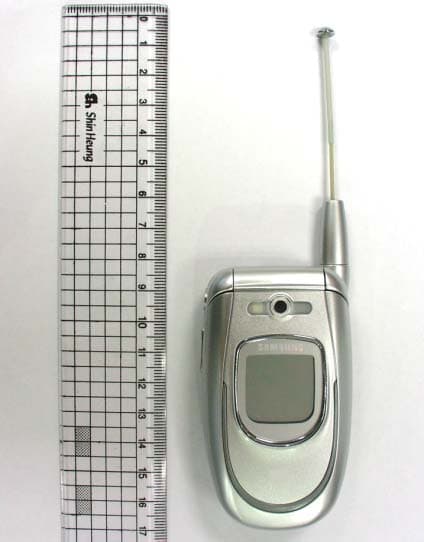

External Photos

Internal Photos

RF Exposure Info

1 of 25 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SCH-X839 FCC ID (Requested): A3LSCHX839 Job No: FB-046 Report No: FB-046-S1 Date issued: Aug. 19, 2004 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date JH NAM – Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI – Senior Manager Report Number : FB-046-S1 2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(Cellular CDMA Right Head SAR-Touch)....................................19 8.2 Measurement Results(Cellular CDMA Right Head SAR-Tilt)..........................................20 8.3 Measurement Results(Cellular CDMA Left Head SAR-Touch)........................................21 8.4 Measurement Results(Cellular CDMA Left Head SAR-Tilt)............................................22 8.5 Measurement Results(Cellular CDMA Body SAR w/o Holster).......................................23 9. Conclusion.......................................................................................................24 10. Reference.......................................................................................................25 Report Number : FB-046-S1 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone (CDMA) Model Number : SCH-X839 Serial Number : Identical prototype ( S/N : FB-046-E ) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : YJ LEE, Engineer Phone : +82-31-279-7103 Fax : +82-31-279-6433 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Non-Broadcast Transmitter held to ear (TNE) Test Dates : Aug. 12, 2004 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 – 848.31 MHz (CDMA) Rx Freq. Range : 869.70 – 893.31 MHz (CDMA) Max. RF Output Power : 0.356 W ERP CDMA (25.51 dBm) Antenna Manufacturer : ACE Model No.: SCH-X839 Antenna Dimensions : 20.5mm/ 75.4mm Report Number : FB-046-S1 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the measurement server Report Number : FB…

Text truncated - open the document above for the full version.

RF Exposure Info

SAMSUNG FCC ID : A3LSCH-X839 -- 835MHz CDMA Head SAR DUT: SCH-X839; Serial: FB-046-E Program Name: SCH-X839 CDMA Right (Job No.: FB-046) Procedure Name: Cheek/Touch, Ch.1013, Ant.In, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.6;Test Date-12/Aug./2004[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 824.7 MHz; σ = 0.87 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(6.54, 6.54, 6.54); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek/Touch, Ch.1013, Ant.In, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 7.49 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 1.54 mW/g Cheek/Touch, Ch.1013, Ant.In, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.49 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 1.44 mW/g Peak SAR (extrapolated) = 2.04 W/kg SAR(1 g) = 1.35 mW/g 0 dB = 1.44mW/g SAMSUNG FCC ID : A3LSCH-X839 -- 835MHz CDMA Head SAR DUT: SCH-X839; Serial: FB-046-E Program Name: SCH-X839 CDMA Right (Job No.: FB-046) Procedure Name: Tilt, Ch.0363, Ant.In, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.6;Test Date-12/Aug./2004[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835.89 MHz; σ = 0.87 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(6.54, 6.54, 6.54); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilt, Ch.0363, Ant.In, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 7.7 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 0.236 mW/g Tilt, Ch.0363, Ant.In, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.7 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.230 mW/g Peak SAR (extrapolated) = 0.288 W/kg SAR(1 g) = 0.219 mW/g 0 dB = 0.230mW/g SAMSUNG FCC ID : A3LSCH-X839 -- 835MHz CDMA Head SAR DUT: SCH-X839; Serial: FB-046-E Program Name: SCH-X839 CDMA Left (Job No.: FB-046) Procedure Name: Cheek/Touch, Ch.1013, Ant.In, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.6;Test Date-12/Aug./2004[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 824.7 MHz; σ = 0.87 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(6.54, 6.54, 6.54); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek/Touch, Ch.1013, Ant.In, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 6.89 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 1.2 mW/g Cheek/Touch, Ch.1013, Ant.In, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.89 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 1.12 mW/g Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.07 mW/g 0 dB = 1.12mW/g SAMSUNG FCC ID : A3LSCH-X839 -- 835MHz CDMA Head SAR DUT: SCH-X839; Serial: FB-046-E Program Name: SCH-X839 CDMA Left (Job No.: FB-046) Procedure Name: Tilt, Ch.0363, Ant.In, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.6;Test Date-12/Aug/2004[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835.89 MHz; σ = 0.87 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(6.54, 6.54, 6.54); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilt, Ch.0363, Ant.In, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 7.6 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 0.243 mW/g Tilt, Ch.0363, Ant.In, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.6 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.222 mW/g Peak SAR (extrapolated) = 0.271 W/kg SAR(1 g) = 0.215 mW/g 0 dB = 0.222mW/g SAMSUNG FCC ID : A3LSCHX839 -- 835MHz CDMA Body SAR DUT: SCH-X839 (Body); Serial: FB-046-E Program Name: SCH-X839 CDMA Body (Job No.: FB-046) Procedure Name: Body, Ch.1013, Ant.Out, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.9;Test Date-12/Aug/2004[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 824.7 MHz; σ = 0.95 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(6.34, 6.34, 6.34); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: S…

Text truncated - open the document above for the full version.

RF Exposure Info

835MHz Brain Dipole Validation DUT: Dipole 835 MHz; Serial: 451 Program Name: 835MHz Diploe Validation 2004.08.12 Procedure Name: 835MHz @ 250mW Procedure Notes: Meas.Tissue Temp(celsius)-20.6;Test Date-12/Aug/2004[OET Bulletin 65- Supplement C, July 2001] Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.87 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(6.54, 6.54, 6.54); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1247 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 835MHz @ 250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 57.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 2.64 mW/g 835MHz @ 250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.7 mW/g Peak SAR (extrapolated) = 3.87 W/kg SAR(1 g) = 2.47 mW/g 0 dB = 2.7mW/g

RF Exposure Info

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHX839 Single-Mode Cellular Phone (CDMA)

Test Report

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-X839 FCC ID (Requested): A3LSCHX839 Report No: FB-046-R1 Job No: FB-046 Date issued: August 19, 2004 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22. Prepared By Date WW JANG – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2004 Report Number : FB-046-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Radiated Spurious & Harmonic Measurement 14 6.3 Radiated Spurious & Harmonic Conversion Table 15 6.4 Frequency Stability 16 6.4.1 Frequency Stability Table 16 6.4.2 Frequency Stability Graph 17 7.SAMPLE CALCULATION 19 7.1 Emission Designator 19 8. CONCLUSION 20 9. TEST PLOTS21 Report Number : FB-046-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtong-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSCHX839 Quantity: Quantity production is planned Emission Designators: 1M25F9W Tx Freq. Range: 824.70-848.31MHz Rx Freq. Range: 869.70-893.31 MHz Max. Power Rating: 0.356 W ERP CDMA( 25.51 dBm) FCC Classification(s): Non-Broadcast Transmitter held to ear (TNE) Equipment (EUT) Type: Single modulation CDMA Phone Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 22(H), Dates of Test: August.12, 16-17, 2004 Place of Test: SAMSUNG Lab, Test Report S/N: FB-046-R1 Report Number : FB-046-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu,, Suwon City, Gyeonggi-Do, KOREA 442- 600 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-046-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FB-046-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2004-09-15 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-11-10 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2005-07-31 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 HF906 360306/011 2005-03-11 Horn Antenna HF906 100134 2005-05-02 3121C-DB4 9007-587 2004-10-21 Dipole Antenna 3121C-DB4 9007-588 2004-10-21 Receive Antenna HL040 353255/020 2005-06-07 8494A 3308A31997 2005-01-17 Attenuator 8496A 3308A14426 2005-01-17 4278-311-2 B3679637 2005-01-14 Directional Coupler 4278-111-2 B103DC8722 2005-01-14 WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Semi-Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FB-046-R1 5. DESCRIPTION OF TESTS 5.1 Effective Radiated Power Test Set-up for the ERP/EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a Non-conducted turntable 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, an average detector is used, with RBW=VBW=3MHz, SPAN=10MHz. A half-wave dipole was substituted in p…

Text truncated - open the document above for the full version.

Test Setup Photos

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

SAMSUNG ELECTRONICS CO., LTD.No Cheon Park

[email protected]82-31-200-2185Fax: 82-31-200-2189

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824.7 MHz - 848.31 MHz	356.00 mW	1M25F9W	2.5000000000 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values are Head: 1.35 W/kg: Body-worn: 1.34 W/kg.
