A3LSCX3405FWMono Laser Printer

BASIC User’s Guide SCX-340x/340xW Series SCX-340xF/340xFW Series SCX-340xFH/340xHW Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 5 Features by models 7 Useful to know 13 About this user’s guide 14 Safety information 15 Machine overview 20 Control panel overview 24 Turning on the machine 29 Installing the driver locally 30 Reinstalling the driver 31 2. Menu Overview and Basic SetupMenu overview 33 Machine’s basic settings 38 Media and tray 40 Basic printing 52 Basic copying 58 Basic scanning 63 Basic faxing 64 3. MaintenanceOrdering supplies and accessories 69 Available supplies 70 Available maintenance parts 71 Storing the toner cartridge 72 Redistributing toner 74 Replacing the toner cartridge 76 Monitoring the supplies life 78 Setting the toner low alert 79 Cleaning the machine 80 Tips for moving & storing your machine 86 4. TroubleshootingTips for avoiding paper jams 88 Clearing original document jams 89 Clearing paper jams 94 Understanding the status LED 98 Understanding display messages 100 3 BASIC 5. AppendixSpecifications 106 Regulatory information 116 Copyright 129 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 • Features by models 7 • Useful to know 13 • About this user’s guide 14 • Safety information 15 • Machine overview 20 • Control panel overview 24 • Turning on the machine 29 • Installing the driver locally 30 • Reinstalling the driver 31 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 56). • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 228). • To save paper, you can print on both sides of the paper (double-sided printing) (Manual) (see "Using advanced print features" on page 228). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. - For single-side printing, 20 ppm (A4) or 21 ppm (Letter). Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard G (see "Easy Capture Manager" on page 267). • Samsung Easy Printer Manager and Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 276 or "Using Smart Panel" on page 278). • AnyWeb Print helps you screen-captu re, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 268). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. • If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 109). • Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 228). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 228). • You can print in various operating systems (see "System requirements" on page 112). • Your machine is equipped with a USB interface and/or a network interface. Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button - You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). • Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable. • Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 157. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (  : Included, Blank: Not available) Software Operating System SCX-340x Series SCX-340xW Series SCX-340xF Series SCX-340xFW Series SCX-340xHW Series SCX-340xFH Series Windows   Macintosh   Linux   Unix Software SCX-340x Series SCX-340xW Series SCX-340xF Series SCX-340xFW Series SCX-340xHW Series SCX-340xFH Series SPL printer driver   PCL printer driver Features by models PS printer driverXPS printer driver a   Direct Printing UtilitySamsung Easy Printer Manager Scan to PC settings   Fax to PC settings  Device Settings   Samsung Printer Status   Smart Panel   AnyWeb Print   SyncThru™ Web Service  (SCX-340xW Series only)  (SCX-340xFW/ SCX-340xHW Series only) SyncThru Admin Web Service  (SCX-340xW Series only)  (SCX-340xFW/ SCX-340xHW Series only) Easy Eco Driver   Fax Samsung Network PC Fax  Software SCX-340x Series SCX-340xW Series SCX-340xF Series SCX-340xFW Series SCX-340xHW Series SCX-340xFH Series Features by models 9 1. Introduction (  : Included, Blank: Not available) Scan Twain scan driver   WIA scan driver   Samsung Scan Assistant   SmarThru 4SmarThru Office   a. For XPS driver, it is only …

Text truncated - open the document above for the full version.

Wireless network setup 161 2. Using a Network-Connected Machine Machines without a display screenConnecting in PBC mode 1 Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router). 2 Press the WPS (PBC) button on the access point (or wireless router). a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router). b When the machine is successfully connected to the wireless network, the WPS LED light stays on. Connecting in PIN mode 1 The network configuration report, including PIN, must be printed (see "Printing a network configuration report" on page 141).In ready mode, press and hold the ( Cancel or Stop/Clear ) button on the control panel for about 5 seconds. You can find your machine’s PIN. 2 Press and hold the (WPS) button on the control panel for more than 4 seconds until the status LED stays on.The machine starts connecting to the access point (or wireless router). 3 You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The LED blinks slowly for up to two minutes until you enter the eight-digit PIN.The WPS LED blinks in the order below: a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router). b When the machine is successfully connected to the wireless network, the WPS LED light stays on. Re-connecting to a networkWhen the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address. In the following cases, the machine automatically re-connects to the wireless network:• The machine is turned off and on again. • The access point (or wireless router) is turned off and on again. Wireless network setup 162 2. Using a Network-Connected Machine Canceling the connection processTo cancel the wireless network connection when the machine is connecting to the wireless network, press and release the ( Cancel or Stop/Clear ) on the control panel. You need to wait 2 minutes to re-connect to the wireless network. Disconnecting from a networkTo disconnect the wireless network connection, press the (WPS) button on the control panel for more than two seconds.• When the Wi-Fi network is in idle mode: The machine is immediately disconnected from the wireless network and the WPS LED turns off. • When the Wi-Fi network is being used: While the machine waits until the current job is finished, the light blinks fast on the WPS LED. Then, the wireless network connection is automatically disconnected and the WPS LED turns off. 15 Using the menu button Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 33). Before starting, you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network. After completing the wireless network connection, you need to install a machine driver to print from an applicati on (see "Installing driver over the network" on page 144). 1 Press the ( Menu ) button on the control panel. 2 Press Network > Wireless > WLAN Settings . Wireless network setup 163 2. Using a Network-Connected Machine 3 Press the OK to select the setup method you want. • Wizard (recommended) : In this mode, the setup is automatic. The machine will display a list of available networks from which to choose. After a network is chosen then printer will prompt for the corresponding security key. • Custom: In this mode, users can give or edit manually their own SSID , or choose the security option in detail. 16 Setup using Windows Shortcut to the Wireless Setting program without the CD: If you have installed the printer driver once, you can access the Wireless Setting program without the CD. From the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Wireless Setting Program . Access point via USB cableItems to prepare• Access point • Network-connected computer • Software CD that was provided with your machine • A machine installed with a wireless network interface • USB cable Creating the infrastructure network 1 Check whether the USB cable is connected to the machine. 2 Turn on your computer, access point, and machine. 3 Insert the supplied software CD into your CD-ROM drive. 4 Select the Wireless Setting and Installation option. 5 Read the License Agreement , and select I accept the terms of the License Agreement . Then, click Next . 6 The software searches the wireless network.If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instructions in the window. Wireless network setup 164 2. Using a Network-Connected Machine • If wireless network set up has been set before, the Wireless Network Setting Information window appears. If you want to reset the wireless settings, check the check box and click Next . • For models that support the WPS button (without a USB cable connection), the window shown below will appear.- With a USB Cable : Connect the USB cable and click Ne xt, then go to step 7. - Using the WPS button : See "Access point via WPS button (without a USB cable connection)" on page 167. 7 Select the method to use from the wireless set up method window.• Configure the wireless settings manually. : Go to step 8. • Configure the wireless settings by pressing the WPS button on the access point. : Connect to the wireless network by press the WPS button on the a…

Text truncated - open the document above for the full version.

ClocksFreq.ClocksFreq. Main12MHzVideo23.571MHz CPU433MHzDDR2300MHz USB12MHzCIS4MHz

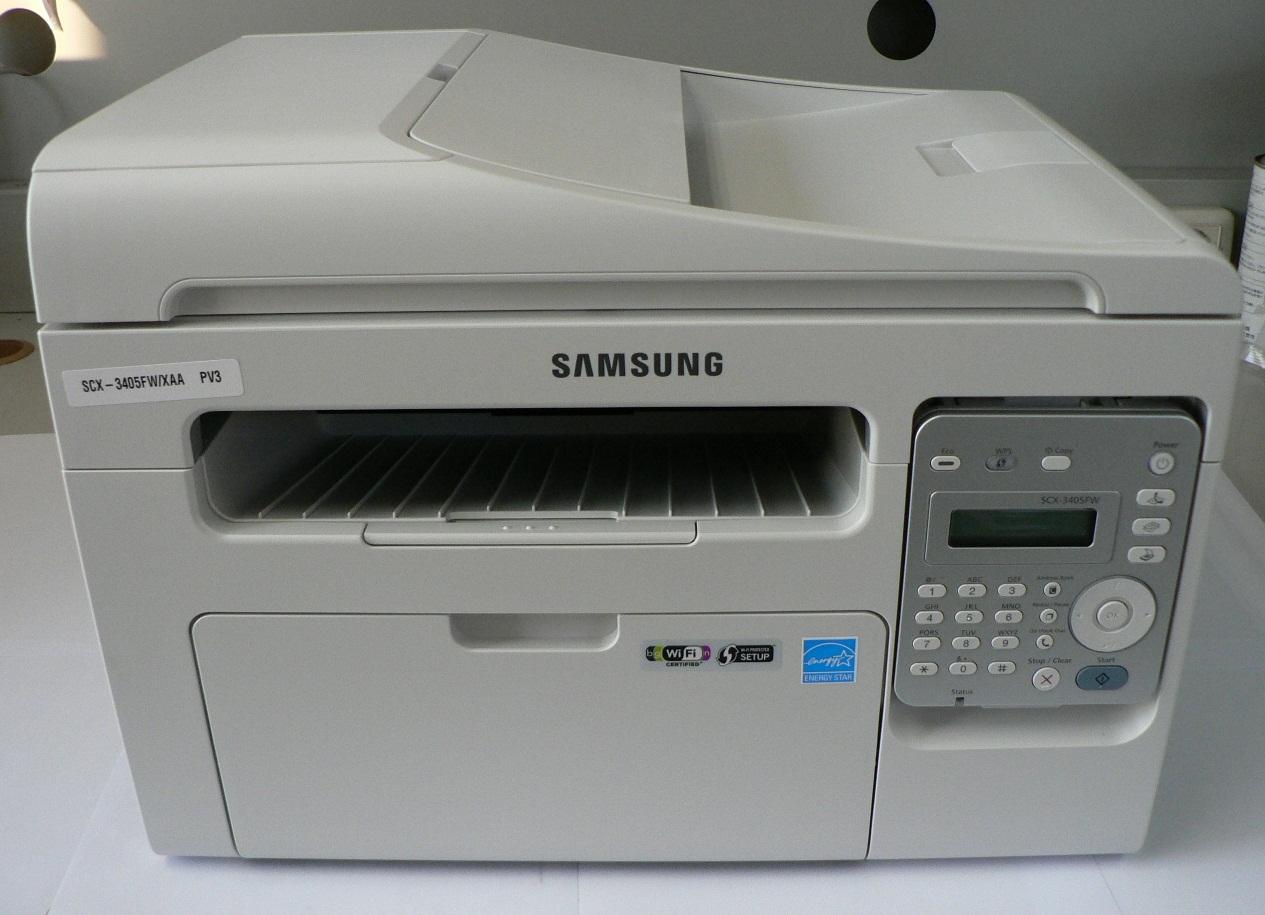

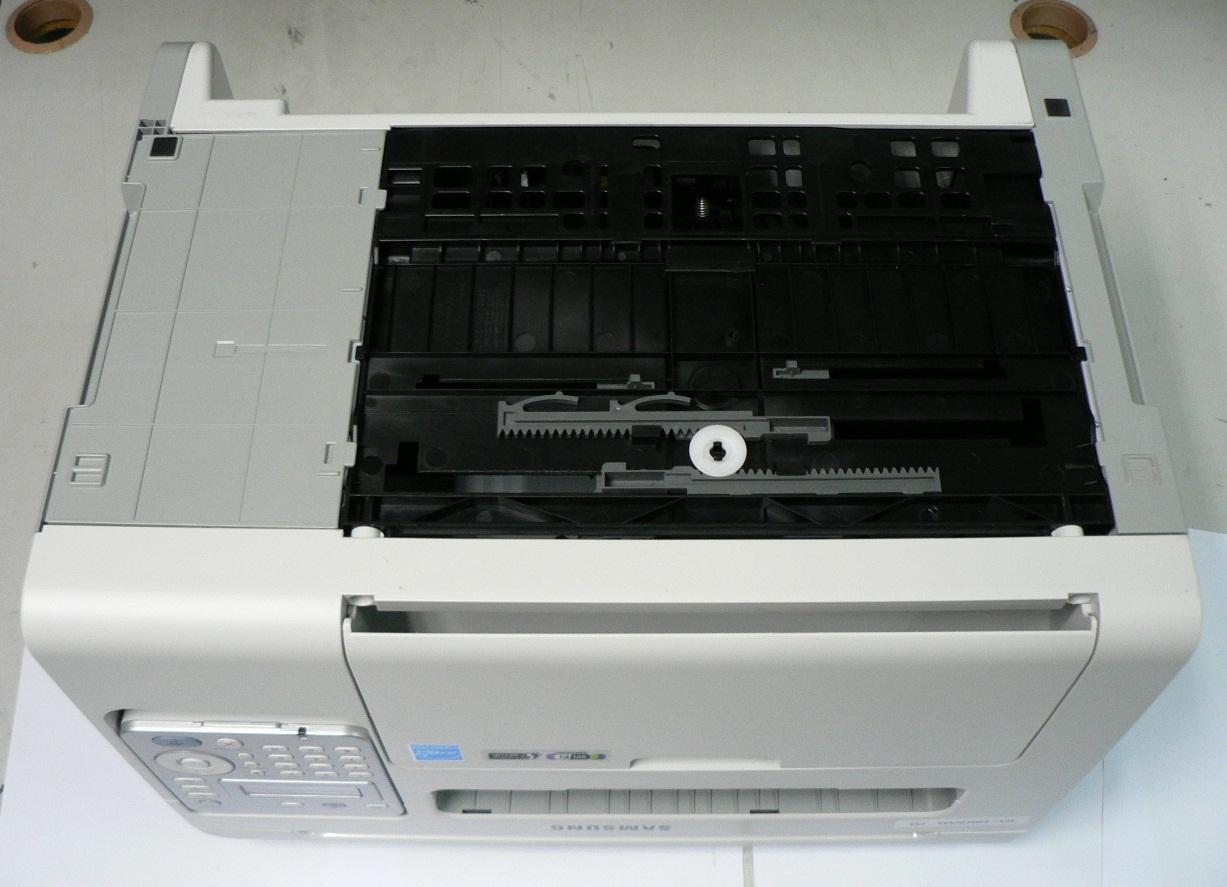

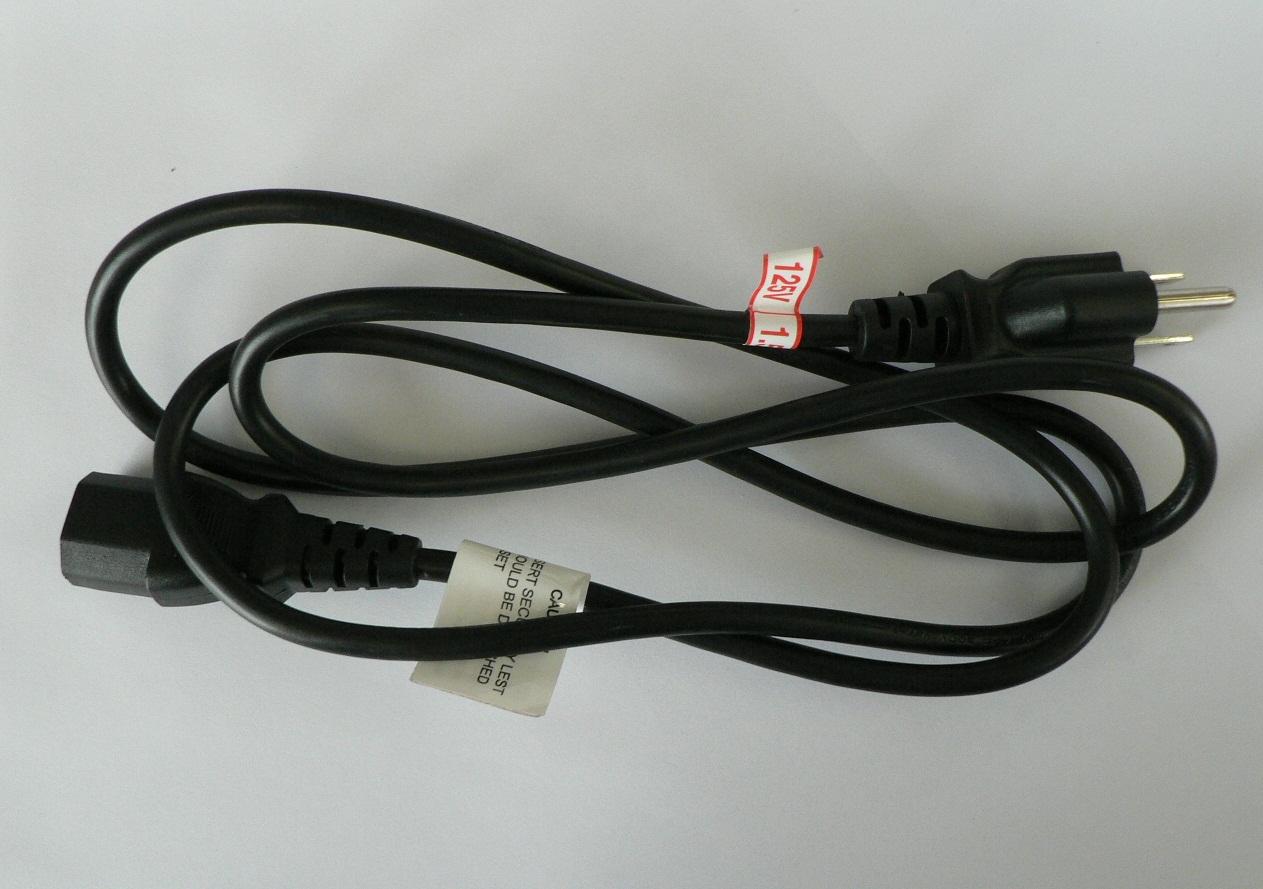

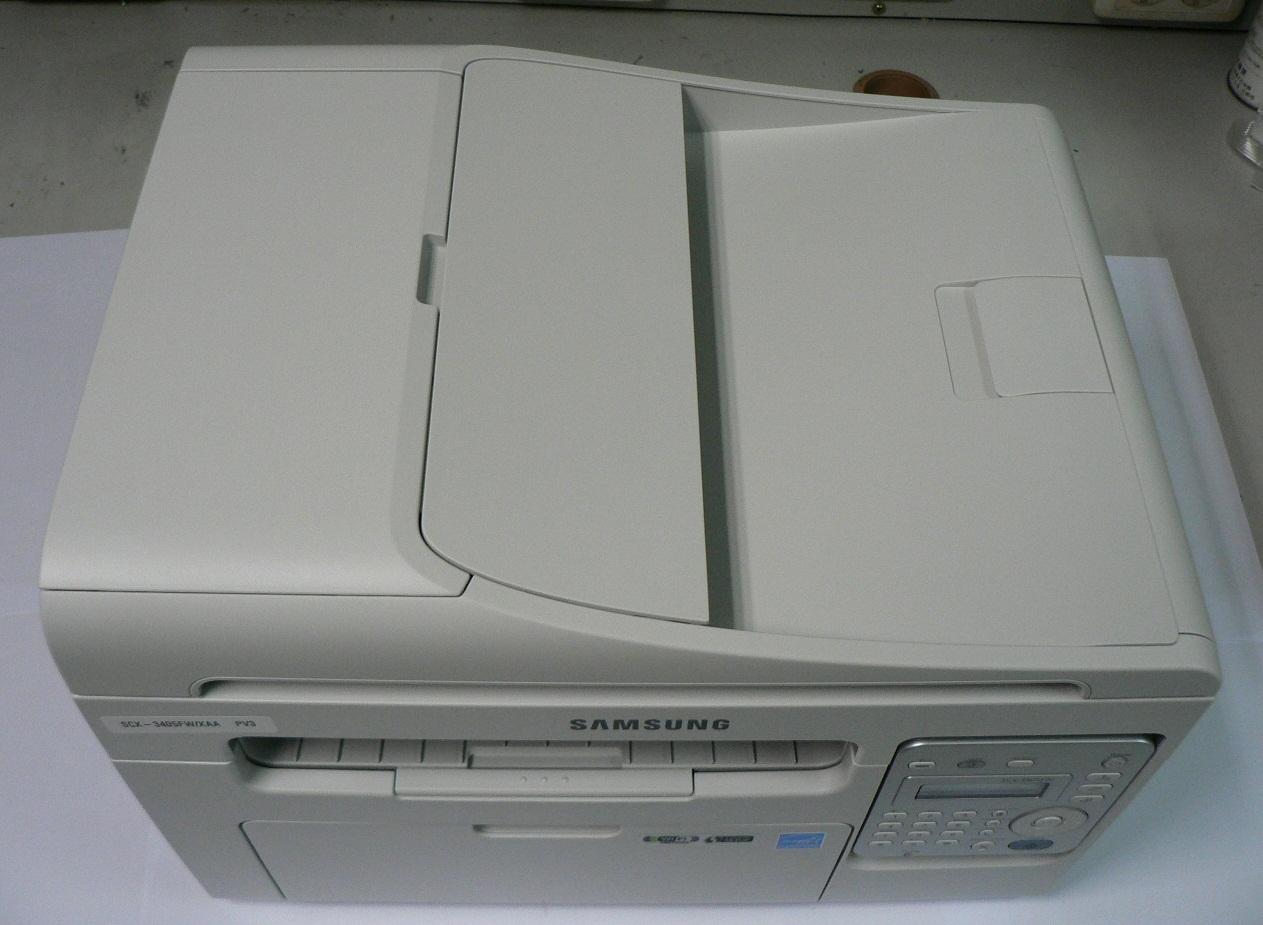

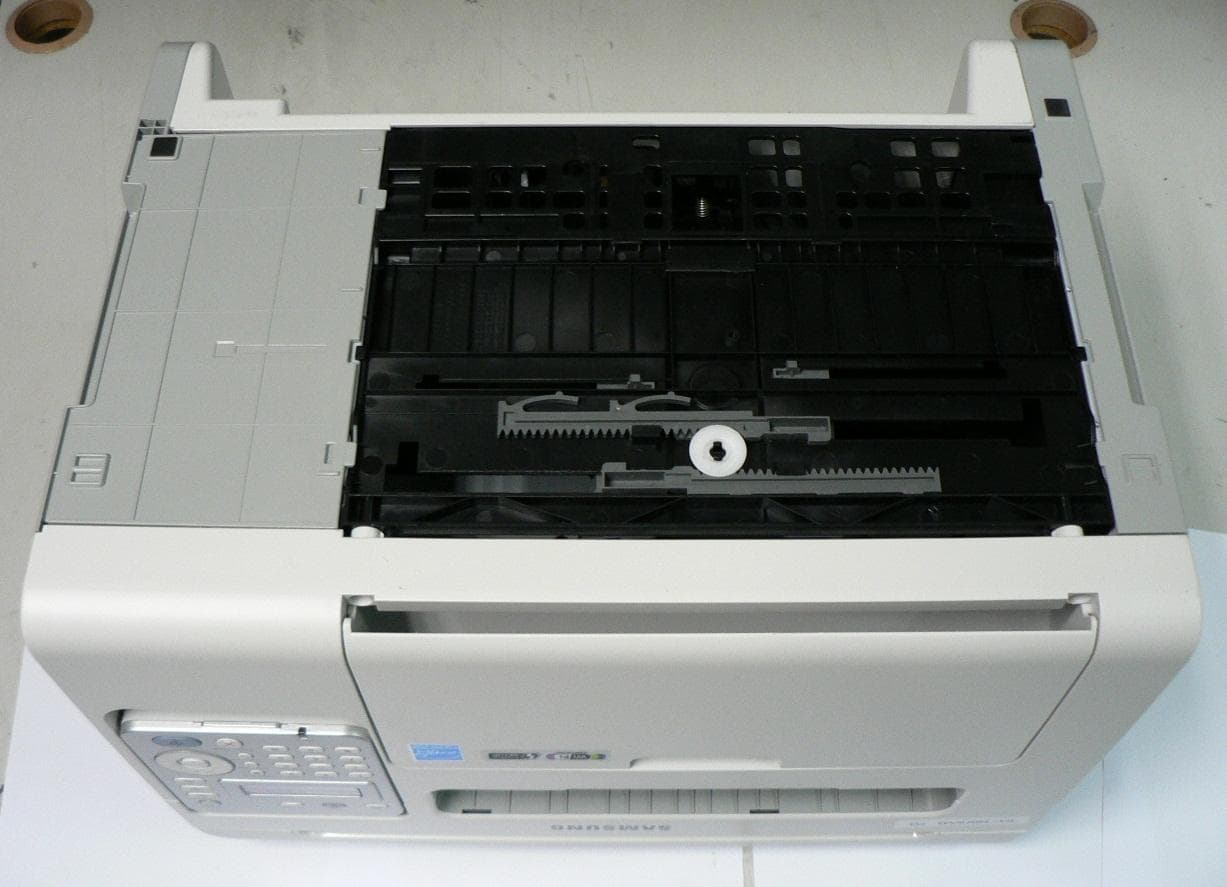

1. Printer Photo SCX-3405FW Printer_Front SCX-3405FW Printer_Rear SCX-3405FW SIDE_RIGHT SCX-3405FW SIDE_LEFT SCX-3405FW TOP VIEW SCX-3405FW Bottom VIEW SCX-3405FW Model Name SCX-3405FW Power Cord With Printer SCX-3405FW Power Cord

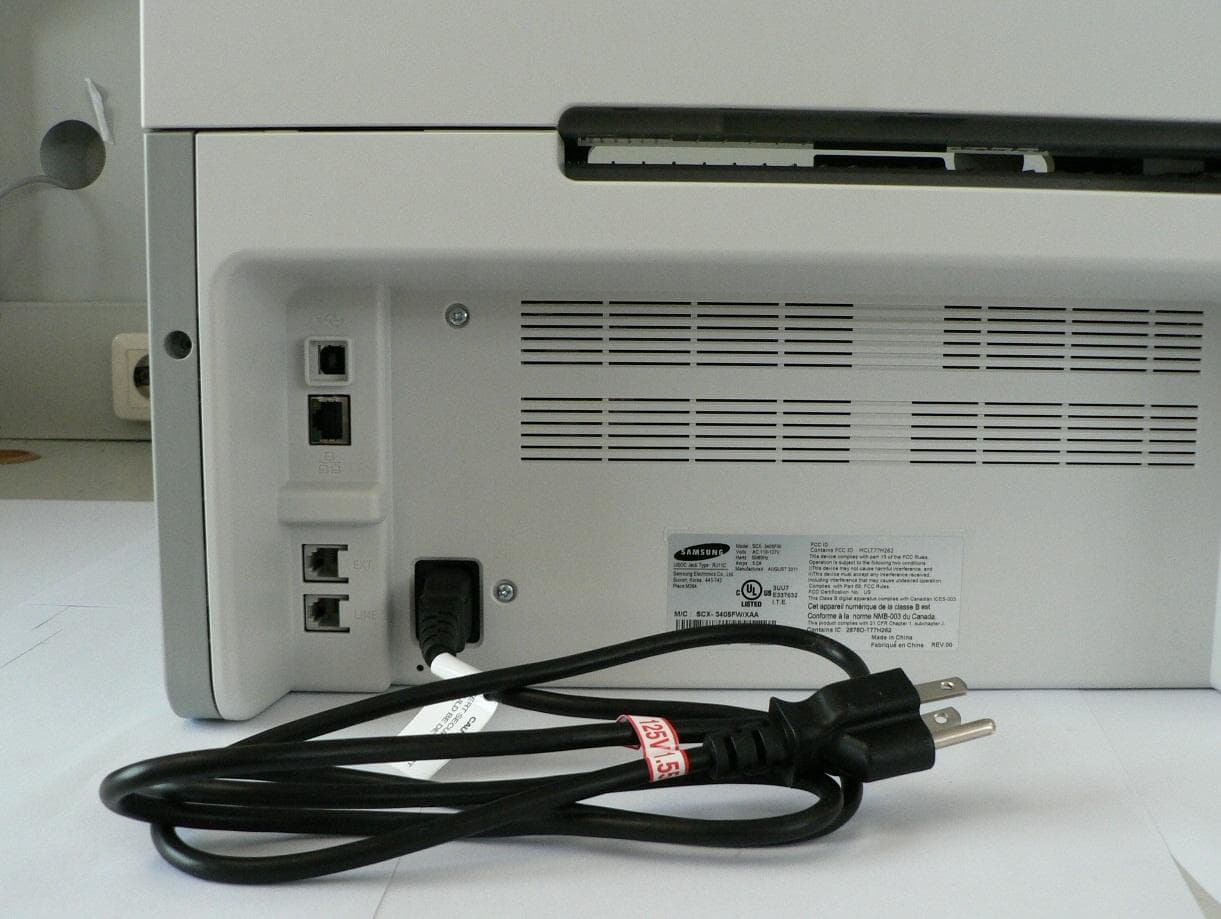

Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -36/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View with label location Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -37/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. inside View Label

2. Internal Printer Photo SCX-3405FW Printer_Front SCX-3405FW Printer_Rear SCX-3405FW SIDE_RIGHT SCX-3405FW SIDE_LEFT SCX-3405FW TOP VIEW SCX-3405FW Bottom VIEW 3. PBA Photo SCX-3405FW Main PBA_Top SCX-3405FW Main PBA_Bottom SUNGHO, BluejayV1 SCX-3405FW SMPS & HVPS PBA_Front SUNGHO, BluejayV1 SCX-3405FW SMPS & HVPS PBA_Rear SHANDONG, BluejayV1 SCX-3405FW SMPS & HVPS PBA_Front SHANDONG, BluejayV1 SCX-3405FW SMPS & HVPS PBA_Rear SCX-3405FW OPE PBA_Front SCX-3405FW OPE PBA_Rear SCX-3405FW Wireless module_Front SCX-3405FW Wireless module_Rear SCX-3405FW Fax module_Front SCX-3405FW Fax module_Rear

Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -7/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor CHORUS3-N(433Mhz) Standard System memory 128MB DDR2 SDRAM (SCX-3405F : 64M DDR2 SDRAM) Resolution 1200 x 1200 dpi Copy Quality mode Text > Scan: 300x300dpi , Printing : 600x600dpi @ ADF Scan: 600x300dpi , Printing : 600x600dpi @ Platen Text/Photo > Scan: 300x300dpi , Printing : 600x600dpi @ ADF Scan: 600x300dpi , Printing : 600x600dpi @ Platen Photo > Scan: Scan: 600x300dpi , Printing : 600x600dpi @ ADF Scan: 600x600dpi , Printing : 1200x1200dpi @ Platen Paper Handling 150-sheet Cassette @ 80g/㎡, 10-sheet @ Special Paper Power Rating 110-127 VAC, 5A 50/60 Hz Power Consumption -. Power Save mode: 2.1W -. Printing Mode : 310W -. Ready Mode : 30W -. Off Mode : 0.45W Printer Language SPL PC Interfaces High speed USB2.0, 802.11 b/g/n OS compatibility Windows 2000/XP(32/64bits)/Vista(32/64bits)/2003 Server(32/64bits)/2008 Server(32/64bits)/7(32/64bits)/2008 Server R2(64bits) Mac OS X 10.4 ~ 10.6 RedHat Enterprise Linux WS 4, 5 (32/64 bit) Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64 bit) SuSE Linux 10.1 (32 bit) OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit) Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit) Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit) SuSE Linux Enterprise Desktop 10, 11 (32/64 bit) Debian 4.0, 5.0 (32/64 bit) Sun Solaris 9,10 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4 Modes of Operation USB Printing, Platen Scan, Platen Copy, ADF Scan, ADF Copy, Wireless FAX Intended Class for Emissions Class B

-1/37- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20113605 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application July 7, 2011 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSCX3405FW Kind of product Mono Laser Printer Model No. SCX-3405FW Variant Model No. SCX-3400F, SCX-3405F Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd., Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period September 6, 2011 ~ September 17, 2011 Issue date September 18, 2011 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Young Hun Cheong Reviewed by : Tae Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -2/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history - 3 page 1.2 Sample calculation - 3 page 2. Summary of test results 2.1 Emission - 3 page 3. General Information 3.1 Test facility - 4 page 4. Test configuration 4.1 Test configuration - 4 page 4.2 EUT operating mode(s) - 6 page 4.3 Details of Sampling - 6 page 4.4 Clock Frequencies - 6 page 4.5 EUT Description - 7 page 4.6 Test configuration and condition - 8 page 4.7 Measurement uncertainty - 8 page 5. Result of individual tests 5.1 Conducted disturbance - 9 page 5.2 Radiated disturbance - 19 page Appendix – EUT photography - 36 page Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -3/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ◦ Class B limit = 60 dBμV (Quasi-peak limit) ◦ Level (50 dBμV) = Meter Reading (40.2 dBμV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ◦ Margin (10 dB) = Limit (60 dBμV) – Level (50 dBμV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ◦ Class B limit = 40 dBμV/m at 3 m ◦ Level (30 dBμV/m) = Meter Reading (50 dBμV) + factor (- 20 dB(1/m), antenna factor + cable loss – amplifier gain) ◦ Margin (10 dB) = Limit (40 dBμV/m) – Level (30 dBμV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No. Revised detailed information Issue 0 There are no revisions and this version is basic test report. Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -4/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 4. Test Setup configuration 4.1 Test configuration 4.1.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A Mono Laser Printer SCX-3405FW - SAMSUNG A3LSCX3405F W B Note book Computer NP600B5B DZJD93CB200028P SAMSUNG DoC C Adapter AD-9019S CNBA4400215AD2VH8720449 Li Shin - D USB Mouse MS201U 73H1886 MONTEREY INTERNATIONA L CORP DoC E Head set COV903 - COSY DoC F Telephone SF-F131 - Samsung DoC Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -5/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.2 Test cables No. Connected cable Length [m] Shielded [Y/N] Note 1 Power 1.8 No For EUT 2 Power 1.8 No For laptop PC 3 USB 1.5 Yes From laptop PC to EUT 4 USB 1.8 Yes From laptop PC to Mouse 5 Head set 1.5 No For Note PC to Head set 6 Ethernet 10.0 No From EUT to HUB 7 TEL 10.0 No From EUT to K/P system 8 TEL 2.0 No From EUT to Telephone 4.1.3 Test arrangement Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -6/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 ADF Copy Mode Operating Mode 2 Fax Tx Mode Operating Mode 3 Scan to PC Mode Operating Mo…

Text truncated - open the document above for the full version.

Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -10/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.1.3 Photograph of Test Setup Front Rear Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -22/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.2.3 Photograph of Test Setup Front (Below 1 GHz) Rear (Below 1 GHz) Project No. : LBE20113605 Mono Laser Printer : SCX-3405FW -23/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1 GHz) Rear (above 1 GHz)
