A3LSCX4300Multi Function Laser Printer

1 © 2008 Samsung Electronics Co., Ltd. All rights reserved. This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this manual. • SCX-4300 is model names of Samsung Electronics Co., Ltd. • Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • IBM and IBM PC are trademarks of International Business Machines Corporation. • PCL and PCL 6 are trademarks of Hewlett-Packard company. • Microsoft, Windows, Windows 2000, Windows XP and Windows Vista are registered trademarks of Microsoft Corporation. • TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. • All other brand or product names are trademarks of their respective companies or organizations. 2 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding Samsung products, contact the Samsung customer care center. CountryCustomer Care Center Web Site ARGENTINE0800-333-3733www.samsung.com/ar AUSTRALIA1300 362 603www.samsung.com/au AUSTRIA0800-SAMSUNG (726-7864)www.samsung.com/at BELGIUM0032 (0)2 201 24 18www.samsung.com/be BRAZIL0800-124-421 4004-0000 www.samsung.com/br CANADA1-800-SAMSUNG (7267864)www.samsung.com/ca CHILE800-726-7864 (SAMSUNG)www.samsung.com/cl CHINA800-810-5858 010- 6475 1880 www.samsung.com.cn COLOMBIA01-8000-112-112www.samsung.com/co COSTA RICA0-800-507-7267www.samsung.com/latin CZECH REPUBLIC 844 000 844www.samsung.com/cz Distributor pro ýeskou republiku : Samsung Zrt., þeska organizaþní složka Vyskoþilova 4, 14000 Praha 4 DENMARK70 70 19 70www.samsung.com/dk ECUADOR1-800-10-7267www.samsung.com/latin EL SALVADOR800-6225www.samsung.com/latin ESTONIA800-7267www.samsung.ee KAZAHSTAN8-10-800-500-55-500www.samsung.kz KYRGYZSTAN00-800-500-55-500 FINLAND030-6227 515www.samsung.com/fi FRANCE3260 SAMSUNG or 08 25 08 65 65 (€ 0,15/min) www.samsung.com/fr GERMANY01805 - 121213 (€ 0,14/min) www.samsung.de GUATEMALA1-800-299-0013www.samsung.com/latin HONG KONG3698 4698www.samsung.com/hk HUNGARY06-80-SAMSUNG (7267864)www.samsung.com/hu INDIA3030 8282 1800 110011 www.samsung.com/in/ INDONESIA0800-112-8888www.samsung.com/id ITALIA800-SAMSUNG(7267864) 800-048989 www.samsung.com/it JAMAICA1-800-234-7267www.samsung.com/latin JAPAN0120-327-527www.samsung.com/jp LATVIA800-7267www.samsung.com/lv/ index.htm LITHUANIA8-800-77777www.samsung.com/lt LUXEMBURG0035 (0)2 261 03 710www.samsung.com/be MALAYSIA1800-88-9999www.samsung.com/my MEXICO01-800-SAMSUNG (7267864)www.samsung.com/mx NETHERLANDS0900 20 200 88 (€ 0,10/min)www.samsung.com/nl NEW ZEALAND0800SAMSUNG(726-7864)www.samsung.com/nz NORWAY815-56 480www.samsung.com/no PANAMA800-7267www.samsung.com/latin PHILIPPINES1800-10-SAMSUNG (7267864)www.samsung.com/ph POLAND0 801 801 881 022-607-93-33 www.samsung.com/pl PORTUGAL80 8 200 128www.samsung.com/pt PUERTO RICO1-800-682-3180www.samsung.com/latin REP. DOMINICA1-800-751-2676www.samsung.com/latin REPUBLIC OF IRELAND 0818 717 100www.samsung.com/uk RUSSIA8-800-555-55-55www.samsung.ru SINGAPORE1800-SAMSUNG (7267864)www.samsung.com/sg SLOVAKIA0800-SAMSUNG (726786)www.samsung.com/sk SOUTH AFRICA0860 726 7864 (SAMSUNG)www.samsung.com/za SPAIN902 10 11 30www.samsung.com/es SWEDEN0771-400 200www.samsung.com/se SWITZERLAND0800-7267864www.samsung.com/ch/ TAIWAN0800-329-999www.samsung.com/tw THAILAND1800-29-3232 02-689-3232 www.samsung.com/th TRINIDAD & TOBAGO 1-800-7267-864www.samsung.com/latin TURKEY444 77 11www.samsung.com.tr U.A.E800-SAMSUNG (7267864)www.samsung.com/mea U.K0870 SAMSUNG (7267864)www.samsung.com/uk U.S.A.1-800-SAMSUNG (7267864)www.samsung.com UKRAINE8-800-502-0000www.samsung.ua UZBEKISTAN8-800-120-0400www.samsung.com.uz VENEZUELA0-800-100-5303www.samsung.com/latin VIETNAM1 800 588 889www.samsung.com/vn CountryCustomer Care Center Web Site 3 CONTENTS 1. Introduction Special features ..................................................................................................................... 1.1 Understanding component locations .......................................................................................... 1.2 2. Getting started Setting up your machine Finding more information ........................................................................................................ 2.1 Selecting a location ................................................................................................................ 2.2 Installing the toner cartridge ................................................................................................... 2.2 Loading paper ....................................................................................................................... 2.3 Making connections ................................................................................................................ 2.5 Turning the machine on .......................................................................................................... 2.5 Setting up the machine system Overview of control panel menus ............................................................................................. 2.6 Changing the display language ................................................................................................. 2.6 Using the save modes ............................................................................................................. 2.6 Printer software overview Supplied printer software ........................................................................................................ 2.7 Printer driver features ............................................................................................................. 2.7 System requirements ............................................................................................................. 2.8 3. Loading original documents and paper Loading document .......................................…

Text truncated - open the document above for the full version.

Eiger Block Diagram

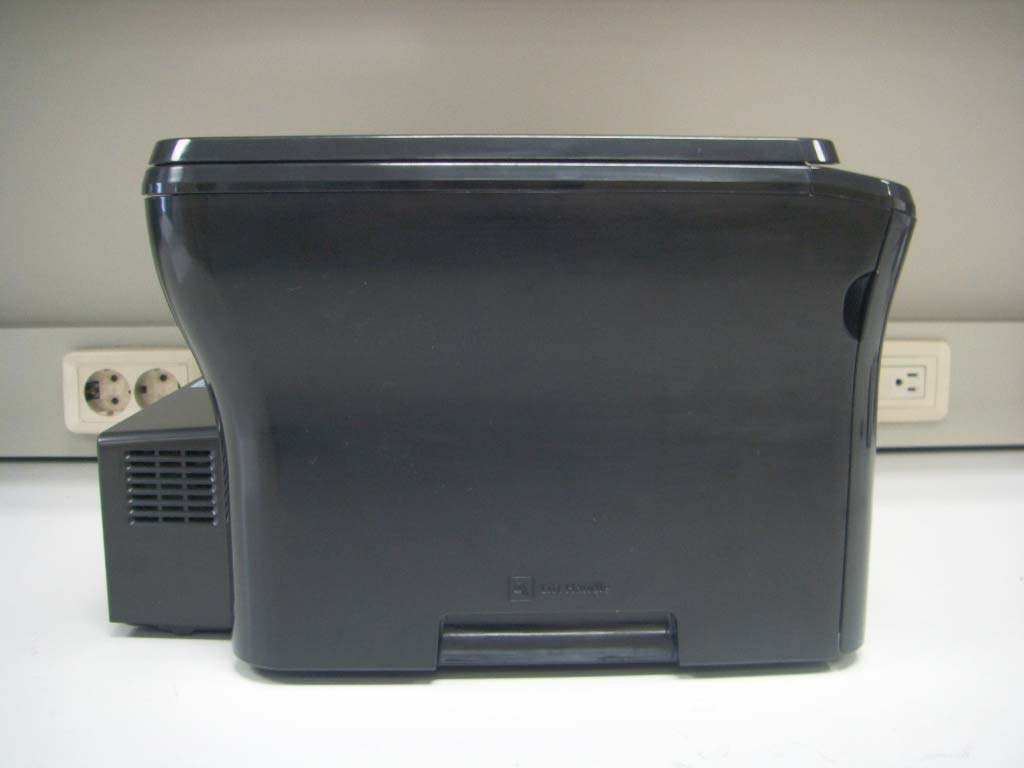

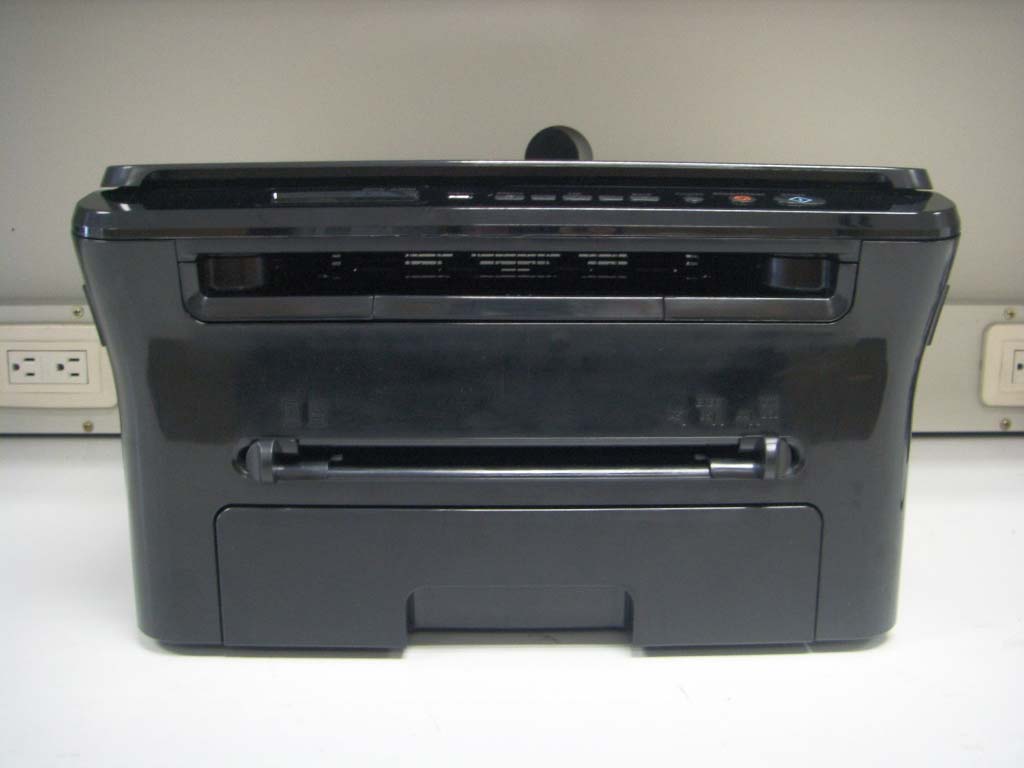

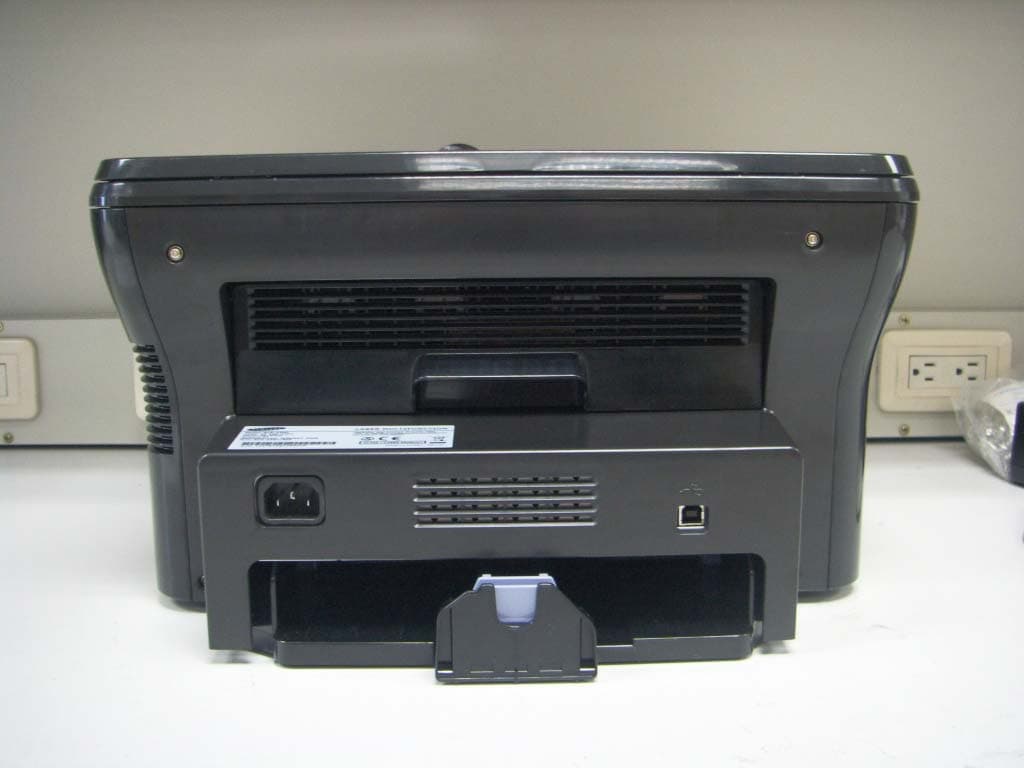

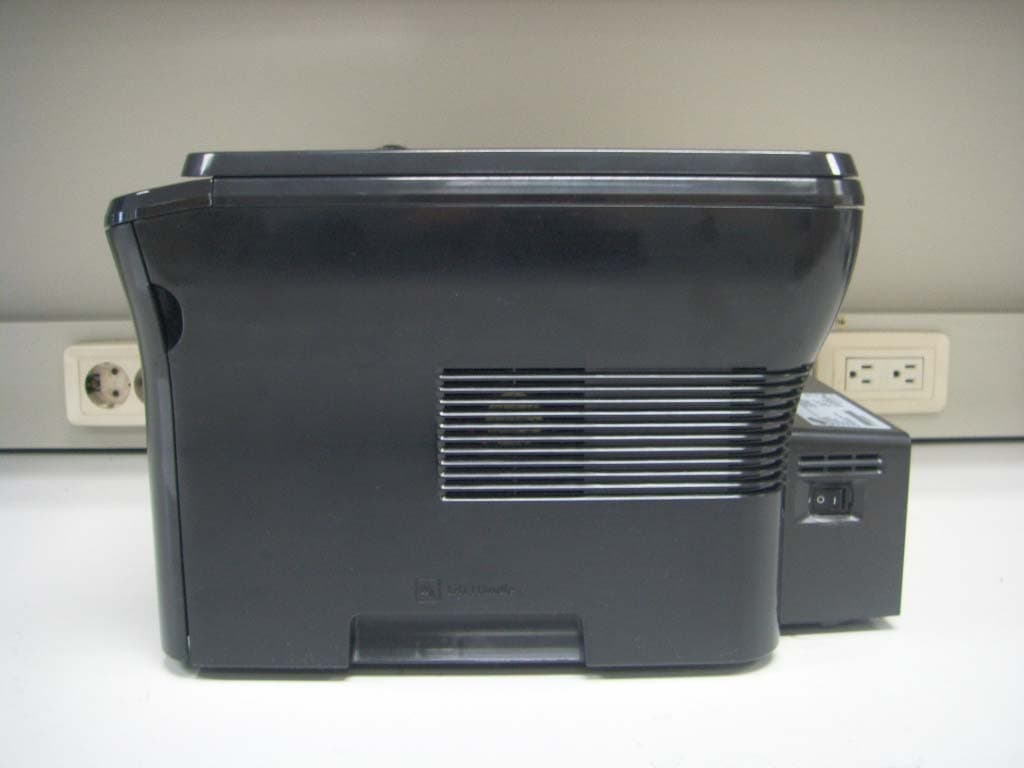

1.ExternalPictures 1) FrontView 2) RearView 3) SideView1 4) SideView2

Project No. : LBE073695 Printer : SCX-4300 - 25/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Label Location Label

2.InternalPictures 1) FrontView 2) RearView SCX-4200 Main PB A_Front SCX-4200 Main PB A _Rear SCX-4200 SMPS/HVPS PBA _Front SM PS PBA HVPS PBA SCX-4200 SMPS/HVPS PBA_Rear SCX-4200 OPE PB A _Fron t SCX-4200 OPE PB A _Rear

Project No. : LBE073695 Printer : SCX-4300 - 7/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor CHROUS2(ARM7TDMI, 66MHz) - Standard System memory 8MB SDRAM - Resolution 600x600dpi - Copy Quality mode TEXT:600x300dpi TEXT/PHOTO:600x300dpi PHOTO:600x600dpi - Paper Handling Paper Tray(standard) 150 Sheets 2nd Tray(optional) : NA Bypass Tray : NA - Power Rating 110~127 VAC, 4.0A, 50/60 Hz - Power Consumption Power save mode : Less than 10Watts Stand by mode : 70Watts Average : 350Watts - Printer Language SPL - Interfaces USB2.0 - OS compatibility Windows 2000 / XP / 2003 / Vista Various Linux OS Mac OS 10.3~10.4 - Modes of Operation USB Printing - Intended Class for Emissions Class B -

-1/25- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE073695 Revision No. None Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Applicant Date of application 2007.11.29 Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSCX4300 Kind of product Printer SCX-4300 Model No. Variant Model No. SCX-4300R EUT Equipment Under Test Manufacturer Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Issue date 2007.12.07 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Young Ju, Ryu Reviewed by : No Cheon, Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. SEC EMC Laboratory 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE073695 Printer : SCX-4300 - 2/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 2.2 Accreditation and listing 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Operating mode condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE073695 Printer : SCX-4300 - 3/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standardResult Remarks Conducted Disturbance Complied Meets Class B Limit Minimum margin is 17.4 dB at 28.004 MHz Radiated Disturbance FCC Part 15 Subpart B Complied Meets Class B Limit Minimum margin is 7.0 dB at 48.397 MHz 2. General Information 2.1 Test facility The SEC EMC Laboratory is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The SEC EMC Laboratory is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE073695 Printer : SCX-4300 - 4/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 2.2 Accreditation and listing Laboratory Qualifications Remarks KOLAS(Korea Laboratory Accreditation Scheme) Accredited : 124 Radio Research Laboratory Accredited : KR0004 FCC(Federal Communications Commission) Accredited : KR0004 National Voluntary Laboratory Accreditation Program Lab Code: 200623-0 Norges Elektriske Materiellkontroll Accredited : ELA 195 VCCI (Voluntary Control Council for Interference by Information Technology Equipment) C-2421,R-2224 China Quality Certification Center 5-053, 5-054 TUV Rhineland H9354285 GOST(GOSTSTANDART) ROSTEST Elektrotechnicky Zkusebni Ustav Reg. No.: 001 IC(Industry Canada) Assigned Code: 5871 Project No. : LBE073695 Printer : SCX-4300 - 5/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test Setup configuration 3.1 Test Peripherals The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Description Model No. Serial No. Manufacturer FCC ID Printer SCX-4300 - Samsung A3LSCX4300 Note PC NP-Q20 KRBA5901278A00C F43M00MH Samsung A3LNPQ20 AC Adapter AD-4212A CNBA44XXXXXXSE 3831L0241 Dongguan Samsung Electro-Mechanics - USB Mouse M-UAE96 LZK61923406 Logitech DoC Earphone - - COSY - 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 USB Printing Operating Mode 2 1:99 Copy Operating Mode 3 Standby 3.3 Details of Sampling Customer selected, single unit. Project No. : LBE073695 Printer : SCX-4300 - 6/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No - USB 1.8 Yes From PC to EUT From PC to Mouse Audio 1.0 No From earphone to PC Project No. : LBE073695 Printer : SCX-4300 - 7/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor CHROUS2(ARM7TDMI, 66MHz) - Standard System memory 8MB SDRAM - Resolution 600x600dpi - Copy Quality mode TEXT:600x300dpi TEXT/PHOTO:600x300dpi PHOTO:600x600dpi - Paper Handling Paper Tray(standard) 150 Sheets 2nd Tray(optional) : NA Bypass Tray : NA - Power Rating 110~127 VAC, 4.0A, 50…

Text truncated - open the document above for the full version.

Project No. : LBE073695 Printer : SCX-4300 - 12/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.2 Photograph of the test Configuration (Front) (Rear) Project No. : LBE073695 Printer : SCX-4300 - 20/25- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.2 Photograph of the test Configuration (Front) (Rear)
