A3LSCX4655FNMono Laser Multifuction Printer

BASIC User’s Guide SCX-465x/465xN/4021S/4321NS Series SCX-465xF/4521FS/4521HS Series SCX-465xFN/465xHN/4521NS Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 5 Features by models 7 Useful to know 14 About this user’s guide 15 Safety information 16 Machine overview 21 Control panel overview 25 Turning on the machine 29 Installing the driver locally 30 Reinstalling the driver 31 2. Menu Overview and Basic SetupMenu overview 33 Machine’s basic settings 36 Media and tray 38 Basic printing 51 Basic copying 57 Basic scanning 61 Basic faxing 62 3. MaintenanceOrdering supplies and accessories 67 Available supplies 68 Available maintenance parts 69 Storing the toner cartridge 70 Redistributing toner 72 Replacing the toner cartridge 74 Monitoring the supplies life 76 Setting the toner low alert 77 Cleaning the machine 78 Tips for moving & storing your machine 82 4. TroubleshootingTips for avoiding paper jams 84 Clearing original document jams 85 Clearing paper jams 90 Understanding the status LED 92 Understanding display messages 94 3 BASIC 5. AppendixSpecifications 100 Regulatory information 110 Copyright 123 1. IntroductionThis chapter provides information you need to know before using the machine.• Key benefits 5 • Features by models 7 • Useful to know 14 • About this user’s guide 15 • Safety information 16 • Machine overview 21 • Control panel overview 25 • Turning on the machine 29 • Installing the driver locally 30 • Reinstalling the driver 31 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 55). • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 169). • To save paper, you can print on both sides of the paper (double-sided printing) (Manual) (see "Using advanced print features" on page 169). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. - up to 24 ppm (A4/Letter). Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 199). • Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 213). • Samsung Easy Document Creator is an application to help users compile and share large documents or other scanned or faxed information digitally. (see "Using Samsung Easy Document Creator" on page 205). • AnyWeb Print helps you screen-captur e, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 200). • Smart Update allows you to check for th e latest software and install the latest version during the printer driver installation process. This is available only for Windows. • If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 103). • Print watermark: You can customize your documents with words, such as “ CONFIDENTIAL ” (see "Using advanced print features" on page 169). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 169). • You can print in various operating systems (see "System requirements" on page 106). • Your machine is equipped with a USB interface and/or a network interface. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (  : Included, Blank: Not available) Operating System SCX-465x Series SCX-465xN Series SCX-4021S Series SCX-4321NS Series SCX-465xF Series SCX-4521FS Series SCX-4521HS Series SCX-465xFN Series SCX-465xHN Series SCX-4521NS Series Windows   Macintosh   Linux   Unix Features by modelsSoftware Software SCX-465x Series SCX-465xN Series SCX-4021S Series SCX-4321NS Series SCX-465xF Series SCX-4521FS Series SCX-4521HS Series SCX-465xFN Series SCX-465xHN Series SCX-4521NS Series SPL printer driver   PCL printer driverPS printer driverXPS printer driver   Direct Printing UtilitySamsung Easy Printer Manager Scan to PC settings   Fax to PC settings  Device Settings   Samsung Easy Document Creator   Samsung Printer Status   AnyWeb Print   SyncThru™ Web Service  (SCX-465xN/4321N Series only)  (SCX-465xFN/465xHN/4521NS Series only) Features by models (  : Included, Blank: Not available) SyncThru Admin Web Service  (SCX-465xN/4321N Series only)  (SCX-465xFN/465xHN/4521NS Series only) Easy Eco Driver   Fax Samsung Network PC Fax  Scan Twain scan driver   WIA scan driver   Samsung Scan Assistant   Software SCX-465x Series SCX-465xN Series SCX-4021S Series SCX-4321NS Series SCX-465xF Series SCX-4521FS Series SCX-4521HS Series SCX-465xFN Series SCX-465xHN Series SCX-4521NS Series Features by modelsVariety feature Features SCX-465x Series SCX-465xN Series SCX-4021S Series SCX-4321NS Series SCX-465xF Series SCX-4521FS Series SCX-4521HS Series SCX-465xFN Series SCX-465xHN Series SCX-4521NS Series Hi…

Text truncated - open the document above for the full version.

133 2. Using a Network-Connected Machine Useful network programsThere are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible. • Before using the programs below, set the IP address first. • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). 1 SyncThru™ Web Service The web server embedded on your network machine allows you to do the following tasks (see "Using SyncThru™ Web Service" on page 202).• Check the supplies information and status. • Customize machine settings. • Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically. • Configure the network parameters necessary for the machine to connect to various network environments. 2 SyncThru™ Web Admin Service Web-based machine management solution for ne twork administrators. SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access. • Download this program from http://solution.samsungprinter.com. 3 SetIP wired network setup This utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.• See "IPv4 configuration using SetIP (Windows)" on page 134. • See "IPv4 configuration using SetIP (Macintosh)" on page 135. • See "IPv4 configuration using SetIP (Linux)" on page 136. • The machine that does not support th e network port, it will not be able to use this feature (see "Rear view" on page 24). • TCP/IPv6 is not supported by this program. 134 2. Using a Network-Connected Machine Wired network setup4 Printing a network configuration report You can print Network Configuration Report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network.• Press the ( Menu ) button on the control panel and select Network > Network Conf. ( Network Configuration ). Using this Network Configuration Report , you can find your machine’s MAC address and IP address.For example:• MAC Address: 00:15:99:41:A2:78 • IP Address: 169.254.192.192 5 Setting IP address • The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 24). • TCP/IPv6 is not supported by this program. First, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.IPv4 configuration using SetIP (Windows)Before using the SetIP program, disable the computer firewall from Control Panel > Security Center > Windows Firewall . 1 Install this program from the supplied CD-ROM by double-click Application > SetIP > Setup.exe . 2 Follow the instructions in the installation window. 3 Connect your machine to the network with a network cable. 4 Turn on the machine. 5 From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP . Wired network setup 135 2. Using a Network-Connected Machine 6 Click the icon (third from left) in the SetIP window to open the TCP/ IP configuration window. 7 Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 134) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 8 Click Apply , and then click OK . The machine will automatically print the Network Configuration Report . Confirm that all the settings are correct. IPv4 configuration using SetIP (Macintosh)Before using the SetIP program, disable the computer firewall from System Preferences > Security > Firewall . The following instructions may vary from your model. 1 Connect your machine to the network with a network cable. 2 Insert the Installation CD-ROM, and open the disk window, select MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html . 3 Double-click the file and Safari will automatically open, then select Trust . The browser will open the SetIPapplet.html page that shows the printer’s name and IP address information. 4 Click the icon (third from left) in the SetIP window to open the TCP/ IP configuration window. 5 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Wired network setup 136 2. Using a Network-Connected Machine Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 134) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 6 Select Apply , then OK , and OK again. 7 Quit Safari . IPv4 configuration using SetIP (Linux)Before using the SetIP program, disable the computer firewall from System Preferences or Administrator . The following instructions may vary from your model or operating systems. 1 Open / opt / Samsung / mfp / share / utils /. 2 Double-click the SetIPApplet.html file. 3 Click to open the TCP/IP configuration window. 4 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 134) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 5 The machine will automatically print the Networ…

Text truncated - open the document above for the full version.

Whitney3 Black Diagram Revision 0.3 Whitney3 Hardware Team R&D Group Digital Printing Division Samsung Electronics I N L E T Chorus3_Next Core : 433MHz DDR : 300MHz ARM1176 FUSER Unit ThermoStat Thermistor 1 PickUp Clutch DEVELOPER Unit OPC MHV DEV Supply THV T D S DRUM M Main Motor MT STEP C R U M NETWORK RTL8201F SOL LSU MODEM CONEXENT CISM AFE LAFE 1001 ADF_P_DET ADF_P_POS MT STEP ADF MOTOR SCAN MOTOR DRIVER A4984SLPTR MT STEP 4 3 2 1 Clock Generator ASM3P2863AF MCLK MAIN Controller Width Sensor Feed Sensor ADF MOTOR DRIVER A4984SLPTR 1 2 3 4 5 6 7 8 9 10 11 12 ADF_C_SENS SMPS & HVPS Wi-Fi Wireless Model Only 1234 123456789 1 0 1 1 12 11 10 9 8 7 6 5 4 3 2 1 54321 S C A N H O M E 3 2 1 FUSER CONTROL 2P THERMISTOR 3P 4P TOP Cover Micro Switch 3.3V +24V 24VS 3.3V 24V USB Device 14P 8P 30P 12P 12P 4P 3P 11P5P2P4P Network Model Only DDR2 SDRAM NT5TU32M16CG-3C (64MB) (4-in-1 Network : 128MB) EEPROM M24512 X 1EA 64KB SERIAL Flash (FAX B/U) W25Q64 8MB SERIAL Flash (OS) W25Q64 8MB OPE OPE MICOM STM8S103 SPEAKER FAX Engine MOTOR DRIVER A4984SLPTR 4-in-1 Only VCLK 22.43MHz FUSER Control Relay Control HVPS Control 4-in-1 Only FAN 2P 4-in-1 Only 321 Rear Cover Sensor 3P 12MHz 4MHz 12MHz 25MHz

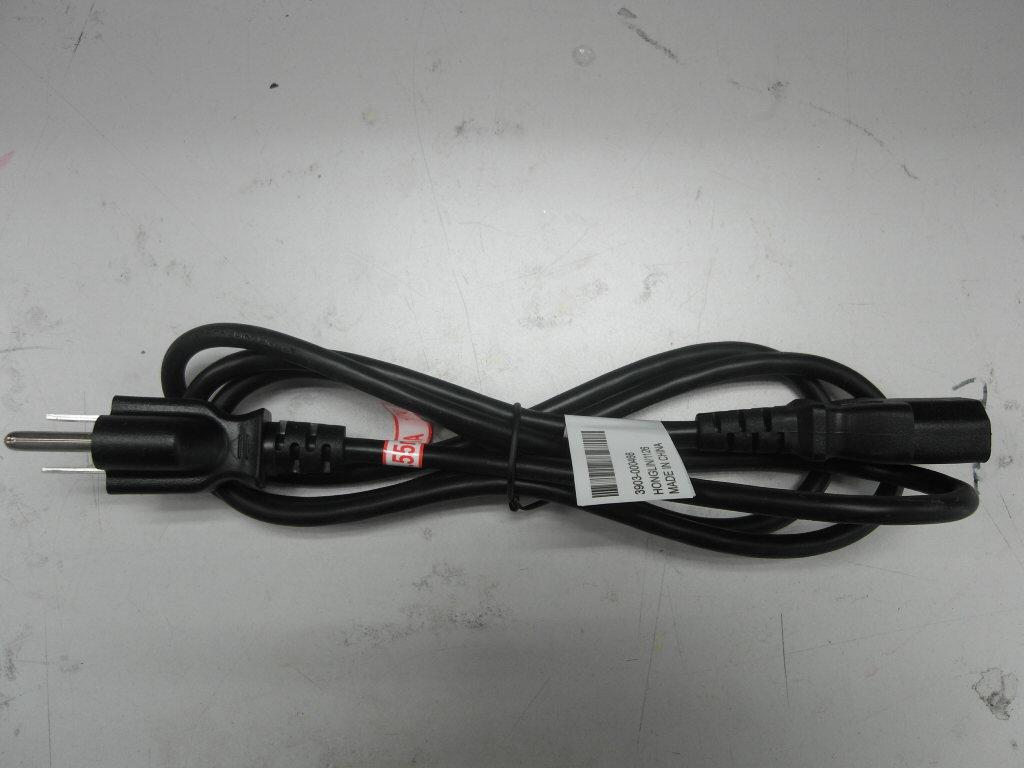

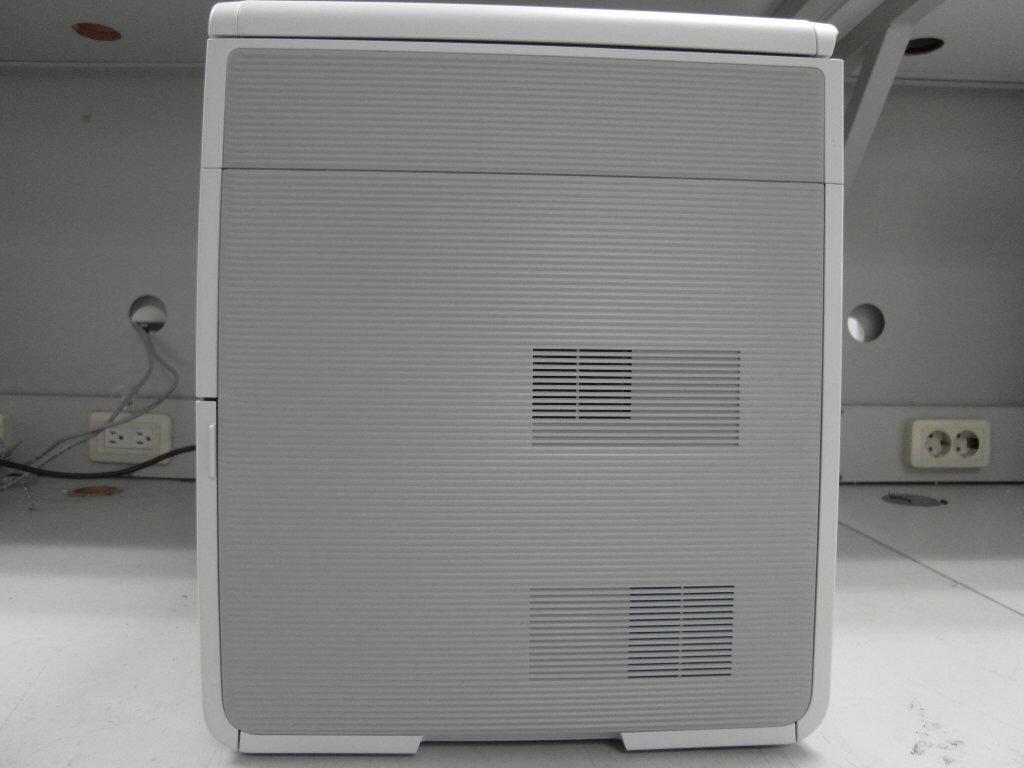

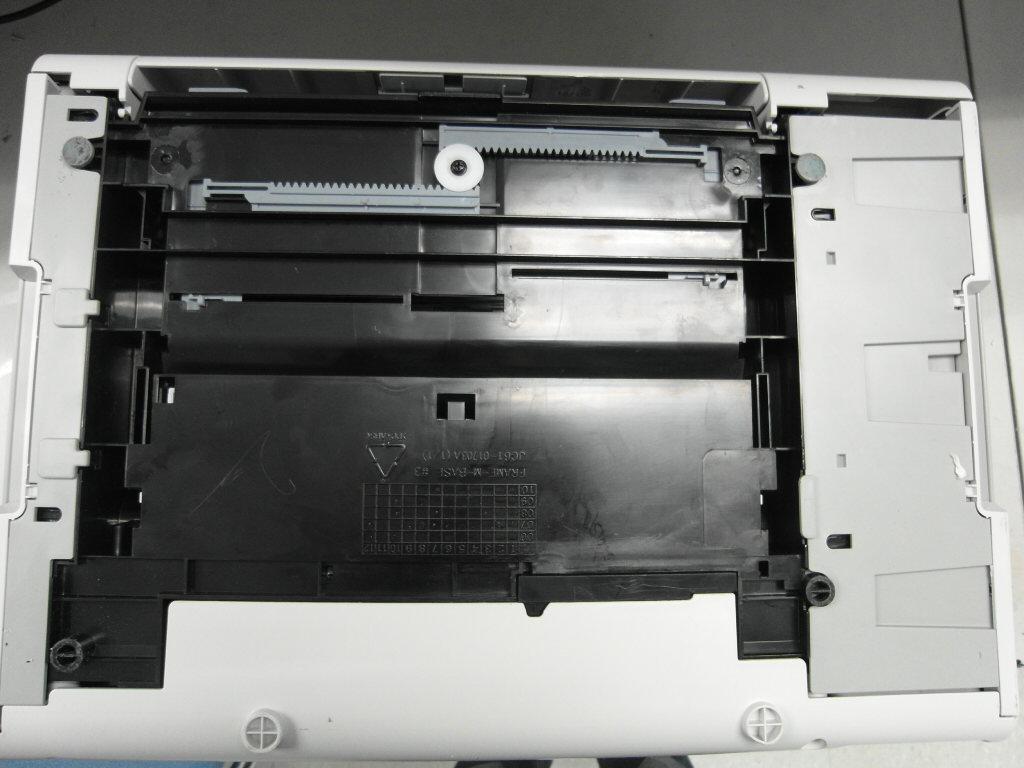

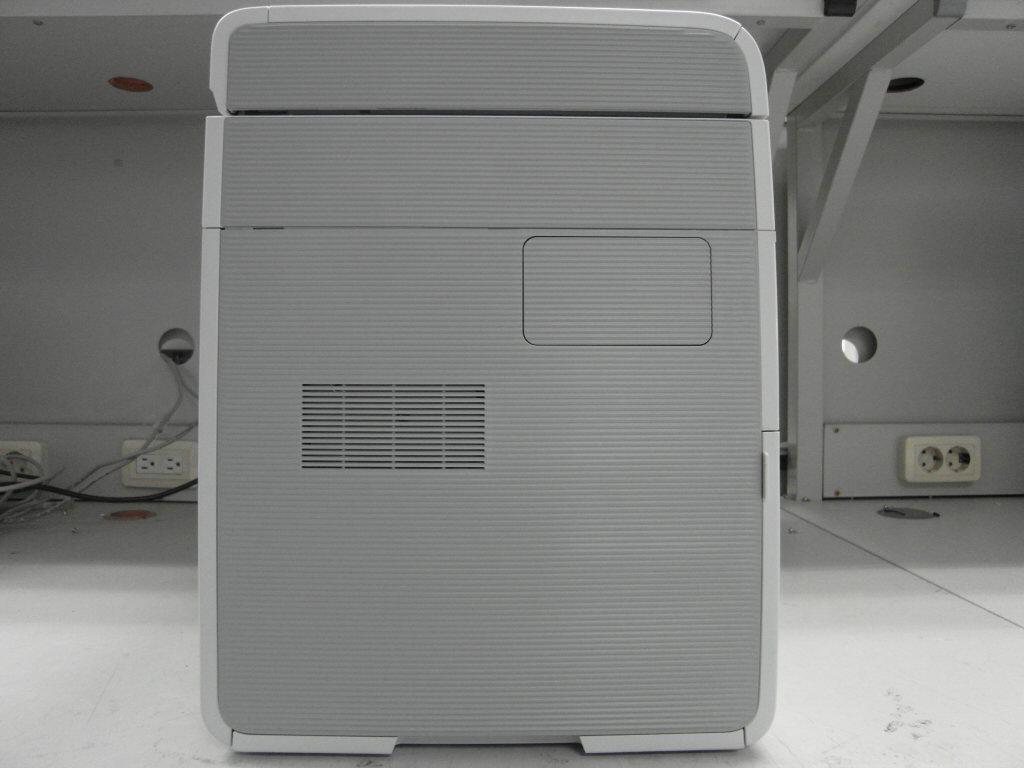

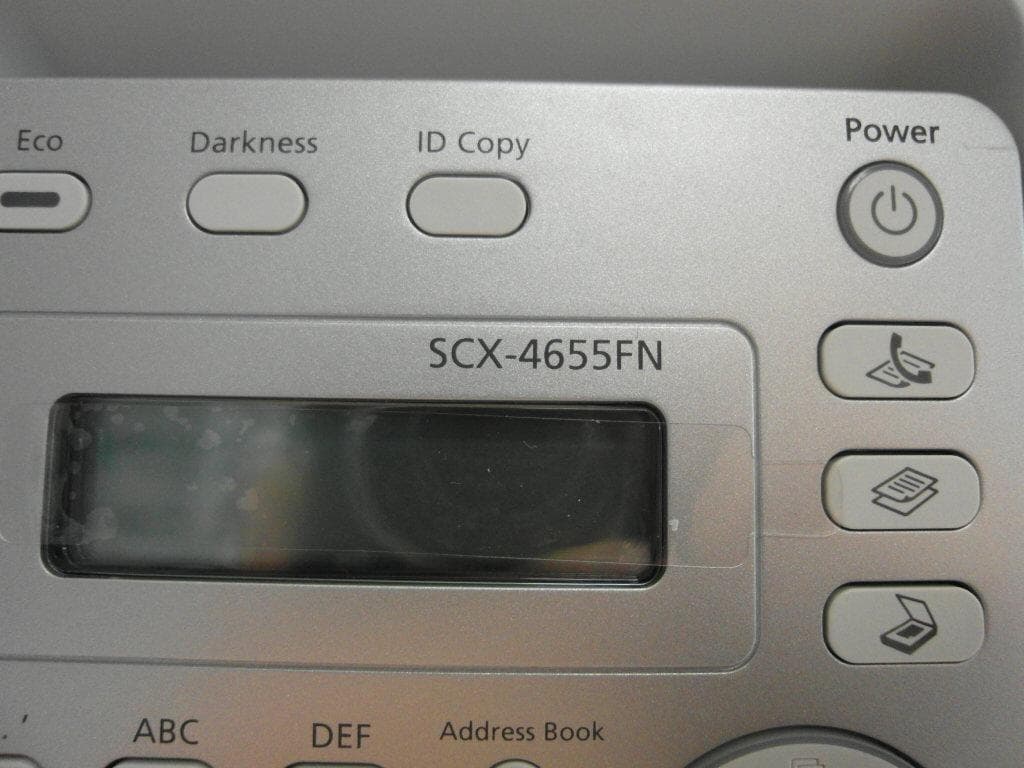

SCX-4655FN Photo External View Photo External View Photo_Front SCX-4655FN Photo External View Photo_Left SCX-4655FN Photo External View Photo_Back SCX-4655FN Photo External View Photo_Right SCX-4655FN Photo External View Photo_Top SCX-4655FN Photo External View Photo_Bottom SCX-4655FN Photo External View Photo_Modelname SCX-4655FN Photo POWER Cord SCX-4655FN Photo

Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 33/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View & Label location Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 36/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. Label

SCX-4655FN Photo Internal View Photo Internal View Photo_Front SCX-4655FN Photo Internal View Photo_Left SCX-4655FN Photo InternalView Photo_Back SCX-4655FN Photo Internal View Photo_Right SCX-4655FN Photo Internal View Photo_Top SCX-4655FN Photo Internal View Photo_Bottom SCX-4655FN Photo SCX-4655FN Photo PBA Photo PBA Photo_MainPBA Front SCX-4655FN Photo PBA Photo_MainPBA Back SCX-4655FN Photo PBA Photo_SMPS+HVPSPBA Front (SUNG HO) SCX-4655FN Photo PBA Photo_SMPS+HVPSPBA Back (SUNG HO) SCX-4655FN Photo PBA Photo_SMPS+HVPSPBA Front (New Cowitel) SCX-4655FN Photo PBA Photo_SMPS+HVPSPBA Back (New Cowitel) SCX-4655FN Photo PBA Photo_OPEKEYFront SCX-4655FN Photo PBA Photo_OPEKEYBack SCX-4655FN Photo PBA Photo_FAXPBA Front SCX-4655FN Photo PBA Photo_FAXPBA Back SCX-4655FN Photo PBA Photo_ADFJOINT PBA Front SCX-4655FN Photo PBA Photo_ADFJOINT PBA Back SCX-4655FN Photo

Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 7/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.6 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor CHORUS3-N(433Mhz) Standard System memory 128MB DDR2 SDRAM Resolution Addressable 1200 x 1200 dpi Copy Quality mode Text > Scan: 300x300dpi , Printing : 600x600dpi @ ADF Scan: 600x300dpi , Printing : 600x600dpi @ Platen Text/Photo > Scan: 300x300dpi , Printing : 600x600dpi @ ADF Scan: 600x300dpi , Printing : 600x600dpi @ Platen Photo > Scan: 600x300dpi , Printing : 600x600dpi @ ADF Scan: 600x600dpi , Printing : 600x600dpi @ Platen Paper Handling 250-sheet Cassette @ 75g/㎡, 1-sheet @ Special Paper Power Rating 110-127 VAC, 6A 50/60 Hz Power Consumption Power Save mode: 1.5W Printing Mode : 450W Ready Mode : 65W Off Mode : 0.45W Printer Language SPL Interfaces High speed USB2.0, Ethernet 10/100 Base TX wired LAN OS compatibility Windows 2000/XP(32/64bits)/Vista(32/64bits)/2003 Server(32/64bits)/ 2008 Server(32/64bits)/7(32/64bits)/2008 Server R2(64bits) Mac OS X 10.4 ~ 10.6 RedHat Enterprise Linux WS 4, 5 (32/64 bit) Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64 bit) SuSE Linux 10.1 (32 bit) OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit) Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit) Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit) SuSE Linux Enterprise Desktop 10, 11 (32/64 bit) Debian 4.0, 5.0 (32/64 bit) Sun Solaris 9,10 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4 Modes of Operation USB Printing, Network Printing, Platen Scan, Platen Copy, ADF Scan, ADF Copy, FAX Intended Class for Emissions Class B Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 8/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.7 Clock Frequencies 4.8 Test configuration and condition The system was configured for testing in typical fashion use. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. Power source for the EUT operating was supplied by CVCF made by the Voltech Corp. The EUT was measured all testing with toner cartridge. - Test Voltage : AC 120 V, 60 Hz Kind of Clocks Frequency[MHz] Kind of Clocks Frequency[MHz] CPU internal clock 433 DDR2 clock 300 Video clock 22.43 Main source clock 12 USB device clock 12 CIS 4

-1/36- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20121924 Issue No. 1 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application March 20, 2012 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSCX4655FN Kind of product Mono Laser MFP Model No. SCX-4655FN Variant Model No. SCX-4650, SCX-4650N, SCX-4650F, SCX-4655F Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Intops : Intops (Weihai) Electronics Co., Ltd. Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period March 21, 2012 ~ March 27, 2012 Issue date April 26, 2012 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Sung Jin Sim Reviewed by : Tae Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 2/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history 3 page 1.2 Sample calculation 3 page 2. Summary of test results 2.1 Emission 3 page 3. General Information 3.1 Test facility 4 page 4. Test configuration 4.1 Test Peripherals 4 page 4.2 EUT operating mode 5 page 4.3 Details of Sampling 5 page 4.4 Used cable description 5 page 4.5 Test arrangement 6 page 4.6 EUT Description 7 page 4.7 Clock Frequencies 8 page 4.8 Test configuration and condition 8 page 4.9 Measurement uncertainty 9 page 5. Result of individual tests 5.1 Conducted disturbance 10 page 5.2 Radiated disturbance 20 page Appendix – EUT photography 33 page Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 3/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ◦ Class B limit = 60 dBμV (Quasi-peak limit) ◦ Level (50 dBμV) = Meter Reading (40.2 dBμV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ◦ Margin (10 dB) = Limit (60 dBμV) – Level (50 dBμV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ◦ Class B limit = 30 dBμV/m at 10 m ◦ Level (20 dBμV/m) = Meter Reading (40 dBμV) + factor (- 20 dB (1/m), antenna factor + cable loss – amplifier gain) ◦ Margin (10 dB) = Limit (30 dBμV/m) – Level (20 dBμV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No. Revised detailed information Issue 0 There are no revisions and this version is basic test report. Issue 1 Some contents, table of contents at 2 page was modified on this report. The modified content is to include the section page numbers. Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 4/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 4. Test Setup configuration 4.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A MFP SCX-4655FN - Samsung EUT B PC NT-P530 ZSV293BZ600309F Samsung DoC C Adapter (For PC) ADP-60ZH D CNBA4400242ABZ0415E0476 Delta DoC D USB keyboard SK-8115 CN-0J4636-71616-4C1-0U2D Dell DoC E USB mouse Moaruo 0740007944 Primax Electronics DoC F Telephone SP-F209K - Samsung - Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 5/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Stand-by Operating Mode 2 ADF copy printing Operating Mode 3 Network printing Operating Mode 4 Fax Tx 4.3 Details of Sampling Customer selected, single unit. 4.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnect…

Text truncated - open the document above for the full version.

Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 11/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.1.3 Photograph of Test Setup Front Rear Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 23/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.2.3 Photograph of Test Setup Front (Below 1GHz) Rear (Below 1GHz) Project No. : LBE20121924 Mono Laser MFP : SCX-4655FN - 24/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1GHz) Rear (above 1GHz)
