A3LSCX4726FNMono Laser Multifuction Printer

BASIC User’s Guide SCX-472x SeriesSCX-470x Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 3 • Features by models 5 • Useful to know 12 • About this user’s guide 13 • Safety information 14 • Machine overview 19 • Control panel overview 23 • Turning on the machine 26 • Installing the driver locally 27 • Reinstalling the driver 28 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature. • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 210). • To save paper, you can print on both sides of the paper (double-sided printing) (Not supported SCX-4726FN Series) (see "Using advanced print features" on page 210). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. SCX-472x Series, SCX-470x Series: - For single-side printing, 28 ppm (A4) or 29 ppm (Letter). - For duplex printing, 14 ppm (A4) or 15 ppm (Letter). • SCX-4726FN Series: - For single-side printing, 26 ppm (A4) or 27 ppm (Letter). Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 249). • Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using advanced print features" on page 210). • AnyWeb Print helps you screen-captu re, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 250). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 103). • Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 210). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 210). • You can print in various operating systems (see "System requirements" on page 106). • Your machine is equipped with a USB interface and/or a network interface. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System ( ̻ : Included, Blank: Not available) Software Operating System SCX-472xFD Series SCX-472xHD SeriesSCX-472xHN Series SCX-472xFN Series SCX-472xFW Series SCX-472xHW Series SCX-470x ND Series Windows    Macintosh    Linux    Unix    Software SCX-472xFD Series SCX-472xHD Series SCX-472xHN Series SCX-472xFN Series SCX-472xFW Series SCX-472xHW Series SCX-470x ND Series PCL / SPL printer driver 1    PS printer driver Features by models XPS printer driverDirect Printing UtilitySamsung Easy Printer Manager Scan to PC settings    Fax to PC settings   Device settings    Samsung Printer Status    Smart Panel    AnyWeb Print    SyncThru™ Web Service    SyncThru Admin Web Service    Easy Eco Driver    Fax Samsung Network PC Fax   Software SCX-472xFD Series SCX-472xHD Series SCX-472xHN Series SCX-472xFN Series SCX-472xFW Series SCX-472xHW Series SCX-470x ND Series Features by models ( ̻ : Included, Blank: Not available) Scan Twain scan driver    WIA scan driver    Samsung Scan Assistant    SmarThru 4SmarThru Office    1. Depending on the operat ing system you use, the installed print driver may differ. Software SCX-472xFD Series SCX-472xHD Series SCX-472xHN Series SCX-472xFN Series SCX-472xFW Series SCX-472xHW Series SCX-470x ND Series Features by modelsVariety feature Features SCX-472xFD Series SCX-472xHD Series SCX-472xHN Series SCX-472xFN Series SCX-472xFW Series SCX-472xHW Series SCX-470xND Series Hi-Speed USB 2.0    Network Interface Ethernet 10/100 Base TX wired LAN    Network Interface 802.11b/g/n wireless LAN  Eco printing    Duplex (2-sided) printing  (SCX-472xFD Series, SCX-472xHD Series, SCX-472xHN Series only)   USB memory interfaceTouch screenDuplex Automatic Document Feeder (DADF)Automatic Document Feeder (ADF)    Handset  (SCX-472xHD Series, SCX-472xHN Series only)  (SCX-472xHW Series only) Features by models Fax Multi-send   Delay send   Priority send   Duplex sendSecure receive   Duplex print  (SCX-472xFD Series, SCX-472xHD Series, SCX-472xHN Series only)  Send/ Receive forward - fax   Send/ Receive forward - emailSend/ Receive forward - server Features SCX-472xFD Series SCX-472xHD Series SCX-472xHN Series SCX-472xFN Series SCX-472xFW Series SCX-472xHW Series SCX-470xND Series Features by models Scan Scanning to emailScanning to SMB serverScanning to FTP serverDuplex scanScan to PC    Copy ID card copying    Collation    Poster    Clone    Book Features SCX-472xFD Series SCX-472xHD Series SCX-472xHN Series SCX-472xFN Series SCX-472xFW Series SCX-472xHW Series SCX-470xND Series Features by models ( ̻ : Included, Blank: Not available) Copy (Continue) 2-up/ 4-up    Adjust background    Margin shiftEdge eraseGray enhanceDuplex copy  (SCX-472xFD Series, SCX-472xHD Series, SCX-47…

Text truncated - open the document above for the full version.

Wireless network setup 151 2. Using a Network-Connected Machine Machines with a display screenConnecting in PBC mode 1 Press and hold the (WPS) button on the control panel for more than 2 seconds.The machine starts waiting for up to two minutes until you press the WPS (PBC) button on the access point (or wireless router). 2 Press the WPS (PBC) button on the access point (or wireless router). The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the access point (or wireless router). b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on. c AP SSID: After completing the wireless network connection process, the AP’s SSID information appears on the display. 3 Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select the Network (Ethernet/Wireless) connection. Connecting in PIN mode 1 Press and hold the (WPS) button on the control panel for more than 2 seconds. 2 The eight-digit PIN appears on the display. You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the wireless network. b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on. c SSID Type: After completing the wireless network connection process, the AP’s SSID information is displayed on the LCD display. 3 Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select Network (Ethernet/Wireless) connection. Wireless network setup 152 2. Using a Network-Connected Machine Machines without a display screenConnecting in PBC mode 1 Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router). 2 Press the WPS (PBC) button on the access point (or wireless router). a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router). b When the machine is successfully connected to the wireless network, the WPS LED light stays on. 3 Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select the Network (Ethernet/Wireless) connection. Connecting in PIN mode 1 The network configuration report, including PIN, must be printed (see "Printing a network configuration report" on page 134).In ready mode, press and hold the ( Cancel or Stop/Clear ) button on the control panel for about 5 seconds. You can find your machine’s PIN. 2 Press and hold the (WPS) button on the control panel for more than 4 seconds until the status LED stays on.The machine starts connecting to the access point (or wireless router). 3 You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The LED blinks slowly for up to two minutes until you enter the eight-digit PIN.The WPS LED blinks in the order below:a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router). b When the machine is successfully connected to the wireless network, the WPS LED light stays on. 4 Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select the Network (Ethernet/Wireless) connection. Wireless network setup 153 2. Using a Network-Connected Machine Re-connecting to a networkWhen the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address. In the following cases, the machine automatically re-connects to the wireless network:• The machine is turned off and on again. • The access point (or wireless router) is turned off and on again. Canceling the connection processTo cancel the wireless network connection when the machine is connecting to the wireless network, press and release the ( Cancel or Stop/Clear ) on the control panel. You need to wait 2 minutes to re-connect to the wireless network. Disconnecting from a networkTo disconnect the wireless network connection, press the (WPS) button on the control panel for more than two seconds.• When the Wi-Fi network is in idle mode: The machine is immediately disconnected from the wireless network and the WPS LED turns off. • When the Wi-Fi network is being used: While the machine waits until the current job is finished, the light blinks fast on the WPS LED. Then, the wireless network connection is automatically disconnected and the WPS LED turns off. 15 Using the menu button Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30). Before starting, you will need to know the network name (SSID) of your wireless network and the Network Password if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network. Wireless network setup 154 2. Using a Network-Connected Machine After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 137). 1 Press the ( Menu ) button on the control panel. 2 Press Network > Wireless > WLAN Settings . 3 Press the OK to sele…

Text truncated - open the document above for the full version.

1. Batian 26ppm Block Diagram Motor Step(2) Speaker DDR3 16bit(On die) 128MB Serial Nor : 20MB (16MB + 4MB) Motor – Step(A4984)- Scan, ADF (2) System Board RTC CR2032(T.B.D) Sensor (4) -. ADF Cover, ADF_P_DET, ADF_P_POS, Scan home Motor Step(2) - SCAN, ADF SpeakerMODEM IF-. ConexantCIS Module MODEM IF-. SPI (15MHz 128MB SPI DDR Control ABC Chip (SW3304B) I2C Motor IC-Less (2)- BLDC MAIN (1) LSU P Mt (1) CIS IF LAFE1001 CIS LED Driver(AK7864) CIS Module 360MHz EEPROM :32KB Engine I2C C3-Next 533MHz VIDEO CONTROL PWM CLOCK USB 2 0 LSU Video IF 24VS - LSU P - M o t or (1) CRUM IF SDIO LSU Video-. Dual beam 12MHz MAC UART PWM CLOCK USB 2 . 0 -. Main : P_Exit Sensor 24VS FUSER UNIT FET (x2) 12MHz (Main & USB) DC-DC Converter SN1005103R : 1.2V / 1.5V / 3.3V MII (AC201A1) RESET TR (x2) FUSER UNIT Contact Thermistor 850W lamp Thermostat _3V_C_OPEN1 25MHz // HVPS : EP & THV High Voltage output Cover open detect Binfull/Regi/feed/P_empty sensor Crum IF / Pickup & regi clutch 5V_SMPS 4V_SMPS MicroS/W (HVPS) 3_ UI USB2.0 Device UART Embedded USB GPIO or UART 12MHz Kingbird SMPS POWER CORD DEVE K UNIT CRUM Crum IF / Pickup & regi clutch 5 24 2Line LCD OPE

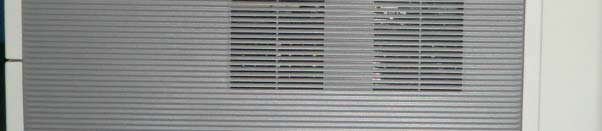

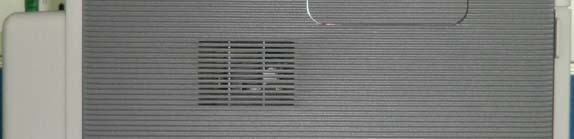

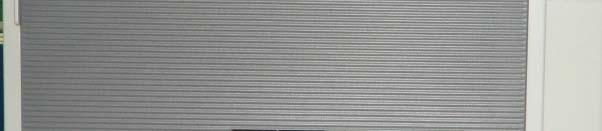

SCX - 4726FN Photo SCX 4726FN Photo External View Photo SCX - 4726FN Photo SCX 4726FN Photo Et lVi Ph t F t E x t erna l Vi ew Ph o t o_ F ron t SCX - 4726FN Photo SCX 4726FN Photo Et lVi Ph t L ft E x t erna l Vi ew Ph o t o_ L e ft SCX - 4726FN Photo SCX 4726FN Photo Et lVi Ph t B k E x t erna l Vi ew Ph o t o_ B ac k SCX - 4726FN Photo SCX 4726FN Photo Et lVi Ph t Ri ht E x t erna l Vi ew Ph o t o_ Ri g ht SCX - 4726FN Photo SCX 4726FN Photo Et lVi Ph t T E x t erna l Vi ew Ph o t o_ T op SCX - 4726FN Photo SCX 4726FN Photo Et lVi Ph t B tt E x t erna l Vi ew Ph o t o_ B o tt om SCX - 4726FN Photo SCX 4726FN Photo Et lVi Ph t M d l N E x t erna l Vi ew Ph o t o_ M o d e l N ame SCX - 4726FN Photo SCX 4726FN Photo PCdP ower C or d

Project No. : LBE20123954 Mono MFP : SCX-4726FN - 52/56- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography 1. Front Side 2. Rear Side & Label location Project No. : LBE20123954 Mono MFP : SCX-4726FN - 56/56- This report must not be reproduced, except in full, without written permission from CS & Environment center. 9. Inside View # 5 (SMPS) 10. LABEL

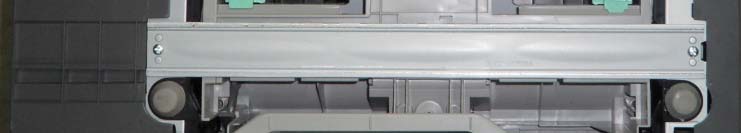

SCX - 4726FN Photo SCX 4726FN Photo Internal View Photo SCX - 4726FN Photo SCX 4726FN Photo It lVi Ph t F t I n t erna l Vi ew Ph o t o_ F ron t SCX - 4726FN Photo SCX 4726FN Photo It lVi Ph t L ft I n t erna l Vi ew Ph o t o_ L e ft SCX - 4726FN Photo SCX 4726FN Photo It lVi Ph t B k I n t erna l Vi ew Ph o t o_ B ac k SCX - 4726FN Photo SCX 4726FN Photo It lVi Ph t Ri ht I n t erna l Vi ew Ph o t o_ Ri g ht SCX - 4726FN Photo SCX 4726FN Photo It lVi Ph t B tt I n t erna l Vi ew Ph o t o_ B o tt om SCX - 4726FN Photo SCX 4726FN Photo PBA Photo SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t M i PBA T PBA Ph o t o_ M a i n PBA T op SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t M i PBA B tt PBA Ph o t o_ M a i n PBA B o tt om SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t SMPS T PBA Ph o t o_ SMPS T op SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t HVPS T PBA Ph o t o_ HVPS T op SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t OPE PBA T PBA Ph o t o_ OPE PBA T op SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t OPE PBA B tt PBA Ph o t o_ OPE PBA B o tt om SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t FAX PBA T PBA Ph o t o_ FAX PBA T op SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t FAX PBA B tt PBA Ph o t o_ FAX PBA B o tt om SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t ADF J i t PBA T PBA Ph o t o_ ADF J o i n t PBA T op SCX - 4726FN Photo SCX 4726FN Photo PBA Ph t ADF JitPBABtt PBA Ph o t o_ ADF J o i n t PBA B o tt om

SCX-4726FN Technical Specification ItemSpecification and Description Processor CHOURS3N(533Mhz) Standard System memory DDR3 128 MB Resolution True 600 x 600 dpi, addressable 1200 x 1200 Copy Quality mode Yes Paper Handling250- sheet Cassette @80 g/ ㎡ ,1- sheet Multi Purpose Tray Power Rating90~135 VAC, 5.5A, 50/60 Hz Power Consumption Power save mode :1.5Wh Ready mode :50 Wh Printing mode :400 Wh(Max) Printer Language PCL6, SPL PC Interfaces High Speed USB2.0 Ethernet 10/100 OS compatibility Windows 2000/ XP(32/64bits)/Vista(32/64bits)/2003 Server(32/64bits)/2008 Server(32/64bits) /7(32/64 bits)/2008 Server R2(64bits) Mac OS X 10.4 ~ 10.6 RedHat Enterprise Linux WS 4, 5 (32/64 bit) Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64 bit) SuSE Linux 10.1 (32 bit) OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit) Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit) Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit) SuSE Linux Enterprise Desktop 10, 11 (32/64 bit) Debian 4.0, 5.0 (32/64 bit) Sun Solaris 9,10 ( x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 ( PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4 Modes of Operation USB Printing, Network Printing Intended Class for Emissions Class B ■ Type of Product : MFP ■ Type No : SCX-4726FN ■ Clock Frequency List Main Source Clock : 12 MHz Video Clock :12 MHz USB Device Clock :12 MHz Network :25 Mhz CPU Internal Clock : 533 MHz DDR Clock : 360 MHz Modem Clock : 15 MHz ■ Variant Models - ■ Manufacturer Address Samsung Electronics Co., Ltd. 416, Maetan 3- Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea 443-742 ■ Factory Address 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics ( Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops ( Weihai) Electronics Co., Ltd., Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA

-1/56- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20123954 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application July 9, 2012 EUT Type of device Class A personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSCX4726FN Kind of product Mono MFP Model No. SCX-4726FN Variant Model No. - Manufacturer 1) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 2) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Intops (Weihai) Electronics Co., Ltd. Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period July 3, 2012 ~ July 13, 2012 Issue date July 16, 2012 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Sang Kyu Seo Reviewed by : Tae Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20123954 Mono MFP : SCX-4726FN - 2/56- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history 3 page 1.2 Sample calculation 3 page 2. Summary of test results 2.1 Emission 3 page 3. General Information 3.1 Test facility 4 page 4. Test configuration 4.1 Test Peripherals 4 page 4.2 EUT operating mode 5 page 4.3 Details of Sampling 5 page 4.4 Used cable description 5 page 4.5 Test arrangement 6 page 4.6 EUT Description 7 page 4.7 Clock Frequencies 8 page 4.8 Test configuration and condition 8 page 4.9 Measurement uncertainty 9 page 5. Result of individual tests 5.1 Conducted disturbance 10 page 5.2 Radiated disturbance 22 page Appendix – EUT photography 42 page Project No. : LBE20123954 Mono MFP : SCX-4726FN - 3/56- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ◦ Class B limit = 60 dBμV (Quasi-peak limit) ◦ Level (50 dBμV) = Meter Reading (40.2 dBμV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ◦ Margin (10 dB) = Limit (60 dBμV) – Level (50 dBμV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ◦ Class B limit = 30 dBμV/m at 10 m ◦ Level (20 dBμV/m) = Meter Reading (40 dBμV) + factor (- 20 dB (1/m), antenna factor + cable loss – amplifier gain) ◦ Margin (10 dB) = Limit (30 dBμV/m) – Level (20 dBμV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No. Revised detailed information Issue 0 There are no revisions and this version is basic test report. Project No. : LBE20123954 Mono MFP : SCX-4726FN - 4/56- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 4. Test Setup configuration 4.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A Mono MFP SCX-4726FN - Samsung EUT B Note PC NP-R580 ZN79XNZ700018H Samsung DoC C Adapter AD-9019S CNBA4400215AD2VH8373317 Li Shin For PC D Telephone SP-F209 KKAY911816H Samsung DoC E Keyboard SDM4510UH 5M000344 Samsung Electro-Mecha nics DoC F USB mouse SC-1000 20-1EI018501 Dong Guan Primax Electonics DoC G Headset - - Actto DoC Project No. : LBE20123954 Mono MFP : SCX-4726FN - 5/56- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Items Test Condition SMPS Manufacture Operating Mode 1 Stand-By DONG YANG E&P Operating Mode 2 LAN Printing Operating Mode 3 ADF Copy Operating Mode 4 Scan to PC Operating Mode 5 FAX Rx SHANDONG NEW COWITEL Operating Mode 6 LAN Printing Operating Mode 7 ADF Copy 4.3 Details of Sampling Customer selected, single unit. 4.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; No. Connected cable Le…
