A3LSCX4828FNMulti Function Printer

SCX-4x24 Series SCX-4x28 Series Multi Functional Printer User’s Guide imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register 2_Features of your new laser product features of your new laser product Your new machine is equipped with a number of special features that improve the quality of the documents you print. With the machine, you can: Print with excellent quality and speed •You can print with a resolution of up to 1200 dpi effective output. •Your machine prints A4-sized paper at up to 24 ppm (SCX- 4x24 Series), 28 ppm (SCX-4x28 Series) and letter-sized paper at up to 25 ppm (SCX-4x24 Series), 30 ppm (SCX- 4x28 Series). Handle many different types of printable material •The manual tray supports letterhead, envelopes, labels, custom-sized media, postcards, and heavy paper. The manual tray holds up 1 sheet of paper. •The 250-sheet tray 1 and optional tray support plain paper in various sizes. Create professional documents •Print Watermarks. You can customize your documents with words, such as “Confidential”. See Software section. •Print Posters. The text and pictures of each page of your document are magnified and printed across the sheet of paper and can then be taped together to form a poster. See Software section. •You can use preprinted forms and letterhead with plain paper. See Software section. Save time and money •To save paper, you can print multiple pages on one single sheet of paper. •This machine automatically conserves electricity by substantially reducing power consumption when not in use. •To save paper, you can print on both sides of the paper (double-sided printing). See Software section. Expand your machine’s capacity •Your machine has an extra memory slot to expand their memory. (Page 79) •Zoran IPS Emulation* compatible with PostScript 3 (PS) enables PS printing. . Print in various environments •You can print with Windows 2000 and Windows XP/2003/ Vista as well as Linux and Macintosh systems. •Your machine is equipped with a USB interface and a network interface. Copy originals in several formats •Your machine can print multiple image copies from the original document on a single page. •There are special functions to erase catalog and newspaper background. •The print quality and image size may be adjusted and enhanced at the same time. Scan the originals and send it right away •Scan in color and use the precise compressions of JPEG, TIFF and PDF formats. •Quickly scan and send files to multiple destinations using Networks scanning. Set a specific time to transmit a Fax •You can specify a certain time to transmit the fax and also send the fax to several stored destinations. •After the transmission, the machine may print out the fax reports according to the setting. * Zoran IPS Emulation compatible with PostScript 3 © Copyright 1995-2005, Zoran Corporation. All rights reserved. Zoran, the Zoran logo, IPS/PS3, and OneImage are trademarks of Zoran Corporation. * 136 PS3 fonts Contains UFST and MicroType from Monotype Imaging Inc. SPECIAL FEATURES Features of your new laser product_3 FEATURES BY MODELS The machine is designed to support all of your document needs – from printing and copying, to more advanced networking solutions for your business. Basic features of this machine include: ( : Included, O: Optional, Blank: Not Available) ABOUT THIS USER’S GUIDE This user’s guide provides information about basic understanding of the machine as well as detailed explanation on each step during the actual usage. Both novice users and professional users can refer to this guide for installing and using the machine. Some terms in this guide are used interchangeably, as below: •Document is synonymous with original. •Paper is synonymous with media, or print media. Following table offers the conventions of this guide: FEATURESSCX-4824FNSCX-4828FN USB 2.0 USB Memory Interface ADF (Automatic Document Feeder) Network Interface Enthernet 10/100 Base TX wired LAN Duplex (2-sided) printing FAX Scan to email PostScript driver CONVENTIONDESCRIPTIONEXAMPLE BoldUsed for texts on the display or actual prints on the machine.Start Note Used to provide additional information or detailed specification of the machine function and feature. The date format may differ from country to country CautionUsed to give users information to protect the machine from possible mechanical damage or malfunction. Do not touch the green underside of the toner cartridge. FootnoteUsed to provide more detailed information on certain words or a phrase. a. pages per minute (See page 1 for more information) Used to guide users to the reference page for the additional detailed information. (See page 1 for more information) 4_Features of your new laser product FINDING MORE INFORMATION You can find information for setting up and using your machine from the following resources, either as a print-out or onscreen. Quick Install GuideProvides information on setting up your machine and this requires that you follow the instructions in the guide to prepare the machine. Online User’s GuideProvides you with step-by-step instructions for using your machine’s full features, and contains information for maintaining your machine, troubleshooting, and installing accessories. This user’s guide also contains a Software section to provide you with information on how to print documents with your machine in various operating systems, and how to use the included software utilities. Printer Driver HelpProvides you with help information on printer driver properties and instructions for setting up the properties for printing. To access a printer driver help screen, click Help from the printer properties dialog box. Samsung website If you have Internet access, you can get help, support, printer drivers, manuals, and order information from the Samsung website, www.samsungprinter.com . Safety information_5 safety information IMPORTANT SAFETY…

Text truncated - open the document above for the full version.

SCX-4828FN/4824FN Block Diagram Main S/W INLET MAIN Controller SMPS CHORUS 3 HVPS FUSER Unit Thermostat Thermistor Exit Sensor OPE PickUp Clutch Regi Clutch Front Cover Micro Switch Rear Cover Micro Switch 5V, 24V 24VS FUSER ON 5V, 24V 24VS 24VS 24V DEVELOPER Unit FAN MAIN FAN SMPS OPC MHV DEV Supply THV Varistor T D S DRUM M MAIN MOTOR NOR Flash S29GL128N90TFIR20 (16MB X 1EA) DDR2 SDRAM K4T1G164QD-ZCE6 (128MB X 1EA) EEPROM M24256 X 1EA SOL CL CRU M LSU INTERLOCK S/W LSU Regi_Dpx Sensor Feed Sensor Empty Sensor DEVICE SCF (Option) Network BCM5241 25MHz USB 2.0 ISP1761 DDR2 SDRAM SODIMM (Max 256MB) Clock Generator ASM3P2863A 12MHz MCLK VCLK USB CLK SPEAKER Battery CR2032 SERIAL Flash AT25DF321 LIU MT BLDC PLATEN MOTOR DRIVER A3983SLP LCD (16X2) SFX336 (CX86710) SMART DAA ADF MOTOR DRIVER (TEA3718 X 2) EMPTY REG EXIT MT STEP ADF MOTOR CISM AFE HT82V26 32.768KHz FAN LSU Outbin Full Sensor HOST USB memory (SCX-4828FN only) MT STEP PLATEN MOTOR

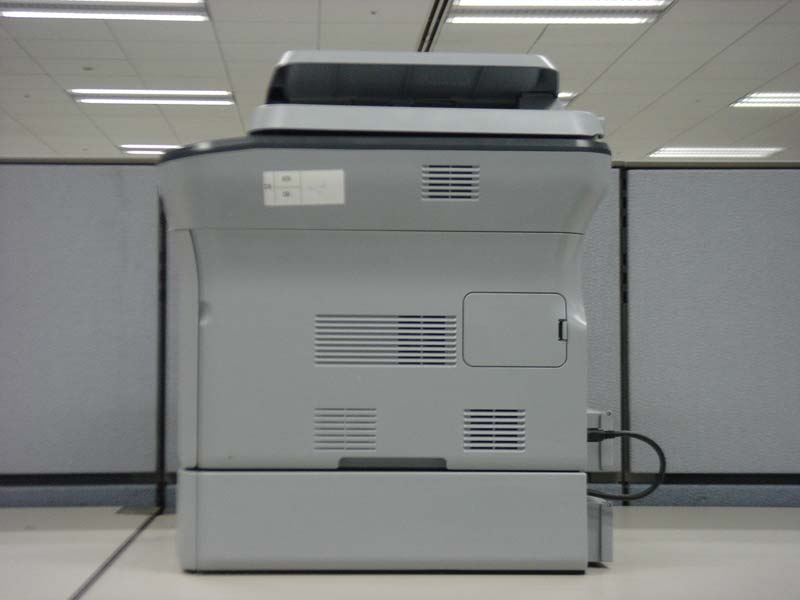

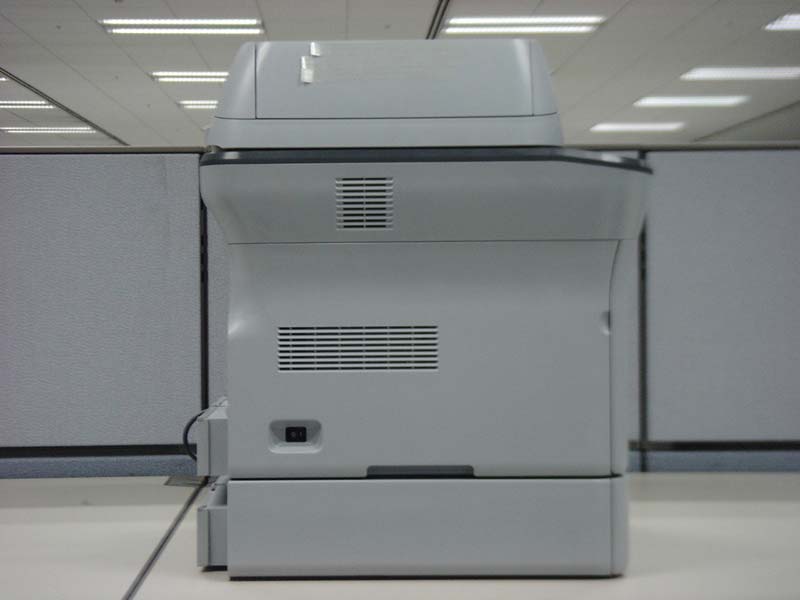

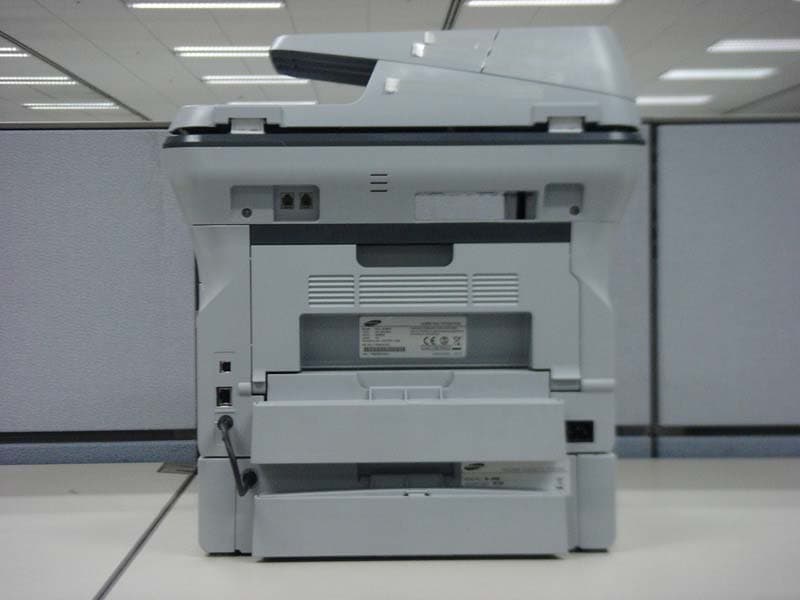

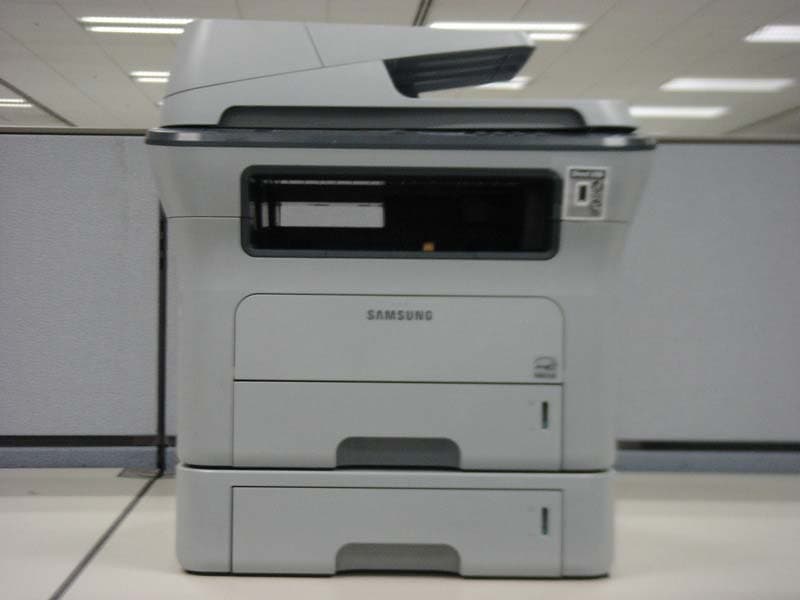

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

Project No. : LBE080214 Laser Printer : SCX-4828FN - 59/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Label Location Project No. : LBE080214 Laser Printer : SCX-4828FN - 60/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Rating Label Note) Rating labels for variant models are same as above except model name if applicable.

2. Internal Pictures 1) Front View 2) Rear View 3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View of HVPS 6) Bottom View of HVPS 7) Top View of Panel 8) Bottom View of Panel 9) Top View of Zener 10) Bottom View of Zener 11) Top View of Terminal 12) Bottom View of Terminal 13) Top View of ADF 14) Bottom View of ADF 15) Top View of SCF 16) Bottom View of SCF 17) Top View of USB Host 18) Bottom View of USB Host 19) Top View of ADF Joint 20) Bottom View of ADF Joint

Project No. : LBE080214 Laser Printer : SCX-4828FN - 7/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks memory 128MB (Max 384MB) - Resolution Up to 1 200 dpi effective output (Printer) Up to 1 200 * 600 dpi (Optical, Scanner) Up to 4 800 * 4 800 dpi (Enhanced, Scanner) Up to 600 * 300 dpi (Copier, Text) - Copy/Print Speed Up to 28 ppm(A4), 29 ppm(Letter) for Simplex Printing Up to 28 cpm(A4), 29 cpm(Letter) for Copier - Display 16 characters * 2 lines - Copy Quality mode text, text/photo, Magazine, Photo - Paper Handling Paper Tray(standard) : 250 Sheets MP Tray : 1 sheet for paper 2nd Tray : 250 sheets - Power Rating 110~127 VAC, 7A, 50/60 Hz - Power Consumption Operation : 450 WH Standby : Less than 60 WH Power save mode : Less than 12 WH Power off mode : 0 W - Interfaces Fax 33.6kbps Tx/Rx (Tel line) Ethernet 10/100 Base TX(embedded type) High Speed USB 2.0 - OS compatibility Windows 2000 / XP / 2003 / Vista Linux Mac OS 10.3~10.5, Universal Mac - Modes of Operation Copying, USB Printing, Network Printing, FAX, SCAN to USB, Standby Intended Class for Emissions Class B -

-1/60- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE080214 Issue No. 1 Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Applicant Date of application January 18, 2008 Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSCX4828FN Kind of product Laser Printer SCX-4828FN Model No. Variant Model No. SCX-4824FN EUT Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeong-Buk, 730-030, Korea Place:M259 Samsung Electronics Shandong Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Test Period January 29,2008 ~ February 4, 2008 Issue date February 16, 2008 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Kyeong Dong Kim Reviewed by : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. SEC EMC Laboratory 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE080214 Laser Printer : SCX-4828FN - 2/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 2.2 Accreditation and listing 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE080214 Laser Printer : SCX-4828FN - 3/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standardResult Remarks Conducted Disturbance CompliedMeets Class B Limit Radiated Disturbance FCC Part 15 Subpart B CompliedMeets Class B Limit 2. General Information 2.1 Test facility The SEC EMC Laboratory is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The SEC EMC Laboratory is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE080214 Laser Printer : SCX-4828FN - 4/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 2.2 Accreditation and listing Laboratory Qualifications Remarks KOLAS(Korea Laboratory Accreditation Scheme) Accredited : 124 Radio Research Laboratory Accredited : KR0004 FCC(Federal Communications Commission) Accredited : KR0004 National Voluntary Laboratory Accreditation Program Lab Code: 200623-0 Norges Elektriske Materiellkontroll Accredited : ELA 195 VCCI (Voluntary Control Council for Interference by Information Technology Equipment) C-2421,R-2224 China Quality Certification Center 5-053, 5-054 TUV Rhineland H9354285 GOST(GOSTSTANDART) ROSTEST Elektrotechnicky Zkusebni Ustav Reg. No.: 001 IC(Industry Canada) Assigned Code: 5871 Project No. : LBE080214 Laser Printer : SCX-4828FN - 5/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test configuration 3.1 Test Peripherals The following is a listing of the EUT and supporting peripherals utilized during testing. Description Model No. Serial No. Manufacturer FCC ID and/or DoC Laser Printer SCX-4828FN - Samsung A3LSCX4828FN Note PC NP-P29 674E93AYC00024 E Samsung DoC AC Adapter AD-9019 CNBA4400130ASE 382CI0712 Dongguan Samsung Electro-Mechanics For Note PC USB Mouse MS201U 69G1107 Monterey DoC Headset - - Labtec - Telephone SP-F209K KKAY413543T Yontae - USB Memory TMFMP-C2161-79E - ThumbDrive DoC 3.2 EUT operating mode To achieve compliance applied standard and/or specification, the following mode(s) were considered and tested fully except radiated emission testing for configuration 2. Operating Mode 1 Standby Operating Mode 2 Copying Operating Mode 3 Scan to USB Operating Mode 4 USB Printing Operating Mode 5 FAX Tx Operating Mode 6 FAX Rx Operating Mode 7 LAN Printing 3.3 Details of Sampling Customer selected, two units. - Unit 1 : SSE080094-1 (SMPS manufacturer : Samsung Electro-Mechanics) - Unit 2 : SSE080094-2 (SMPS manufacturer : Sungho Electronics) Project No. : LBE080214 Laser Printer : SCX-4828FN - 6/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.3 No For EUT USB 1.8 Yes From Note PC to the…

Text truncated - open the document above for the full version.

Project No. : LBE080214 Laser Printer : SCX-4828FN - 11/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE080214 Laser Printer : SCX-4828FN - 42/60- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.3 Photograph of Test setup (30 MHz ~ 1 GHz) Front Rear
