A3LSF555PMulti Function Printer

Trademarks • SmarThru3, MailBox, Image Manager, Scan Manager, Copy Manager, Image Viewer, AnyPage are trademarks of Samsung Electronics. • Windows, Windows 95, Windows 98, Windows Me, Windows NT, Windows 2000 and Windows XP are trademarks of Microsoft corporation. • Other names and trademarks mentioned in this manual are trademarks of their respective holders. I Introduction Welcome!–––––––––––––––––––––––––––––––––––––––––1.1 Contents––––––––––––––––––––––––––––––––––––––––––1.3 Identifying Parts–––––––––––––––––––––––––––––––––––1.4 Setting Up Your Machine Choosing a Location––––––––––––––––––––––––––––––––1.9 Preparing Your Machine for Use–––––––––––––––––––––1.9 Attaching the Supports––––––––––––––––––––––––––––1.10 Connecting to the Phone Line––––––––––––––––––––––1.12 Connecting to the Computer–––––––––––––––––––––––1.14 Plugging In the Power–––––––––––––––––––––––––––––1.15 Loading Paper––––––––––––––––––––––––––––––––––––1.15 Installing the Toner Cartridge––––––––––––––––––––––1.18 Setting the Date and Time–––––––––––––––––––––––––1.20 Setting Your Fax Number and Name––––––––––––––––1.21 Testing the Machine––––––––––––––––––––––––––––––1.21 Using Save Modes––––––––––––––––––––––––––––––––1.22 Contents Getting Started Samsung SmarThru About Samsung SmarThru Software–––––––––––––––––2.1 Installing Software System Requirements––––––––––––––––––––––––––––––2.3 Installing the Samsung Software––––––––––––––––––––2.4 Installing the USB Driver in Windows 98/Me––––––––––2.8 Uninstalling Samsung Software––––––––––––––––––––2.11 1 2 Installing Samsung Software II Setting Up Stand-alone Fax System Setting Volume –––––––––––––––––––––––––––––––––– 3.1 Setting Alert Tones ––––––––––––––––––––––––––––––– 3.2 Setting User-Selectable System Options –––––––––––––– 3.2 Sending a Fax Preparing Documents for Faxing or Copying ––––––––––– 3.7 Setting Document Resolution and Contrast –––––––––––– 3.8 Loading Documents ––––––––––––––––––––––––––––––– 3.9 Sending a Fax Automatically ––––––––––––––––––––––– 3.10 Sending a Fax After Talking ––––––––––––––––––––––– 3.11 Voice Request –––––––––––––––––––––––––––––––––– 3.12 Receiving a Fax About Reception Modes –––––––––––––––––––––––––– 3.13 Loading Paper for Receiving Faxes–––––––––––––––– 3.14 Receiving Automatically in FAX Mode –––––––––––––––– 3.14 Receiving in AUTO Mode –––––––––––––––––––––––––– 3.15 Receiving Automatically in ANS/FAX Mode –––––––––––– 3.15 Receiving Manually in TEL Mode –––––––––––––––––––– 3.16 Receiving Manually Using an Extension telephone––––––– 3.16 Making a Copy Copying Overview ––––––––––––––––––––––––––––––– 3.17 Making a Single Copy –––––––––––––––––––––––––––– 3.17 Using Advanced Copy Features ––––––––––––––––––––– 3.18 Automatic Dialling How To Enter a Name Using the Number Keys ––––––––– 3.19 One-Touch Dialling –––––––––––––––––––––––––––––– 3.21 Speed Dialling –––––––––––––––––––––––––––––––––– 3.23 Using the Phonebook on Your Computer ––––––––––––– 3.25 Searching for a Number in the Memory –––––––––––––– 3.27 Advanced Fax Broadcasting ––––––––––––––––––––––––––––––––––– 3.28 Delayed Fax –––––––––––––––––––––––––––––––––––– 3.29 Priority Fax –––––––––––––––––––––––––––––––––––– 3.31 Polling –––––––––––––––––––––––––––––––––––––––– 3.32 Adding Documents To a Scheduled Operation ––––––––– 3.34 Cancelling a Scheduled Operation ––––––––––––––––––– 3.34 Stand-alone Fax 3 III Contents (continued) Print Media Selecting Print Media–––––––––––––––––––––––––––––––4.1 Using the Automatic Paper Input Tray––––––––––––––––4.3 Using the Manual Paper Input Tray––––––––––––––––––4.5 Specialty Paper Guidelines––––––––––––––––––––––––––4.8 Printing Printing a Document–––––––––––––––––––––––––––––––4.9 Cancelling a Print Job–––––––––––––––––––––––––––––4.12 Printing Help–––––––––––––––––––––––––––––––––––––4.12 Using a Favorite Setting––––––––––––––––––––––––––––4.13 Setting Paper Properties–––––––––––––––––––––––––––4.14 Using the Toner Save Mode––––––––––––––––––––––––4.15 Printing Multiple Pages on One Sheet of Paper–––––––4.17 Printing a Reduced or Enlarged Document–––––––––––4.18 Fitting Your Document to a Selected Paper Size––––––4.19 Printing Posters–––––––––––––––––––––––––––––––––––4.20 Using Watermarks–––––––––––––––––––––––––––––––––4.21 Using Page Overlays––––––––––––––––––––––––––––––4.24 Setting Graphic Propeties––––––––––––––––––––––––––4.28 Using Output Options––––––––––––––––––––––––––––––4.30 Setting Up the Locally Shared Printer–––––––––––––––4.31 Additional Functions Sending a Recall (Flash or R) ––––––––––––––––––––––– 3.35 Monitoring a Dual Job Status ––––––––––––––––––––––– 3.35 Forwarding Received Faxes –––––––––––––––––––––––– 3.36 Toll Save Fax–––––––––––––––––––––––––––––––––––– 3.37 Printing Reports ––––––––––––––––––––––––––––––––– 3.38 Group Dialling (for Multi-Address Transmission)––––––––––– 3.40 4 Printing Stand-alone Fax (continued) 3 IV Guidelines for Maintenance–––––––––––––––––––––––––5.1 Clearing Memory–––––––––––––––––––––––––––––––––––5.1 Cleaning the OPC Drum––––––––––––––––––––––––––––5.2 Adjusting Shading –––––––––––––––––––––––––––––––––5.2 Setting the Machine to be Checked by Phone–––––––––5.3 Sending Toner Low Information to the Service Company–––––––––––––––––––––––––––––5.3 Cleaning the Machine––––––––––––––––––––––––––––––5.4 Managing the Toner Cartridge–––––––––––––––––––––––5.7 Automatic Document Feeder Rubber Pad Replacement 5.10 5 Maintenance Clearing Paper Jams––––––––––––––––––––––––––––––––––6.1 LCD Error Messages ––––––––––––––––––––––––––––––––––6.5 Fax Problems ––––––––––––––––––––––––––––––––––––––––6.7 General Printing Problems ––––––––––––––––––––––––––––6.9 Print Quality Problems ––––––––––––––––––––––––––––––6.11 Troubleshooting 6 Connecting Other Devices to the Phone line–––––––––––A.1 Specifications ––––––––––––––––––––––––––––––––––––––––A.4 Safety Information –––––––––––––––––––––––––––––––––––A.6 Index ––––––––––––––––––––––––––––––––––––––––––––––A.11 Appendix Refer to th…

Text truncated - open the document above for the full version.

4.14 Printing Setting Paper Properties Use the following options to set the basic paper handling needs when you access the printer properties. See page 4.9 for more information on accessing printer properties. Click thePapertab to access various paper properties Property Description ❶Copies ❷ Size Copies allows you to choose the number of copies to be printed. You can enter up to 999. TheSizeoption allows you to choose the size of paper loaded in the tray. ❶ ❷ ❸ ❹ 4.15 Printing Property Description ❸ Source ❹ Type Make sure that Sourceis set to the corresponding paper tray. The Manual Feedsource is used when printing to special materials. You have to load one sheet at a time into the Bypass Tray. If the paper source is set to Auto Select, the machine automatically picks up print materials according to the following order: the Bypass tray and the paper tray. Make sure that Type is set toPrinter Default. If you load a different type of print materials, select the corresponding paper type. Using the Toner Save Mode Toner Save mode allows the machine to use less toner on each page. Using this mode will extend the life of your toner cartridge and reduce your cost per page, but will reduce print quality. Using the control panel button You can turn on or off the Toner Save mode by pressing the Toner Save button. 4.16 Printing From the software application 1. When you change the print settings from your software application, access the printer properties. See page 4.9 2. Click the Graphicstab, and select the Toner Saveoption. You can select from: • Printer Setting: If you select this option, this feature is determined by the setting you’ve made on the control panel of your machine. • On: Select this option to allow the machine to use less toner on each page. • Off: If you don’t need to save toner to print a document, select this option. 3. Click OK. Note:The setting in the software application overrides that on the control panel. 4.17 Printing 4.17 Printing Multiple Pages on One Sheet of Paper (N-Up Printing) You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will appear decreased in size and arranged on the sheet. You can print up to 16 pages on one sheet. 1. To change the print settings from your software application, access the printer properties. See page 4.9 2. From the Layouttab, choose Multiple Pages per Sidein the Type drop-down list. 3. Select the number of pages you want to print per sheet (1, 2, 4, 9 or 16) in the Pages per Sidedrop-down list. 12 34 4. Select the page orderin the Page Order drop-down list., if necessary. 1 3 2 4 1 2 3 4 2 4 1 3 3 4 1 2 Right, Then Down Down, Then Right Left, Then Down Down, Then Left Check Print Page Borderto print a border around each page on the sheet. Print Page Borderis enabled only, if the pages per sheet is 2, 4, 9, or 16. 4.18 Printing 4.18 4. Click the Papertab and select the paper source, size and type. 5. Click OKand print the document. Printing a Reduced or Enlarged Document You can scale your print job on a page. 1. When you change the print settings from your software application, access the printer properties. See page 4.9 2. From the Layouttab, select Reduce/Enlarge in the Type drop-down list. 3. Enter the desired scaling rate in the Persentageinput box. You can also click the or button. 5. Click the Papertab and select the paper source, size and type. 6. Click OKand print the document. 4.19 Printing 4.19 4. Click the Papertab and select the paper source, size and type. 5. Click OKand print the document. Fitting Your Document to a Selected Paper Size You can scale your print job to any selected paper size regardless of the digital document size. This can be useful when you want to check fine details on a small document. 1. When you change the print settings from your software application, access the printer properties. See page 4.9 2. From the Layouttab, select Fit to Pagein the Type drop-down list. 3. Select the correct size from the Target Paperdrop-down list. A 4.20 Printing 4.20 Printing Posters You can print a single-page document onto 4, 9 or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-size document. 1. When you change the print settings from your software application, access the printer properties. See page page 4.9 2. From the Layouttab, select Posterin the Typedrop-down list. ➛➛



➛➛



2 x 2 ➛➛



➛➛



3 x 3 3. Configure the poster option: You can select the page layout from 2x2, 3x3 or 4x4. If you select 2x2, the output will be automatically stretched to cover 4 physical pages. 4.21 Printing 4.21







Overlap=0







Overlap=5mm 5 mm 5 mm 4. Click the Papertab and select the paper source, size and type. 5. Click OKand print the document. You can complete the poster by reconstructing the results. Specify an overlap in millimeters or inches to make it easier to reconstruct the resulting poster. Using Watermarks The Watermark option allows you to print text over an existing document. For example, you may want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document. There are several predefined watermarks that come with your printer, and they can be modified or you can add new ones to the list. Using an Existing Watermark 1. When you change the print settings from your software application, access the printer properties. See page 4.9 2. Click the Extrastab, and select the desired watermark in the Watermarkdrop-down list. You will see the selected watermark in the preview image. 3 Click OK, then start printing. Preview image. 4.22 Printing Creating a Watermark 1.When you change the print settings from your software application, access the printer properties. See page 4.9 2. Click the Extras tab, and click the Edit button in the Watermark section. The Edit Watermarks window appears. 3. Enter the desired text message in the Wa…

Text truncated - open the document above for the full version.

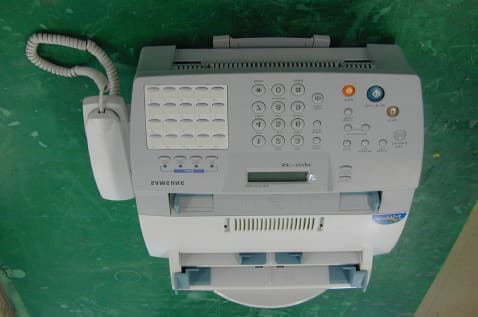

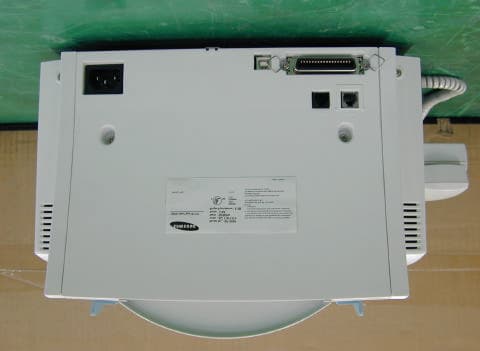

SF-555PFrontView SF-555PRearView

TopPCBofLIU BottomPCBofLIU TopPCBofMainFront BottomPCBofMainFront TopPCBofHVPS BottomPCBofHVPS TopPCBofSMPS BottomPCBofSMPS

Page 1 of 13 Project NO. : LBE020981 Product :Multi Function Printer Model No. :SF-555P 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. Date of test : November 6, 2002 ~ November 7, 2002 Issued Date : November 7, 2002 Tested by: Choon Kil, KIM / Test Engineer Reviewed by: Yang Su, KIM / Maneger Authorised by: Kyu Baek, CHUNG / Chief of EMC Lab. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT According to FCC Part 15 Subpart B/Class B FCC ID : A3LSF555P NVLAP Code: 200447 Page 2 of 13 Project NO. : LBE020981 Table of Contents 1. General Information 1.1 Product Description 1.2 System Block Diagram of Test Configuration 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Enviroment 2.3 Justification 2.4 EUT Exercise Soft ware 2.5 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Level Configuration and Location 6. Test Equipment Used Distribution This test report has been made available as follows: CS Management Center, EMC Laboratory1 original copy Printer Div.1 copy This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 13 Project NO. : LBE020981 1. General Information APPLICANT :Samsung Electronics Co., Ltd. Power Unit Development Section ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT PERSON :IL KYU, YIM Tel. No.: +82 (0)31 200 4614 Fax No.: +82 (0)31 200 4649 REGULATION(S) :FCC Part 15B Class B MODEL NUMBER:SF-555P SERIAL NUMBER :- KIND OF PRODUCT :Multifunction Printer TESTED DATE :November 6, 2002 - November 7, 2002 TEST SITE :SAMSUNG EMC TEST LAB. FCC Registration Number : 873282 Anechoic Chamber #1 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 13 Project NO. : LBE020981 1.1 Product Description The Samsung MFP, SF-555P is supporting the ADF Copy, Fax Tx, Rx and PC printing, ADF Scan through IEEE1284, USB port. 1.2 System Block Diagram of Test Configuration This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. It has Main System clock 10MHz, Video clock 44MHz, USB clock 48MHz and Modem clock 28.224MHz. A B 1 4 5 2 3 C DF 6 7 8 9 Project NO. : LBE020981 2.5.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A Multifunction Printer SF-555P- EUT B CX-151S-AZ2 N209H4NT726970 Samsung - C NETVISTA 1S831115UKAA6842 IBM - D SDL352027011381Samsung - E P8012072747Samsung - 2.5.3 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1Monitor Cable1.2N 2Parallel port cable1N 3USB Cable1N 4Tel line cable1.5N 5AC Power Line1.7N 6Mouse Cable1.2Y 7Key Board Cable1.2Y 8AC Power Line1.7N 9AC Power Line1.7N This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Page 5 of 13 Page 6 of 13 Project NO. : LBE020981 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project NO. : LBE020981 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 13 Page 8 of 13 Project NO. : LBE020981 2.2 Operation Enviroment ConductionRadiation Temperature [centigrade] :26.523 Humidity [%] :2248 Power supply :AC110V/60HzAC110V/60Hz 2.3 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.4 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.5 Test Procedure 2.5.1 Conducted Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead,except the ground(safety) lead, were individually connected through a LISN to the input power source. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 9 of 13 Project NO. : LBE020981 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.5.2 Radiated Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle …

Text truncated - open the document above for the full version.

Page 6 of 13 Project NO. : LBE020981 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project NO. : LBE020981 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 13
