A3LSF760PMono Laser Printer

BASIC User’s Guide SF-76xP Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 5 Features by models 7 Useful to know 12 About this user’s guide 13 Safety information 14 Machine overview 19 Control panel overview 23 Turning on the machine 25 Installing the driver locally 26 Reinstalling the driver 27 2. Menu Overview and Basic SetupMenu overview 29 Machine’s basic settings 34 Media and tray 36 Basic printing 46 Basic copying 50 Basic scanning 53 Basic faxing 54 3. MaintenanceOrdering supplies and accessories 59 Available supplies 60 Available maintenance parts 61 Storing the toner cartridge 62 Redistributing toner 64 Replacing the toner cartridge 66 Monitoring the supplies life 68 Setting the toner low alert 69 Cleaning the machine 70 Tips for moving & storing your machine 77 4. TroubleshootingTips for avoiding paper jams 79 Clearing original document jams 80 Clearing paper jams 82 Understanding the status LED 85 Understanding display messages 87 3 BASIC 5. AppendixSpecifications 92 Regulatory information 100 Copyright 110 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 • Features by models 7 • Useful to know 12 • About this user’s guide 13 • Safety information 14 • Machine overview 19 • Control panel overview 23 • Turning on the machine 25 • Installing the driver locally 26 • Reinstalling the driver 27 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Easy Eco Driver" on page 169). • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 140). • To save paper, you can print on both sides of the paper (Double-sided printing(Manual)) (see "Using advanced print features" on page 140). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. - For single-side printing, 20 ppm (A4) or 21 ppm (Letter). Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard G (see "Easy Capture Manager" on page 167). • Samsung Easy Printer Manager and Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 173 or "Using Smart Panel" on page 175). • AnyWeb Print helps you screen-captu re, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 168). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. • If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product> Support or Downloads Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 94). • Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 140). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see"Using advanced print features" on page 140). • You can print in various operating systems (see "System requirements" on page 97). • Your machine is equipped with a USB interface. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (: Included, Blank: Not available) Software Operating System SF-76xP Series Windows  Macintosh  Linux  Unix Software SF-76xP Series SPL printer driver  PCL printer driverPS printer driverXPS printer driver a  Direct Printing Utility Features by models (: Included, Blank: Not available) Samsung Easy Printer Manager Scan to PC settings  Fax to PC settings  Device settings  Samsung Printer Status  Smart Panel  AnyWeb Print  SyncThru™ Web ServiceSyncThru Admin Web ServiceEasy Eco Driver (Eco printing)  Fax Samsung Network PC Fax  Scan Twain scan driver  WIA scan driver  Samsung Scan Assistant  SmarThru 4SmarThru Office  a. For XPS driver, it is only supported for Windows thro ugh the Samsung we bsite (www.samsung.com) Software SF-76xP Series Features by modelsVariety feature Features SF-76xP Series Hi-Speed USB 2.0  Network Interface Ethernet 10/100 Base TX wired LANNetwork Interface 802.11b/g/n wireless LAN a Eco printing (Control panel)Duplex (2-sided) printing (Manual) b  USB memory interfaceMemory moduleMass Storage Device (HDD)Duplex Automatic Document Feeder (DADF)Automatic Document Feeder (ADF)  Handset  Features by models Fax Multi-send  Delay send  Priority send  Duplex sendSecure receive  Duplex printSend/ Receive forward - fax  Scan Scanning to emailScanning to SMB serverScanning to FTP serverDuplex scanScan to PC  Features SF-76xP Series Features by models (: Included, Blank: Not available) Copy ID card copyingReduced or enlarged copying  Collation  PosterCloneBook2-up/4-up  Adjust background  Margin shiftEdge eraseGray enhanceDuplex copy a. Depending on your country, wireless LAN card may not be available. For some counties, only 802.11 b/g can be applied. Contact your local Samsung dealer or the ret…

Text truncated - open the document above for the full version.

Regulatory information 101 5. Appendix 6 Mercury Safety 7 Power saver 8 Recycling 9 China only Contains Mercury, Dispose According to Local, State or Federal Laws.(U.S.A. only) This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified. Recycle or dispose of the packaging material for this product in an environmentally responsible manner. Regulatory information 102 5. Appendix 10 Correct disposal of this product (Waste electrical & electronic equipment) (Applicable in the european union and other european countries with separate collection systems) (The United States of America only)Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 079911 Taiwan only 12 Radio frequency emissions FCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This marking on the product, accessories or lite rature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Regulatory information 103 5. Appendix This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.13 United States of America Federal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label. Regulatory information 104 5. Appendix The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service. FCC Statement for Wireless LAN use: While installing and operating this tran smitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. …

Text truncated - open the document above for the full version.

ClocksFreq.ClocksFreq. Main12MHzVideo23.571MHz CPU433MHzDDR2300MHz USB12MHzCIS4MHz

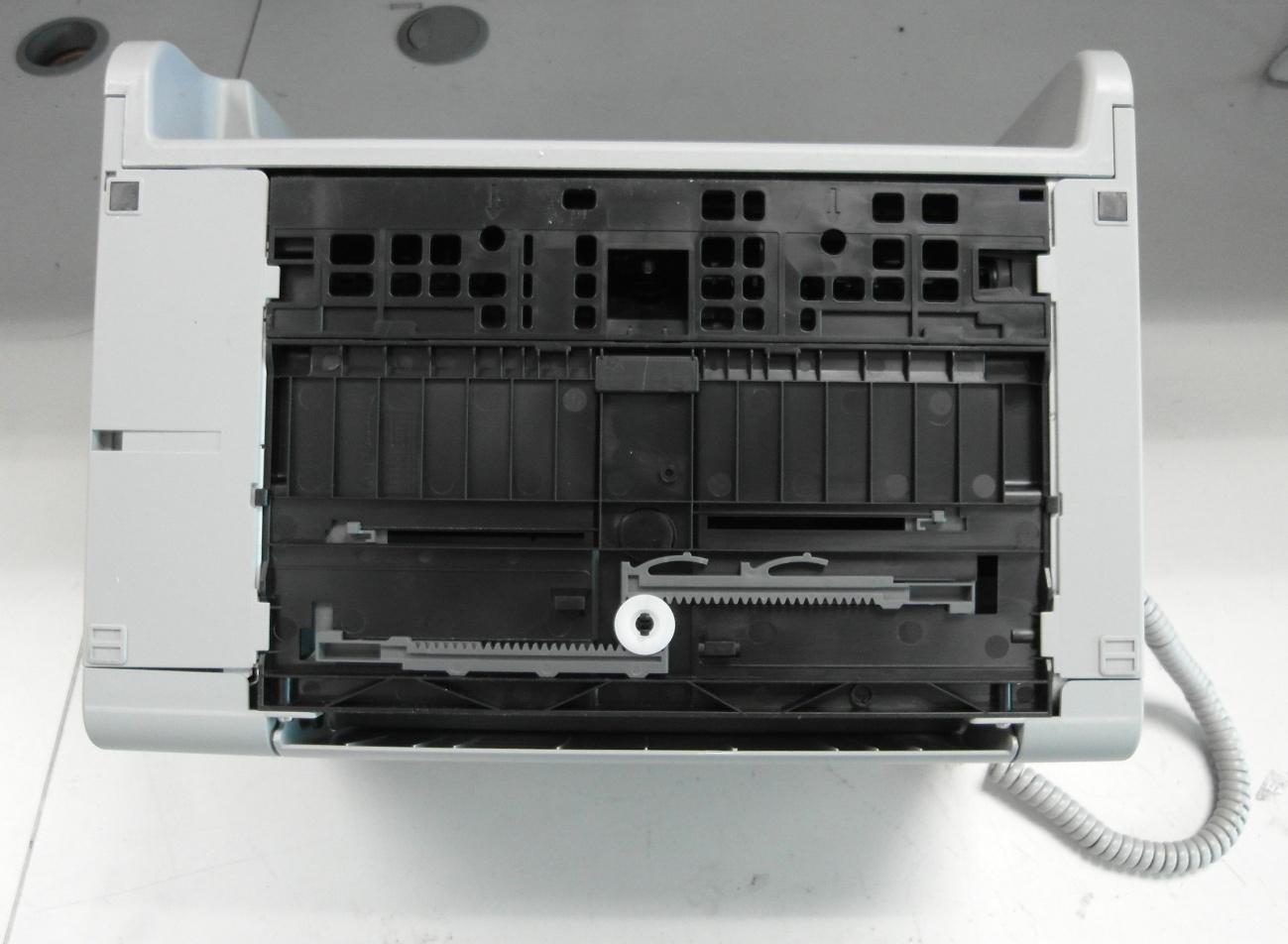

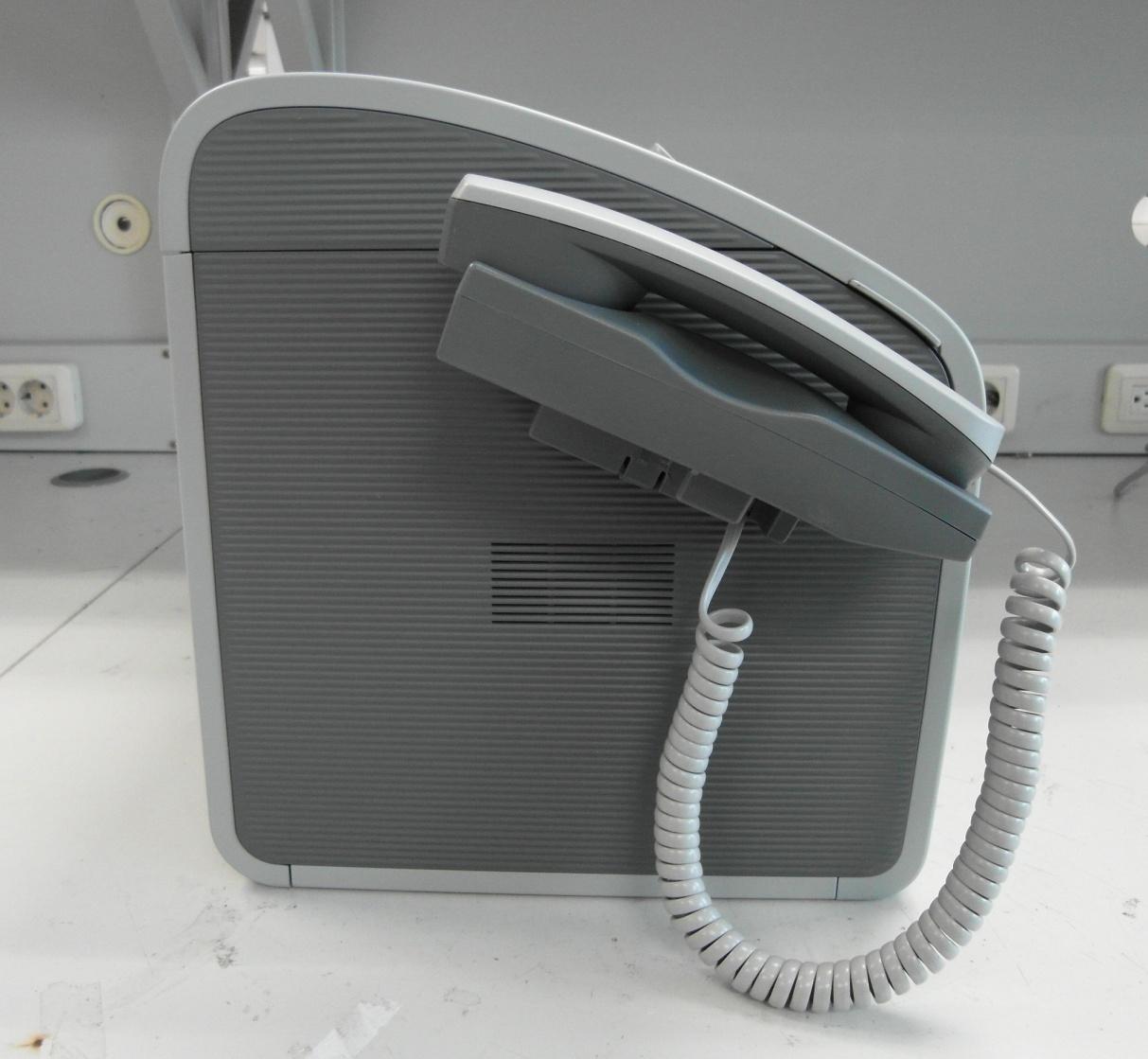

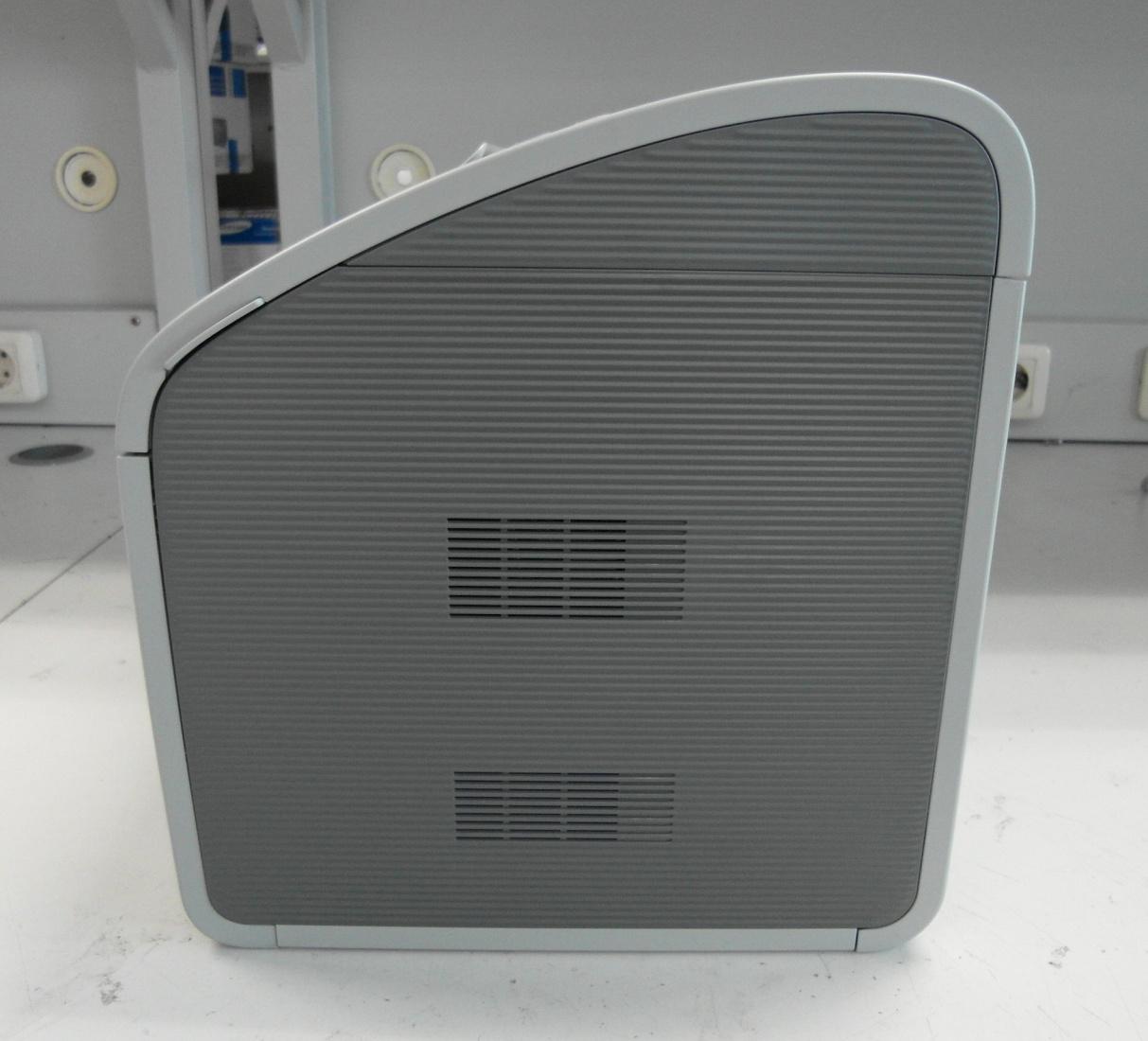

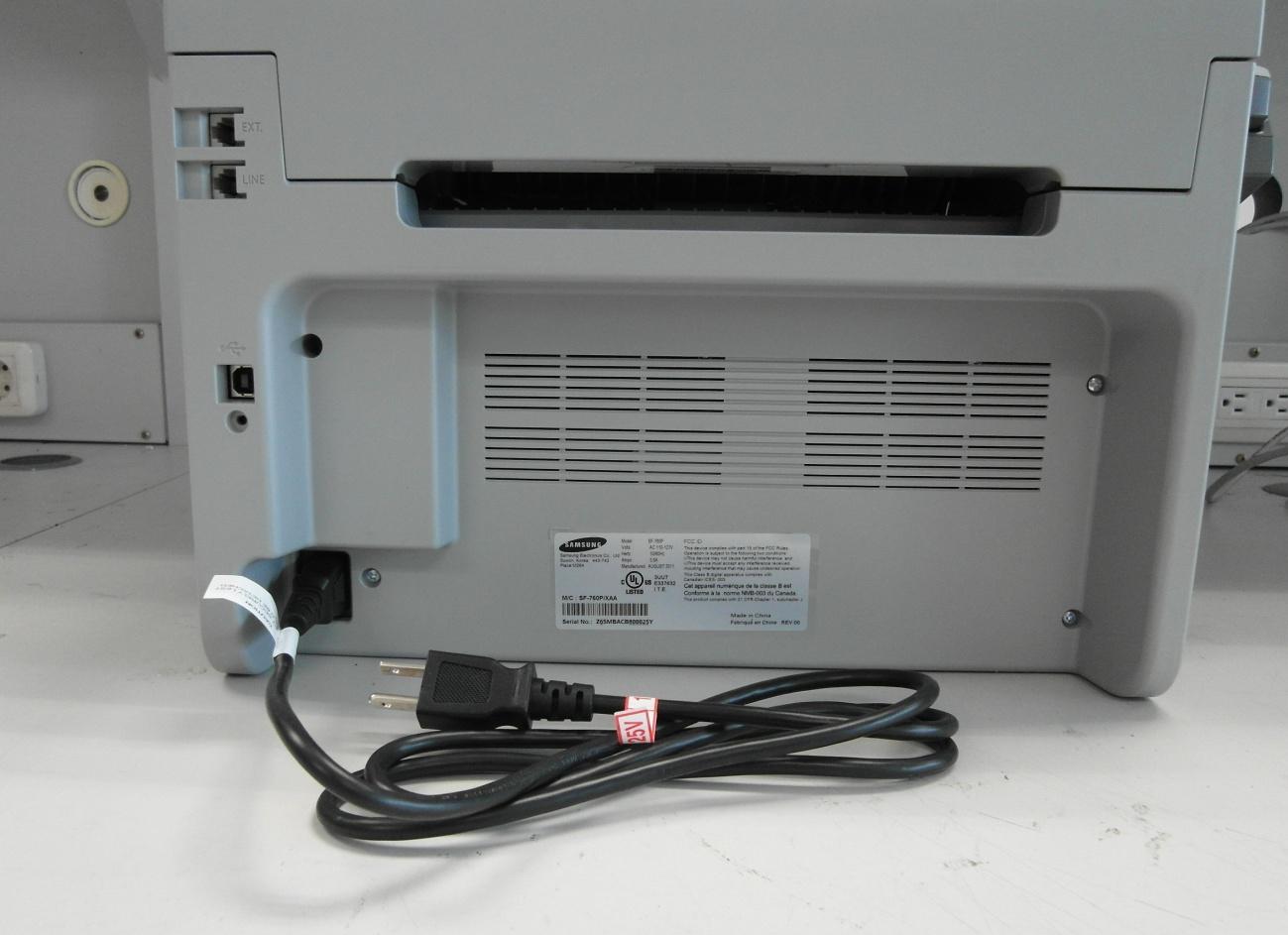

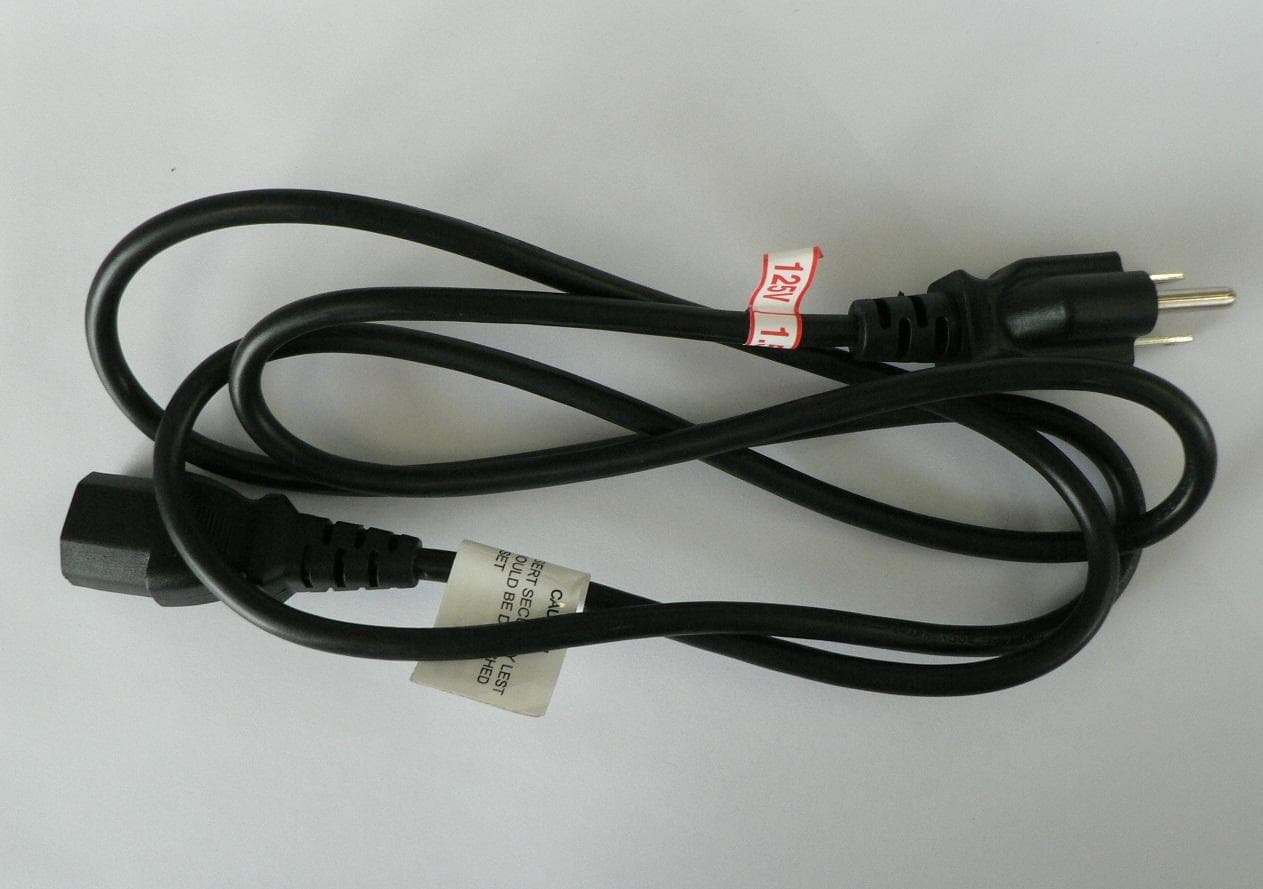

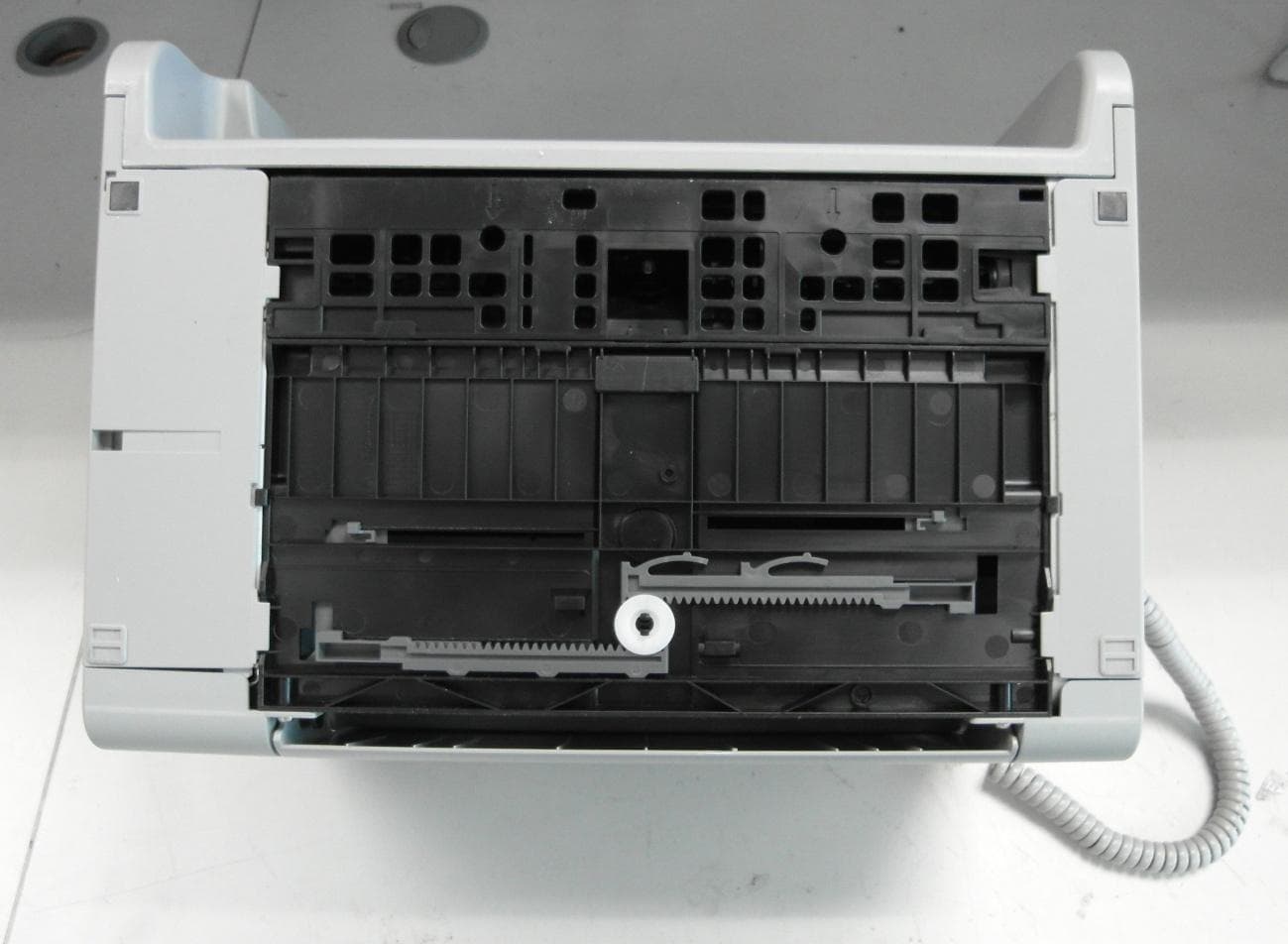

1. Printer Photo SF-760P Printer_Front SF-760P Printer_Rear SF-760P SIDE_RIGHT SF-760P SIDE_LEFT SF-760P TOP VIEW SF-760P Bottom VIEW SF-760P Model Name SF-760P Power Cord With Printer SF-760P Power Cord

Project No. : LBE20114306 Mono Laser Printer : SF-760P -36/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View with label location Project No. : LBE20114306 Mono Laser Printer : SF-760P -37/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. inside View Label

2. Internal Printer Photo SF-760P Printer_Front SF-760P Printer_Rear SF-760P SIDE_RIGHT SF-760P SIDE_LEFT SF-760P TOP VIEW SF-760P Bottom VIEW 3. PBA Photo SF-760P Main PBA_Top SF-760P Main PBA_Bottom SUNGHO, BluejayV1 SF-760P SMPS & HVPS PBA_Front SUNGHO, BluejayV1 SF-760P SMPS & HVPS PBA_Rear SHANDONG, BluejayV1 SF-760P SMPS & HVPS PBA_Front SHANDONG, BluejayV1 SF-760P SMPS & HVPS PBA_Rear SF-760P OPE PBA_Front SF-760P OPE PBA_Rear SF-760P Fax module_Front SF-760P Fax module_Rear

Project No. : LBE20114306 Mono Laser Printer : SF-760P -7/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor CHORUS3-N(433Mhz) Standard System memory 64MB DDR2 SDRAM Resolution 1200 x 1200 dpi Copy Quality mode Text > Scan: 600x300dpi , Printing : 600x600dpi @ ADF Text/Photo > Scan: 600x300dpi , Printing : 600x600dpi @ ADF Photo > Scan: 600x300dpi , Printing : 600x600dpi @ ADF Paper Handling 150-sheet Cassette @ 80g/㎡, 10-sheet @ Special Paper Power Rating 110-127 VAC, 5A 50/60 Hz Power Consumption -. Power Save mode: 2.3W -. Printing Mode : 310W -. Ready Mode : 30W -. Off Mode : 0.45W Printer Language SPL PC Interfaces High speed USB2.0 OS compatibility Windows 2000/XP(32/64bits)/Vista(32/64bits)/2003 Server(32/64bits)/2008 Server(32/64bits)/7(32/64bits)/2008 Server R2(64bits) Mac OS X 10.4 ~ 10.6 RedHat Enterprise Linux WS 4, 5 (32/64 bit) Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64 bit) SuSE Linux 10.1 (32 bit) OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit) Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit) Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit) SuSE Linux Enterprise Desktop 10, 11 (32/64 bit) Debian 4.0, 5.0 (32/64 bit) Sun Solaris 9,10 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4 Modes of Operation USB Printing, ADF Scan, ADF Copy, FAX, Handset Intended Class for Emissions Class B

-1/37- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20114306 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application August 17, 2011 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSF760P Kind of product Mono Laser Printer Model No. SF-760P Variant Model No. - Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd., Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period September 19, 2011 ~ September 22, 2011 Issue date September 22, 2011 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Young Hun Cheong Reviewed by : Tae Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20114306 Mono Laser Printer : SF-760P -2/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history - 3 page 1.2 Sample calculation - 3 page 2. Summary of test results 2.1 Emission - 3 page 3. General Information 3.1 Test facility - 4 page 4. Test configuration 4.1 Test configuration - 4 page 4.2 EUT operating mode(s) - 6 page 4.3 Details of Sampling - 6 page 4.4 Clock Frequencies - 6 page 4.5 EUT Description - 7 page 4.6 Test configuration and condition - 8 page 4.7 Measurement uncertainty - 8 page 5. Result of individual tests 5.1 Conducted disturbance - 9 page 5.2 Radiated disturbance - 19 page Appendix – EUT photography - 36 page Project No. : LBE20114306 Mono Laser Printer : SF-760P -3/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ◦ Class B limit = 60 dBμV (Quasi-peak limit) ◦ Level (50 dBμV) = Meter Reading (40.2 dBμV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ◦ Margin (10 dB) = Limit (60 dBμV) – Level (50 dBμV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ◦ Class B limit = 40 dBμV/m at 3 m ◦ Level (30 dBμV/m) = Meter Reading (50 dBμV) + factor (- 20 dB(1/m), antenna factor + cable loss – amplifier gain) ◦ Margin (10 dB) = Limit (40 dBμV/m) – Level (30 dBμV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No. Revised detailed information Issue 0 There are no revisions and this version is basic test report. Project No. : LBE20114306 Mono Laser Printer : SF-760P -4/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 4. Test Setup configuration 4.1 Test configuration 4.1.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A Mono Laser Printer SF-760P - SAMSUNG A3LSF760P B Note book Computer NP-QX411-PS1 ZY6P93CZC00017W SAMSUNG DoC C Adapter PA-1600-66 (AD-6019R) CNBA4400242AD2VH0A U027U LITE ON - D USB Mouse MS201U 73H1886 MONTEREY INTERNATIONAL CORP DoC E Head set LEO-3007MV - LEONIX DoC F Telephone SF-F131 - Samsung DoC Project No. : LBE20114306 Mono Laser Printer : SF-760P -5/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.2 Test cables No. Connected cable Length [m] Shielded [Y/N] Note 1 Power 1.8 No For EUT 2 Power 1.8 No For laptop PC 3 USB 1.5 Yes From laptop PC to EUT 4 USB 1.8 Yes From laptop PC to Mouse 5 Head set 1.5 No For Note PC to Head set 6 TEL 10.0 No From EUT to K/P system 7 TEL 2.0 No From EUT to Telephone 4.1.3 Test arrangement Project No. : LBE20114306 Mono Laser Printer : SF-760P -6/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Standby Mode Operating Mode 2 ADF Copy Mode Operating Mode 3 USB Mode Operating Mode 4 Fax Tx Mode 4.3 Details of Sampling Customer selected, s…

Text truncated - open the document above for the full version.

Project No. : LBE20114306 Mono Laser Printer : SF-760P -10/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.1.3 Photograph of Test Setup Front Rear Project No. : LBE20114306 Mono Laser Printer : SF-760P -22/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.2.3 Photograph of Test Setup Front (Below 1 GHz) Rear (Below 1 GHz) Project No. : LBE20114306 Mono Laser Printer : SF-760P -23/37- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1 GHz) Rear (above 1 GHz)
