A3LSGHA617Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone w/ BT

* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English (AUS). 10/2006. Rev. 1.0 SGH-A 617 User’s Guide Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 112. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [] Indicates a key on the phone. For example, [] <> Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > •3G Your phone is capable of operating in a 3G environment, allowing much greater data transfer speed, video streaming, and video conferencing. Special f eatures of your phone • Camera and camcorder Use the camera module on your phone to take a photo or record a video. • Media player Play media files on your phone. You can enjoy high quality videos and music. Special features of your phone 3 • Bluetooth Transfer media files and personal data and connect to other devices using free, wireless Bluetooth technology. •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. • Messenger Have a conversation with other people by sending and receiving instant messages. • Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, video, and audio. •E-mail Send and receive e-mails with image, video, and audio attachments. •Java Enjoy Java™-based embedded games and download new games. •Phonebook Store home, office, or cellular phone numbers for your contacts. • Name card Create name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Keys, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone.............................. 7Power on or off ................................................ 9Keys and display .............................................. 9Access menu functions .................................... 13Customise your phone .................................... 14Make/Answer calls .......................................... 17Step outside the phone 18 Begin with your camera, the media player, the web, and other special featuresUse the camera.............................................. 18Play media files .............................................. 19 Browse the web.............................................. 20Use Phonebook .............................................. 21Send messages .............................................. 22View messages .............................................. 24Use Bluetooth ................................................ 25Switch applications ......................................... 27 Enter text 28 ABC, T9, Number, and Symbol modesCall functions 31 Advanced calling featuresMenu functions 36 All menu options listedSolve problems 110 Help and personal needsHealth and safety information 112 Index 121 5 1 Call log p. 36 1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Data volume8 Data call time9 Call cost 1 p. 36p. 37p. 37p. 37p. 37p. 38p. 38p. 39p. 39 2 Phonebook p. 39 1 Search contact2 New contact3 Groups4 Speed dial list5 My business card6 Copy all7 Own number8 FDN list9 Service number 1 10 Settings11 Memory status p.…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






October 20, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: October 20, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L SGHA617 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

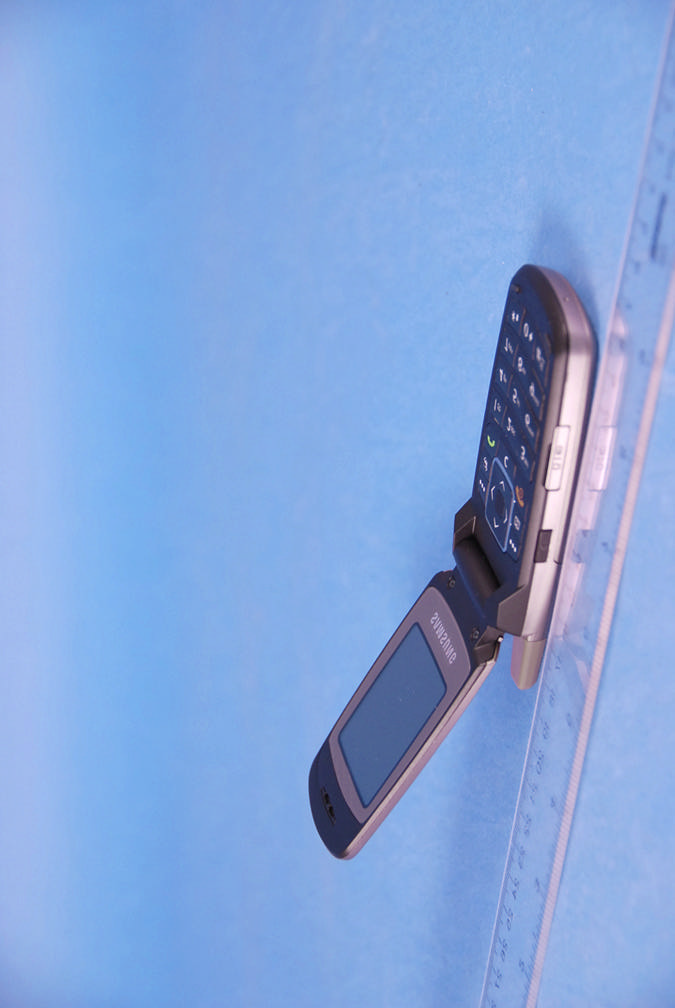

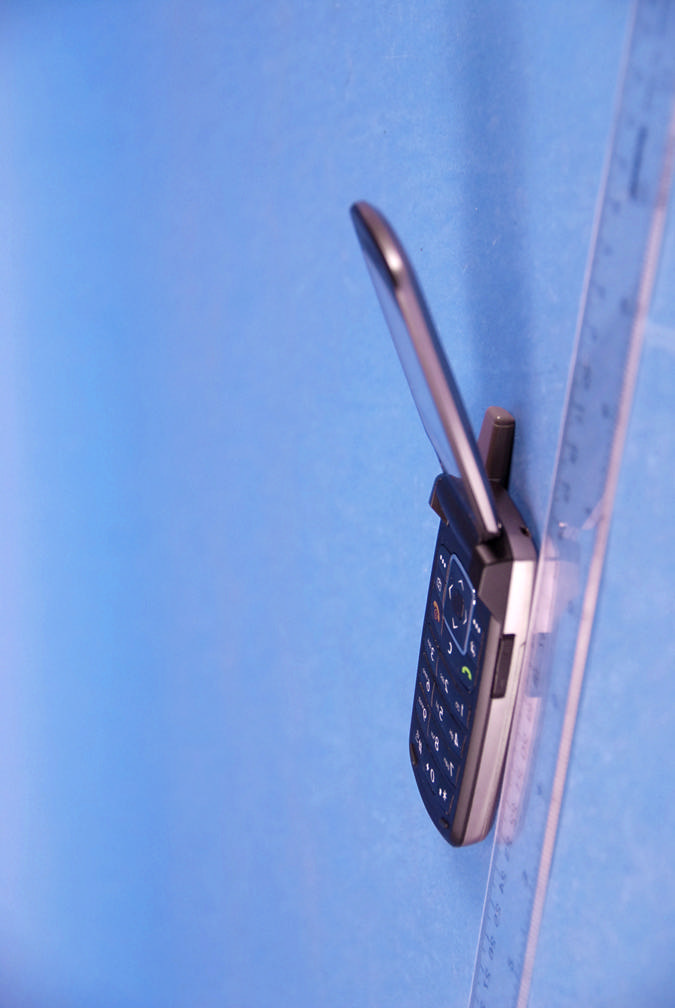

SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617

SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617 SAMSUNG FCC ID: A3LSGHA617 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A617

Reviewed by: FCC ID: A3LSGHA617 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0610190920 10/24/06 - 10/26/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 1 of 26 © 2006 PCTEST Engineering Laboratory, Inc. V3.3 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/24/06 - 10/26/06 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0610190920 FCC ID: A3LSGHA617 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Dual-Band GSM/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-A617 Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) / 1850.20 - 1909.80 MHz (GSM PCS) 826.40 - 846.60 MHz (Cellular WCDMA)/1852.4 - 1907.6 MHz (PCS WCDMA) Conducted Power: 32.3 dBm : GSM850MHz / 29.7dBm : GSM1900MHz 23.26dBm: WCDMA 850MHz / 23.28 dBm : WCDMA 1900MHz 0.693 W/kg WCDMA850 Head SAR / 0.046 W/kg WCDMA850 Body SAR 0.625 W/kg WCDMA1900 Head SAR / 0.197 W/kg WCDMA1900 Body SAR 0.688 W/Kg GSM850 Head SAR / 0.352 W/Kg GSM850 Body SAR Max. SAR Measurement: 0.473 W/Kg GSM1900 Head SAR / 0.646 W/Kg GSM1900 Body SAR Test Device Serial No. Pre-Production [S/N: FD-201-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body- worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHA617 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0610190920 10/24/06 - 10/26/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 2 of 26 © 2006 PCTEST Engineering Laboratory, Inc. V3.3 TABLE OF CONTENTS 1 INTRODUCTION...................................................................................................................3 2 TEST SITE LOCATION..........................................................................................................4 3 SAR MEASUREMENT SETUP...............................................................................................5 4 DASY E-FIELD PROBE SYSTEM...........................................................................................7 5 PROBE CALIBRATION PROCESS.........................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES...............................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................................10 8 DEFINITION OF REFERENCE POINTS.................................................................................11 9 TEST CONFIGURATION POSITIONS...................................................................................12 10 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................................................14 11 MEASUREMENT UNCERTAINTIES......................................................................................15 12 SYSTEM VERIFICATION......................................................................................................16 13 DEVICE TEST CONDITIONS................................................................................................17 14 SAR DATA SUMMARY.........................................................................................................18 15 EQUIPMENT LIST................................................................................................................23 16 CONCLUSION......................................................................................................................24 17 REFERENCES.....................................................................................................................25 Reviewed by: FCC ID: A3LSGHA617 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0610190920 10/24/06 - 10/26/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 3 of 26 © 2006 PCTEST Engineering Laboratory, Inc. V3.3 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1- 1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electr…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A617; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-201-B Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 41.5, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 10-25-2006; Ambient Temp: 23.8°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Left Head, Touch, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.25 V/m Peak SAR (extrapolated) = 0.982 W/kg SAR(1 g) = 0.688 mW/g; SAR(10 g) = 0.454 mW/g 0 dB = 0.790mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A617; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-201-B Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 41.5, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 10-25-2006; Ambient Temp: 23.8°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Left Head, Tilt, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.95 V/m Peak SAR (extrapolated) = 0.213 W/kg SAR(1 g) = 0.164 mW/g; SAR(10 g) = 0.123 mW/g 0 dB = 0.182mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A617; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-201-B Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 41.5, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 10-25-2006; Ambient Temp: 23.8°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Right Head, Touch, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.81 V/m Peak SAR (extrapolated) = 0.913 W/kg SAR(1 g) = 0.630 mW/g; SAR(10 g) = 0.412 mW/g 0 dB = 0.731mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A617; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-201-B Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 41.5, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 10-25-2006; Ambient Temp: 23.8°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Right Head, Tilt, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.87 V/m Peak SAR (extrapolated) = 0.184 W/kg SAR(1 g) = 0.140 mW/g; SAR(10 g) = 0.104 mW/g 0 dB = 0.156mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A617; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-201-B Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 39.09, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 10-26-2006; Ambient Temp: 23.4°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM1900, Left Head, Touch, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.20 V/m Peak SAR (extrapolated) = 0.708 W/kg SAR(1 g) = 0.398 mW/g; SAR(10 g) = 0.211 mW/g 0 dB = 0.492mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A617; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-201-B Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 39.09, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 10-26-2006; Ambient Temp: 23.4°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM1900, Left Head, Tilt, Mid.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.40 V/m Peak SAR (extrapolated) = 0.149 W/kg SAR(1 g) = 0.092 mW/g; SAR(10 g) = 0.054 mW/g 0 dB = 0.108mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A617; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-201-B Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 39.09, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 10-26-2006; Ambient Temp: 23.4°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surfac…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 406 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 41.5, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 10-24-2006; Ambient Temp: 23.5 ° C ; Tissue Temp: 21.8 ° C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.57 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = 1.89 % 0 dB = 2.83mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 406 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 41.5, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 10-25-2006; Ambient Temp: 23.8 ° C ; Tissue Temp: 22.1 ° C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.61 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = 4.42 % 0 dB = 2.81mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 39.09, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 10-24-2006; Ambient Temp: 23.5 ° C ; Tissue Temp: 21.8 ° C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.74 mW/g; SAR(10 g) = 1.87 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = -5.79 % 0 dB = 4.86mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 39.09, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 10-26-2006; Ambient Temp: 23.4 ° C ; Tissue Temp: 21.5 ° C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.76 mW/g; SAR(10 g) = 1.88 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = -5.29 % 0 dB = 4.92mW/g

Reviewed by: FCC ID: A3LSGHA617 FCC Pt. 22/24 GSM MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0610190921 October 20-24, 2006 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Page 1 of 29 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 4.11 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. October 20-24, 2006 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0610190921 FCC ID: A3LSGHA617 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model(s): SGH-A617 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) Rx Frequency Range: 869.20 - 893.80MHz (Cell. GSM) / 1930.20 - 1989.80MHz (PCS GSM) Max. RF Output Power: 1.894 W ERP Cell. GSM (32.773 dBm) / 0.762 W EIRP PCS GSM (28.821 dBm) 1.894 W ERP Cell. GSM (32.773 dBm) / 0.762 W EIRP PCS GSMEDGE (28.821 dBm) Max. SAR Measurement: 0.688 W/kg Cell. GSM Head SAR; 0.352 W/kg Cell. GSM Body SAR 0.473 W/kg PCS GSM Head SAR; 0.646 W/kg PCS GSM Body SAR Emission Designator(s): 314KGXW (Cell. GSM) / 310KG7W (Cell. EDGE) 315KGXW (PCS GSM) / 312KG7W (PCS EDGE) Test Device Serial No.: identical prototype [S/N: FD-201-A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LSGHA617 FCC Pt. 22/24 GSM MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0610190921 October 20-24, 2006 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Page 2 of 29 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 4.11 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................................3 1.0 INTRODUCTION ............................................................................................................................................. 4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION …

Text truncated - open the document above for the full version.
