A3LSGHA717Cellular/PCS GSM/ EDGE/ WCDMA Phone with Bluetooth

* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. World Wide Webhttp://www.samsungmobile.com A717.book Page 1 Friday, December 1, 2006 11:12 AM D r a f t 0 1 2 0 0 6 . 1 2 . 0 1 SGH-A717User’s Guide A717.book Page 2 Friday, December 1, 2006 11:12 AM Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc.Headquarters:1301 East Lookout Drive Suite 150 Richardson, TX 75082 Internet Address: http://www.samsungusa.com©2006 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Openwave® is a registered Trademark of Openwave, Inc. RSA® is a registered TrademarSk RSA Security, Inc. A717.book Page 3 Friday, December 1, 2006 11:12 AM Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. A717.book Page 4 Friday, December 1, 2006 11:12 AM 1 Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuelingDo not use the phone at a refueling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. A717.book Page 1 Friday, December 1, 2006 11:12 AM Important safety precautions 2 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 21. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. A717.book Page 2 Friday, December 1, 2006 11:12 AM 3 Contents Unpack 4 Make sure you have each itemYour phone 4 Keys, features, and locationsGet started 5 First steps to operating your phoneOverview of menu functions 8 Menu functions 9 All menu options listedCingular Music ................................................... 9Messaging ......................................................... 9Recent Calls...................................................... 11MEdia Net......................................................... 13 Cingular Mall .................................................... 14Cingular Video .................................................. 15My Stuff........................................................... 15Address Book.................................................... 16Settings .......…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






December 15, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: December 15, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L SGHA717 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

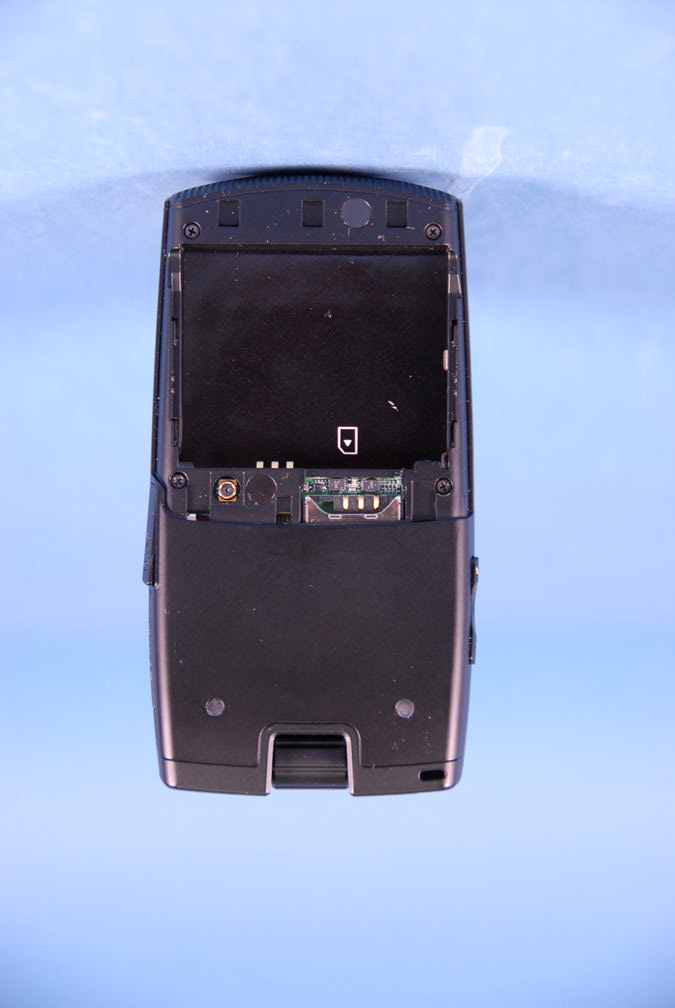

SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717

3. FCC ID Label Location

SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717 SAMSUNG FCC ID: A3LSGHA717 Dual-Band EUT Photographs © 2006 PCTEST Lab. Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth Model: SGH-A717

Reviewed by: FCC ID: A3LSGHA717 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0612151118 12/19/06 - 12/21/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 1 of 27 © 2006 PCTEST Engineering Laboratory, Inc. REV 3.4U 11/07/06 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/19/06 - 12/21/06 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0612151118 FCC ID: A3LSGHA717 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Dual-Band GSM/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-A717 Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) / 1850.20 - 1909.80 MHz (GSM PCS) 826.40 - 846.60 MHz (Cellular WCDMA) / 1852.4 - 1907.6 MHz (PCS WCDMA) Conducted Power: 23.32 dBm WCDMA 850, 22.44 dBm WCDMA1900 32.30 dBm GSM 850, 29.60 dBm GSM 1900 Maximum SAR: 0.588 W/kg GSM850 Head SAR / 1.050 W/kg GPRS 850 Body SAR 0.290 W/kg GSM PCS Head SAR / 0.393 W/kg GPRS PCS Body SAR 0.576 W/kg WCDMA850 Head SAR / 0.497 W/kg WCDMA850 Body SAR 0.115 W/kg WCDMA1900 Head SAR / 0.168 W/kg WCDMA1900 Body SAR Device Serial No.: Pre-Production [S/N: FD-243C] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHA717 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0612151118 12/19/06 - 12/21/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 2 of 27 © 2006 PCTEST Engineering Laboratory, Inc. REV 3.4U 11/07/06 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ........................................................... 17 14 SAR DATA SUMMARY ................................................................................................................. 18 15 EQUIPMENT LIST......................................................................................................................... 24 16 CONCLUSION............................................................................................................................... 25 17 REFERENCES .............................................................................................................................. 26 Reviewed by: FCC ID: A3LSGHA717 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0612151118 12/19/06 - 12/21/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 3 of 27 © 2006 PCTEST Engineering Laboratory, Inc. REV 3.4U 11/07/06 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 IEEE Standard for Safety Leve…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A717; Type: Dual Band WCDMA/GSM Phone with BT; S/N: FD-243-C Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (s = 0.9 mho/m, e r = 40.53, r = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-20-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Left Head, Touch, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.52 V/m Peak SAR (extrapolated) = 0.765 W/kg SAR(1 g) = 0.556 mW/g; SAR(10 g) = 0.369 mW/g 0 dB = 0.620mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A717; Type: Dual Band WCDMA/GSM Phone with BT; S/N: FD-243-C Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (s = 0.9 mho/m, e r = 40.53, r = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-20-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Left Head, Tilt, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.64 V/m Peak SAR (extrapolated) = 0.076 W/kg SAR(1 g) = 0.057 mW/g; SAR(10 g) = 0.041 mW/g 0 dB = 0.063mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A717; Type: Dual Band WCDMA/GSM Phone with BT; S/N: FD-243-C Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (s = 0.9 mho/m, e r = 40.53, r = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-20-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Right Head, Touch, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.52 V/m Peak SAR (extrapolated) = 0.841 W/kg SAR(1 g) = 0.588 mW/g; SAR(10 g) = 0.376 mW/g 0 dB = 0.657mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A717; Type: Dual Band WCDMA/GSM Phone with BT; S/N: FD-243-C Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (s = 0.9 mho/m, e r = 40.53, r = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-20-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Right Head, Tilt, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.43 V/m Peak SAR (extrapolated) = 0.091 W/kg SAR(1 g) = 0.070 mW/g; SAR(10 g) = 0.052 mW/g 0 dB = 0.077mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A717; Type: Dual Band WCDMA/GSM Phone with BT; S/N: FD-243-C Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (s = 1.41 mho/m, e r = 39.06, r = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-21-2006; Ambient Temp: 23.8°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM1900, Left Head, Touch, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.09 V/m Peak SAR (extrapolated) = 0.521 W/kg SAR(1 g) = 0.244 mW/g; SAR(10 g) = 0.108 mW/g 0 dB = 0.313mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A717; Type: Dual Band WCDMA/GSM Phone with BT; S/N: FD-243-C Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (s = 1.41 mho/m, e r = 39.06, r = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-21-2006; Ambient Temp: 23.8°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM1900, Left Head, Tilt, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.10 V/m Peak SAR (extrapolated) = 0.052 W/kg SAR(1 g) = 0.026 mW/g; SAR(10 g) = 0.014 mW/g 0 dB = 0.032mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A717; Type: Dual Band WCDMA/GSM Phone with BT; S/N: FD-243-C Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (s = 1.41 mho/m, e r = 39.06, r = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-21-2006; Ambient Temp: 23.8°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electro…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (s = 0.9 mho/m, e r = 40.53, r = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 12-19-2006; Ambient Temp: 23.1°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.58 mW/g Target SAR(1g) = 2.38 mW/g; Deviation = 1.05 % 0 dB = 2.79mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (s = 0.9 mho/m, e r = 40.53, r = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 12-20-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.61 mW/g Target SAR(1g) = 2.38 mW/g; Deviation = 3.16 % 0 dB = 2.85mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (s = 1.41 mho/m, e r = 39.06, r = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-19-2006; Ambient Temp: 23.1°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 4.07 mW/g; SAR(10 g) = 2.1 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = 2.52 % 0 dB = 5.09mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (s = 1.41 mho/m, e r = 39.06, r = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-21-2006; Ambient Temp: 23.8°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.96 mW/g; SAR(10 g) = 2.04 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = -0.25 % 0 dB = 4.94mW/g

Reviewed by: FCC ID: A3LSGHA717 FCC Pt. 22/24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0612151117-G December 27 - 29, 2006 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth 2.0 w/ EDR Page 1 of 38 © 2006 PCTEST Engineering Laboratory, Inc. REV 4.4G 12/06/06 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. December 27 - 29, 2006 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0612151117-G FCC ID: A3LSGHA717 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth 2.0 w/ EDR Model(s): SGH-A717 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) Rx Frequency Range: 869.20 - 893.80MHz (Cell. GSM) / 1930.20 - 1989.80MHz (PCS GSM) Max. RF Output Power: 0.998 W ERP Cell. GSM (29.990 dBm) / 1.208 W EIRP PCS GSM (30.820 dBm) 0.476 W ERP EDGE850 (26.780 dBm) / 0.453 W EIRP EDGE1900 (26.560 dBm) Max. SAR Measurement: 0.588 W/kg Cell. GSM Head SAR; 1.050 W/kg Cell. GPRS Body SAR 0.290 W/kg PCS GSM Head SAR; 0.393 W/kg PCS GPRS Body SAR Emission Designator(s): 314KGXW (Cellular GSM), 314KGXW (PCS GSM) 302KG7W (EDGE850), 307KG7W (EDGE1900) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LSGHA717 FCC Pt. 22/24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0612151117-G December 27 - 29, 2006 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth 2.0 w/ EDR Page 2 of 38 © 2006 PCTEST Engineering Laboratory, Inc. REV 4.4G 12/06/06 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................................3 1.0 INTRODUCTION ............................................................................................................................................. 4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ..............................................................................................................................…

Text truncated - open the document above for the full version.
