A3LSGHA801Cellular WCDMA/ PCS GSM/ EDGE Phone with Bluetooth

* Depending on the software installed or your service pr ovider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English (AUS). 01/2007. Rev. 1.0 SGH-A801User’s Guide D r a f t 2 0 0 7 . 0 1 . 1 9 Important safety precautions Drive safely at all timesDo not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. Copyright information• Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. •Java TM is a trademark or registered trademark of Sun Microsystems, Inc. • Picsel and Picsel Viewer TM are trademarks of Picsel Technologies, Inc. 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 26. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone.In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [ ] < > Indicates a soft key, whose function is displays on the phone screen. For example, < Menu > •3G Use the camera module on your phone to take a photo or record a video. Special f eatures of your phone • Camera and camcorder Use the camera module on your phone to take a photo or record a video. •Media player Play media files on your phone. You can enjoy high quality videos and music. 3 •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. • Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, video, and audio. •Email Send and receive emails with image, video, and audio attachments. • Name card Create name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card. •Calendar Keep track of your daily, weekly, and monthly schedule. • Voice recorder Record memos or sounds. 4 Contents Unpack 6 Make sure you have each itemGet started 6 Power on or off......................................... 6Keys and icons ......................................... 6Access menu functions .............................. 9Enter text .............................................. 10Customise your phone ............................. 11Step outside the phone 12 Begin with call functions, camera, web browser, and other special featuresMake or answer calls ............................... 12Use the camera ...................................... 13Browse the web...................................... 14Use Phonebook....................................... 15Send messages ...................................... 15View messages....................................... 17Switch applications ................................. 19 Menu functions 20 All menu options listed 5 Overview of menu functions To access Menu mode, press [ OK ] in Idle mode. 1 Call log2 Phonebook3 Media player4 Browser 1 BigPond home2 Bookmarks3 Enter URL4 Browser profiles5 Clear cache 5 My Place 1 BigPond2 FOXTEL3 Search4 Email5 Music6 Downloads7 Photos8 Maps9 My account 6 Message 1 Create new message2 Inbox3 Sent 4 Outbox5 Drafts6 Email inbox7 Templates8 Broadcast 1 9 Delete all10 Settings11 Memory status 7 Calendar8 Camera9 My files 1 Images2 Videos3 Sounds4 Music5 Games and more6 Other files7 Memory status * Applications1 Memo2 Tasks3 Voice recorder4 World clock5 Calculator6 Converter7 Timer8 Stopwatch9 SAT 1 0 Alarms# Settings1 Phone profiles2 Time & date3 Display & light settings4 Phone settings5 Call settings6 Security7 Application settings8 Network settings9 Memory settings0 Operator settings 1 * Master reset 1. Shows only if supported by your USIM/SIM card. 6 Unpack Make sure you have each item• Phone•Travel Adapter• Battery•User’s GuideYou can obtain various accessories from your local Samsung dealer. Get started Power on or offKeys and iconsKeys The items supplied with your phone …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: March 5, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHA801 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List & Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

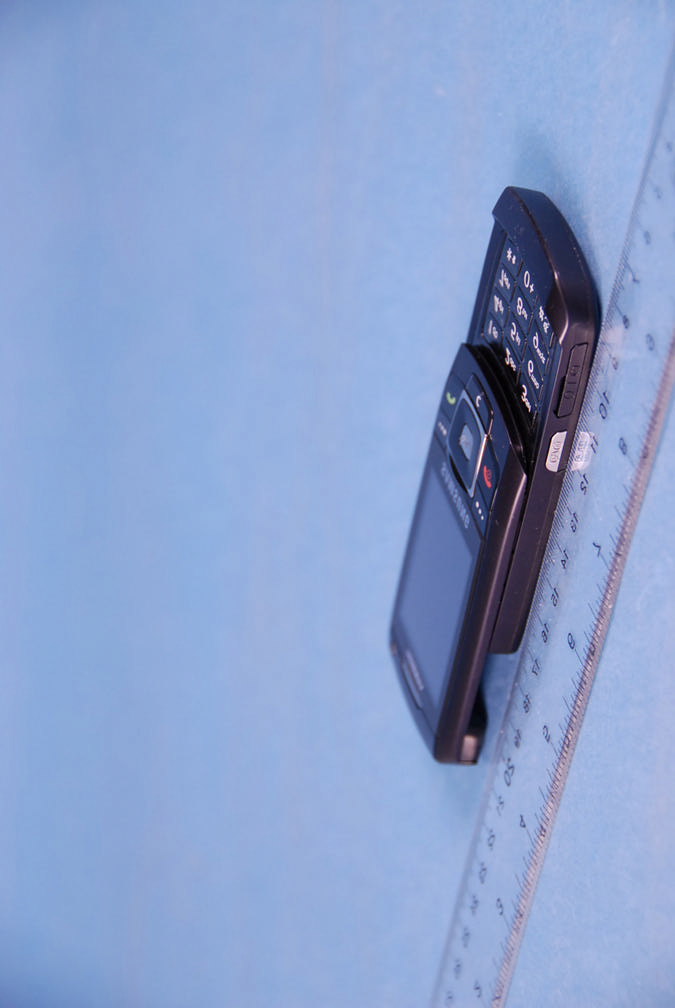

SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801

SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801 SAMSUNG FCC ID: A3LSGHA801 PCS GSM EUT Photographs © 2007 PCTEST Lab. EDGE 1900 / Cellular WCDMA Phone with Bluetooth Model: SGH-A801

PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A801; Type: Dual Band GSM/WCDMA Phone; Serial: SAR#1 Communication System: WCDMA850; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.91 mho/m, ε r = 41.56, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-12-2007; Ambient Temp: 23.3°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Right Head, Touch, Mid.ch, Slide In with Bluetooth Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.9 V/m Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.746 mW/g 0 dB = 1.17mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A801; Type: Dual Band GSM/WCDMA Phone; Serial: SAR#1 Communication System: WCDMA850; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.91 mho/m, ε r = 41.56, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-12-2007; Ambient Temp: 23.3°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Right Head, Tilt, Mid.ch Slide In Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.1 V/m Peak SAR (extrapolated) = 0.765 W/kg SAR(1 g) = 0.575 mW/g; SAR(10 g) = 0.415 mW/g 0 dB = 0.652mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A801; Type: Dual Band GSM/WCDMA Phone; Serial: SAR#1 Communication System: WCDMA850; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.91 mho/m, ε r = 41.56, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 3-12-2007; Ambient Temp: 23.3°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Left Head, Touch, Mid.ch Slide In Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.8 V/m Peak SAR (extrapolated) = 1.30 W/kg SAR(1 g) = 0.962 mW/g; SAR(10 g) = 0.680 mW/g 0 dB = 1.08mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A801; Type: Dual Band GSM/WCDMA Phone; Serial: SAR#1 Communication System: WCDMA850; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.91 mho/m, ε r = 41.56, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 3-12-2007; Ambient Temp: 23.3°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Left Head, Tilt, Mid.ch Slide In Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.3 V/m Peak SAR (extrapolated) = 0.563 W/kg SAR(1 g) = 0.438 mW/g; SAR(10 g) = 0.324 mW/g 0 dB = 0.480mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A801; Type: Dual Band GSM/WCDMA Phone; Serial: SAR#1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.45 mho/m, ε r = 38.60, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-13-2007; Ambient Temp: 22.7°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Slide In, Touch, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.04 V/m Peak SAR (extrapolated) = 0.977 W/kg SAR(1 g) = 0.668 mW/g; SAR(10 g) = 0.425 mW/g 0 dB = 0.753mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A801; Type: Dual Band GSM/WCDMA Phone; Serial: SAR#1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.45 mho/m, ε r = 38.60, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-13-2007; Ambient Temp: 22.7°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Slide In, Tilt, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.9 V/m Peak SAR (extrapolated) = 0.251 W/kg SAR(1 g) = 0.168 mW/g; SAR(10 g) = 0.102 mW/g 0 dB = 0.195mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A801; Type: Dual Band GSM/WCDMA Phone; Serial: SAR#1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.45 mho/m, ε r = 38.60, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 3-13-2007; Ambient Temp: 22.7°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surfac…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.91 mho/m, ε r = 41.56, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 3-12-2007; Ambient Temp: 23.3°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor -Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.52 mW/g Target SAR(1g) = 2.25 mW/g; Deviation = 3.88% 0 dB = 2.76mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.45 mho/m, ε r = 38.60, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 3-13-2007; Ambient Temp: 22.7°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.95 mW/g; SAR(10 g) = 2.01 mW/g Target SAR(1g) = 3.75 mW/g; Deviation = 5.33% 0 dB = 4.97mW/g

Reviewed by: FCC ID: A3LSGHA801 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07003130186.A3L 03/12/07 - 03/13/07 850/1900 GSM/WCDMA Phone with Bluetooth Page 1 of 24 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.2U 03/05/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/12/07 - 03/13/07 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 07003130186.A3L FCC ID: A3LSGHA801 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-A801 Tx Frequency: 1850.20 - 1909.80 MHz (GSM PCS) 826.40 - 846.60 MHz (Cellular WCDMA) Conducted Power: 23 dBm WCDMA / 29 dBm PCS Max. SAR Measurement: .702 W/kg GSM1900 Head SAR / 1.03 W/kg GPRS1900 Body SAR 1.05 W/Kg WCDMA850 Head SAR .662 W/Kg WCDMA850 Body SAR Test Device Serial No.: Pre-Production [S/N: SAR #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHA801 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07003130186.A3L 03/12/07 - 03/13/07 850/1900 GSM/WCDMA Phone with Bluetooth Page 2 of 24 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.2U 03/05/07 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ........................................................... 17 14 SAR DATA SUMMARY ................................................................................................................. 18 15 EQUIPMENT LIST......................................................................................................................... 21 16 CONCLUSION............................................................................................................................... 22 17 REFERENCES .............................................................................................................................. 23 Reviewed by: FCC ID: A3LSGHA801 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07003130186.A3L 03/12/07 - 03/13/07 850/1900 GSM/WCDMA Phone with Bluetooth Page 3 of 24 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.2U 03/05/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHA801 FCC Pt. 22/24 PCS GSM/EDGE1900/Cellular WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 070313185.A3L March 13, 2007 PCS GSM/EDGE1900/Cellular WCDMA Phone with Bluetooth Page 1 of 40 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.2GWC 02/20/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. March 13, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: United States 070313185.A3L FCC ID: A3LSGHA801 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: PCS GSM/EDGE1900/Cellular WCDMA Phone with Bluetooth Model(s): SGH-A801 Tx Frequency Range: 1850.20 - 1909.80MHz (PCS GSM) / 1850.20 - 1909.80MHz (EDGE1900) 826.40 - 846.60MHz (Cell. WCDMA) Max. RF Output Power: 0.813 W EIRP PCS GSM (29.1 dBm) /0.257 W EIRP EDGE1900 (24.10dBm) 0.176 W ERP WCDMA850 (22.45 dBm) Emission Designator(s): 243KGXW (PCS GSM) 243KG7W (EDGE1900) 4M18F9W (Cellular WCDMA) Test Device Serial No.: identical prototype [S/N: FE-021-I] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LSGHA801 FCC Pt. 22/24 PCS GSM/EDGE1900/Cellular WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 070313185.A3L March 13, 2007 PCS GSM/EDGE1900/Cellular WCDMA Phone with Bluetooth Page 2 of 40 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.2GWC 02/20/07 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................................3 1.0 INTRODUCTION ............................................................................................................................................. 4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION ............................................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 3.0 DESCRIPTION OF TESTS.............................................................................................................................. 6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 6 3.4 PCS - BASE FREQUENCY BLOCKS ....................................................................................................................... 7 3.5 PCS - MOBILE FREQUENCY BLOCKS ................................................................................................................... 7 3.6 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .................................................................. 7 3.7 RADIATED SPURIOUS AND HARMONIC EMISSIONS .......................................................................................... 7 3.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ...................................................................................... 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................................... 9 5.0 SAMPLE CALCULATIONS............................................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................................ 11 6.1 CONDUCTED OUTPUT POWER ........................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ................................................................................................ 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA.......................................................................…

Text truncated - open the document above for the full version.
