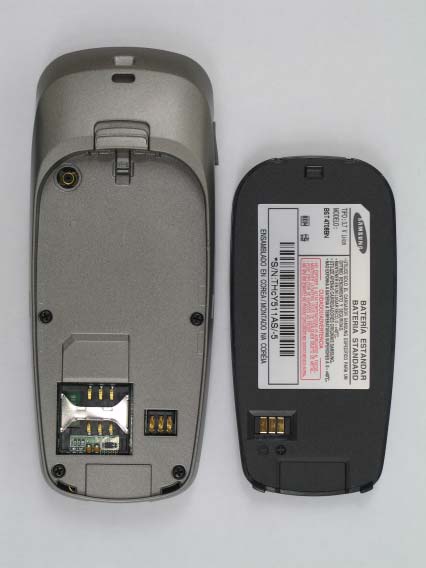

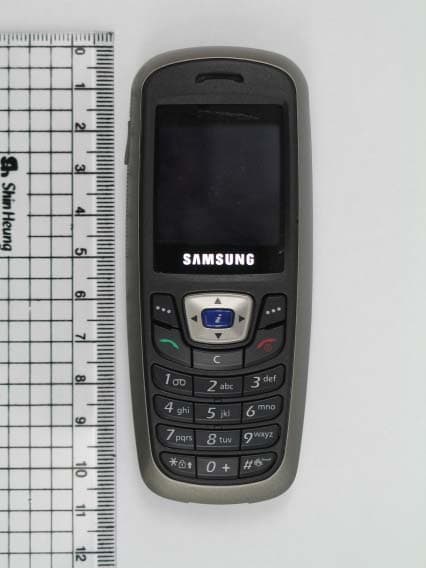

APPENDIX D Test Sample Photographs © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC216 Dual-Band GSM850/GSM1900 Phone

1 of 31 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-C216 FCC ID (Requested): A3LSGHC216 Job No: FC-078 Report No: FC-078-S1 Date issued: June. 13, 2005 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN- Test Engineer Checked By Date SH PARK - Senior Manager Authorized By Date JK CHOI - General Manager Report Number : FC-078-S1 2 of 31 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization.......................................................7 3.5 Device Holder for transmitters....................................................................................8 3.6 Validation Dipole....................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape.............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration..........................................................................14 6. Measurement Uncertainty...................................................................................16 7. System Verification............................................................................................18 7.1 Tissue Verification.................................................................................................18 7.2 Test System Validation...........................................................................................18 8. SAR Measurement Results.................................................................................19 8.1 Measurement Results(GSM850 Right Head SAR-Touch)............................................20 8.2 Measurement Results(GSM850 Right Head SAR-Tilt)................................................21 8.3 Measurement Results(GSM850 Left Head SAR-Touch)..............................................22 8.4 Measurement Results(GSM850 Left Head SAR-Tilt)..................................................23 8.5 Measurement Results(GSM1900 Right Head SAR-Touch)............................................24 8.6 Measurement Results(GSM1900 Right Head SAR-Tilt)................................................25 8.7 Measurement Results(GSM1900 Left Head SAR-Touch)..............................................26 8.8 Measurement Results(GSM1900 Left Head SAR-Tilt)..................................................27 8.9 Measurement Results(GPRS850 Body SAR w/o Holster)..........................................28 8.10 Measurement Results(GPRS1900 Body SAR w/o Holster)..........................................29 9. Conclusion.......................................................................................................30 10. Reference.......................................................................................................31 Report Number : FC-078-S1 3 of 31 1. GENERAL INFORMATION Test Sample : Dual-Band GSM850 / GSM1900 Phone Model Number : SGH-C216 Serial Number : Identical prototype (S/N : FC-078-F) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SH LEE, Engineer Phone : +82-31-279-6554 Fax : None Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : June. 02, 2005 - June. 02, 2005 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.2 – 848.8 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) Rx Freq. Range : 869.2 – 893.8 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) Max. RF Output Power : 0.710 W ERP GSM850 (28.51 dBm) 1.660 W EIRP GSM1900 (32.20 dBm) Antenna Manufacturer : EMW Model No.: SGH-C216 Antenna Dimensions : 36.21mm × 12.91mm × 4.5mm [INTENNA] Report Number : FC-078-S1 4 of 31 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to…

Text truncated - open the document above for the full version.

APPENDIX G Plots of The SAR Measurements SAMSUNG FCC ID : A3LSGHC216 -- 835MHz GSM850 Head SAR DUT: SGH-C216; Serial: FC-078-F Program Name: SGH-C216 GSM850 Right (Job No. : FC-078) Procedure Name: Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.7; Test Date-02/June/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.92 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(9.24, 9.24, 9.24); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.428 mW/g Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.5 V/m; Power Drift = 0.118 dB Peak SAR (extrapolated) = 0.533 W/kg SAR(1 g) = 0.381 mW/g Maximum value of SAR (measured) = 0.405 mW/g 0 dB = 0.405mW/g SAMSUNG FCC ID : A3LSGHC216 -- 835MHz GSM850 Head SAR DUT: SGH-C216; Serial: FC-078-F Program Name: SGH-C216 GSM850 Right (Job No. : FC-078) Procedure Name: Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.7; Test Date-02/June/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.92 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(9.24, 9.24, 9.24); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.244 mW/g Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.6 V/m; Power Drift = -0.069 dB Peak SAR (extrapolated) = 0.274 W/kg SAR(1 g) = 0.205 mW/g Maximum value of SAR (measured) = 0.218 mW/g 0 dB = 0.218mW/g SAMSUNG FCC ID : A3LSGHC216 -- 835MHz GSM850 Head SAR DUT: SGH-C216; Serial: FC-078-F Program Name: SGH-C216 GSM850 Left (Job No. : FC-078) Procedure Name: Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.7; Test Date-02/June/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.92 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(9.24, 9.24, 9.24); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.452 mW/g Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = 0.040 dB Peak SAR (extrapolated) = 0.557 W/kg SAR(1 g) = 0.408 mW/g Maximum value of SAR (measured) = 0.428 mW/g 0 dB = 0.428mW/g SAMSUNG FCC ID : A3LSGHC216 -- 835MHz GSM850 Head SAR DUT: SGH-C216; Serial: FC-078-F Program Name: SGH-C216 GSM850 Left (Job No. : FC-078) Procedure Name: Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.7; Test Date-02/June/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.92 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(9.24, 9.24, 9.24); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.253 mW/g Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.7 V/m; Power Drift = 0.034 dB Peak SAR (extrapolated) = 0.302 W/kg SAR(1 g) = 0.223 mW/g Maximum value of SAR (measured) = 0.234 mW/g 0 dB = 0.234mW/g SAMSUNG FCC ID : A3LSGHC216 -- 1900MHz GSM1900 Head SAR DUT: SGH-C216; Serial: FC-078-F Program Name: SGH-C216 GSM1900 Right (Job No. : FC-078) Procedure Name: Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6; Test Date-02/June/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.810, Ant.Intenna, Ba…

Text truncated - open the document above for the full version.

APPENDIX F The Validation Measurements 835MHz Brain Dipole Validation DUT: Dipole 835 MHz; Serial: 4d014 Program Name: 835MHz Dipole Validation 2005.06.02 Procedure Name: 835MHz @ 250mW Procedure Notes: Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.92 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(9.24, 9.24, 9.24); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 835MHz @ 250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 2.68 mW/g 835MHz @ 250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.3 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.78 W/kg SAR(1 g) = 2.5 mW/g Maximum value of SAR (measured) = 2.70 mW/g 0 dB = 2.70mW/g 1900MHz Brain Dipole Validation DUT: Dipole 1900 MHz; Serial: 5d023 Program Name: 1900 Dipole Validation 2005.06.02 Procedure Name: 1900MHz @250mW Procedure Notes: Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 1900MHz @250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 16.1 mW/g 1900MHz @250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.6 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 10.2 mW/g Maximum value of SAR (measured) = 11.4 mW/g 0 dB = 11.4mW/g

APPENDIX H Probe Calibration

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-C216 FCC ID (Requested): A3LSGHC216 Report No: FC-078-R1 Job No: FC-078 Date issued: June 13, 2005 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date YE PARK – Test Engineer Checked By Date SH PARK –Senior Manager Authorized By Date JK CHOI – General Manager © Copyright SAMSUNG Electronics 2005 Report Number : FC-078-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 14 6.3 GSM850 Radiated Spurious & Harmonic Measurement 15 6.4 GSM1900 Radiated Spurious & Harmonic Measurement 16 6.5 GSM850 Radiated Spurious & Harmonic Conversion Table 17 6.6 GSM1900 Radiated Spurious & Harmonic Conversion Table 18 6.7 Frequency Stability 19 6.7.1 GSM850 Frequency Stability Table 19 6.7.2 GSM850 Frequency Stability Graph 20 6.7.3 GSM1900 Frequency Stability Table 22 6.7.4 GSM1900 Frequency Stability Graph 23 7.SAMPLE CALCULATION 25 7.1 Emission Designator 8. CONCLUSION 26 9. TEST PLOTS 27 Report Number : FC-078-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 442-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSGHC216 Quantity: Quantity production is planned Emission Designators: 300KG7W Tx Freq. Range: 824.2 - 848.8MHz (GSM850) 1851.25 -1908.75MHz (GSM1900) Rx Freq. Range: 869.2 - 893.8 MHz (GSM850) 1931.25 -1988.75 MHz (GSM1900 ) Max. Power Rating: 0.710W ERP GSM850 ( 28.51dBm) 1.660W EIRP GSM1900 (32.20dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Band GSM850/1900 Phone Modulation(s): GSM850/ GSM1900 Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: June 01, 09-10, 2005 Place of Test: SAMSUNG Lab, Test Report S/N: FC-078-R1 Report Number : FC-078-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 442-742. The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FC-078-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FC-078-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 SMIQ03B 83824/021 2005-12-27 Signal Generator SMR20 835197/030 2006-01-18 Power Meter E4419B GB41293846 2005-09-21 8481B 3318A10325 2005-10-06 Power Sensor 8485A 3318A19924 2005-09-20 Amplifier 5S1G4 304866 2005-10-19 Pre-Amplifier 8449B 3008A00691 2006-01-11 8960 GB42230535 2005-11-04 Communication test set 8960 GB42360886 2005-10-27 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 No…
