A3LSGHE317Dual-Band GSM Phone

DUAL BAND GPRS Series SGH- e 317 Portable Digital Telephone User Manual Please read this manual before operating your phone, and keep it for future reference. Printed in Korea Code No.: GH68-xxxxxA English.03/2004. Rev. 1.0 Dr aft version (0 5 . 26 ) Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsun g or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable) , patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violat e the rights secured by the Intellectual Property. Moreover, yo u agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America, L.P.U.S. Headquarters:1301 East Lookout DriveRichardson, Texas 75082Tel: 972-761-7000Fax: 972-761-7001Customer Care Center:1601 E. Plano ParkwaySuite 150Plano, TX 75047Tel: 888-987-HELP (4357)Fax: 972-761-7501Internet Address: http ://www.samsungusa.com/ wireless ©200 4 Samsung T elecommunications America. All rights re served. No reproduction in wh ole or in part allowed without prior written approval. Samsung is a registered trademark of Samsung Electronics America, In c. and its related entities. 1 Table of Contents Important Safety Precautions .........................7Unpacking .......................................................9Your Phone ...................................................10 Phone Layo ut .........................................................10 Display ..................................................................13Service Light ..........................................................16Camera .................................................................16 Getting Started .............................................17 Installing the SIM Card ............................................17 Charging a Battery ..................................................19Switching the Ph one On/O ff......................................21 Call Functions ...............................................23 Making a Call..........................................................23 Adjusting the Volume ..............................................25Answering a Call .....................................................26Viewing Missed Calls................................................27Quickly Switching to Silent Mode ...............................29 Selecting Functions and Options ...................31Phone Book ..................................................33 Storing a Number with a Name .................................33Using Phone Book Entry Options ...............................36Searching for and Dialing Number in Phone Book ........ 37Editing a Caller Group..............................................39 Speed-dialing .........................................................40Deleting All of the Phone Book Entries........................ 42Checking the Memo ry Status ....................................43 Using the Service Dialing Numbers ............................ 43 2 Entering Text ................................................45 Changing the Text Input Mode .................................. 46 Using T9 Mode........................................................47Using Alphabet Mode ............................................... 49Using Number Mode ................................................ 50Using Symbol Mode .................................................50 Options During a Call ....................................51 Putting a Call on Hold .............................................. 51Switching the Micropho ne Off (Mute) ......................... 52 Muting/Sending Key Tones ....................................... 53 Searching for a Number in Phone Book ...................... 53Using the Message Se rvice (SMS).............................. 54 Call Waiting............................................................54Making a Multi- party Call.......................................... 55 Using the Menus ...........................................57 Accessing a Menu Function by Scrolling...................... 57Using Short cuts ......................................................58 List of Menu Functions ............................................. 58 Text Messages ..............................................65 Inbox (Menu 1.1) ....................................................65 Outbox (Menu 1.2) ..................................................67 Write New (Menu 1.3) ............................................. 68 Templates (Menu 1.4) ............................................. 70 Settings (Menu 1.5) ................................................ 71 Delete All (Menu 1.6) .............................................. 72 Memory Status (Menu 1.7) ....................................... 73 Voice Mail (Menu 1.8) .............................................. 73 Broadcast (Menu 1.9) .............................................. 74 Multimedia Messages ....................................75 Inbox (Menu 2.1) ....................................................75 Outbox (Menu 2.2) ..................................................78 Shop MMS (Menu 2.3) ............................................. 79 Draft (Menu 2.4) .....................................................79 3 Write New (M…

Text truncated - open the document above for the full version.

May 10, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHE317 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

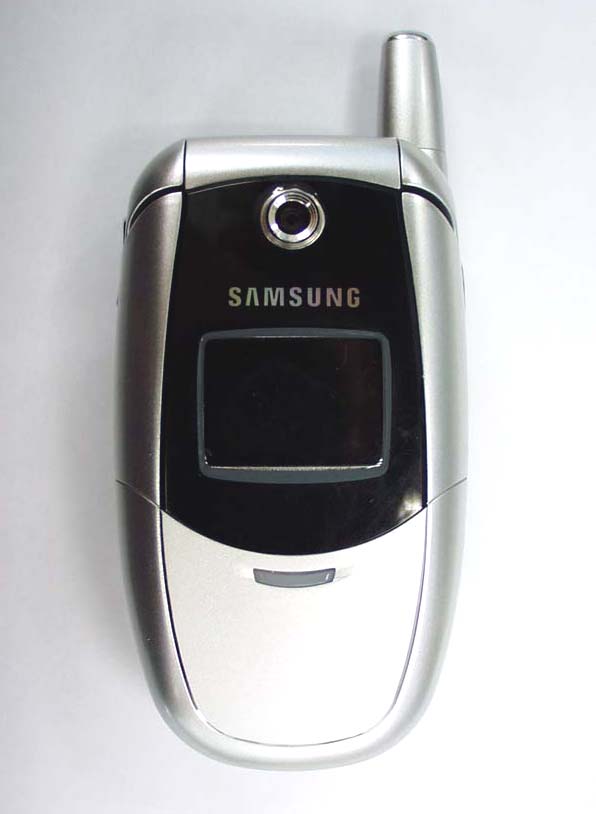

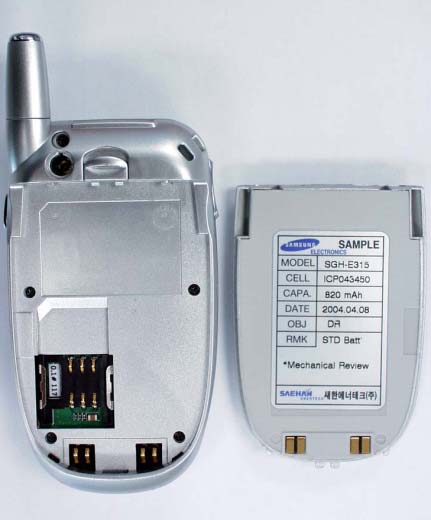

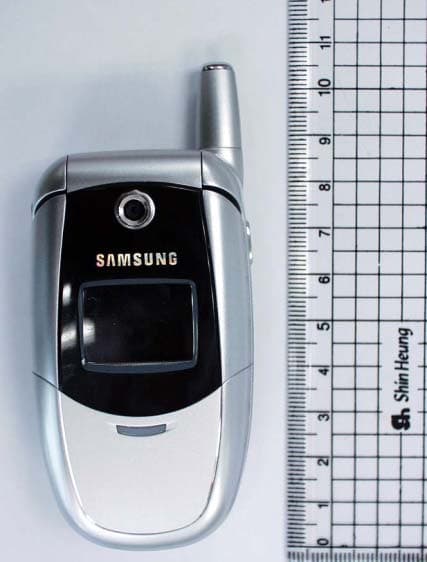

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone

1 of 31 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SGH-E317 FCC ID (Requested): A3LSGHE317 Job No: FB-021 Report No: FB-021-S1/3 Date issued: June 04, 2004 Supplement Test Report FB-021-S1/2, dated June 02, 2004. The Test results contained in this Report Supersede those - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN – Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI – Senior Manager Report Number : FB-021-S1/3 2 of 31 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 E-Field Probe........................................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................18 7.1 Tissue Verification..............................................................................................18 7.2 Test System Validation...........................................................................................18 8. SAR Measurement Results.................................................................................19 8.1 Measurement Results(GSM 850 Right Head SAR-Touch)........................................20 8.2 Measurement Results(GSM 850 Right Head SAR-Tilt)............................................21 8.3 Measurement Results(GSM 850 Left Head SAR-Touch)..........................................22 8.4 Measurement Results(GSM 850 Left Head SAR-Tilt)...............................................23 8.5 Measurement Results(PCS GSM Right Head SAR-Touch).....................................24 8.6 Measurement Results(PCS GSM Right Head SAR-Tilt)............................................25 8.7 Measurement Results(PCS GSM Left Head SAR-Touch)..........................................26 8.8 Measurement Results(PCS GSM Left Head SAR-Tilt)...............................................27 8.9 Measurement Results(GSM 850 Body SAR w/o Holster)..............................................28 8.10 Measurement Results(PCS GSM Body SAR w/o Holster)........................................29 9. Conclusion.......................................................................................................30 10. Reference.......................................................................................................31 Report Number : FB-021-S1/3 3 of 31 1. GENERAL INFORMATION Test Sample : Dual-Band GSM 850/ GSM PCS Phone Model Number : SGH-N317 Serial Number : Identical prototype (S/N : FB-021-E ) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : DH LEE, Engineer Phone : +82-54-479-7623 Fax : +82-54-479-5921 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : May 04, 2004 ~ May 07, 2004 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.2 – 848.8 MHz (GSM 850) 1850.00 – 1910.00 MHz (PCS GSM) Rx Freq. Range : 869.2 – 893.8 MHz (GSM 850) 1930.00 – 1990.00 MHz (PCS GSM) Max. RF Output Power : 3.289 W ERP GSM 850 ( 35.17 dBm) 1.517 W EIRP PCS GSM (31.81 dBm) Antenna Manufacturer : ACE Technology Model No. : SGH-E317 Antenna Dimensions : 18.5 mm [Fixed] Report Number : FB-021-S1/3 4 of 31 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power suppl…

Text truncated - open the document above for the full version.

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE317 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS307 Dual-Band GSM 850/ GSM PCS Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-E317 FCC ID (Requested): A3LSGHE317 Report No: FB-021-R1/2 Job No: FB-021 Date issued: June 2, 2004 Supplement Test Report FB-021-R1, dated May 14, 2004. The test results contained in this Report in Report Supersede those. - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date SH KWON – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2004 Report Number : FB-021-R1/2 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 14 6.3 GSM850 Radiated Spurious & Harmonic Measurement 15 6.4 GSM1900 Radiated Spurious & Harmonic Measurement 16 6.5 GSM850 Radiated Spurious & Harmonic Conversion Table 17 6.6 GSM1900 Radiated Spurious & Harmonic Conversion Table 18 6.7 Frequency Stability 19 6.7.1 GSM850 Frequency Stability Table 19 6.7.2 GSM850 Frequency Stability Graph 20 6.7.3 GSM1900 Frequency Stability Table 22 6.7.4 GSM1900 Frequency Stability Graph 23 7.SAMPLE CALCULATION 25 7.1 Emission Designator 8. CONCLUSION 26 9. TEST PLOTS 27 Report Number : FB-021-R1/2 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtongl-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSGHE317 Quantity: Quantity production is planned Emission Designators: 250KGXW Tx Freq. Range: 824.2 - 848.8MHz (GSM850) 1851.25 -1908.75MHz (GSM1900) Rx Freq. Range: 869.2 - 893.8 MHz (GSM850) 1931.25 -1988.75 MHz (GSM1900 ) Max. Power Rating: 3.289W ERP GSM850 ( 35.17 dBm) 1.517W EIRP GSM1900 ( 31.81 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Mode GSM850/GSM1900 Phone Modulation(s): GSM850/ GSM1900 Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: May. 5, 11-13, 2004 Place of Test: SAMSUNG Lab, Test Report S/N: A3LSGHE317 Report Number : FB-021-R1/2 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu, Suwon City, Gyeonggi-Do, KOREA 442- 600. The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-021-R1/2 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FB-021-R1/2 4.TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2004-09-15 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-11-10 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2004-08-22 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 Horn Antenna HF906 360306/011 2005-03-11 Dipole Antenna 3121C-DB4 9007-587 2004-10-21 Receive Antenna HL040 353255/019 2004-07-14 8494A 3308A31997 2005-01-17 Attenuator 8496A 3308A14426 2005-01-17 4278-311-2 B3679637 2005-01-14 Directional Coupler 4278-111-2 B103DC8722 2005-01-14 WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Semi-Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FB-021-R1/2 5. DESCRIPTION OF TESTS 5.1 Effective Radiated Power / Equivalen…
