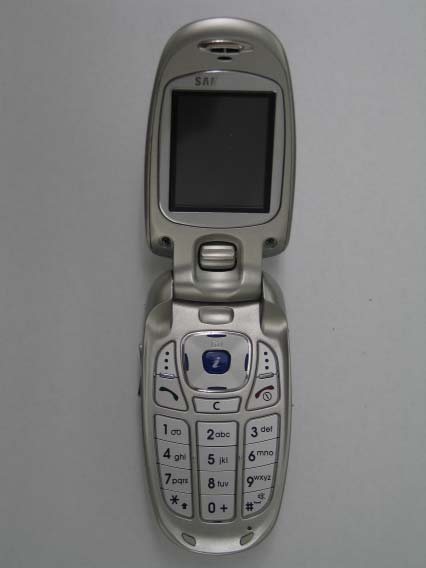

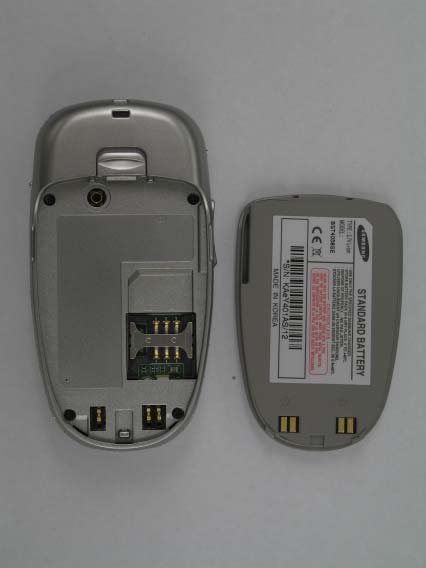

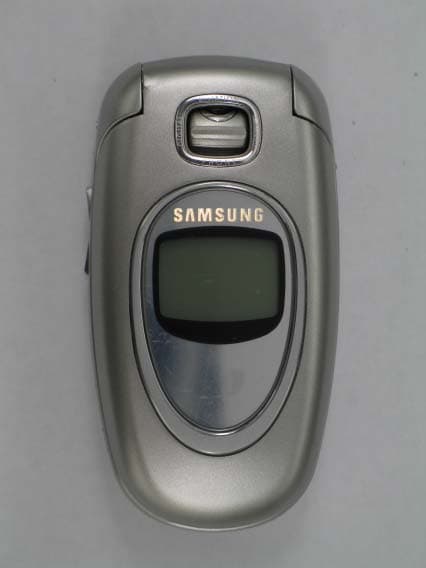

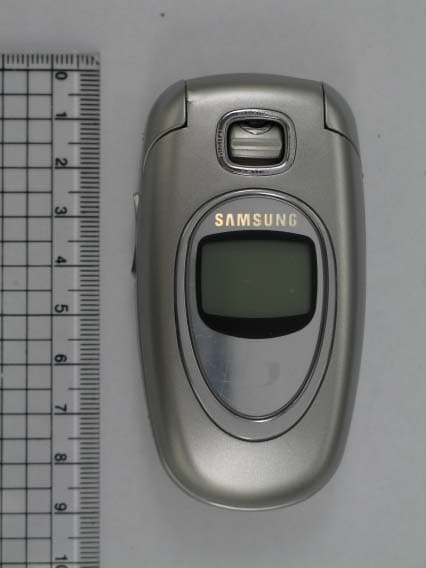

A3LSGHE340EPCS GSM/ EDGE Phone w/ Integral Bluetooth

* Alcune delle istruz ioni fornite in questo manuale possono non corrispondere al proprio telefono in ragione del software installato o del gestore telefonico a cui si è collegati. * Il telefono e gli accessori illu strati in questo manuale poss ono variare in base ai paesi. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-xxxxxx Italian. 05/2005. Rev 1.0 SGH-E340EManuale dell'utente Sicurezza stradale sempreNon usare i telefoni cellulari durante la guida di veicoli. Parcheggiare il veicolo prima di parlare al telefono. Spegnere il telefono durante il rifornimento di carburanteNon usare il telefono presso le stazioni di servizio o in prossimità di carburan ti o prodotti chimici. Spegnere il telefono a bordo degli aereiI telefoni cellulari possono causare interferenze. Il loro utilizzo a bordo degli aerei è illegale e pericoloso.Spegnimento del telefono in prossimità di apparecchiature medicheGli ospedali o le strutture ambulatoriali possono adoperare apparecchi sensibili alle emissioni RF esterne. Rispettare le norme vigenti. Importanti precauzioni di sicurezza Il loro mancato rispetto può risultare pericoloso o illegale. Importanti precauzioni di sicurezza 1 InterferenzeTutti i telefoni cellulari possono essere soggetti a interferenze che possono influenzare le prestazioni dei telefoni.Normative specialiRispettare le eventuali normative speciali in vigore in loco e spegnere sempre il te lefono quando ne è vietato l’uso o quando può causare interferenze o rappresentare un pericolo. ImpermeabilitàIl telefono non è impermeabile. Mantenerlo asciutto. Utilizzo correttoUsare il telefono solo nella posizione normale (appoggiato all’orecchio). Evit are di entrare in contatto con l’antenna quando il telefono è acceso. Chiamata d’emergenzaDigitare il numero di emerge nza del paese in cui ci si trova, quindi premere il tasto . Tenere il telefono fuori dalla portata dei bambini Tenere il telefono e tutti gl i accessori inclusi fuori dalla portata dei bambini.Accessori e batterieUsare solo gli accessori e le batterie approvati Samsung. L'impiego di accessori non autorizzati potrebbe provocare danni al telefono e risultare pericoloso.Assistenza qualificataLa riparazione del telefono va effettuata solo da personale qualificato.Per ulteriori informazioni sulla sicurezza, vedere "Informazioni sulla salute e la sicurezza" a pagina 100. • Rischio di esplosione se si sostituisce la batteria con una di tipo non adatto.• Smaltire le batterie usate in base a quanto specificato sulle istruzioni. 2 Informazioni sul manualeQuesto manuale dell'utente fornisce informazioni sull'uso del telefono. Per apprendere rapidamente le funzioni principali del telefono, fare riferimento a "Operazioni preliminari" e a "Funzioni speciali".In questo manuale, vengono utilizzate le seguenti icone: Indica che occorre prestare una particolare attenzione alle informazioni successive riguardanti la sicurezza o le funzioni del telefono.  Indica che è possibile ottenere maggiori informazioni alla pagina cui si fa riferimento. → Indica che occorre premere il tasto di navigazione per scorrere all'opzione specificata e selezionarla. [ ] Indica un tasto sul telefono. Ad esempio, [ ] < > Indica un tasto di programmazione, la cui funzione è visualizzata sullo schermo del telefono. Ad esempio, < Menu > • Fotocamera e videocamera Utilizzare il modulo fotocamera del telefono per scattare una foto o registrare un videoclip. Funzioni speciali del telefono • Lettore MP3 Riprodurre file musicali MP3 sul telefono. •Bluetooth Inviare foto, immagini, videoclip e altri dati personali e connettersi ad altri dispositivi tramite la tecnologia senza fili Bluetooth. 3 Funzioni speciali del telefono • Riconoscere l’ID chiamante tramite foto Riconoscere chi chiama tramite la sua foto. • Biglietto da visita Creare biglietti da visita con il numero e profilo dell'utente. Quando ci si presenta ad altri, utilizzare questo utile biglietto da visita elettronico. • Browser WAP Accedere al Wireless Web e vari servizi e informazioni correnti. • MMS (Multimedia Message Service) Inviare e ricevere messaggi MMS con una combinazione di testi, immagini, videoclip e suoni. • Posta elettronica Inviare e ricevere email con allegati immagini, videoclip e audio. •Java Consente di sfruttare i giochi Java ™ integrati e scaricare nuovi giochi. • Calendario Organizzare la pianificazione quotidiana, settimanale e mensile. • Registratore vocale Per registrare memo vocali o suoni. 4 Sommario Apertura dell'imballaggio 6 Accertarsi che siano presenti tutti i componentiIl telefono 6 Pulsanti, funzioni e posizioniOperazioni preliminari 7 Prime operazioni con il telefonoInstallare e caricare il telefono ................................. 7Accensione o spegnimento ...................................... 8Tasti e display ....................................................... 9Accedere alle funzioni di menu ............................... 11 Personalizzare il telefono....................................... 12Effettuare/ricevere chiamate.................................. 14Funzioni speciali 15 Operazioni preliminari con fotocamera, riproduttore musicale e altre funzioni specialiUtilizzare la fotocamera ........................................ 15Riprodurre MP3.................................................... 16 Utilizzare i giochi .................................................. 17Utilizzare la rubrica............................................... 18Navigare sul Web ................................................. 19Inviare messaggi.................................................. 20Visualizzare i messaggi ......................................... 21Utilizzare Bluetooth .............................................. 22 Immissione di testo 24 Modo ABC, T9, Numerico e SimbolicoFunzioni di chiamata 27 Funzioni di chiamata avanzateFunzioni di menu 33 Tutte le opzioni di menu elencateRisoluzione dei problemi 98 Guida e richieste personaliInformazioni sulla salute e la…

Text truncated - open the document above for the full version.















































June 10, 2005        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4




















































June 10, 2005
!
 ""
 ""
#$%"
 &
'
()
*+  !

, !
 "-

)


 .
/01
#
 23!

.
A3LSGHE340E , $
5
 5!

1  " .


 !
6
2)
5
 ,
)(
/01
#
 2
3!
  -
 $

 5!
5

' +
7"

7"

 %
8
3

 !
*%
 %
"
5

-9
%%  2

:
! "

!  !
  "
 !
$%"
! %
 !
  !
 5 "

-

% !
6
/01
#
 2
3!
 !
-  7
% %

 5!
 !

  "
! 7
 !
 6
6  !




7
%- 2




! 7


-
5 "
6
5
  7
% !
6

/01

#
 2
3!
 !


 5 "
6  !
-
5
- 5


 "%
 !


!
5

 5 "


! "
6  !
7
 "%

 5
! 7


"+ 2







;"
<
"
=
3-
/01
#
"
0





















































































June 10, 2005

!
 ""
 ""
 #
 !
$
%
$&'"
 #
(
)*
+,  !

- !
 ".

*



 /
012
$
 %
3!%

/
A3LSGHE340E - &
5
 67 "
 5!


7
8 "


   /


 !
9
%*)
 !
%*
5
 -
*)
012
$
 %
3!%
 &
 6  "
 5!
5


'
'
:
'

'
 !
 ;
"
5

 !

 ' %

7
! "

!  !
  "
 !
&'"
! '
 !
  !
 5 "
.

' !
9
012
$
 %3!

 !

.
' '
 5!
 !

  "
! <
 !
 9
9  !




<
'. %


! <


.
5 "
9
5
  <
' !
9

012
$
 %
3!
5


 5 "
9  !
.
5
. 5


 "'
 !


!
5

 5 "


! "
9  !
<

 "'

 5
! <


", %






="
>
"
?
3.
012
$
"
1%

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE340E Single-Band PCS GSM Phone with Bluetooth

1 of 25 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-E340E FCC ID (Requested): A3LSGHE340E Job No: FC-066 Report No: FC-066-S1 Date issued: May. 23, 2005 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN – Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI – General Manager 2005.05.25 2005.05.26 2005.05.27 Report Number : FC-066-S1 2 of 25 Contents 1. General Information...........................................................................................................3 2. Description of Device.........................................................................................................3 3. Description of Test Equipment.............................................................................................4 3.1 SAR Measurement Setup...........................................................................................................4 3.2 DASY4 E-Field Probe................................................................................................................5 3.3 SAM Phantom..........................................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization.........................................................................7 3.5 Device Holder for transmitters......................................................................................................8 3.6 Validation Dipole.......................................................................................................................8 3.7 Equipment Calibration...............................................................................................................9 4. SAR Measurement Procedure............................................................................................10 5. Description of test position...............................................................................................11 5.1 SAM Phantom Shape...............................................................................................................11 5.2 Cheek/Touch Position...............................................................................................................11 5.3 Ear/Tilt 15° Position.................................................................................................................13 5.4 Body/Leather Configuration.......................................................................................................14 6. Measurement Uncertainty.................................................................................................16 7. System Verification............................................................................................................17 7.1 Tissue Verification..................................................................................................................17 7.2 Test System Validation..........................................................................................................17 8. SAR Measurement Results...............................................................................................18 8.1 Measurement Results(PCS GSM Right Head SAR-Touch).........................................................19 8.2 Measurement Results(PCS GSM Right Head SAR-Tilt)...............................................................20 8.3 Measurement Results(PCS GSM Left Head SAR-Touch).............................................................21 8.4 Measurement Results(PCS GSM Left Head SAR-Tilt)................................................................22 8.5 Measurement Results(PCS GSM Body SAR w/o holster)............................................................23 9. Conclusion.....................................................................................................................24 10. Reference...................................................................................................................25 Report Number : FC-066-S1 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM Phone with Bluetooth (EDGE) Model Number : SGH-E340E Serial Number : Identical prototype (S/N : # FC-066-B ) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SH JUNG, Engineer Phone : +82-31-279-8863 Fax : +82-31-279-4288 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : May. 13, 2005 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 – 1909.80 MHz (PCS GSM) Rx Freq. Range : 1930.20 – 1989.80 MHz (PCS GSM) 2 4 0 2 – 2480 MHz (BT) Max. RF Output Power : 1.189 W EIRP GSM1900 (30.75 dBm) Antenna Manufacturer : Fractus Model No.: ACQ–040 Antenna Dimensions : 35.62mm Report Number : FC-066-S1 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP s…

Text truncated - open the document above for the full version.

APPENDIX G Plots of The SAR Measurements DUT: SGH-E340E; Serial: FC-066-B Program Name: SGH-E340E GSM1900 Right (Job No. : FC-066) Procedure Name: Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.4; Test Date-13/May/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.41 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.50 V/m; Power Drift = 0.274 dB Peak SAR (extrapolated) = 0.730 W/kg SAR(1 g) = 0.436 mW/g Maximum value of SAR (measured) = 0.469 mW/g Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.457 mW/g 0 dB = 0.457mW/g SAMSUNG FCC ID : A3LSGHE340E 1900MHz GSM1900 Head SAR DUT: SGH-E340E; Serial: FC-066-B Program Name: SGH-E340E GSM1900 Right (Job No. : FC-066) Procedure Name: Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.4; Test Date-13/May/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.51 V/m; Power Drift = -0.050 dB Peak SAR (extrapolated) = 0.145 W/kg SAR(1 g) = 0.093 mW/g Maximum value of SAR (measured) = 0.101 mW/g Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.112 mW/g 0 dB = 0.112mW/g SAMSUNG FCC ID : A3LSGHE340E 1900MHz GSM1900 Head SAR DUT: SGH-E340E; Serial: FC-066-B Program Name: SGH-E340E GSM1900 Left (Job No. : FC-066) Procedure Name: Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.4; Test Date-13/May/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.41 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.456 mW/g Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.20 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.693 W/kg SAR(1 g) = 0.430 mW/g Maximum value of SAR (measured) = 0.470 mW/g 0 dB = 0.470mW/g SAMSUNG FCC ID : A3LSGHE340E 1900MHz GSM1900 Head SAR DUT: SGH-E340E; Serial: FC-066-B Program Name: SGH-E340E GSM1900 Left (Job No. : FC-066) Procedure Name: Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.4; Test Date-13/May/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.77 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 0.155 W/kg SAR(1 g) = 0.097 mW/g Maximum value of SAR (measured) = 0.104 mW/g Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.115 mW/g 0 dB = 0.115mW/g SAMSUNG FCC ID : A3LSGHE340E 1900MHz GSM1900 Head SAR DUT: SGH-E340E; Serial: FC-066-B Program Name: SGH-E340E GSM1900 Right (Job No. : FC-066) Procedure Name: Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard with BT on Procedure Notes: Meas.Tissue Temp(celsius)-21.4; Test Date-13/May/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.41 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard with B…

Text truncated - open the document above for the full version.

APPENDIX I Calibration of The Validation Dipole

APPENDIX F The Validation Measurements DUT: Dipole 1900 MHz; Serial: 5d023 Program Name: 1900 Dipole Validation 2005.05.13 Procedure Name: 1900MHz @250mW Procedure Notes: Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 1900MHz @250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 15.6 mW/g 1900MHz @250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.0 V/m; Power Drift = -0.052 dB Peak SAR (extrapolated) = 19.2 W/kg SAR(1 g) = 10.3 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g

APPENDIX H Probe Calibration

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-E340E FCC ID (Requested): A3LSGHE340E Report No: FC-066-R1 Job No: FC-066 Date issued: May 23,2005 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date SS LEE – Test Engineer Checked By Date SH PARK – Senior Engineer Authorized By Date JK CHOI – General Manager © Copyright SAMSUNG Electronics 2005 Report Number : FC-066-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 9 5.4 Spurious and Harmonic Emissions at Antenna Terminal 9 5.4.1 Occupied Bandwidth Emission Limits 9 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Equivalent Isotropic Radiated Power (E.I.R.P.) 14 6.2 Radiated Spurious & Harmonic Measurement 15 6.3 Radiated Spurious & Harmonic Conversion Table 16 6.4 Frequency Stability 17 6.4.1 Frequency Stability Table 17 6.4.2 Frequency Stability Graph 18 7. CONCLUSION 20 8. TEST PLOTS 21 Report Number : FC-066-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 442-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSGHE340E Quantity: Quantity production is planned Emission Designators: 300KG7W Tx Freq. Range: 1850.2MHz -1909.8MHz Rx Freq. Range: 1930.2MHz – 1989.8MHz Max. Power Rating: 1.189W EIRP GSM1900 (30.75dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Single-Band PCS GSM Phone with Bluetooth Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), Dates of Test: May 12, 17-18, 2005 Place of Test: SAMSUNG Lab, Test Report S/N: FC-066-R1 - End of page - Report Number : FC-066-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 442-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FC-066-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FC-066-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 SMIQ03B 83824/021 2005-12-27 Signal Generator SMR20 835197/030 2006-01-18 Power Meter E4419B GB41293846 2005-09-21 8481B 3318A10325 2005-10-06 Power Sensor 8485A 3318A19924 2005-09-20 Amplifier 5S1G4 304866 2005-10-19 Pre-Amplifier 8449B 3008A00691 2006-01-11 8960 GB42230535 2005-11-04 Communication test set 8960 GB42360886 2005-10-27 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2005-07-31 SH-241 92000548 2005-11-22 Environmental Chamber SH-241 92000549 2005-11-22 HF906 360306/011 2006-03-17 Horn Antenna HF906 100134 2006-04-25 3121C-DB4 9007-587 2005-12-02 Dipole Antenna 3121C-DB4 9007-588 2005-05-28 HL040 353255/019 2005-08-13 Receive Antenna HL040 353255/020 2005-06-07 8494A 3308A31997 2006-01-03 Attenuator 8496A 3308A14426 2006-01-04 11636B 51941 Not Required 11636B 51942 Not Required Divider 11636B 51946 Not Required WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FC-066-R1 5. DESCRIPTION OF TESTS 5.1 Equivalent Isotropic Radiated Power Test Set-up for the EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power Measure…
